This 7 inch driving light delivers a focused long range beam with a real output of 9761 lumens and a neutral 5700 K colour temperature for clear road visibility. With 1 lux at 311 metres, it allows you to spot obstacles and wildlife earlier when driving outside urban areas. The lamp operates on 10 to 32 V DC, making it suitable for passenger cars, 4x4 vehicles, vans and heavier applications. A robust aluminium housing, polycarbonate lens and stainless steel bracket provide durability in demanding conditions. The IP6K9K rating protects the lamp against water, dirt and high pressure washing. A 3 metre cable is included to make installation easier on bumpers, bars or roof mounts.
The version with amber position light is also approved as a front position and side marker light.
Key features
- functions: driving light, front position light, side marker light
- operating voltage: 10 to 32 V DC
- light output: 10800 lm theoretical, 9761 lm actual

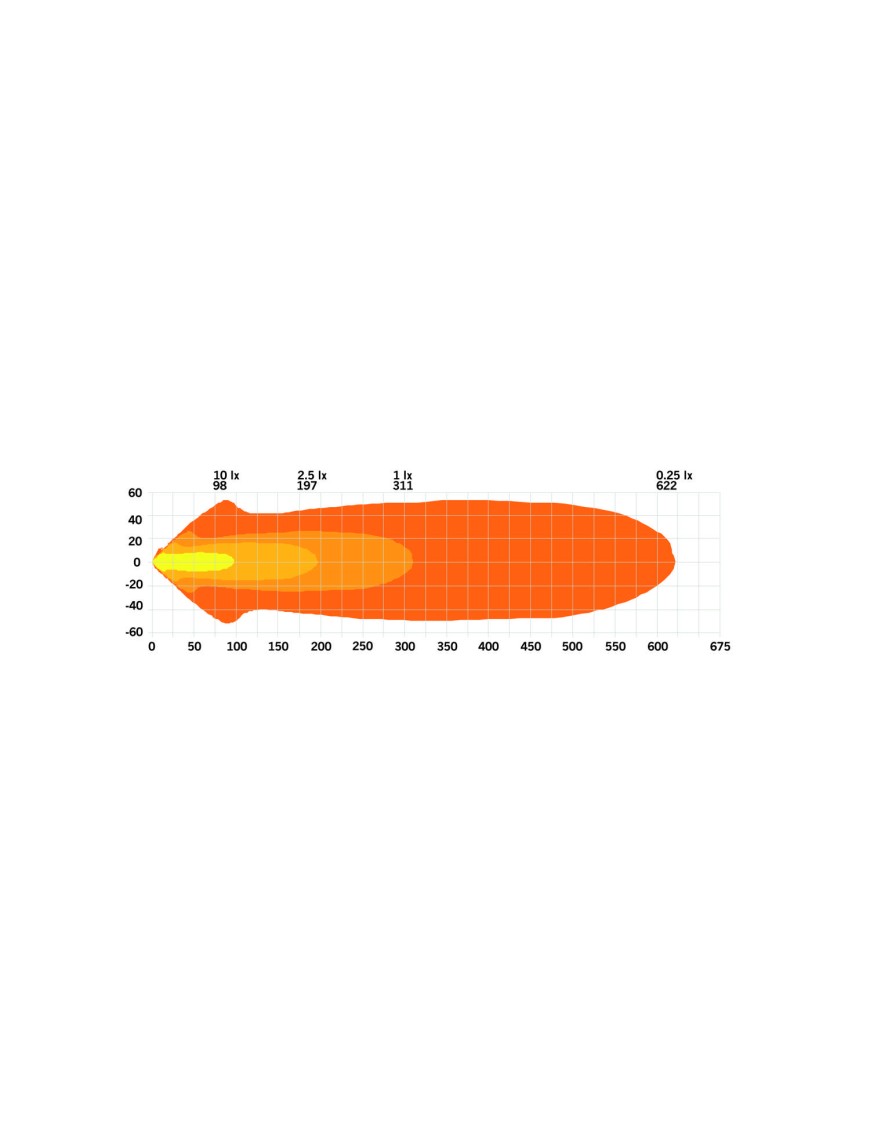

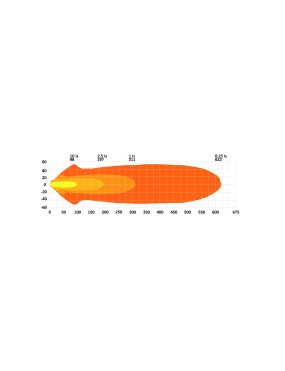

- beam distance: 1 lux at 311 m
- colour temperature: 5700 K
- beam angle: 26.7 degrees
- beam pattern: optimized beam
- ingress protection: IP6K9K
- warranty: 3 years
Application and intended use
- 4x4 and off road vehicles used on dark and remote roads
- vans and utility vehicles requiring durable auxiliary lighting
- drivers frequently travelling on unlit highways and rural roads
- users who want white or amber position light for better visibility from the front and side

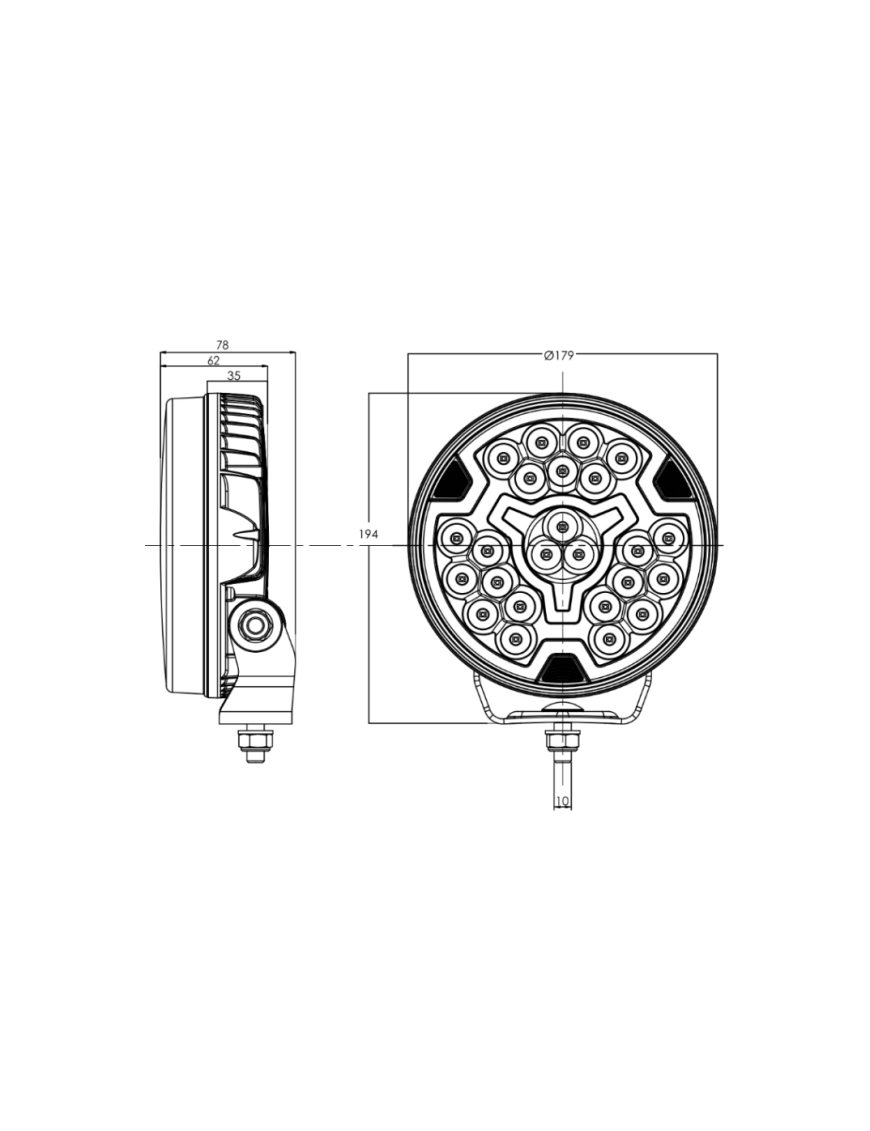

Technical data
| Diameter | 178.8 mm |
|---|
| Depth | 62 mm |
|---|
| Height with bracket | 193.7 mm |
|---|
| Weight | 1.85 kg |
|---|
| Housing colour | black |
|---|
| Lens | clear |
|---|
| Housing material | aluminium |
|---|
| Lens material | polycarbonate |
|---|
| Bracket | stainless steel |
|---|
| Cable | 3000 mm, wired connection |
|---|
| Operating temperature | minus 40 to plus 40 degrees C |
|---|
| Reference number | 20 |
|---|
Approval and compliance
- approval: yes
- regulations: ECE R148 and ECE R149
- EMC: ECE R10
Installation information, cable colours
- black cable: positive for white position light
- red cable: amber side position light
- white cable: ground
- green cable: positive for driving light
Summary
Strands Freedom Maximum Position 7" is a 7 inch LED driving light with integrated position and side marker functions. Key specifications include 9761 lm actual output, 5700 K colour temperature, 1 lux at 311 m, 10 to 32 V DC operation, IP6K9K protection, ECE R148 and ECE R149 approval, 3 metre cable and a 3 year warranty.
