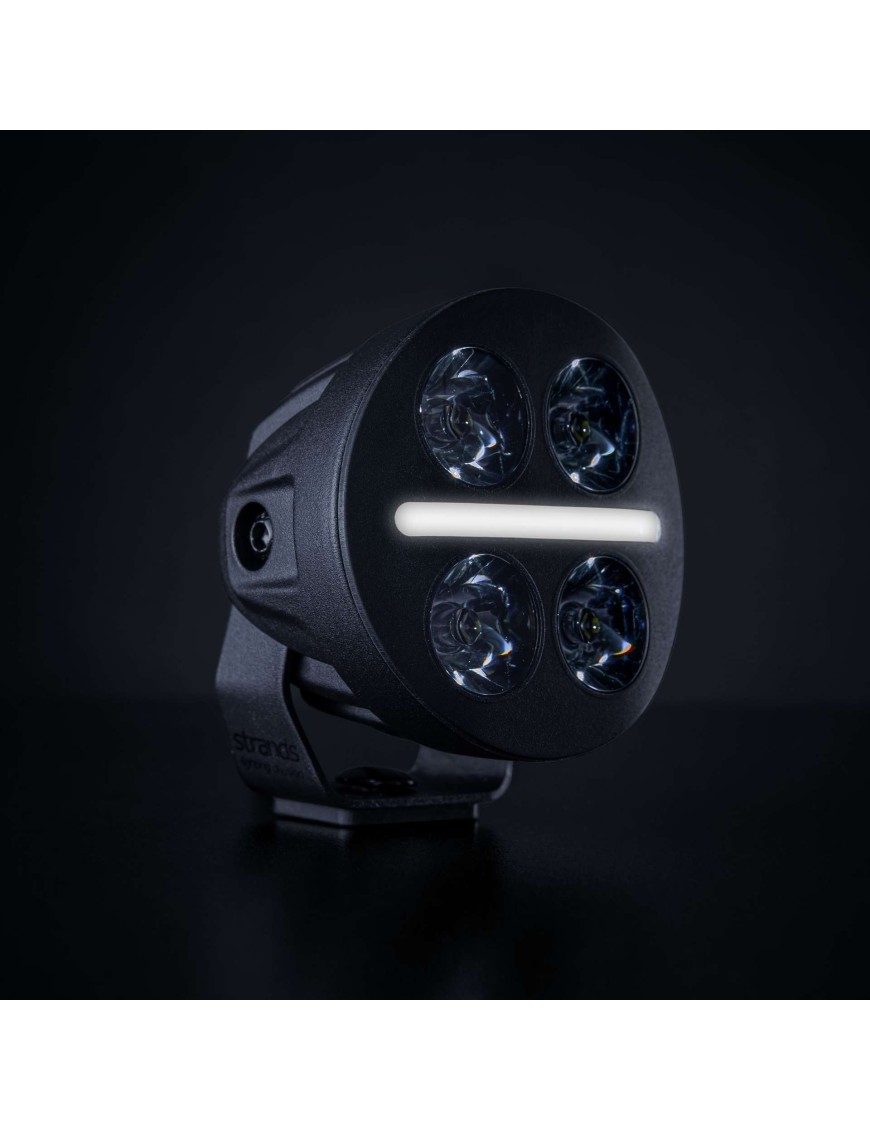

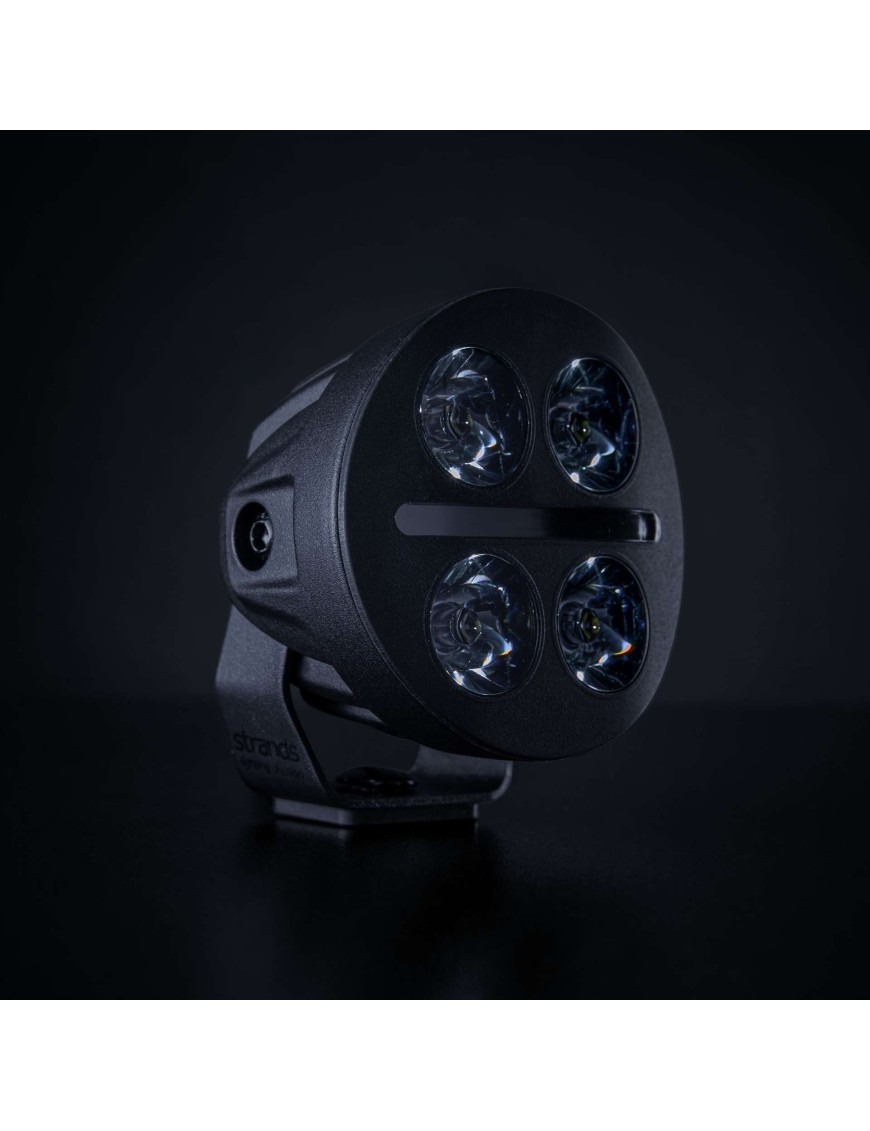

The NUUK D-Line MC 3" is a compact, round LED driving light designed for motorcycles. It combines an optimised beam pattern with an actual luminous flux of 2540 lm and a 1 lux range of 276 m, making it an effective upgrade to the standard high-beam lighting when riding after dark.

The light offers three functions: driving light, white position light and amber position light. This allows the lighting appearance to be matched to the motorcycle and the intended use. A colour temperature of 5700 K provides bright illumination that supports visibility of the road and its surroundings.

The housing is made of aluminium, while the lens is manufactured from polycarbonate. The construction meets IP68 and IP69K protection standards, making it suitable for exposure to water, dust and dirt during touring and off-road riding. Its rounded shape also helps water drain away from the lens surface.

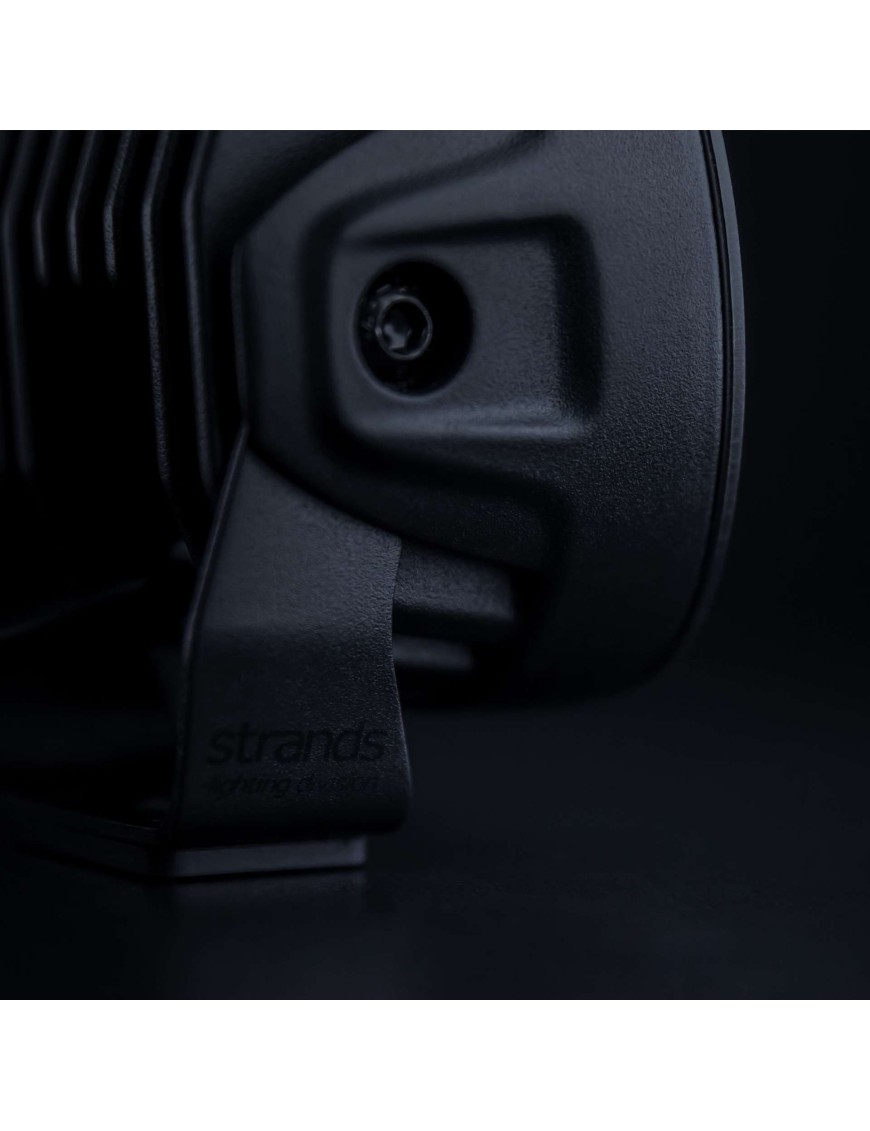

Compact dimensions and a total height of 93.5 mm with the bracket make installation easier where space is limited. The bracket offers 180° adjustment for precise beam positioning, while the DT-4PIN connector simplifies electrical installation.

Key features

Compact 3-inch round LED driving light
Actual luminous flux of 2540 lm
1 lux range of up to 276 m
Optimised beam pattern

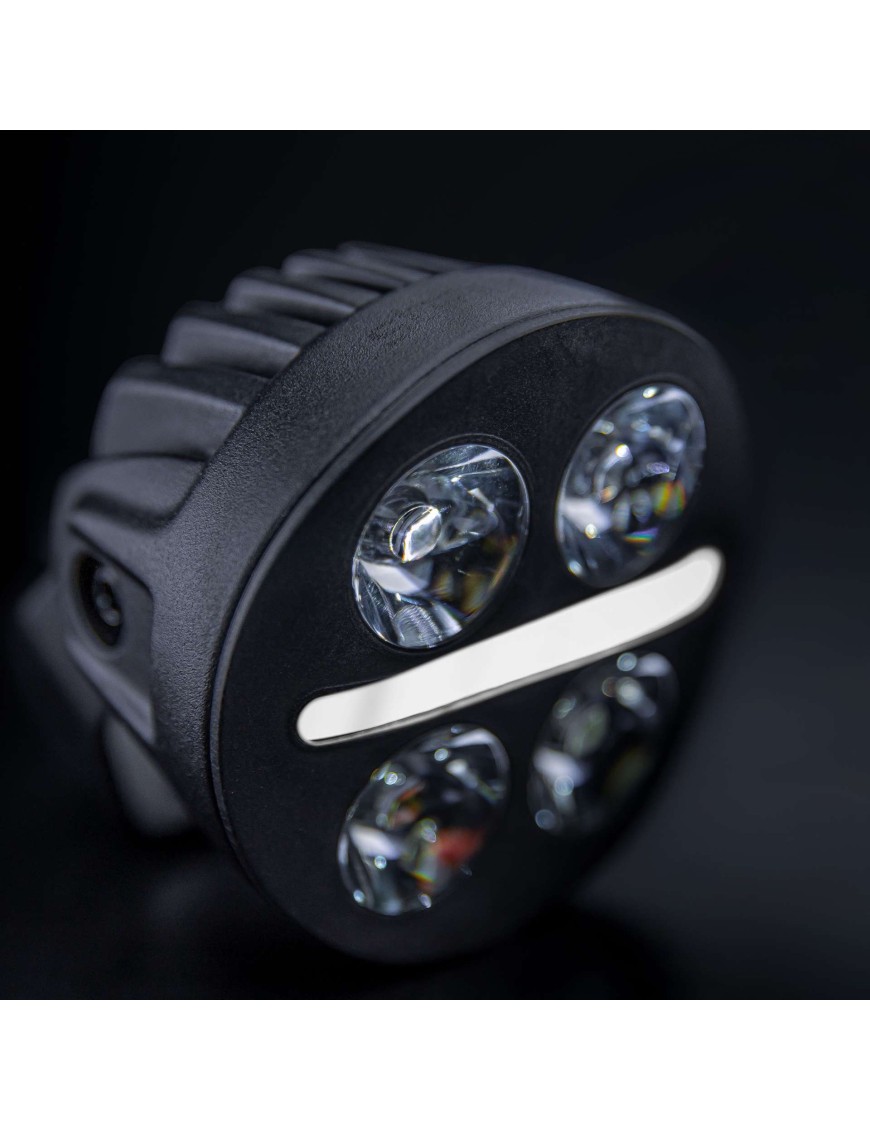

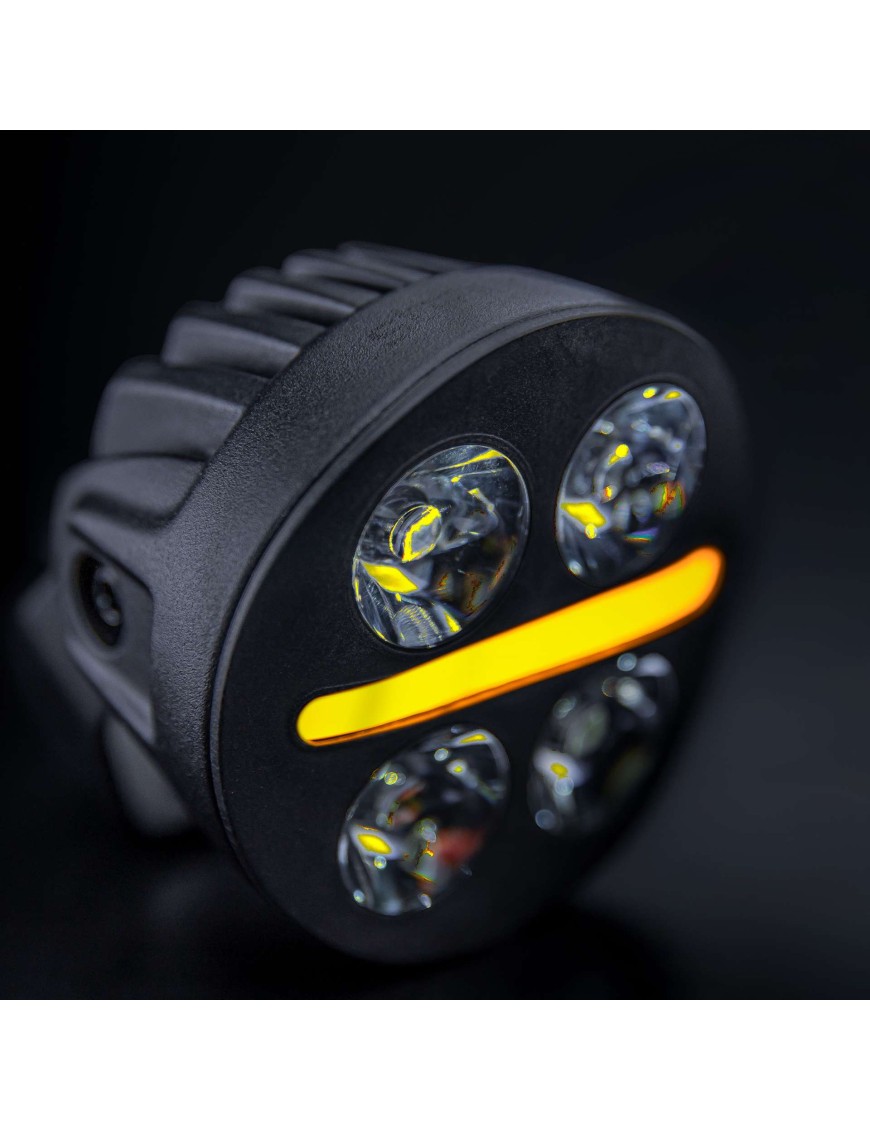

White and amber position light functions
Aluminium housing and polycarbonate lens
IP68/IP69K protection rating

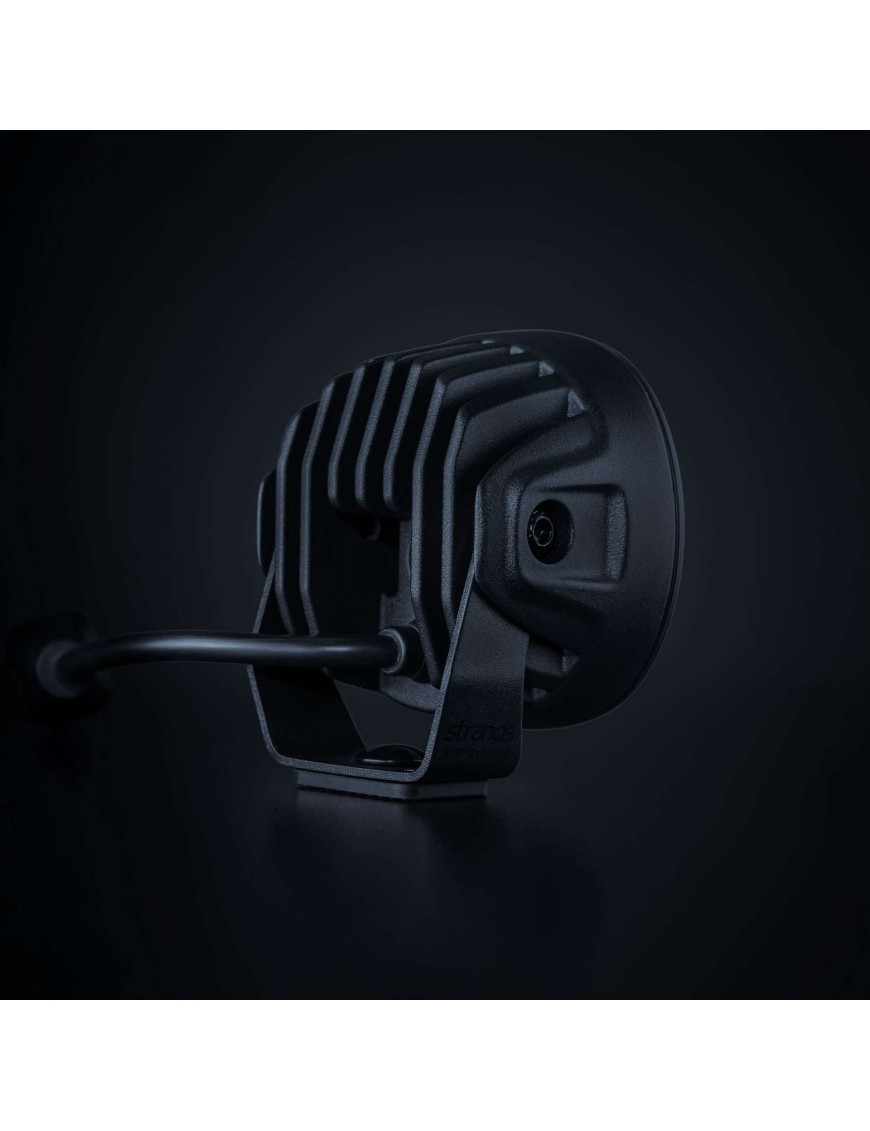

Bracket adjustable through 180°
Compact overall height of 93.5 mm with bracket
DT-4PIN connector and 150 mm cable
ECE R10.06, R148 and R149(113) approvals
Reference number 12.5

Technical specifications

Part number: 809288
Operating voltage: 10–32 V DC
Driving light power consumption: 39 W
White position light power consumption: 3 W
Amber position light power consumption: 3.5 W
Actual luminous flux: 2540 lm

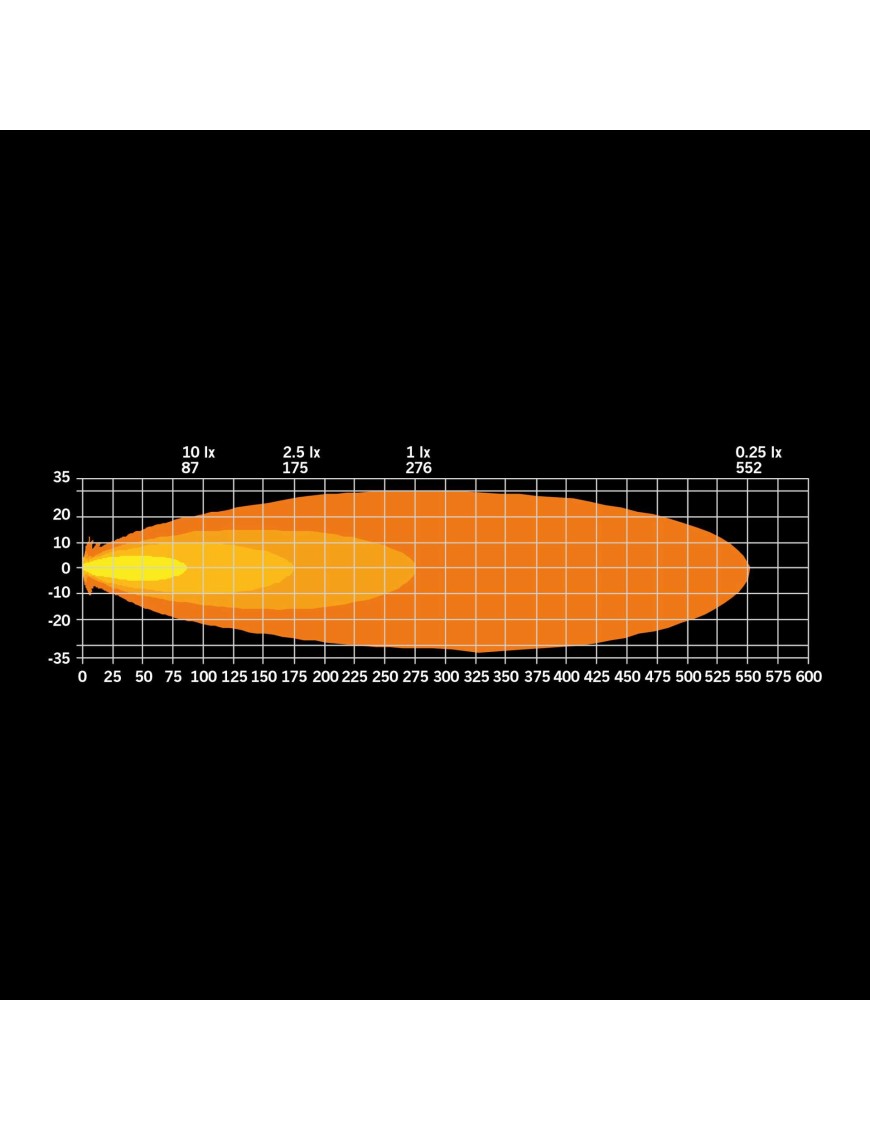

1 lux range: 276 m
Colour temperature: 5700 K
Beam pattern: optimised
Functions: driving light, white position light, amber position light
Housing material: aluminium
Lens material: polycarbonate

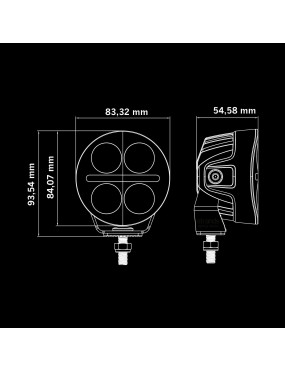

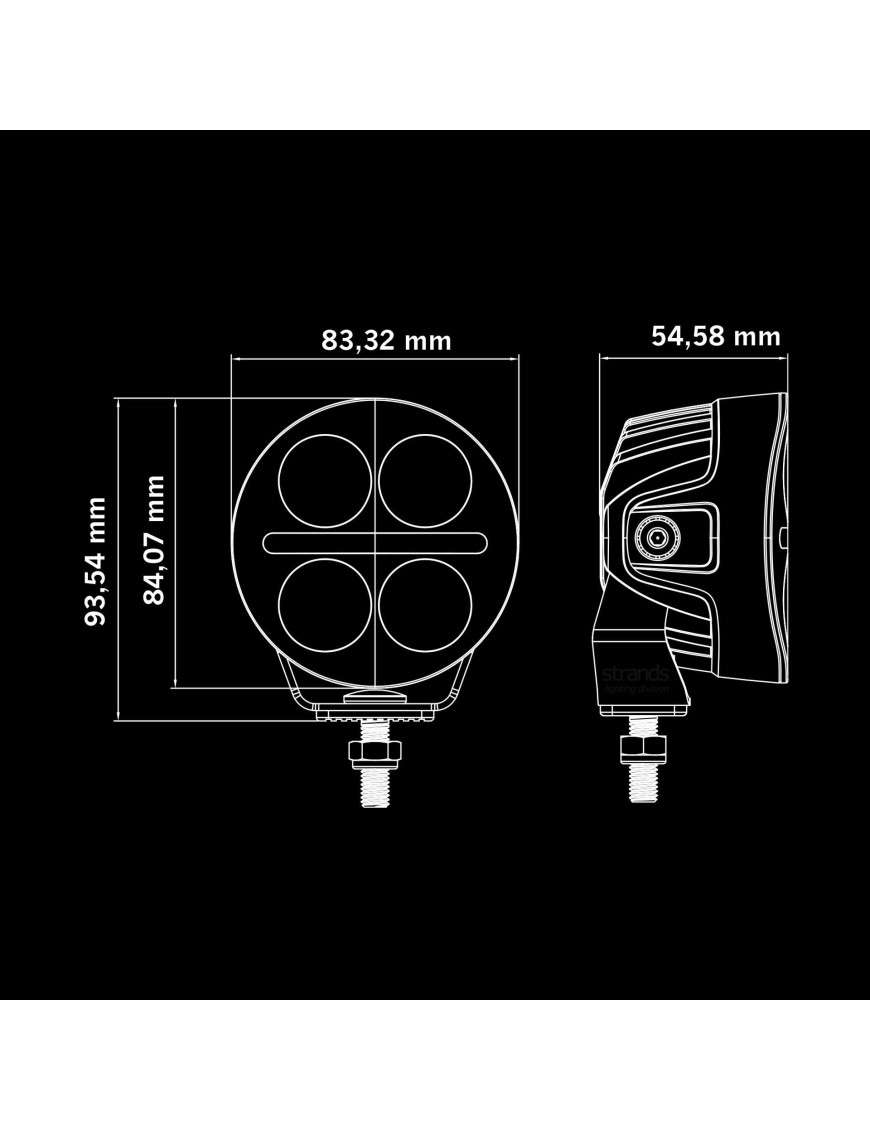

Length: 83.3 mm
Depth: 54.6 mm
Light height: 84.1 mm
Height with bracket: 93.5 mm
Bracket adjustment range: 180°
Ingress protection rating: IP68/IP69K
Operating temperature: -30°C to +65°C

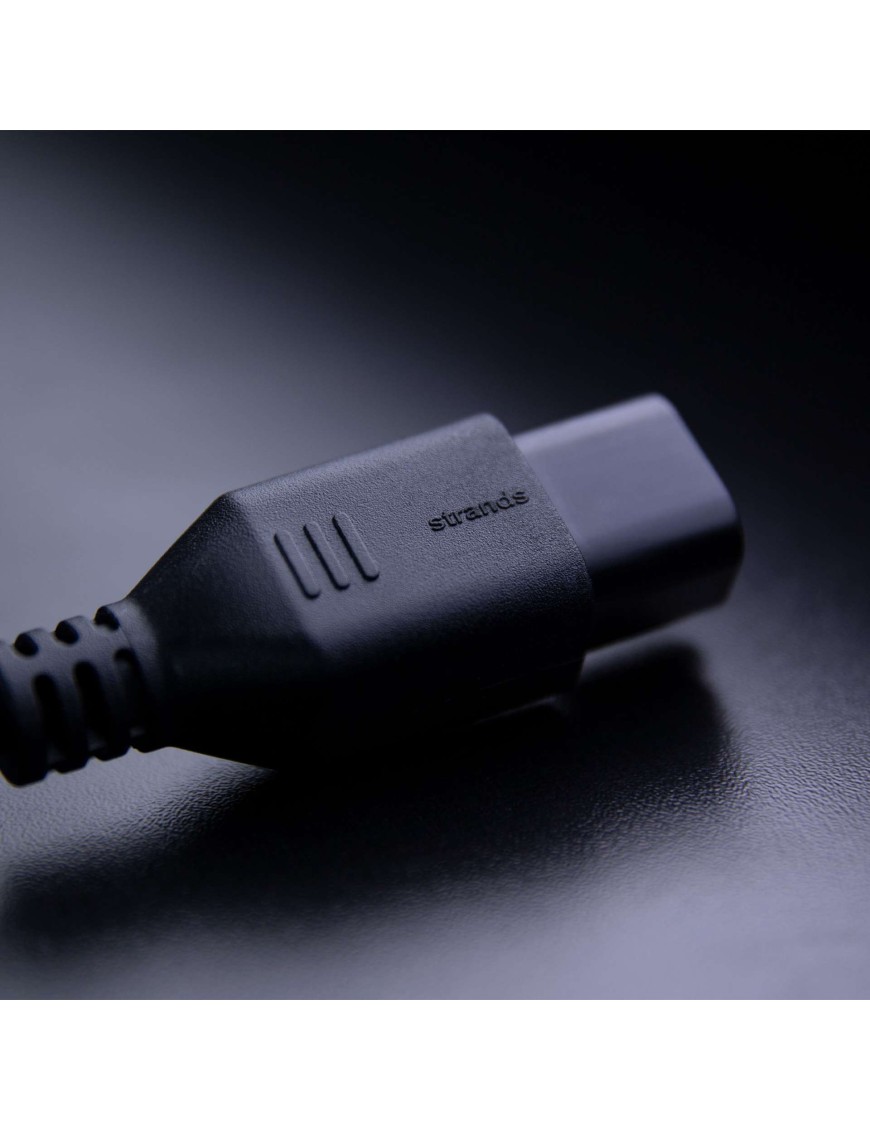

Connector: DT-4PIN
Cable length: 150 mm
Approvals: ECE R10.06, R148, R149(113)
Reference number: 12.5

Off-road and adventure use

The NUUK D-Line MC 3" is suitable as an auxiliary driving light for motorcycles used on expeditions, touring routes and unpaved tracks. Its compact construction simplifies installation, while the durable housing and high ingress protection rating are valuable in conditions where the lighting may be exposed to water, mud, dust and changing temperatures.
