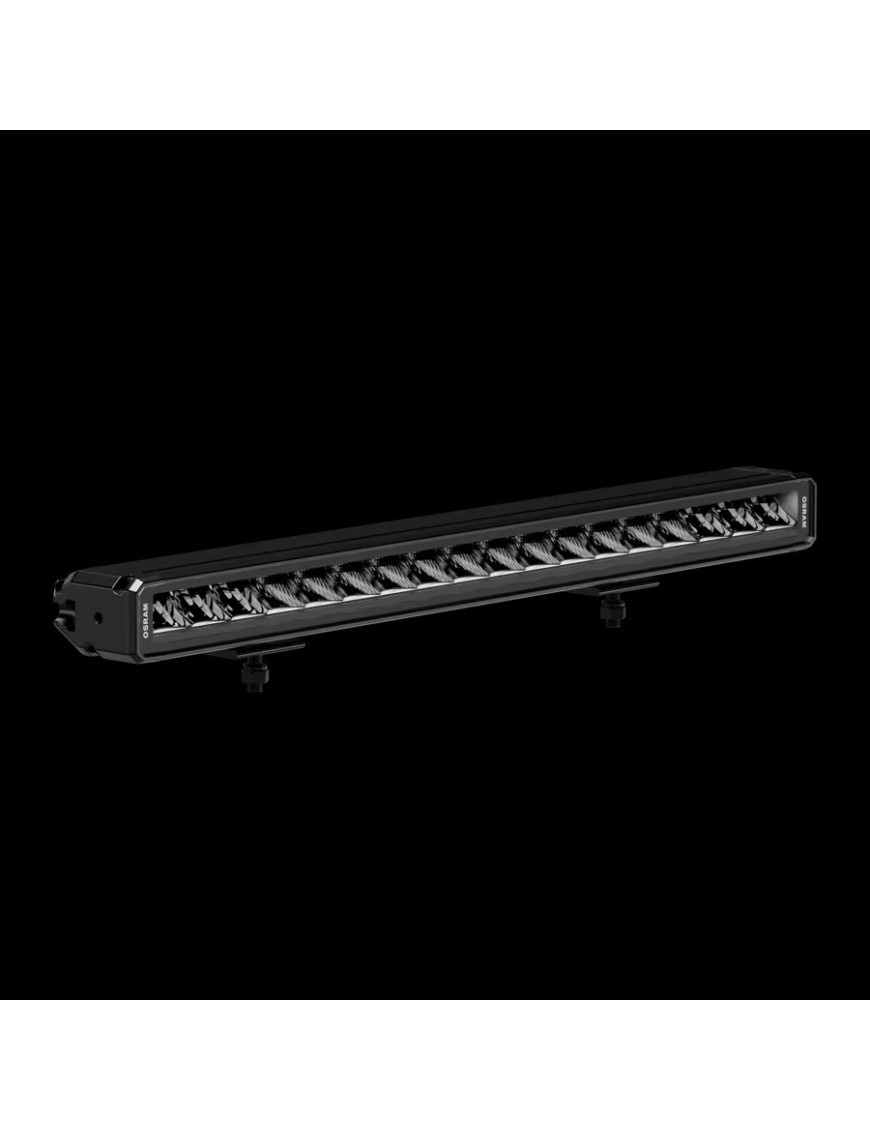

OSRAM LEDriving Lightbar MX500-CB AMBER EXTREM

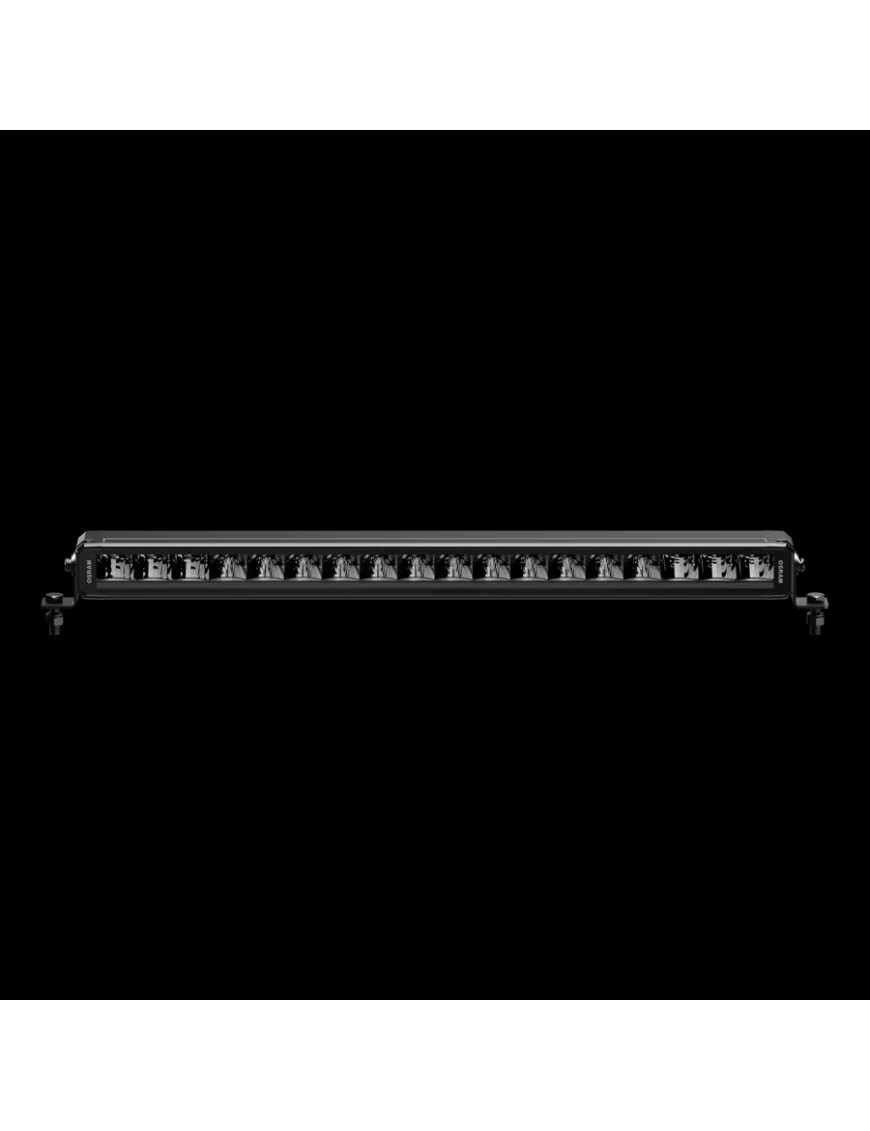

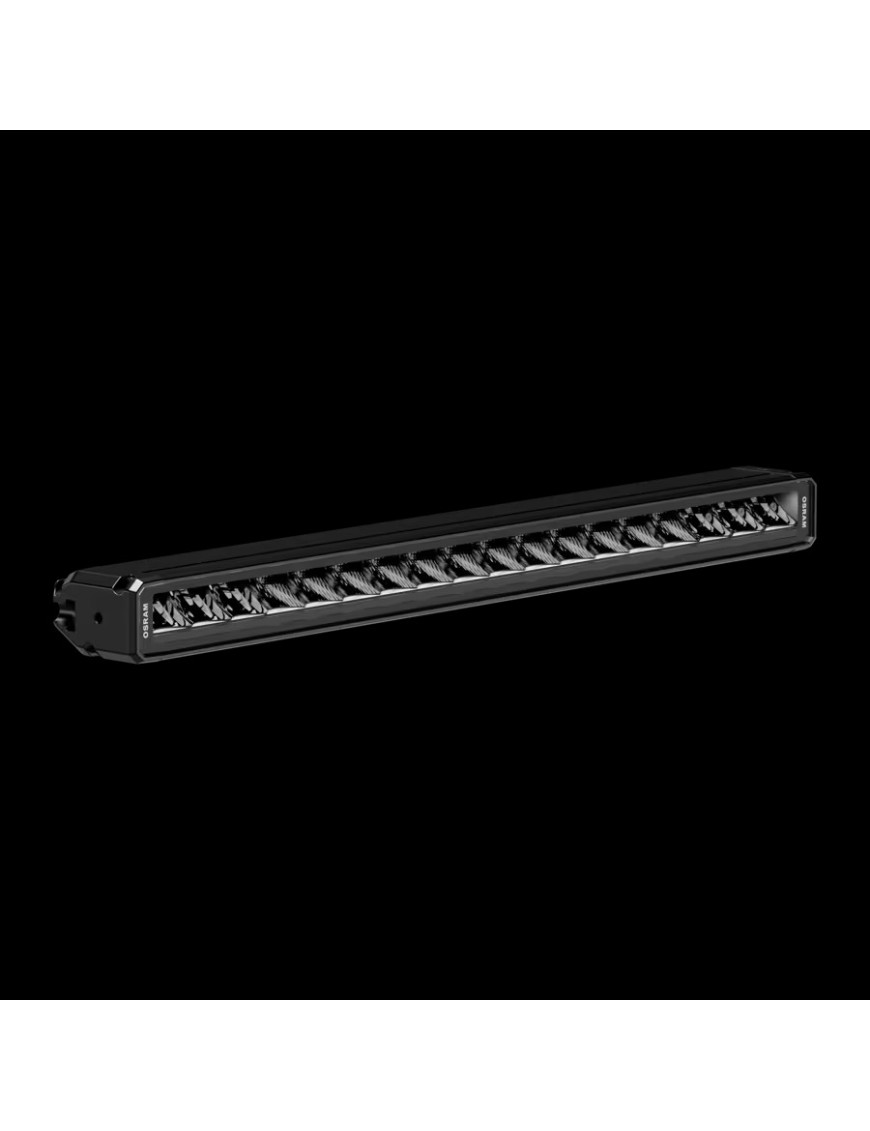

OSRAM LEDriving Lightbar MX500-CB AMBER EXTREME – 12/24 V LED light bar for road and off-road vehicles

Key benefits

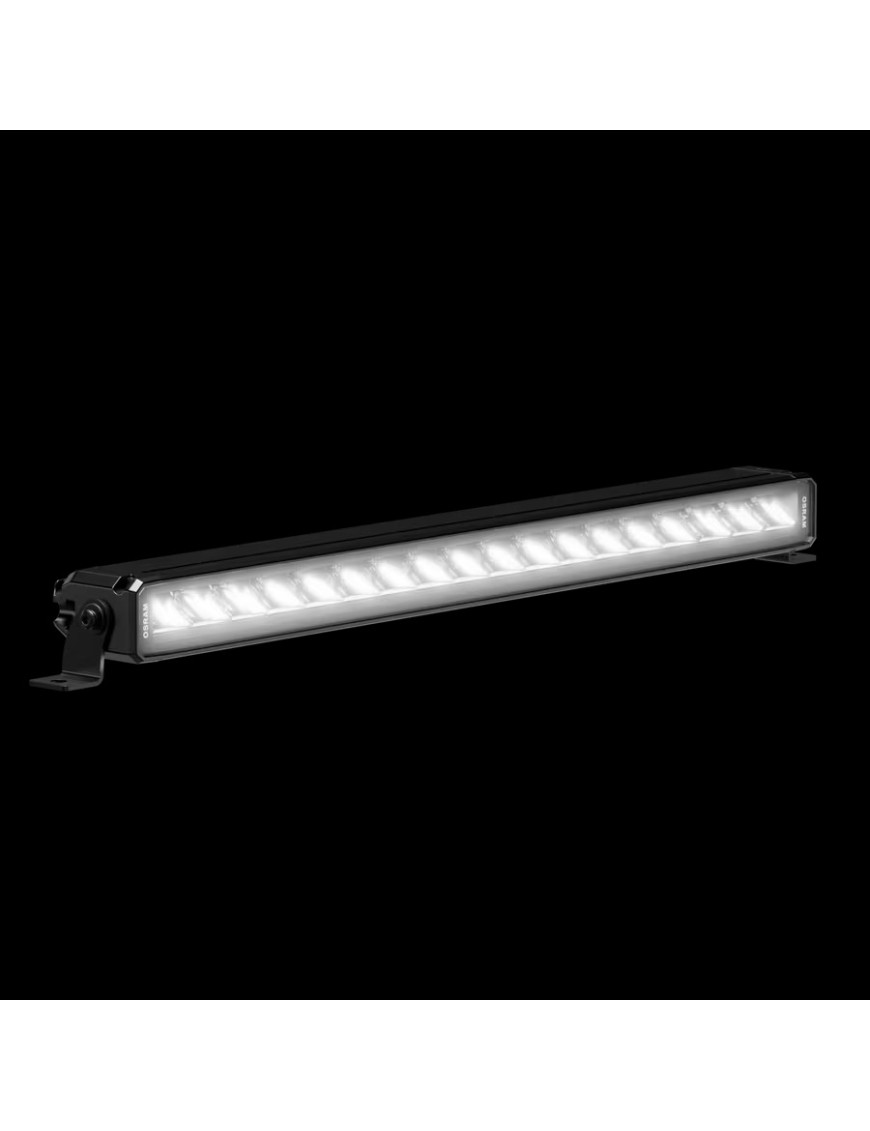

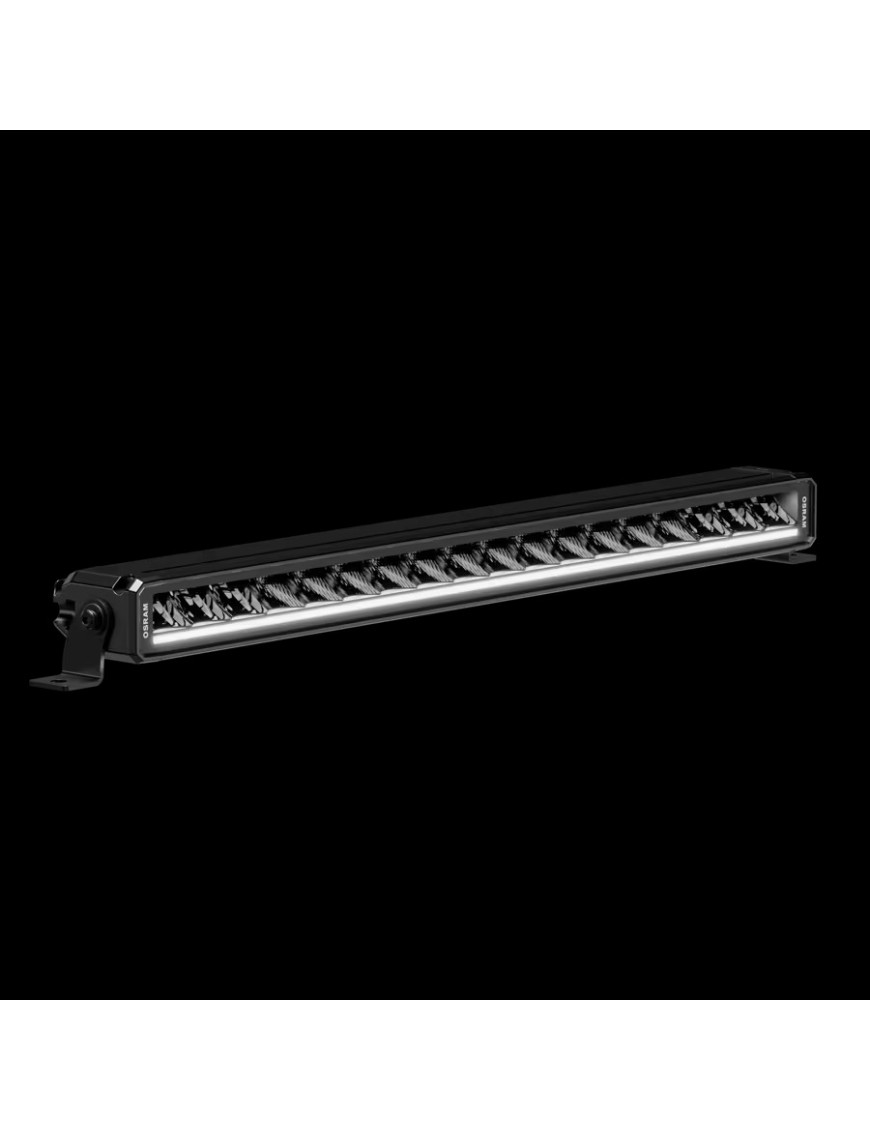

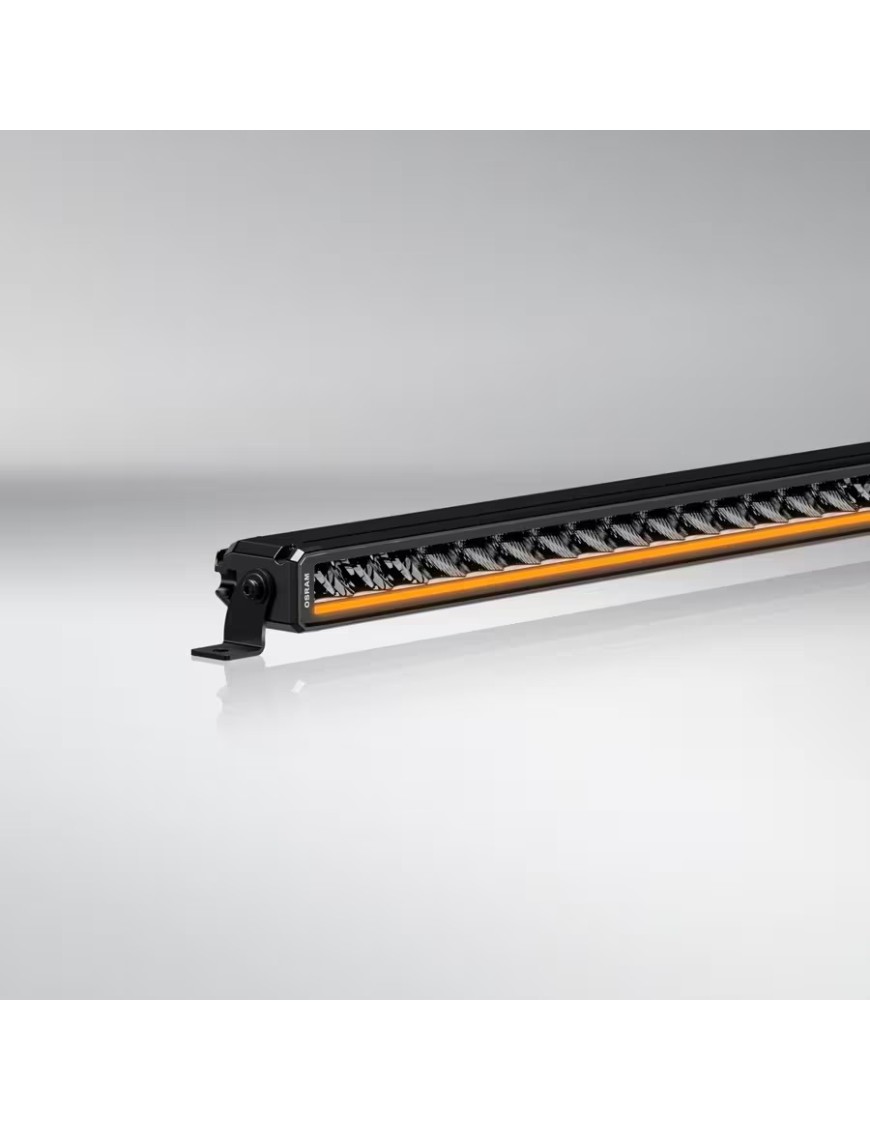

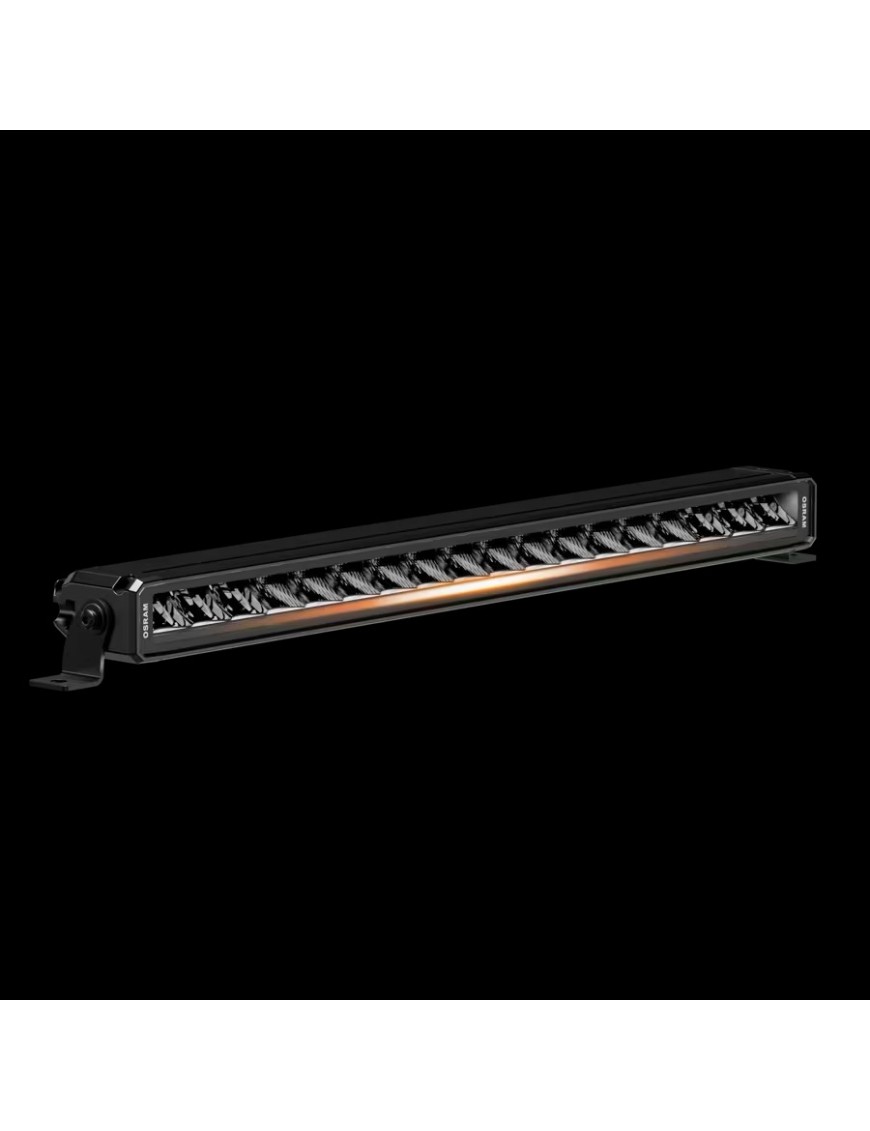

• Four lighting functions: LED high beam, Boost mode, white position light and amber position light.
• Combo beam: improves visibility both directly in front of the vehicle and further along the route.
• Boost mode: increases the luminous flux to 10,000 lm and the lighting range to 500 m at 1 lx.
• Dynamic welcome light: an animated lighting sequence activated when the lighting system is switched on.

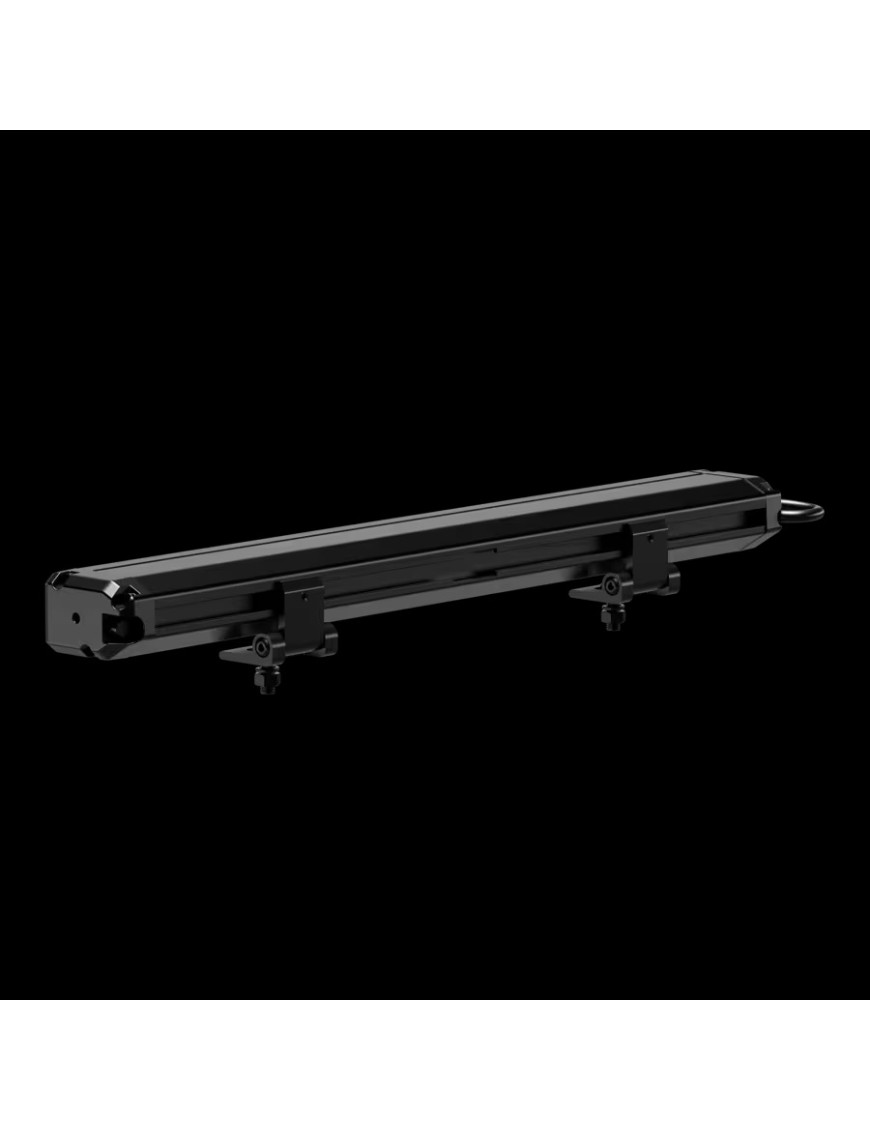

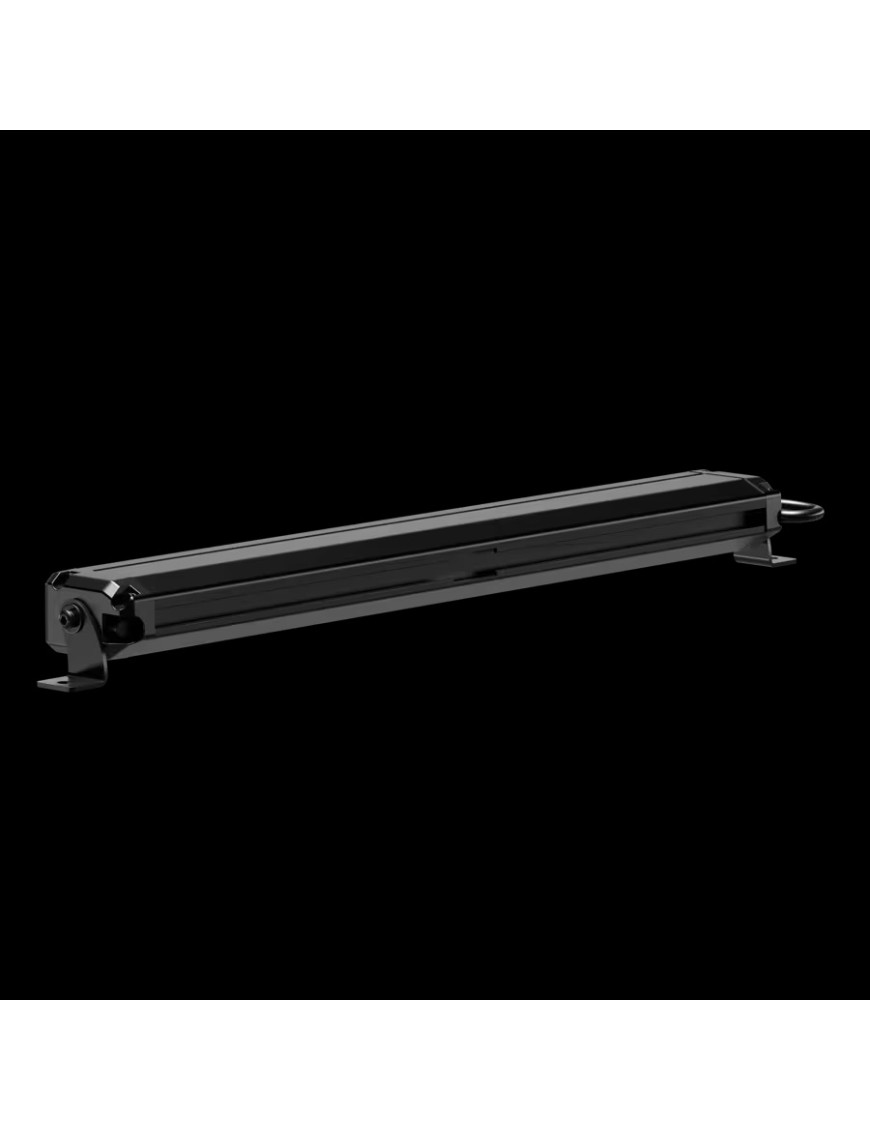

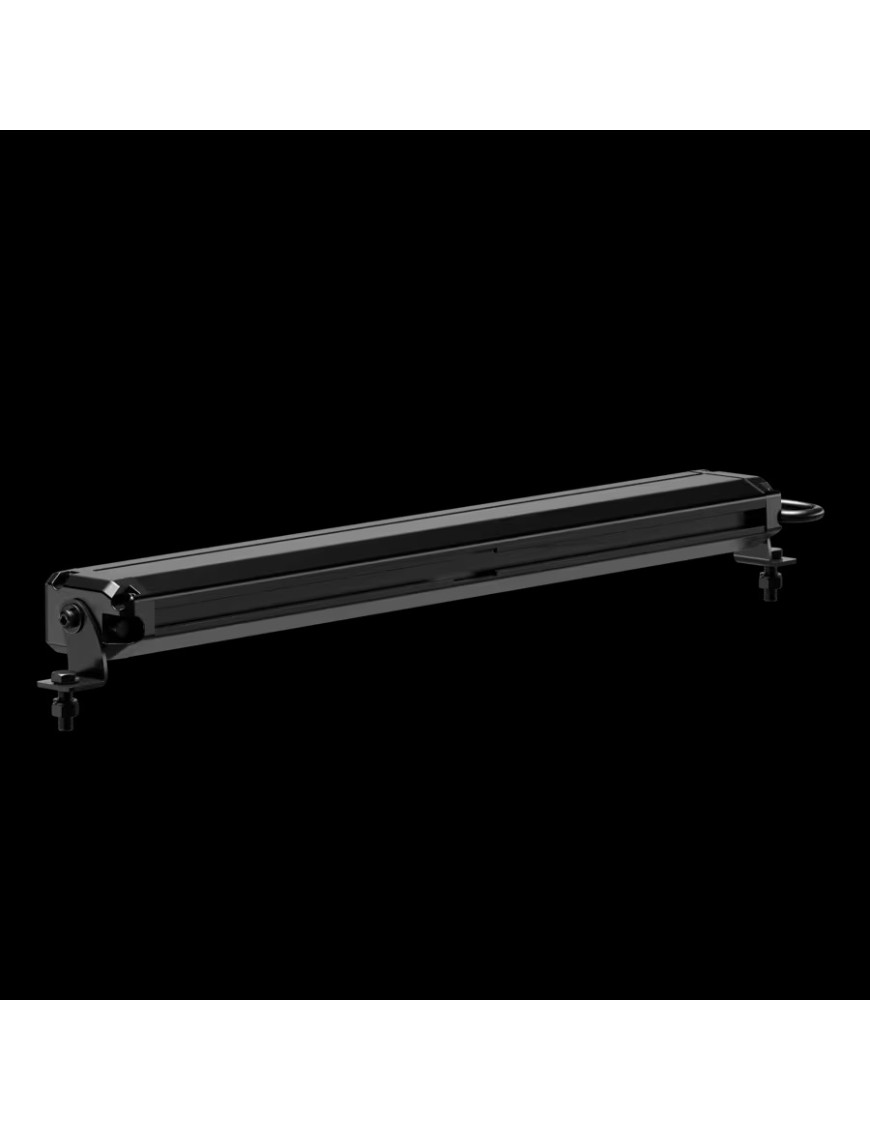

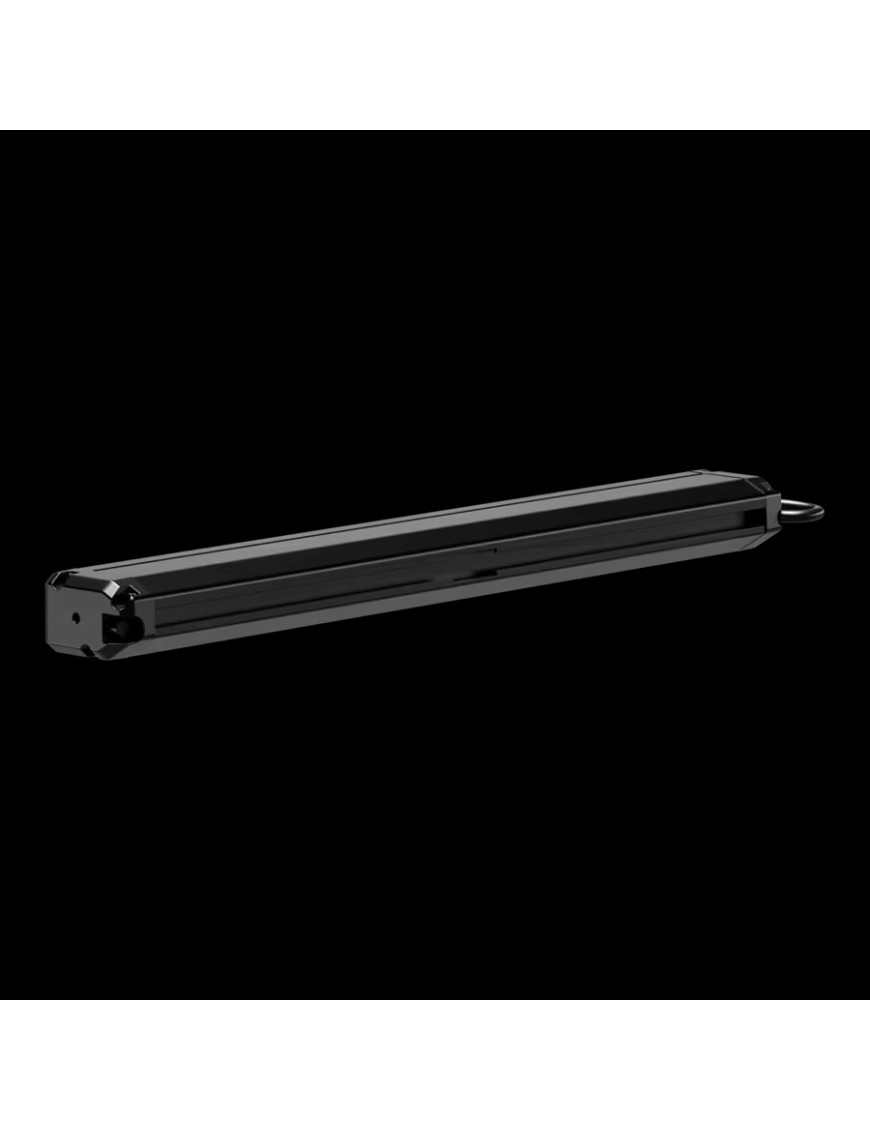

• Durable construction: die-cast aluminium housing and impact-resistant polycarbonate lens.
• Designed for demanding conditions: IP6K8 and IP6K9K protection against dust, water and high-pressure cleaning.
• 12/24 V compatibility: suitable for passenger cars, off-road vehicles, trucks and working machines.
• 5-year manufacturer warranty: subject to the terms of the OSRAM warranty programme.

Four functions in one light bar

What is included

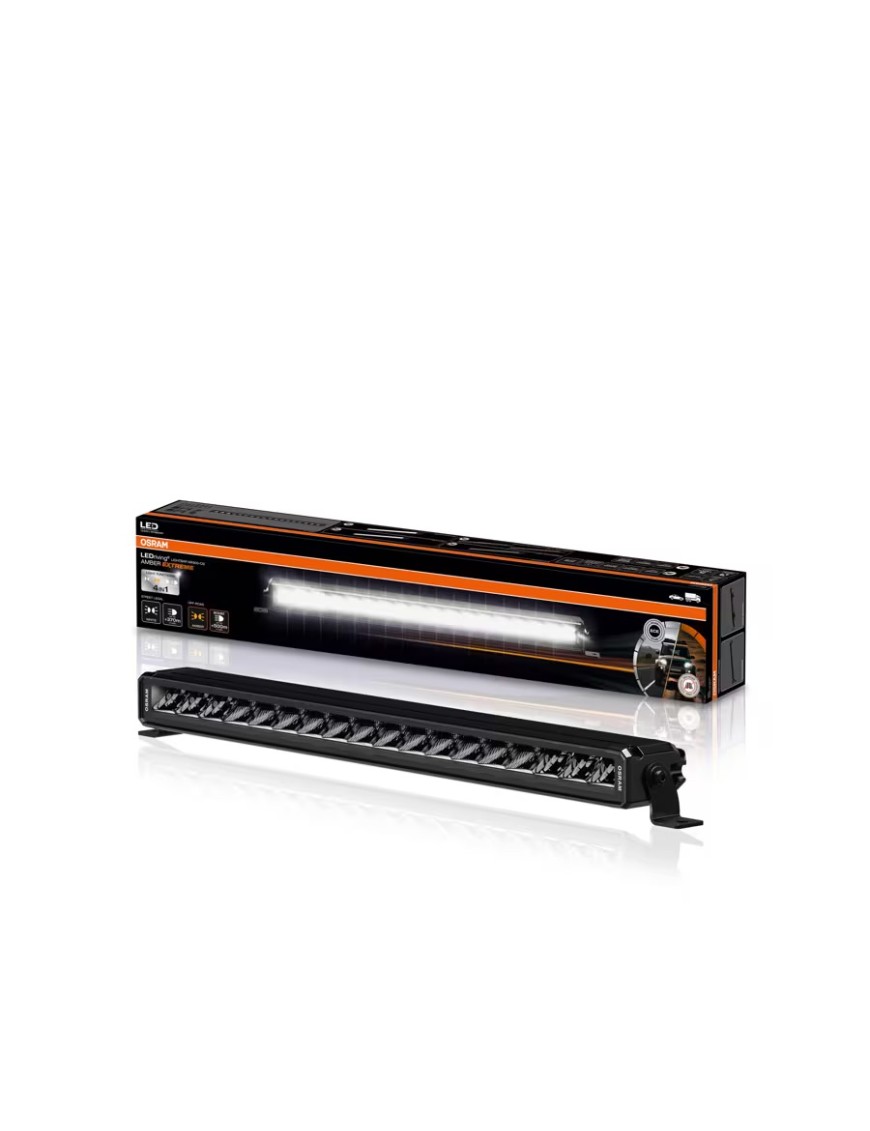

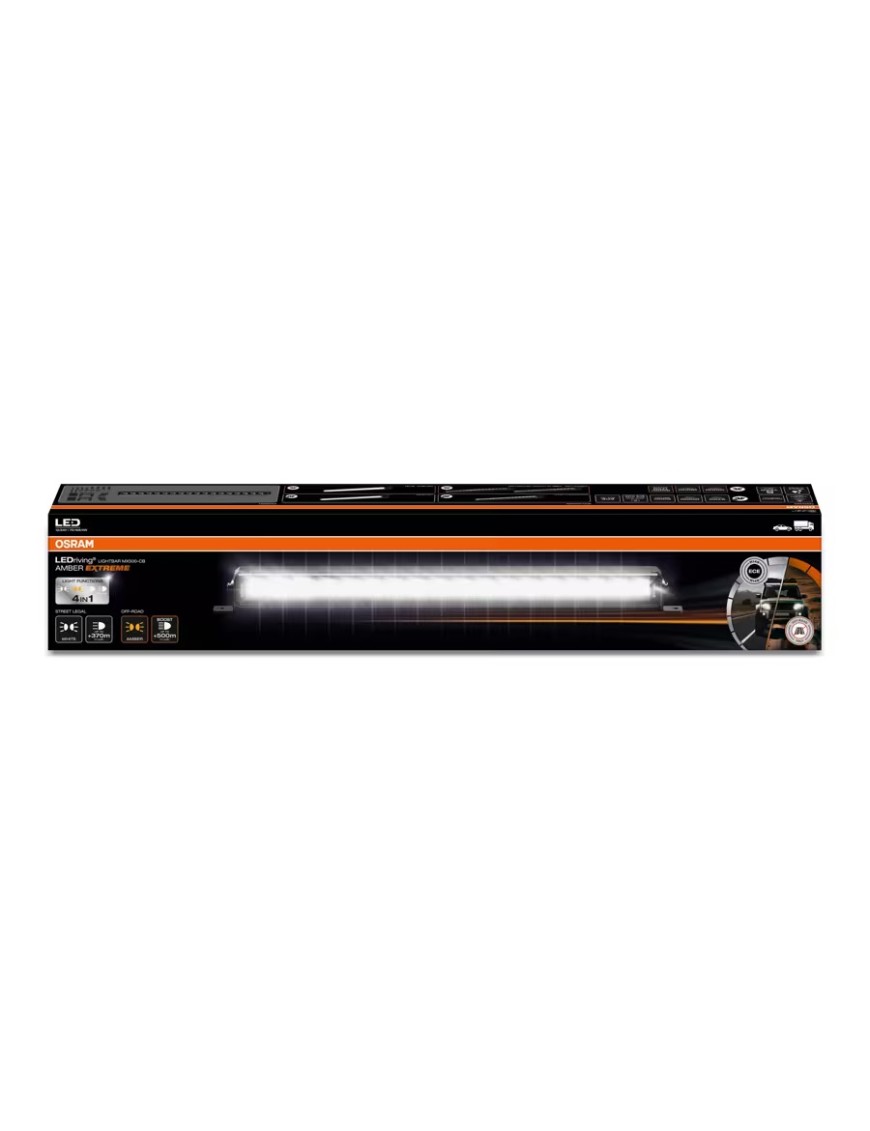

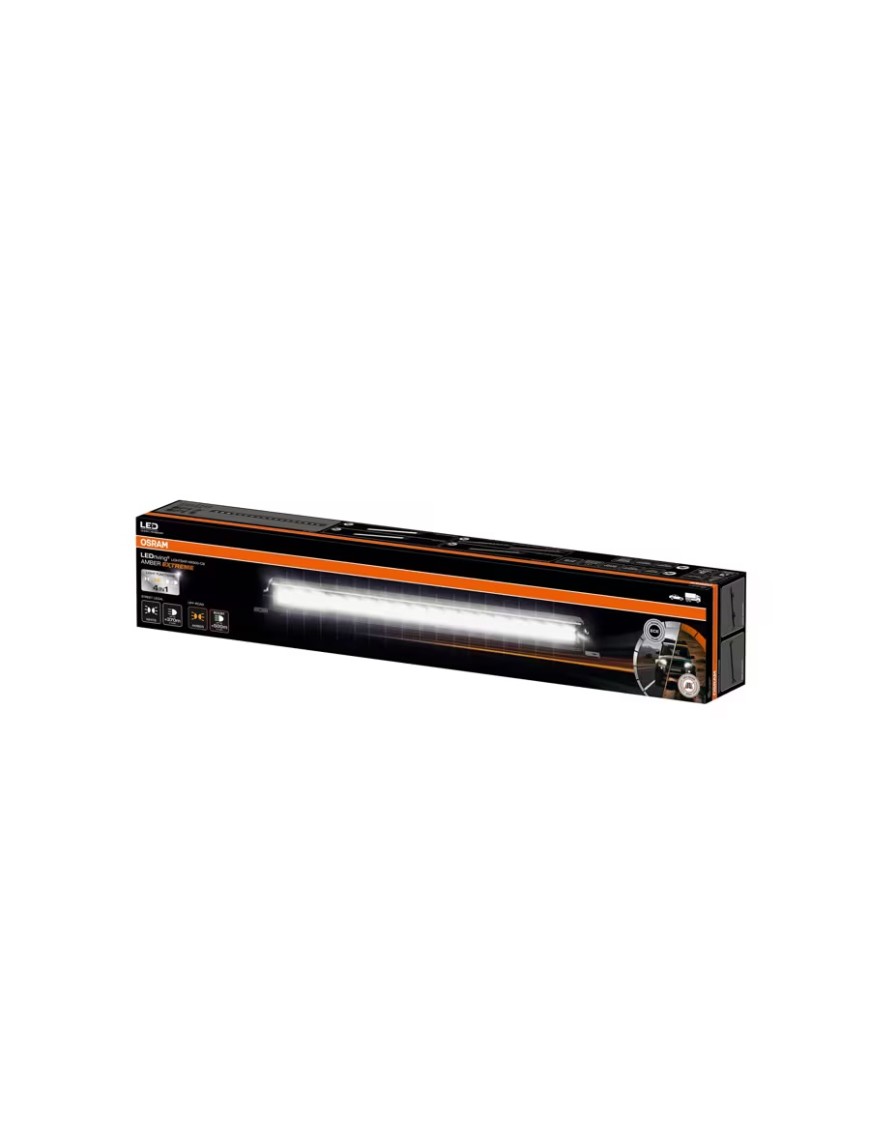

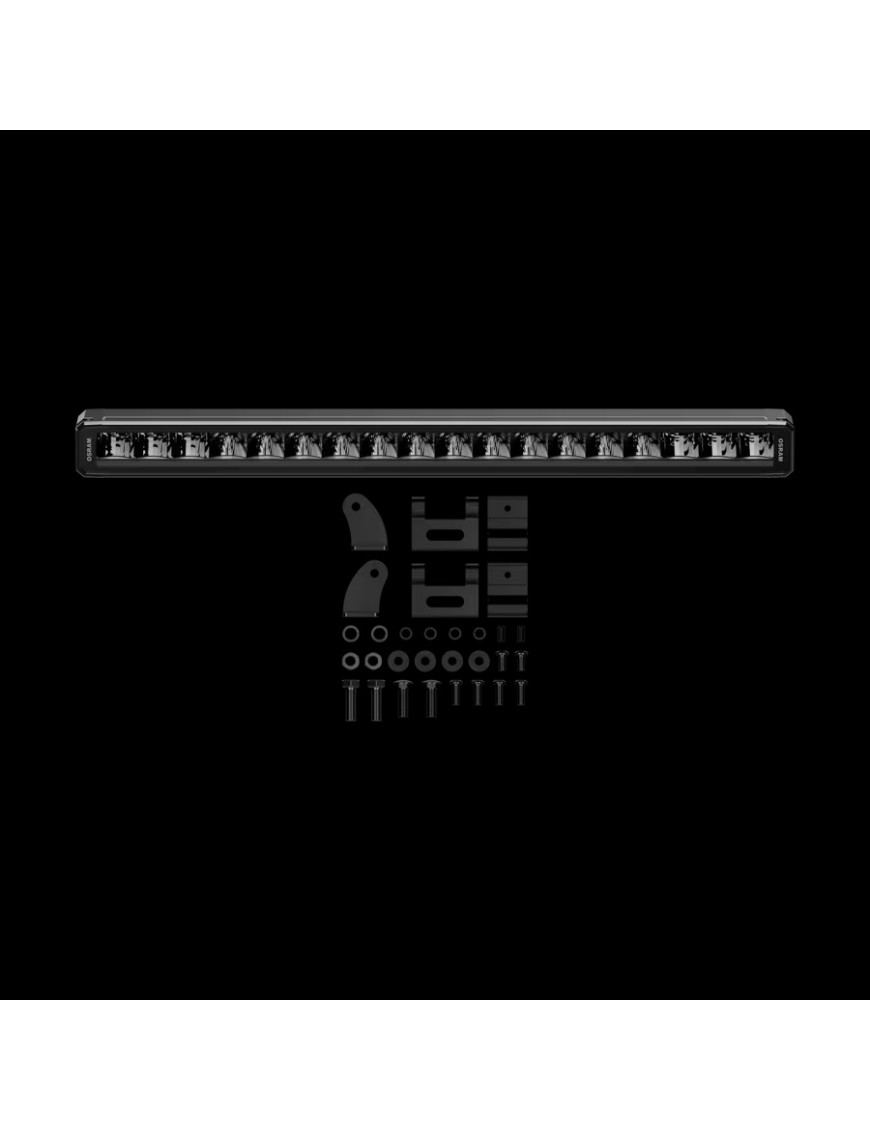

• 1 × OSRAM LEDriving Lightbar MX500-CB AMBER EXTREME.

Technical specifications / facts

• Part number: LEDDL139-CB X.
• Technology: LED.
• Nominal voltage: 12/24 V.
• Test voltage: 13.5 V.
• Nominal power: 75 W / 168 W / 4 W.
• Luminous flux: 5,700 lm for high beam and 10,000 lm in Boost mode.
• Lighting range at 1 lx: 370 m for high beam and 500 m in Boost mode.
• Colour temperature: 6,000 K / 1,700 K.
• Beam type: Combo.
• Number of LEDs: 36.
• Length: 534 mm.
• Height: 43.5 mm.
• Width: 63.5 mm.
• Product weight: 1,958 g.
• Connector: DT.
• Tc lifetime: 5,000 hours.
• Protection rating: IP6K8, IP6K9K.
• Standards: ECE R10, R148, R149.
• Approval: E4.
• ECE reference number: 30.
• Warranty: 5 years.

Lighting range in Boost mode

Combo beam pattern

IP6K8 and IP6K9K protection ratings

Recommended users / applications

• Off-road and expedition vehicles requiring powerful additional LED lighting.
• Passenger cars and vans with a 12 V electrical system.
• Trucks and utility vehicles with a 24 V electrical system.
• Agricultural machinery, construction equipment and other working vehicles.
• Motorhomes, caravans and quad bikes.
• Off-road driving and night work where both wide illumination and long-range visibility are required.

Installation / notes

• The light bar is designed for use as an additional high beam and position light.
• The product complies with the relevant ECE regulations, but Boost mode and the amber position light are not ECE-approved for use on public roads.
• Local regulations should be checked before using individual lighting functions.
• The electrical connection uses a DT-type connector.

Summary for quick reference

• 534 mm OSRAM LED light bar.
• Compatible with 12 V and 24 V electrical systems.
• High beam, Boost mode and two position-light colours.
• Up to 10,000 lm and a 500 m lighting range in Boost mode.
• Combo beam for short-range and long-range illumination.
• Aluminium housing and polycarbonate lens.
• IP6K8 and IP6K9K protection ratings.
• E4 approval and a 5-year OSRAM warranty.
