NUUK 10 Grille Kit for Ford Transit 2019-

Product description

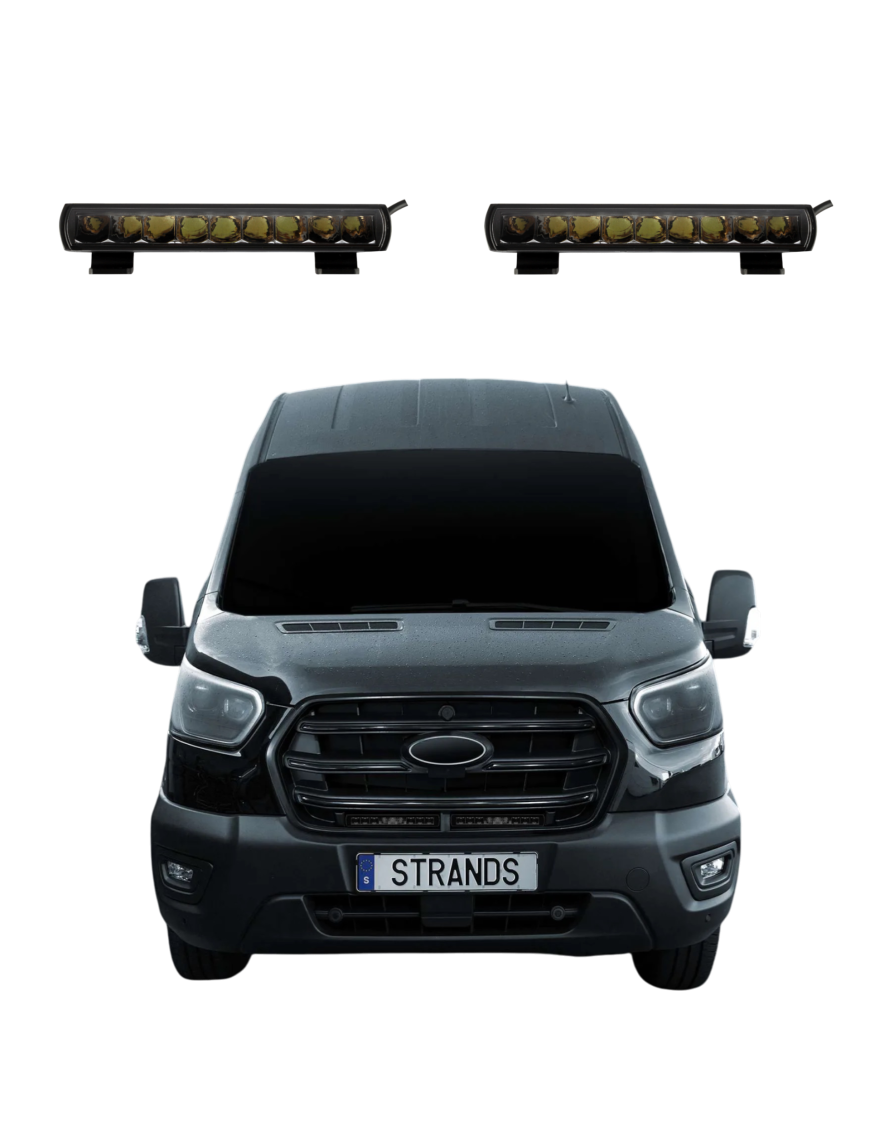

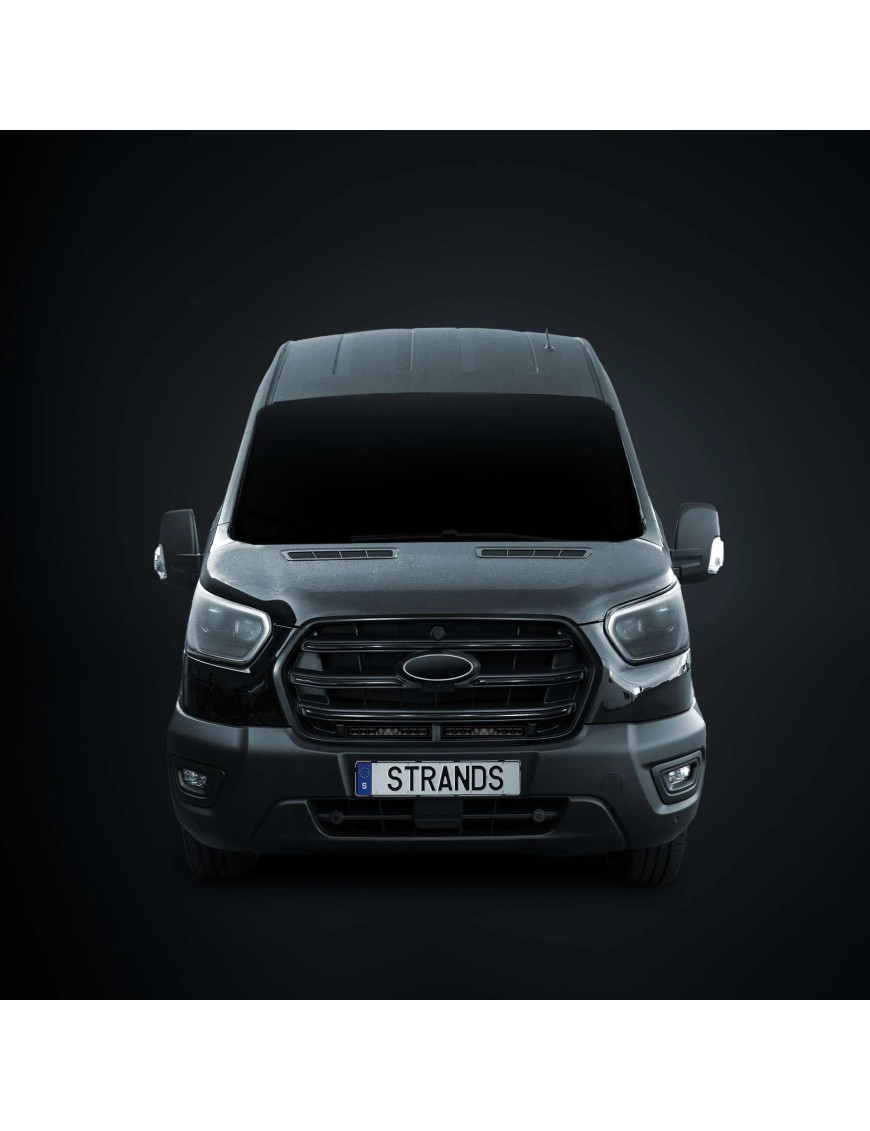

The NUUK 10" Grille Kit is a model-adapted solution designed for integrating a NUUK 10” LED bar into the front grille of the Ford Transit (2019–). This mounting approach keeps the front end tidy while adding powerful forward lighting for night routes, service runs, and travel in changing weather and road conditions.

Key features

• Vehicle-specific fitment for Ford Transit 2019–.
• Grille-integrated installation for a neat, discreet front-end look.
• Built around the NUUK 10” setup – focused on this LED bar format.
• SKU for quick identification: MAKI18921021A.

Technical data

• Compatibility: Ford Transit 2019–
• SKU: MAKI18921021A

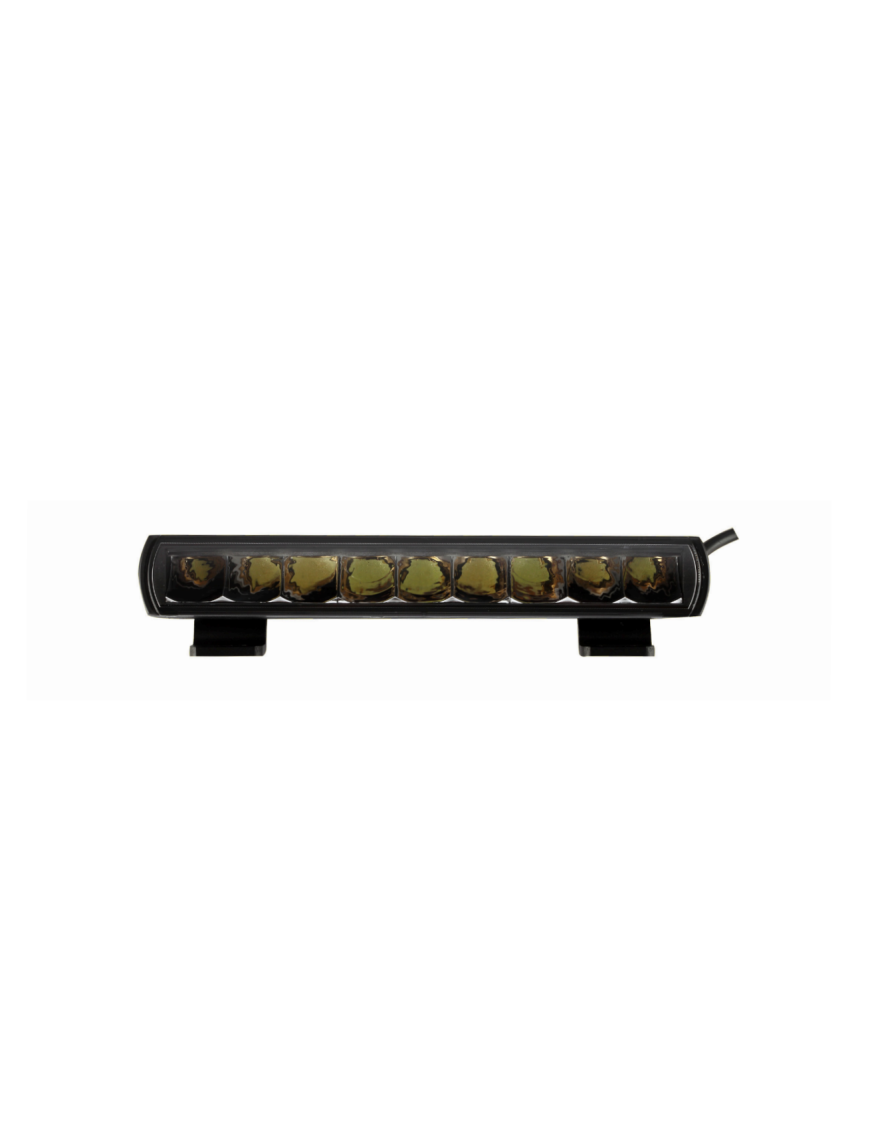

• NUUK 10” LED BAR (Part No. 809117) specifications:
• Voltage: 9–36V DC
• Power: 45W
• Theoretical lumen: 4100
• Actual lumen: 3280
• 1 lux @: 360 m
• IP rating: IP68
• Beam pattern: Combo
• Position light: No
• Connector: DT-2
• Cable length: 500 mm
• Housing material: Aluminium
• Lens material: Polycarbonate

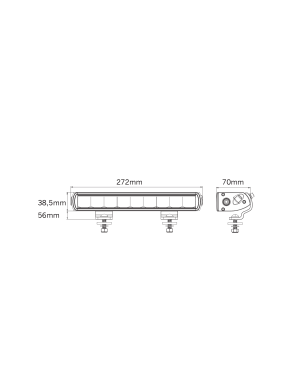

• Dimensions: 272 mm (L) / 70 mm (D) / 38.5 mm (H) / 56 mm (H incl. bracket)
• Operating temperature: -40 to +40°C
• Approvals/certifications: ECE R112 (Ref 20), ECE R10

Off-road & 4x4 use

Grille-mounted auxiliary lighting is a practical choice for travel and utility builds: it improves visibility on unlit roads, in rain or fog, and during night transfers. It’s a smart fit for overlanding-style setups where you want effective light output and a clean, integrated installation.
