    RIGHT REAR SHOCK ABSORBER OME BP-51 - JEEP WRANGLER JL

    €1,077.12 tax incl.
    (zawiera VAT 23%)
    Log in as a company by purchasing without 23% VAT - applies to companies outside Poland
    €875.71 tax excl.
    The lowest price of this product in the last 30 days before the discount was €894.64 gross
    The lowest price of this product in the last 30 days before the discount was €894.64 gross

    ARB Old Man Emu BP-51 BP5160034R is a rear bypass shock with a 51 mm big-bore design and remote reservoir, built for adjustable on- and off-road performance. Position-sensitive damping keeps it comfortable at ride height while adding control as you approach the end of travel.

    Quantity
    Towar na zamówienie (do 14 dni) - dostępnych jest: 99
    In Stock
    favorite_border Add to Wishlist cached

    No queries yet, leave the first!
    i-Raty - raty online
    i-Leasing - leasing online
      Security policy

    (edit with the Customer Reassurance module)

      Delivery policy

    (edit with the Customer Reassurance module)

      Return policy

    (edit with the Customer Reassurance module)

    There are no reviews yet.

    ARB Old Man Emu BP-51 Rear Bypass Shock Absorber BP5160034R – rear position (fitment via vehicle selector)

    BP-51 brings bypass-style, position-sensitive damping into a bolt-on shock designed for real-world adventure use. The idea is simple: stay composed and comfortable around normal ride height, then ramp up damping as you near the “end zone” for better chassis control off-road.

    BP5160034R is the rear shock absorber (sold individually) with a remote reservoir and on-car adjustability, so you can tune rebound and compression to match load, terrain, and driving style—without removing the shock.

    Position
    Rear
    Part number
    BP5160034R
    Design
    Bypass (position sensitive)
    Adjustability
    On-car adjustable rebound & compression
    Bore size
    51 mm
    Material / finish
    6061 T6 aluminum, Type 3 (40 micron) hard anodized
    Product photo
    ARB Old Man Emu BP-51 BP5160034R rear bypass shock absorber with remote reservoir
    Rear BP-51 shock (BP5160034R) with remote reservoir.

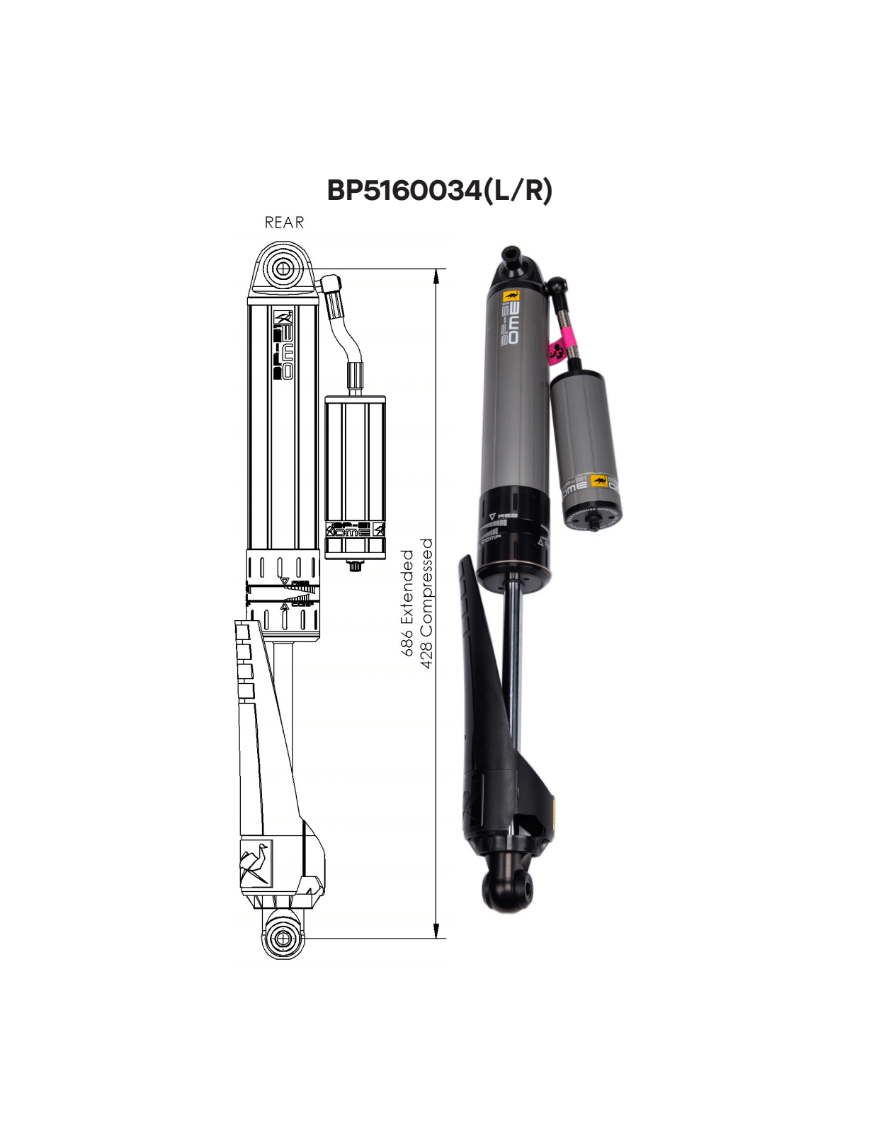

    Key components overview (diagram)
    Diagram showing BP-51 components and adjusters (remote reservoir, bypass adjuster, shaft guard)
    Illustration of BP-51 design elements and adjustability.

    Key benefits

    • Internal bypass / shim-controlled, position-sensitive damping for comfort at ride height and stronger control near full compression.
    • “End zone” damping increases as travel approaches the limit to help stabilize the chassis off-road.
    • Remote reservoir and greater oil volume to support consistent performance in demanding conditions.
    • Maximum bore size and bypass diameter (51 mm) for more tunable force generation.
    • On-car adjustable rebound and compression for quick, meaningful tuning changes.
    • 6061 T6 aluminum body, reservoir, and components with Type 3 40-micron hard anodizing for heat dissipation, corrosion resistance, and resistance to stone damage.

    What’s included

    • 1× Rear BP-51 Bypass Shock Absorber – BP5160034R

    Technical facts / specifications

    • Color: Grey
    • Material: Aluminum
    • Design: Bypass
    • Open length: 686 mm
    • Closed length: 428 mm
    • Construction: 51 mm bore, 6061 grade aluminum body; polyethylene shaft guard; rubber bushings
    • Finish: Type 3 (40 micron) hard anodized
    • Warranty: 3 years
    • CA Prop 65: No

    Who it’s for / use cases

    • Drivers who want a bolt-on, tunable shock that can handle daily driving and serious off-road use.
    • Builds that need more control at the end of travel without sacrificing comfort around normal ride height.
    • Owners who adjust setup for changing loadouts (gear, accessories) and varying terrain.

    Installation / notes

    • Designed to bolt onto the vehicle without requiring vehicle modifications.
    • Fitment depends on the selected vehicle configuration (use the store “Select a Ride” / fitment tool).

    Summary (quick scan)

    • Part number: BP5160034R (rear)
    • Type: BP-51 bypass, position-sensitive damping + remote reservoir
    • Tuning: on-car adjustable rebound and compression
    • Specs: 51 mm bore, 686/428 mm open/closed length
    • Build: 6061 T6 aluminum, Type 3 40-micron hard anodized, 3-year warranty
    PRAWY TYLNY AMORTYZATOR OME BP-51 - JEEP WRANGLER JLPRAWY TYLNY AMORTYZATOR OME BP-51 - JEEP WRANGLER JL
    ARB-BP5160034R
    99 Items

    Data sheet

    MARKA
    JEEP
    MODEL
    WRANGLER JL
    WRANGLER JLU
    Wrangler JL 4XE

    Accessories

    Częste pytania

    Question about the product

    * Required fields
    (read)
    add remove Can I have the suspension components and parts I purchased installed at Szekla4x4.pl’s service center? insert_link

    YES, please contact us to arrange time when to do it.

    Tel: +48 534 600 534 (please select option 3)

    Email: info@szekla4x4.pl

    add remove What is the maximum lift for comfort on a Jeep Wrangler JL? insert_link

    A 2.5-inch lift is the optimal choice — it allows for fitting larger tires while maintaining ride comfort.
    Springs starting from 3.5 inches are stiffer to support the vehicle’s height. Unfortunately, this stiffness limits overall comfort, even with high-quality shocks.
