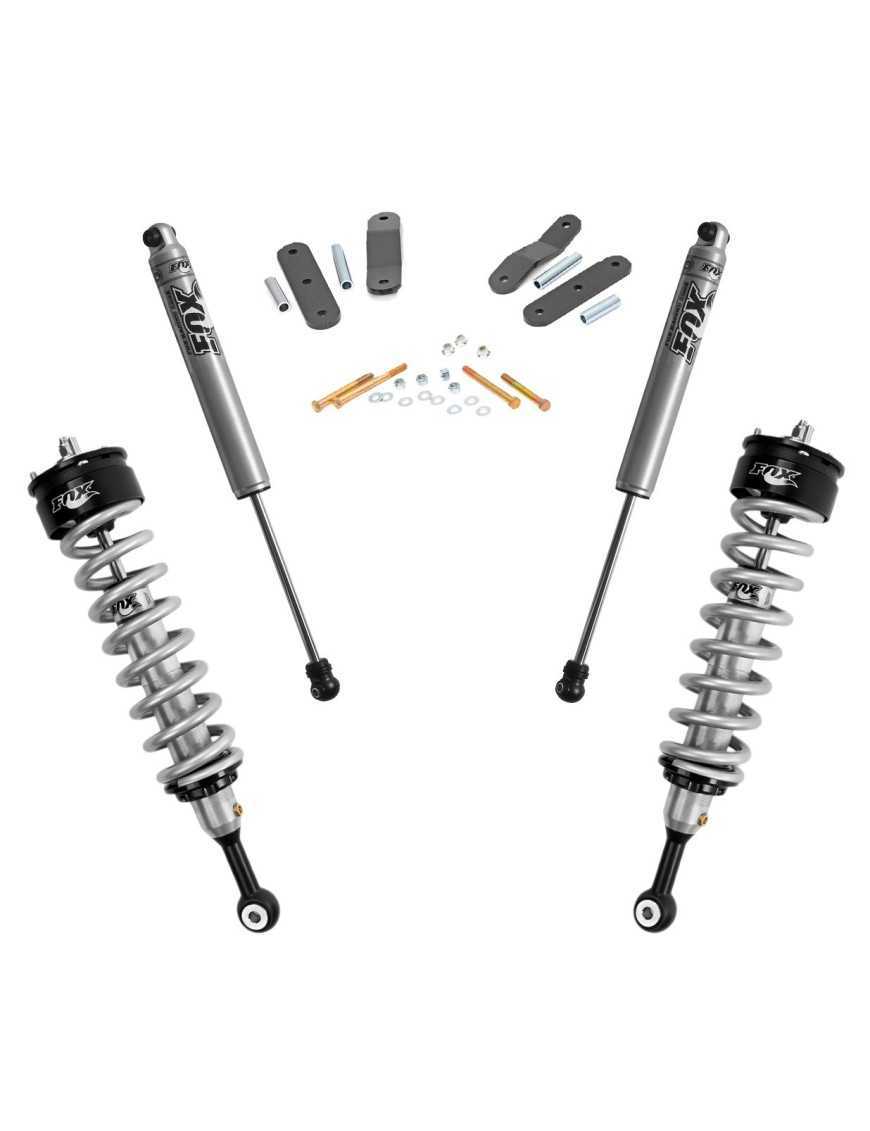

2'' Lift Kit FOX 2.0 Performance - Nissan Navara 05-15

• Work characteristics tailored to hardened roads and extreme terrains
• Improves driving quality
• Created using highest quality materials
• Gives a sporty character

Front Coilover shock absorber specifications:

• 2.0" anodized aluminum 6061-T6 body
• Internal IFP reservoir
• 5/8" chromed shaft
• High-flow piston
• Vehicle-specific valving system for maximizing performance
• JM92 oil adapted to variable temperatures
• Bushings with special rubber for increased suspension articulation
• Durable large-diameter bearing

Front shock absorber dimensions:

• Extended shock length: 15.69"
• Compressed shock length: 11.50"
• Travel length: 4.19"

Front shock absorber mountings:

• Upper mounting: OEM
• Lower mounting: eye

Rear shock absorber specifications:

• Precision extruded body made of anodized aluminum 6061-T6
• Rust and external factors resistant finish
• Mono-Tube design with additional movable piston for excellent oil separation from high-pressure compressed nitrogen
• Nitrile rubber bushings for quiet shock operation
• Machined anodized aluminum 6061-T6 components
• 5/8" diameter shaft made of hot-rolled steel
• High-flow oil piston designed for motorsport applications
• Extremely tight triple sealing system: main seal, piston seal, scraper seal
• Technologically advanced JM92 oil for excellent performance regardless of temperature

Rear shock absorber dimensions:

• Extended shock length: 21.62"
• Compressed shock length: 14.00"
• Travel length: 7.62"

Rear shock absorber mountings:
