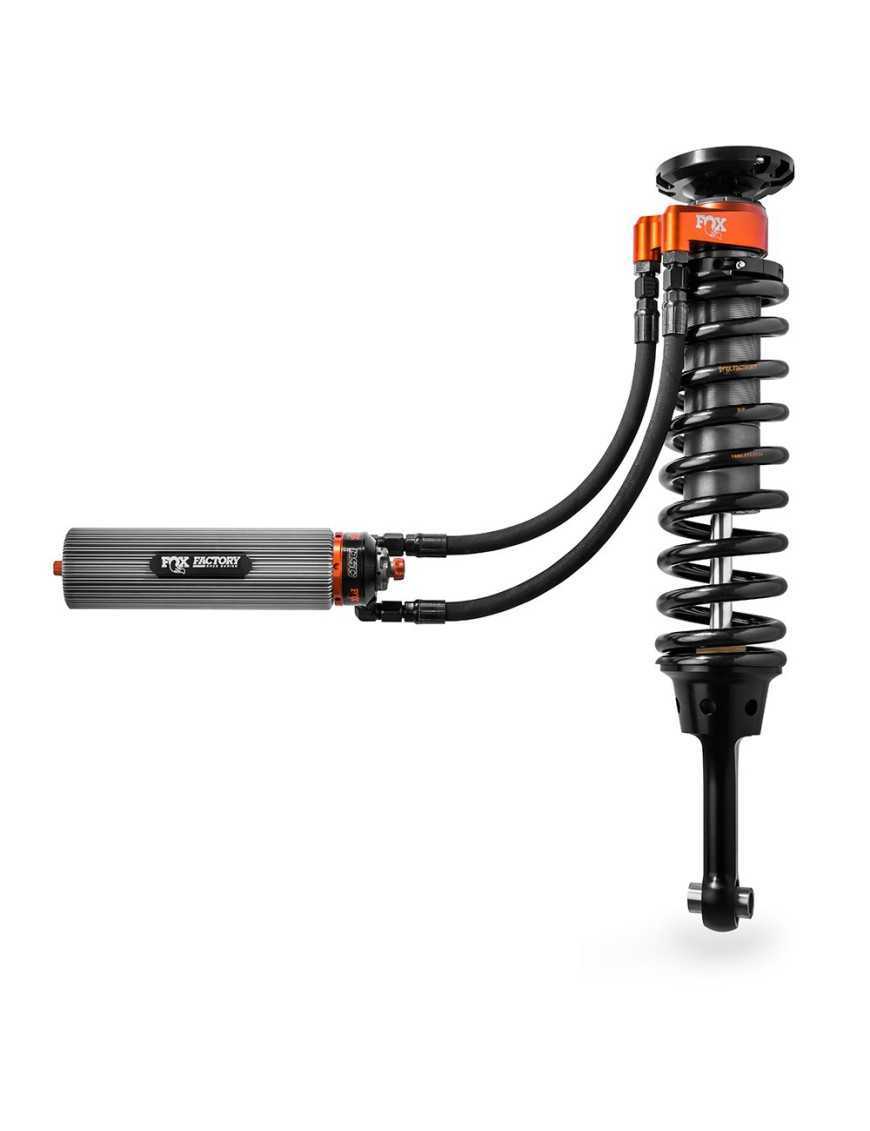

Front Shock Absorber 3.0 Factory Race Internal Bypass Coil-Over Reservoir FOX - Ford F150 Raptor 17-18

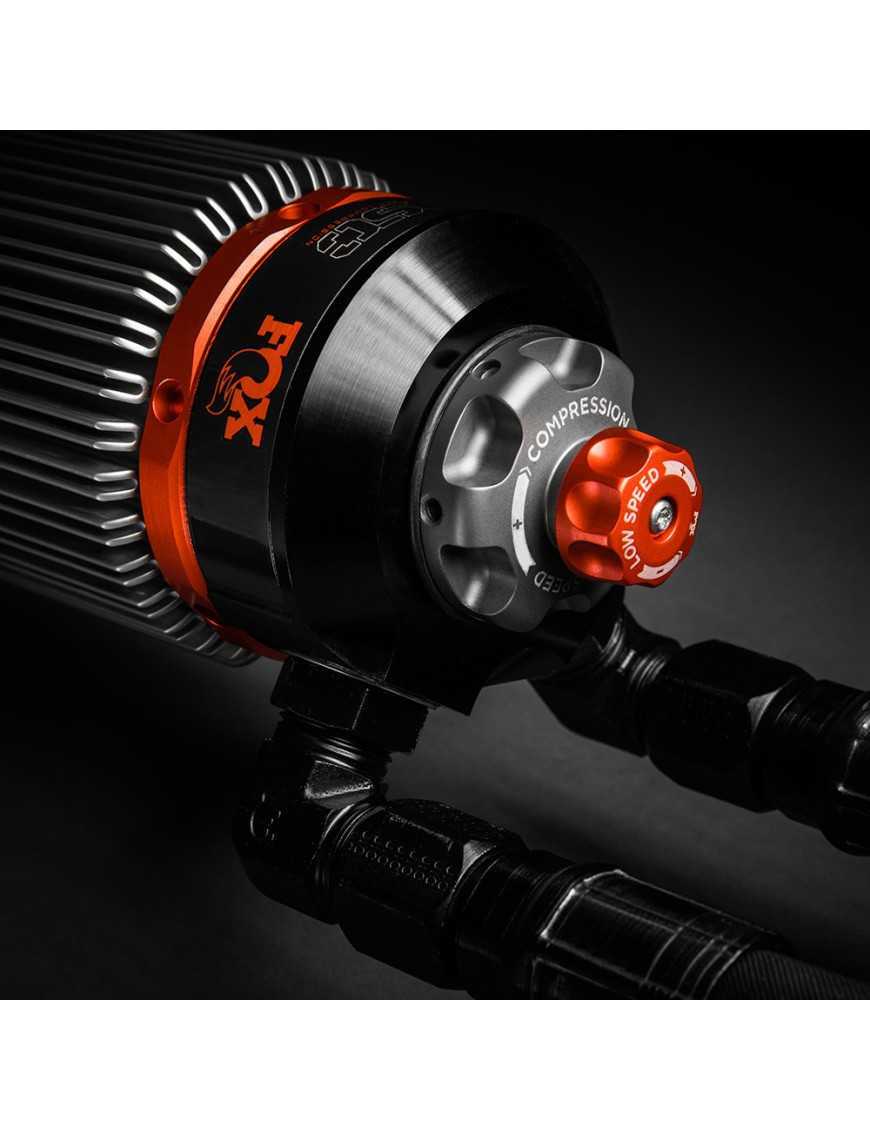

• DSC - slow and fast compression adjuster
• 3" diameter body made of anodized aluminum

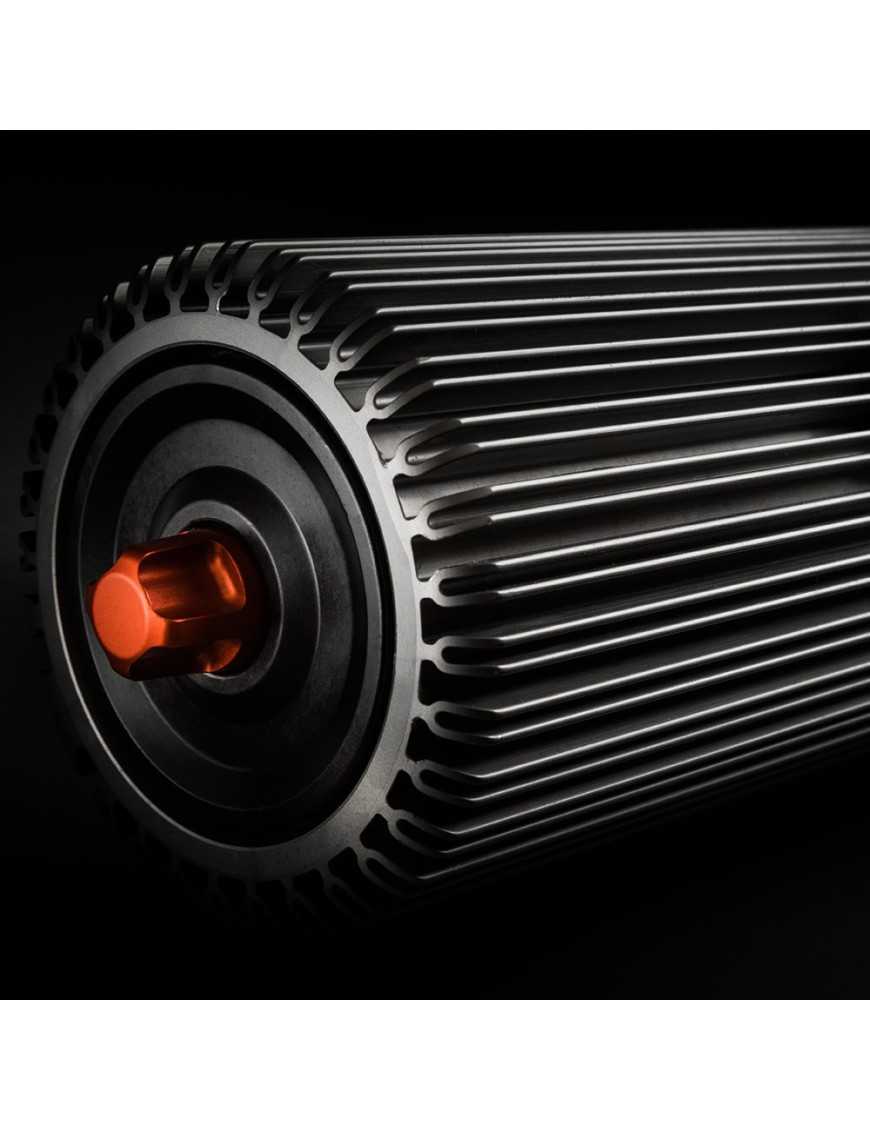

• Reservoir made of hardened anodized aluminum with recirculation bridge
• Components made of machined hardened anodized aluminum 6061-T6

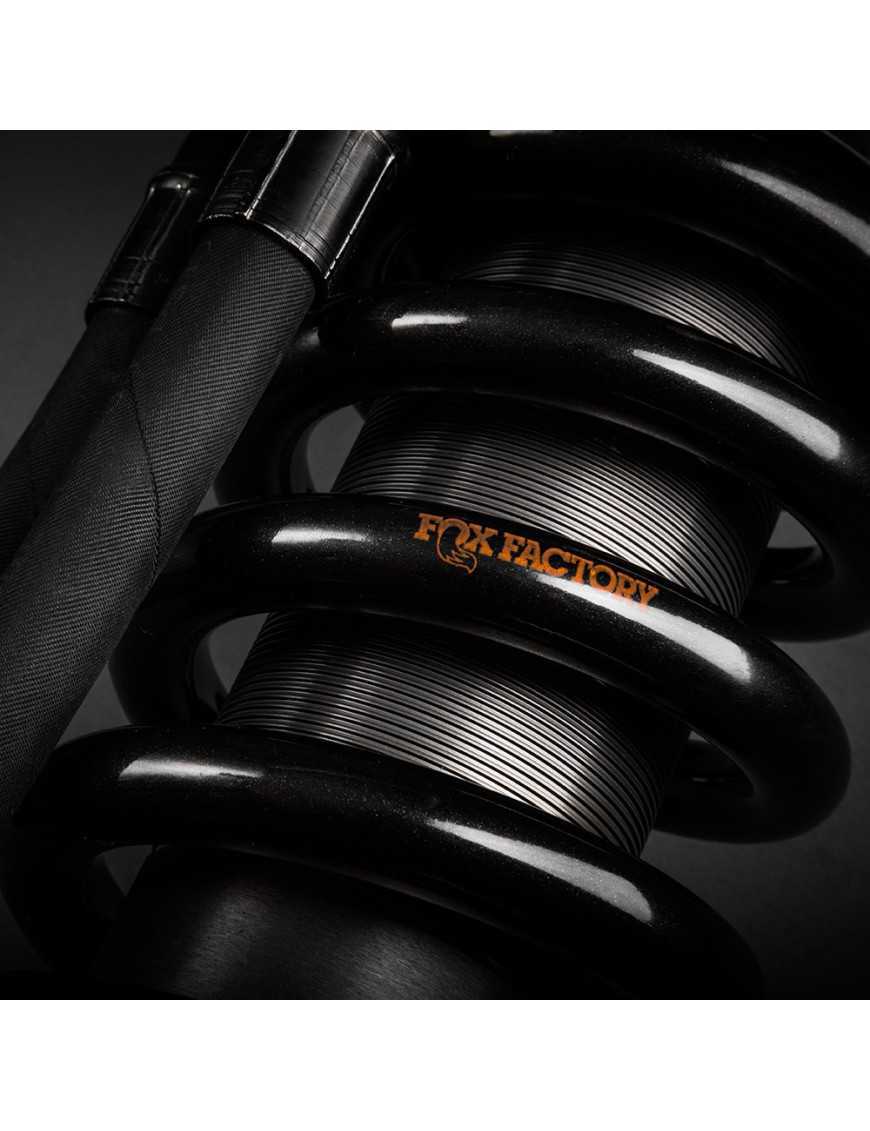

• 3.75" diameter performance springs specially matched to 2nd generation Raptor, preload set to level front and rear of the vehicle
• 7/8" chrome plated shaft made of hardened stainless steel 17-4 H900
• High-flow piston made of hardened anodized aluminum 6061-T6 designed for motorsport
• Vehicle-specific valving to maximize performance
• Valves matched to 2nd generation Raptor for comfort and performance
• Technologically advanced JM92 oil for consistent performance in all temperatures

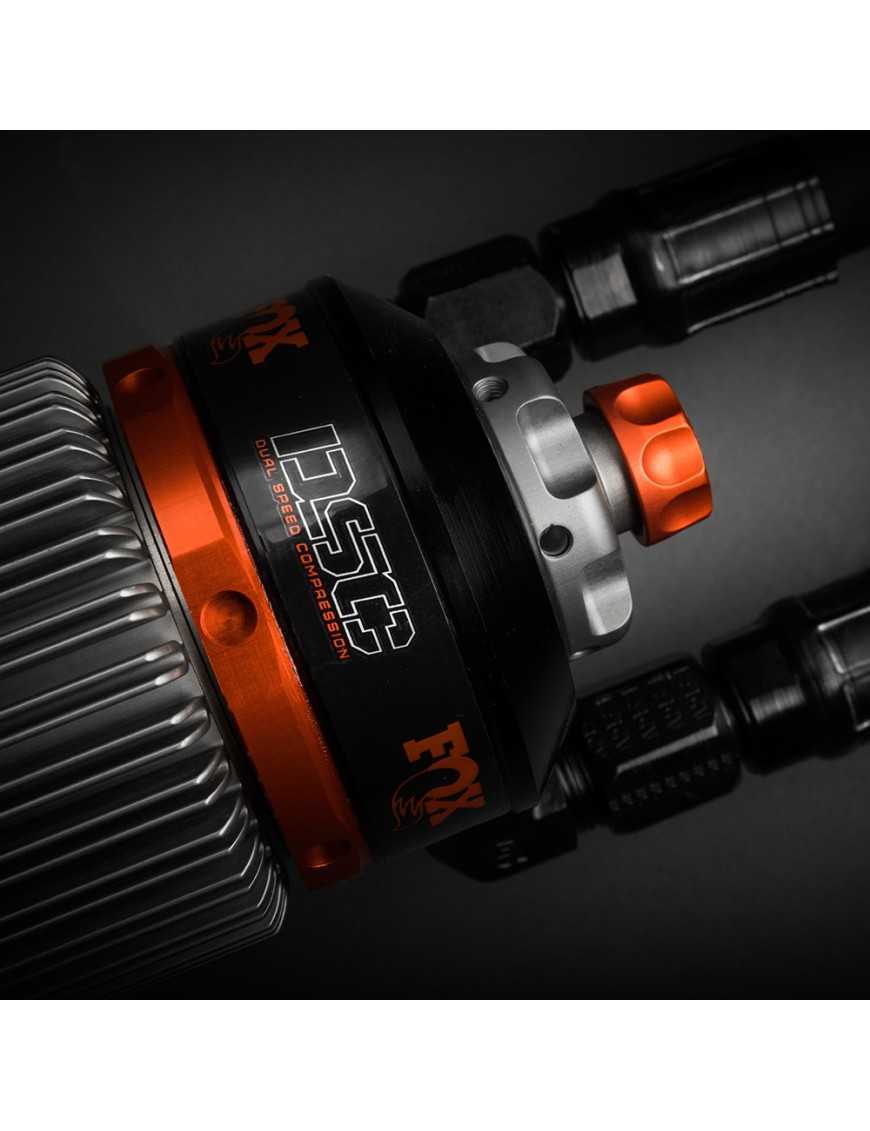

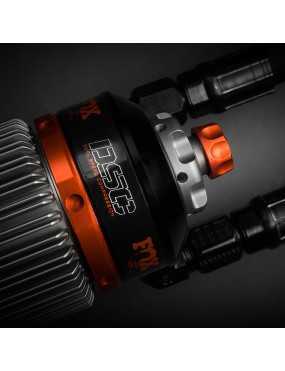

• DSC (Dual Speed Compression) adjuster, pre-set ring

Dimensions:

• Extended length: 28.45"
• Compressed length: 20.60"
• Travel: 7.85"

Mounting:

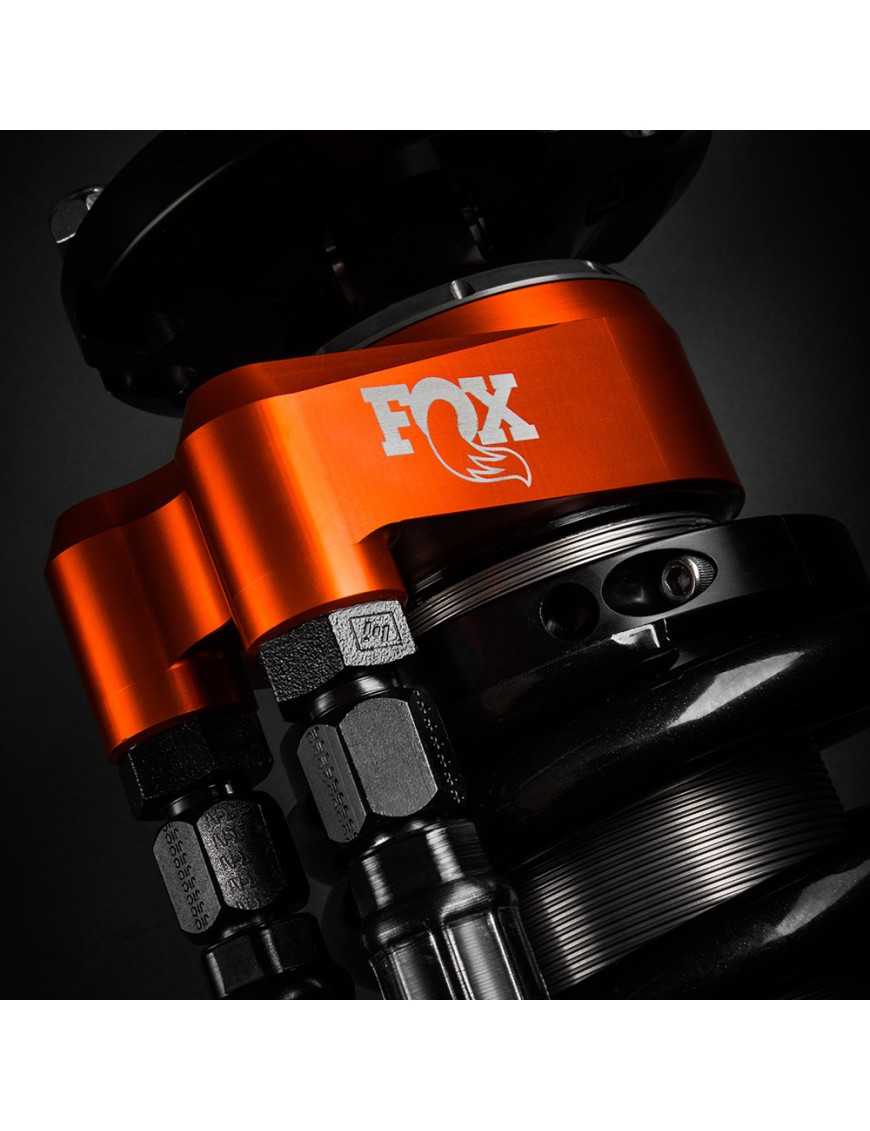

• Upper mount: OEM
• Lower mount: Eyelet
