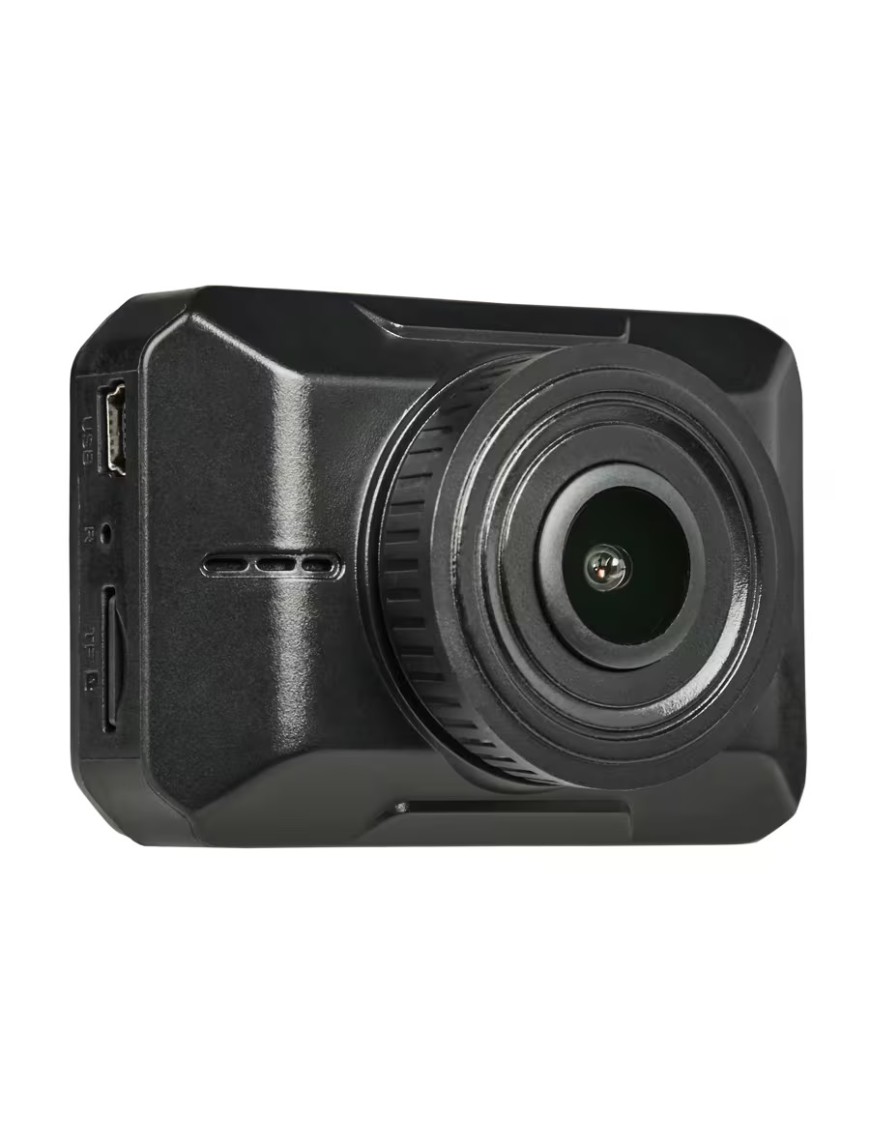

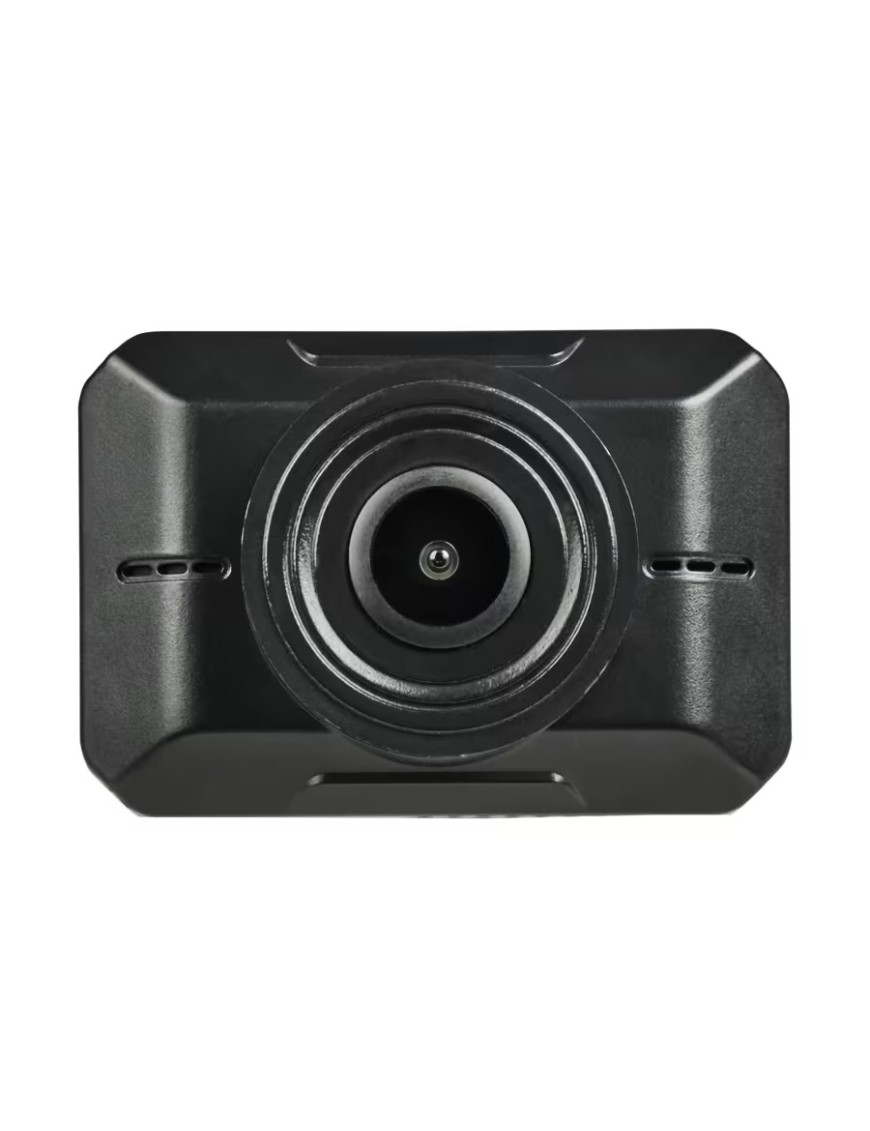

OSRAM ROADsight 1500 – compact 1080p dash cam
The OSRAM ROADsight 1500 is a compact in-car camera designed to record everyday journeys. It captures 1080p video at 30 FPS and provides a 110° field of view, giving useful coverage of the road ahead without requiring a large device on the windscreen. A built-in 2-inch screen makes positioning and menu operation straightforward.
Key benefits
- 1080p video at 30 FPS – suitable for recording everyday journeys and road events.
- 110° field of view – broad coverage of the area in front of the vehicle.
- G-sensor – detected impacts can trigger protection of the relevant recording.
- Parking Guard – parking mode is available in the camera menu.

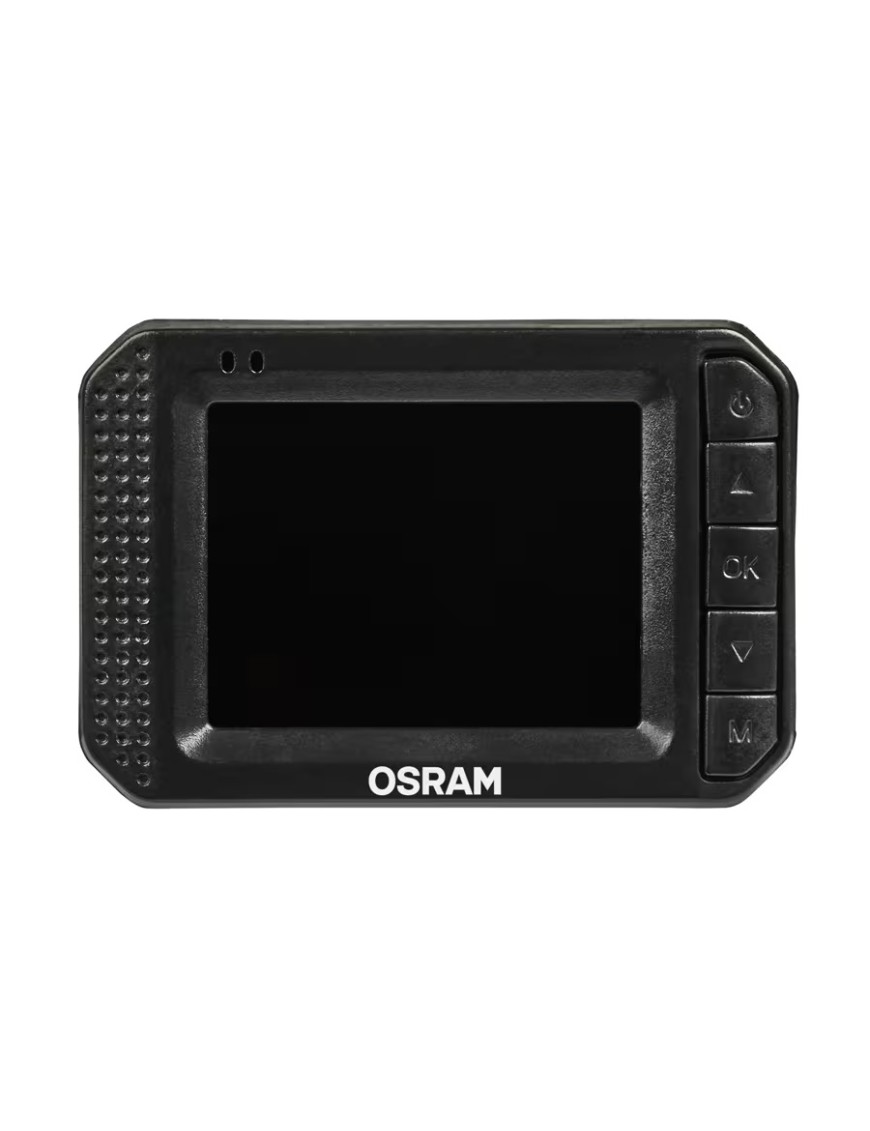

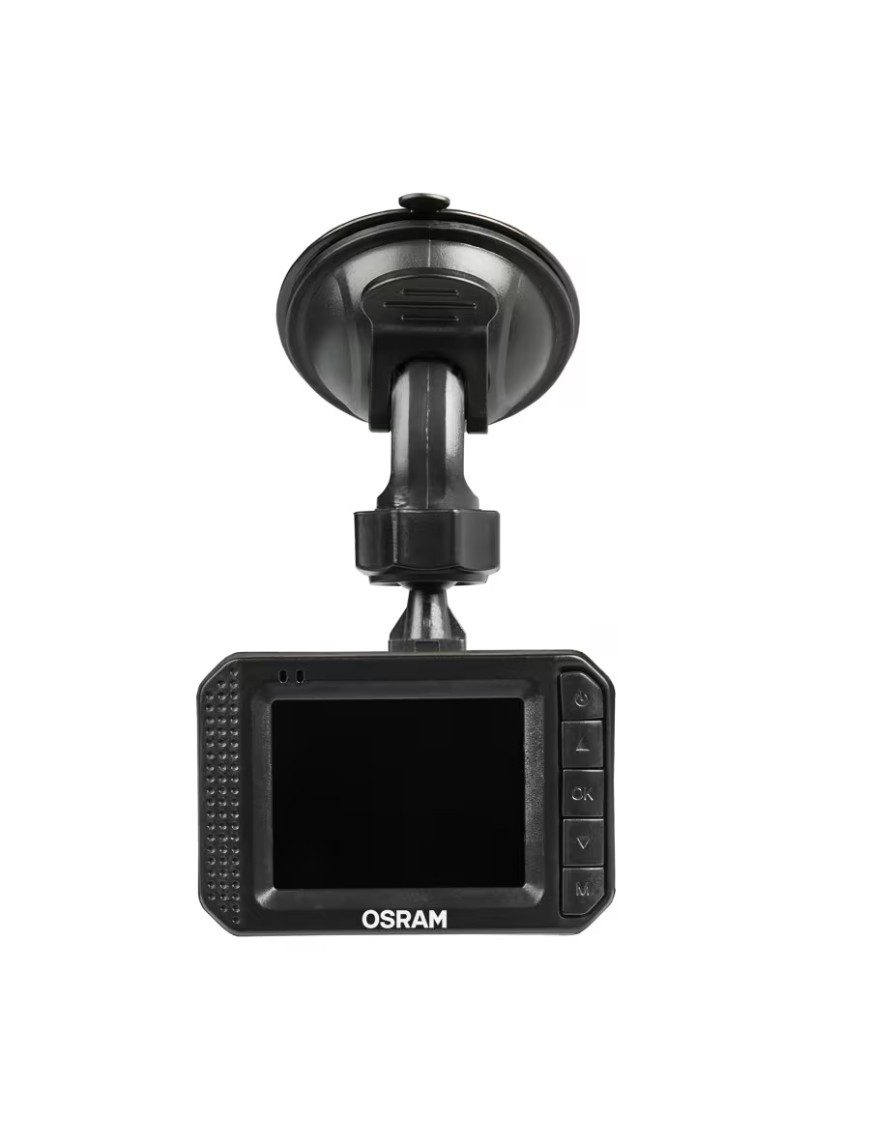

- 2-inch display – convenient for positioning the camera and accessing settings.
- USB-C connection – used for the camera's power connection.
Video recording and loop mode
ROADsight 1500 records at 1080p and 30 frames per second. Its 110° field of view captures a broad section of the road ahead. Loop recording can be set to 1, 3 or 5-minute segments, allowing the memory card to be reused continuously without manually deleting every older recording.
G-sensor and protected recordings
The built-in G-sensor detects an impact and can protect the associated video file. The current recording can also be locked manually using the camera controls.
Parking Guard
OSRAM confirms a Parking Guard function in the device menu. A hardwire kit is not included with the standard package. If permanent power while parked is required, compatibility with an appropriate power solution should be confirmed before installation.
Memory card

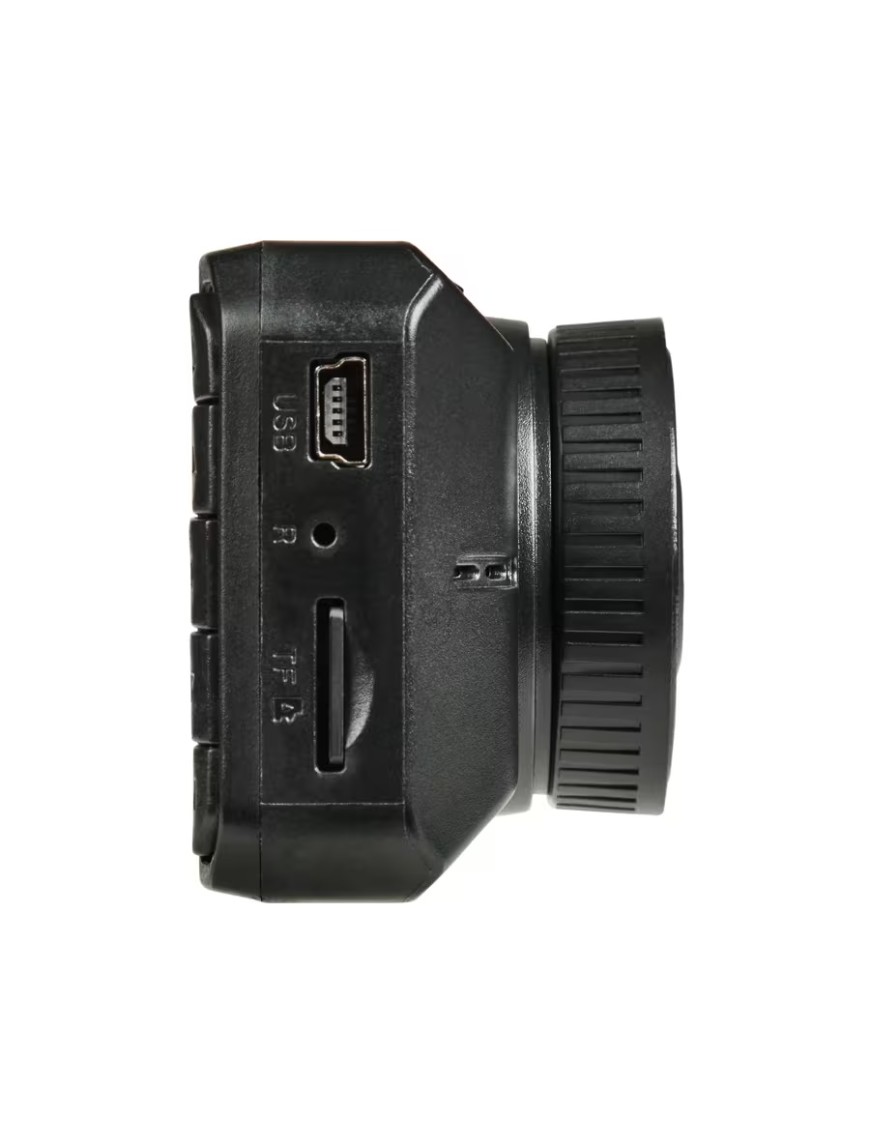

The camera supports C10-rated microSD cards with a maximum capacity of 32 GB. OSRAM recommends formatting the card before use and switching the camera off before removing it. A memory card is not listed as part of the standard package.
Compact installation

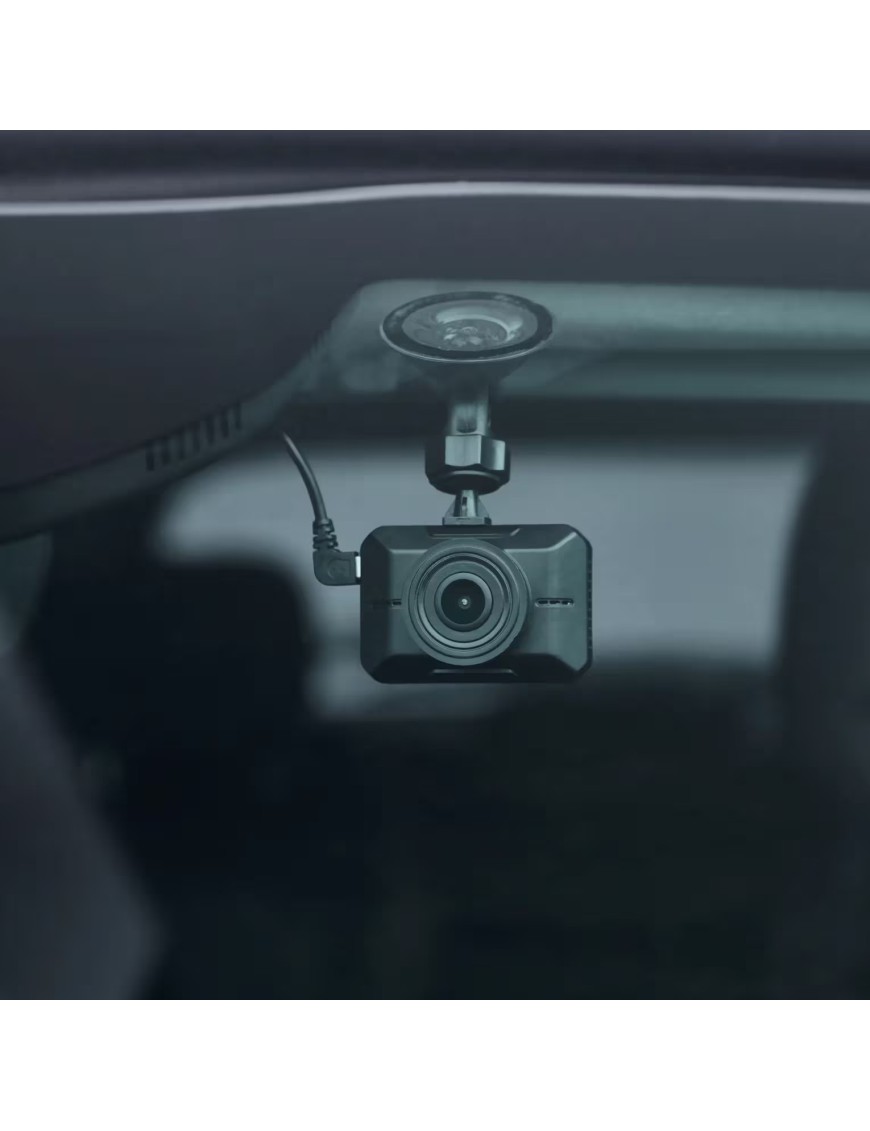

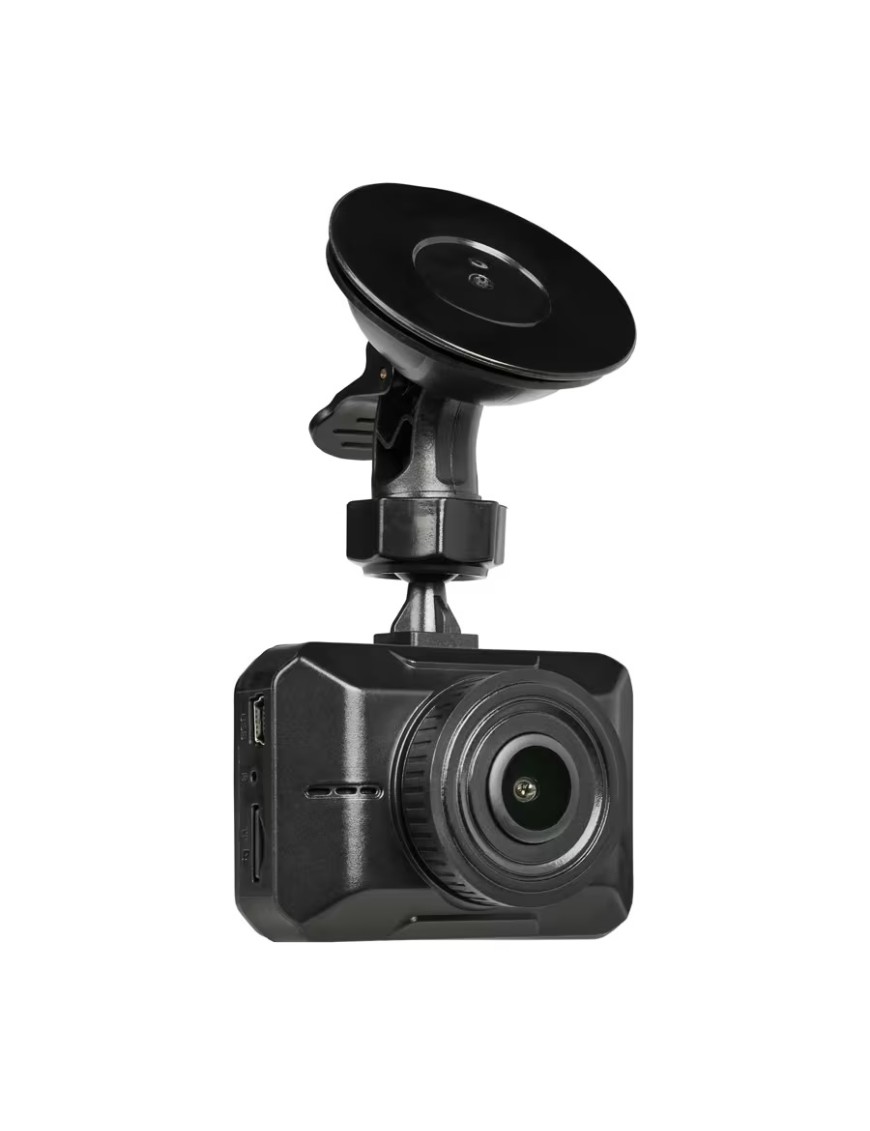

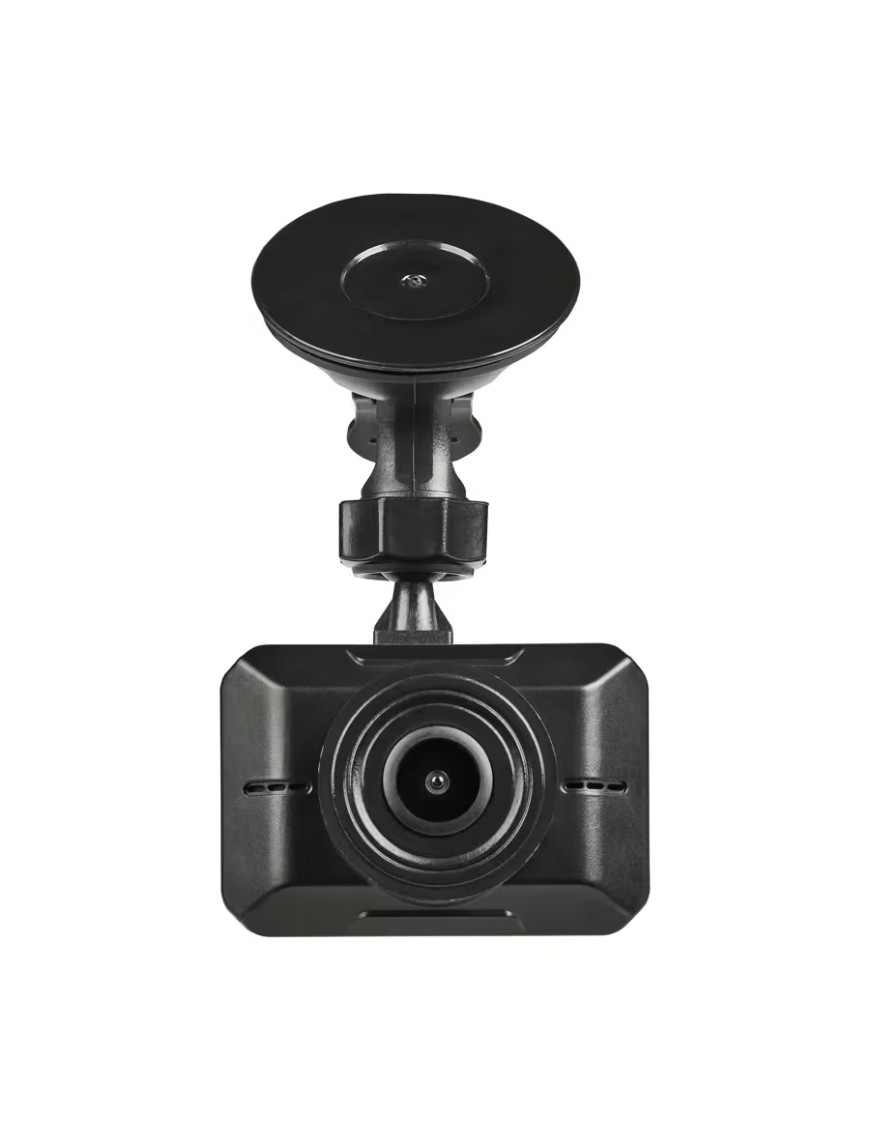

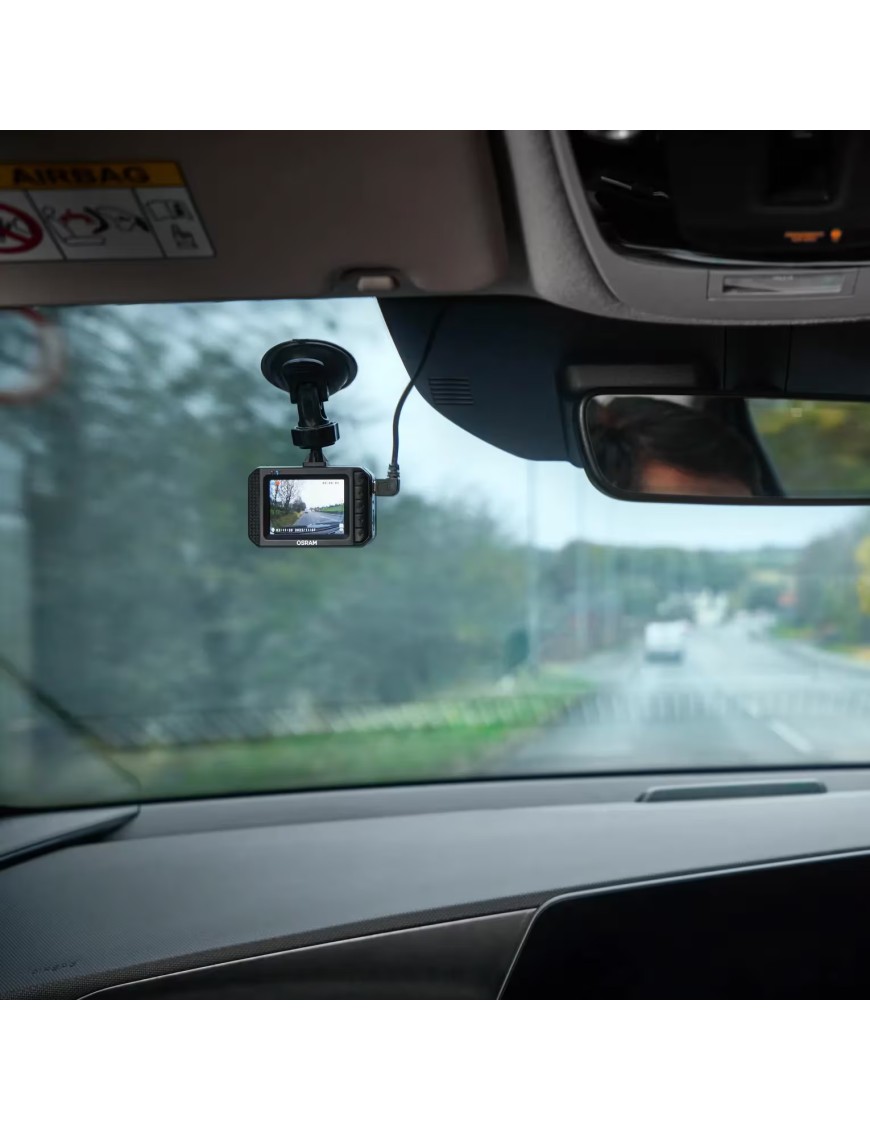

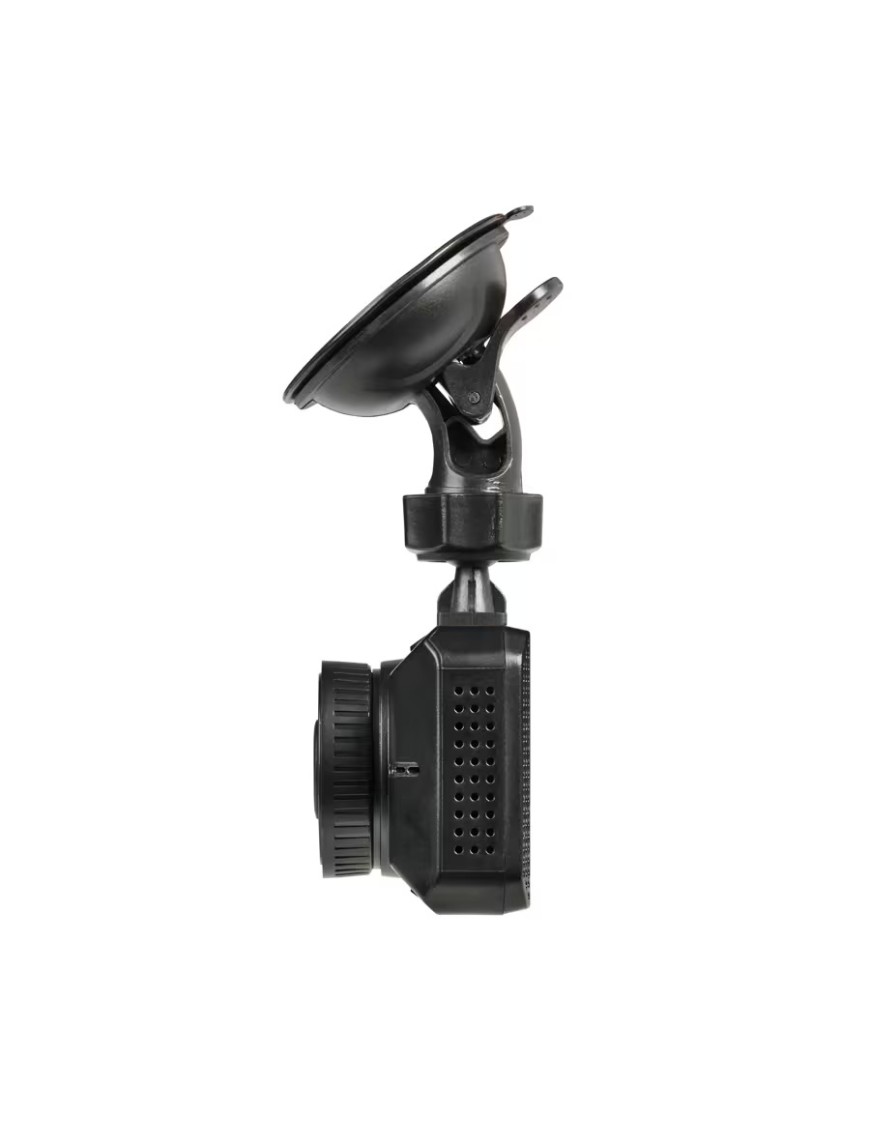

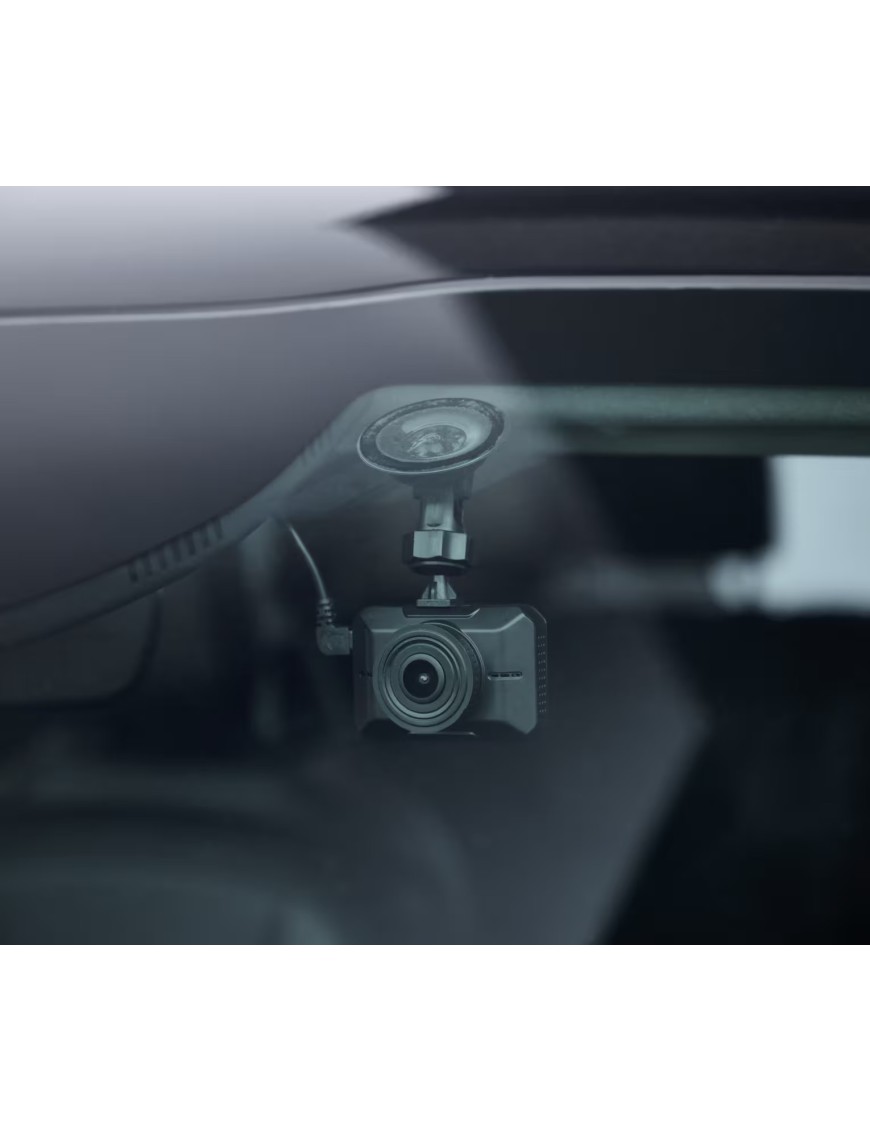

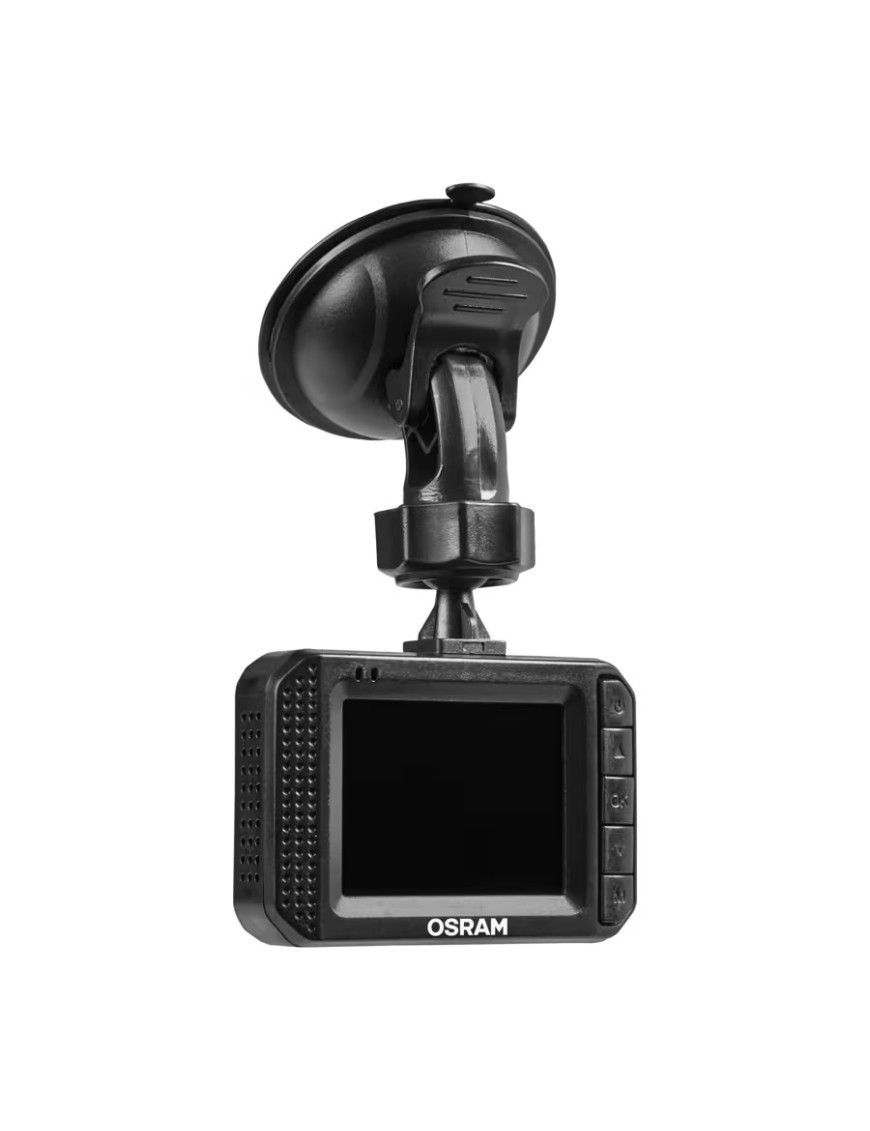

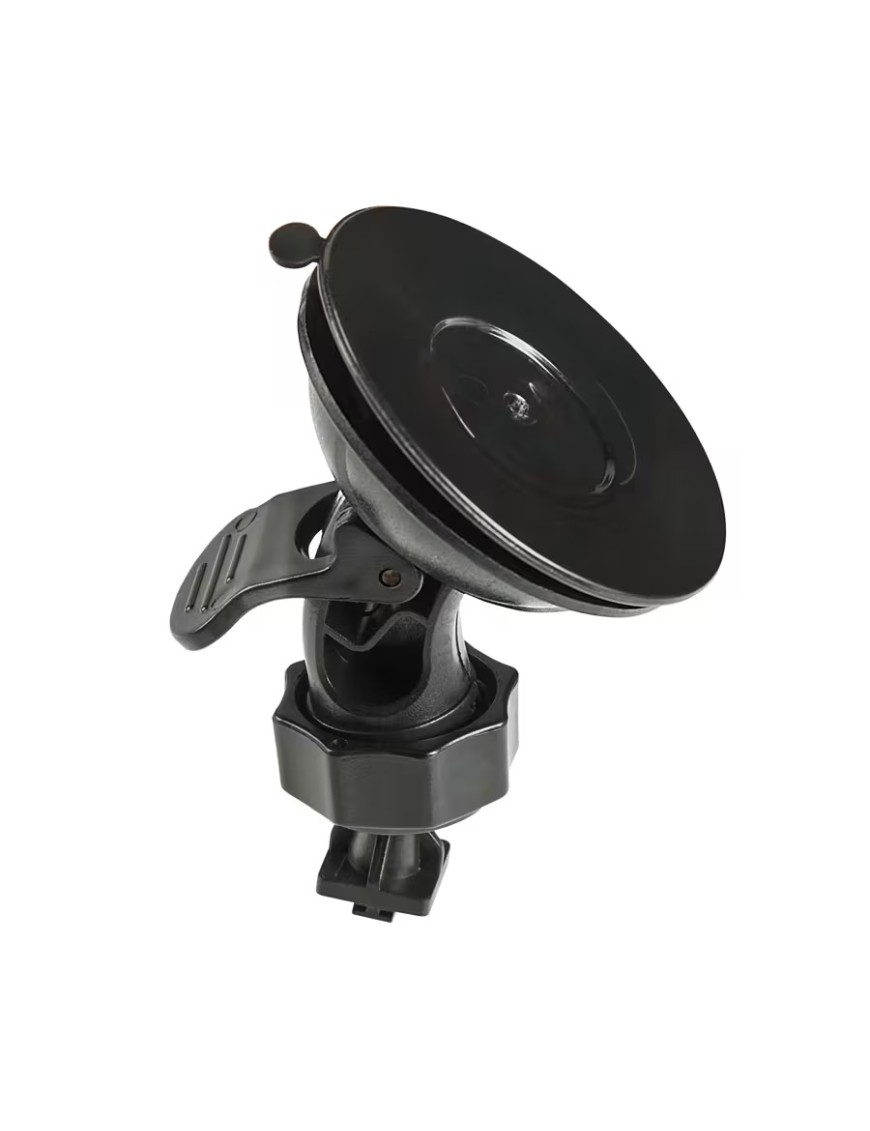

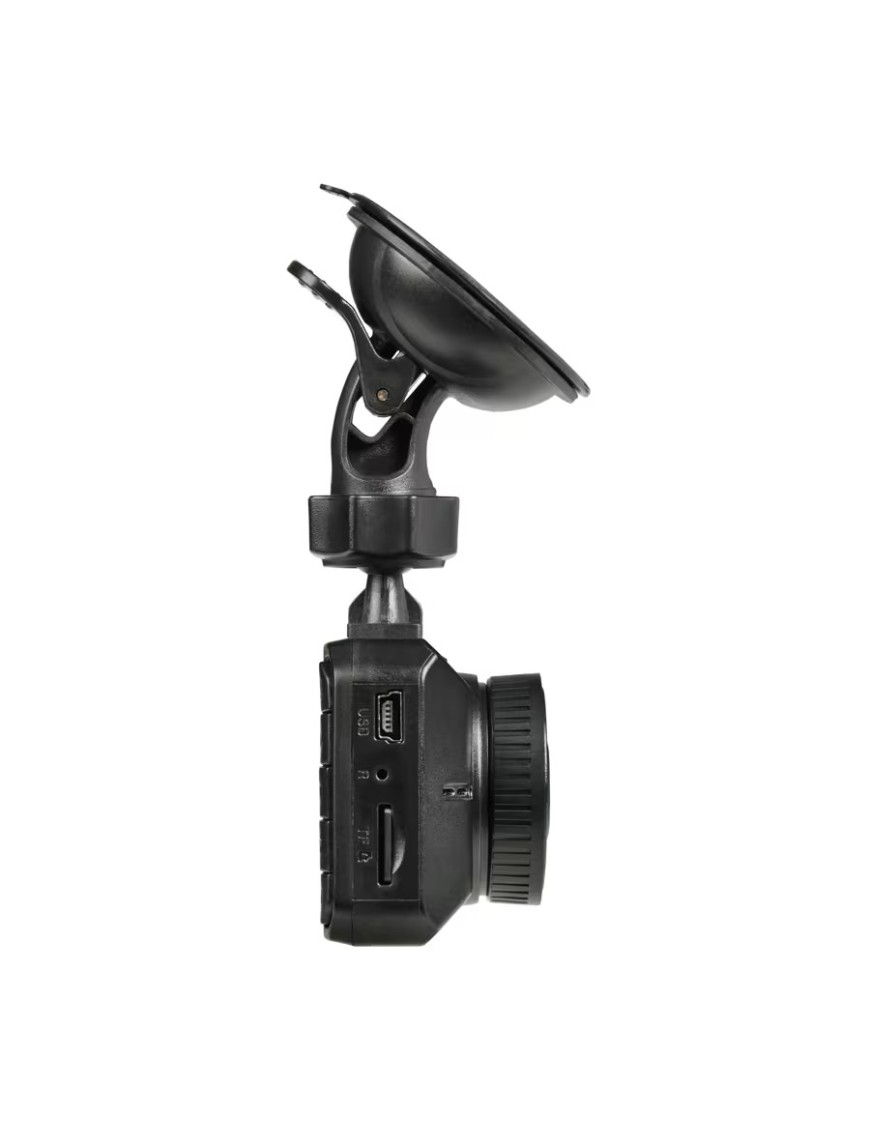

The current product data sheet specifies dimensions of 69 × 47 × 35 mm. The adjustable suction mount allows the camera to be positioned on the windscreen. OSRAM recommends mounting it close to the centre of the windscreen behind the rear-view mirror, provided the driver's field of vision remains unobstructed.
The camera must not obstruct the driver's view or be positioned in an airbag deployment area. The power cable should also be routed so that it does not interfere with vehicle controls.
Power and operation
The dash cam is powered through its USB-C port using the supplied in-car charger. According to the user instructions, it can automatically power on and begin recording when the vehicle is started, save the current recording when the vehicle is switched off and then shut down.
Technical data
| Specification | Value |
|---|
| Model | OSRAM ROADsight 1500 / ODC1500 |
| Video resolution | 1080p |
| Frame rate | 30 FPS |
| Field of view | 110° |
| Display | 2" |
| G-sensor | Yes |
| Microphone | Yes |
| GPS | No |
| Parking mode | Yes |
| Loop recording | Off / 1 / 3 / 5 min |
| Memory card | C10 microSD, max. 32 GB |
| Power interface | USB-C |
| Dimensions | 69 × 47 × 35 mm |
| Camera weight | 47 g |
| Mount | adjustable suction mount |
| EAN / GTIN | 4062172416597 |
| Manufacturer warranty | 2 years |
Package contents

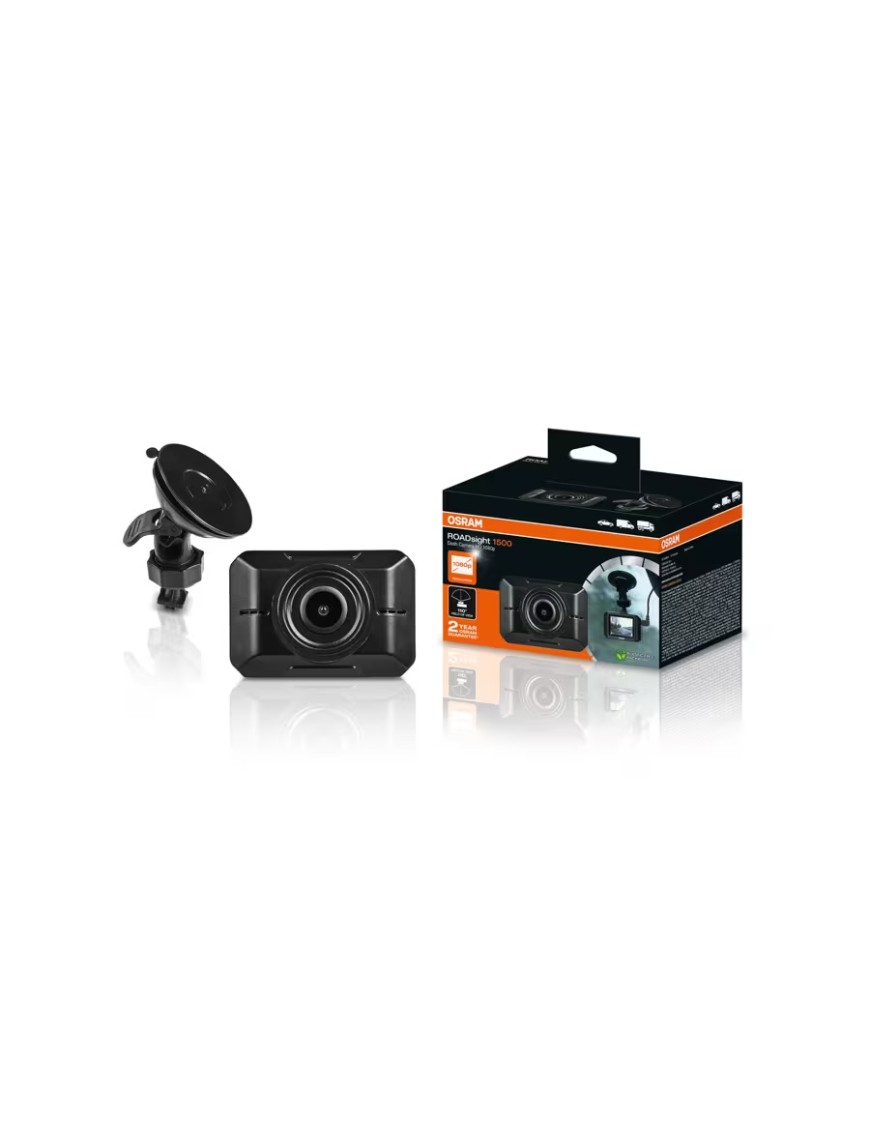

OSRAM documentation shows the ROADsight 1500 camera, an adjustable suction mount and an in-car charger with a USB-C power connection. A hardwire kit is not included.
Use of recorded footage
The use of dash cams and the subsequent processing or publication of recordings may be subject to privacy, personal rights and data-protection rules. Requirements differ between countries, so applicable local regulations should be checked before using or publishing recordings.
Frequently asked questions
Does ROADsight 1500 have GPS?
No. The current OSRAM product data lists GPS as unavailable.
Which memory card should I use?
OSRAM specifies a C10 microSD card with a maximum capacity of 32 GB.
Does the camera have parking mode?
Yes. Parking Guard is available in the menu. A hardwire kit is not included, so any permanent parking power solution should be checked for compatibility first.
