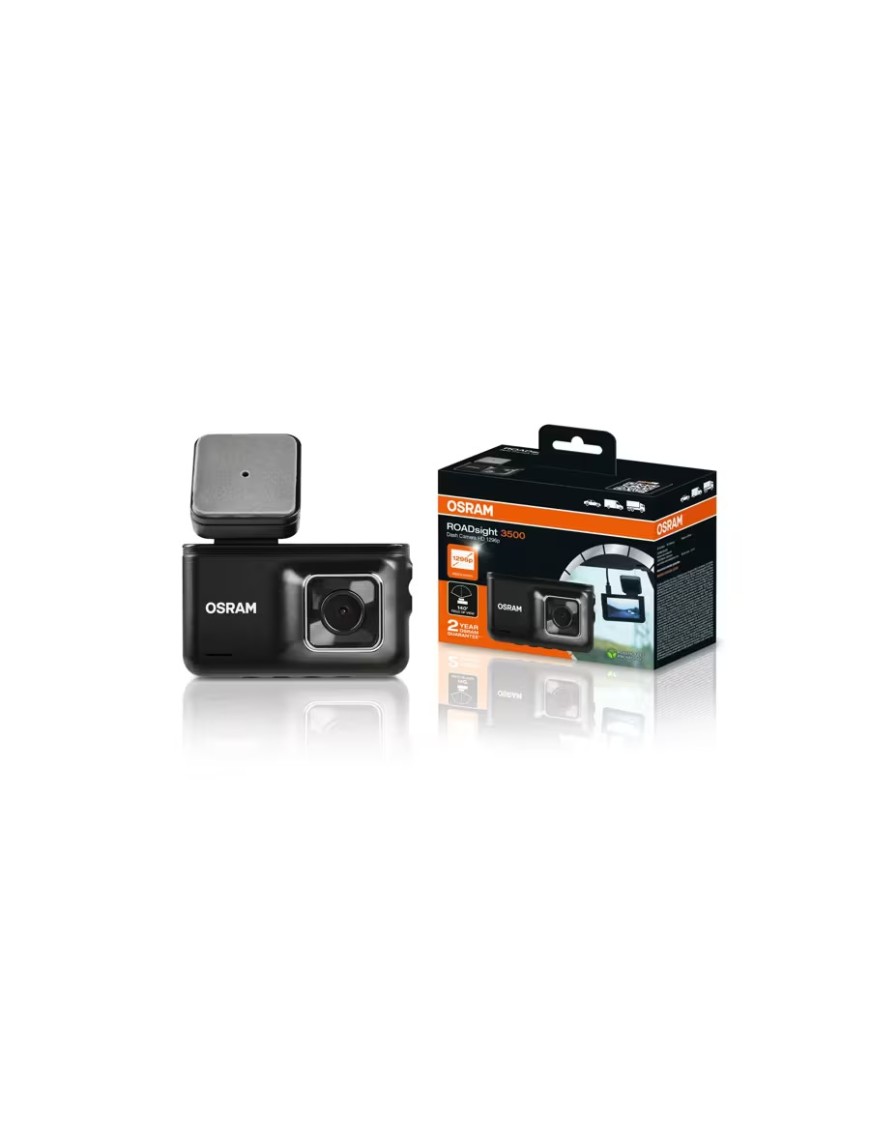

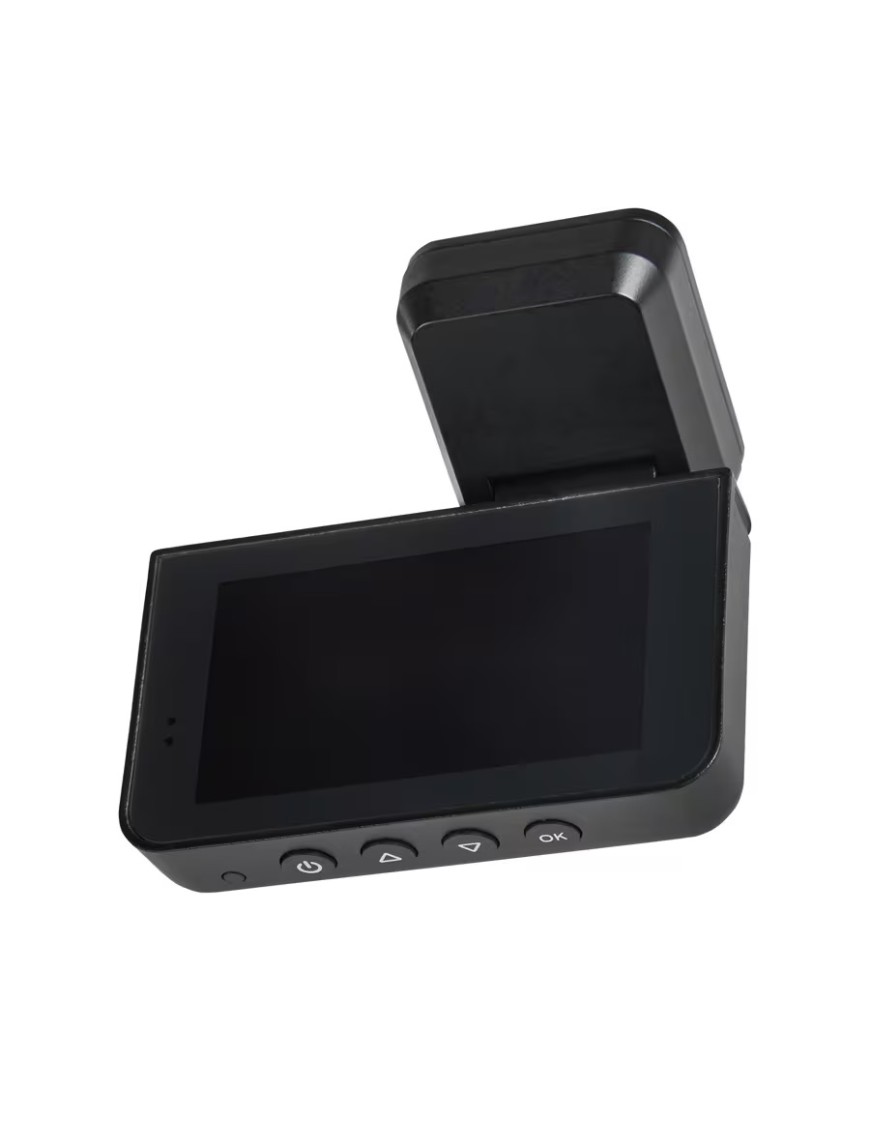

OSRAM ROADsight 3500 – 1296p dash cam with GPS

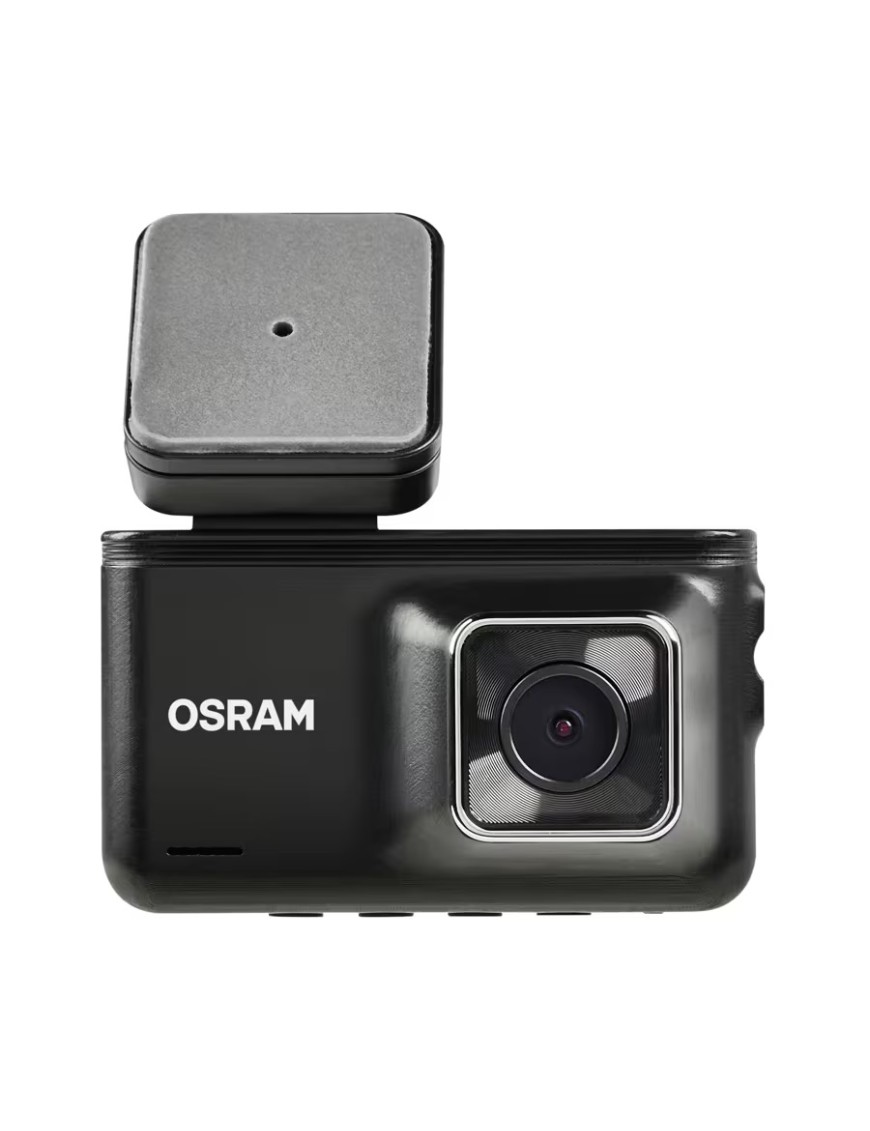

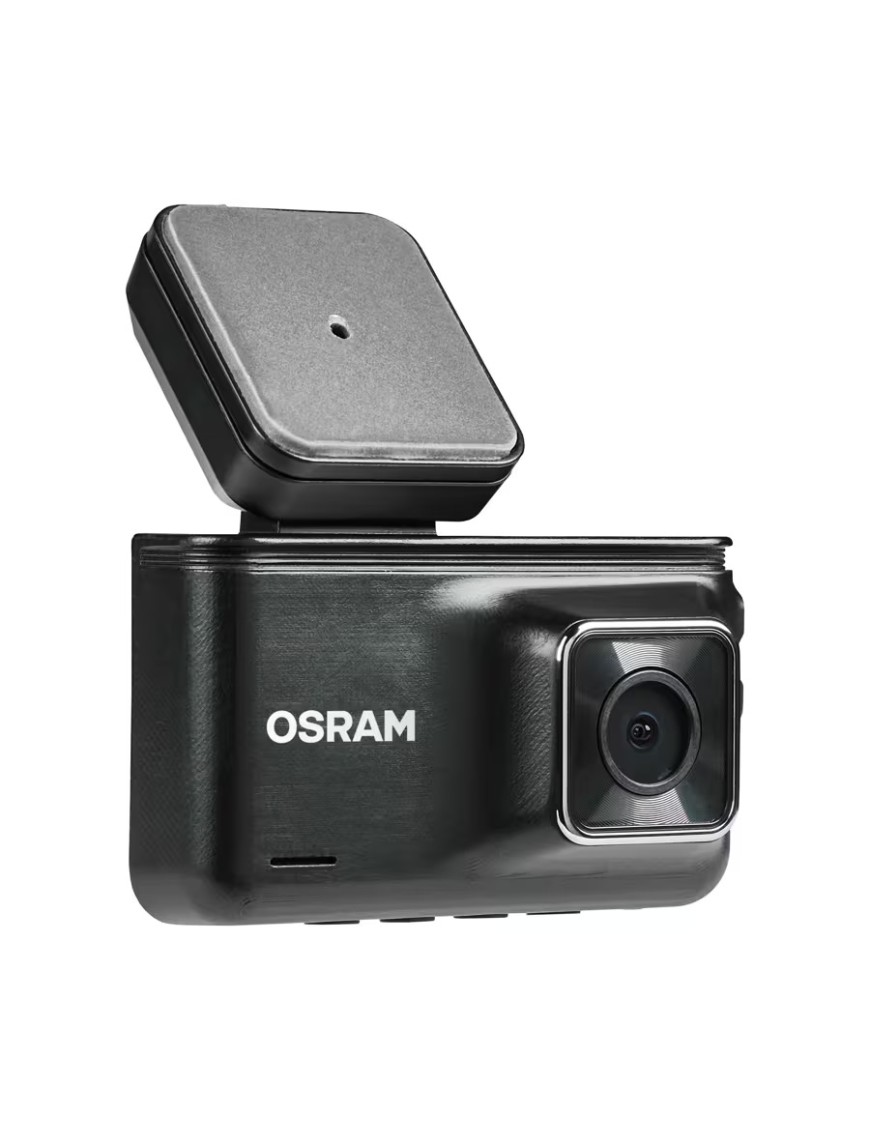

OSRAM ROADsight 3500 is a front-facing dash cam designed to record journeys and incidents ahead of the vehicle. It captures video at 1296p and 30 fps, while its 140° field of view covers a broad section of the road and surrounding area.
Key benefits
- 1296p at 30 fps – high-resolution video recording with smooth frame capture.
- 140° field of view – broad coverage of the area ahead of the vehicle.
- GPS – records position and vehicle speed data.
- HDR – supports recording in scenes with strong differences between bright and dark areas.
- G-sensor – automatically protects relevant footage when an incident is detected.

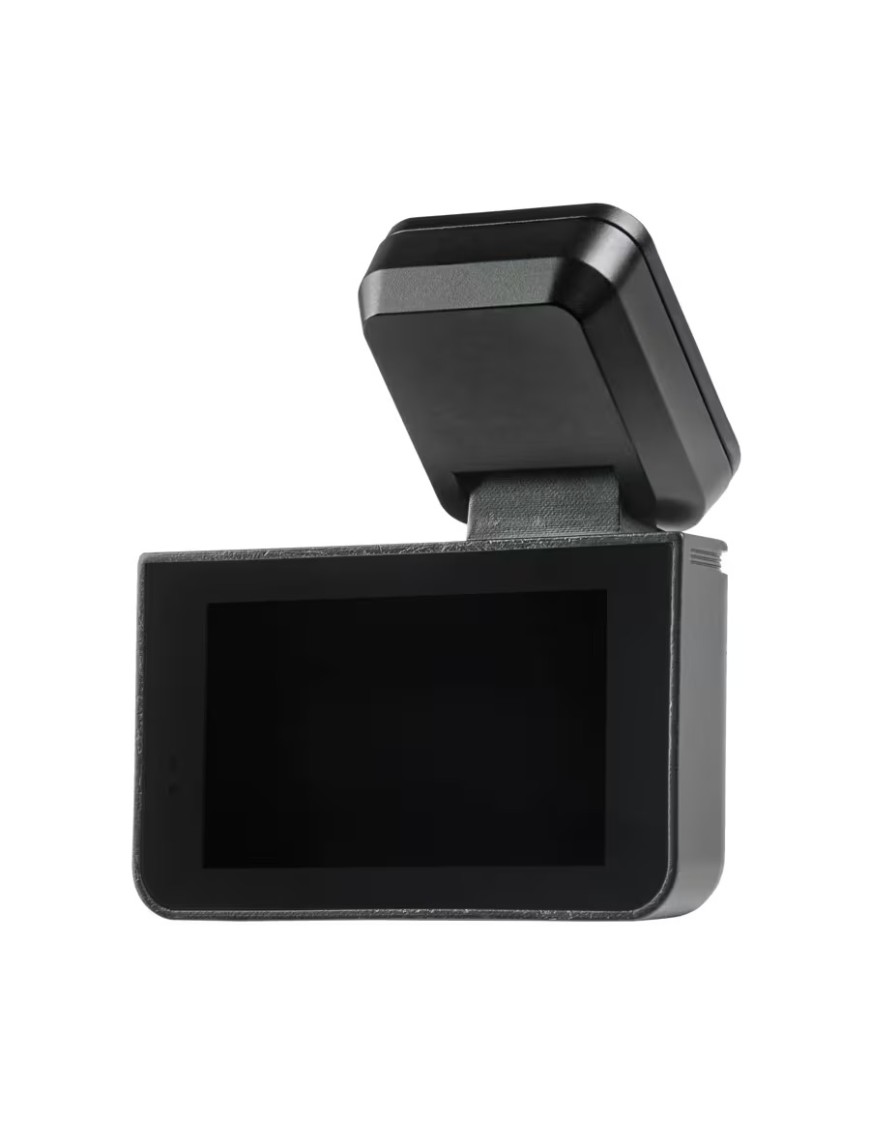

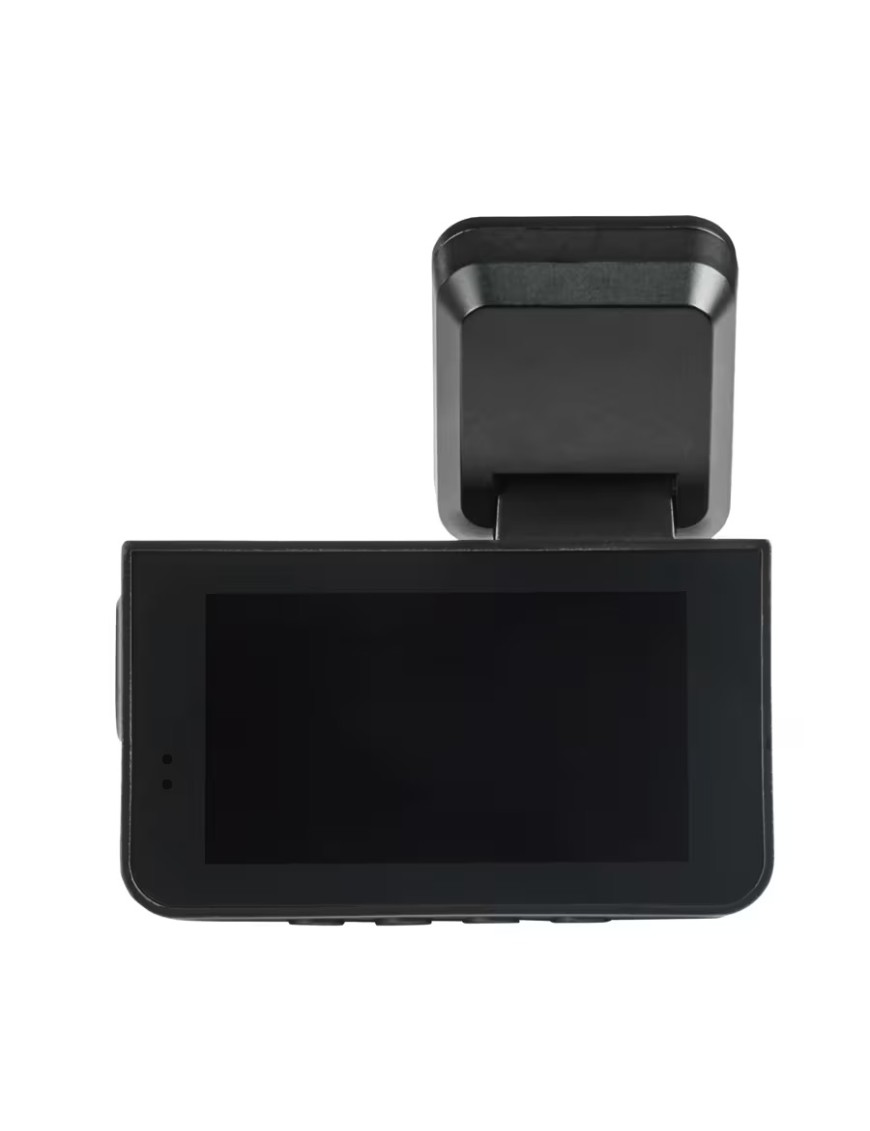

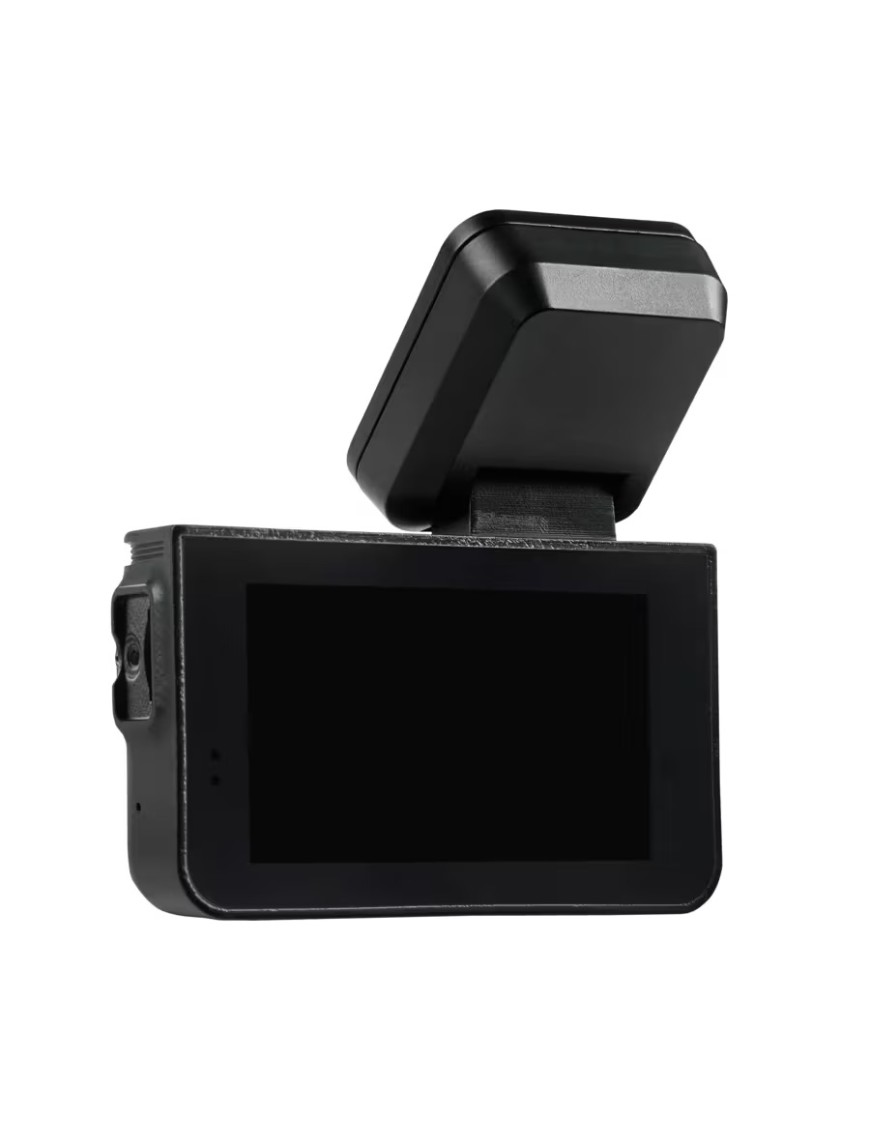

- 3″ IPS display – convenient access to recordings and camera settings.
Video recording
The ROADsight 3500 records through its front camera at 1296p and 30 fps. Its 140° viewing angle captures a broad area ahead of the vehicle. HDR helps the camera handle scenes containing both brighter and darker areas, while loop recording allows continued use of available memory.
GPS and G-sensor
Integrated GPS can store location and vehicle speed data alongside the journey recording. The G-sensor detects an incident and protects the relevant file from normal loop-recording overwrite, helping preserve important footage.
Parking mode and time-lapse

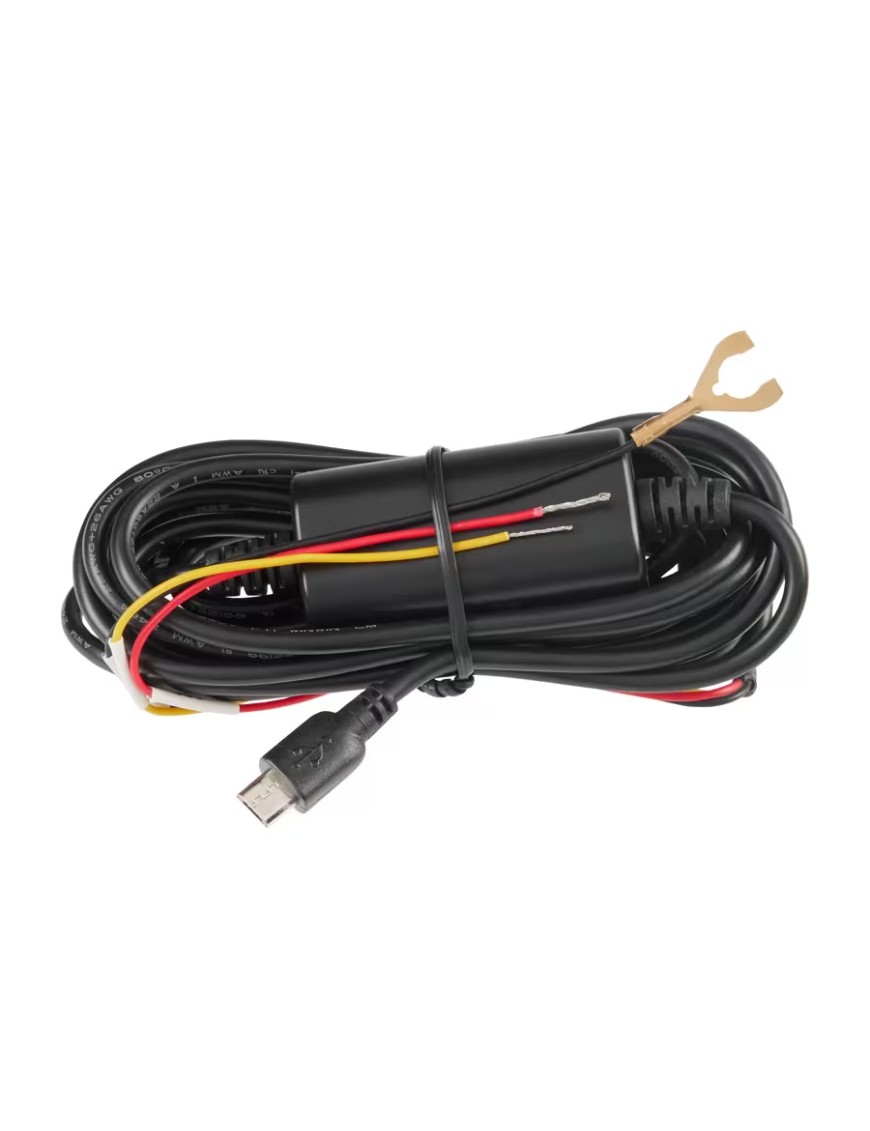

The ROADsight 3500 supports parking mode and time-lapse when used with the separately available OSRAM ROADsight Hard Wire Kit 3500 OHWK3500. The hardwire kit is not supplied with the standard dash cam package. Current OSRAM documentation states that parking mode can automatically record for up to 30 seconds when an event is detected.
12/24 V vehicle compatibility and installation

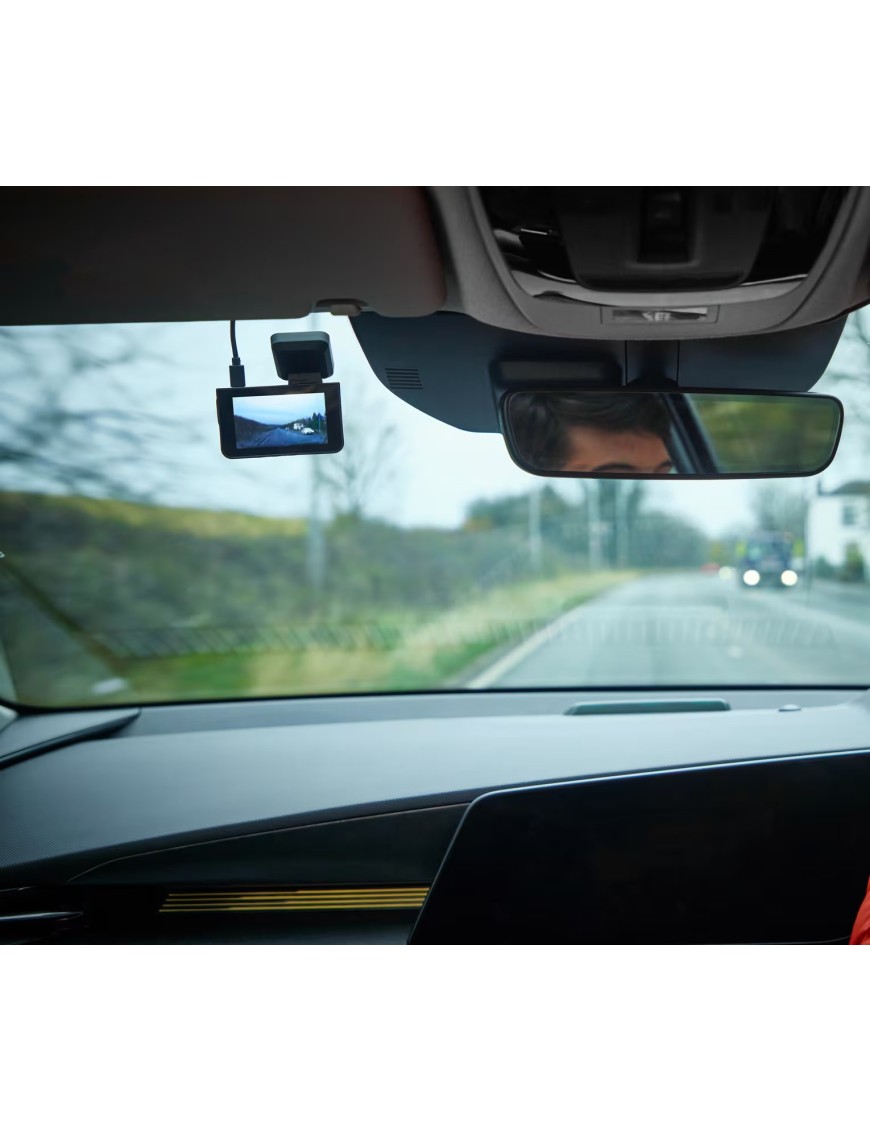

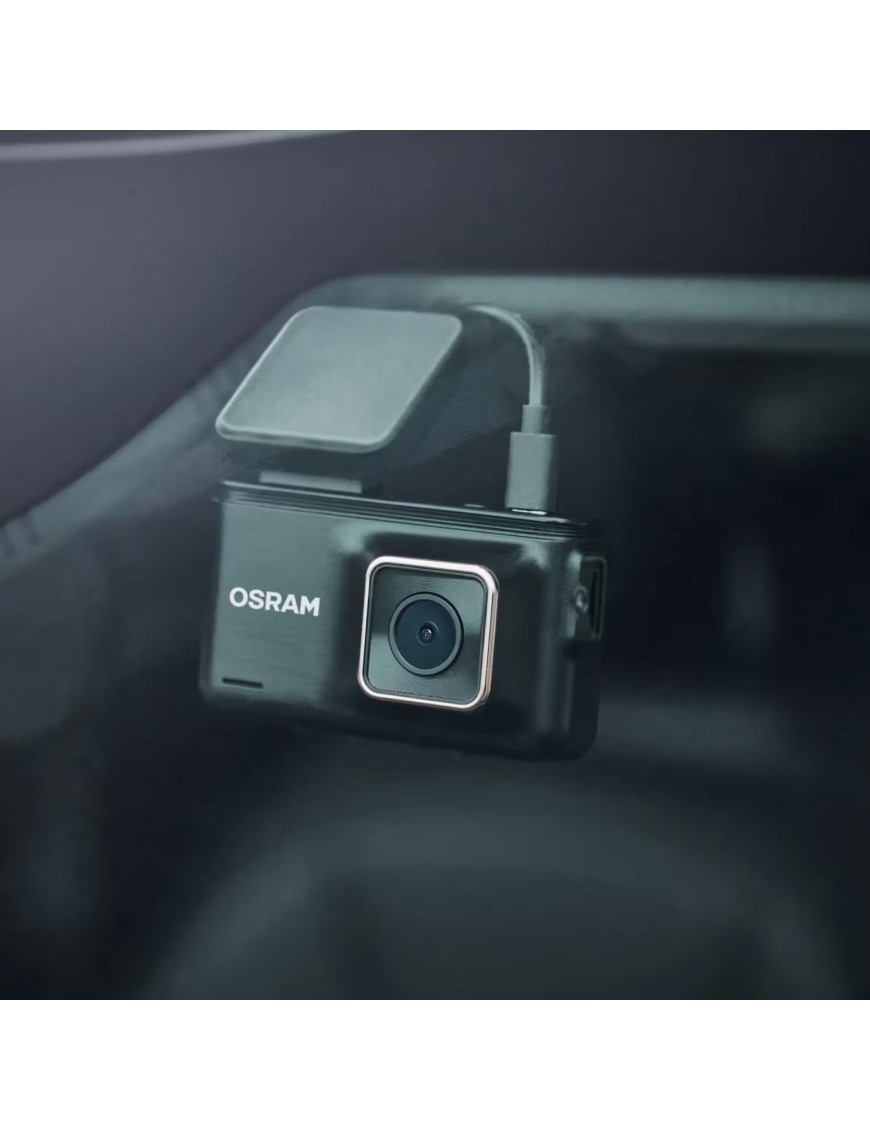

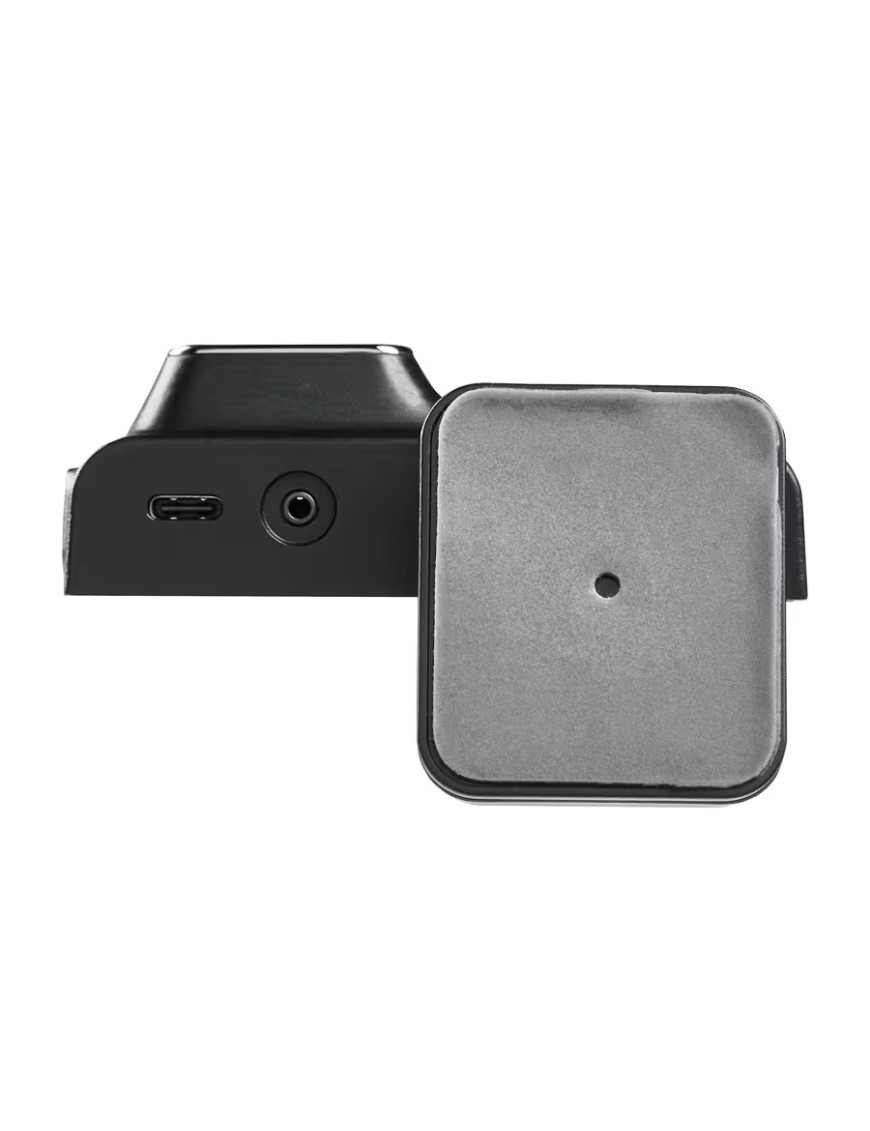

The dash cam is suitable for 12/24 V vehicle electrical systems and uses a USB-C connection. It mounts to the windscreen using a 3M adhesive fitting. Installation should maintain a clear field of view for the driver and the cable should be routed so that it does not interfere with vehicle controls.
Memory card
The camera supports microSD cards up to 128 GB. OSRAM specifies a Class 10 card and recommends formatting the card before use. A memory card is not included in the standard package.
Technical data
| Specification | Value |
|---|
| Brand | OSRAM |
| Model | ROADsight 3500 |
| MPN | ODC3500 |
| EAN | 4052899633841 |
| Camera | Front-facing |
| Resolution | 1296p |
| Frame rate | 30 fps |
| Field of view | 140° |
| Display | 3″ IPS |
| GPS | Yes |
| HDR | Yes |
| G-sensor | Yes |
| Parking mode | Yes, OHWK3500 required |
| Time-lapse | Yes, OHWK3500 required |
| Maximum microSD capacity | 128 GB |
| Connection | USB-C |
| Vehicle system | 12/24 V |
| Dimensions | 96 × 40 × 89 mm (H × W × L) |
| Mount | 3M adhesive fitting |
| Manufacturer warranty | 2 years |
Package contents
- 1 OSRAM ROADsight 3500 dash cam,

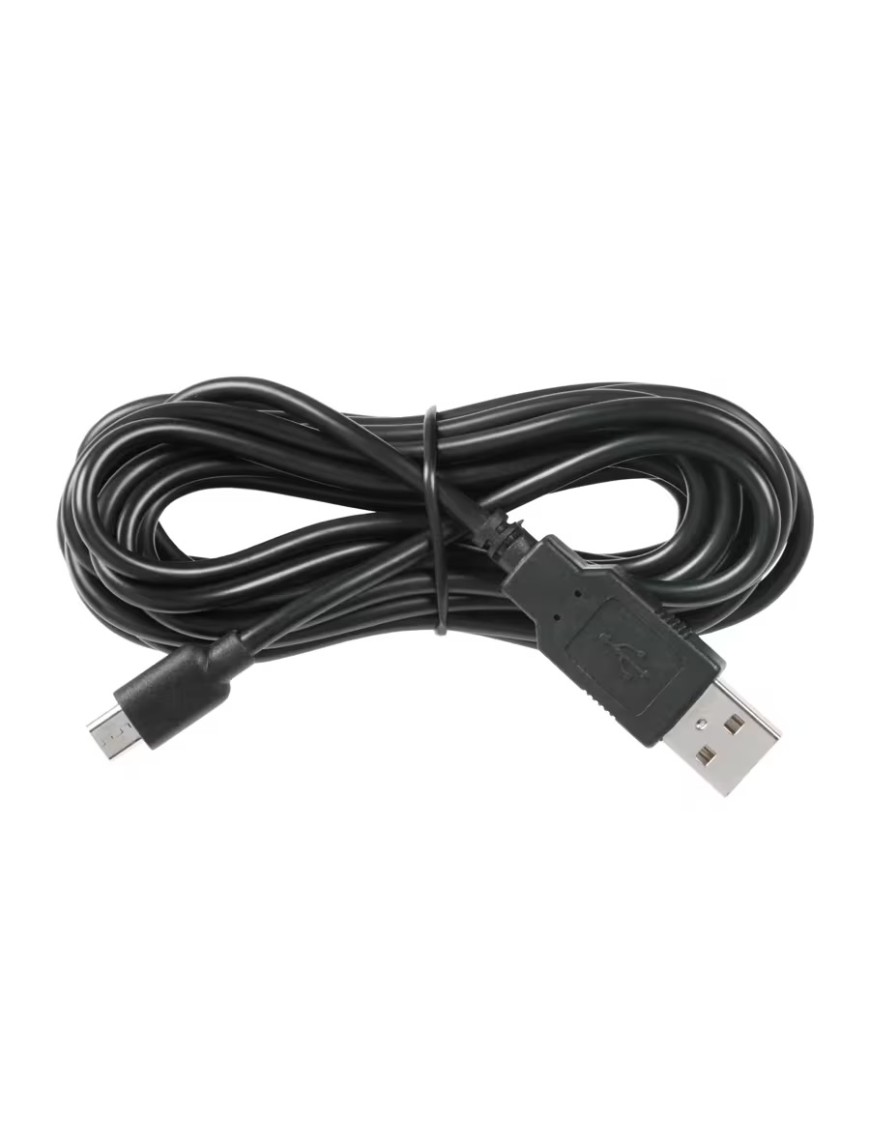

- USB power cable,
- cable installation/removal tool,
- 3M adhesive mounting system.
The OHWK3500 hardwire kit and microSD card are not included in the standard package.
Frequently asked questions
Does parking mode work without an additional kit?
No. OSRAM specifies the ROADsight Hard Wire Kit 3500 OHWK3500 for parking mode.
Can the camera be used in a 24 V vehicle?
Yes. OSRAM specifies compatibility with 12/24 V vehicle systems.
Is a microSD card included?
No. Use a suitable Class 10 microSD card with a capacity of up to 128 GB.
Does ROADsight 3500 include a rear camera?
No. ROADsight 3500 is a front-facing camera.
