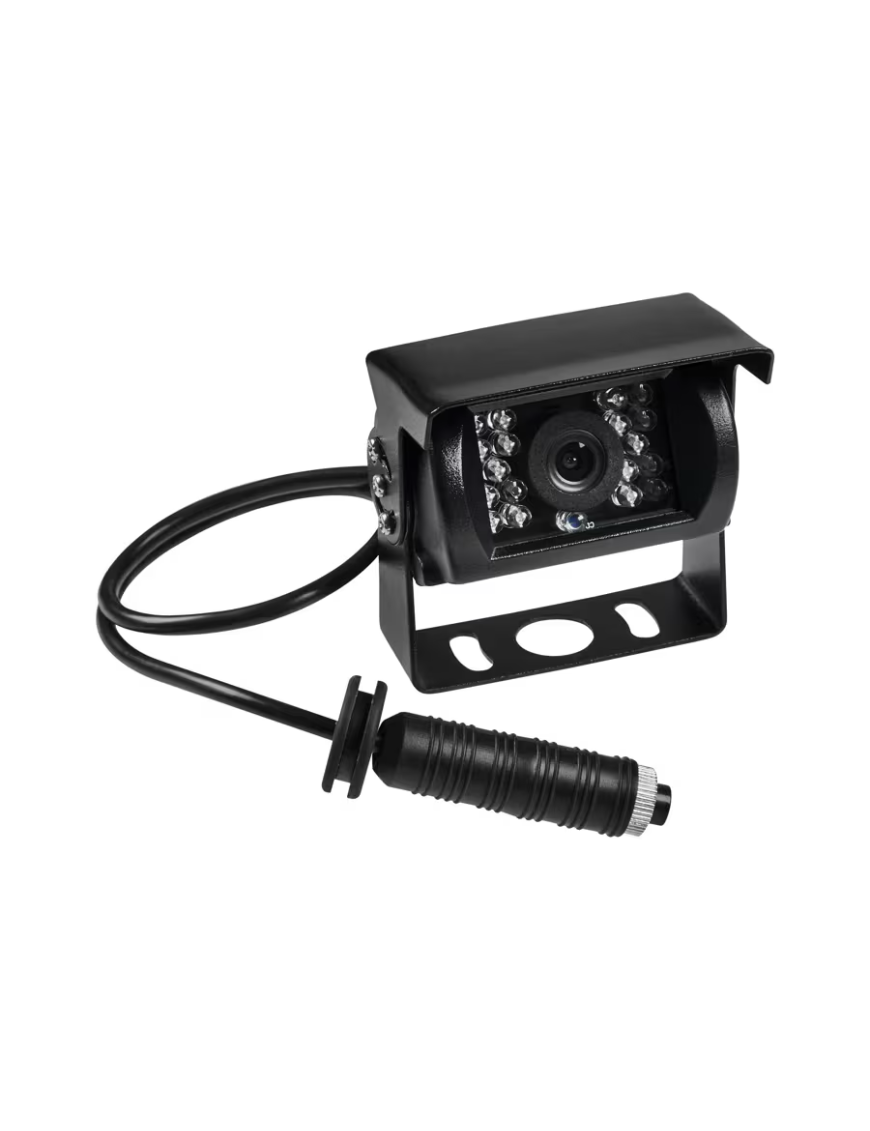

OSRAM ROADsight OCSC1N – an additional view for the OCS700N system
OSRAM ROADsight OCSC1N is a wired reversing camera designed to extend the ROADsight OCS700N system. It provides an additional viewing angle when reversing, parking or manoeuvring. The camera delivers an AHD 720p video feed and a wide 120° field of view.
Key benefits
- AHD 720p – the camera resolution specified in OSRAM's current product catalogue.
- 120° field of view – a wide viewing angle for monitoring a larger area around the vehicle.
- Infrared night vision – supports visibility when ambient light is limited.
- IP67 – the protection rating specified by OSRAM for the OCSC1N.
- 12/24 V compatibility – suitable for different vehicle electrical systems.
What does the OCSC1N camera show?

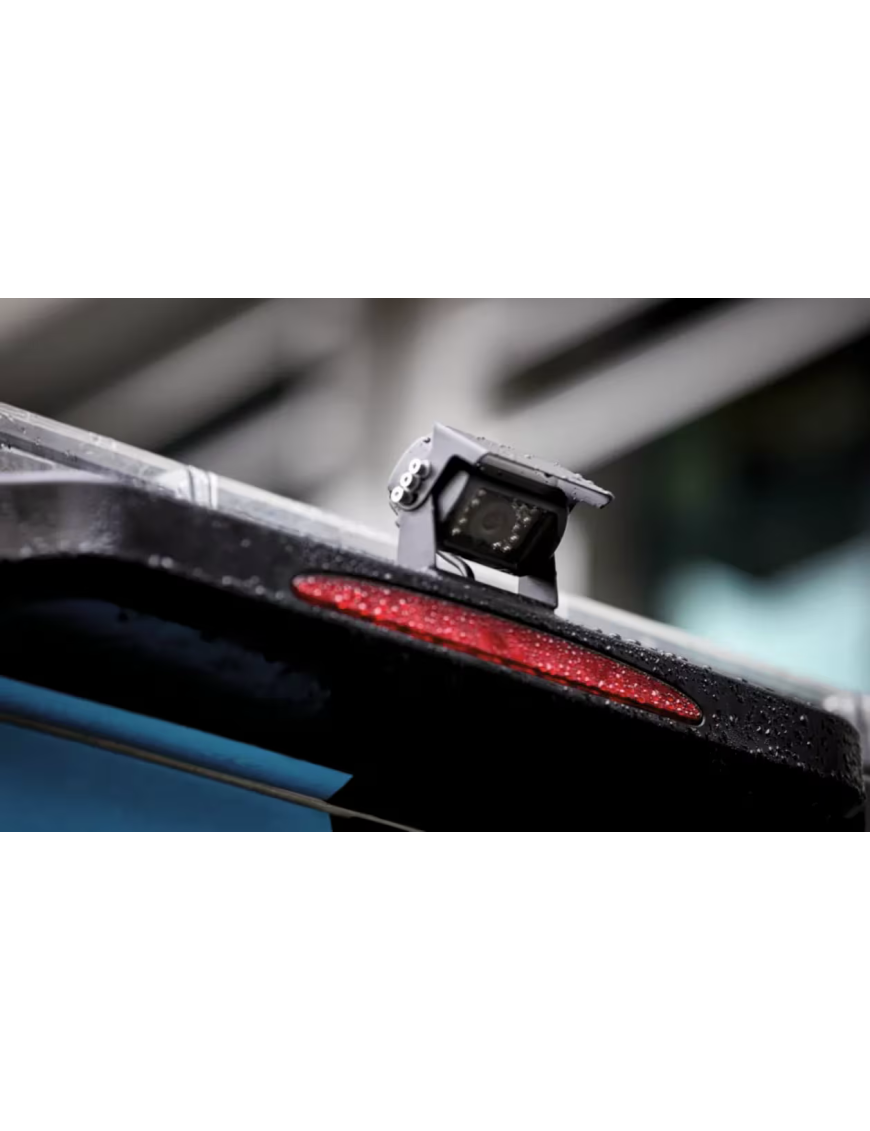

The 120° wide-angle view helps cover a larger area than a narrow viewing angle. Depending on the installation position, the camera can provide an additional view behind the vehicle, around a blind area, along the side of the vehicle or around a trailer.
OSRAM's current catalogue specifies AHD 720p camera resolution with a 1/2.9 CMOS sensor. Night Vision with infrared support helps retain a useful camera view in low-light conditions.
Compatibility with ROADsight OCS700N
OCSC1N is an additional wired camera for the ROADsight OCS700N reversing camera system. It is not a complete monitor-and-camera system. The OCS700N supports two camera feeds, allowing the installation to be expanded with an additional viewing position.
Protection and power supply
The camera has an IP67 protection rating and supports 12/24 V vehicle electrical systems. OSRAM describes the camera as suitable for vehicle, on-road and off-road environments.
Approval and installation
No UNECE R158/R46 approval number or R10 declaration for the exact OCSC1N product was identified in the reviewed OSRAM product documentation. It is therefore not described here as an approved replacement for a mandatory mirror or other required indirect-vision device. Treat the OCSC1N as an additional camera for the OCS700N system and install it in accordance with the requirements applicable to the vehicle.
Typical applications
- expanding an OSRAM ROADsight OCS700N wired camera system,
- additional visibility while reversing and parking,
- monitoring a selected area around a 4x4, SUV, pickup or commercial vehicle,
- adding an extra viewing point on longer vehicles where the wiring layout has been planned accordingly.
Technical data
| Parameter | Value |
|---|
| Brand | OSRAM |
| Series | ROADsight |
| Model / MPN | OCSC1N |
| Type | Additional wired reversing camera |
| Compatible system | ROADsight OCS700N |
| Camera resolution | AHD 720p |
| Sensor | 1/2.9 CMOS |
| Field of view | 120° |
| Night Vision | Yes, infrared |
| Voltage | 12/24 V |
| Protection rating | IP67 |
| Manufacturer guarantee | 2 years |
| EAN / GTIN | 4052899633797 |
| Products per retail pack | 1 |

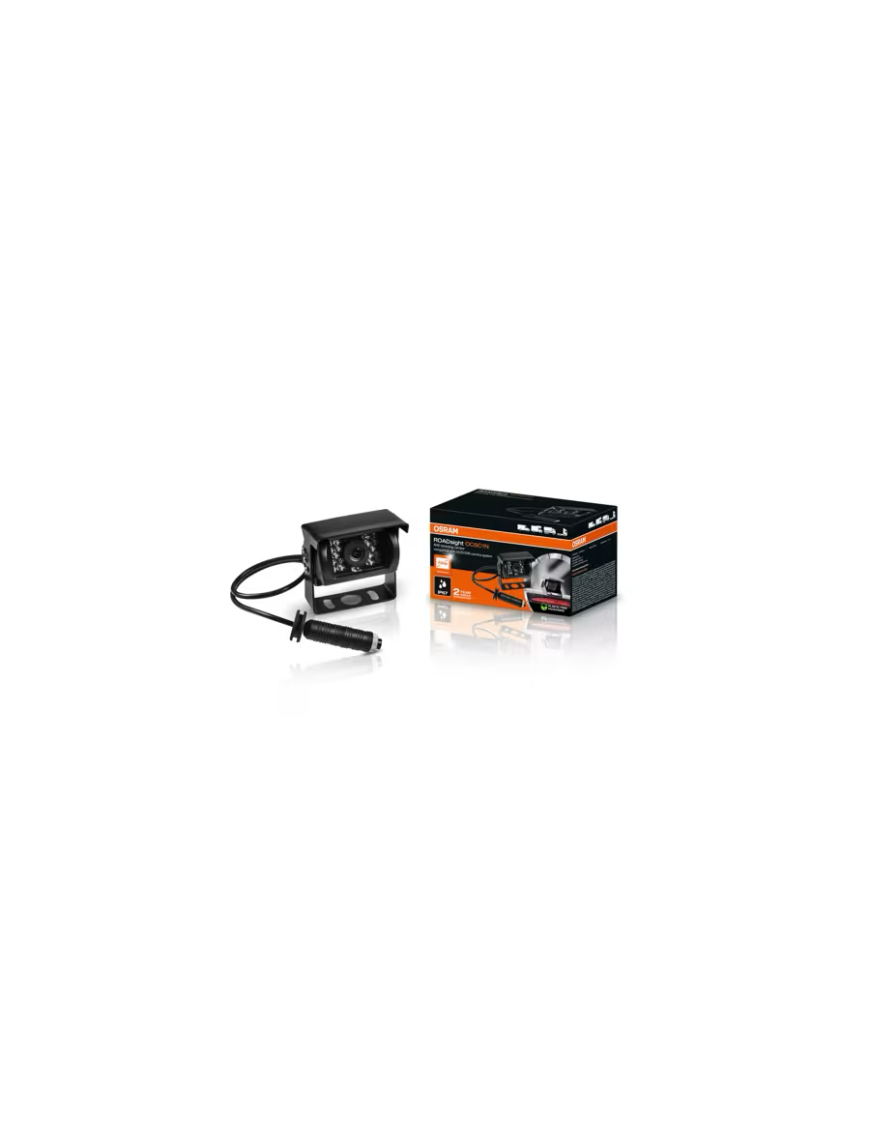

Package and installation

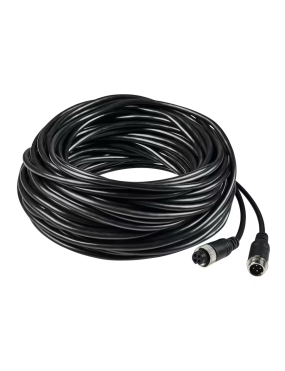

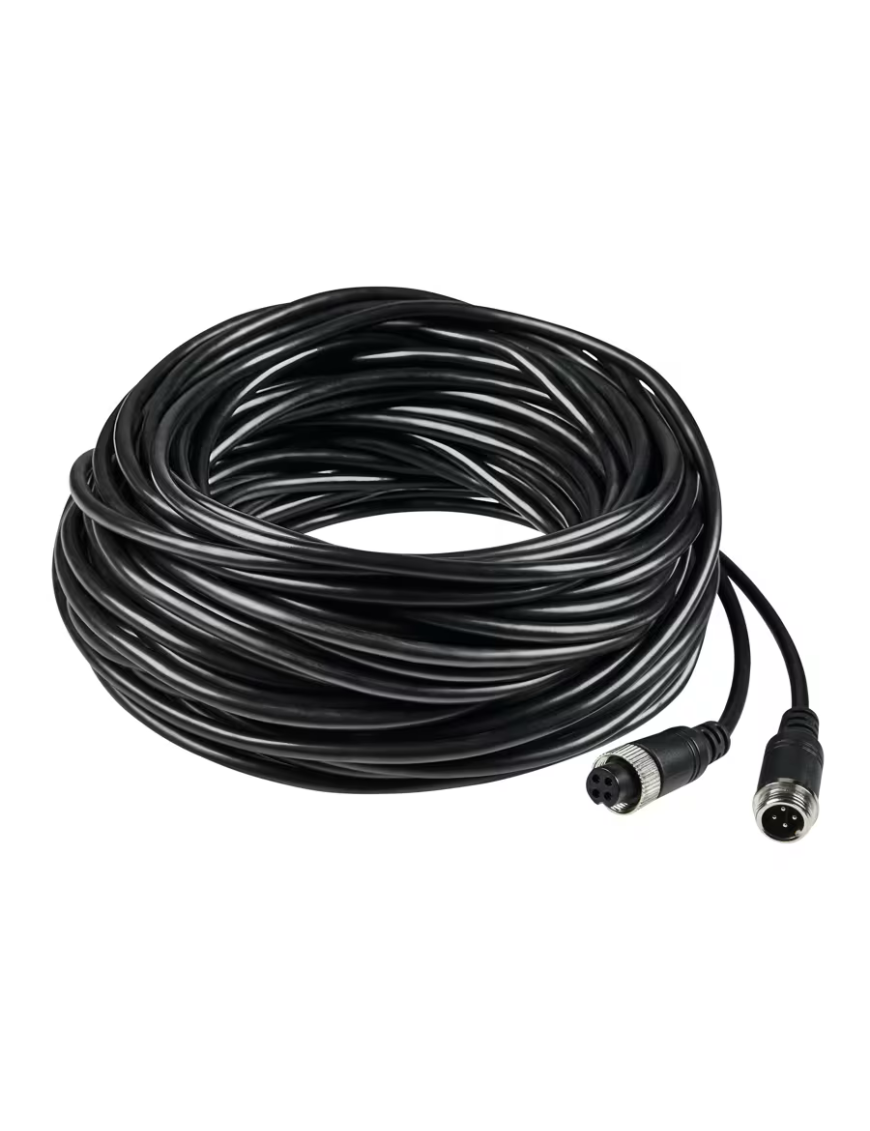

The manufacturer's retail unit contains one OCSC1N product. The individual product data sheet does not provide a complete list of additional items in the retail box, so required cables, extensions and mounting accessories should be checked for the planned installation.
Frequently asked questions
Is OCSC1N a complete reversing camera system?
No. It is an additional wired camera intended for the ROADsight OCS700N system.
Is the OCSC1N camera 720p or 1024 × 600?
OSRAM's current catalogue identifies the OCSC1N camera as AHD 720p. The 1024 × 600 value is assigned to the OCS700N monitor in the catalogue.
Does it support 12 V and 24 V vehicles?
Yes. OSRAM specifies 12/24 V compatibility.
Does the camera have night vision?
Yes. Night Vision with infrared support is specified by OSRAM.
Does it have an IP67 rating?
Yes. IP67 is specified on both the product page and in OSRAM's catalogue.
Is the camera road approved?
No UNECE R158/R46 approval number or R10 declaration was identified for the exact OCSC1N model in the reviewed product documentation, so no such approval claim is made here.
