OSRAM ROADsight PRO 30 – front and rear recording in one kit
OSRAM ROADsight PRO 30 combines a front dash camera and a rear camera with GPS, HDR, a G-Sensor, a 3-inch IPS display and parking functions. Its 12/24 V compatibility makes it suitable for passenger cars, SUVs, pickups, campers and many commercial vehicles.
Key benefits
- Front and rear cameras included – the user manual specifies simultaneous 1080p + 1080p recording.
- Up to 1296p at 30 fps from the front camera – 1080p and 720p front-only settings are also available.
- 140° front field of view – captures a wide section of the road and its surroundings.
- GPS and G-Sensor – driving data can be recorded while triggered events can be protected from normal loop recording.
- HDR – designed to improve recording clarity in high-contrast scenes.
- 12/24 V vehicle compatibility – suitable for different vehicle electrical systems.
Recording modes
When using the front camera on its own, the available resolution settings include 1296p, 1080p and 720p. With both front and rear cameras recording at the same time, the OSRAM manual specifies 1080p + 1080p.
Video is stored in MOV format using H.264 encoding. Loop recording can be set to 1, 3 or 5-minute segments. Sound recording, date and time stamping and GPS-related information are also supported.
GPS, HDR, G-Sensor and parking functions
The integrated GPS records location and speed-related data. The G-Sensor can lock a recording when triggered, while HDR is designed to improve image clarity in scenes with strong contrast.
Parking mode allows the unit to react when sudden movement or an impact is detected. A time-lapse parking option is also available. Parking functions requiring permanent power should be used with the hardwire installation connected correctly.
MicroSD storage
ROADsight PRO 30 supports Class 10 microSD cards with a maximum capacity of 128 GB. The card slot has a lockable cover intended to help prevent unwanted access or accidental removal of the storage card.
12/24 V power and USB-C
The camera is designed for 12–24 V DC vehicle systems with conversion to 5 V DC. The camera connection uses USB-C. OSRAM specifies a supercapacitor rather than a conventional internal rechargeable battery.
Installation and hardwire kit
The camera uses a 3M adhesive windscreen mount. OSRAM lists the OHWK3500 hardwire kit, a USB power cable and a trim removal tool among the supplied equipment.
The hardwire installation uses GND, ACC and VCC connections. Vehicle-specific piggy-back fuse connectors and suitable 5 A fuses are not supplied and may be required for installation.
Typical applications
- passenger cars and SUVs,
- 4x4 vehicles and pickups,
- campers and expedition vehicles,
- vans and other compatible 12/24 V vehicles.
Technical data
| Specification | Value |
|---|
| Brand | OSRAM |
| Model | ROADsight PRO 30 |
| MPN | OTDC30 |
| Camera configuration | front + rear |
| Maximum front resolution | 1296p at 30 fps |
| Simultaneous front + rear | 1080p + 1080p |
| Front field of view | 140° |
| Front sensor | 1/1.8" CMOS |
| Display | 3" IPS, non-touch |
| GPS | Yes |
| HDR | Yes |
| G-Sensor | Yes |
| Parking mode | Yes |
| Loop recording | 1 / 3 / 5 min |
| Video format | MOV |
| Video codec | H.264 |
| Memory card | Class 10 microSD, up to 128 GB |
| Vehicle input | 12–24 V DC |
| Interface | USB-C |
| Energy storage | Supercapacitor |
| Operating temperature | -10°C to 35°C |
| Dimensions stated by OSRAM | 89 × 40 × 96 mm |
| Mount | 3M™ adhesive fitting |
| GTIN/EAN | 4062172420389 |
| Manufacturer guarantee | 2 years, subject to OSRAM terms |

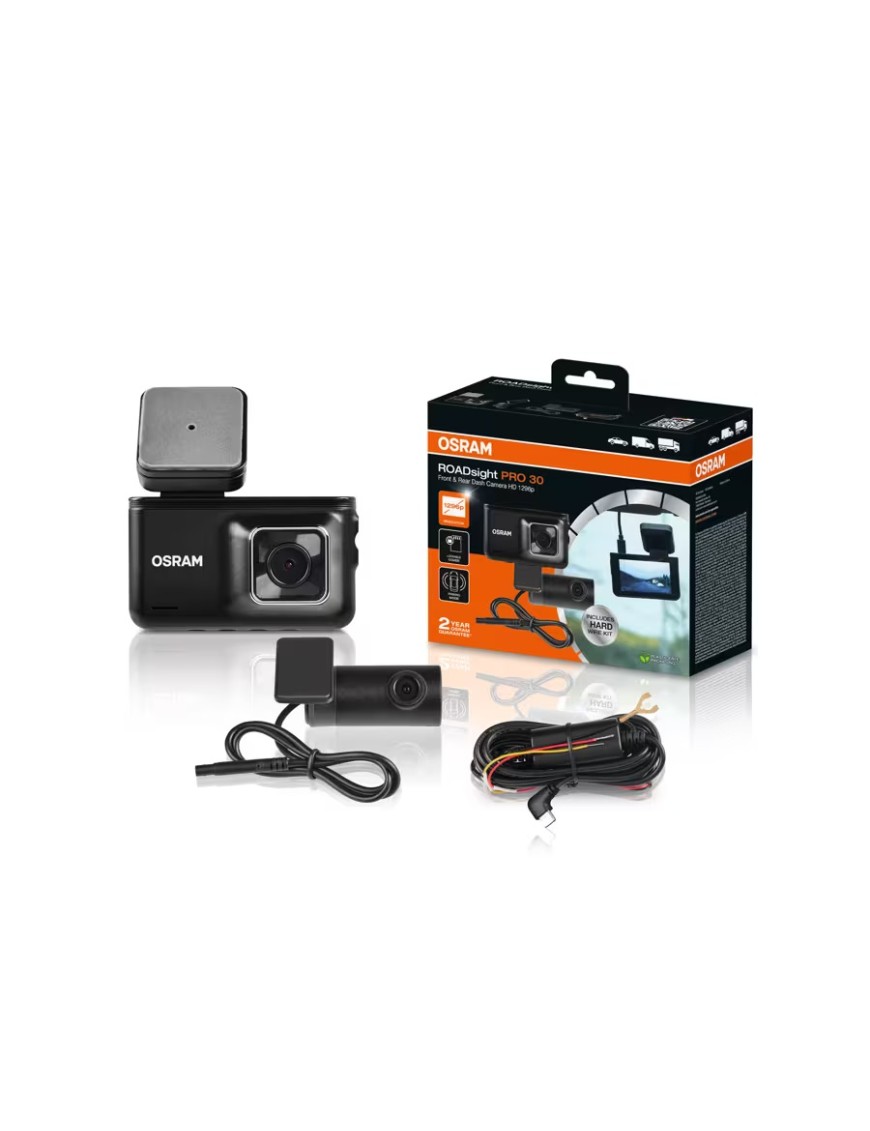

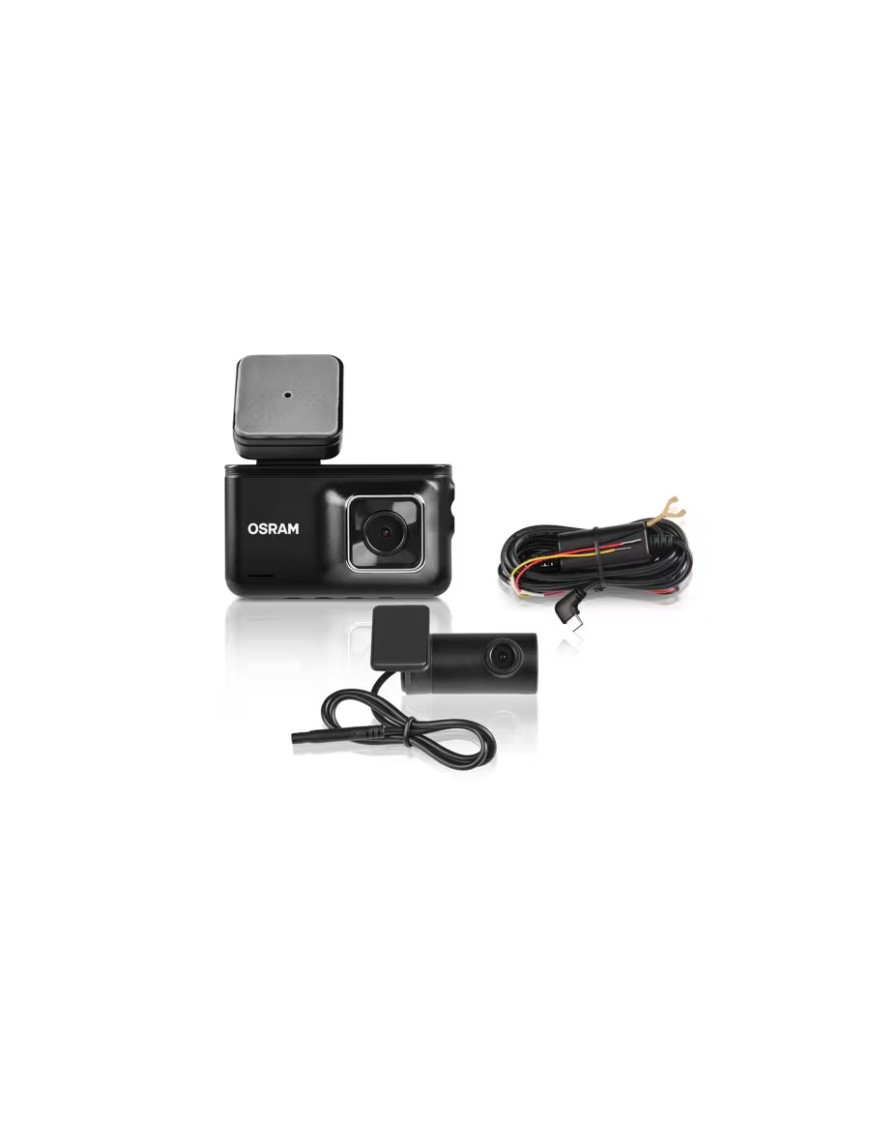

Package contents
- ROADsight PRO 30 front camera,
- rear camera,
- OHWK3500 hardwire kit,
- USB power cable,
- trim removal tool,
- 3M adhesive mounting system.
A microSD card is not explicitly confirmed by OSRAM as part of the supplied accessories, so a compatible Class 10 card should be prepared separately unless the retailer confirms otherwise.
Privacy and responsible use
The use of dash cameras and recorded footage may be subject to privacy, personal-rights and data-protection regulations. Requirements vary between countries. The camera must also be installed where it does not obstruct the driver's view or interfere with an airbag deployment area.
Frequently asked questions
Does ROADsight PRO 30 record both cameras at 1296p?
No. The manual provides up to 1296p for front-only recording and 1080p + 1080p when the front and rear cameras record simultaneously.
Can it be used with a 24 V vehicle?
Yes. OSRAM specifies compatibility with 12–24 V DC vehicle systems.
Is the hardwire kit included?
Yes. OSRAM specifies the OHWK3500 hardwire kit as supplied equipment. Vehicle-specific piggy-back fuse connectors and suitable 5 A fuses may still be required.
Which memory card should be used?
The manual specifies a Class 10 microSD card with a maximum capacity of 128 GB.
Need help choosing an installation position or the additional electrical parts required for your vehicle? Contact the Szekla4x4.pl team.
