Relocation EVAP Wrangler JK Metalcloak

Product Description

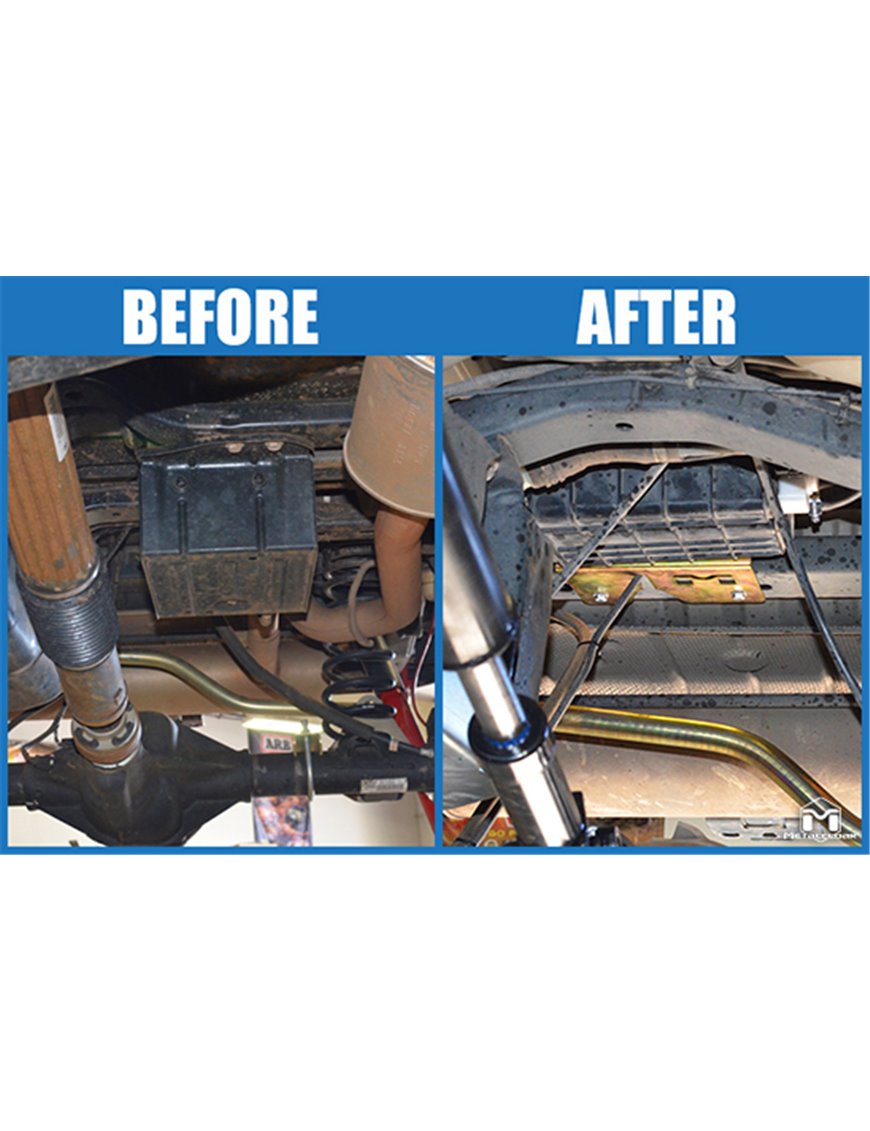

The MetalCloak EVAP Canister Concealment Kit is designed to relocate the EVAP canister on the Jeep Wrangler JK (2007–2018). The kit moves the factory EVAP canister from its exposed position under the frame to a safer, better-protected location. This upgrade protects the canister from trail damage caused by rocks, branches, or other obstacles — ensuring durability and reliability in tough off-road conditions.

Why You Need It

The factory EVAP canister on the Jeep JK is positioned low and vulnerable to impact during off-road driving. MetalCloak’s relocation kit provides an effective solution by shielding and concealing the canister without compromising its function. Once installed, the canister is hidden from view, better protected, and fully operational.

Features & Specifications

• Compatibility: Jeep Wrangler JK 2007–2018
• Material: 1/8” (approx. 3.2 mm) cold-rolled steel
• Finish: Gold zinc coating for corrosion resistance

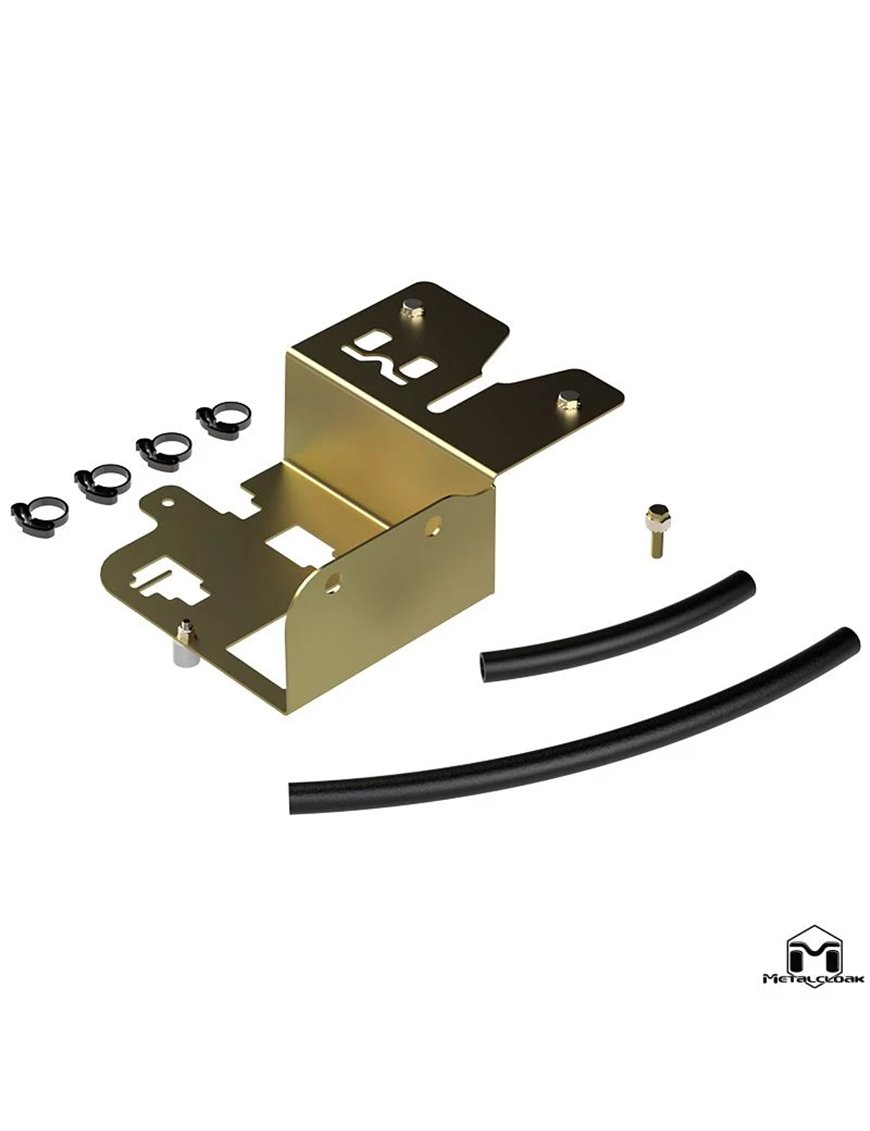

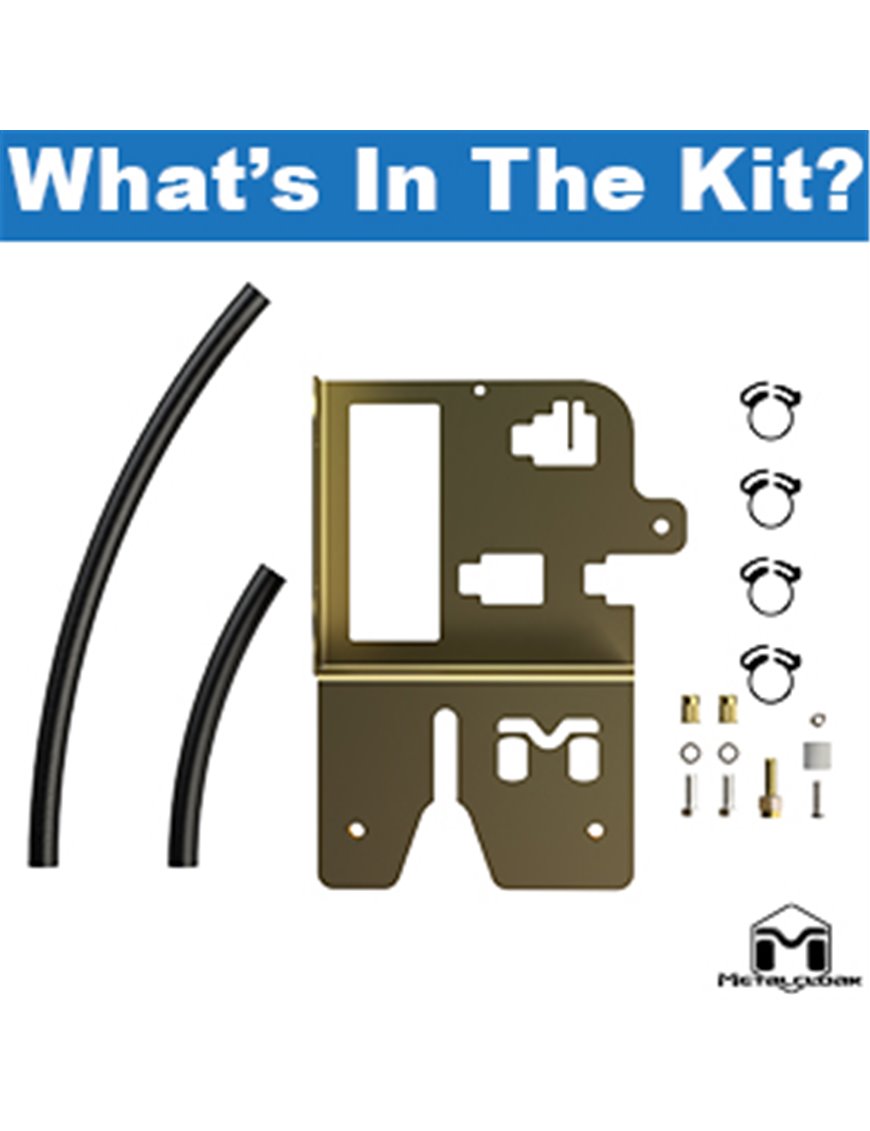

• Includes: Relocation bracket, hose extensions, clamps, and full hardware set
• Installation: Simple, requires basic tools (minor drilling may be needed)
• Installation time: Approx. 1–2 hours
• Manufactured in: USA

Key Benefits

• Protects the EVAP canister from off-road damage
• Improves ground clearance and reduces risk of impact
• Maintains full EVAP system functionality and sensor integrity
• Precision-fit design made with CNC technology
• Durable, corrosion-resistant finish for long-term performance

Installation Tips

Before installation, clean the mounting area and disconnect the EVAP lines carefully. After relocation, check for leaks and confirm that sensors operate properly. For best results, seal any drilled surfaces with anti-corrosion paint.
