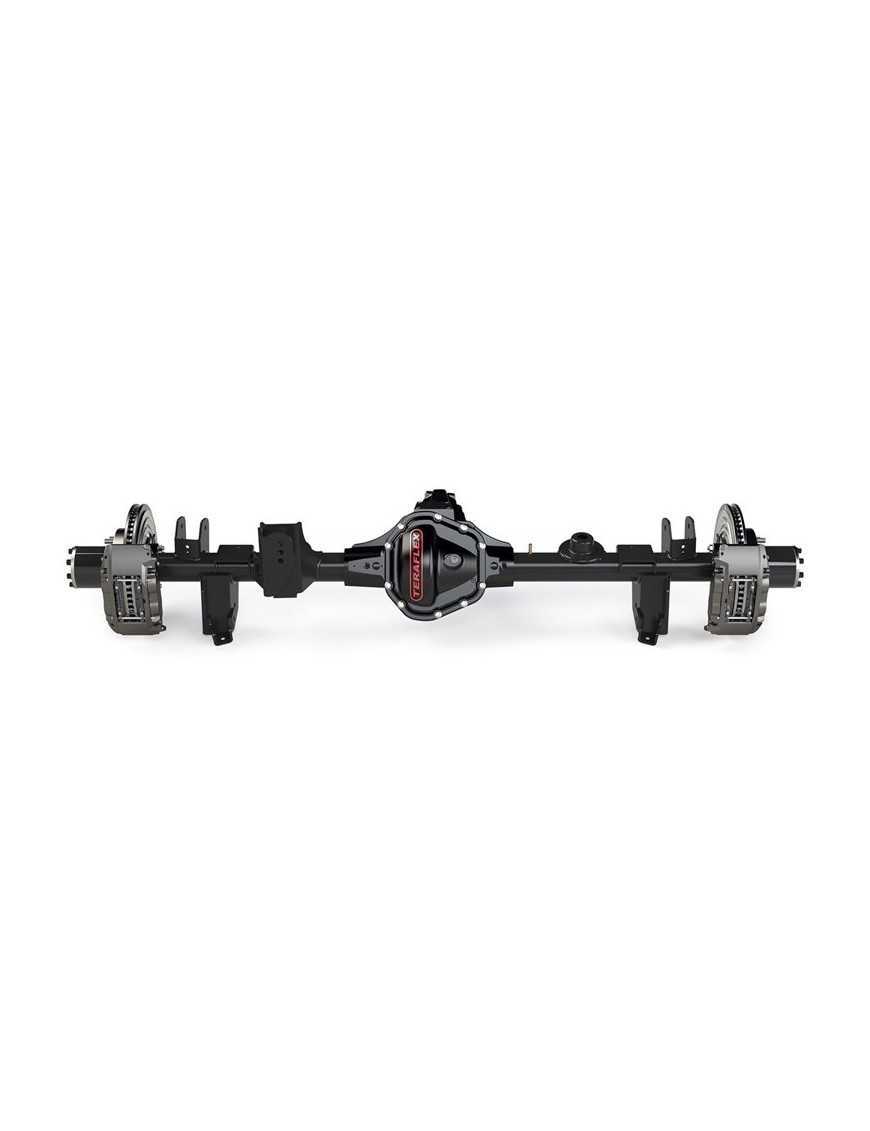

Complete Rear Axle CRD60 4.88 Gear Ratio with ARB Differential Lock TeraFlex Full-Float Lift 0-6"

• Reinforced full-float housing designed for extreme use
• Reinforced DOM axle housing with a 3" diameter
• Fits 8x6.5 bolt pattern wheels. The distance measured from the hub contact point to the hub contact point on the other side is 70".
• Tera CRD60 housing with 4.88 High Pinion gears
• Includes a driveshaft flange for a reinforced 1350 series U-joint
• Includes 35-spline axle shafts
• Reinforced bearings increase rigidity and reduce gear damage potential
• Special design increases ground clearance
• Reinforced differential bearings for maximum durability
• Built-in inner axle seals
• Spheroidal iron differential cover
• Built-in lower control arm skid plates
• Special design ensures fast oil flow
• Raised and reinforced Panhard bar mount with multiple mounting positions for lifted vehicles
• Triple powder coating for maximum corrosion and UV protection
• Built-in upper control arm bushings, proper driveshaft flange angle for lifted vehicles
• Pre-drilled holes for spring retainer extensions or bump stops
• Pre-drilled holes for lower spring retainers and suspension travel limit straps
• Compatible with ESP, ABS, and speedometer sensors

Delta Brake Specification:

• Significantly improved braking efficiency, much higher than with factory brakes
• Perfectly balanced, especially important for lifted vehicles
• Precision-made brake discs for better braking
• High-quality brake calipers
• Slotted brake discs dissipate heat much better

Notes:

• Requires adjustable control arms for wheel tilt angle adjustment (sold separately)
