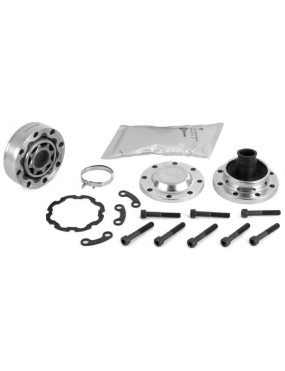

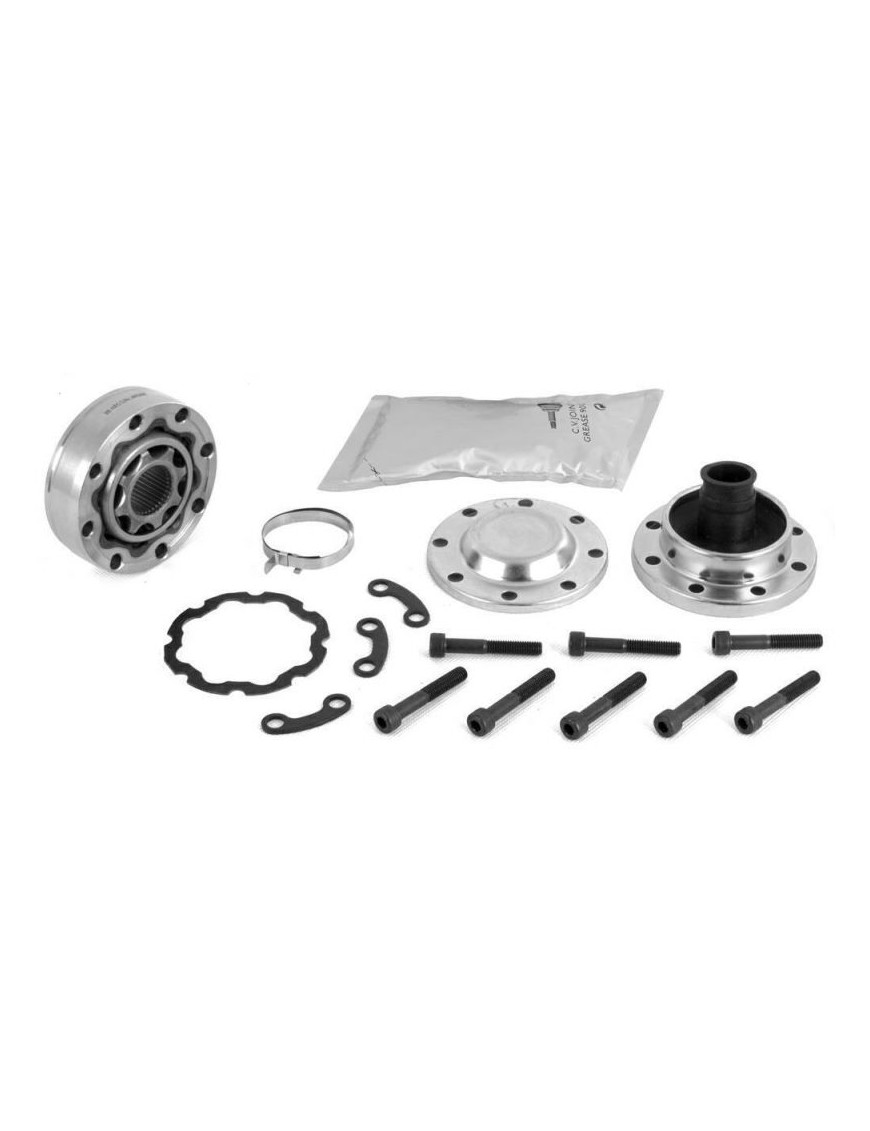

Rear Driveshaft CV Joint – Jeep Wrangler JK (35–100, H 28.5 mm, 8 Balls)

Rear Driveshaft CV Joint – Jeep Wrangler JK (35–100, H 28.5 mm, 8 Balls)

Rear driveshaft constant velocity joint designed for the Jeep Wrangler JK (2007–2013). This high-quality end CV joint is a critical drivetrain component responsible for smooth and reliable torque transfer under variable driveshaft angles, especially in off-road conditions.

The 8-ball CV joint construction ensures stable operation, reduced vibrations, and even load distribution, making it suitable for both stock vehicles and Wranglers equipped with suspension lifts. It is engineered to withstand high torque loads and continuous articulation common in off-road and expedition use.

Technical Specifications:

• Type: Rear driveshaft CV joint (end joint)
• Application: Jeep Wrangler JK 2007–2013
• Spline count: 35
• Outer diameter: 100 mm
• Width (H): 28.5 mm
• Inner diameter (between splines): 28.8 mm
• Mounting holes: 8 × 8 mm
• Ball count: 8
• Bolt circle diameter: 86 mm

Key Features & Benefits:

• Direct replacement for the factory driveshaft CV joint
• Smooth and vibration-free torque transfer
• Designed for high articulation angles
• Resistant to heavy loads and off-road stress
• Suitable for stock and lifted suspension setups
• Ideal for daily driving, off-road use, and overland builds

Installation Notice:

After installation, it is recommended to drive moderately for the first several dozen kilometers to allow the joint to seat properly and distribute lubrication evenly, ensuring maximum service life.
