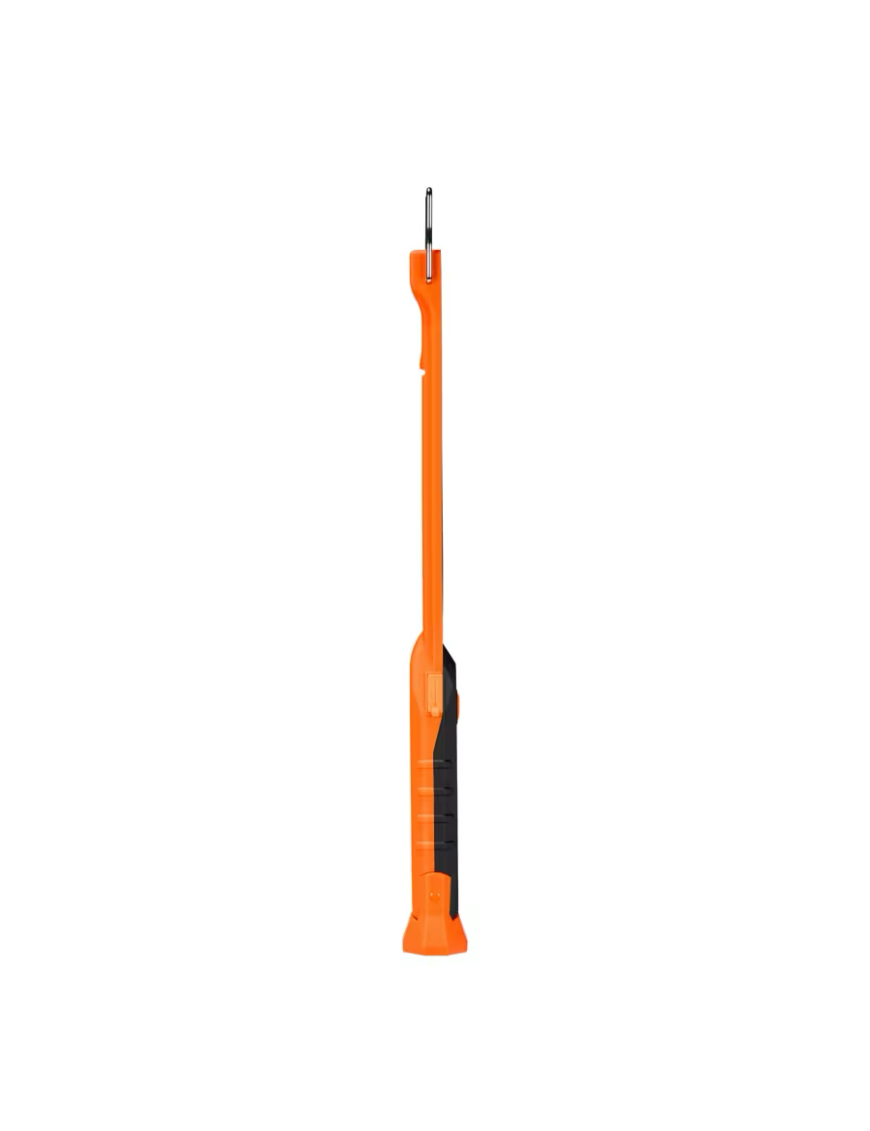

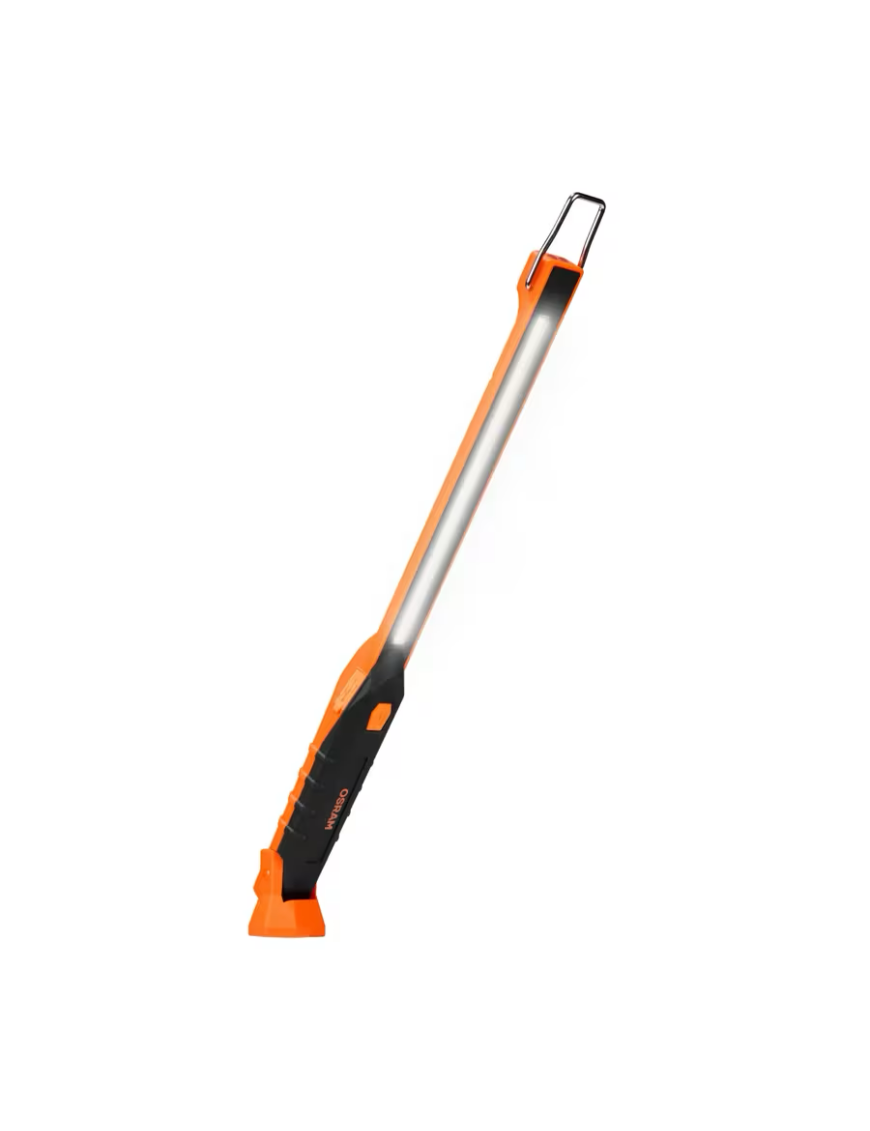

OSRAM LEDinspect SLIM 250 – slim inspection lighting for confined spaces

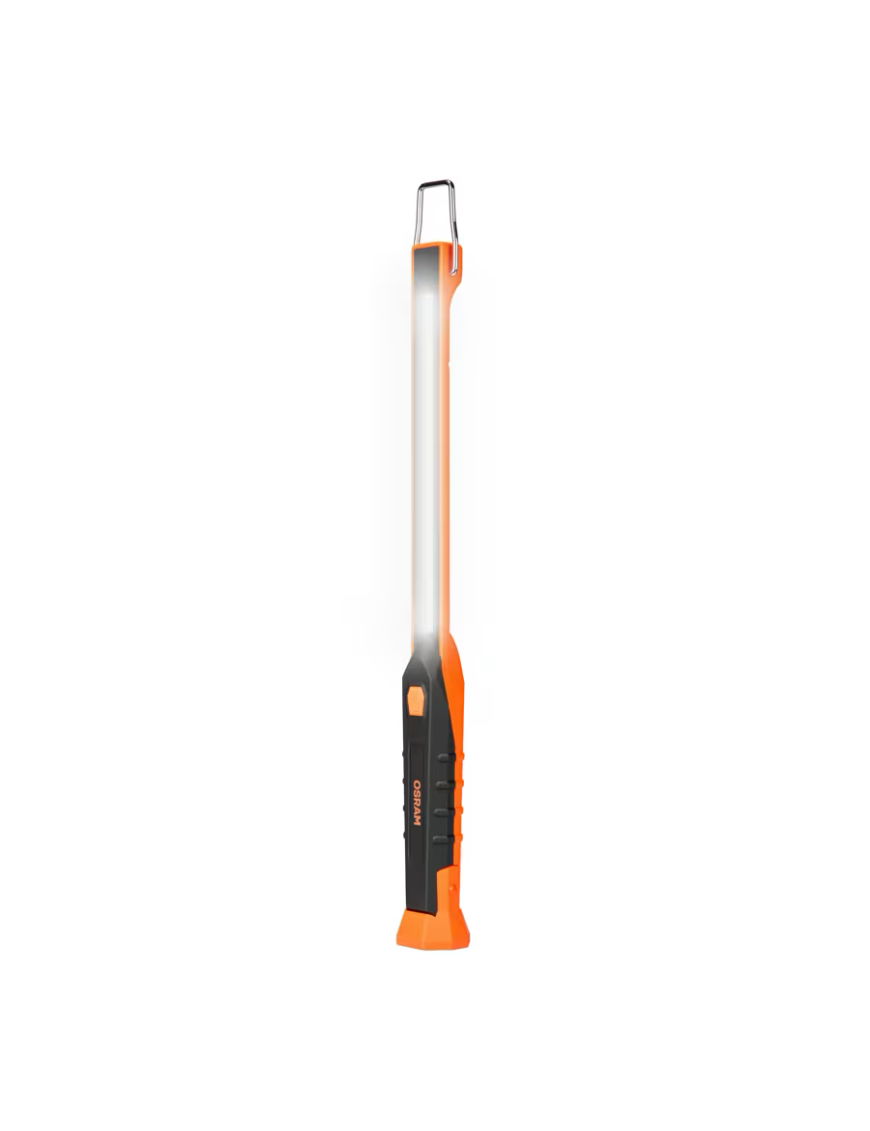

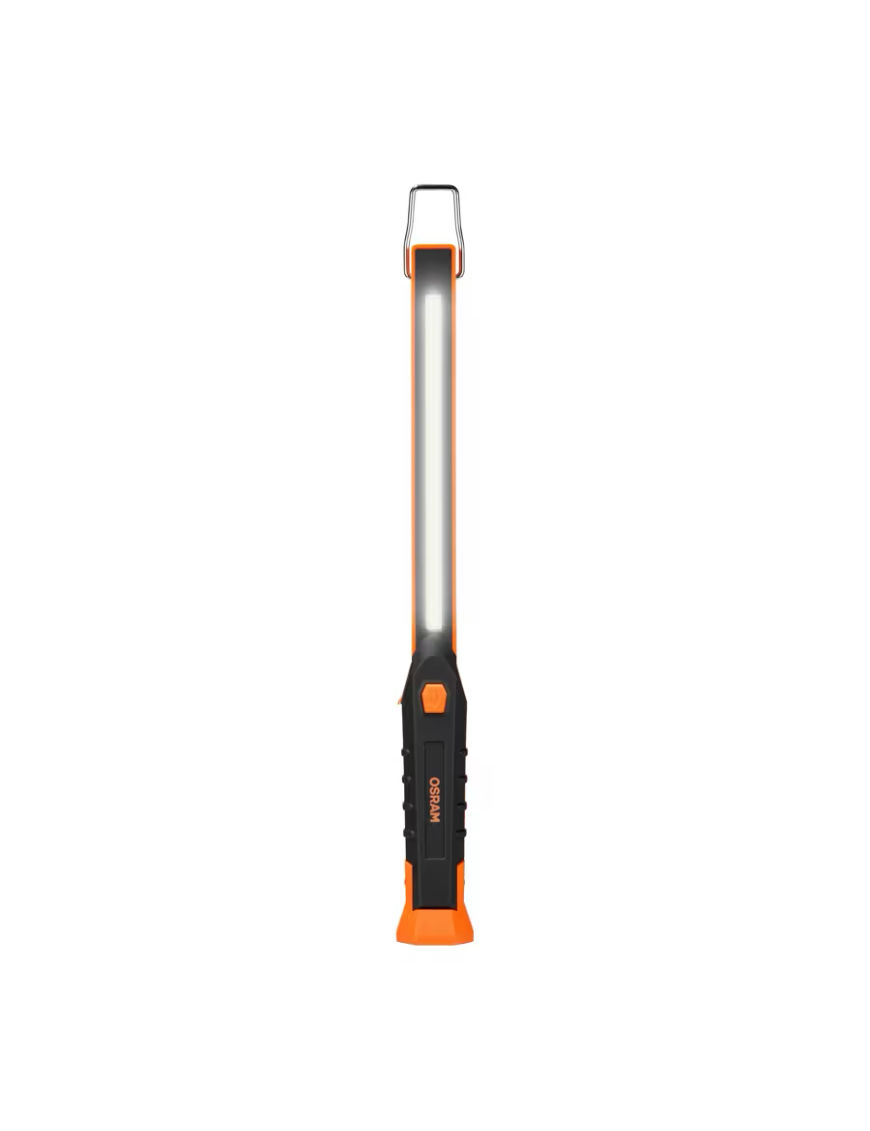

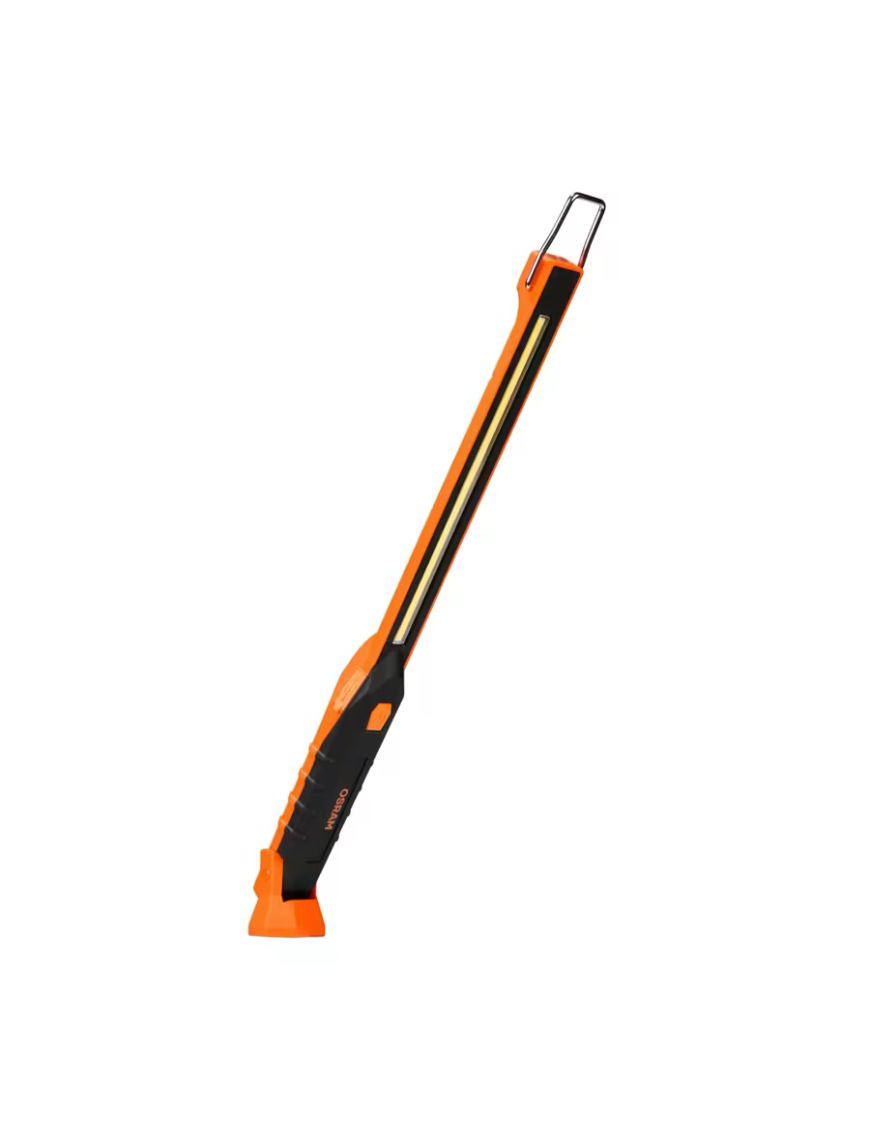

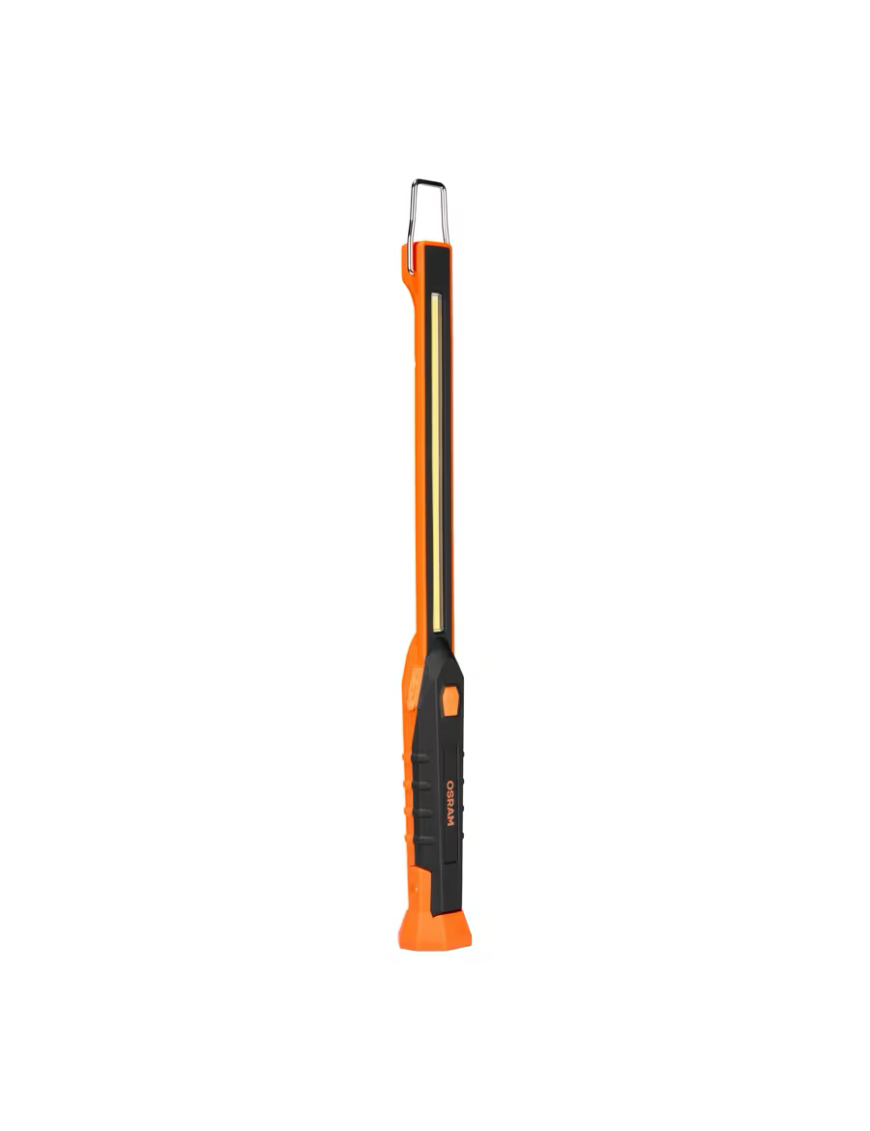

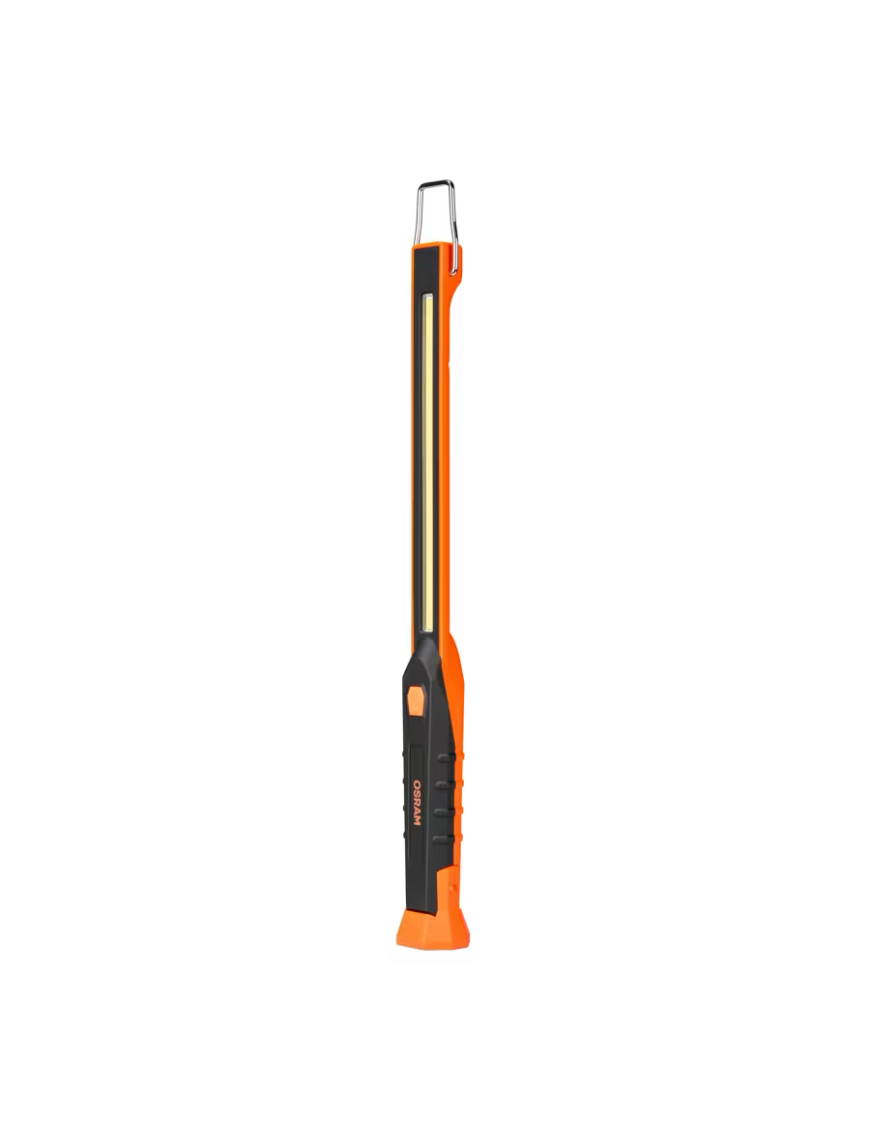

OSRAM LEDinspect SLIM 250 LEDIL418 is a rechargeable LED inspection light designed for areas where a conventional workshop lamp may be too bulky. Its slim form is particularly useful around engine bays, components and other restricted service areas.

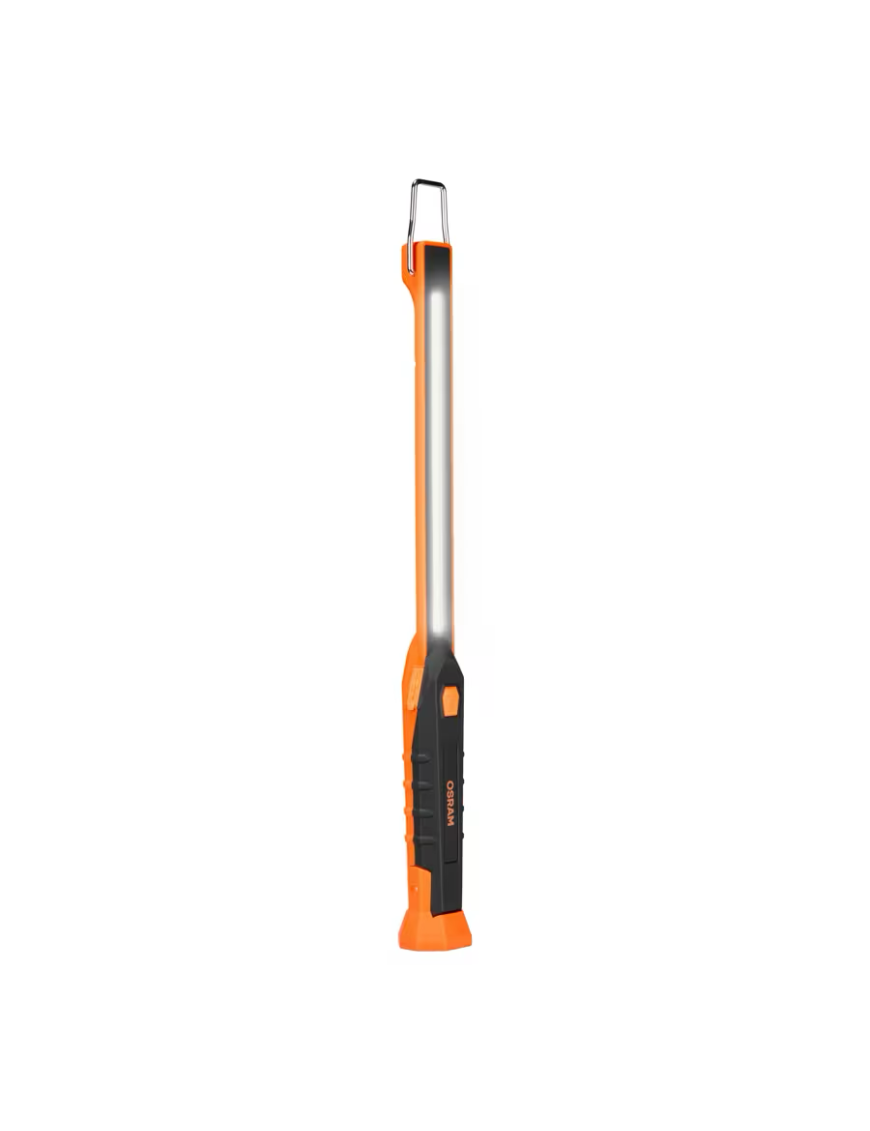

The main work light delivers up to 250 lm of white light at 6,000 K. A secondary torch function produces a more concentrated 125 lm beam for closer inspection of individual components.
Key benefits
- Up to 250 lm for illuminating the working area.
- 125 lm torch function for more focused inspection.
- 6,000 K white light for workshop and service applications.
- 180° ratchet adjustment for flexible positioning.

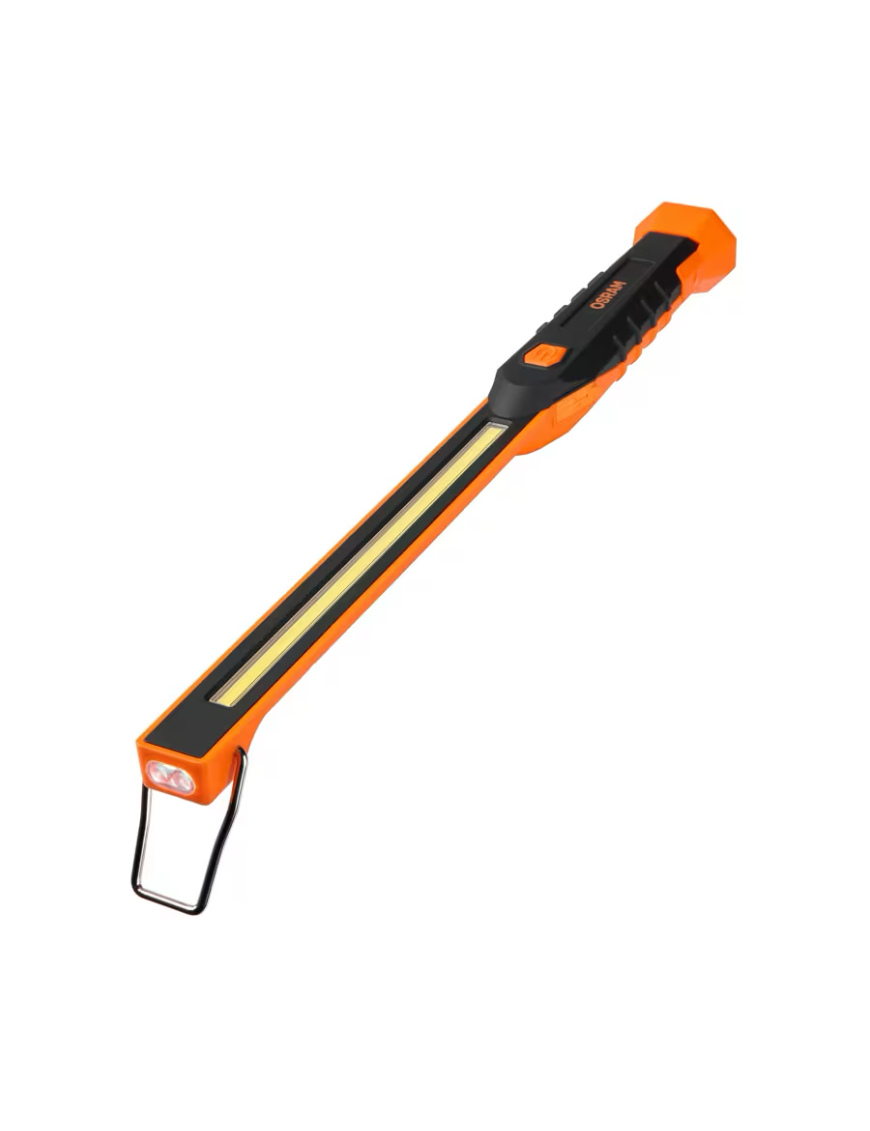

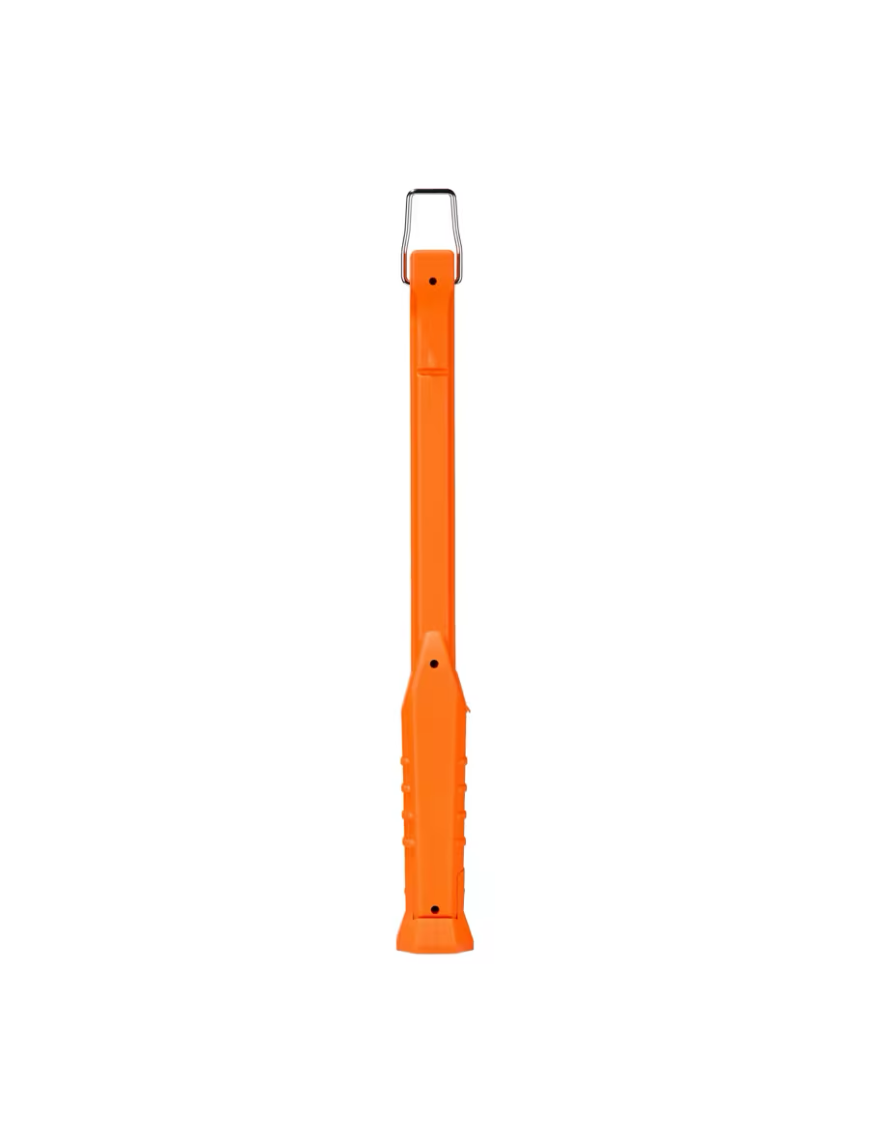

- Integrated hook and magnetic base for hands-free use.
- Rechargeable Li-ion battery with USB-C charging.
- IK07 mechanical impact rating.
How does the LEDinspect SLIM 250 illuminate?

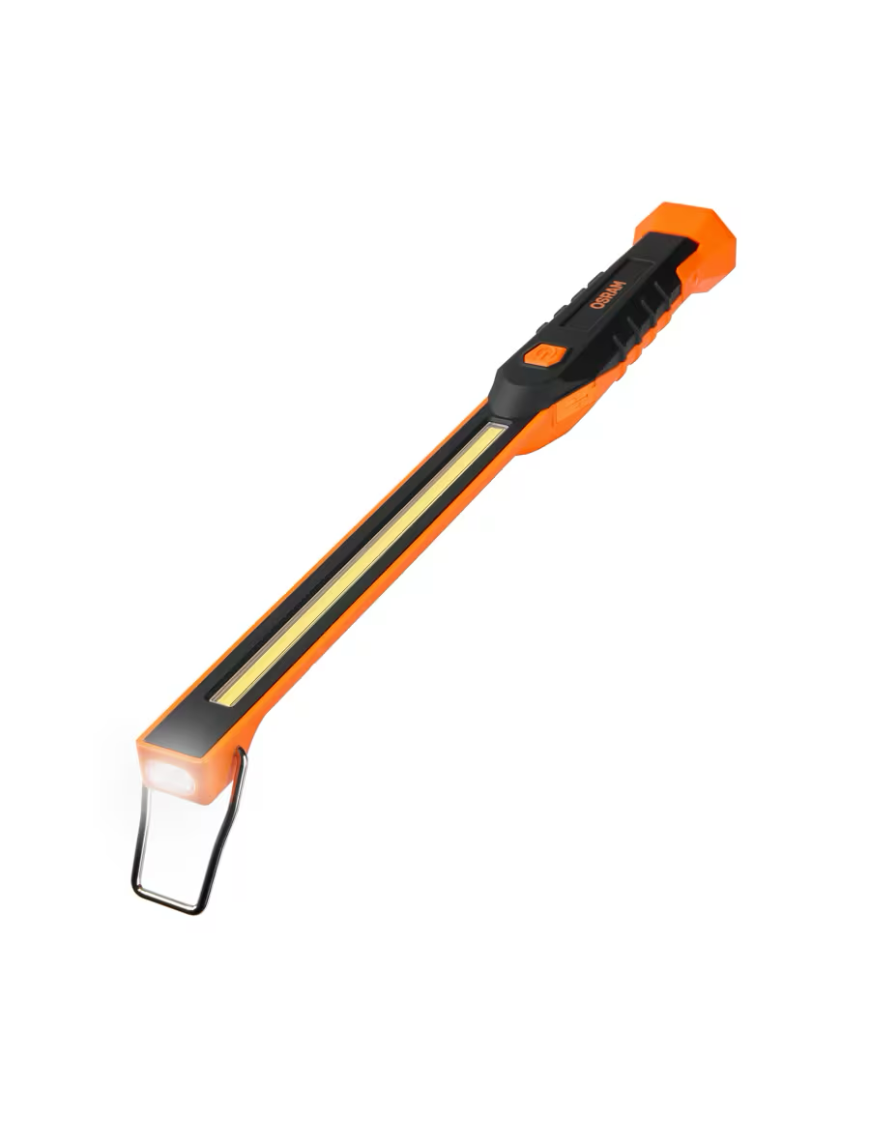

The lamp combines two different lighting functions. Its main LED work light provides up to 250 lm for illuminating a working area, while the 125 lm torch function produces a more concentrated beam for detailed checks.
OSRAM does not specify a beam angle or a 1-lux range for this product, so it should not be described using automotive Spot, Flood or Combo beam classifications.
Lighting functions
| Function | Output | Application |
|---|
| Main work light | up to 250 lm, 6,000 K | general inspection lighting |
| Torch function | 125 lm | focused inspection |
180° positioning, hook and magnet

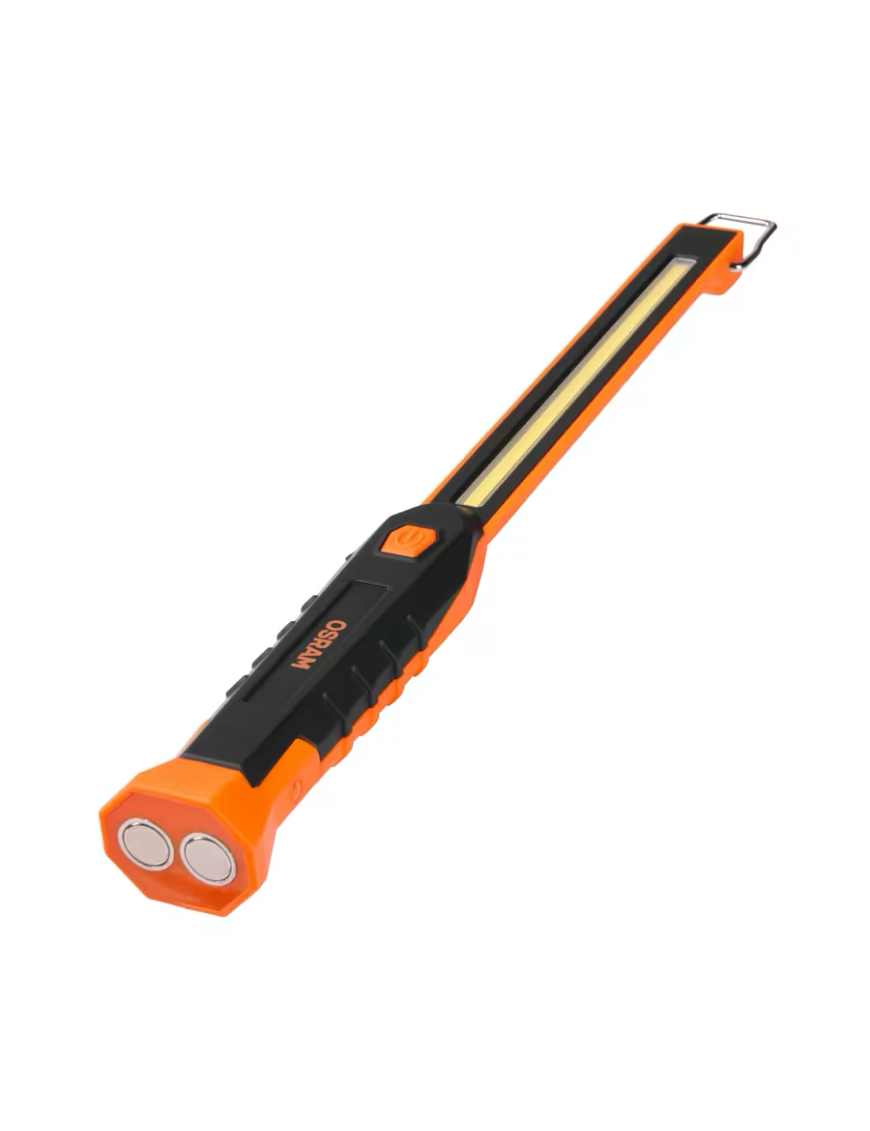

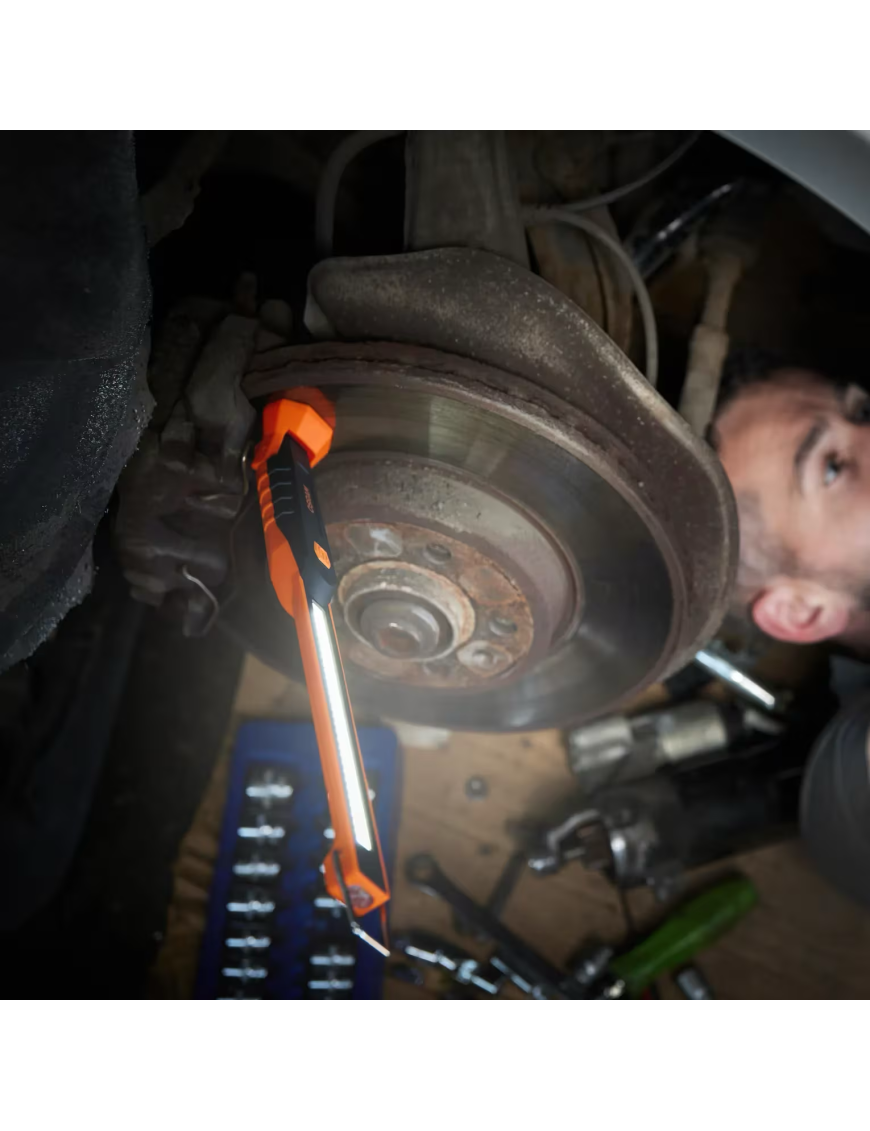

The ratcheting mechanism allows the lamp to be adjusted through 180°. An integrated hanging hook and magnetic base provide additional positioning options, making it easier to illuminate the work area without continuously holding the lamp.
Rechargeable power

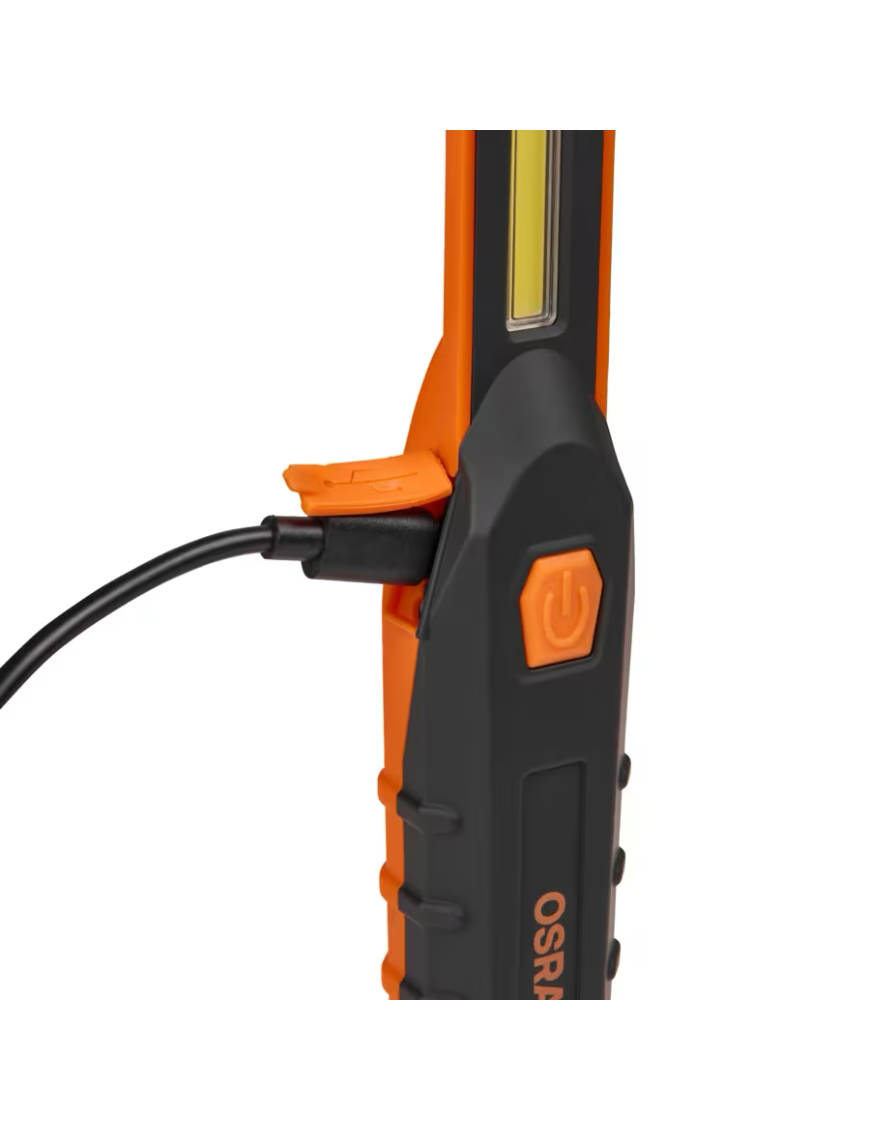

The LEDinspect SLIM 250 uses a rechargeable lithium-ion battery rated at 6.66 Wh and a nominal voltage of 3.7 V. Charging is via USB-C. OSRAM's operating instructions state that the lamp should not be used while charging and recommend charging the battery at least once every three months during long-term storage.
Road approval and intended use
This product is a portable inspection lamp rather than a vehicle-mounted driving light. The LEDIL418 documentation does not specify an ECE road-lighting approval, so it should not be marketed as an additional road-legal driving lamp or headlamp.
Durability
OSRAM specifies an IK07 mechanical impact rating. The current product data sheet does not specify an IP ingress-protection rating for LEDIL418, so no additional water or dust resistance claim should be made.
Typical applications

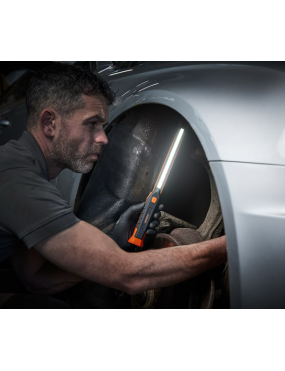

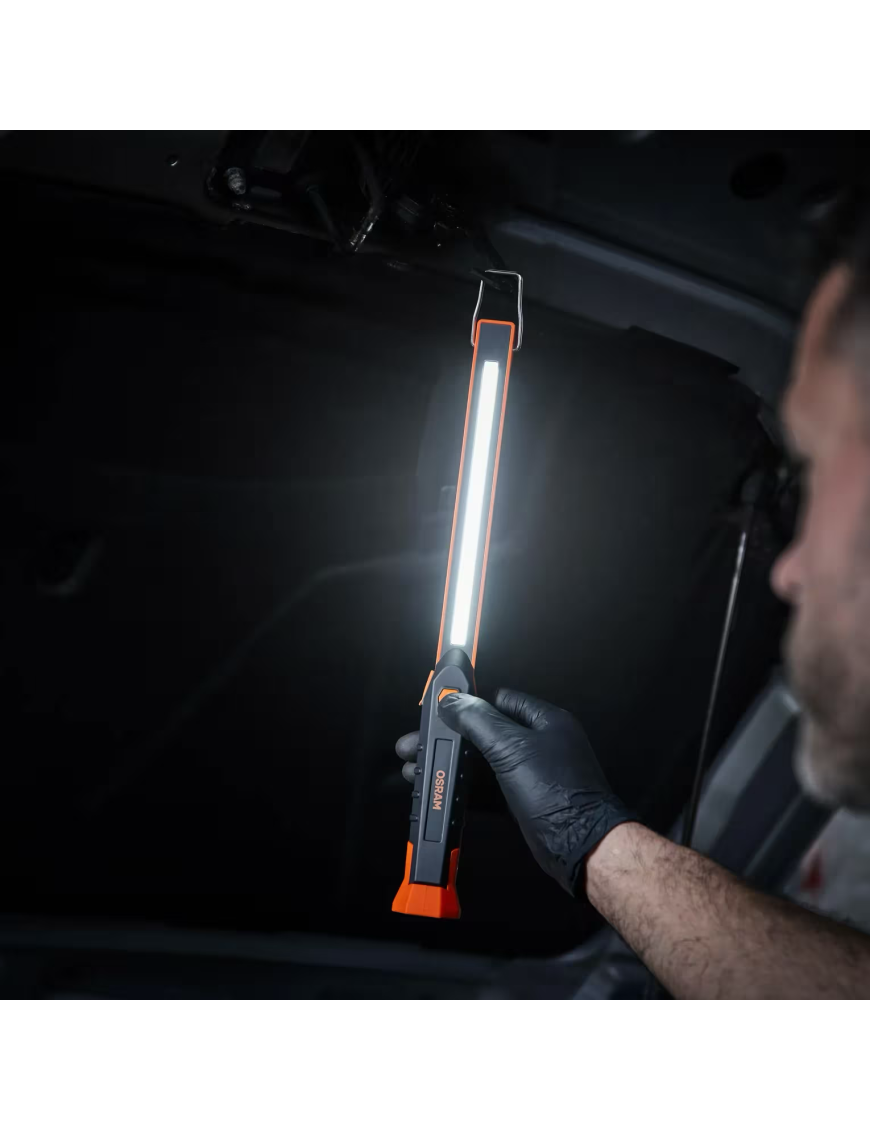

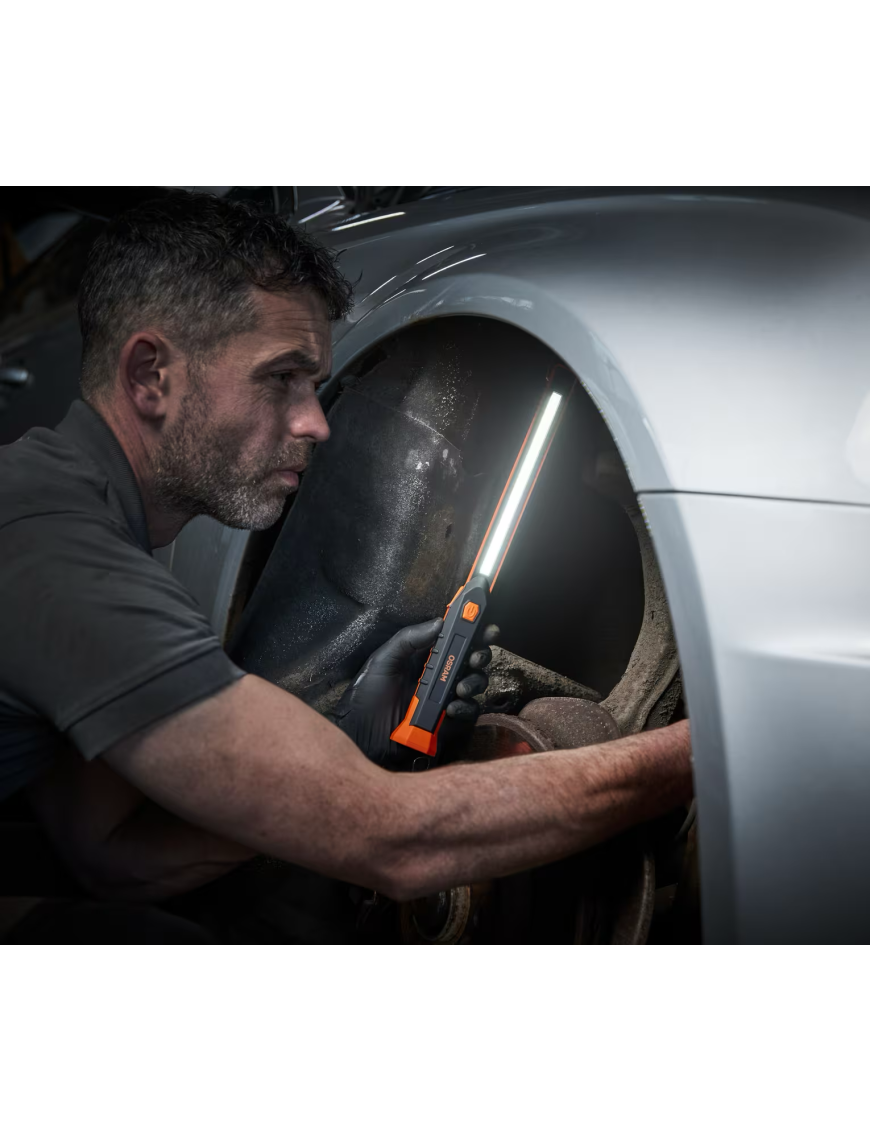

- engine-bay inspection and maintenance,
- 4x4, SUV and pickup workshop servicing,
- inspection of confined mechanical areas,
- vehicle electrical and diagnostic work,
- general workshop maintenance.
Technical specifications
| Specification | Value |
|---|
| Brand | OSRAM |
| Model | LEDinspect SLIM 250 |
| MPN | LEDIL418 |
| Main luminous flux | up to 250 lm |
| Torch output | 125 lm |
| Colour temperature | 6,000 K |
| Light colour | white |
| Nominal power | 3 W |
| Nominal voltage | 3.7 V |
| Battery | rechargeable Li-ion |
| Battery energy | 6.66 Wh |
| Charging | USB-C |
| LEDs | 2 |
| Adjustment | 180° ratchet |
| Positioning | magnetic base and integrated hook |
| Dimensions – OSRAM data table | 39 × 361 × 33 mm |
| Weight | 170 g |
| IK rating | IK07 |
| Housing colour | black / orange |
| Guarantee | 2 years |
| GTIN / EAN | 4062172424103 |
Dimension note: the OSRAM technical table lists 39 × 361 × 33 mm, while the operating-instruction drawing indicates a larger maximum envelope depending on the position of the moving components. Check the dimensional drawing where installation clearance is critical.

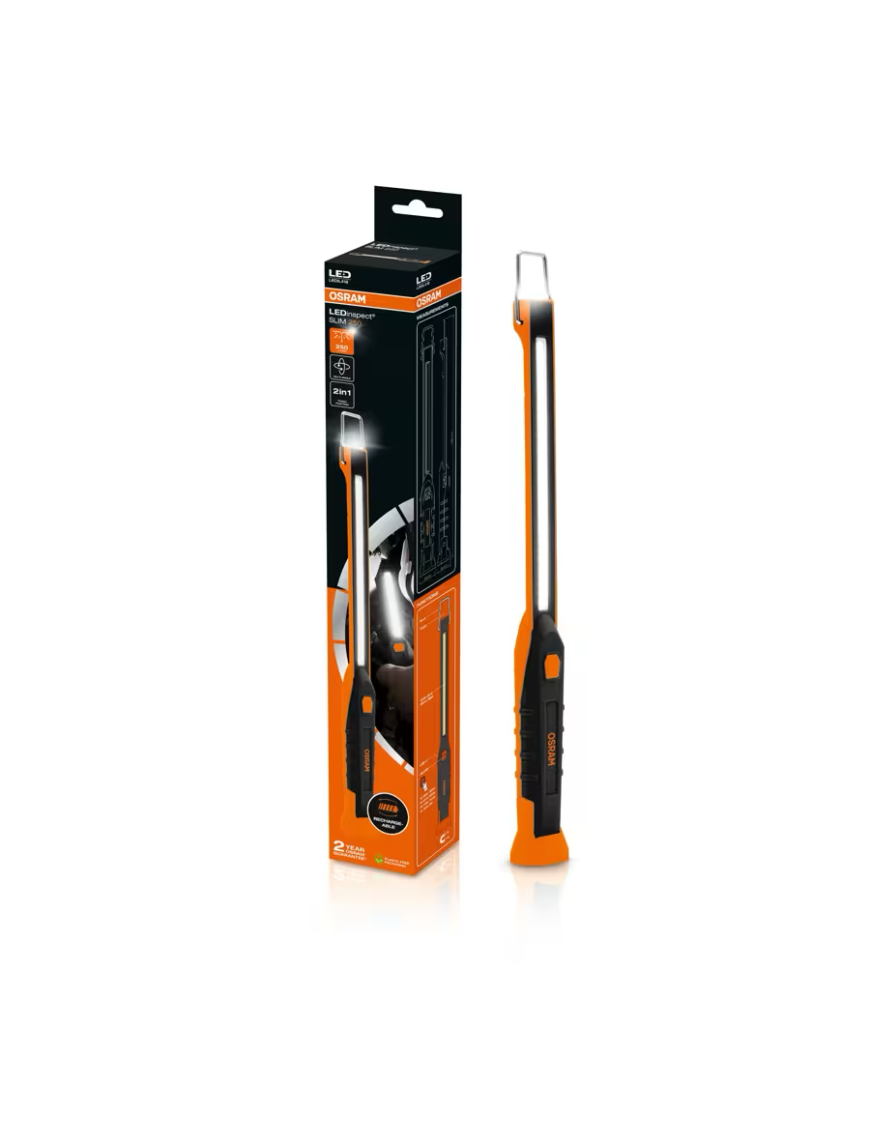

Package contents
The confirmed package quantity is one LEDinspect SLIM 250 lamp with one rechargeable lithium-ion battery. The operating instructions illustrate a USB-A to USB-C cable, although the current OSRAM technical data table does not separately list the cable as a package component.
Installation
The SLIM 250 is a self-contained rechargeable inspection light. Normal operation therefore does not require a vehicle wiring harness, relay or external switch.
