RockSport BLACK front coilovers for the Ford Bronco 6G

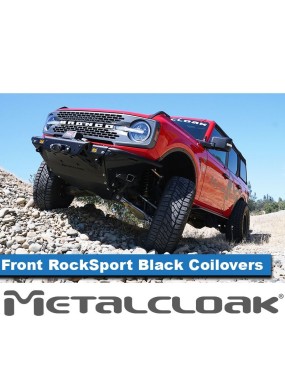

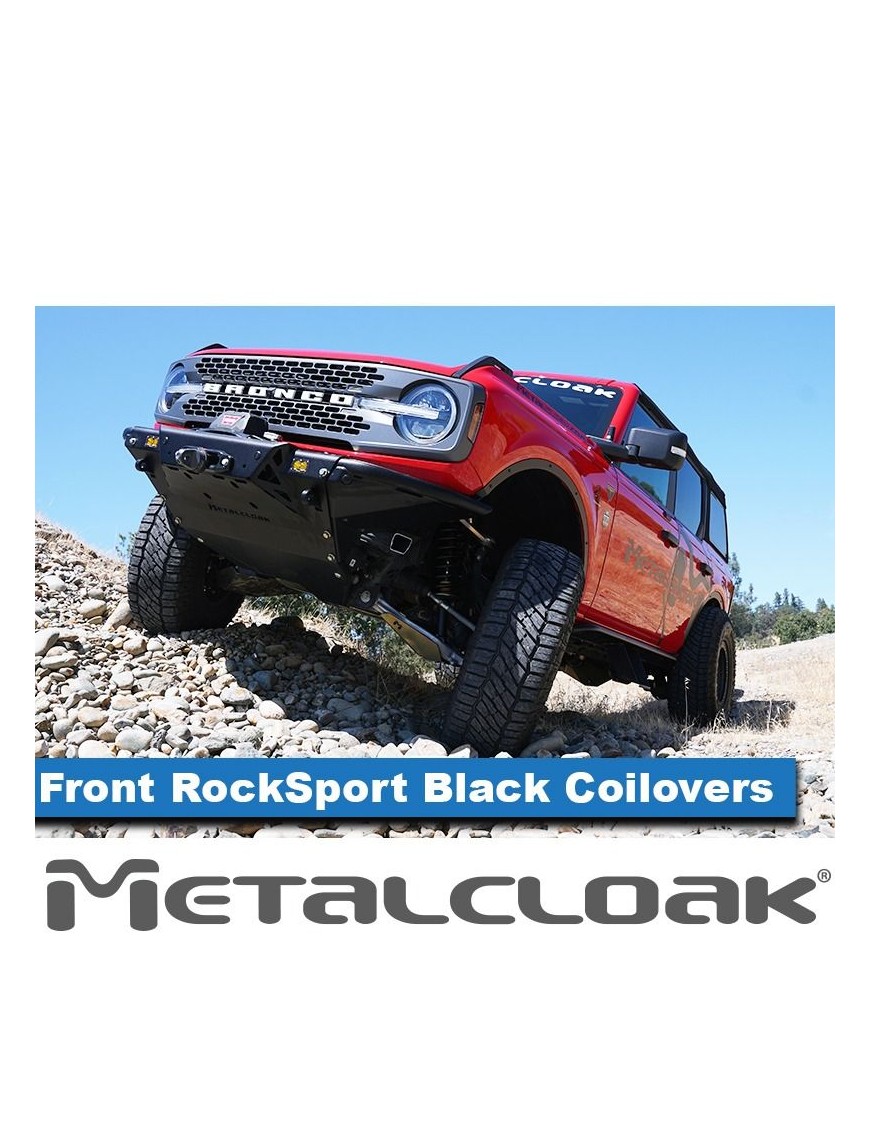

RockSport BLACK 2.5"–4" Front Reservoir Coilovers for Ford Bronco 6G

Key benefits

• Adjustable ride height allows the front suspension to be matched to the Bronco version and other vehicle modifications.

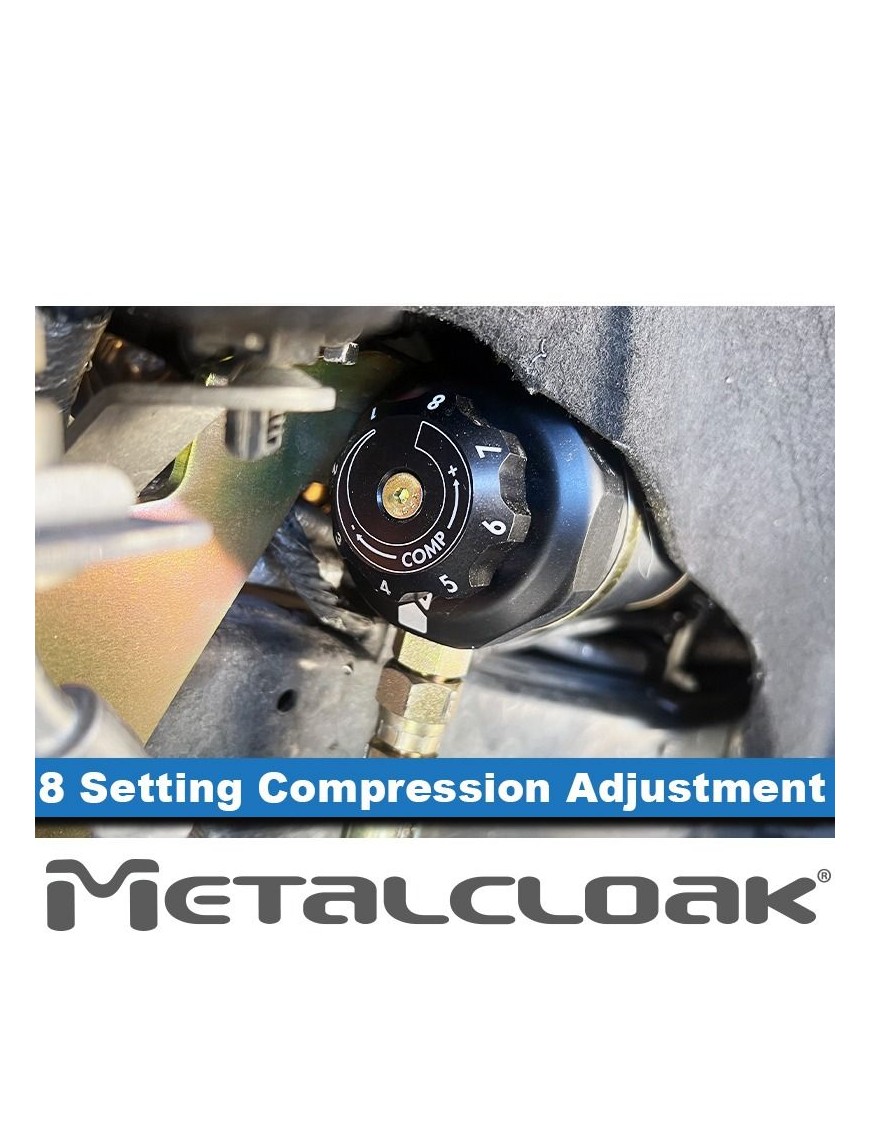

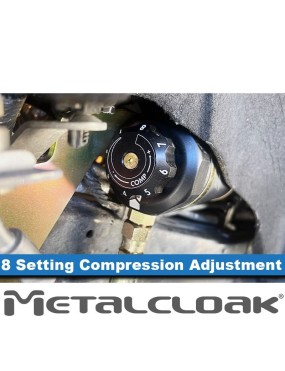

• 8-position compression adjustment makes it possible to change the coilover response without replacing components.

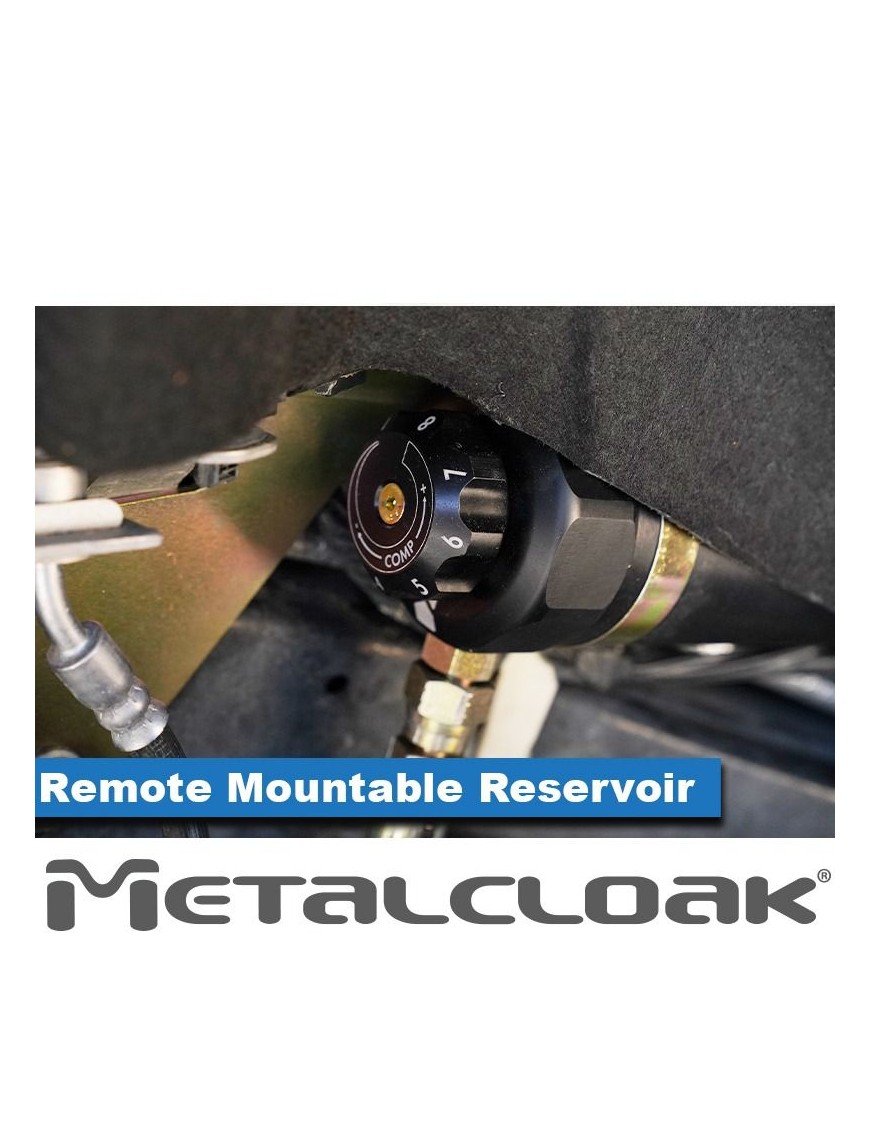

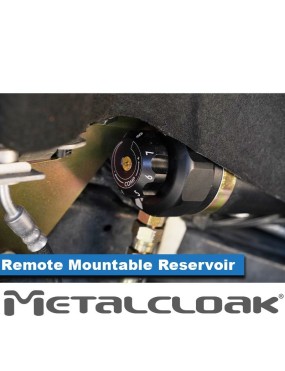

• The remote reservoir increases oil capacity and supports consistent performance during extended driving over rough terrain.
• The 2.5-inch body with a 3/16-inch wall provides a large surface area for heat dissipation.
• The parabolic valve stack responds to oil pressure, providing control at both low and high suspension shaft speeds.
• A large piston with nine flow ports optimizes oil movement during compression and rebound.
• The recessed internal cap design helps maximize usable shaft length and suspension travel.
• Hard-anodized surfaces improve the wear and corrosion resistance of aluminum components.

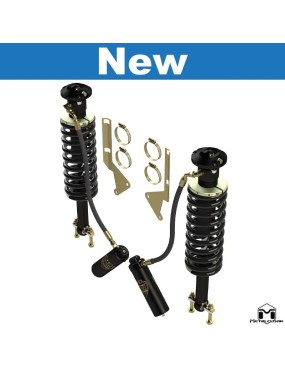

What is included

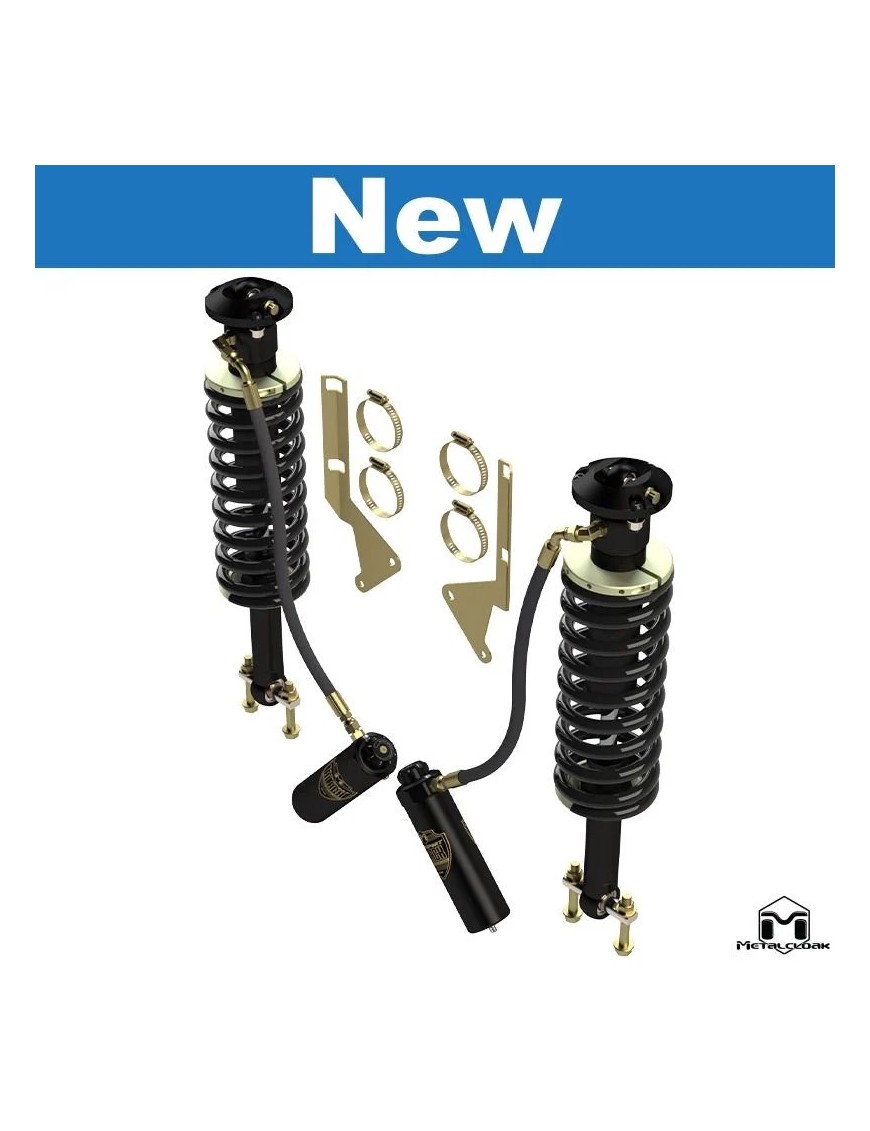

• 2 RockSport BLACK front coilovers.
• Remote oil reservoirs with compression adjustment.
• Coil springs selected for the Bronco 6G front suspension.
• Gold-finished reservoir clamps.
• Reservoir mounting brackets.
• Lower bar-pin mounting hardware.
• Manufacturer-specified installation hardware.

Technical specifications / facts

• Installation position: front axle.
• Type: adjustable coilovers with remote reservoirs.
• Extended length: 24.7".
• Collapsed length: 18.8".
• Length measured from mounting center to mounting center.
• Body diameter: 2.5".
• Body material: aluminum.
• Body wall thickness: 3/16".

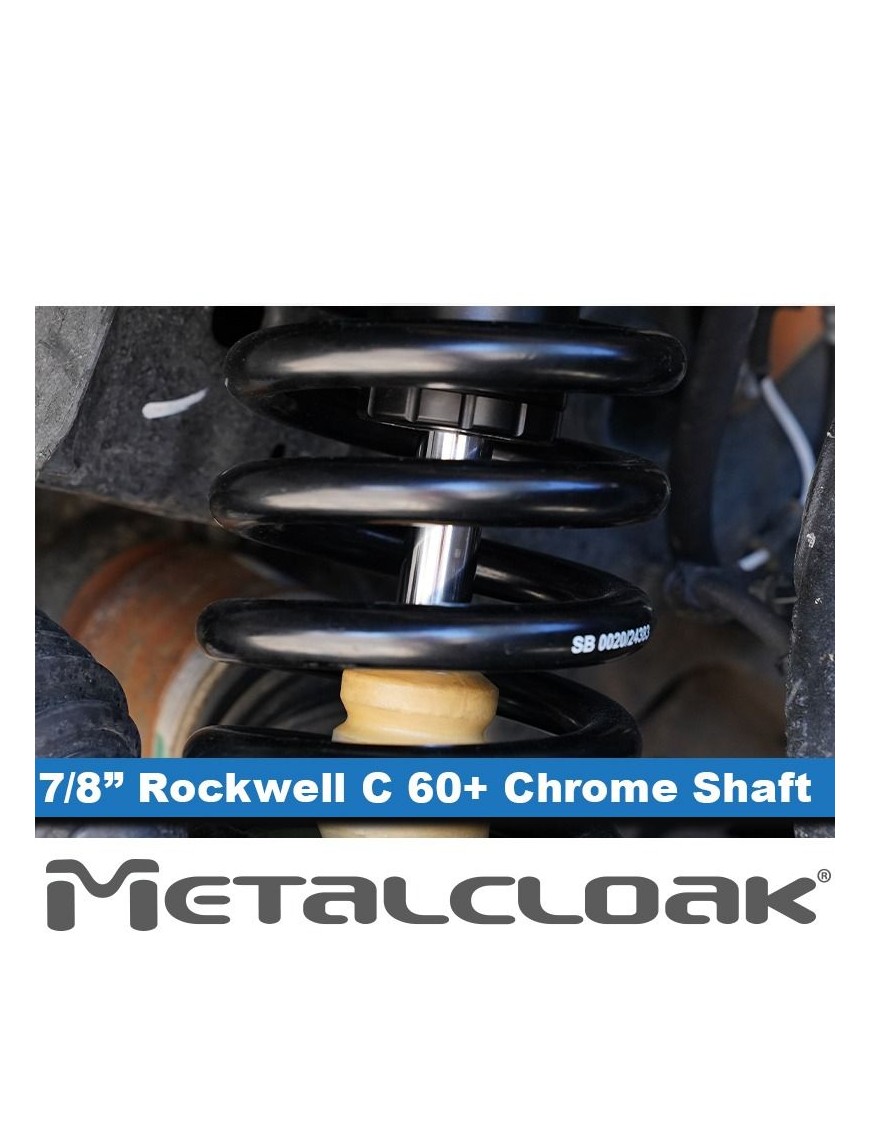

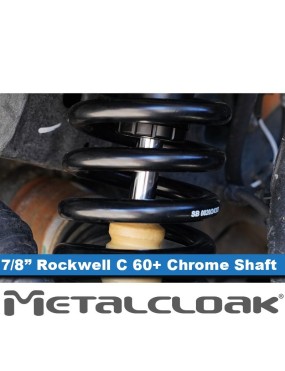

• Shaft diameter: 7/8".
• Induction-hardened shaft rated at Rockwell C 60+.
• Hard-chrome-plated shaft.
• Body and reservoir feature Mil-Spec Type III hard anodizing with a black Infinity finish.
• Piston features clear Mil-Spec Type III hard anodizing.
• Piston with 9 flow ports: 6 for compression and 3 for rebound.
• Parabolic valve stack, patent pending under application no. 63/743,954.
• Stainless-steel braided hydraulic hose protected by a rubber outer cover.
• Spring free length: 16".
• Spring block height: 6.5".
• Black powder-coated spring.
• Adjustment collars and mounting components protected with gold zinc plating.
• Designed, tested, and manufactured in the USA.

Recommended use

• For Ford Bronco 6G owners looking for an adjustable MetalCloak suspension system.
• For vehicles used both on paved roads and off-road.
• For rock crawling, uneven trails, and fast gravel sections.
• For drivers who want to adjust compression damping according to terrain and vehicle load.
• For builds requiring front lift adjustment within the range specified by the manufacturer.

Installation / notes

• The 2.5"–4" lift range depends on the Ford Bronco version, including Sasquatch or Non-Sasquatch configuration.
• The available ride-height setting is limited by suspension geometry and by factory or aftermarket suspension components.
• Incorrect coilover setup may cause vehicle damage.
• Suspension alignment should be checked after installation and ride-height adjustment.

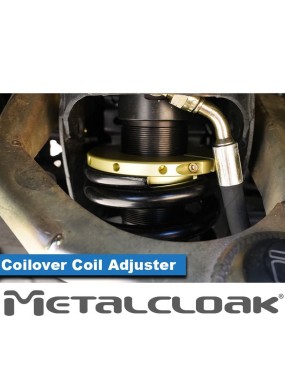

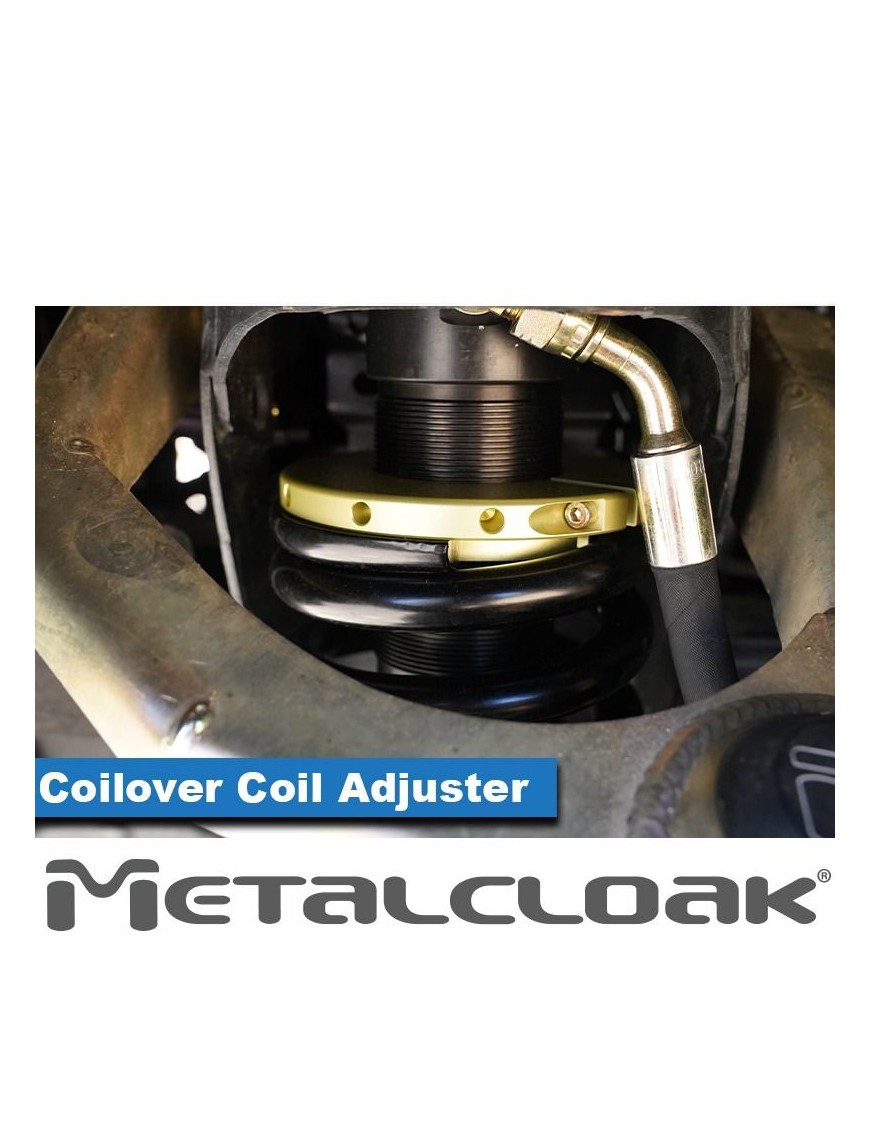

• Spring preload is adjusted using the gold zinc-plated adjustment collar.
• The lower bar-pin mounts are designed for installation in the factory mounting points.

Summary

• Pair of RockSport BLACK front reservoir coilovers for Ford Bronco 6G.
• Adjustable ride height depending on vehicle version and configuration.
• 8 compression damping settings.
• 2.5-inch aluminum bodies with 3/16-inch walls.
• 7/8-inch induction-hardened and chrome-plated shafts.
• Parabolic valve system and piston with 9 flow ports.
• Remote reservoirs supporting heat management and consistent damping performance.
• MetalCloak suspension designed for road, overland, and off-road use.
