CRS Banjo Fitting 1/4 NPT to APEX 3/8 Braided Air Hose

Name: BANJO FITTING FOR CRS - 1/4 NPT to APEX 3/8 BRAIDED AIR HOSE
Brand: APEX Designs & Performance Products
SKU: X02-06-005
Price: 30.61 EUR
Availability: PreOrder

BANJO FITTING FOR CRS – 1/4 NPT to APEX 3/8 Braided Air Hose (compatible with Compact Reel System)

This APEX banjo fitting is used to connect the APEX 3/8 Braided Air Hose to the Compact Reel System (CRS). It’s a simple way to keep an onboard air setup tidy and route the hose connection in a compact, service-friendly layout.

Important note about sealing: the banjo bolt seals with an o-ring against the port’s mating surface, not via the threads like a typical 1/4 NPT connection. If you plan to use it outside the CRS, the port must provide a flat/flush sealing face.

Purpose

Connect APEX 3/8 Braided Air Hose to Compact Reel System (CRS)

Specs

1/4 NPT to APEX 3/8 Braided Air Hose

SKU

X02-06-005

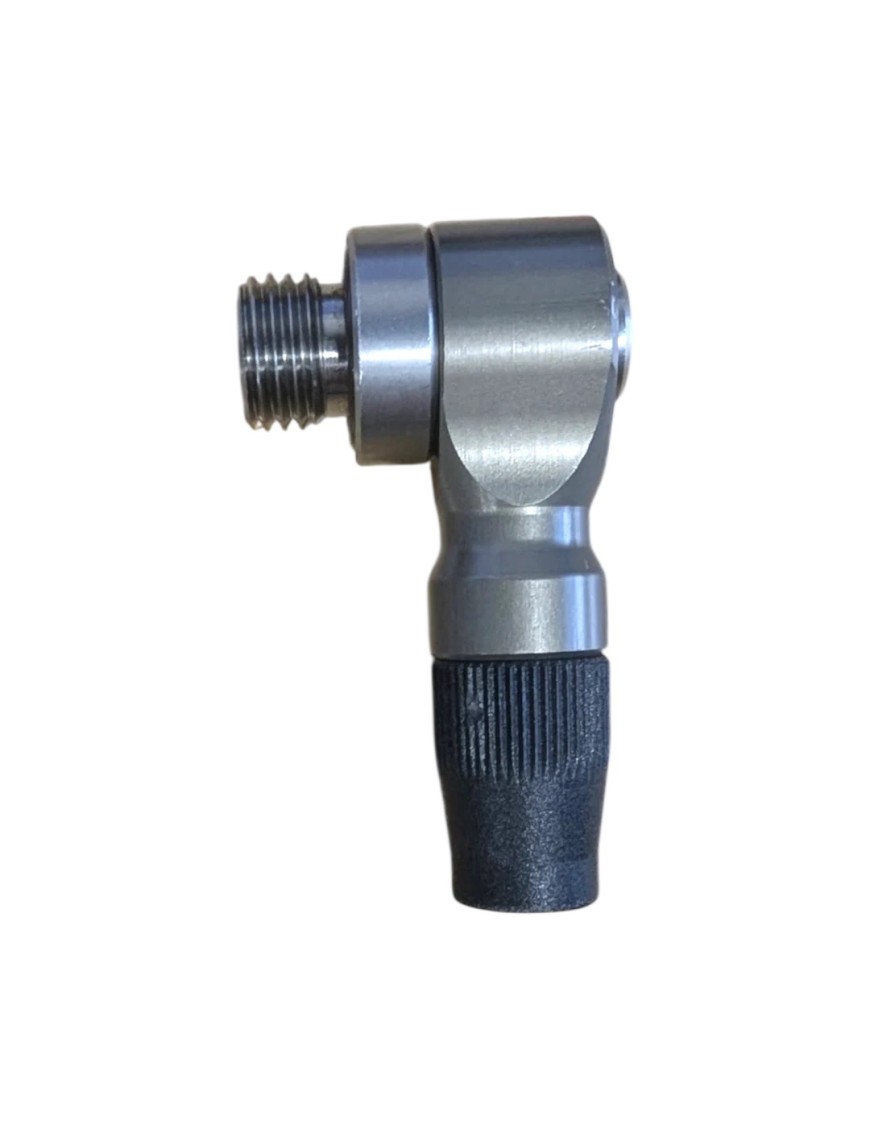

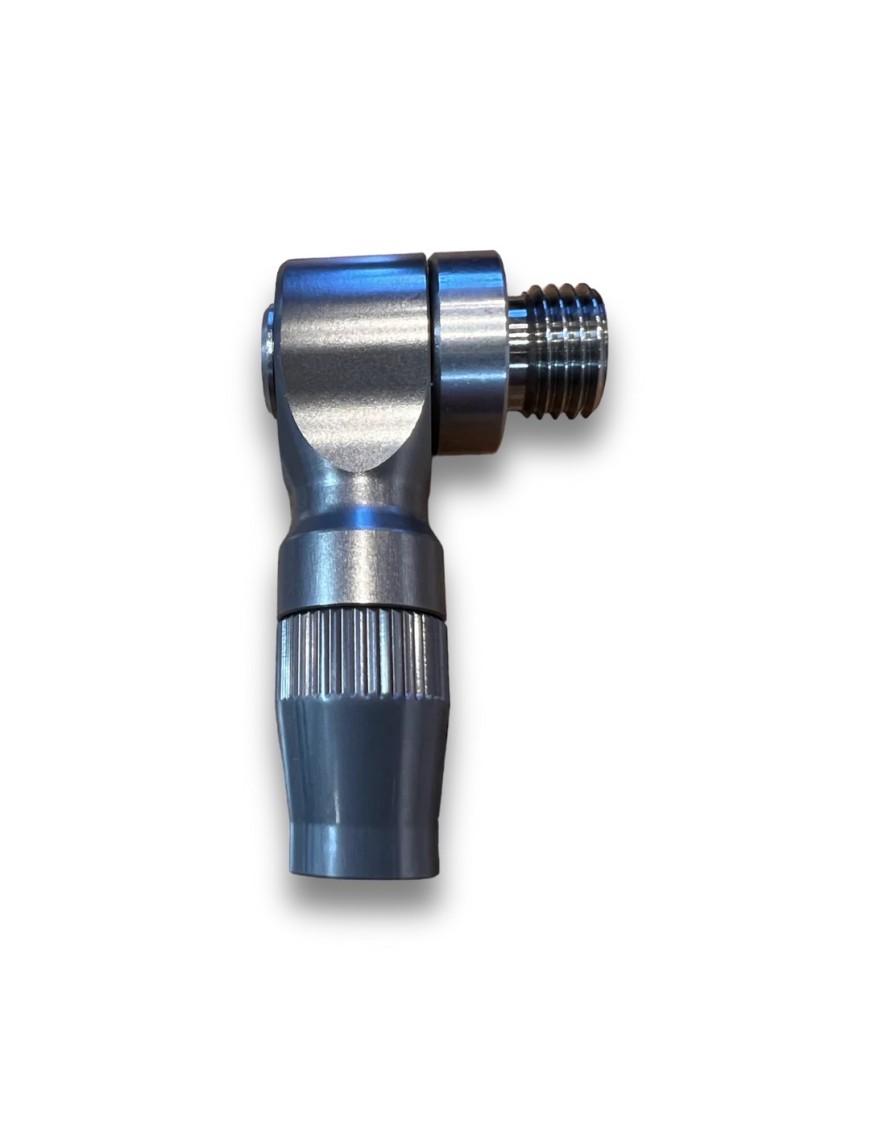

APEX banjo fitting 1/4 NPT to APEX 3/8 braided air hose – side view — Compact connection piece intended for the CRS air hose interface.

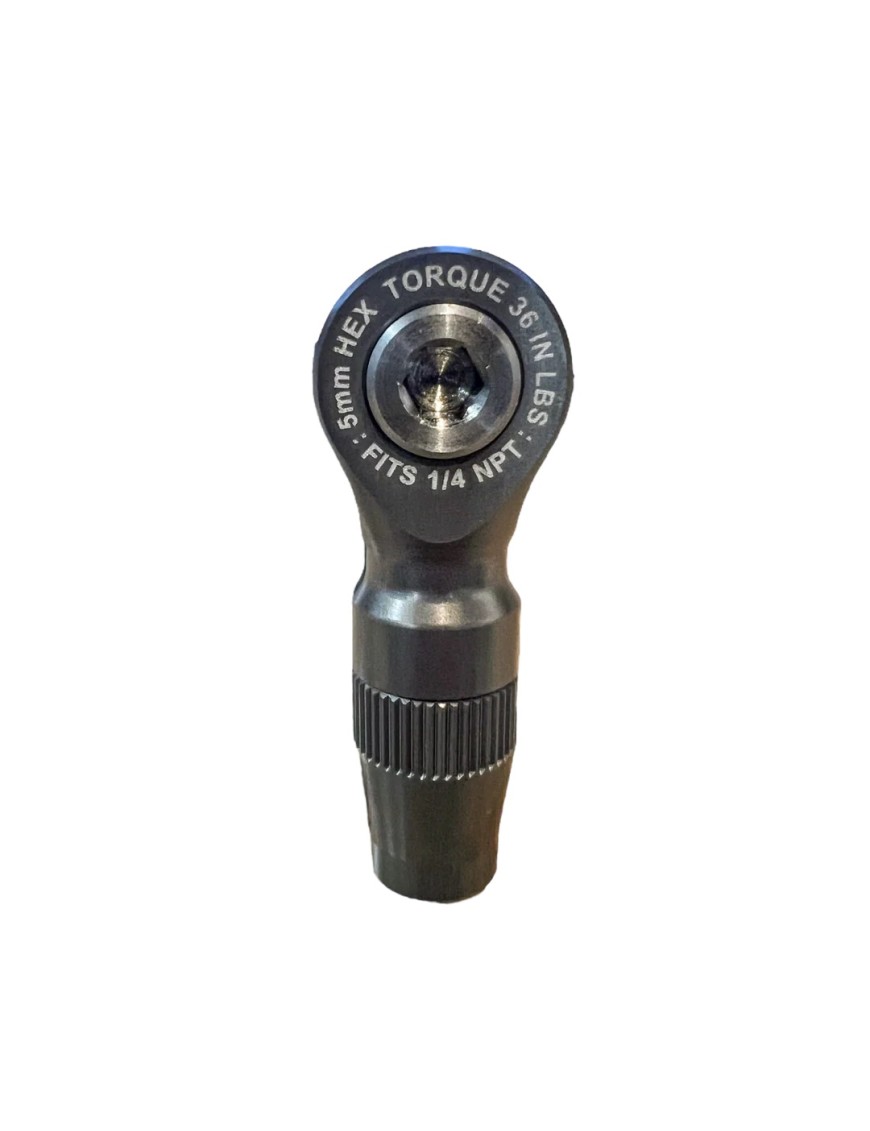

APEX banjo fitting – front view with hex drive detail — Helpful for identifying the drive/fastener access and checking alignment.

APEX banjo fitting installed on Compact Reel System (CRS) with braided air hose — Real-world fitment example with the CRS reel and braided air hose.

Key benefits

Direct way to connect the APEX 3/8 Braided Air Hose to the Compact Reel System (CRS).
Supports a clean, compact hose routing layout in onboard air setups.
O-ring sealing at the port face (typical banjo-style sealing).

What’s included

APEX banjo fitting (SKU: X02-06-005).

Technical facts / specs

Application: connects APEX braided air hose to the Compact Reel System (CRS).
Specs: 1/4 NPT to APEX 3/8 Braided Air Hose.
Sealing method: o-ring seals to the port’s mating surface (threads do not seal like traditional 1/4 NPT).
SKU: X02-06-005.

Who it’s for / use cases

CRS users who want the correct fitting for the APEX 3/8 braided air hose connection.
Onboard air installs where a compact, serviceable connection at the reel is important.

Install / notes

If used with something other than the CRS: the 1/4 NPT port must have a flat/flush mounting surface so the banjo can seal on the o-ring (the threads are not the sealing interface).

Summary (scan-friendly)

Banjo fitting for CRS: 1/4 NPT to APEX 3/8 Braided Air Hose.
Designed to connect the APEX braided air hose to the Compact Reel System.
O-ring face seal (not thread seal) — requires a flat sealing surface if used outside CRS.
SKU: X02-06-005.
