MetalCloak Chromoly Dog-Legged Tie Rod for Jeep Wrangler JK
€667.92 tax incl.
(zawiera VAT 23%) Log in as a company by purchasing without 23% VAT - applies to companies outside Poland
€543.03 tax excl.
The lowest price of this product in the last 30 days before the discount was €694.06 gross
The lowest price of this product in the last 30 days before the discount was €694.06 gross
MetalCloak Chromoly Dog-Legged Tie Rod for Jeep Wrangler JK (2007–2018) is a heavy-duty replacement for the factory tie rod. Built from 4130 chromoly with 1-Ton “anti-flop” ends and on-vehicle toe adjustment.
MetalCloak Chromoly Dog-Legged Tie Rod – Jeep Wrangler JK 2007–2018
The MetalCloak Chromoly Dog-Legged Tie Rod is a stronger, stiffer steering upgrade for the Jeep JK, built to handle off-road impacts and higher loads than the factory tie rod.
It combines a 4130 chromoly tube with forged 1-Ton “dog-leg” tie rod ends that improve clearance near the wheel and add an integrated “anti-flop” feature to help keep the tie rod from rotating into an unwanted position during suspension/steering movement.
Product overview

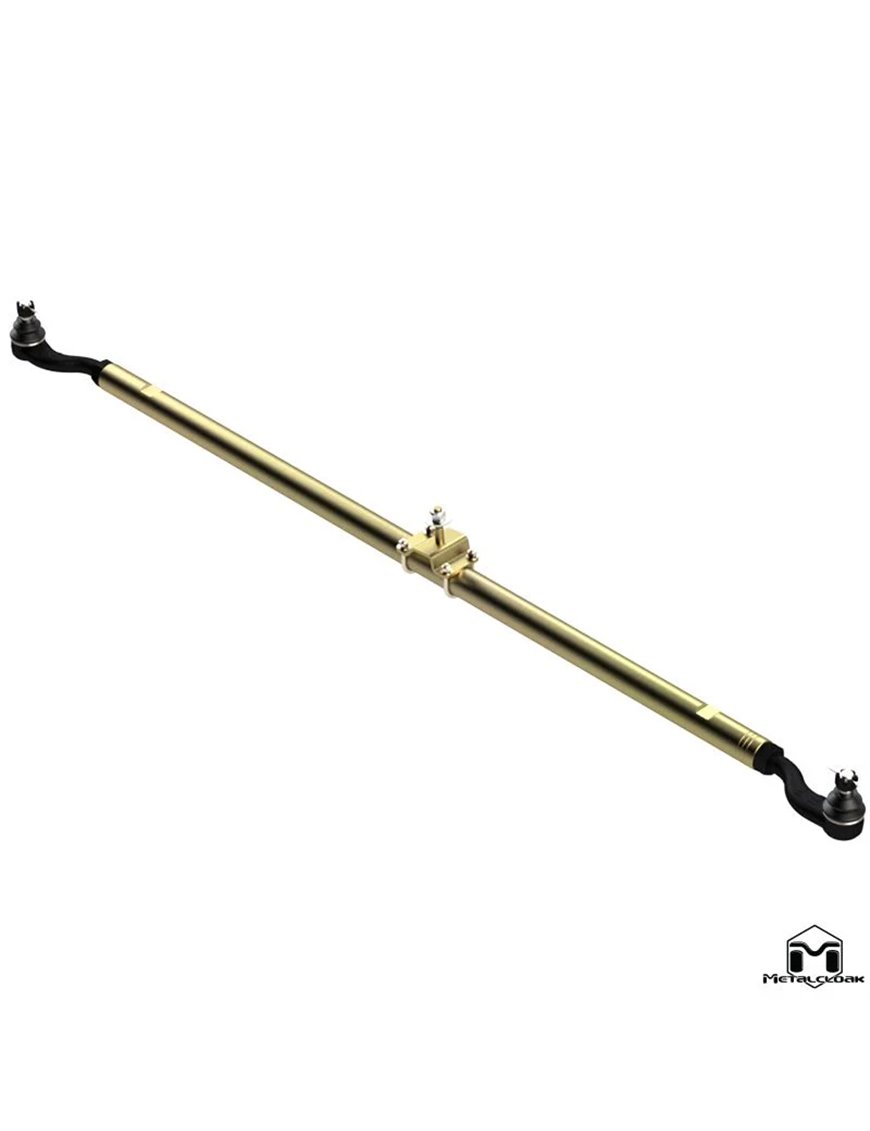

MetalCloak Chromoly Dog-Legged Tie Rod (JK Wrangler).
Fitment
Jeep Wrangler JK (2007–2018)
Product ID
7222
Tube / material
4130 Chromoly CDS, 1.625" OD, 0.375" wall
Tie rod length
58 3/8"
Finish
Gold Zinc (steel)
Key benefits
Stronger JK steering: large-diameter 4130 chromoly tube with a thick wall for added rigidity and impact resistance.
Forged & heat-treated 1-Ton “dog-leg” ends designed for wheel clearance while maintaining full steering travel.
Integrated “anti-flop” control helps limit unwanted rotation and keeps the tie rod in a stable position.
Sealed with rubber grease boots to help keep lubrication in and contamination out.
On-vehicle toe/geometry adjustment without removing the tie rod from the Jeep.
Compatible with right-hand drive (RHD) applications per manufacturer info.
Diagram and key dimensions (visual)
Visual reference of the tie rod design and layout.
1-Ton dog-leg end – details
Highlights sealed boot protection, clearance geometry and the dog-leg profile.
Anti-Flop feature in action (animation)
Animation illustrates controlled fore/aft movement that helps stabilize tie rod orientation.
What’s included
4130 chromoly tie rod assembly.
Anti Flop Dog-Leg 1-Ton tie rod ends.
Steering stabilizer mount on the tie rod: standard mount or optional billet mount (depending on selected configuration).
Required installation hardware.
Kit contents (visual)
Visual list of the components included with the kit.
Technical facts
Fitment: Jeep Wrangler JK 2007–2018.
Tube: 4130 CDS, 1.625" OD, 0.375" wall.
Length: 58 3/8".
Steel finish: Gold Zinc.
Standard stabilizer mount: 3/16" hot rolled steel plate.
Optional billet stabilizer mount: 6061-T6, 2" x 3", black anodized finish.
Steering stabilizer mount – standard version
Standard clamp-style stabilizer mount for tie-rod applications.
Steering stabilizer mount – billet version (optional)
Optional two-piece billet mount allows you to position the stabilizer to your preferred angle.
Who it’s for / use cases
JK owners (2007–2018) who want a tougher tie rod for off-road use and higher steering loads.
Drivers looking for sealed, 1-Ton ends with an integrated anti-flop control feature.
Anyone who wants the convenience of on-vehicle toe adjustment during alignment.
Installation / notes
Wheel note: the tie rod does not work with factory wheel backspacing—at full lock, OE wheels may contact the ends; wheel spacers resolve this.
If you choose the billet mount, the manufacturer recommends using anti-seize on all fasteners.
Manufacturer notes: easy installation, no body modifications, approx. 30 minutes.
MetalCloak Chromoly Dog-Legged Tie Rod for Jeep Wrangler JK (2007–2018) is a heavy-duty replacement for the factory tie rod. Built from 4130 chromoly with 1-Ton “anti-flop” ends and on-vehicle toe adjustment.
