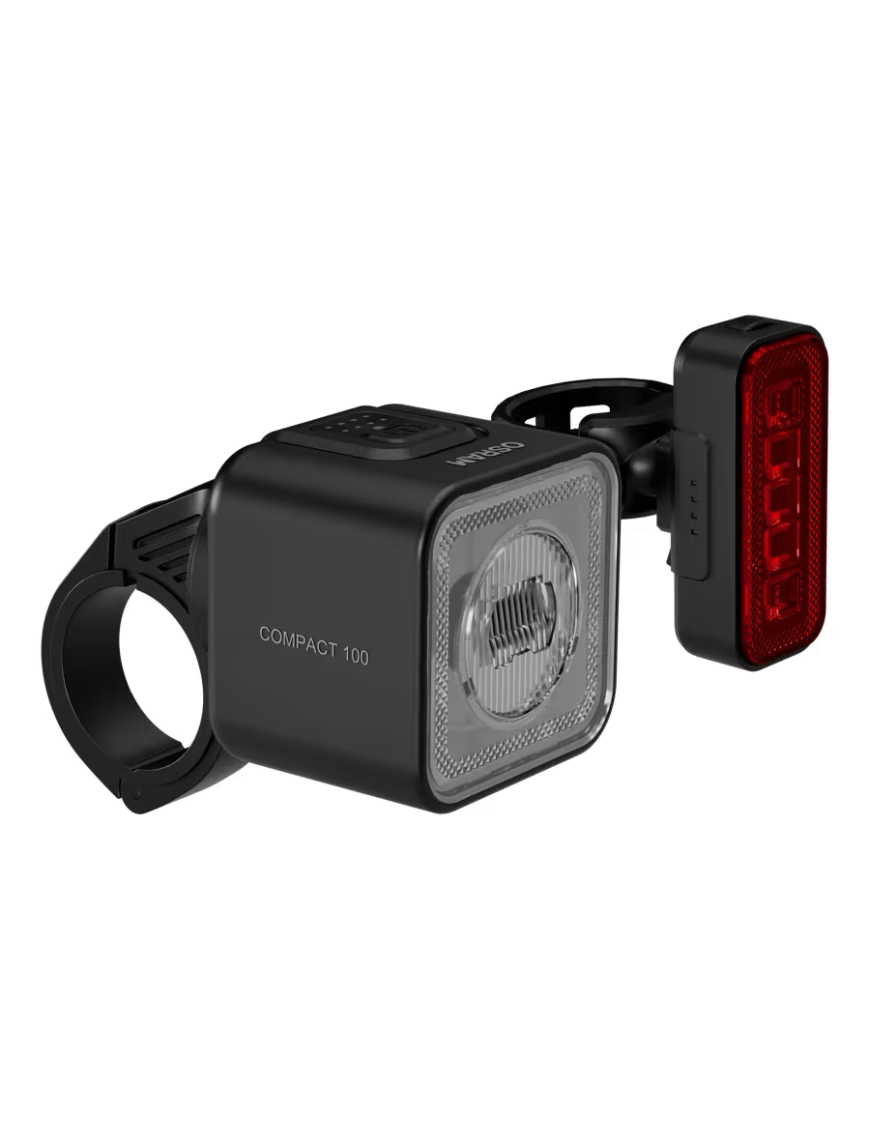

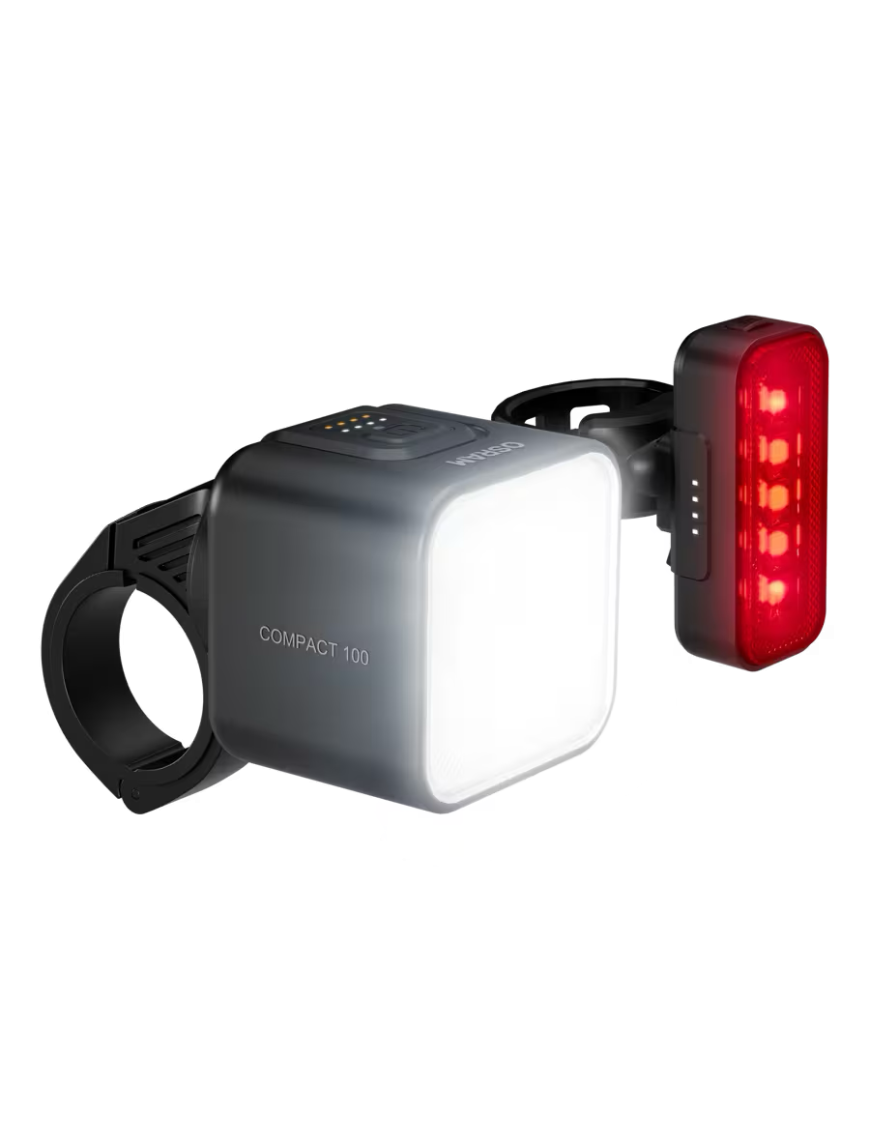

OSRAM LEDsBIKE COMPACT 100 SET – rechargeable front and rear bicycle lighting
The OSRAM LEDsBIKE COMPACT 100 SET combines a rechargeable LED front light and rear light in one bicycle lighting package. The front light provides up to 100 lx and a manufacturer-specified reach of up to 95 m at 1 lx. Three manual output levels and an Automatic mode are available, while the rear light includes an integrated brake-light function.
Key benefits
- Up to 100 lx at the front – an illuminance rating, not a lumen figure.
- Up to 95 m at 1 lx – OSRAM's specified front-light reach.
- 100%, 50%, 25% and Automatic modes – a choice between output and runtime.
- Up to 12 h front and 13 h rear runtime – depending on the selected operating mode.
- Integrated rear brake light – an additional signalling function.
- USB-C charging and Li-Ion batteries – rechargeable everyday operation.
- IP54 protection – the protection class specified by OSRAM.

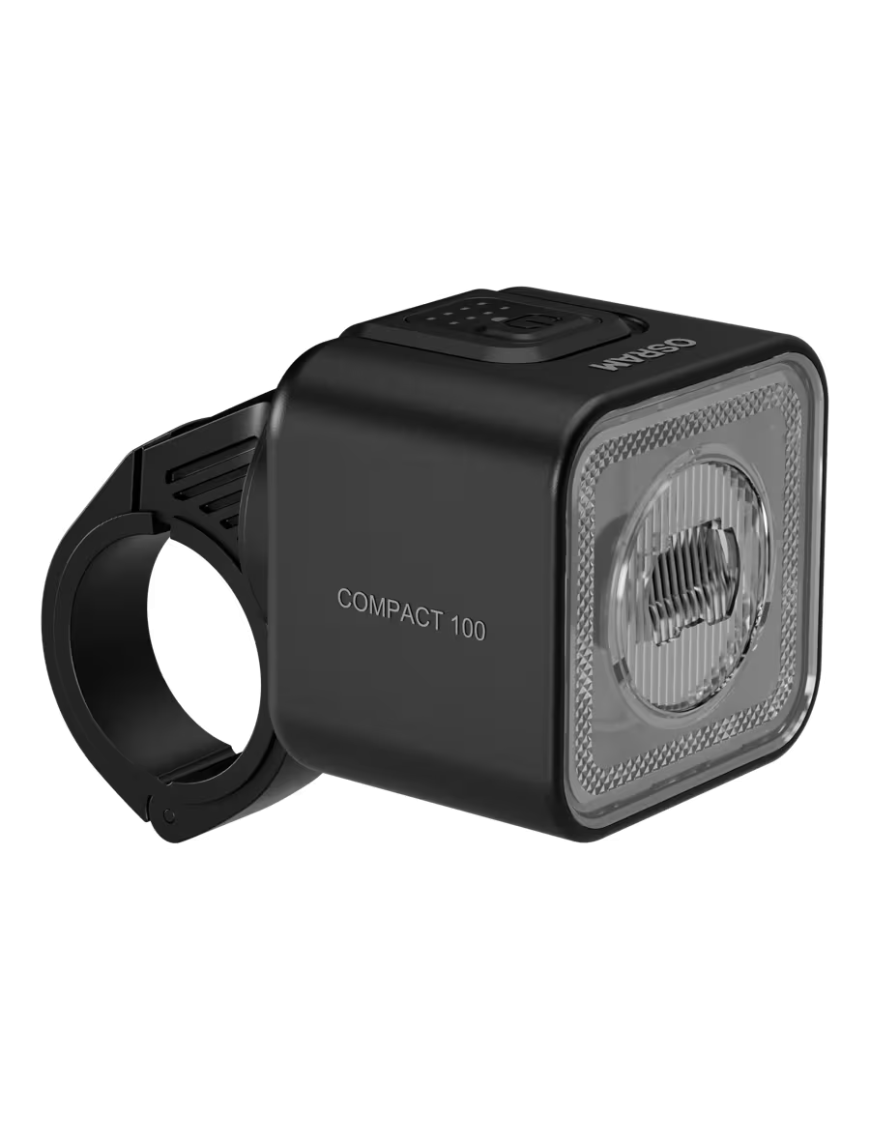

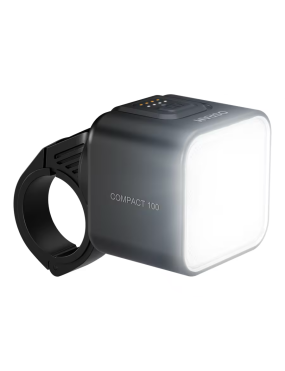

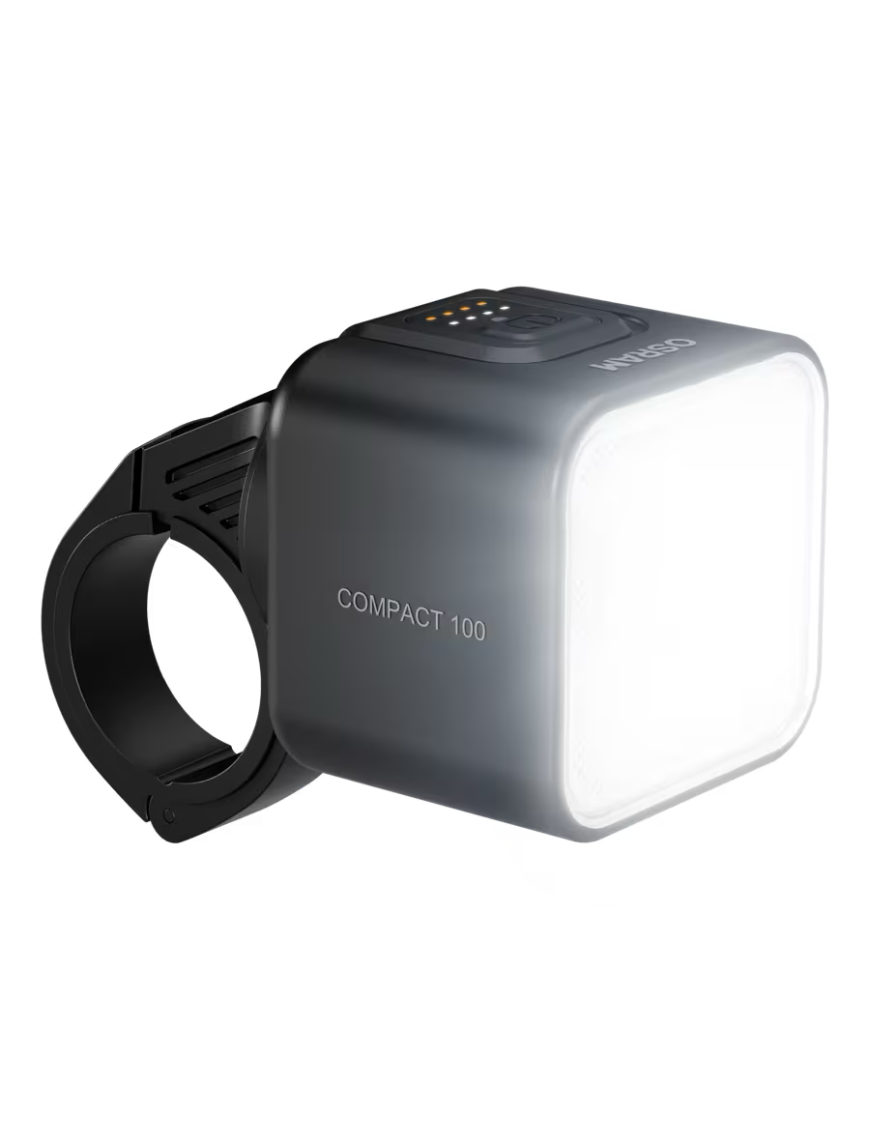

Front-light performance
The front light is rated at up to 100 lx and OSRAM specifies a reach of up to 95 m at 1 lx. These figures describe different aspects of performance: 100 lx is an illuminance value, while the 95 m figure indicates the stated distance at which the beam reaches 1 lx. OSRAM does not publish a lumen output or beam angle for this model, so those values are not estimated.
The front light produces cool-white light at 5,400 K. Manual output settings include 100%, 50% and 25%, with an additional Automatic mode using the integrated brightness sensor.
Operating modes and runtime
| Function | Mode / runtime |
|---|
| Front – High | 100% / up to 4 h |
| Front – Low | 50% / up to 6 h |
| Front – Eco | 25% / up to 12 h |
| Front – Automatic | automatic adjustment; no fixed runtime specified |
| Rear | Steady or Automatic / up to 13 h |
Rear light with brake-light function
The rear unit provides Steady and Automatic modes. OSRAM's instructions also identify an integrated brake-light function, adding a signalling feature to the rear lighting unit.
StVZO approval and road use
OSRAM states that the product is tested and approved under German StVZO requirements for road use in Germany. This should not be presented as a separate Polish road homologation. When the product is used in Poland, the complete bicycle and installation must comply with applicable Polish bicycle-lighting requirements.
Polish regulations require, among other equipment, a white or selective-yellow front position light, a red rear position light and a separate non-triangular red rear reflector. The product documentation does not confirm that this set replaces the required rear reflector, so the bicycle should retain a compliant reflector.

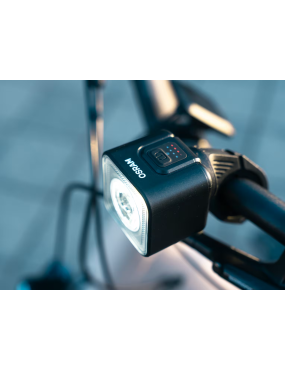

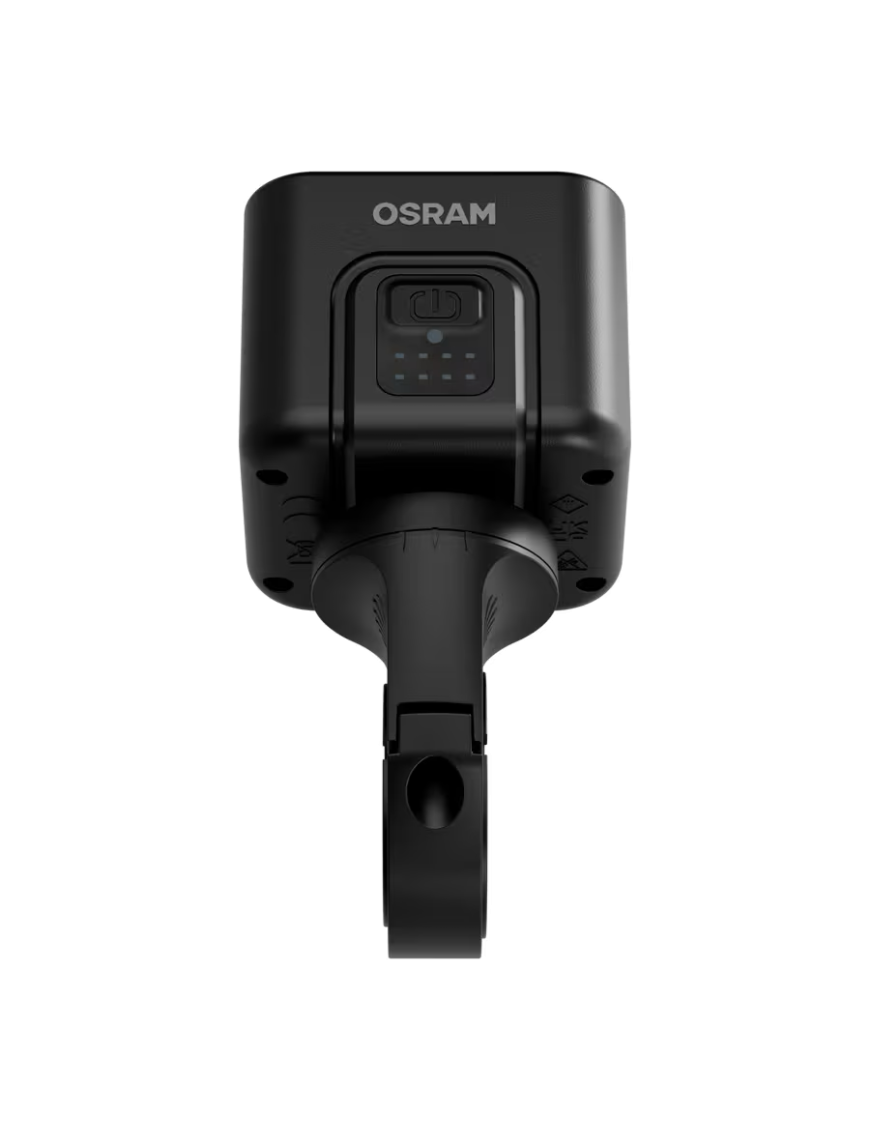

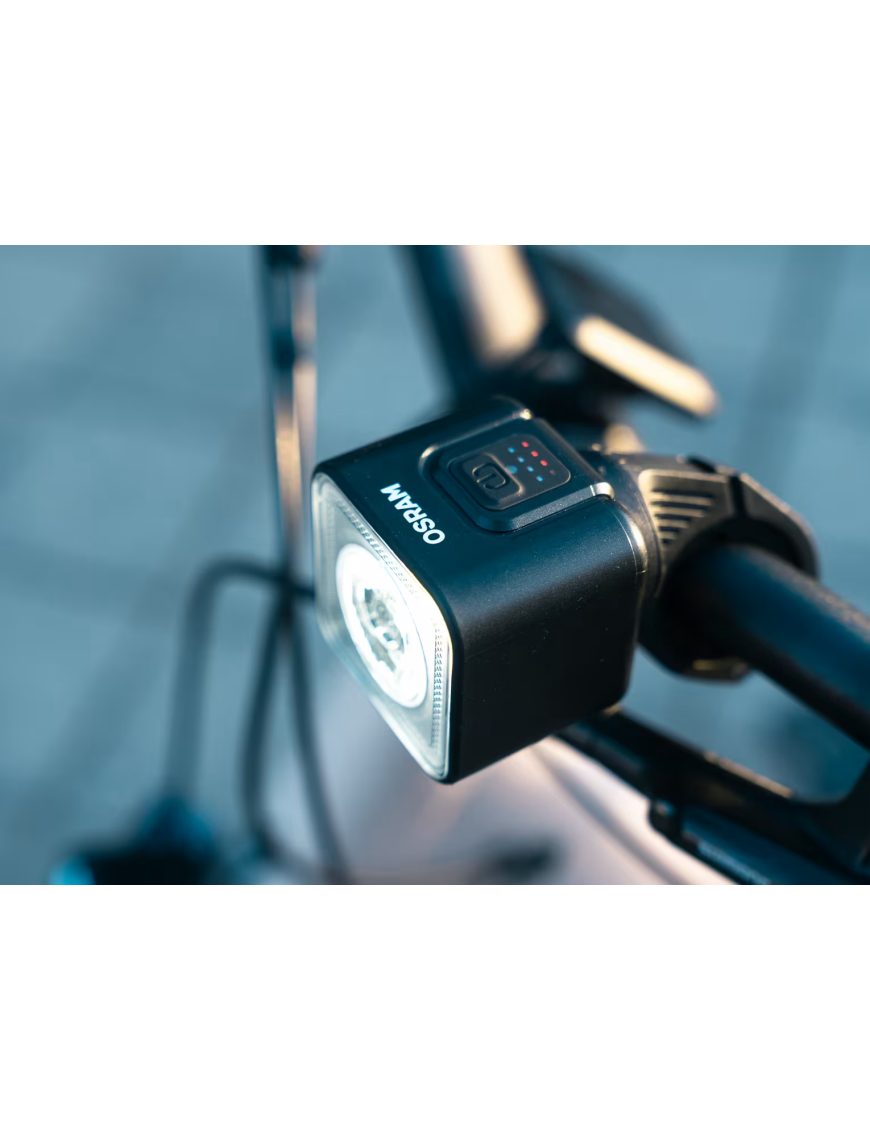

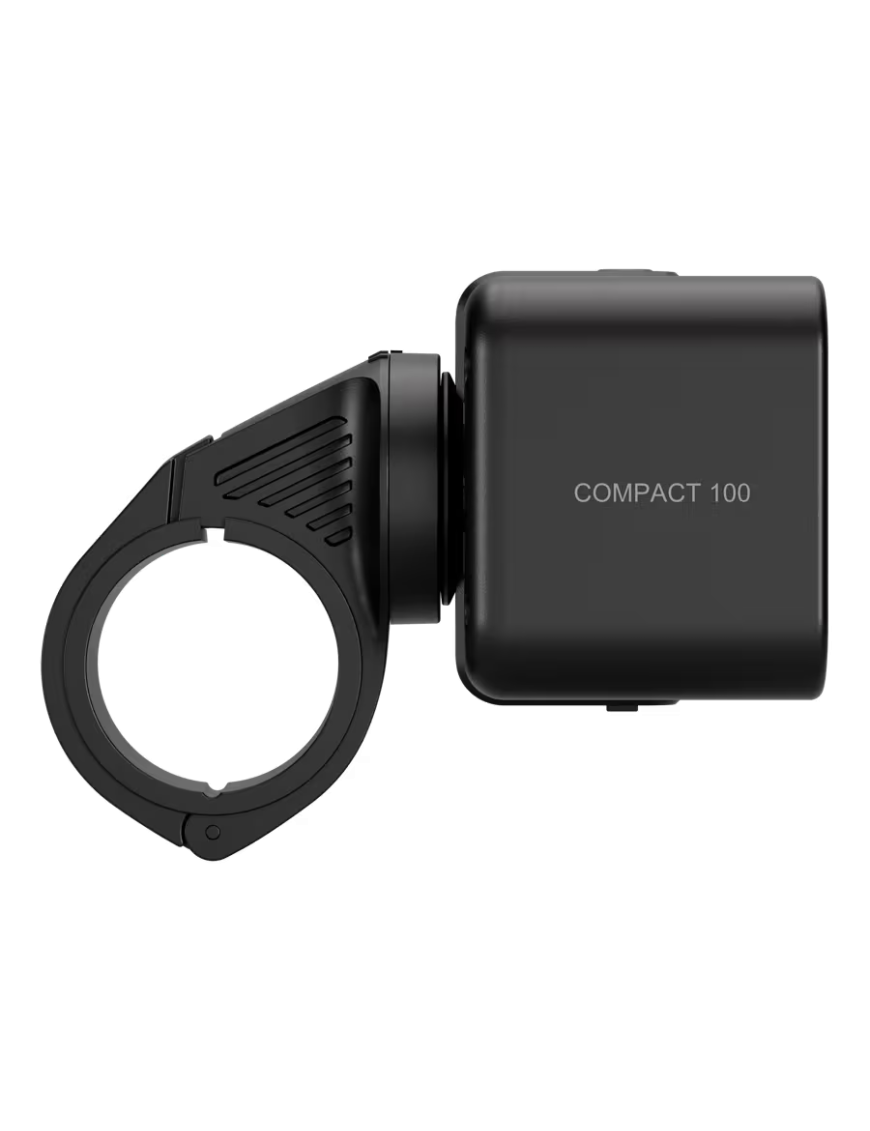

Mounting
The front mount is designed for handlebars from 22.2 to 35.0 mm in diameter. The OSRAM instructions show fitting options for 22.2, 25.4, 31.8 and 35.0 mm diameters. The manufacturer also describes the bracket as Garmin-compatible. The lights should be securely installed and aimed so that they do not dazzle other road users.

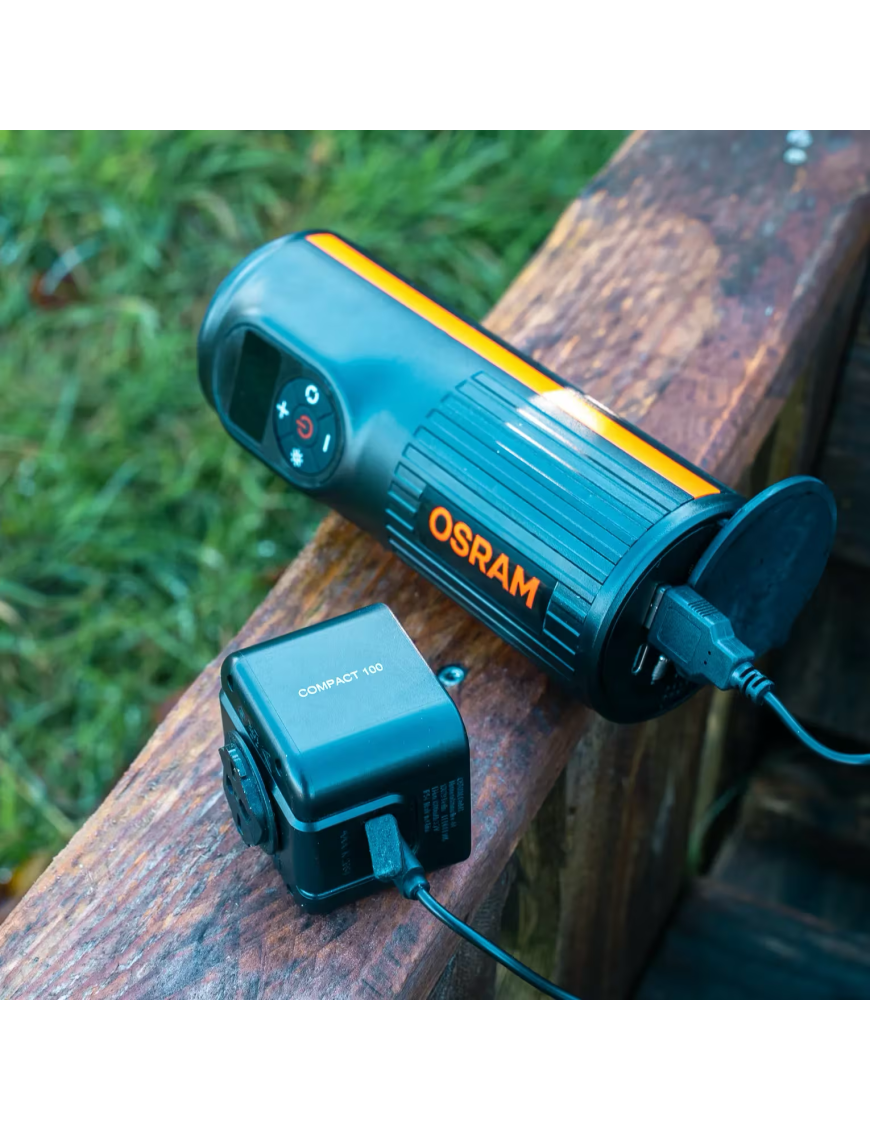

Charging and battery care
Both lights use rechargeable Li-Ion batteries and USB-C charging. A full charge takes approximately 3 hours for the front light and 2 hours for the rear. OSRAM specifies a charging temperature range of 0–45°C and recommends periodic recharging during extended storage.
Technical data
| Parameter | Value |
|---|
| Brand | OSRAM |
| Model | LEDsBIKE COMPACT 100 SET |
| MPN | LEDBL105 SET |
| GTIN / EAN | 4062172426022 |
| Front illuminance | up to 100 lx |
| Distance at 1 lx | up to 95 m |
| Front colour temperature | 5,400 K |
| Front modes | Automatic, 100%, 50%, 25% |
| Front runtime | up to 4 / 6 / 12 h depending on mode |
| Rear modes | Steady, Automatic |
| Rear runtime | up to 13 h |
| Brake light | integrated |
| Nominal voltage | 3.7 V |
| Battery | Li-Ion |
| Charging | USB-C |
| Charging time | front approx. 3 h; rear approx. 2 h |
| Protection class | IP54 |
| Handlebar diameter | 22.2–35.0 mm |
| Housing | black ABS |
| Approval | StVZO – manufacturer-stated approval for Germany |
| Manufacturer warranty | 2 years |

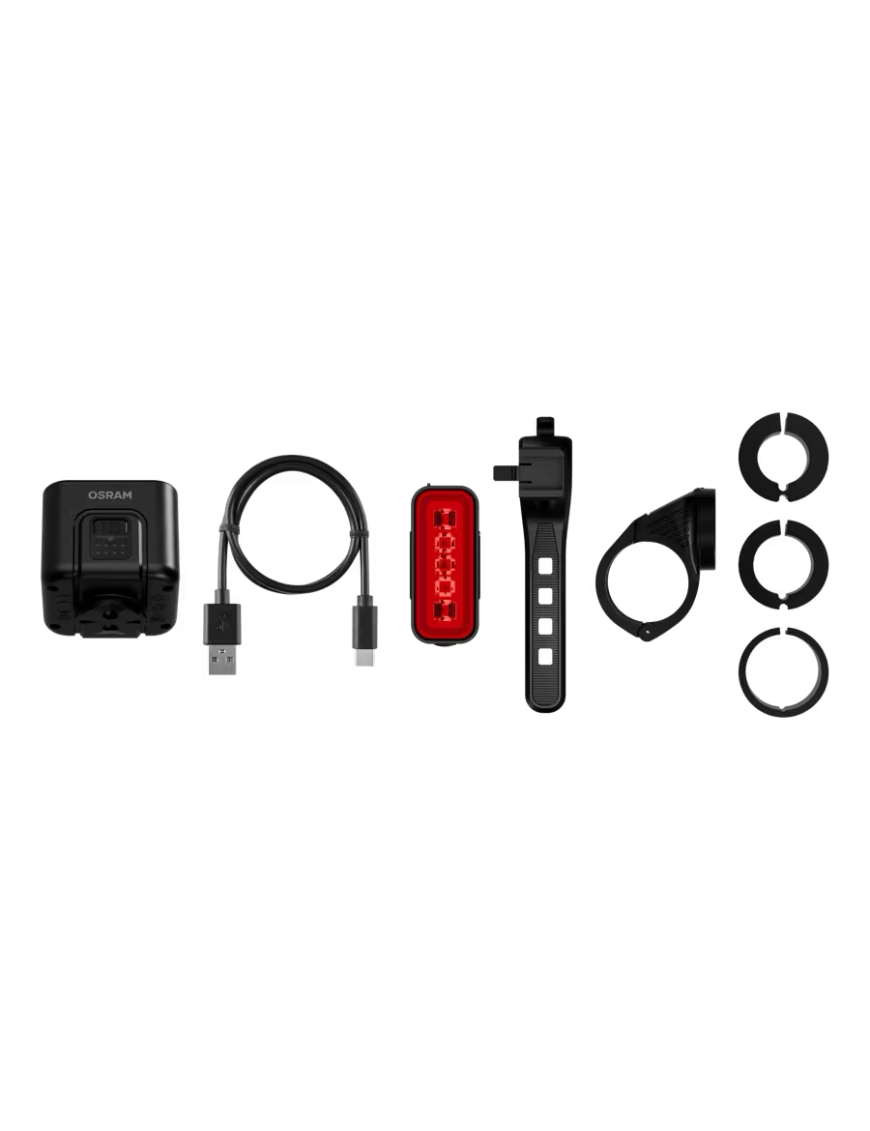

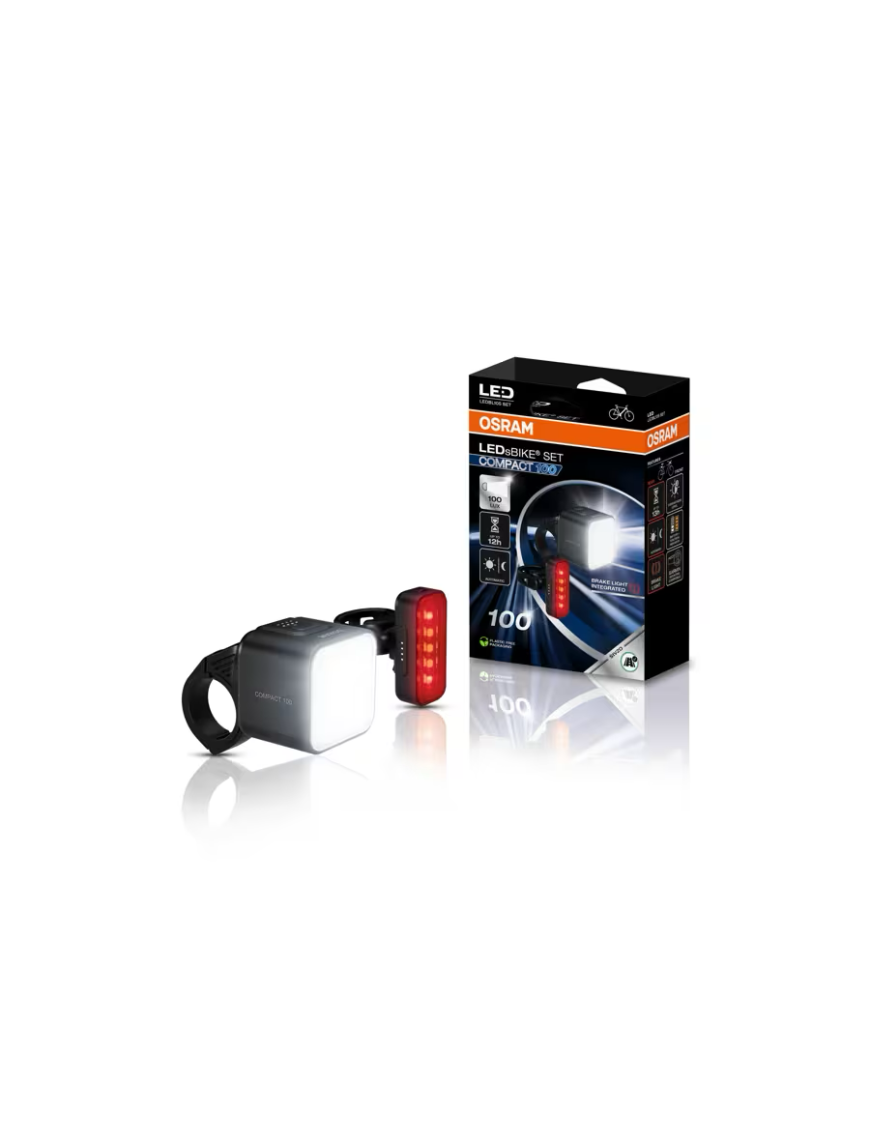

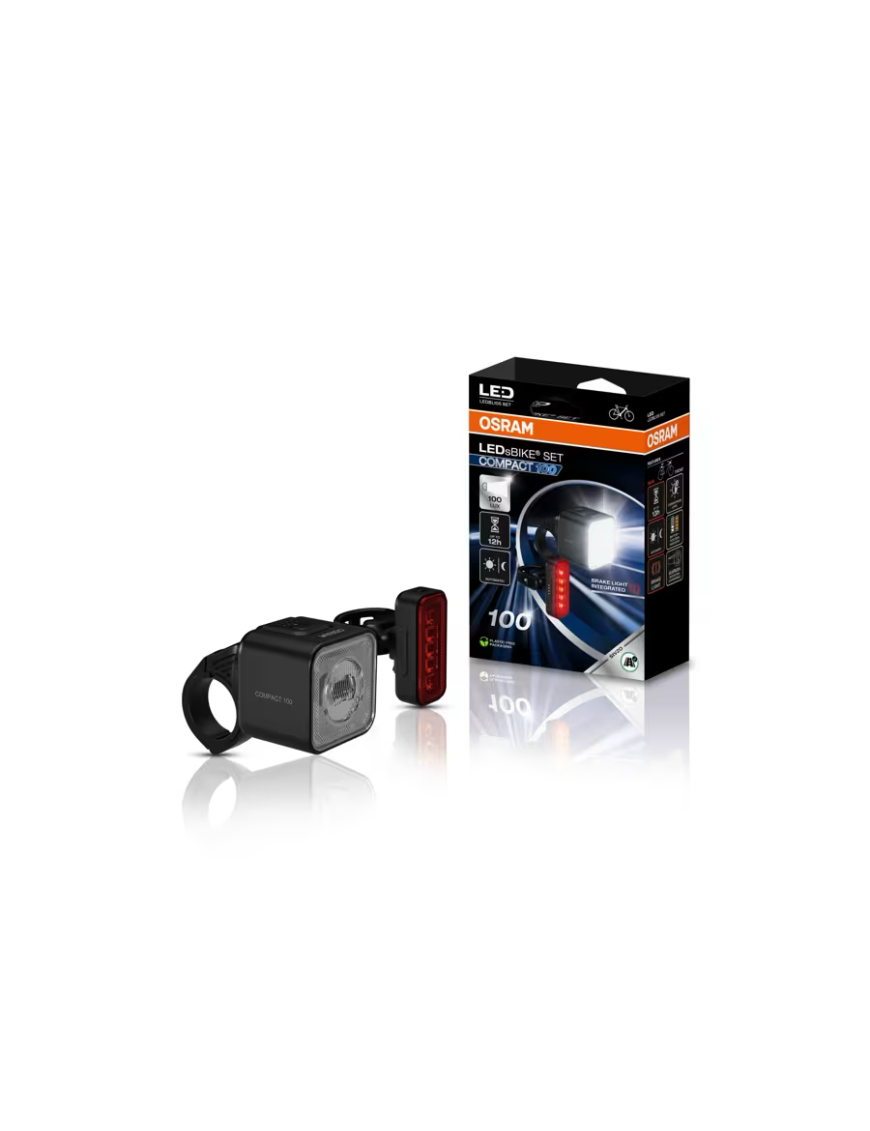

Package contents
The retail set consists of the front light, rear light and USB charging cable. Mounting components are shown in the manufacturer's instructions; OSRAM does not provide a detailed line-by-line hardware inventory in the product datasheet, so no additional unverified components are listed here.
Frequently asked questions
How far does the front light reach?
OSRAM specifies up to 95 m at 1 lx.
Does the 100 rating mean 100 lumens?
No. The manufacturer specifies 100 lx. A lumen output is not published for this product.
How long will it run?
The front light runs for up to 4 h at 100%, 6 h at 50% and 12 h at 25%. The rear light is rated for up to 13 h.
Will it fit a 31.8 mm handlebar?
Yes. The manufacturer's mounting instructions explicitly include 31.8 mm, within the overall 22.2–35.0 mm range.
Is it road legal?
OSRAM states StVZO approval for German road use. In Poland, the complete bicycle and installation must also comply with Polish equipment requirements, including the required rear red reflector.
