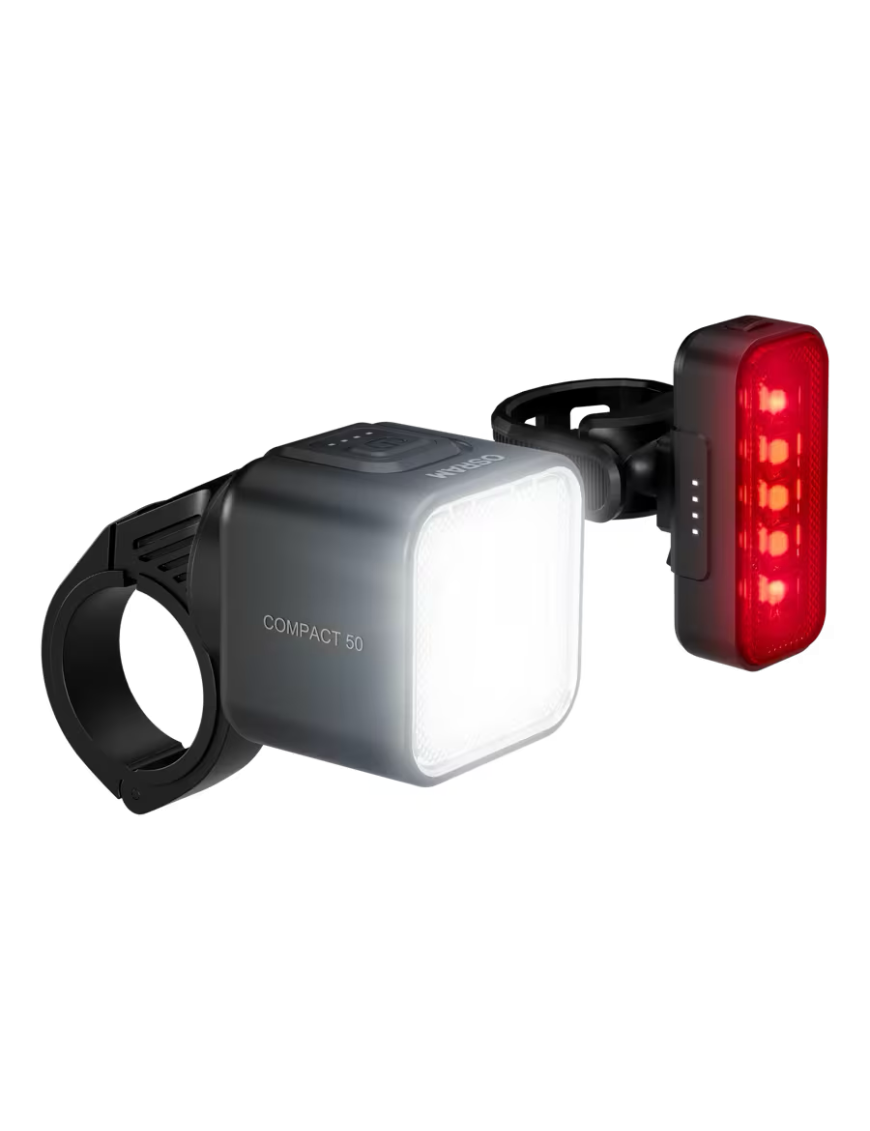

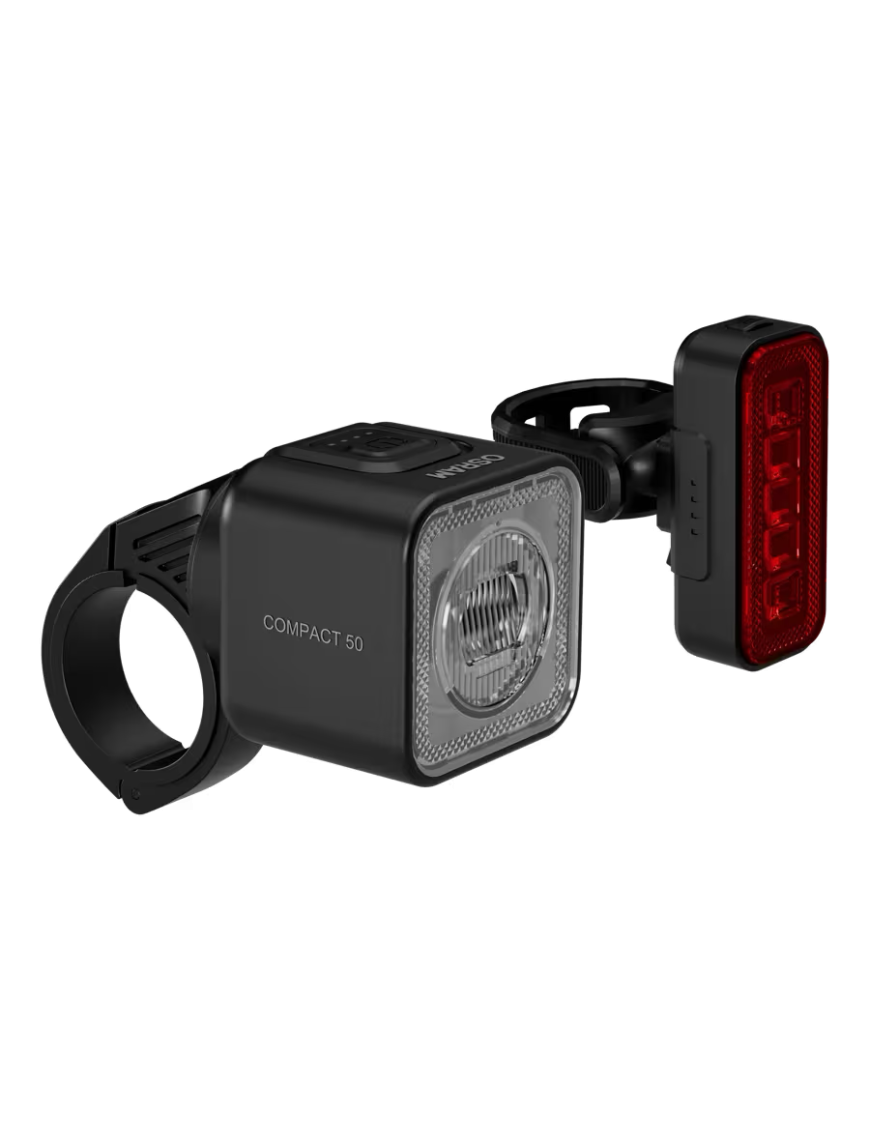

OSRAM LEDsBIKE COMPACT 50 SET – rechargeable front and rear bicycle lighting

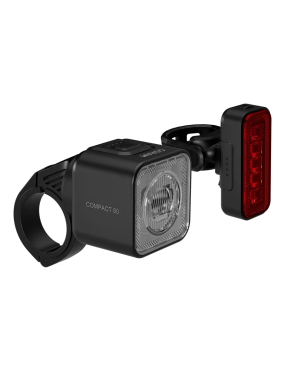

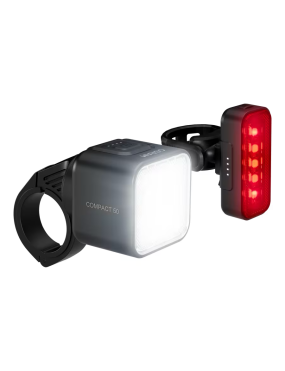

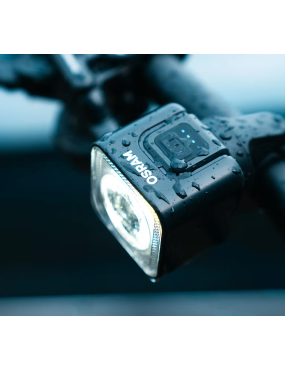

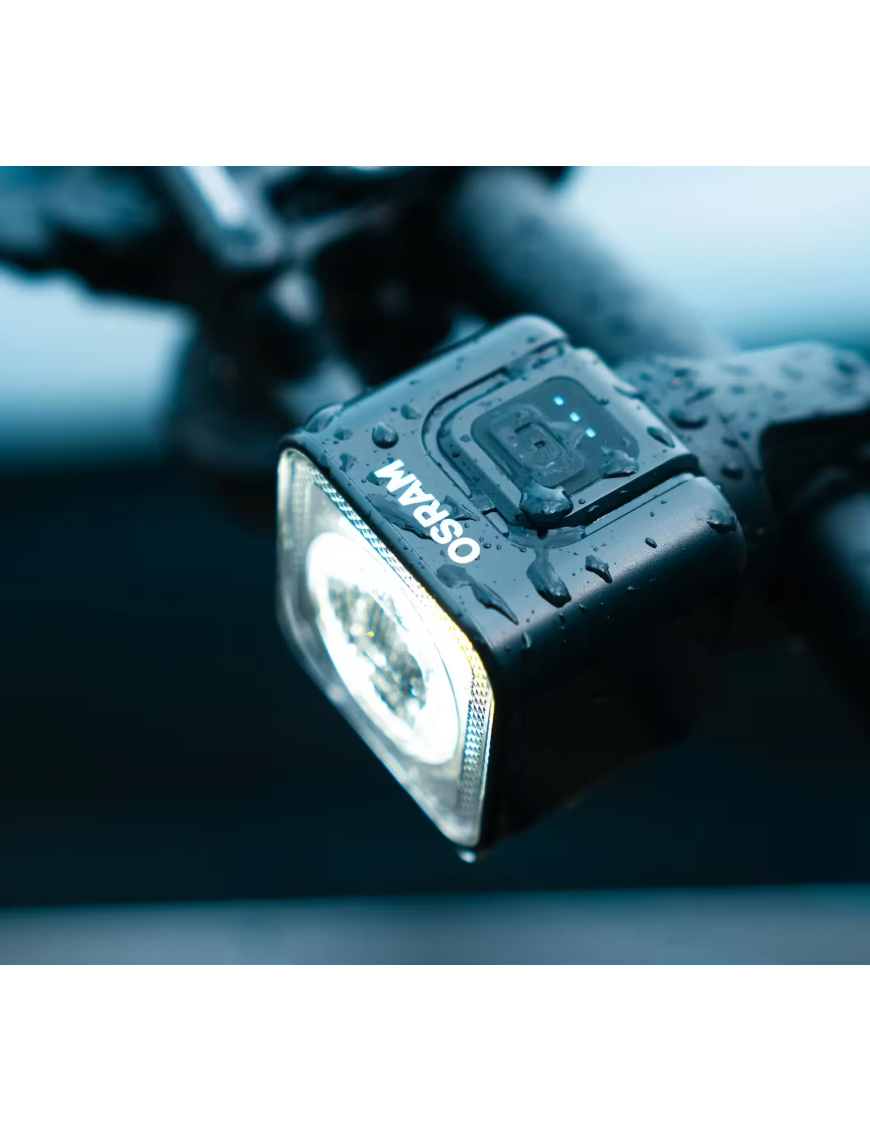

OSRAM LEDsBIKE COMPACT 50 SET combines a rechargeable front LED light and rear LED light in one compact package. The front unit delivers up to 50 lx and a manufacturer-specified 75 m light distance at 1 lx, while three brightness levels let you balance illumination and battery runtime.
Key benefits
- Up to 50 lx and 75 m at 1 lx for useful forward road illumination.
- Three front brightness levels: High 100%, Low 50% and Eco 25%.
- Up to 14 hours of runtime in front Eco mode and up to 14 hours for the rear light.
- USB-C charging with approximately 3 hours required for the front light and 2 hours for the rear.
- IP54 protection for everyday riding in changing weather conditions.
Light output and operating modes

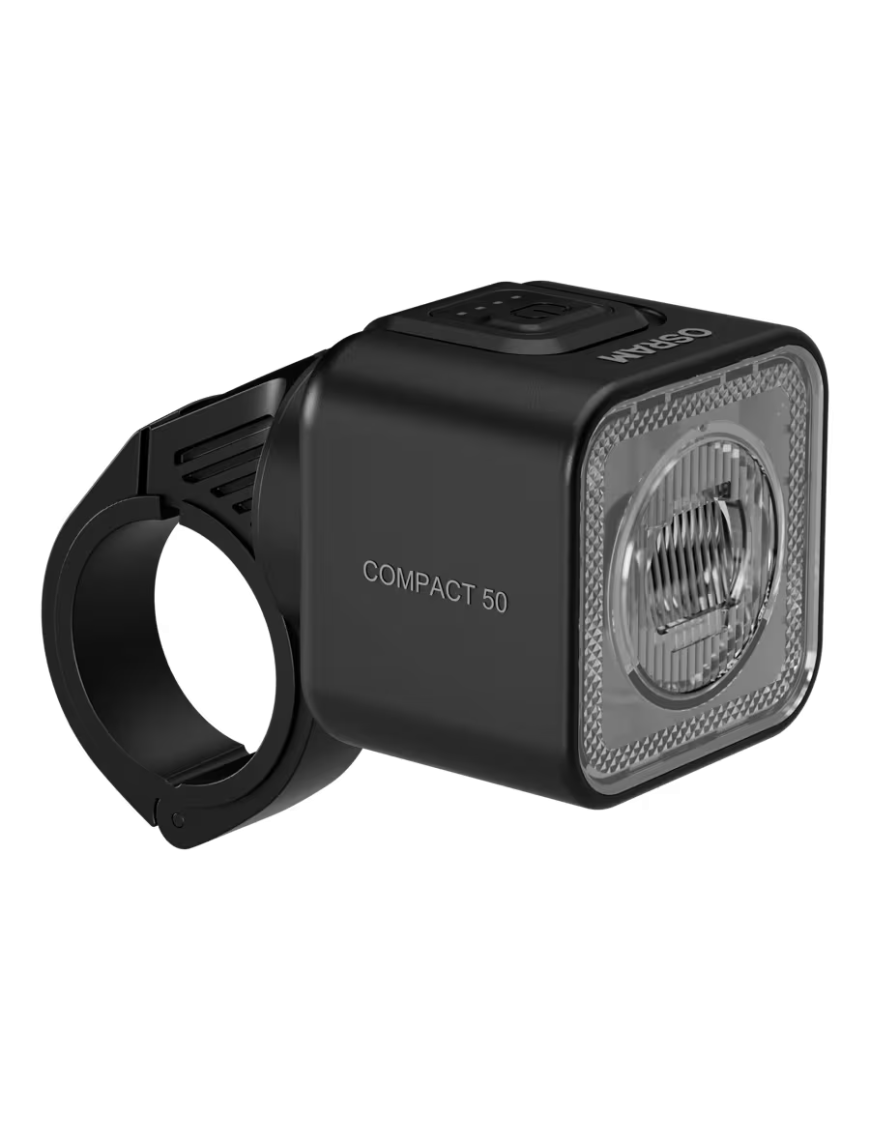

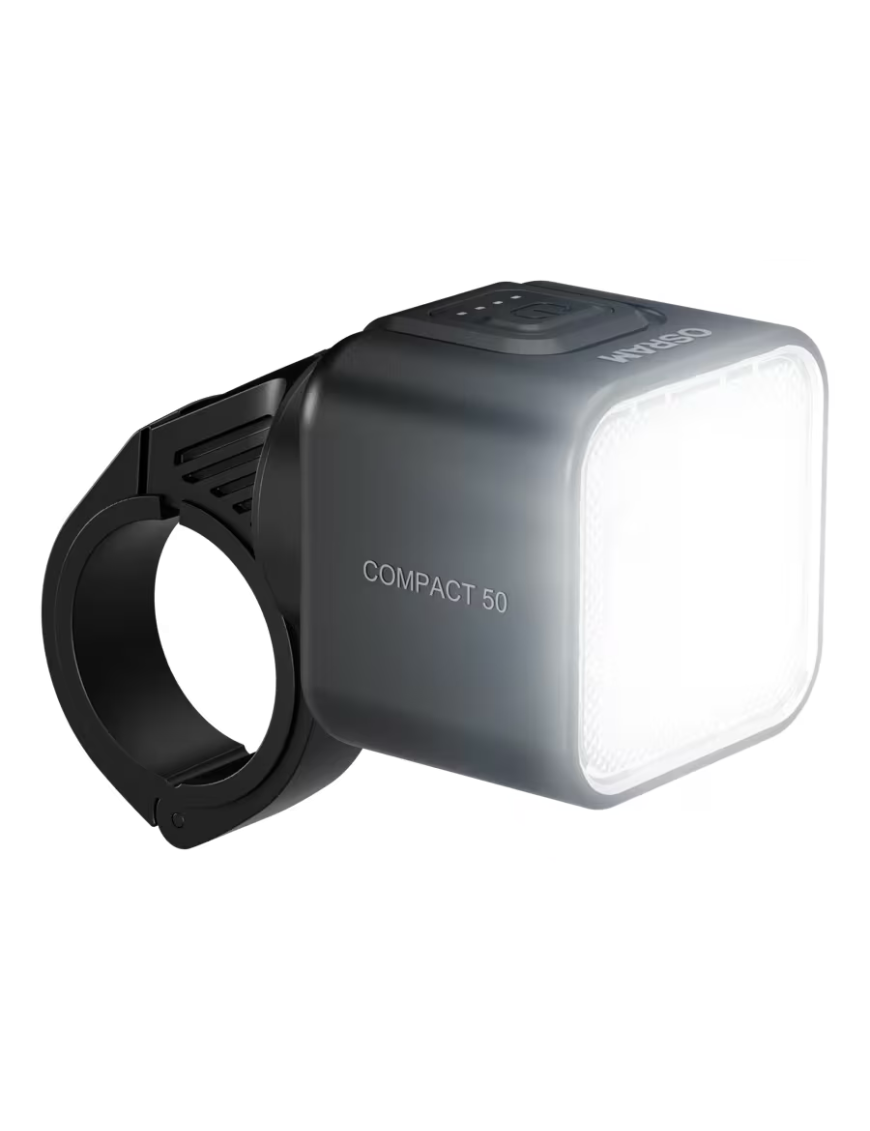

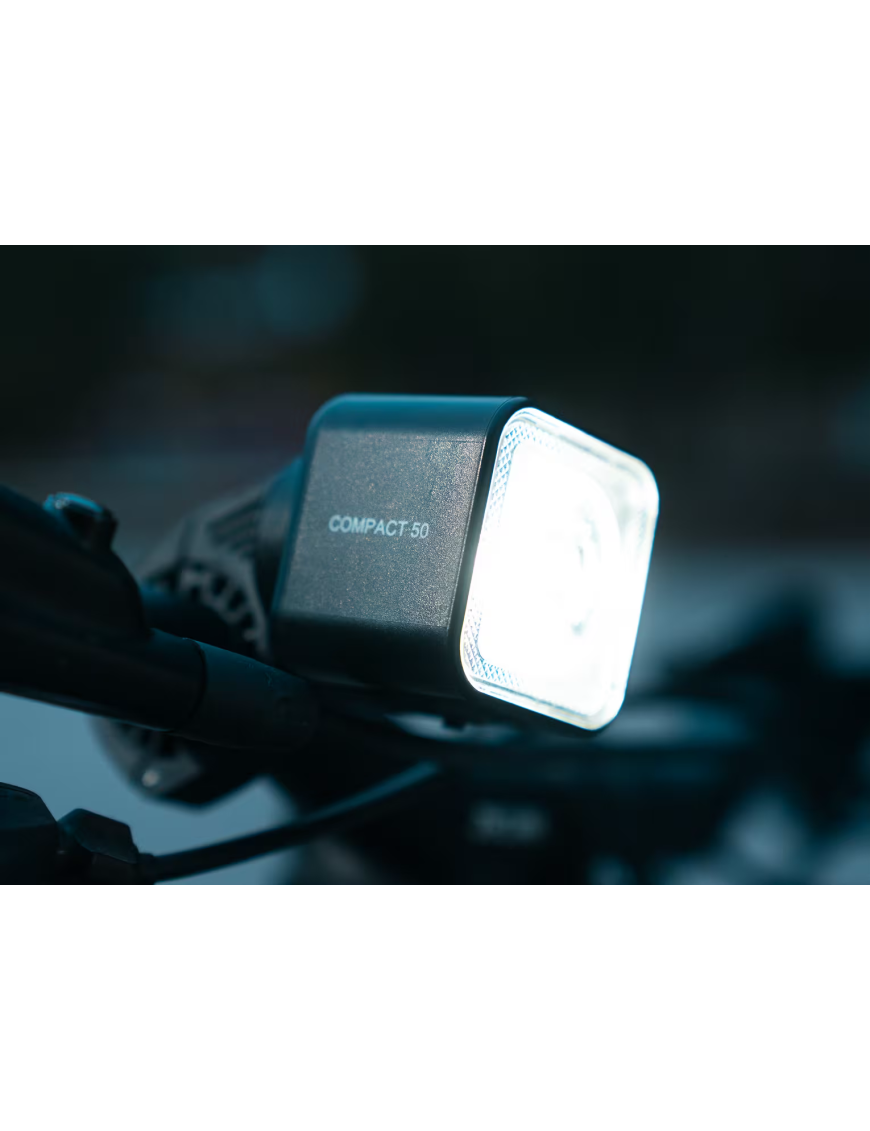

The front light produces cold-white light at 5,400 K. OSRAM specifies up to 50 lx and a light distance of 75 m at 1 lx. The manufacturer does not publish a lumen figure, beam angle or LED count for this model, so these values should not be estimated from the lux rating.

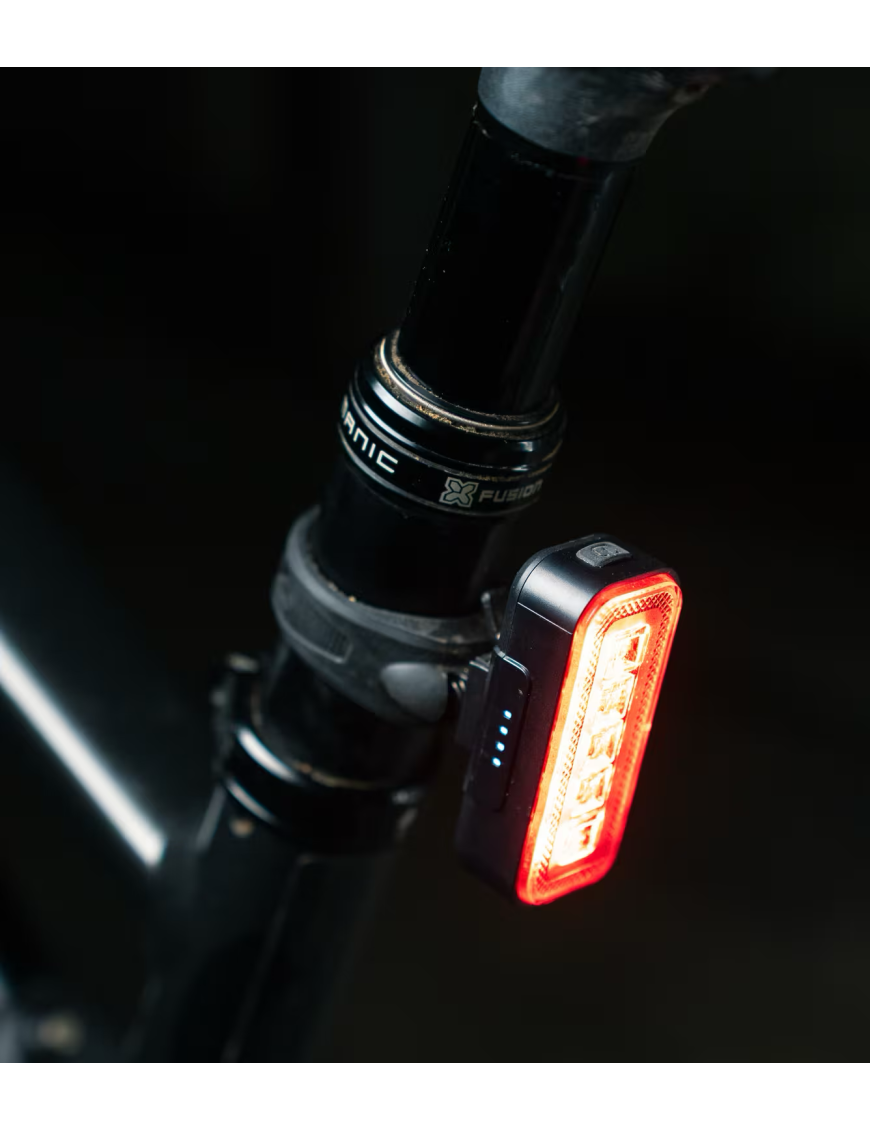

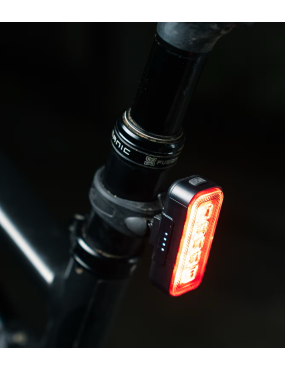

High mode provides up to 4 hours of operation, Low up to 9 hours and Eco up to 14 hours. The rear light operates in a steady mode for up to 14 hours.

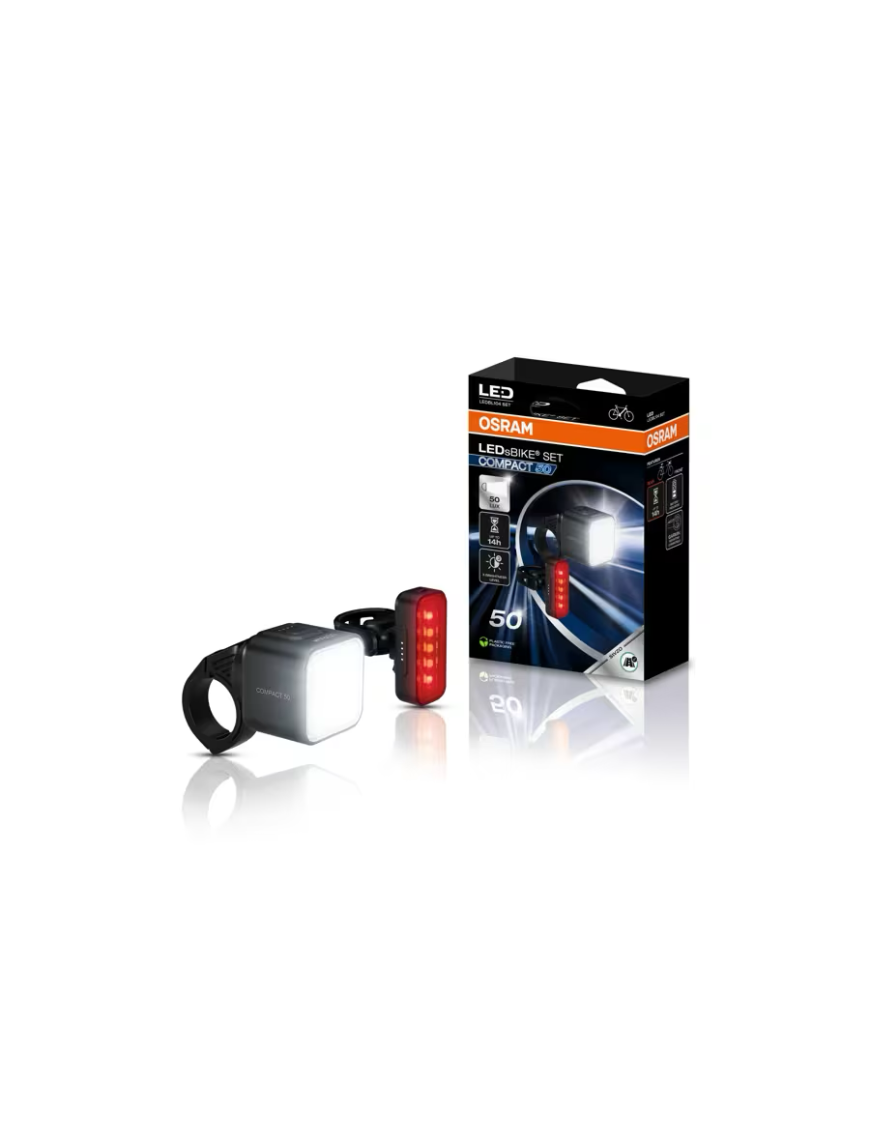

Front and rear lighting in one set
The exact LEDBL104 SET documentation does not specify an automatic rear mode or integrated brake-light function. Those features should not be transferred from other LEDsBIKE COMPACT variants.
Road use and approval
OSRAM states that the set is tested and approved for road traffic in Germany under StVZO. StVZO approval refers specifically to Germany and should not be presented as an approval covering every country.
For use in Poland, local bicycle-lighting requirements also apply. These include a white or selective-yellow front position light, a red rear position light and a separate red rear reflector, together with correct mounting and non-dazzling alignment. The reviewed OSRAM documentation does not confirm an integrated rear reflector, so the bicycle should be checked for the required reflector separately.
Construction and mounting

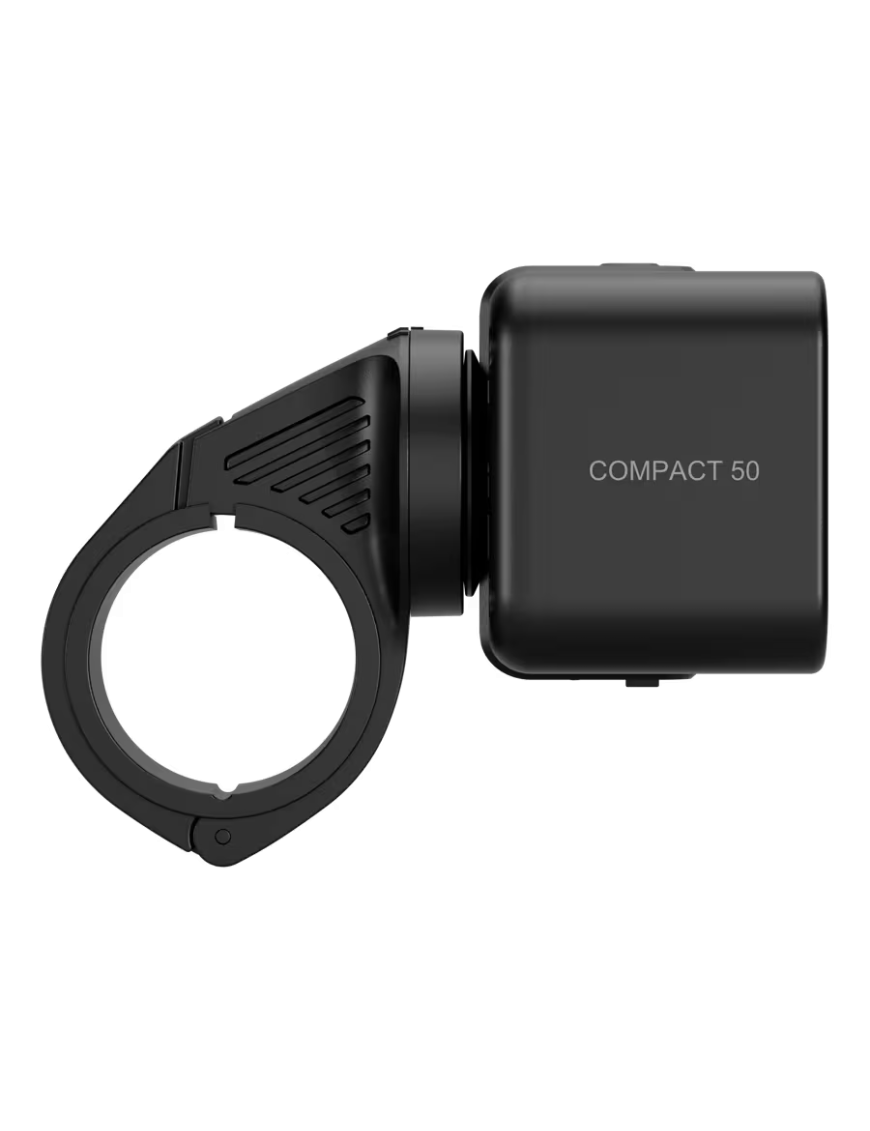

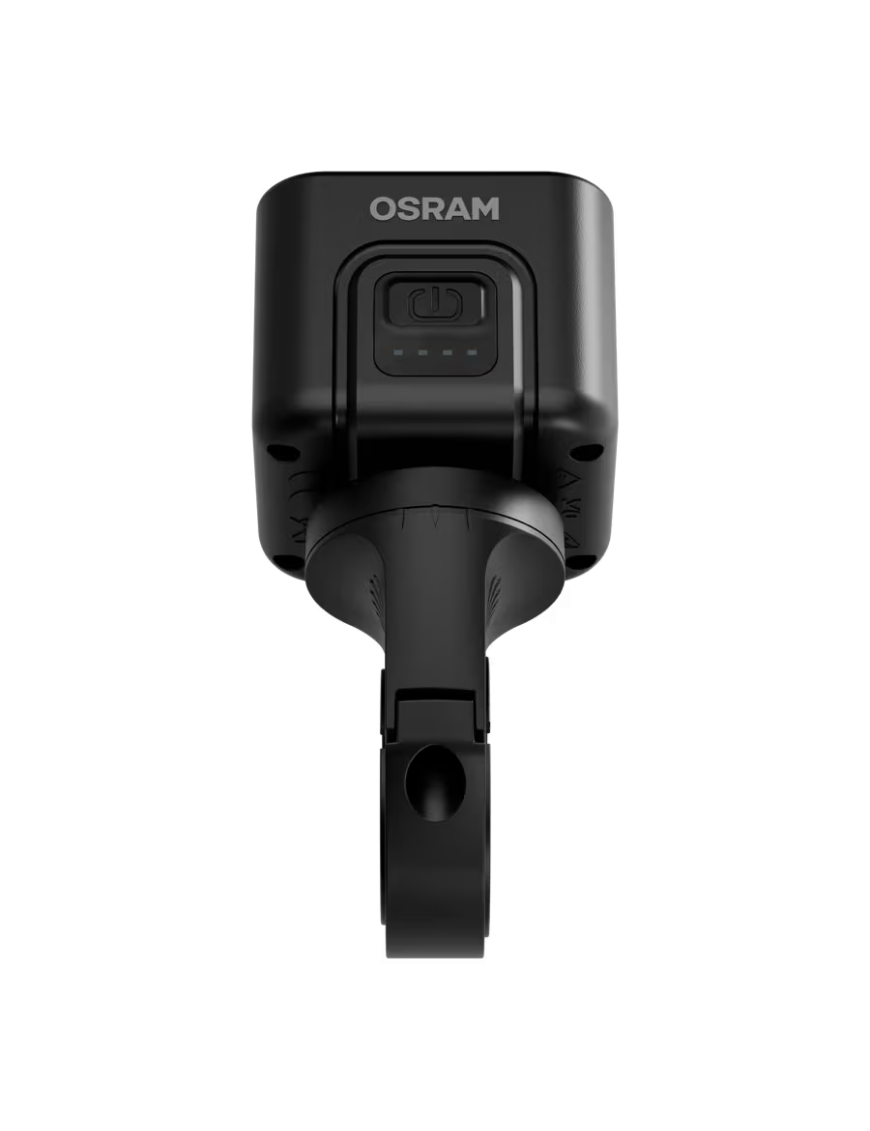

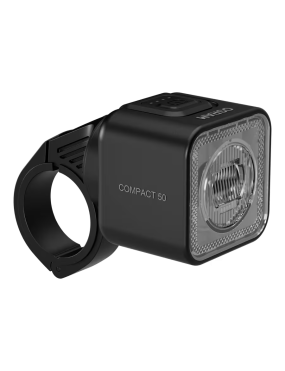

The set features IP54 protection, a black ABS housing and an acrylic lens. The Garmin-compatible front mounting system supports handlebars from 22.2 to 35 mm, with the installation instructions showing adapters for 22.2, 25.4, 31.8 and 35 mm diameters.
Recommended applications
- city bikes,
- trekking bikes,
- mountain bikes,
- road bikes,
- gravel bikes,
- e-bikes.
Technical specifications
| Specification | Value |
|---|
| Brand | OSRAM |
| Model | LEDsBIKE COMPACT 50 SET |
| MPN | LEDBL104 SET |
| GTIN/EAN | 4062172426008 |
| Front illuminance | up to 50 lx |
| Light distance at 1 lx | 75 m |
| Colour temperature | 5,400 K |
| Front modes | High 100%, Low 50%, Eco 25% |
| Front runtime | 4 h High / 9 h Low / 14 h Eco |
| Rear runtime | up to 14 h |
| Battery | Lithium-ion |
| Nominal voltage | 3.7 V |
| Charging | USB-C |
| Charging time | front 3 h / rear 2 h |
| Protection rating | IP54 |
| Handlebar diameter | 22.2–35 mm |
| German approval | StVZO |
| Manufacturer warranty | 2 years |

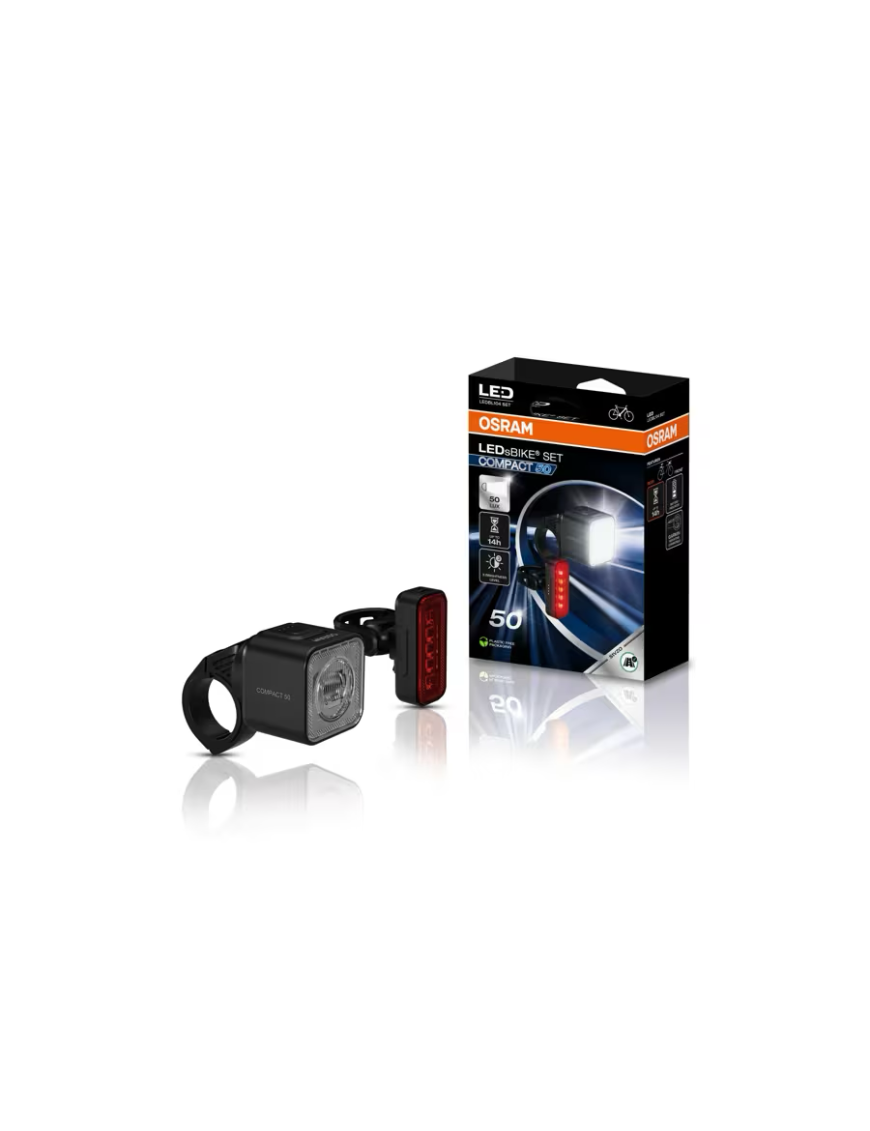

Package contents
The manufacturer documentation confirms a front light, rear light, USB charging cable and mounting components. The front mounting system is designed for handlebars from 22.2 to 35 mm.
FAQ
How long does the front light run?
Up to 4 hours in High, 9 hours in Low and 14 hours in Eco mode.
How far does the front light reach?
OSRAM specifies a 75 m light distance at 1 lx and a maximum illuminance of 50 lx.
Is the set road legal?
OSRAM specifies StVZO approval for Germany. Road use in other countries depends on applicable local requirements and correct installation.
