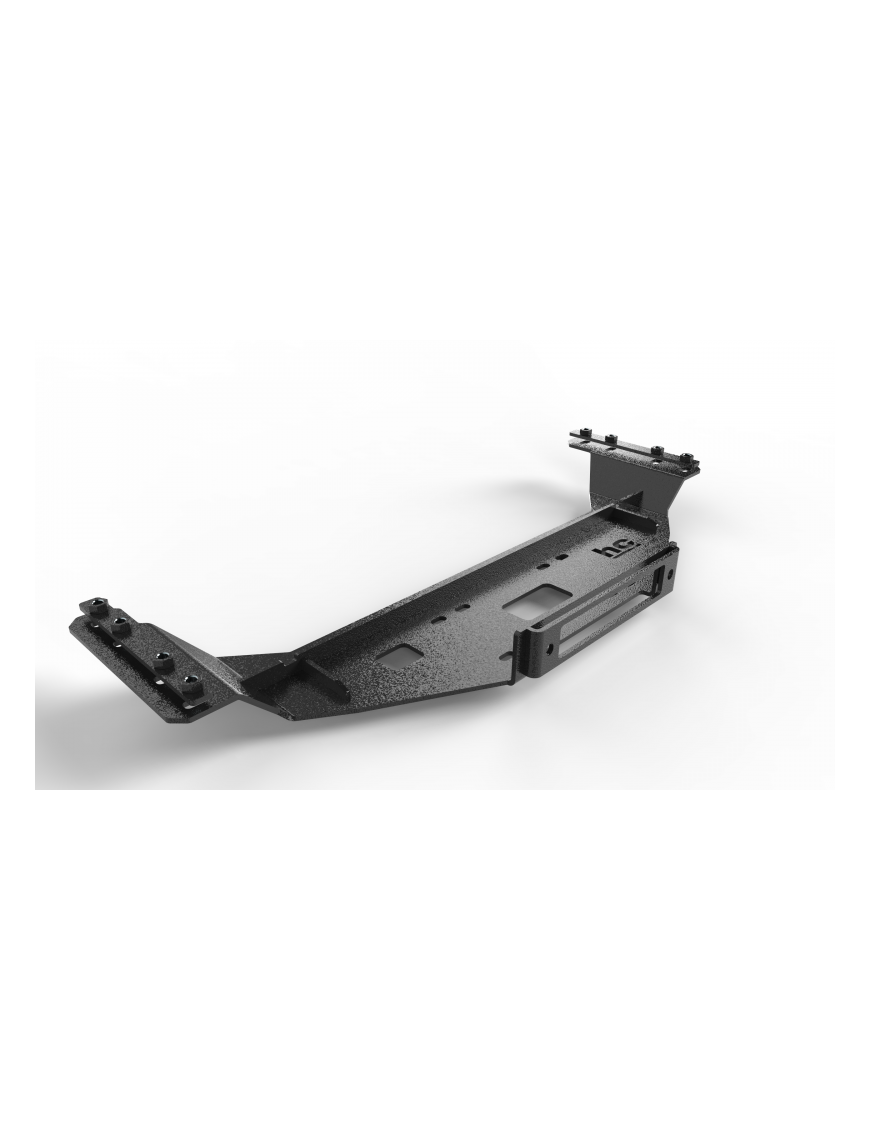

Vw Crafter LT3 2006-2016 winch mounting plate. Screwed to the vehicle's frame rails. Made as one welded unit. Without any additional elements. This allowed for achieving high rigidity and low weight of this product. Installation requires drilling 8 holes from the bottom in the end of the frame rail. The bumper reinforcement beam remains on the car but needs to be cut from the top depending on the size of the winch used. Made of 6mm thick structural steel sheet. Shot blasted and powder coated in a two-layer technology with texture. It has a cutout under the winch drum to facilitate removing dirt from the rope. Weight approx. 11.3 kg.
Supplied with a set of mounting screws.
