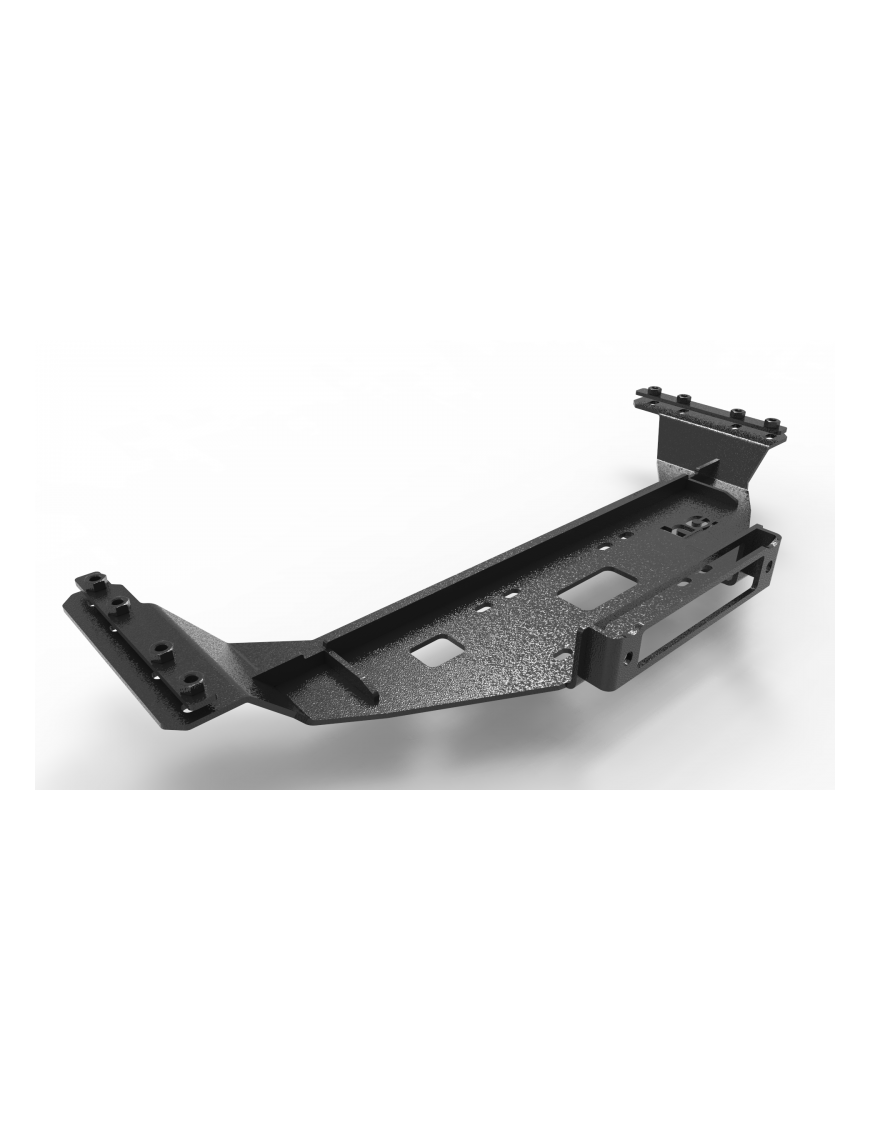

Mounting plate for Mercedes Sprinter W 906 NCV3 2014-2018 winch

Mounting plate for winch Mercedes Sprinter W 906 NCV3 2014-2018 facelift for factory bumper. Screwed to the vehicle's frame rails. Made as one welded unit. Without any additional elements. This allowed for achieving high rigidity and low weight of this product. Installation requires drilling 8 holes from the bottom in the ends of the frame rails. The bumper reinforcement beam remains on the car but needs to be cut from the top depending on the size of the winch used. Made of 6 mm thick structural steel sheet. Shot blasted and powder coated in a two-layer technology with texture. It has a cutout under the winch drum to facilitate removing dirt from the rope. Weight approx. 11.4 kg.

Supplied with a set of mounting screws.

The product does not have homologation.
