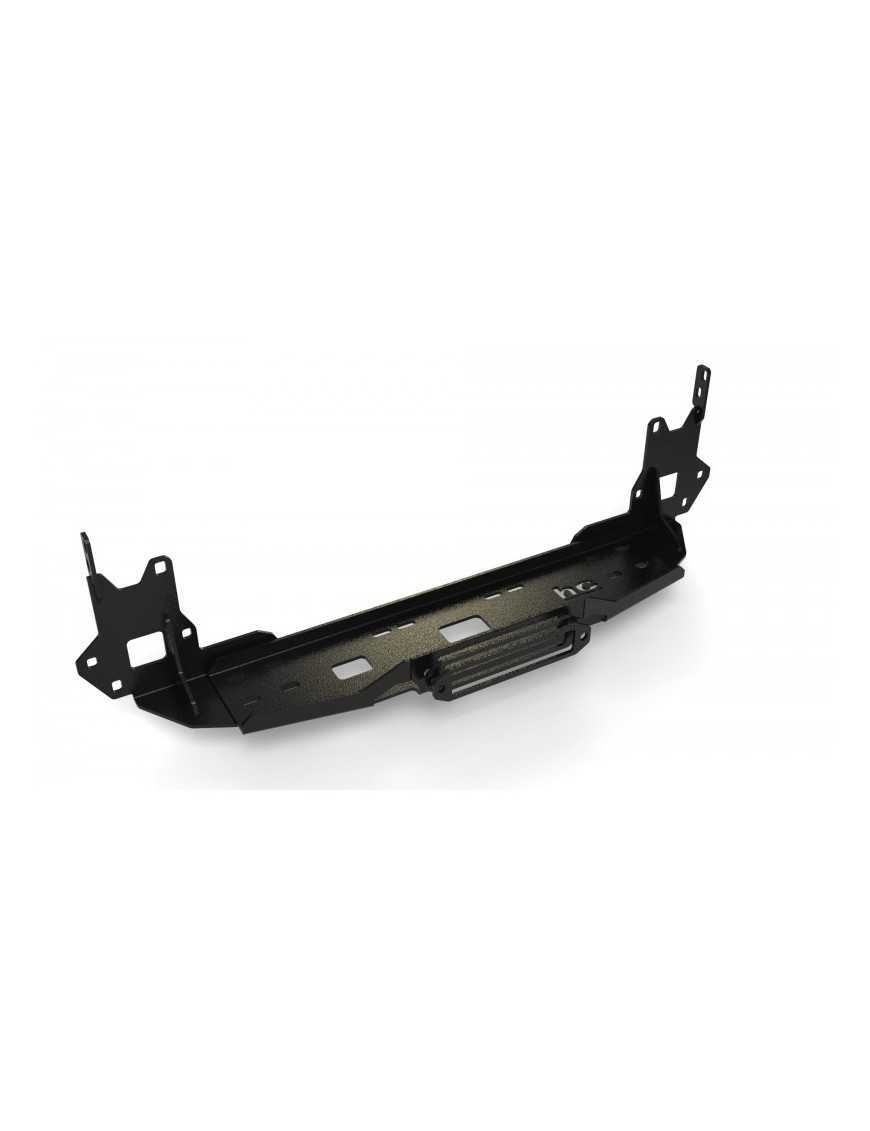

VW T5 2003-2015 winch mounting plate

VW T5 2003-2015 winch mounting plate under the factory bumper. Screwed to the vehicle's frame rails. Installation does not require drilling or welding. It uses the vehicle's factory screws and threads. The winch and plate fit entirely under the bumper. Only the hole for the winch line guide is cut out. It has upper mounting points for front reinforcement with coolers, which is necessary in this car model after replacing the factory winch mounting plate with the bumper beam. Made of 6mm thick structural steel sheet. Shot blasted and powder coated in a two-layer technology with texture. It has a cutout under the winch drum to facilitate removing dirt from the line. The set includes two slide spacers needed depending on the installed bumper (transporter, multivan, facelift). Weight approx. 14.8 kg

The product does not have homologation.
