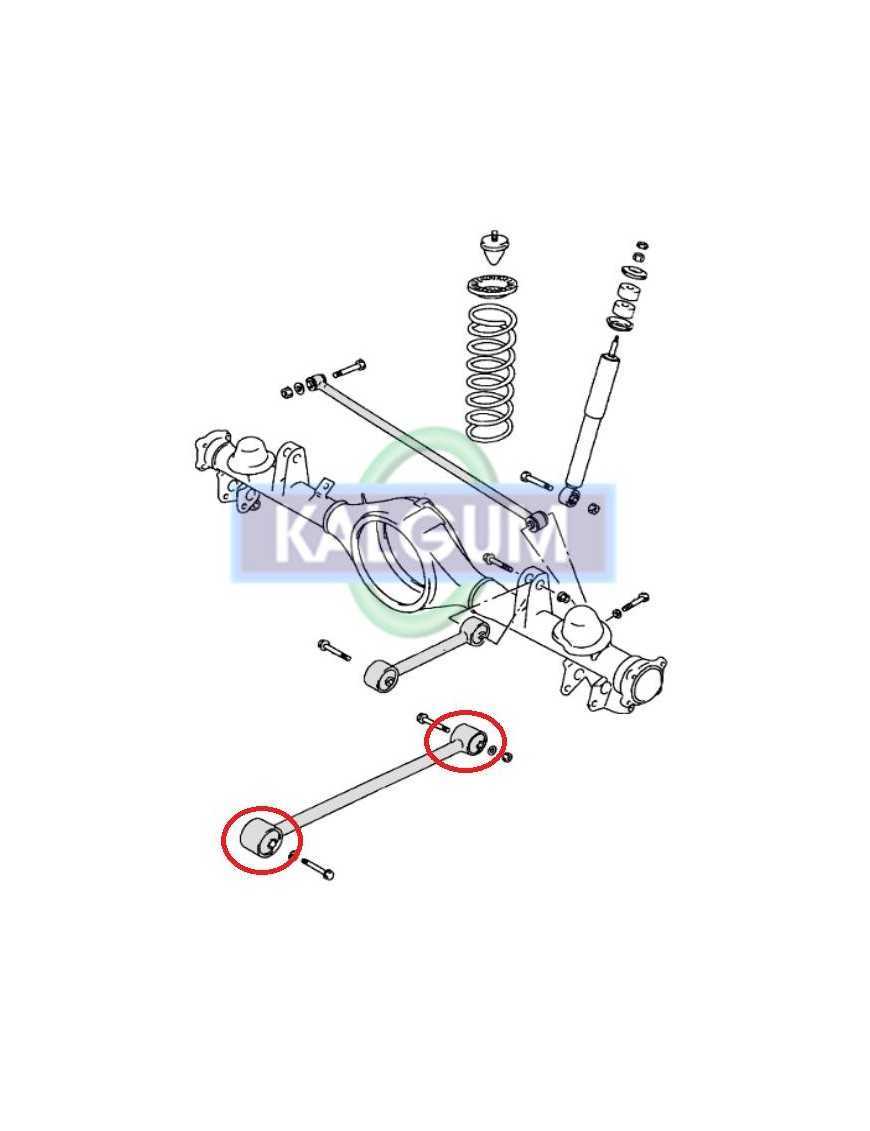

Lower Rear Control Arm Bushing Kit (outer longitudinal - from the frame side) for Suzuki Vitara / Grand Vitara I / Jimny

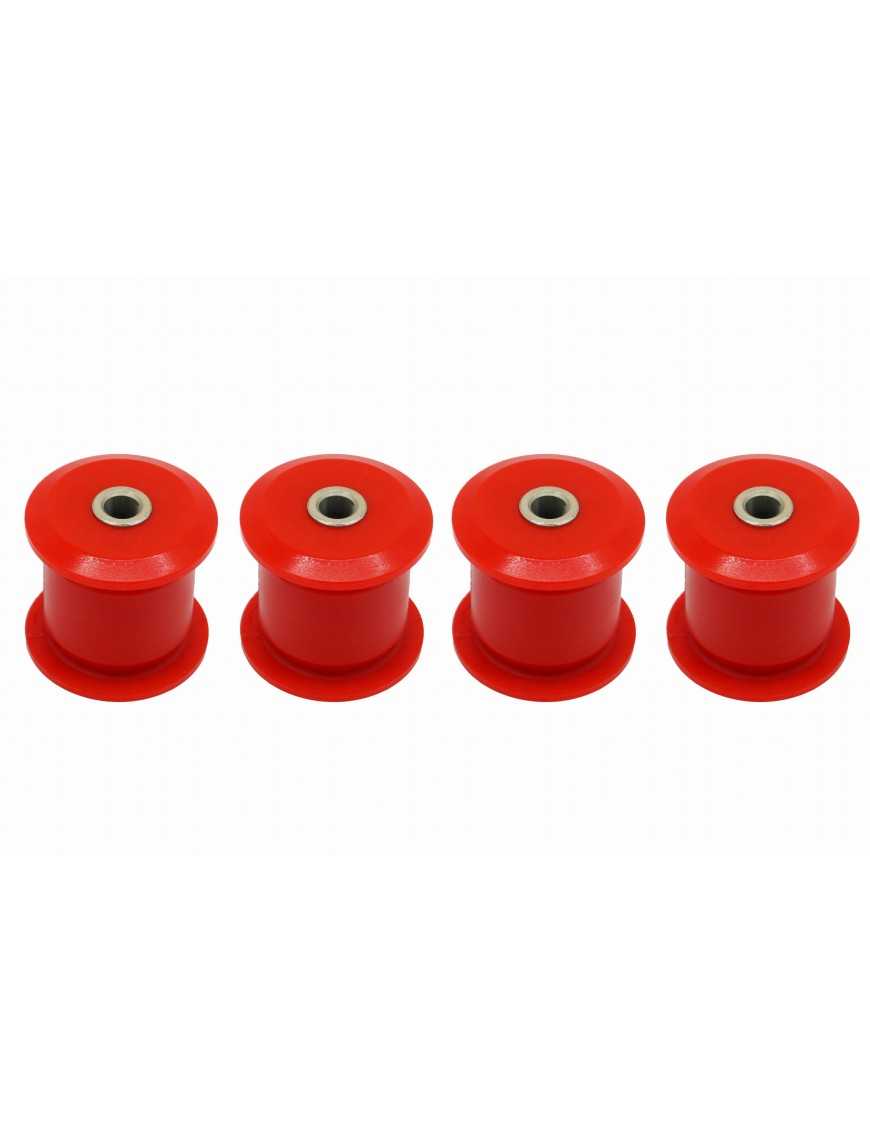

Set of polyurethane lower rear control arm bushings (from the frame side) - 4 pieces

SUZUKI GRAND VITARA I

Original part number: 92 46213-65D01, 09319-12047, 46202-52D12, 46202-52D62, 46202-65D00, 46202-65D01, 46213-65D00, 46213-65D01-000, 46213-65D01, 46282-81A20, 46213-65D00-000, 46282-81A20-000.

New bushings (always replaced on both sides of the car) are pressed in using the appropriate force after lubrication with silicone.

The bushings are made of high-quality 80 ShA hardness polyurethane as undivided castings - which guarantees higher durability and longevity compared to divided bushings.

Also suitable for:

• SUZUKI VITARA 1988 - 1998 (4 pieces rear)
• SUZUKI JIMNY III 1998 - 2018 (2 pieces front + 2 pieces rear)

The set includes:

• Rear control arm bushing P10R - 4 pcs.
• Inner steel bushing (galvanized) - 4 pcs. (dimensions 12x20x65)
• Silicone grease for installation.

Technical parameters:

• Material: polyurethane
• Hardness: 80 ShA
• Color: red
• Product: Polish

MODELS OF CARS THAT THE SET CAN BE APPLIED TO:

SUZUKI GRAND VITARA I 1999 - 2005 (FT, HT):

• 1.6 4x4 (SQ 416) (G16B) 1590ccm 94HP/69k
