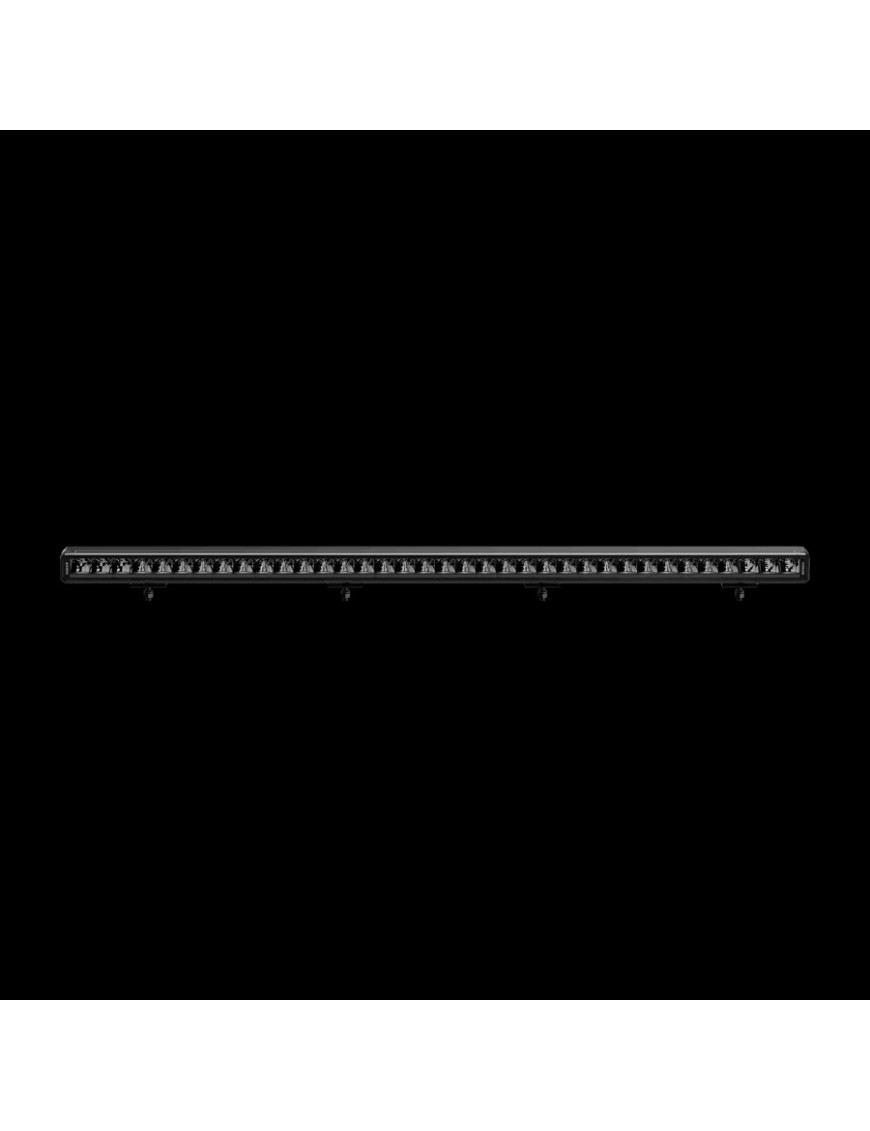

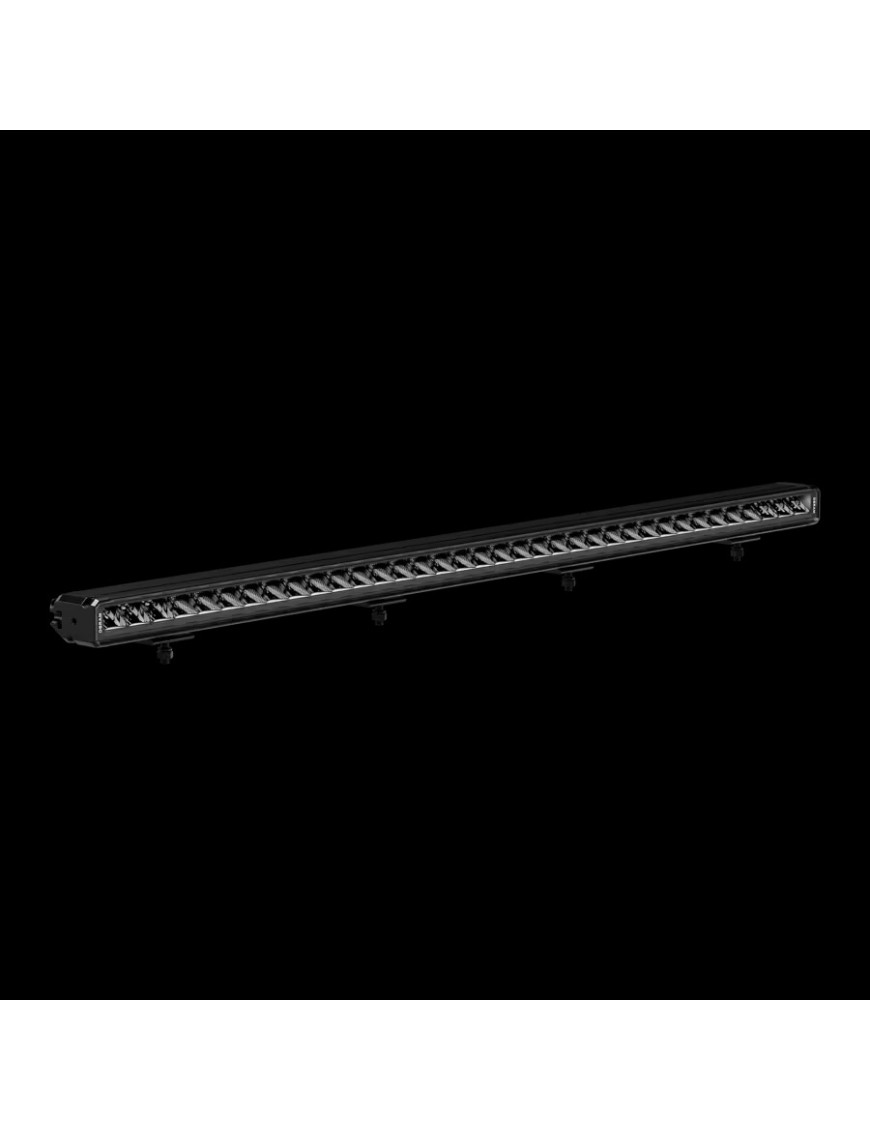

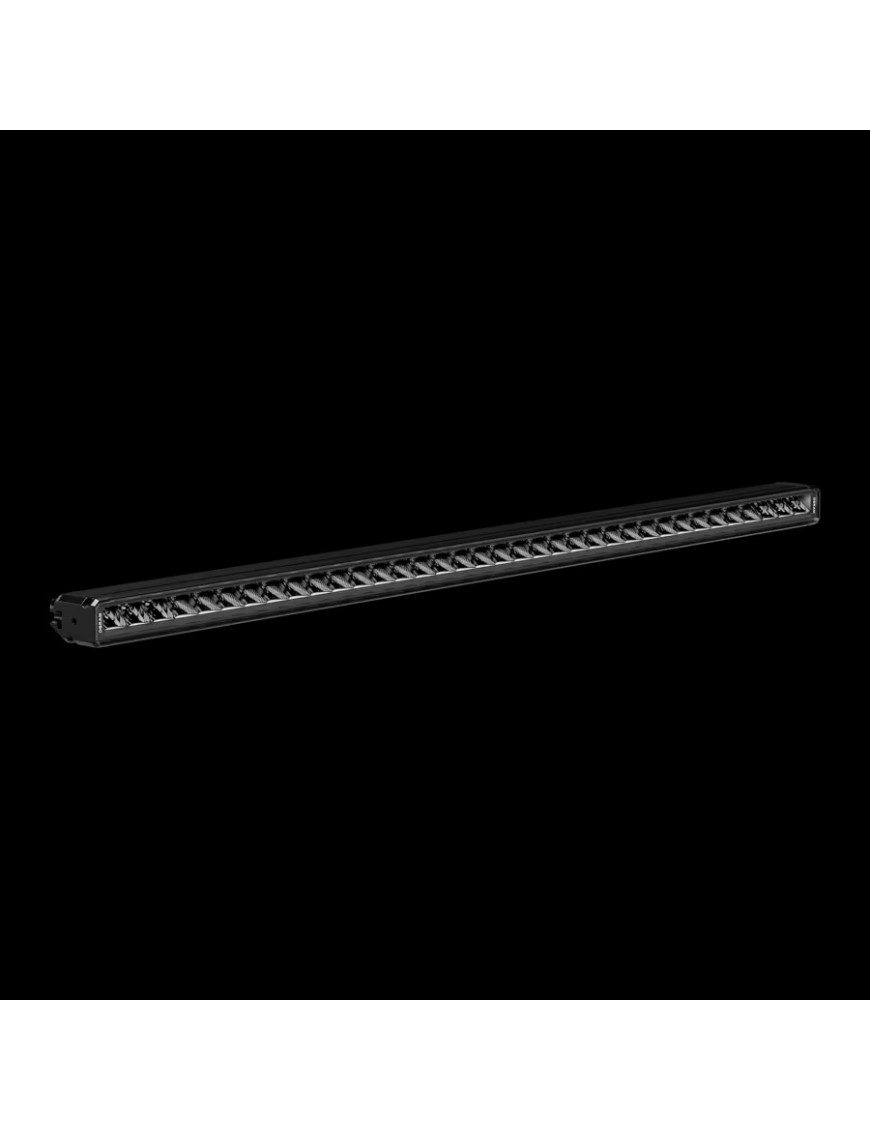

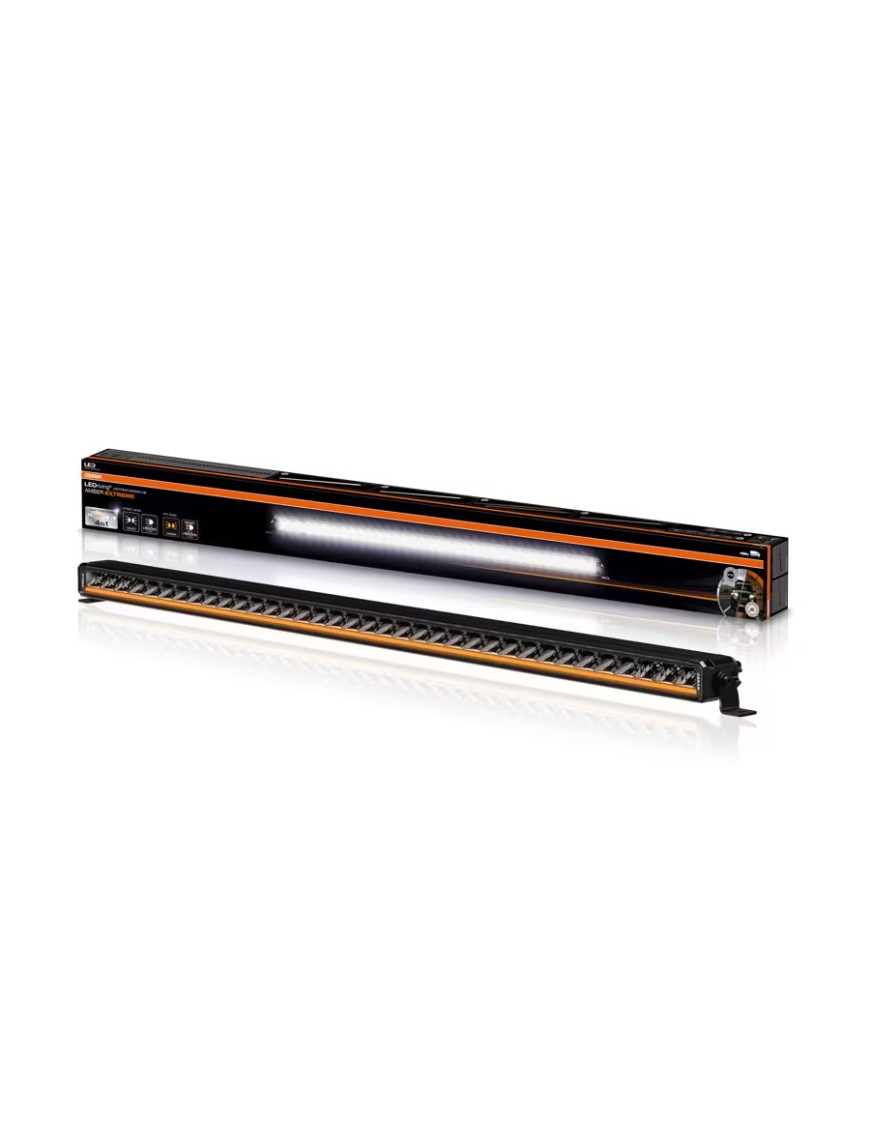

OSRAM LEDriving Lightbar MX1000-CB AMBER EXTREME

OSRAM LEDriving Lightbar MX1000-CB AMBER EXTREME – 12/24 V LED light bar

Key benefits

• four functions in one light bar: high beam, white and amber position lights, and Boost mode,
• up to 12,000 lm in high-beam mode and up to 16,000 lm in Boost mode,
• range of up to 560 m with high beam and up to 650 m in Boost mode,
• Combo beam pattern for improved visibility both directly in front of the vehicle and farther down the road,
• dynamic Welcome Light animation activated when the system is switched on,

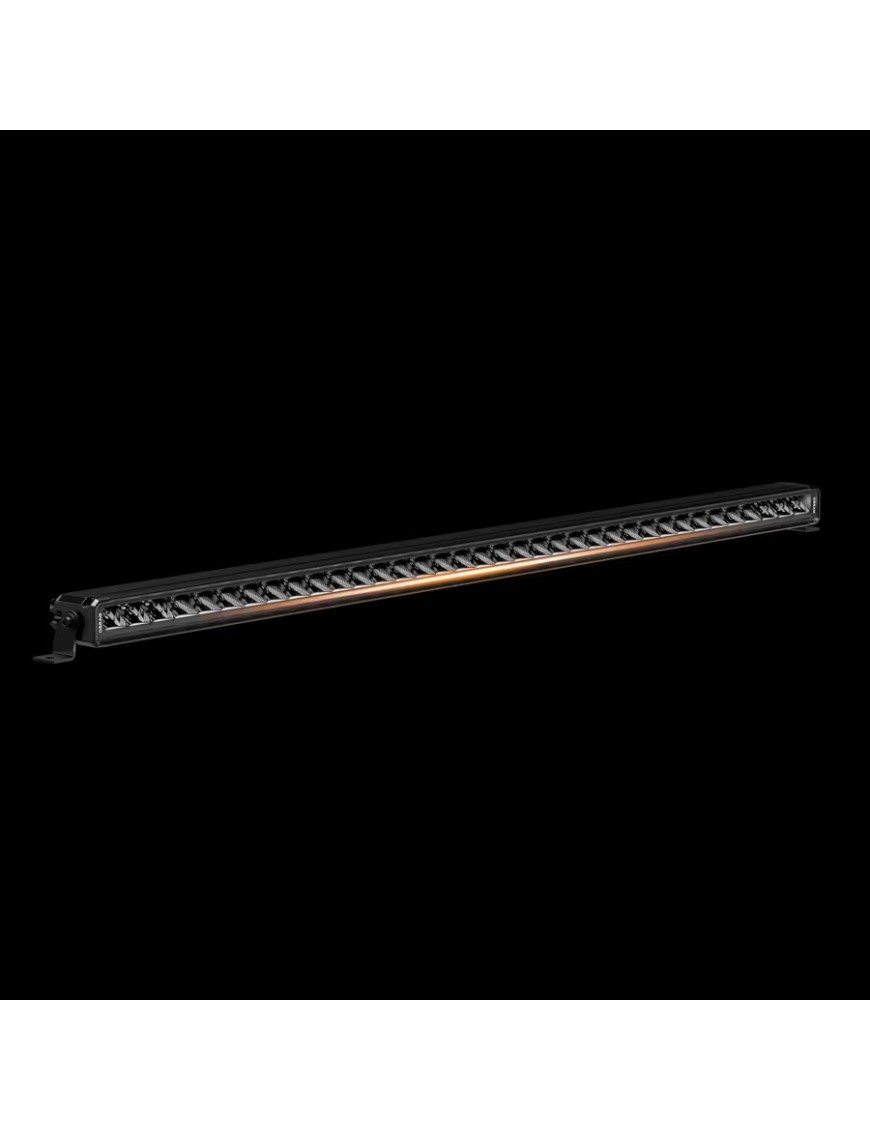

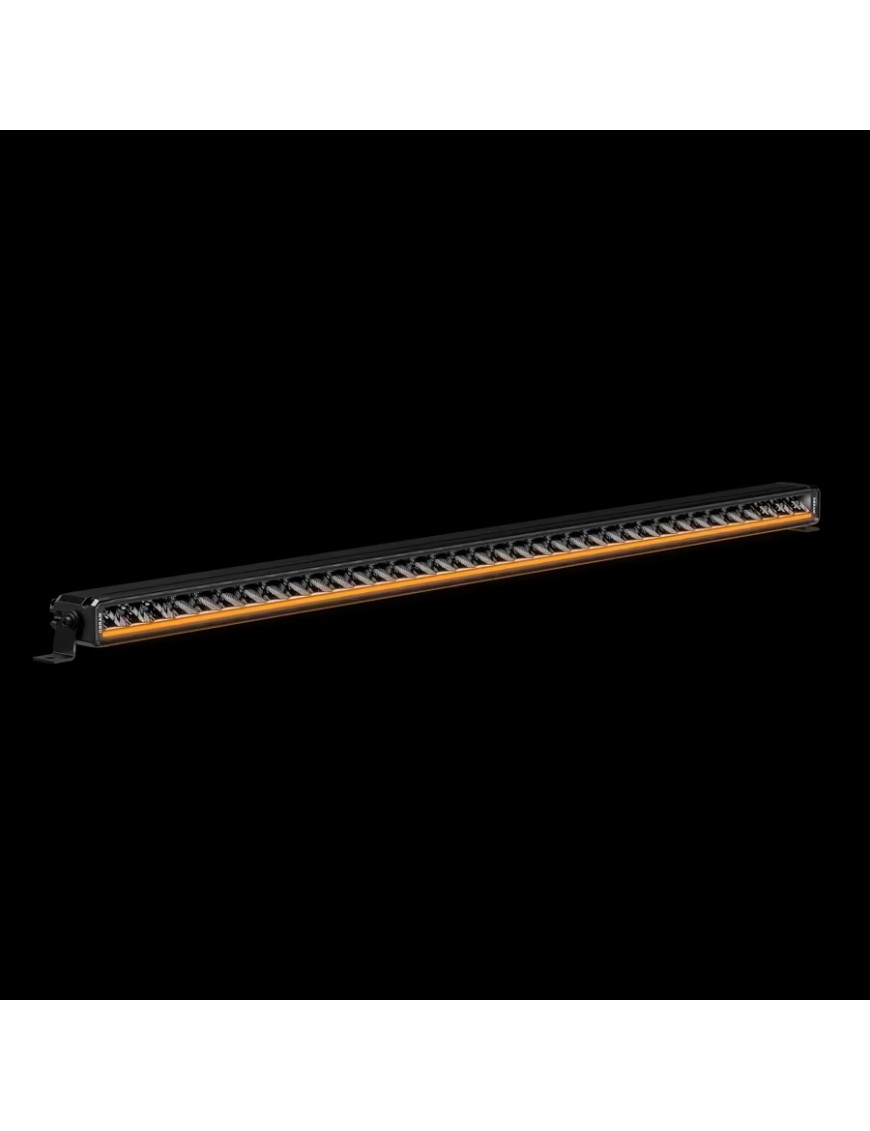

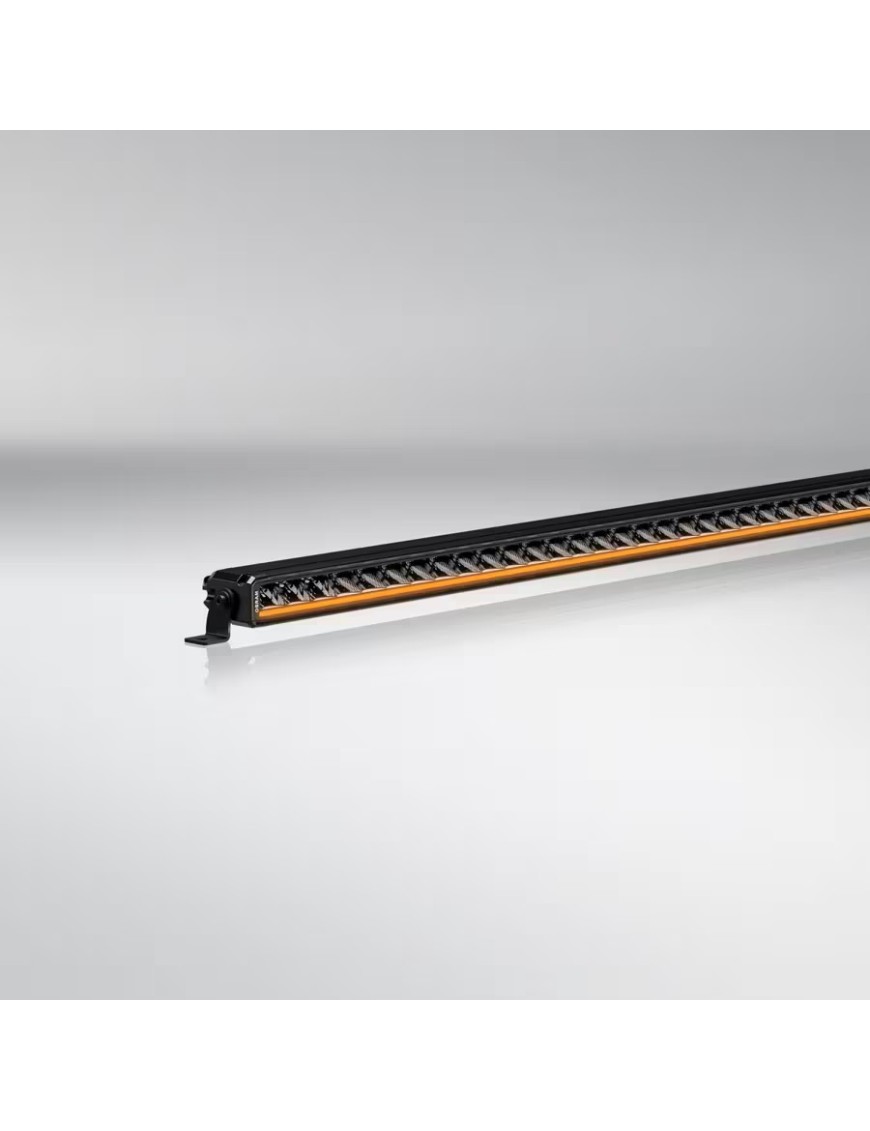

• amber light signature that complements the off-road appearance of the vehicle,

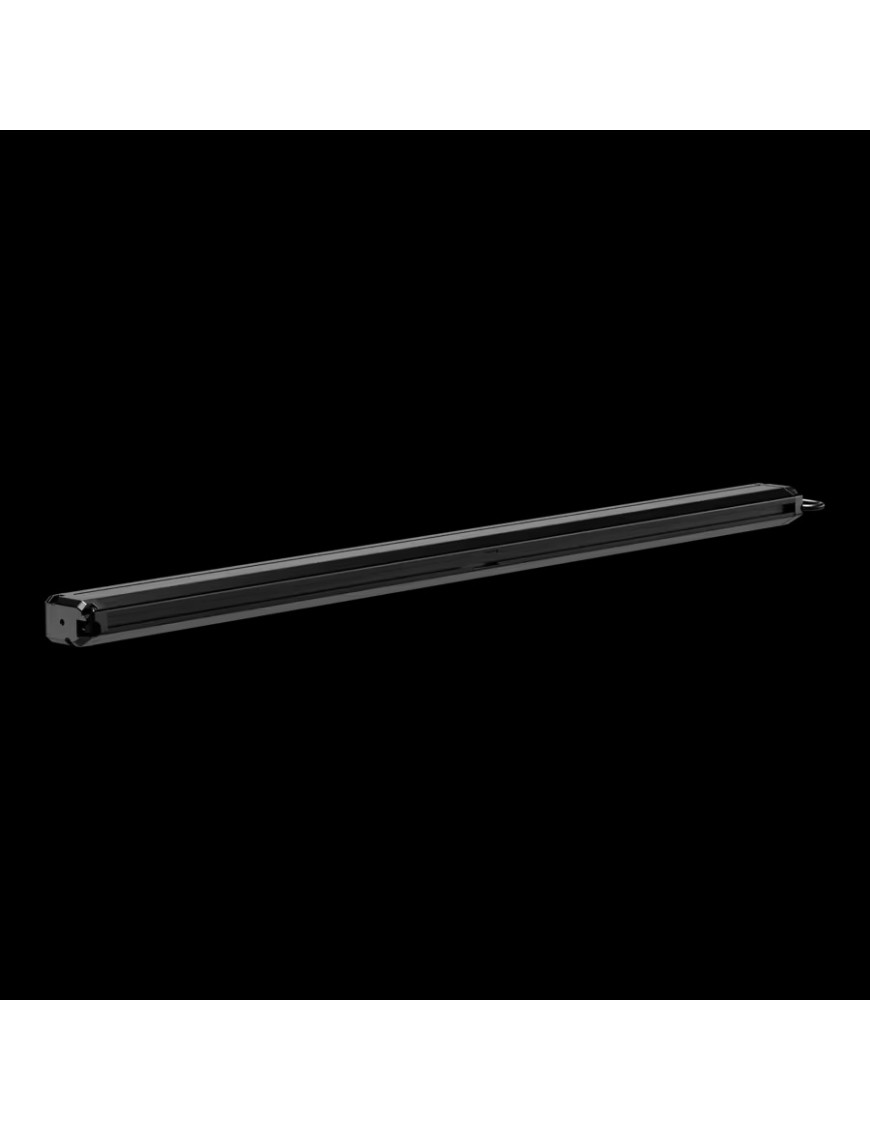

• durable construction with a die-cast aluminium housing and polycarbonate lens,
• IP6K8 and IP6K9K protection against water, dust, and high-pressure cleaning,
• compatible with 12 V and 24 V electrical systems,
• 5-year manufacturer warranty subject to OSRAM terms.

Four lighting functions

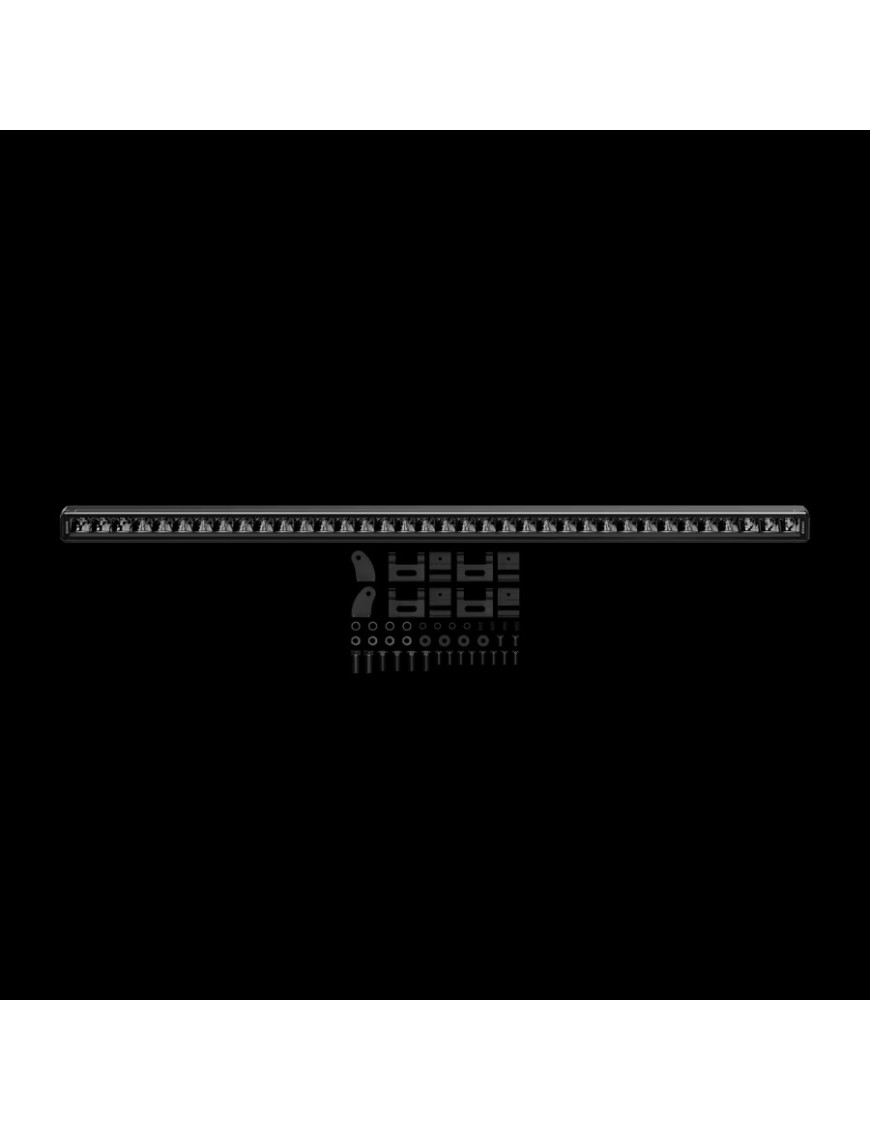

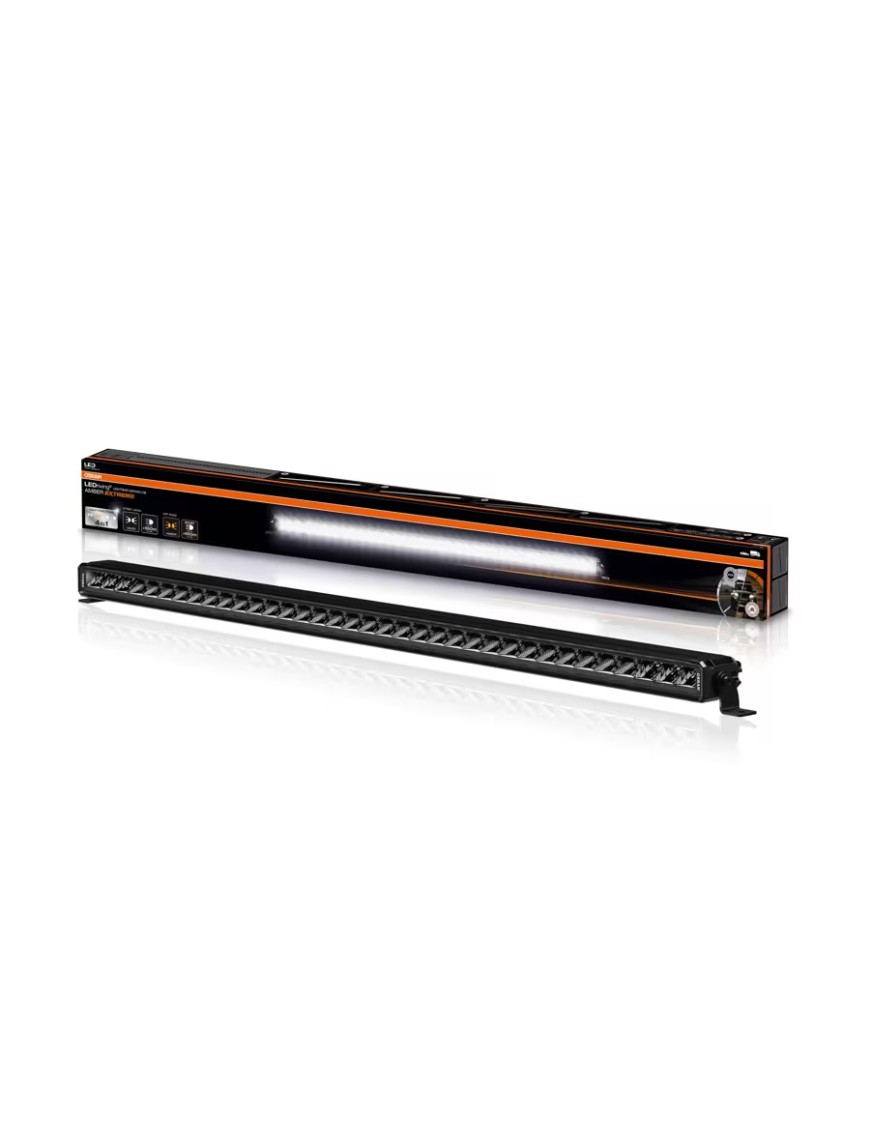

What is included

• 1 OSRAM LEDriving Lightbar MX1000-CB AMBER EXTREME LED light bar.

Technical data / facts

• manufacturer part number: LEDDL140-CB X,
• light source technology: LED,
• number of LEDs: 72,
• beam pattern: Combo,
• nominal voltage: 12/24 V,
• test voltage: 13.5 V,
• nominal wattage: 182 W / 320 W / 7 W,
• luminous flux: 12,000 lm for high beam and 16,000 lm in Boost mode,
• range at 1 lx: 560 m for high beam and 650 m in Boost mode,
• colour temperature: 6000 K / 1700 K,
• length: 1038 mm,
• height: 43.5 mm,
• width: 63.5 mm,
• product weight: 3556 g,
• lamp connector: DT Connector,
• service life Tc: 5000 hours,
• protection rating: IP6K8, IP6K9K,
• standards: ECE R10, R148, R149,
• approval: E4,
• ECE reference number: 37.5 + 37.5.

Light range in Boost mode

Combo beam

IP6K8 and IP6K9K protection

Recommended users / applications

• off-road and expedition 4x4 vehicles,
• passenger vehicles requiring additional high-beam lighting,
• trucks and commercial vehicles,
• agricultural and construction machinery,
• motorhomes and camper vehicles,
• ATVs and other vehicles used away from paved roads,
• users who need powerful work and long-range lighting in one housing.

Installation / notes

• the light bar is designed for 12 V and 24 V electrical systems,
• a DT-type connector is used for the electrical connection,
• OSRAM LEDriving Driving Lights carry approvals in accordance with the ECE regulations specified by the manufacturer,
• Boost mode and the amber position light are not ECE-approved and must not be used on public roads,
• local regulations and requirements for additional vehicle lighting should be checked before installation.

Summary

• 1038 mm LED light bar,

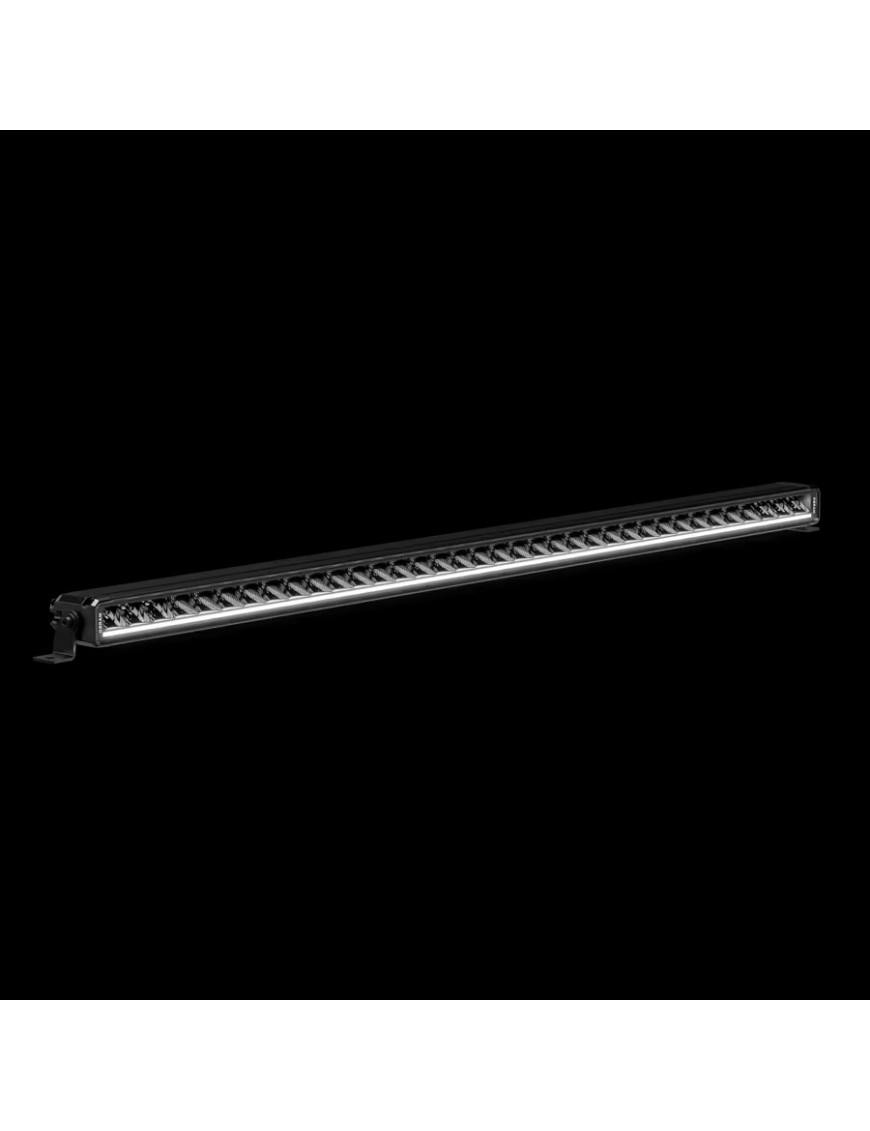

• high beam, white position light, amber position light, and Boost mode,
• up to 16,000 lm and up to 650 m range,
• Combo beam for road and off-road driving,
• 12/24 V compatibility,
• aluminium housing and polycarbonate lens,
• IP6K8 and IP6K9K protection,
• 5-year manufacturer warranty.
