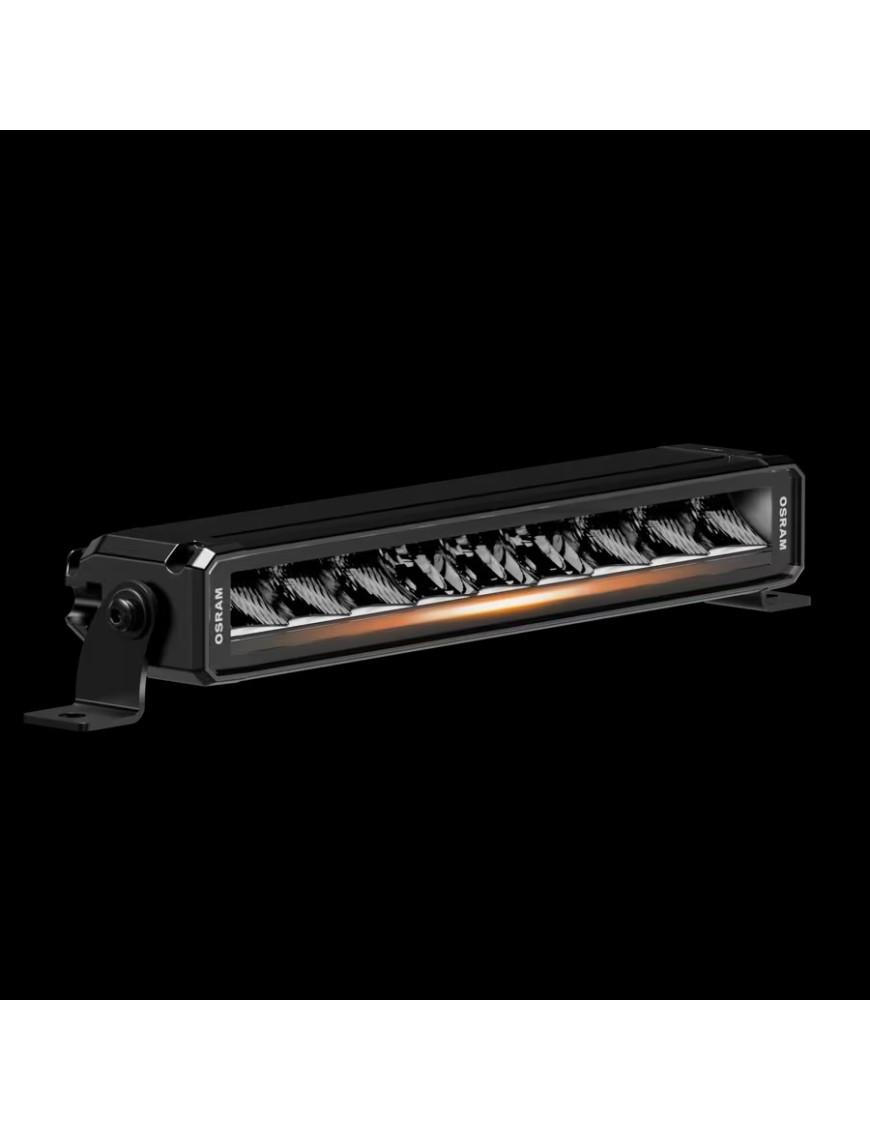

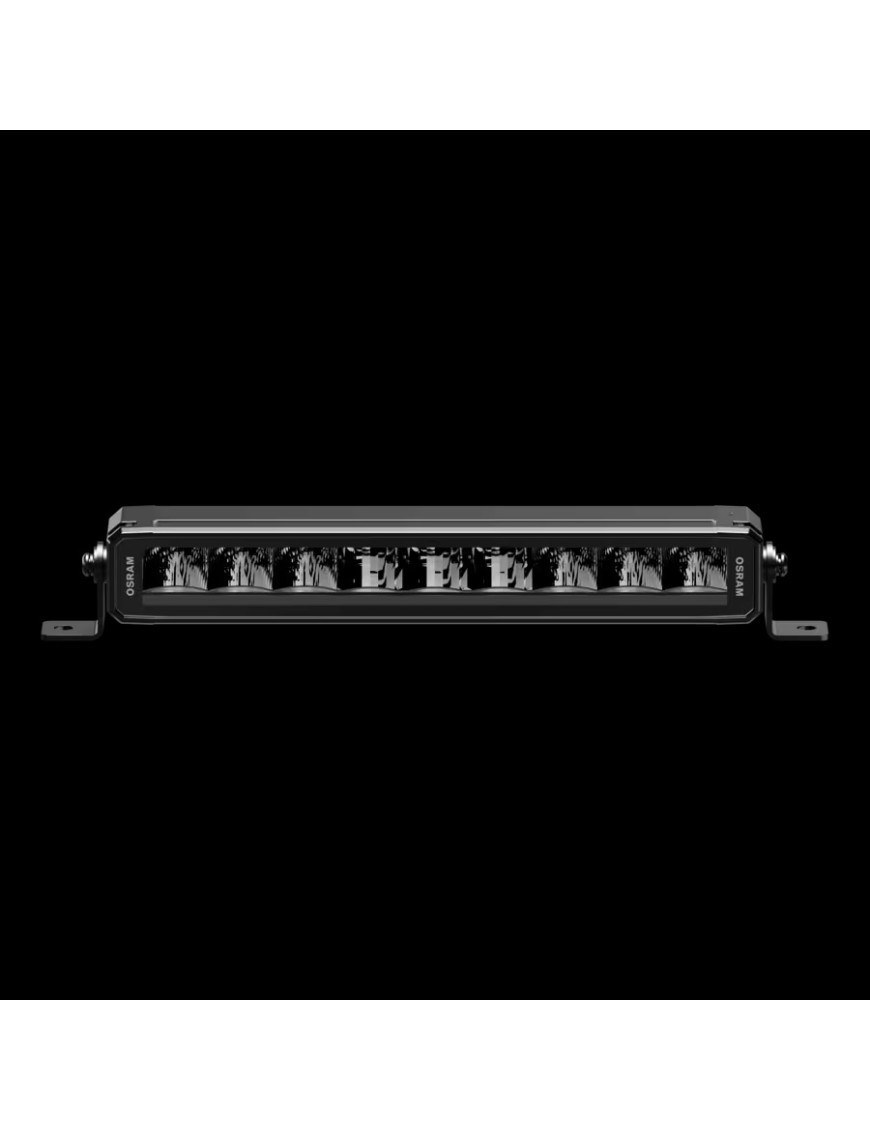

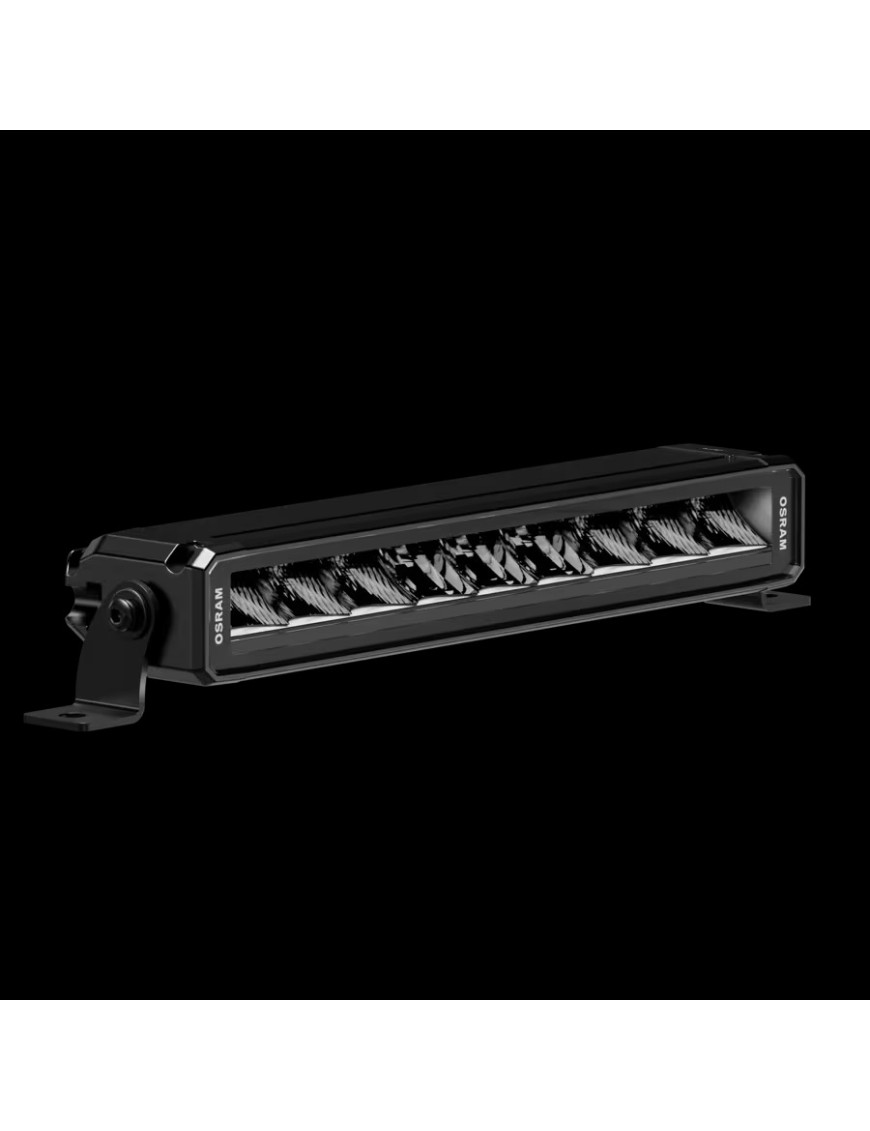

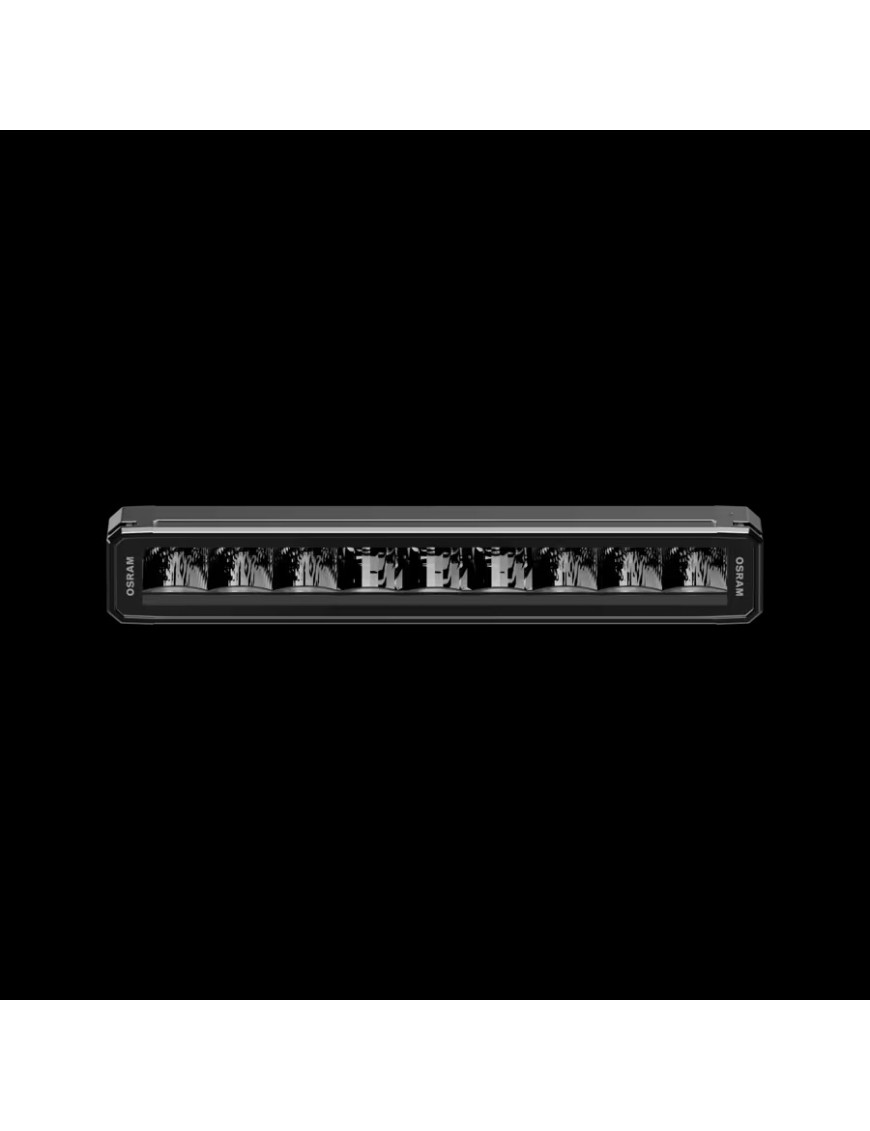

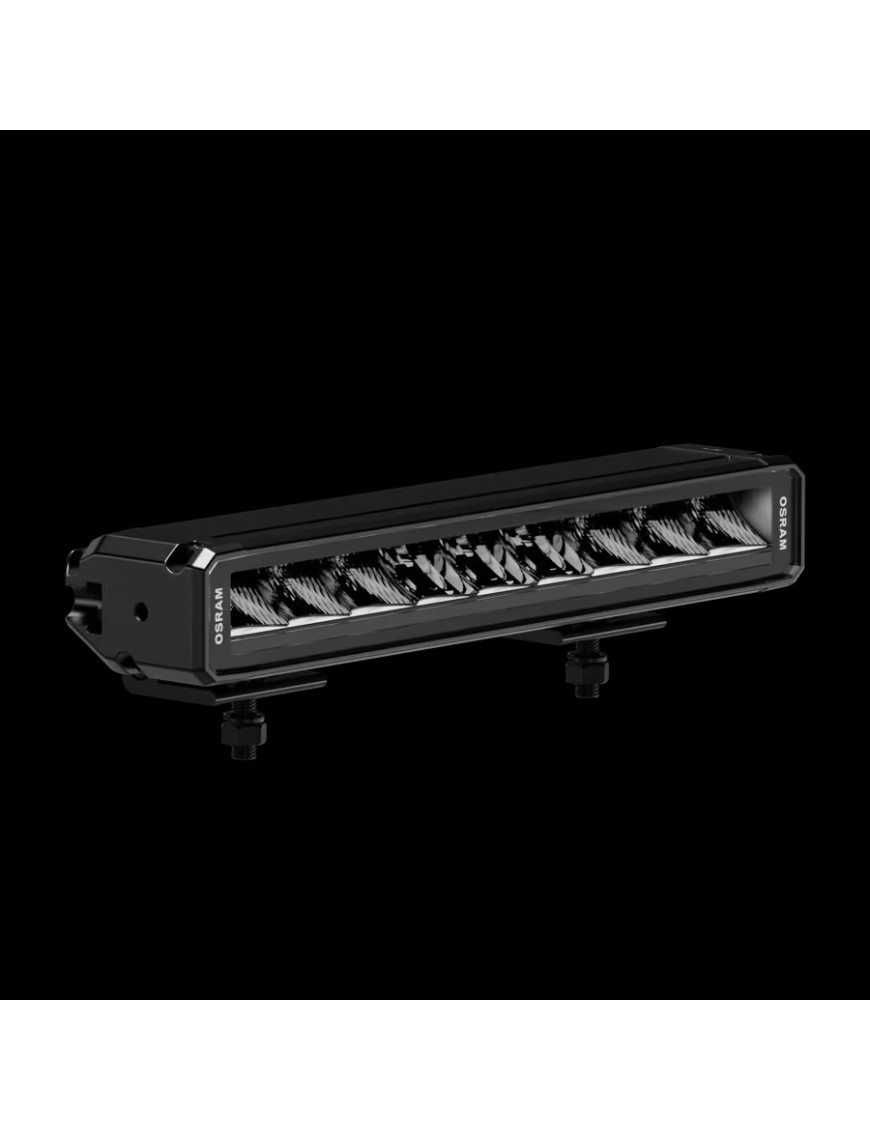

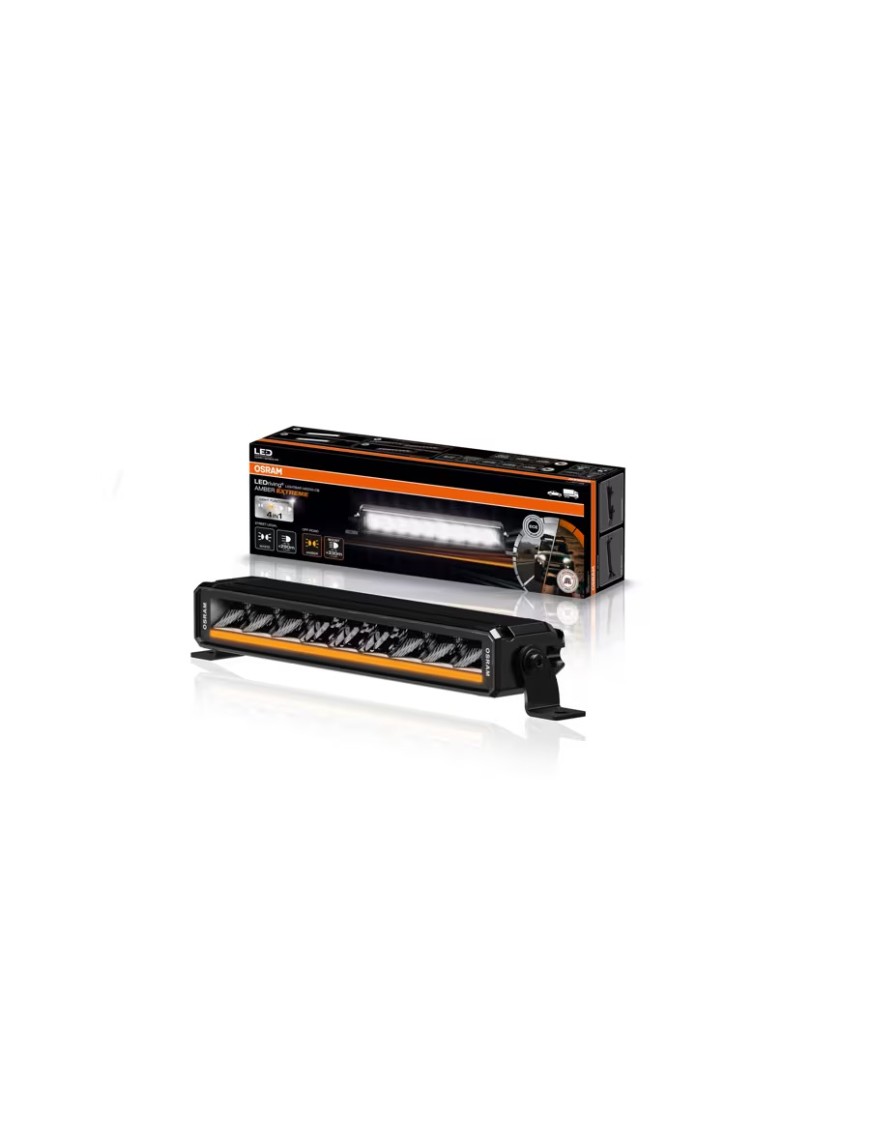

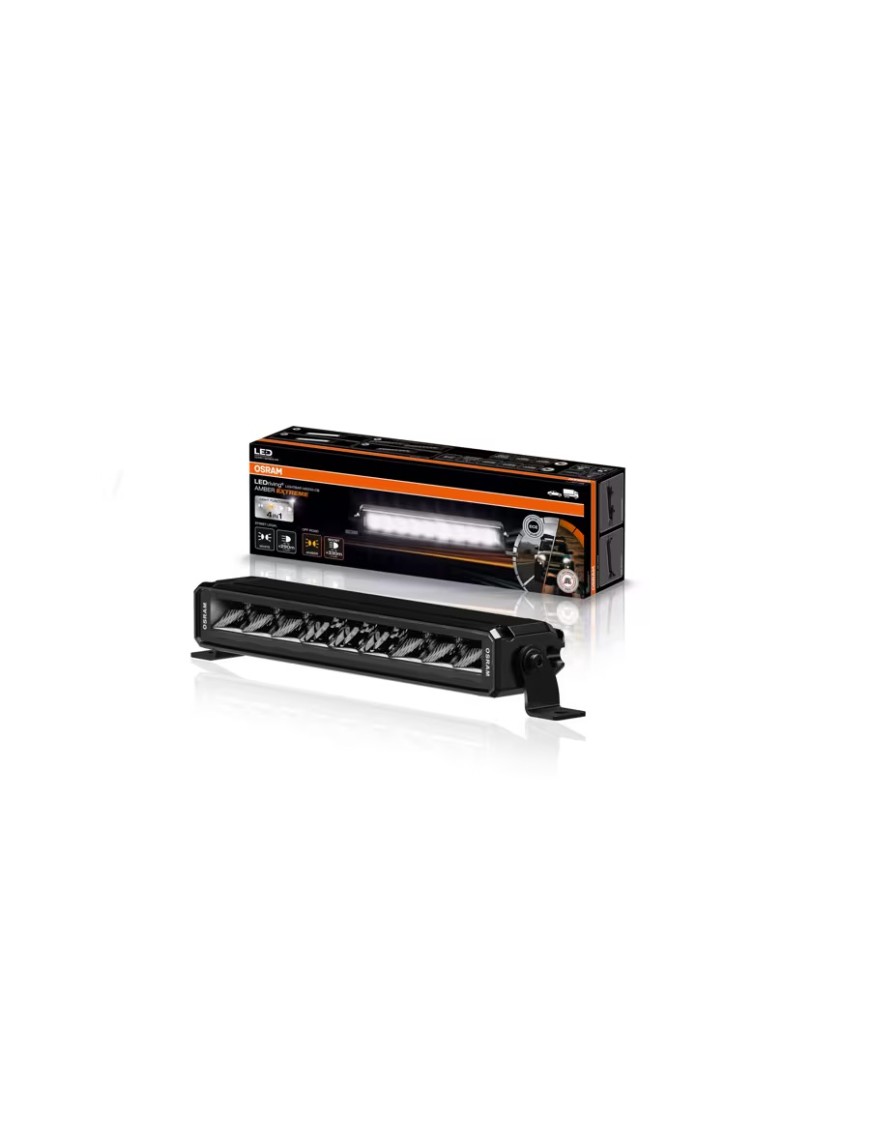

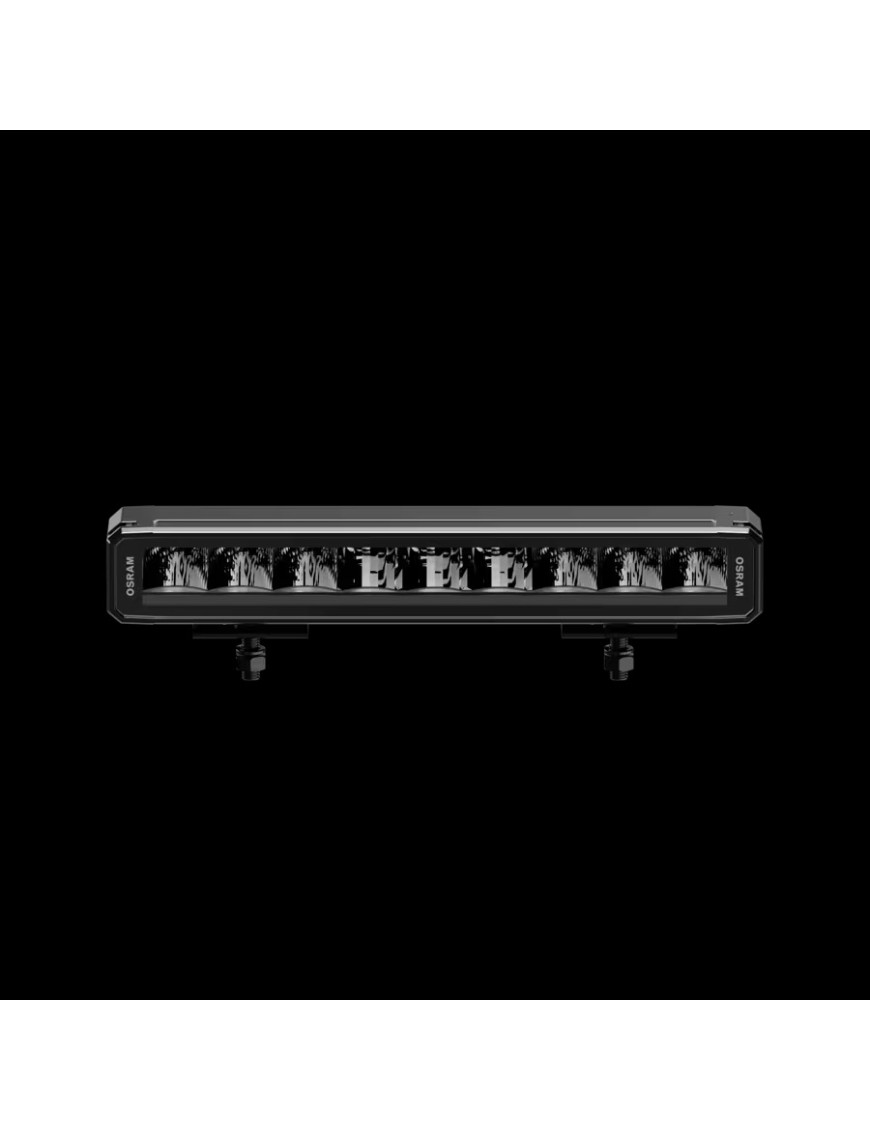

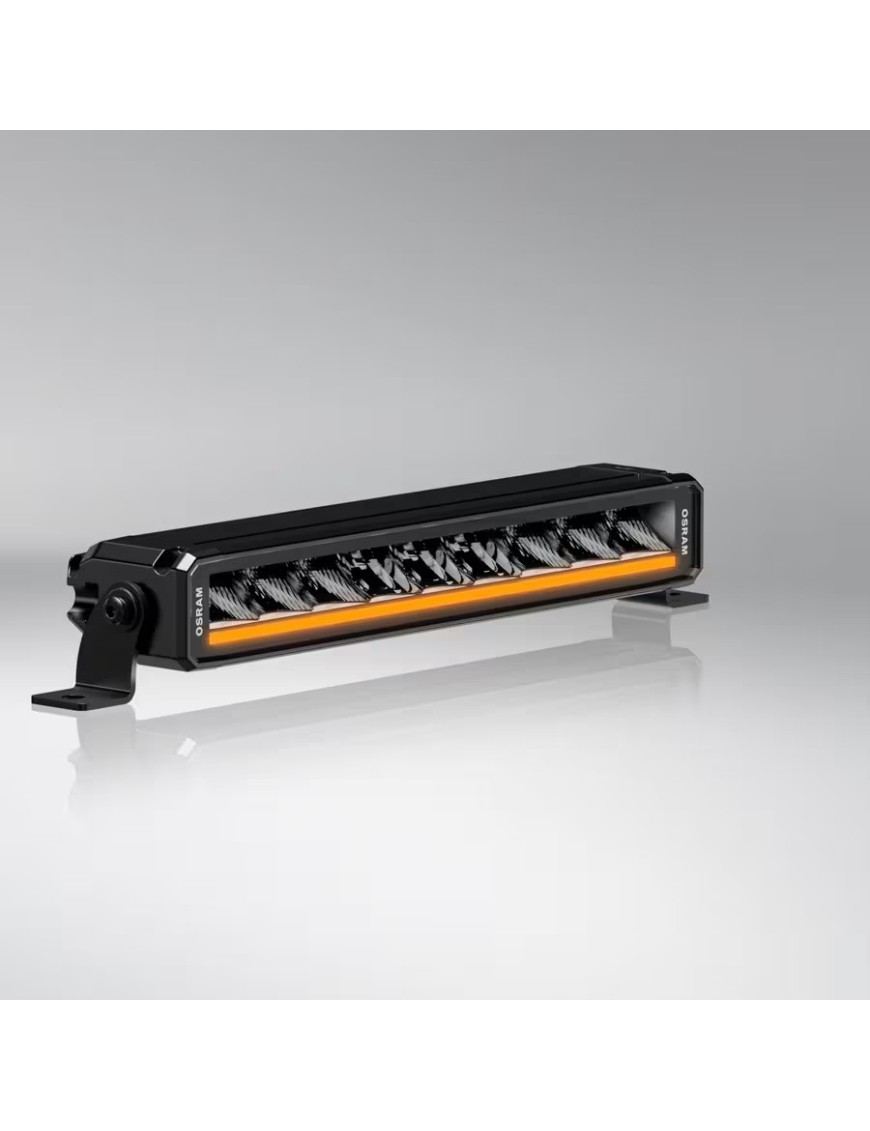

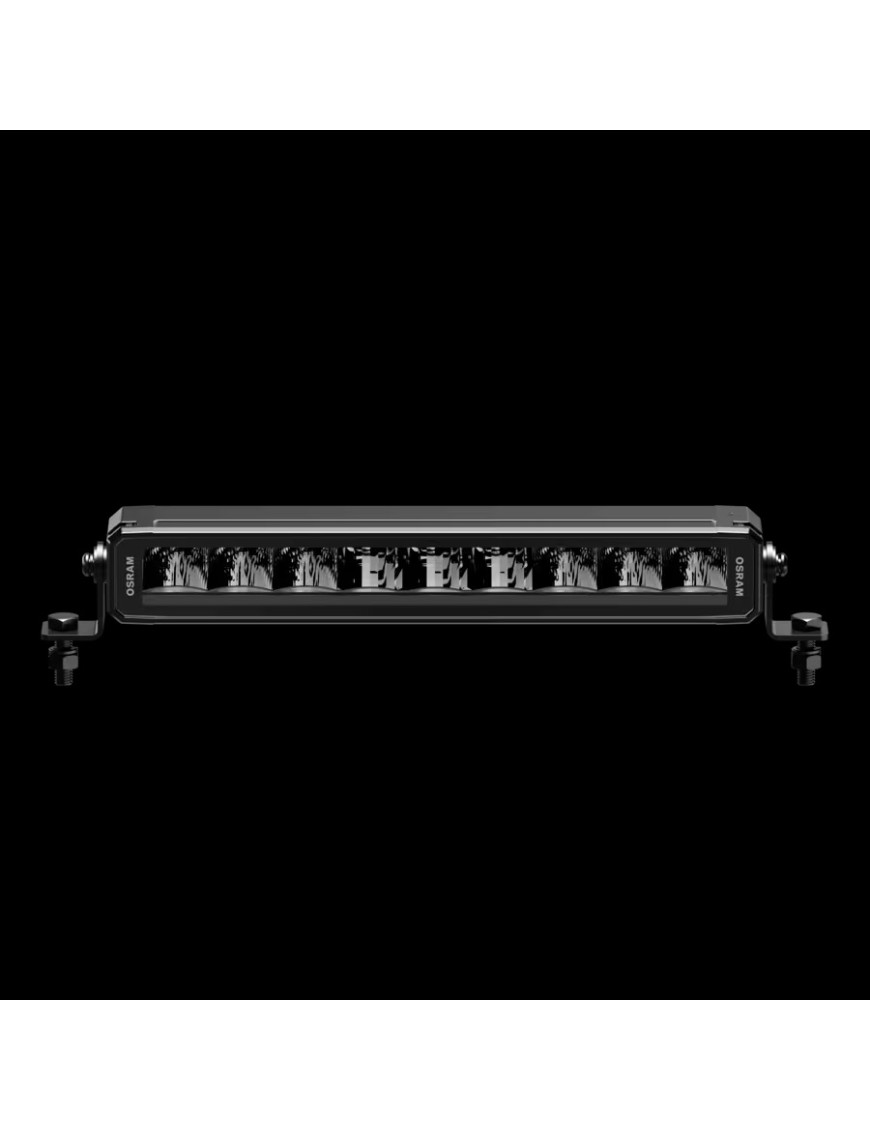

OSRAM LEDriving Lightbar MX250-CB AMBER EXTREME

OSRAM LEDriving Lightbar MX250-CB AMBER EXTREME – 12/24 V LED light bar for cars and off-road vehicles

Key benefits

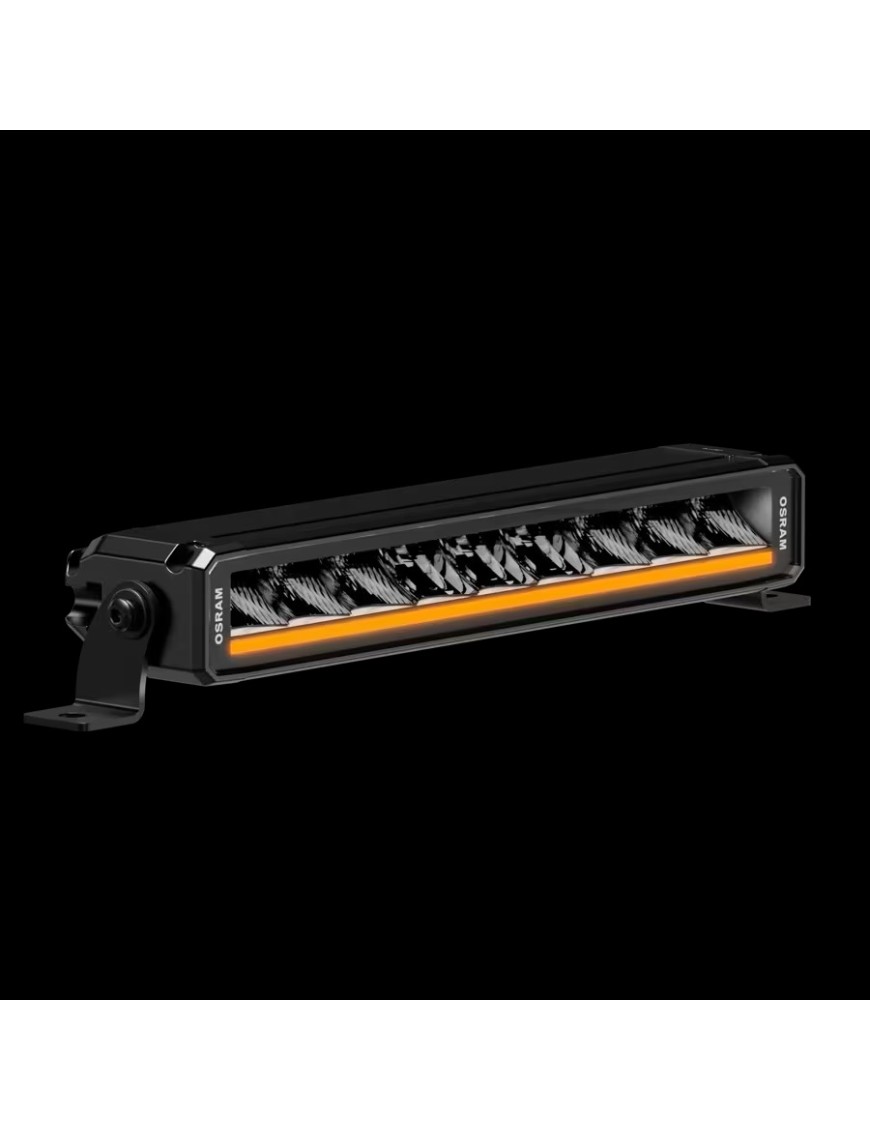

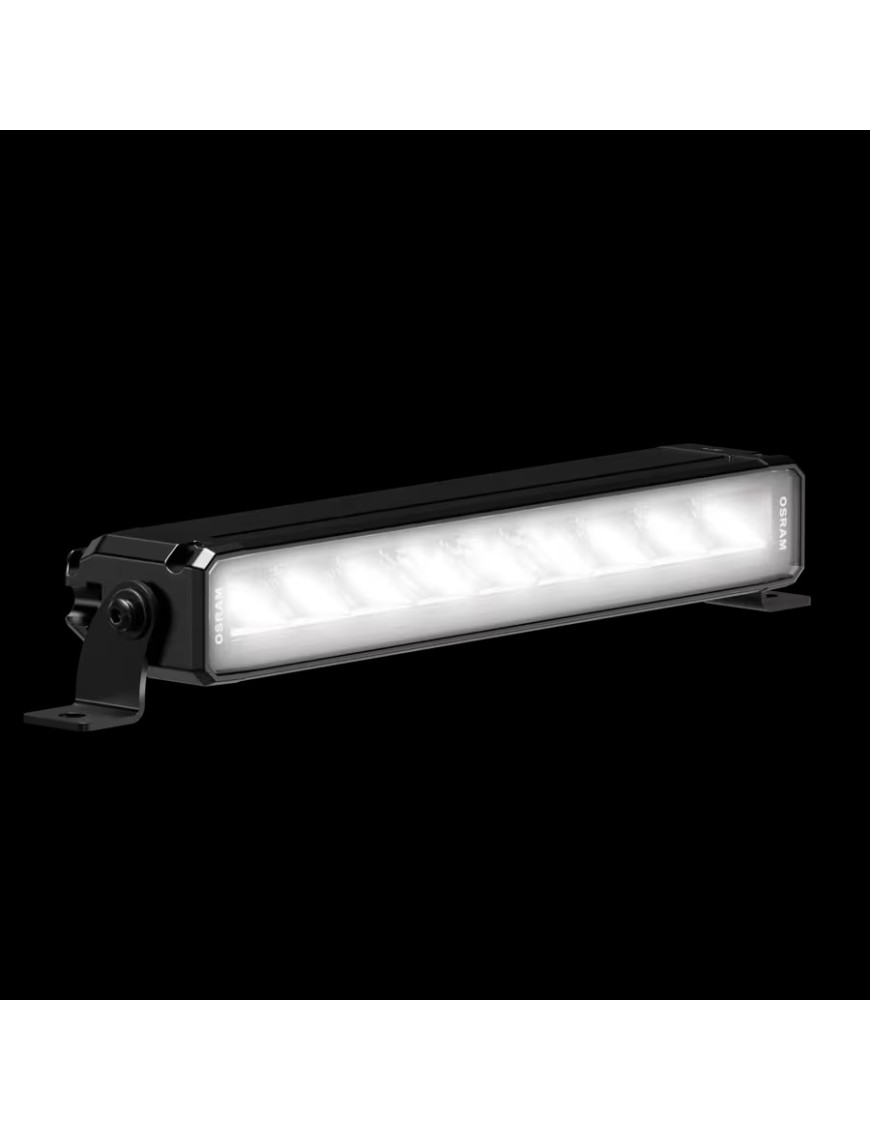

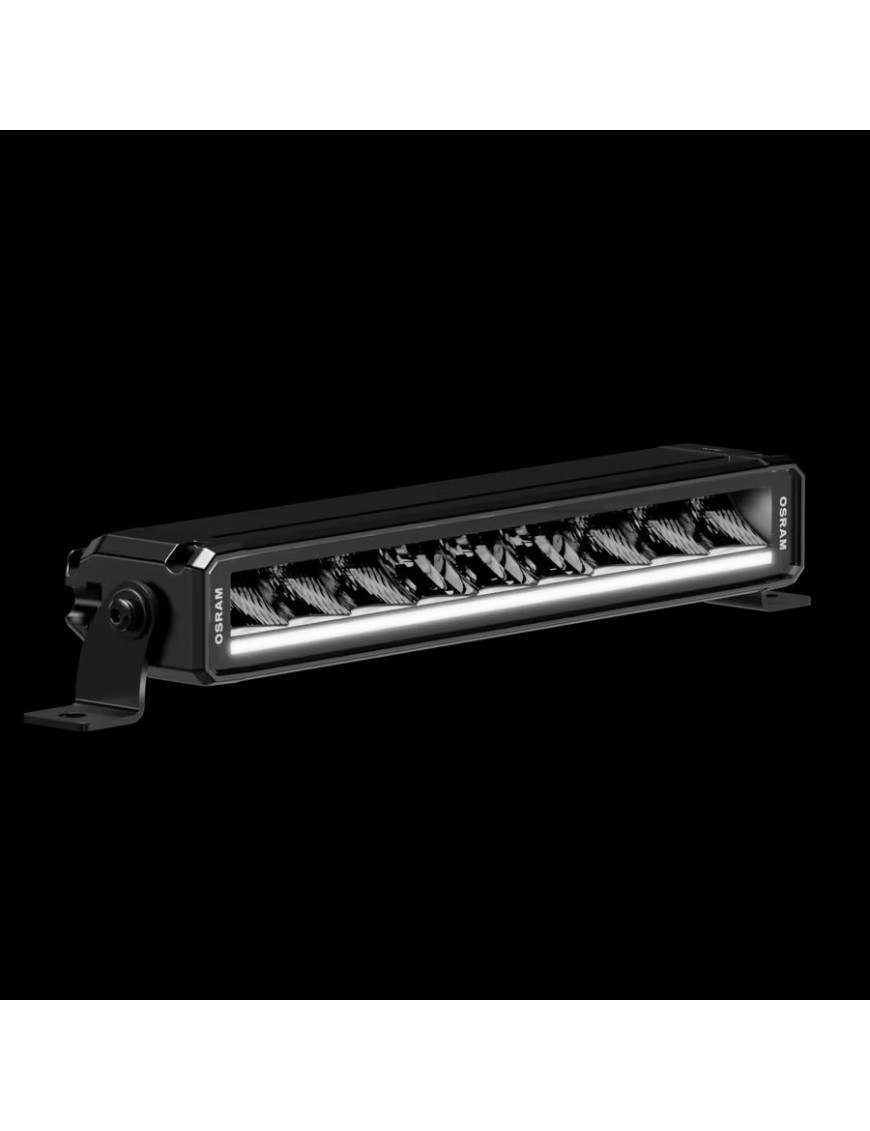

• Four functions in one light bar – LED high beam, white and amber position lights, and Boost mode.
• Range of up to 330 m – Boost mode increases visibility when driving away from public roads.
• Combo beam pattern – illuminates both the area directly in front of the vehicle and the road further ahead.
• Dynamic welcome light – a smooth lighting animation activates when the light bar is switched on.

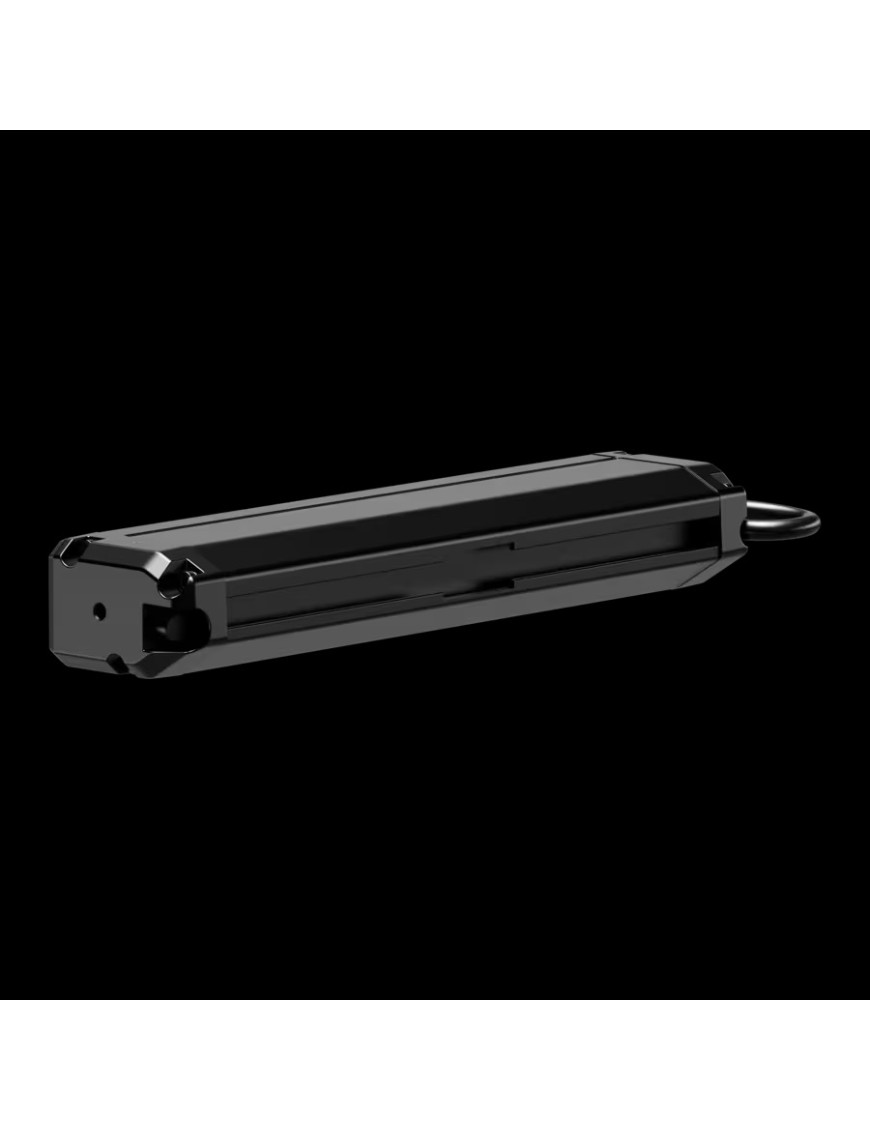

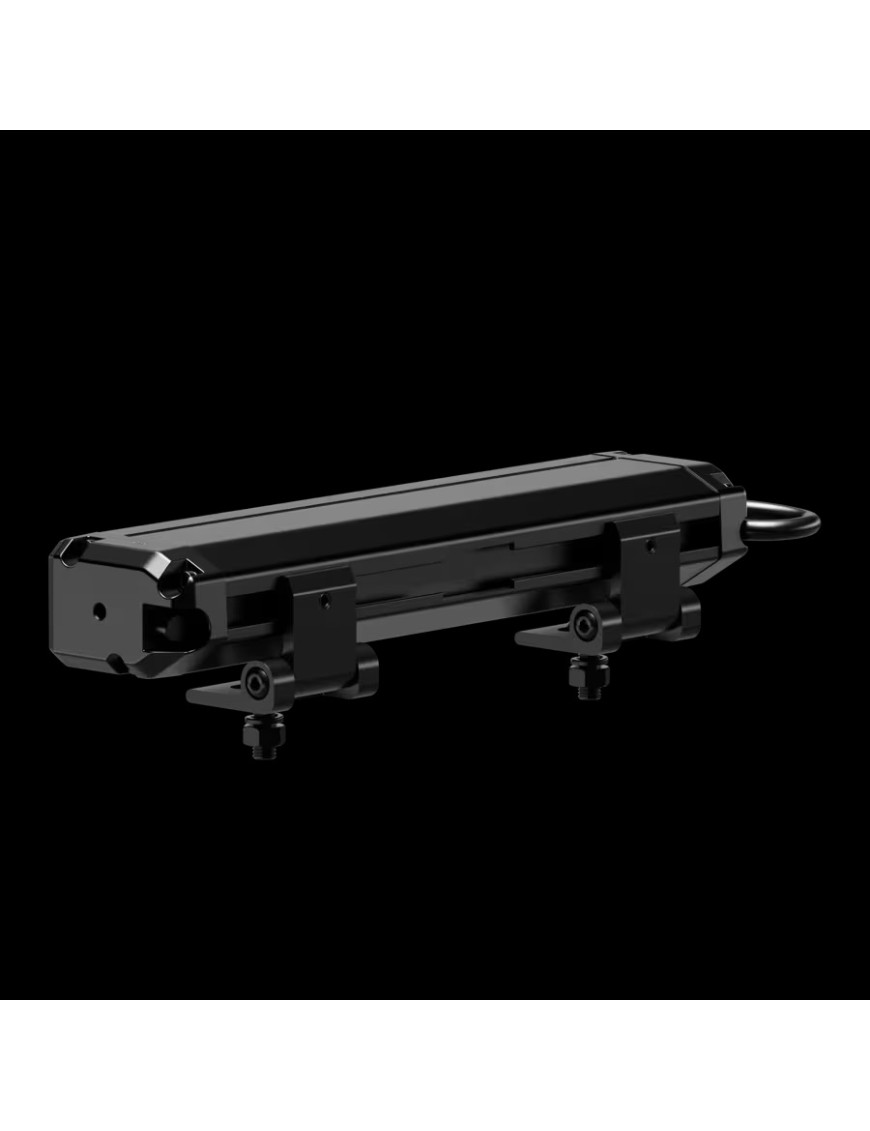

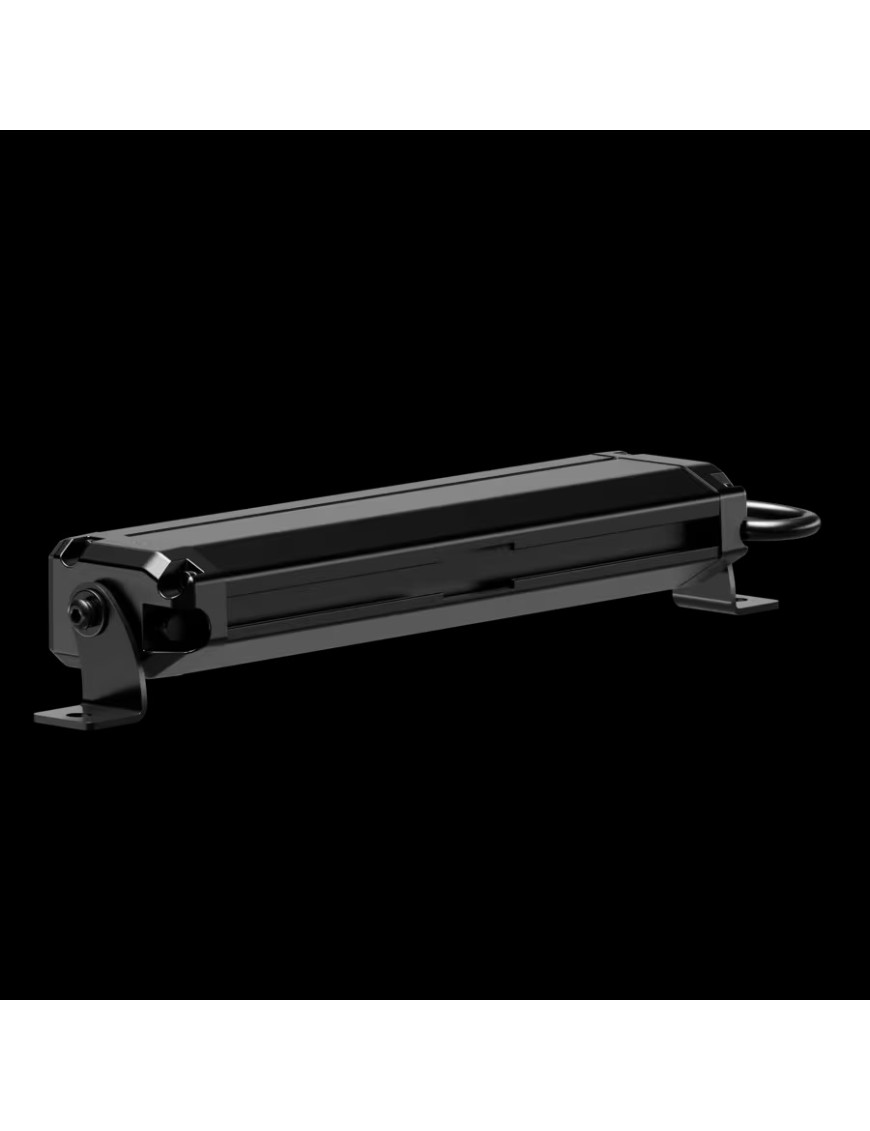

• Built for demanding conditions – die-cast aluminium housing and a shatter-resistant polycarbonate lens.
• High level of sealing – IP6K8 and IP6K9K ratings provide protection against dust, immersion, and high-pressure water.
• Universal 12/24 V compatibility – suitable for a wide range of vehicles and machinery.
• 5-year manufacturer warranty in accordance with the OSRAM warranty programme terms.

Multifunctional 4-in-1 lighting system

Range of up to 330 m in Boost mode

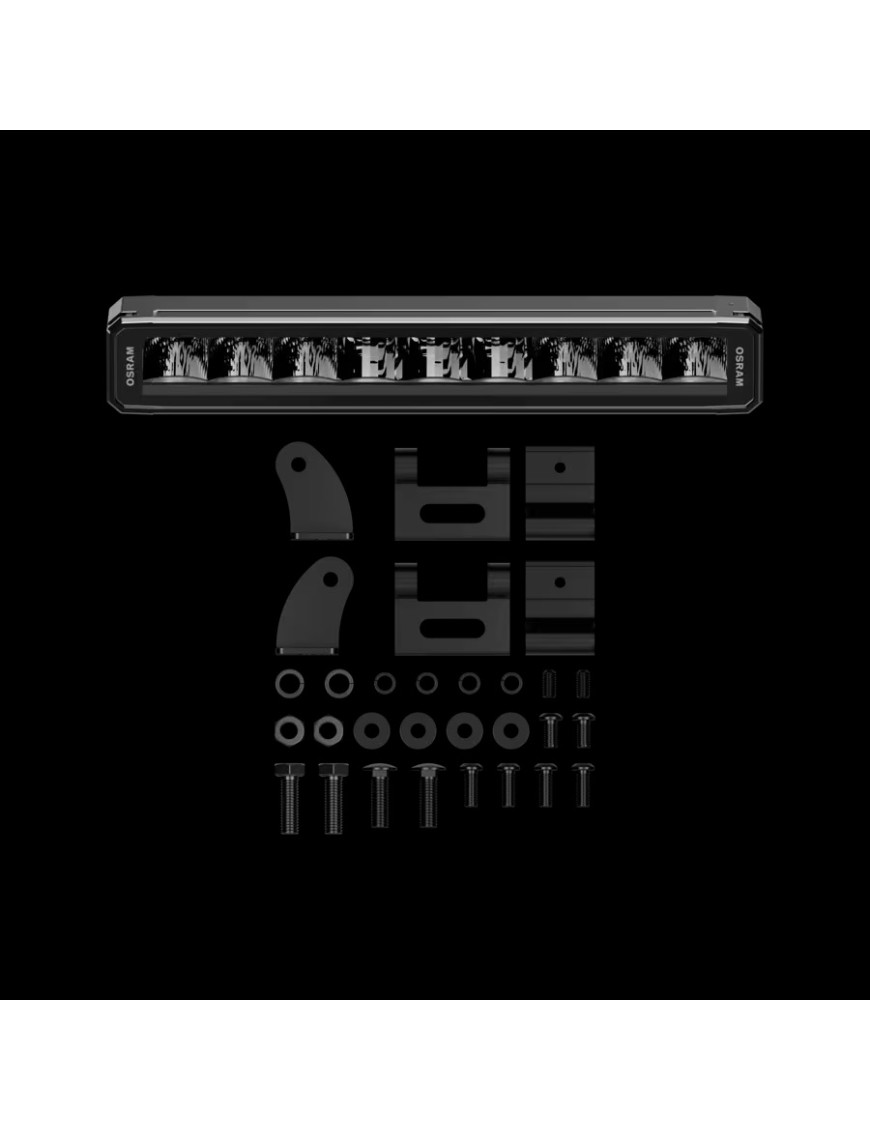

What is included

• 1 × OSRAM LEDriving Lightbar MX250-CB AMBER EXTREME LED light bar.

Technical data / facts

• Product reference: LEDDL138-CB X
• Technology: LED
• Application: additional high beam and position light
• Beam pattern: Combo
• Nominal voltage: 12/24 V
• Nominal wattage: 50 W / 90 W / 2.5 W
• Test voltage: 13.5 V
• Luminous flux: 3600 lm – high beam / 4600 lm – Boost
• Range at 1 lx: 290 m – high beam / 330 m – Boost
• Colour temperature: 6000 K / 1700 K
• Number of LEDs: 18
• Dimensions: 283 × 63.5 × 43.5 mm
• Product weight: 1224 g
• Connector: DT Connector
• Tc service life: 5000 hours
• Protection rating: IP6K8, IP6K9K
• Standards: ECE R10, R148, R149
• Approval: E4
• ECE reference number: 20
• Warranty: 5 years

Combo beam characteristics

IP6K8 and IP6K9K protection

Recommended users / applications

• Passenger cars and off-road vehicles requiring additional high-beam lighting.
• 4x4 vehicles used for overlanding and off-road driving.
• Trucks and commercial vehicles.
• Agricultural and construction machinery.
• Motorhomes, caravans, and expedition vehicles.
• ATVs and other vehicles with 12 V or 24 V electrical systems.

Installation / notes

• The light bar is designed for 12 V and 24 V electrical systems.
• OSRAM LEDriving driving lights are approved in accordance with ECE regulations and may be used on public roads within the scope of their approved functions.
• Boost mode and the amber position light are not ECE-approved and must not be used on public roads.
• Before installation and use, check the regulations applicable in the country where the vehicle is operated.

Summary for quick scanning

• 4-in-1 LED light bar with white and amber position lights.
• Combo beam for close-range and long-distance illumination.
• Up to 4600 lm and a range of up to 330 m in Boost mode.
• 12/24 V compatibility and DT connector.
• Aluminium housing and polycarbonate lens.
• IP6K8 and IP6K9K protection ratings.
• ECE R10, R148, and R149 approvals.
• 5-year manufacturer warranty.
