KC HiLiTES FLEX ERA 1 Master Pack – compact LED off-road light
The KC HiLiTES FLEX ERA 1 - Single Master LED Light Pod Kit is a versatile LED off-road light built for 4x4 vehicles, pickups, overland builds and utility machines. Its compact size and adjustable mounting system make it ideal wherever installation space is limited but performance still matters.
This light pod can be used in multiple roles: bumper-mounted auxiliary light, reverse light, roof lighting or work light for demanding conditions.
Key features
- Light output: up to 2430 lumens
- Dual mode: amber backlight and full power
- Beam options: flood, spread and spot
- Voltage range: 9V–36V
- Ingress protection: IP68
- Color temperature: 5000K
- Housing: durable aluminum
- Size: 3-inch light pod
Flexible mounting and application
The FLEX ERA 1 is a compact LED light pod designed for maximum mounting flexibility. It can be installed on bumpers, roof racks, rear sections of the vehicle or other tight spaces. The adjustable bracket allows fine-tuning of position, angle and depth, making it suitable for custom off-road builds.
This makes it especially useful in off-road setups where both space efficiency and durability are critical.

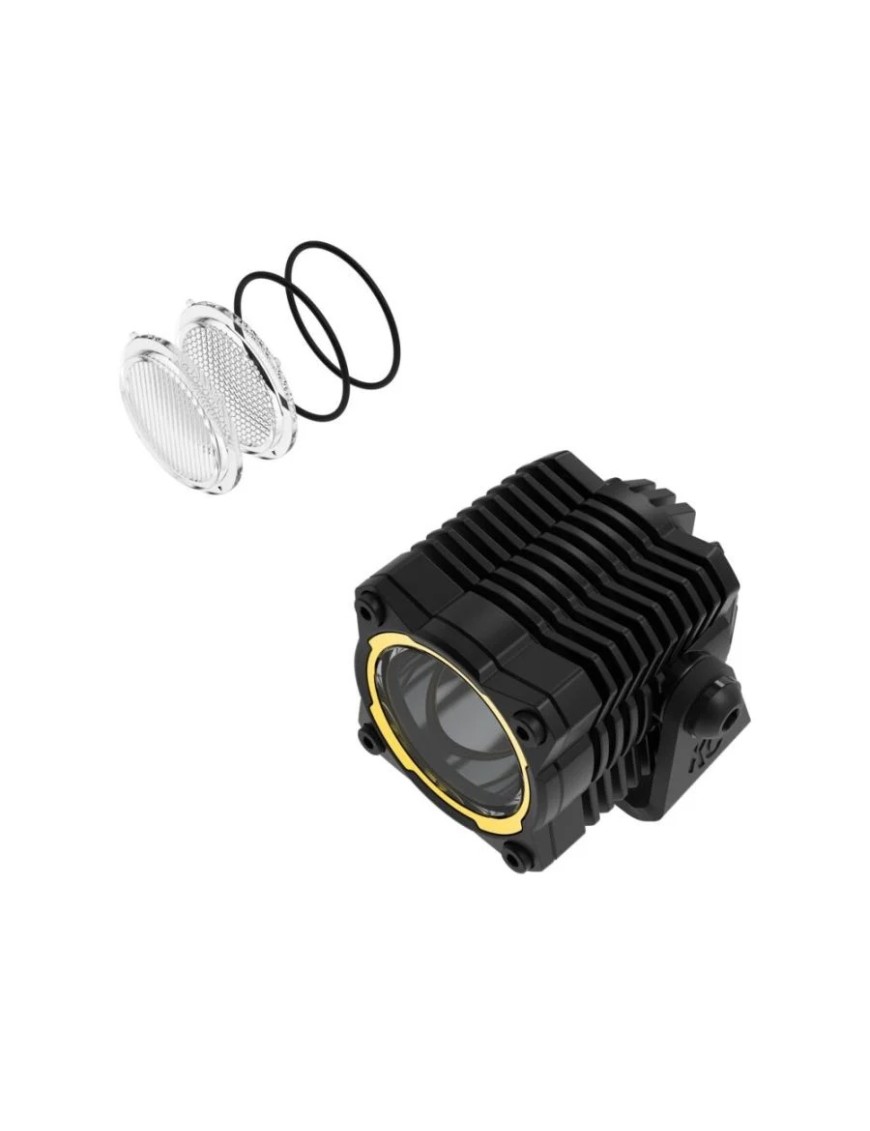

Adaptable beam patterns
The Master Pack includes interchangeable lenses, allowing you to tailor the light output to your needs:
- Flood – wide beam for work lighting and reversing
- Spread – balanced wide beam for trail visibility
- Spot – focused beam for maximum distance
The light comes pre-configured with a spread beam, with additional lenses included in the kit.
Technical specifications
| Brand | KC HiLiTES |
|---|
| Model | FLEX ERA 1 - Single Master LED Light Pod Kit |
|---|
| Part number | 1265 |
|---|
| Lighting type | LED |
|---|
| Power | 5W / 23W |
|---|
| Current draw | 0.42 A / 1.92 A |
|---|
| Voltage | 9V–36V |
|---|
| Lumens | 2430 lm |
|---|
| Candela | 4510 cd (flood) / 16200 cd (spread) / 31000 cd (spot) |
|---|
| Beam distance | 67.2 m (flood) / 127.3 m (spread) / 176.1 m (spot) |
|---|
| Color temperature | 5000K |
|---|
| LED colors | amber / white |
|---|
| Material | aluminum |
|---|
| Dimensions | 2.6" x 2.72" x 2.9" |
|---|
| IP rating | IP68 |
|---|

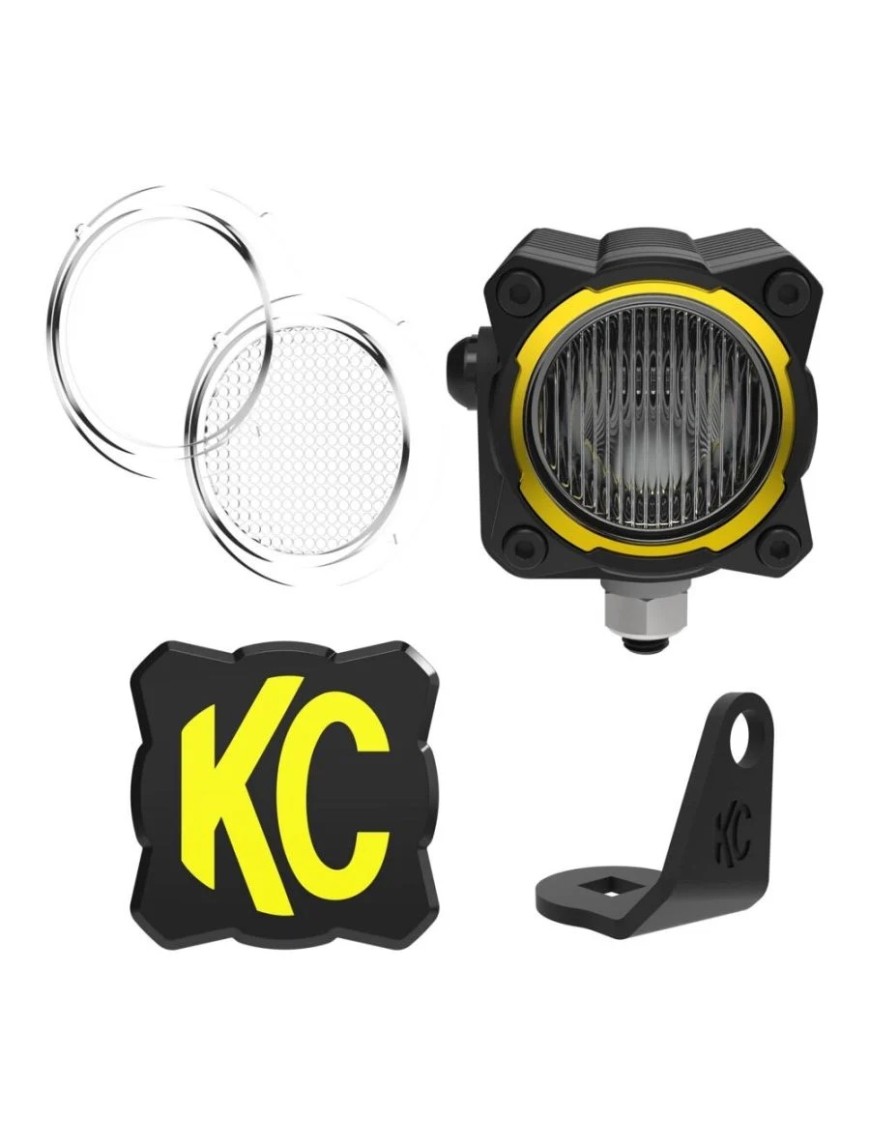

What’s included
- 1 x KC FLEX ERA 1 LED light pod (spread beam pre-installed)
- 1 x mounting bracket
- 1 x clear spot lens
- 1 x clear flood lens
- 1 x KC protective cover
- Mounting hardware
Note: Wiring harness is not included in the single light version.
Compatibility
Universal application. Installation details depend on vehicle setup and mounting location.
