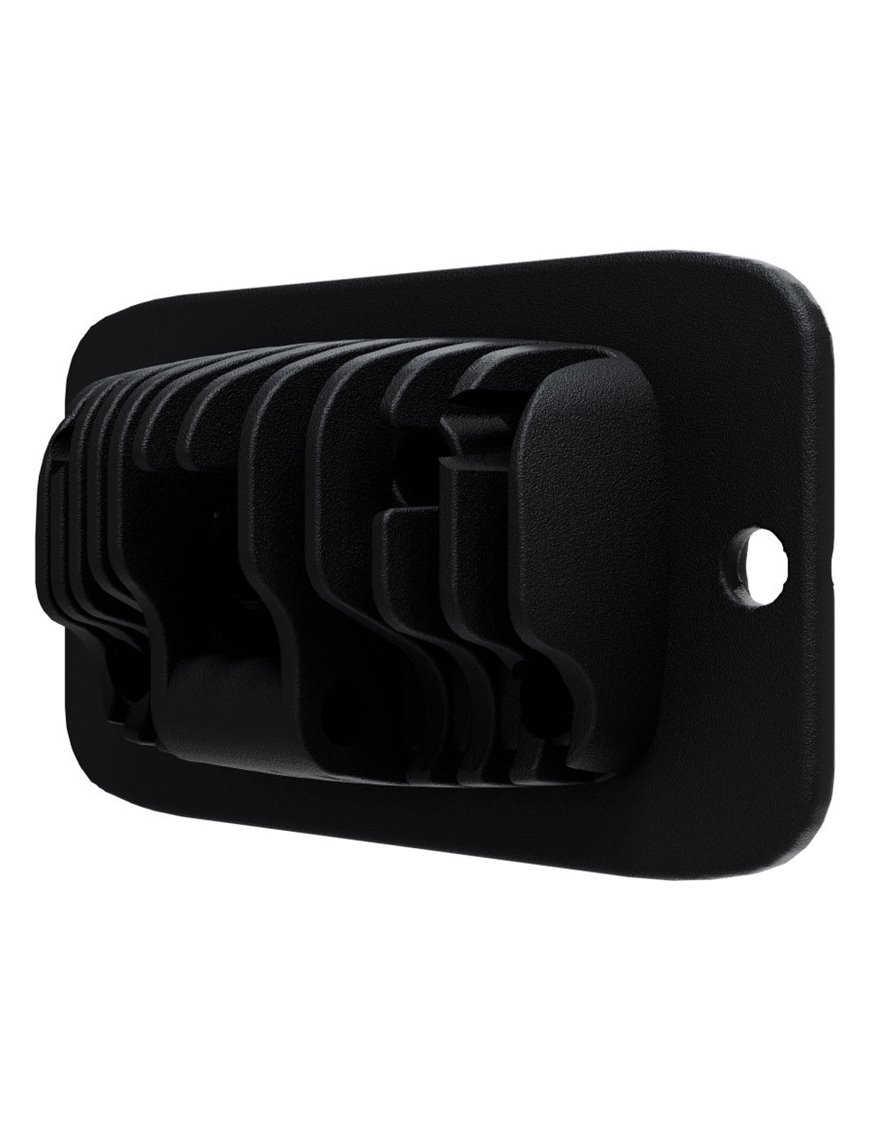

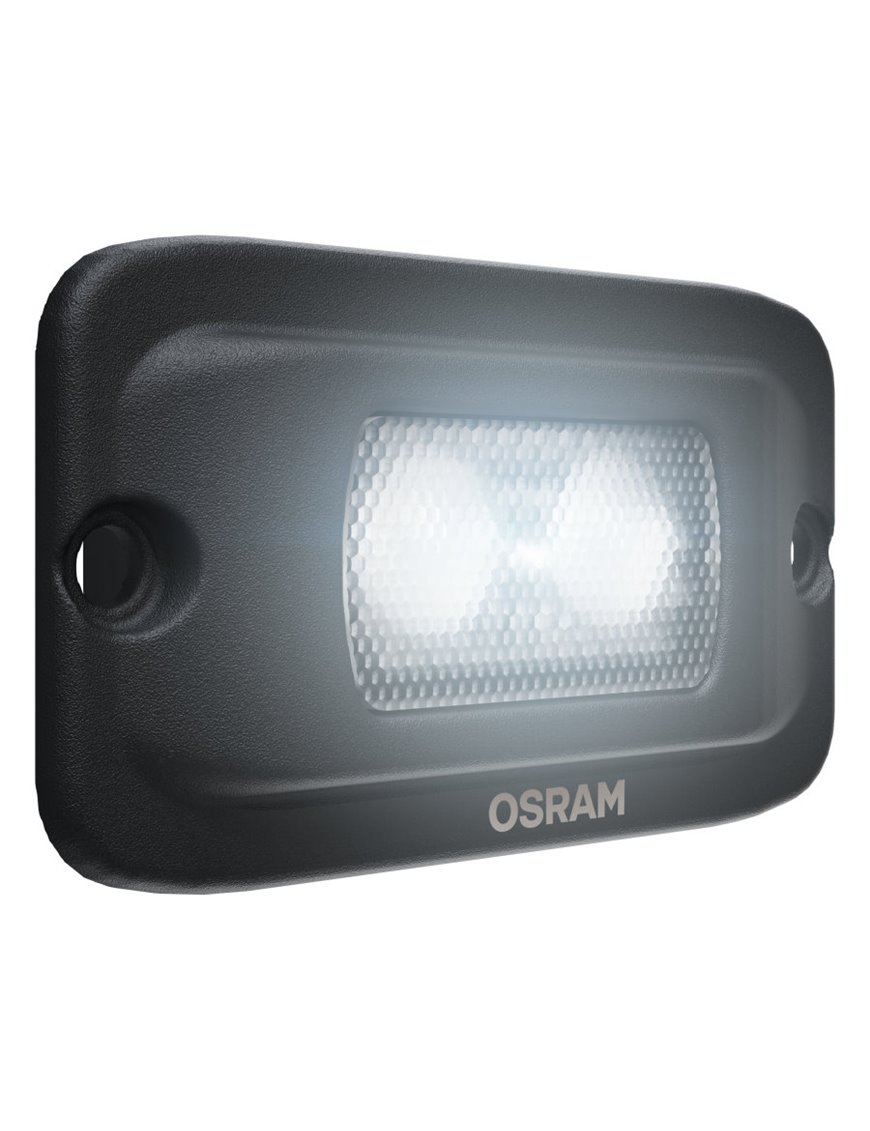

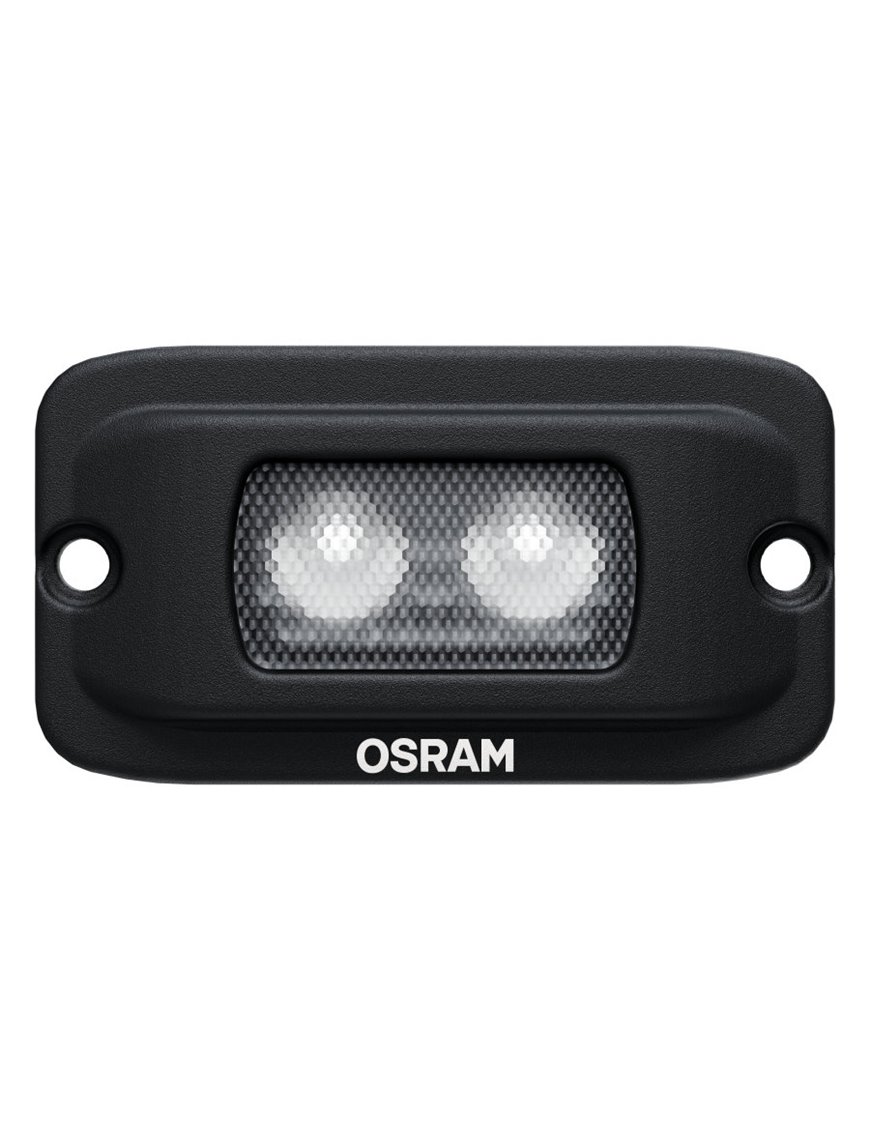

OSRAM LEDriving Flush Mount WL VX100-FL – flush mount LED work light
OSRAM LEDriving Flush Mount WL VX100-FL is a compact LED work light designed for flush mount installation. This model combines a wide flood beam, durable construction, and 12/24 V compatibility, making it a practical choice for utility vehicles, off-road builds, and machines operating in demanding environments.
The light can support work lighting at the front, rear, or side of the vehicle. Thanks to its flood beam pattern, it provides broad illumination over short to mid-range distances, improving visibility during maneuvering, night work, and off-road driving.
Key features
- compact flush mount LED work light
- light output: 600 lm
- beam pattern: flood

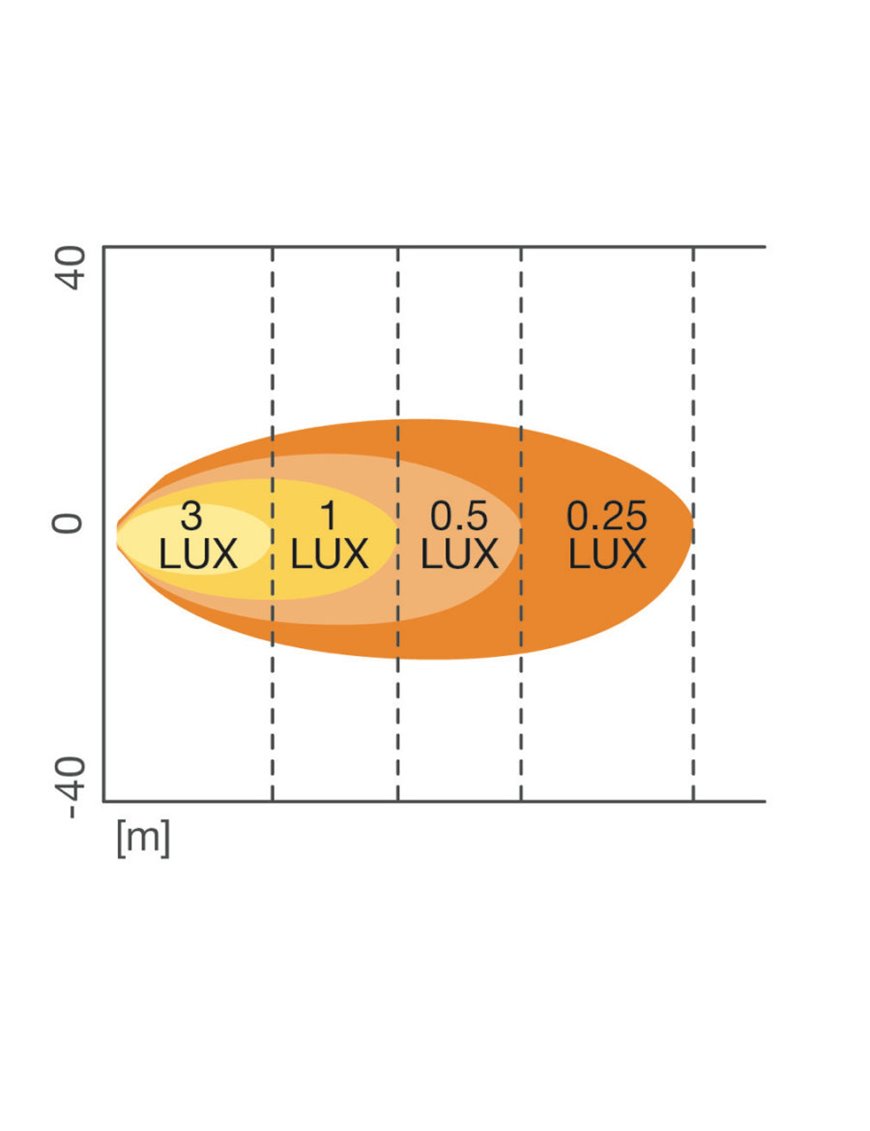

- beam distance up to 45 m
- color temperature: 6500 K
- voltage range: 12/24 V
- rated power: 6 W

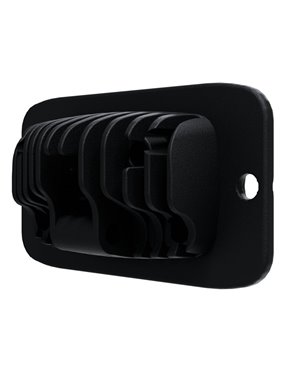

- die-cast aluminum housing
- impact-resistant polycarbonate lens
- protection rating: IP6K8/IP6K9K
- built for demanding working conditions and vibration resistance
- 2-year warranty
Application and compatibility
This model is suitable for both 12 V and 24 V electrical systems, so it can be used across a wide range of vehicles and machines. The manufacturer indicates compatibility with trucks, agricultural machinery, construction vehicles, caravans, quads, and off-road vehicles. Installation details depend on the vehicle configuration.
Who it is for
This is a solid option for 4x4 users, off-road drivers, agricultural operators, construction crews, and field service professionals who need compact flush mount work lighting. It works well wherever broad light coverage, durability, and a clean integrated fit are important.
Technical data
| Brand | OSRAM |
|---|
| Model | LEDriving Flush Mount WL VX100-FL |
|---|
| Manufacturer part number | LEDFLUSH101-FL |
|---|
| Application | work light |
|---|
| Mounting type | flush mount |
|---|
| Mounting position | front, rear, or side of the vehicle |
|---|
| Beam pattern | Flood |
|---|
| Nominal voltage | 12/24 V |
|---|
| Rated power | 6 W |
|---|
| Light output | 600 lm |
|---|
| Color temperature | 6500 K |
|---|
| Beam distance at 1 lx | 45 m |
|---|
| Number of LEDs | 2 |
|---|
| Connection type | Open wire |
|---|

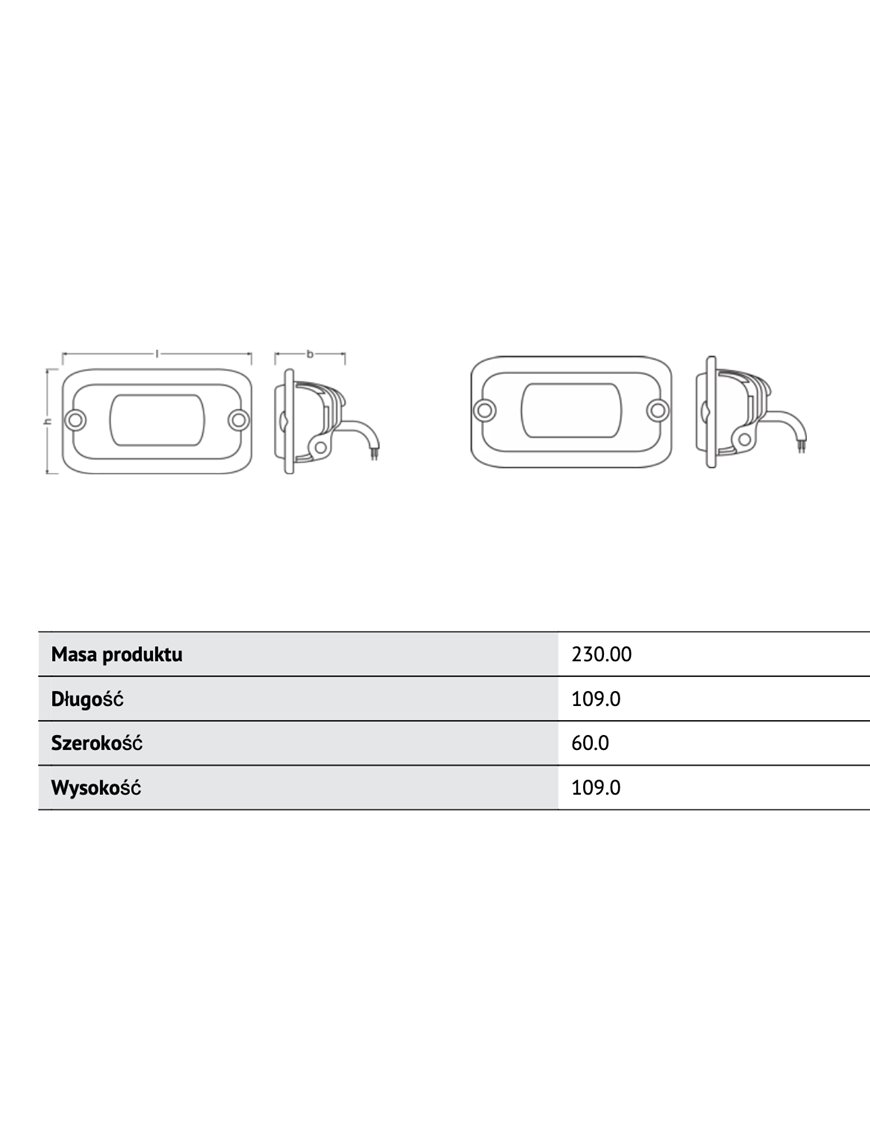

| Width | 60 mm |
|---|
| Height | 109 mm |
|---|
| Length | 109 mm |
|---|
| Product weight | 230 g |
|---|
| Housing | die-cast aluminum |
|---|
| Lens | polycarbonate |
|---|
| Protection rating | IP6K8/IP6K9K |
|---|
| Standard | ECE R10 |
|---|
| Lifespan Tc | 5000 h |
|---|
| Warranty | 2 years |
|---|
Package contents

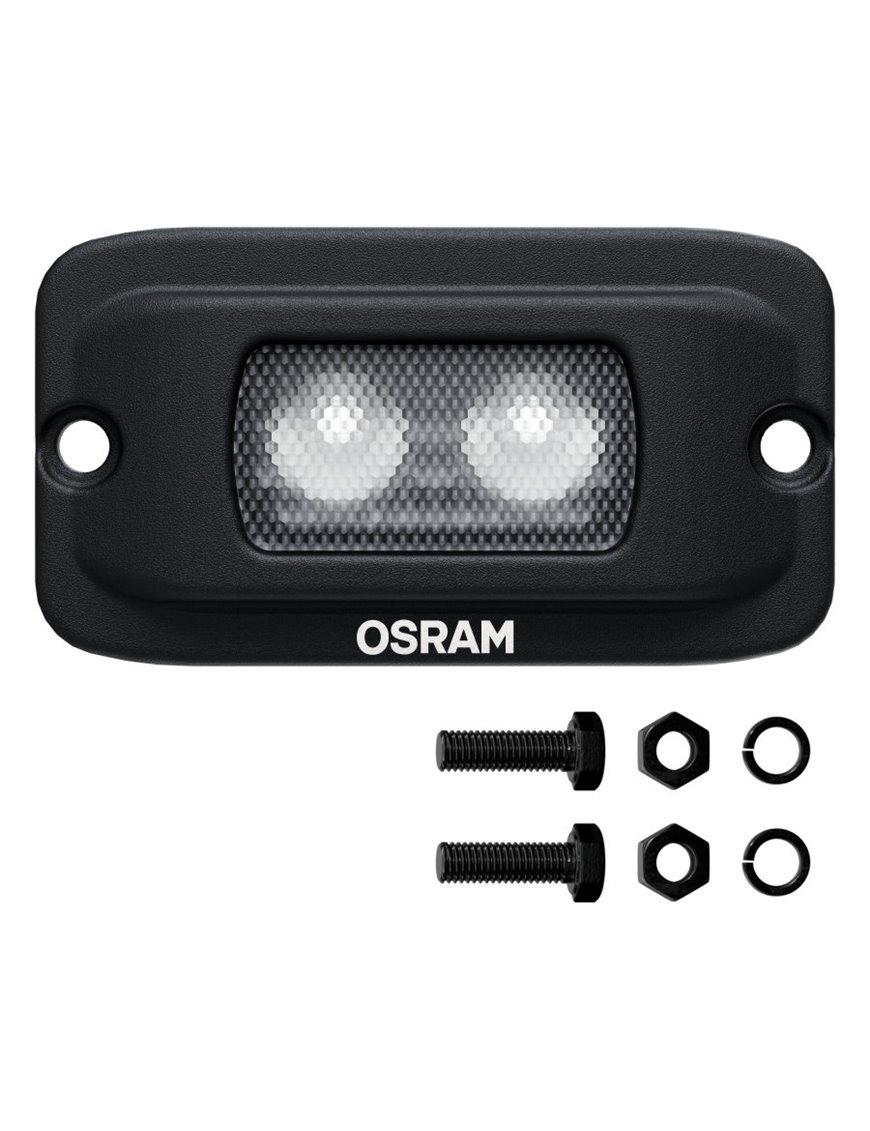

- 1 x OSRAM LEDriving Flush Mount WL VX100-FL LED work light
Important information
This is an additional work light intended for off-road and work-use applications. Before installation, check local regulations and your vehicle specification.
