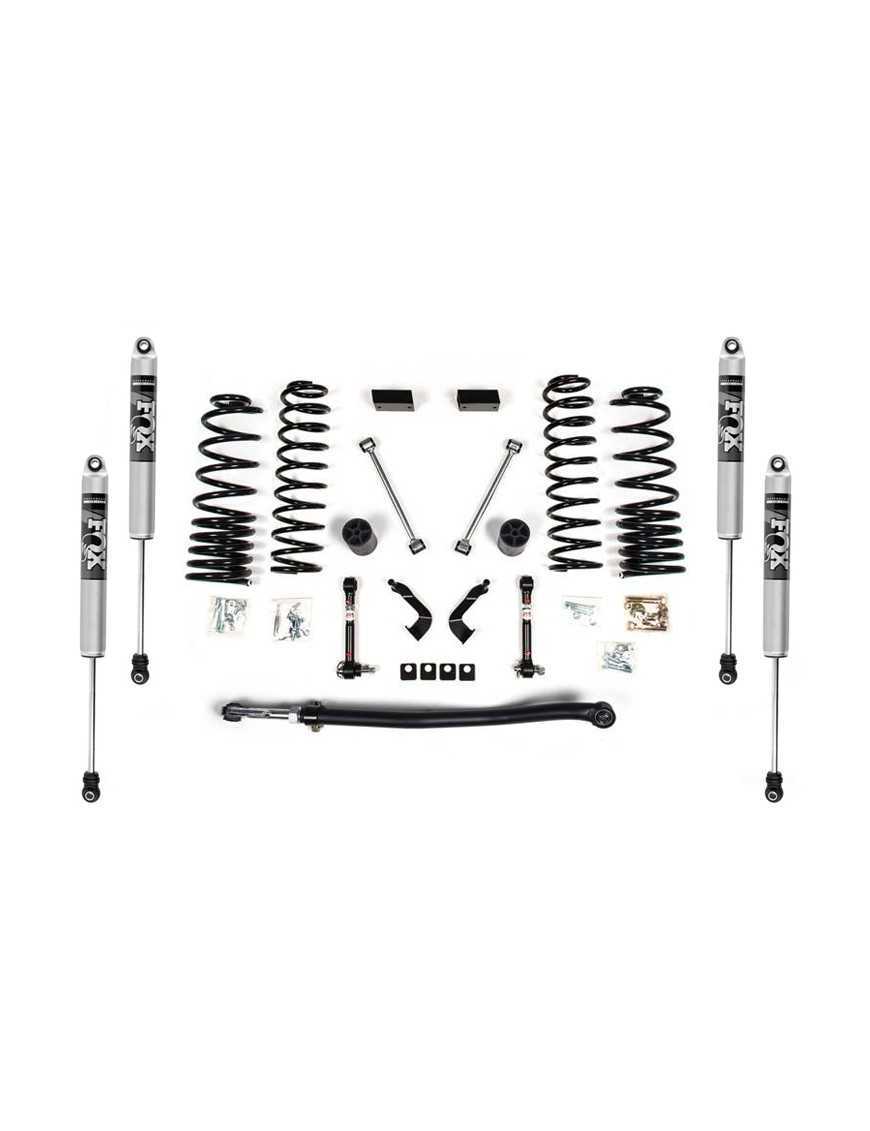

Suspension Kit BDS Lift 3-3.5"

• Professional set, tailored to the car
• Improves handling
• Adapted to both road and off-road conditions
• Improves car behavior

Shock absorber specifications:

• Precision-extruded body made of anodized aluminum 6061-T6
• Rust and external factors resistant finish
• Mono-Tube construction with an additional movable piston ensures excellent separation of oil from high-pressure nitrogen
• Nitrile rubber bushings provide quiet shock absorber operation
• Machined anodized aluminum 6061-T6 components
• 5/8" diameter shaft made of hot-rolled steel
• High-performance piston, increased oil flow
• Triple sealing system
• Technologically advanced JM92 suspension oil providing high performance in various temperatures

Maximum wheel size:

• 33x12.50 17x8 - Sport factory models
• 35x12.50 17x8 - 4.5-5" Sport models, may cause rubbing
• 37x12.50 17x8 - Rubicon factory
• 37x12.50 17x8 - 4.5-5" Rubicon, may cause rubbing

Front shock absorber dimensions:

• Extended shock absorber: 26.42"
• Compressed shock absorber: 16.80"
• Working range: 9.62"

Front shock absorber mountings:

• Upper mounting: eye
• Lower mounting: eye

Rear shock absorber dimensions:

• Extended shock absorber: 26.92"
• Compressed shock absorber: 16.80"
• Working range: 10.12"

Rear shock absorber mountings:

• Upper mounting: eye
• Lower
