Body Lift Grand Vitara II 2005-2014

Body lift for Suzuki Grand Vitara II 2005-2014

This body lift kit is designed for Suzuki Grand Vitara II models from 2005 to 2014. It is intended for vehicles built with a lift over 2 inches. Its role is to help reduce unfavorable control arm and CV axle working angles after the vehicle has been lifted, which is especially important in off-road builds and setups running larger tires.

Key features

• designed for Suzuki Grand Vitara II 2005-2014,
• suitable for builds with lifts over 2",
• helps reduce excessive control arm and CV axle angles,
• includes components for both front and rear,
• also includes parts related to the radiator and gearbox crossmember,
• product code / reference: BLGVII.

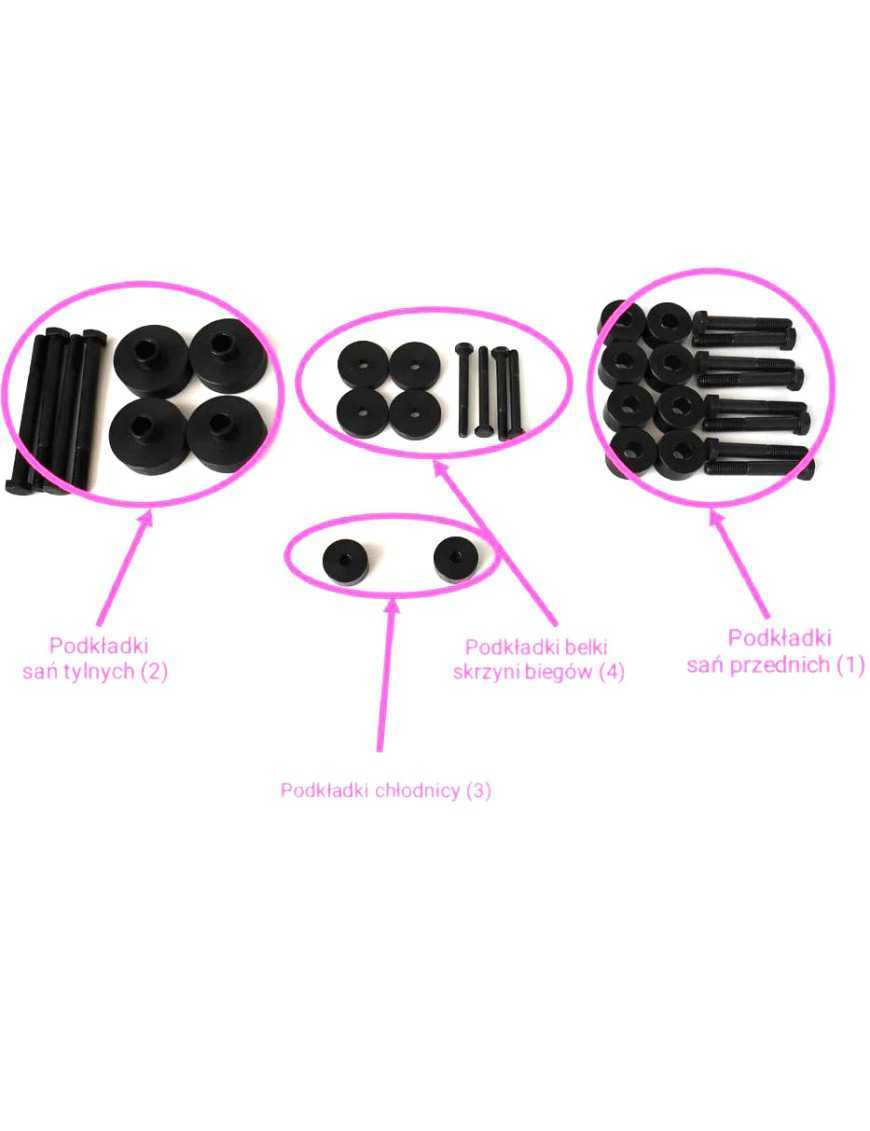

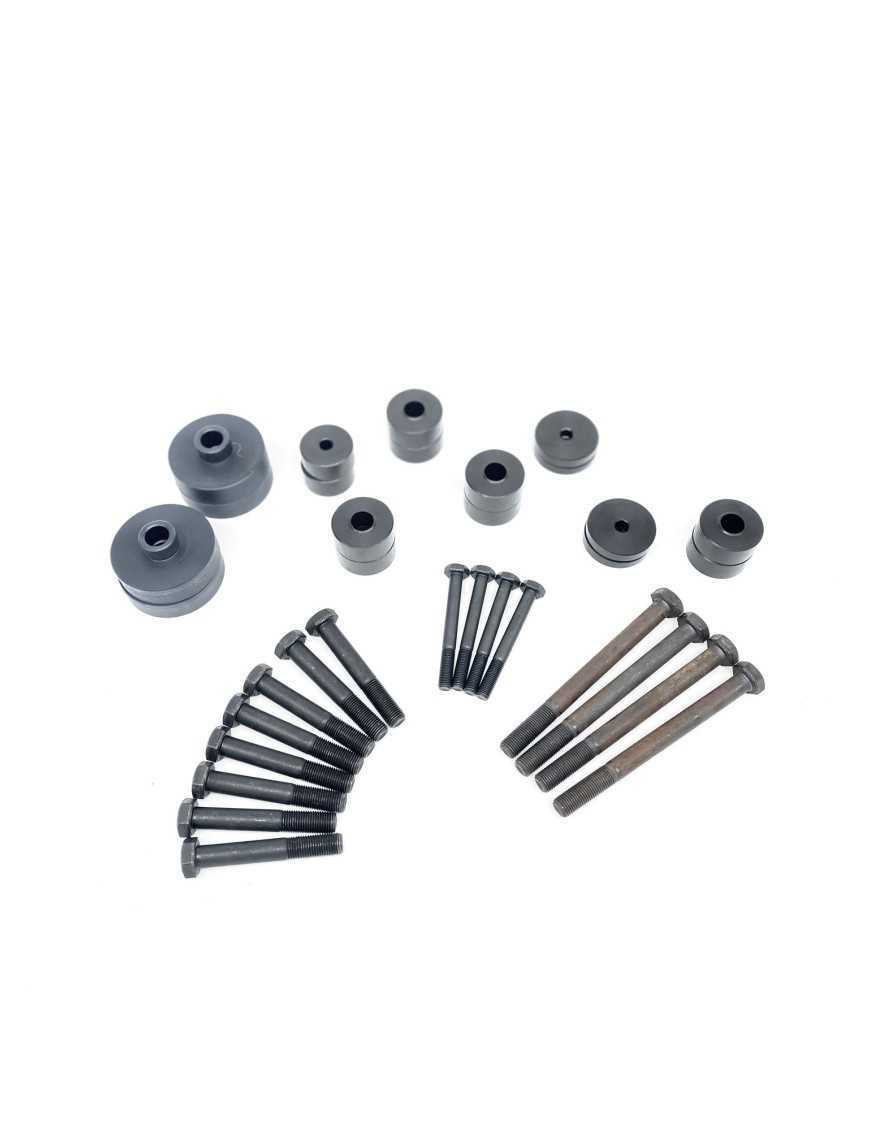

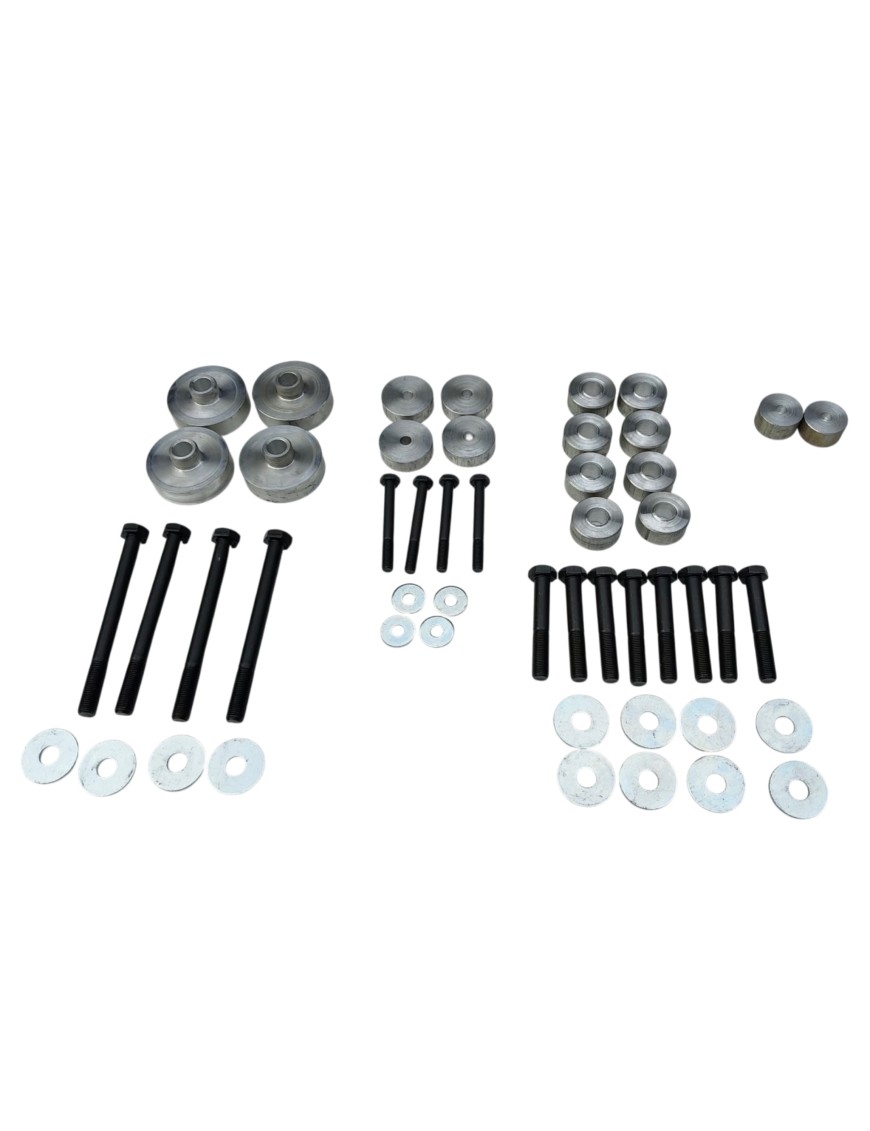

What is included?

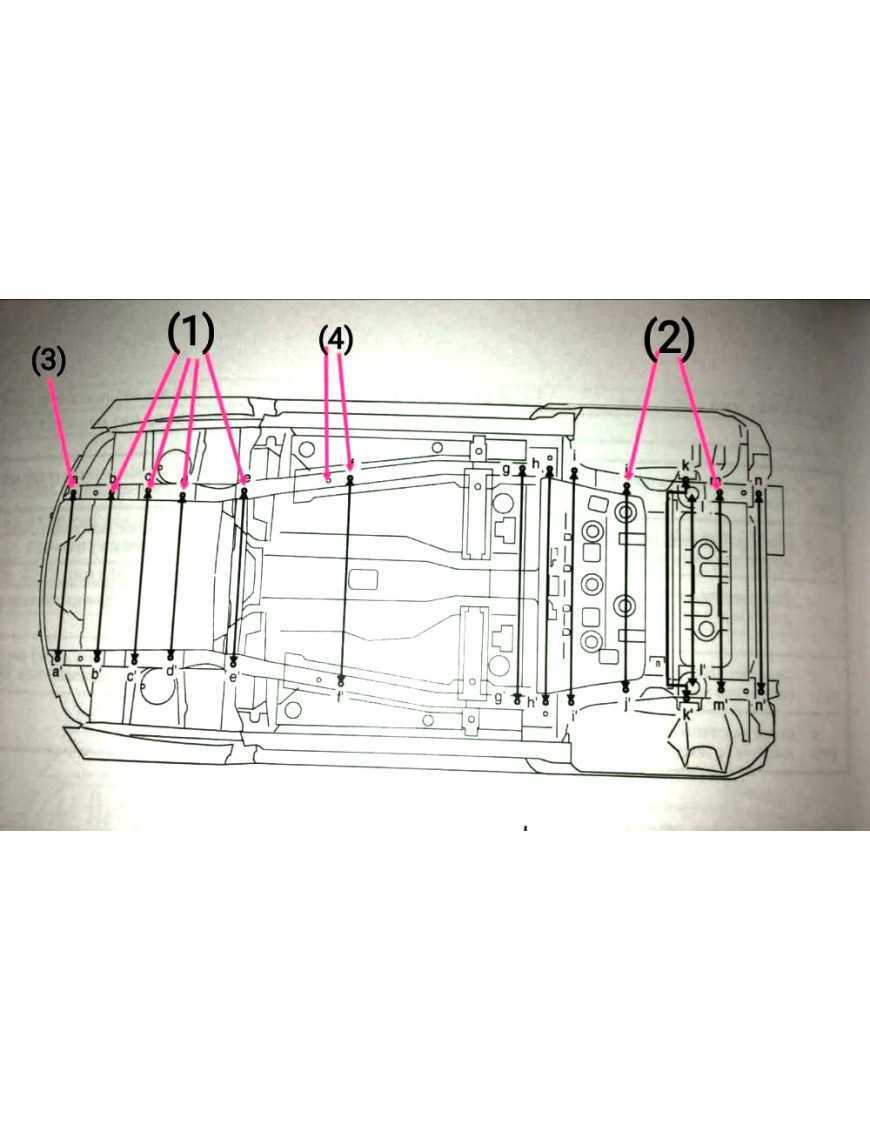

• 8 spacers and 8 bolts for lowering the front subframe, mounted between the frame and the subframe,
• 4 spacers and 4 bolts for lowering the rear subframe, mounted between the frame and the subframe,
• 2 spacers for raising the radiator, mounted between the subframe and the engine radiator,
• 4 spacers and 4 bolts for lowering the gearbox crossmember, mounted between the frame and the gearbox crossmember.

Who is it for?

This kit is a good choice for Grand Vitara II owners building their vehicle for more demanding off-road use and looking for a more technically balanced suspension setup. It is especially useful when ground clearance, geometry control and overall durability matter in an off-road project.

Compatibility

The final result may vary depending on vehicle configuration and the other suspension components used.
