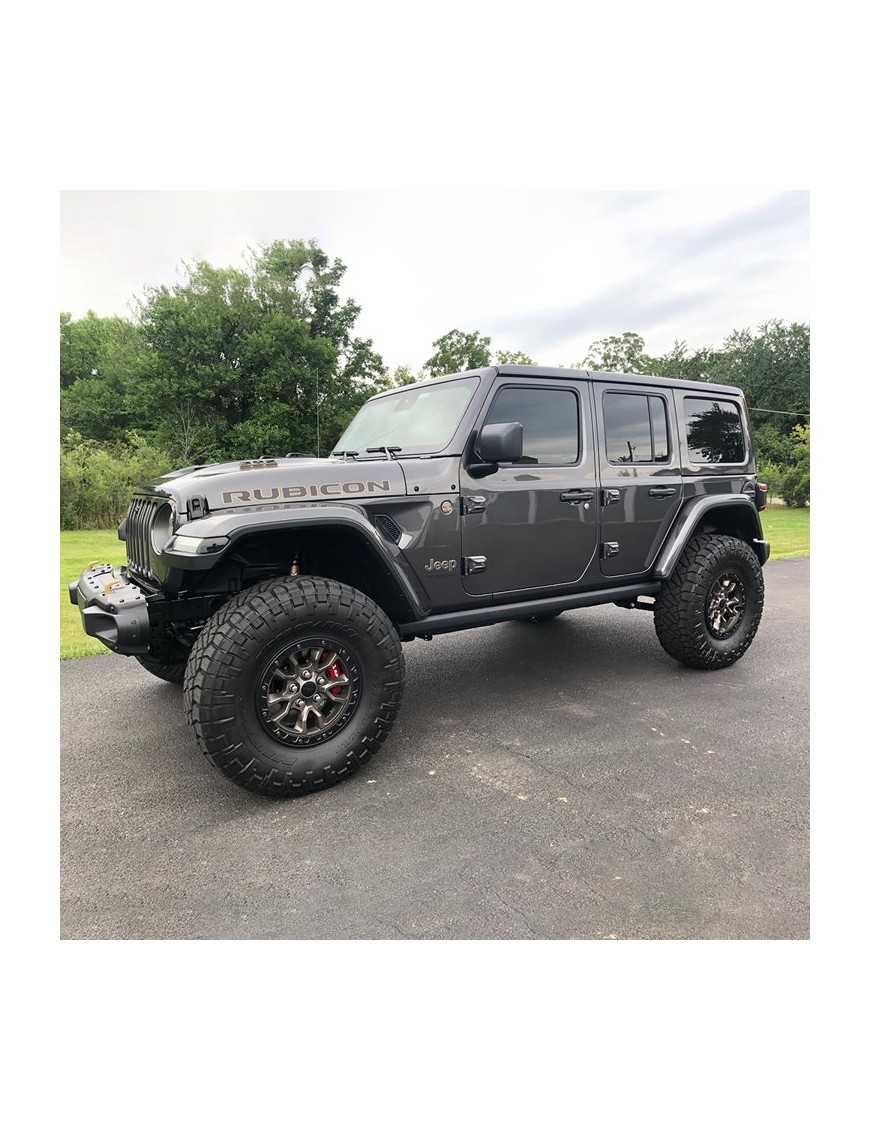

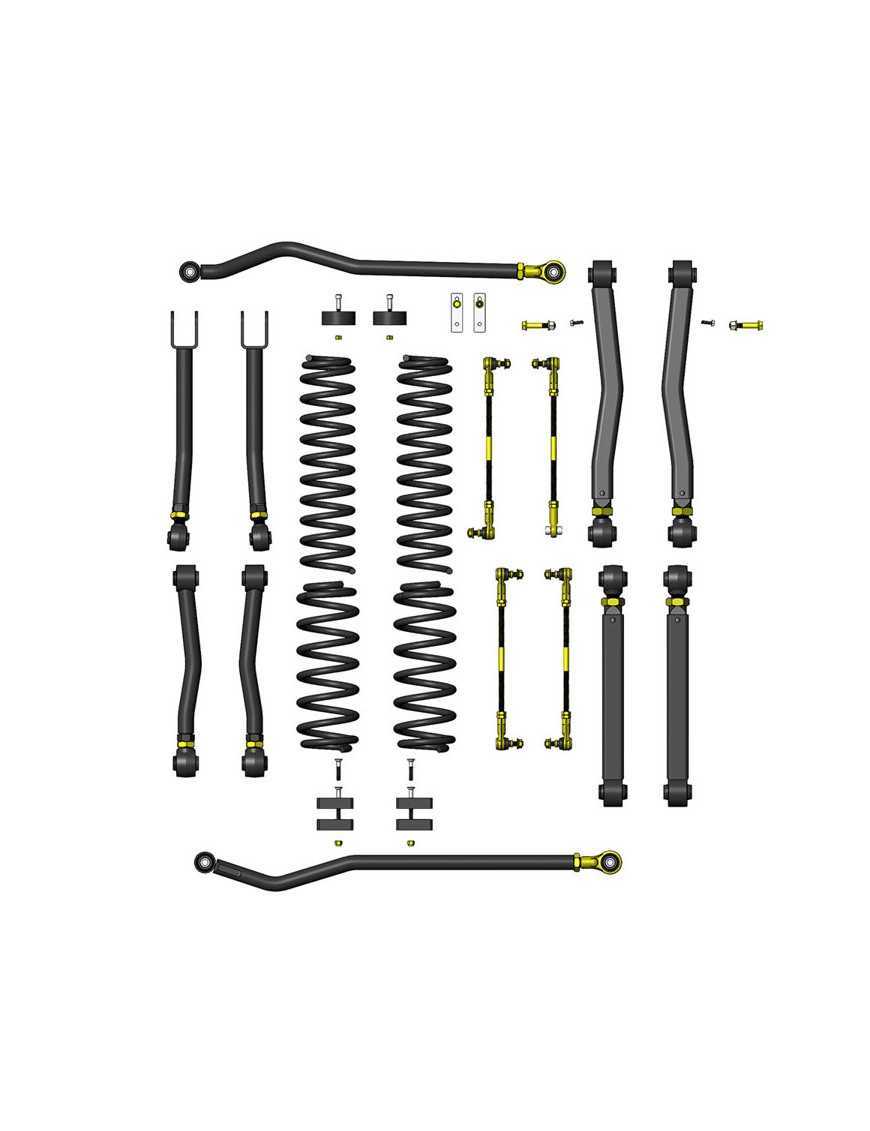

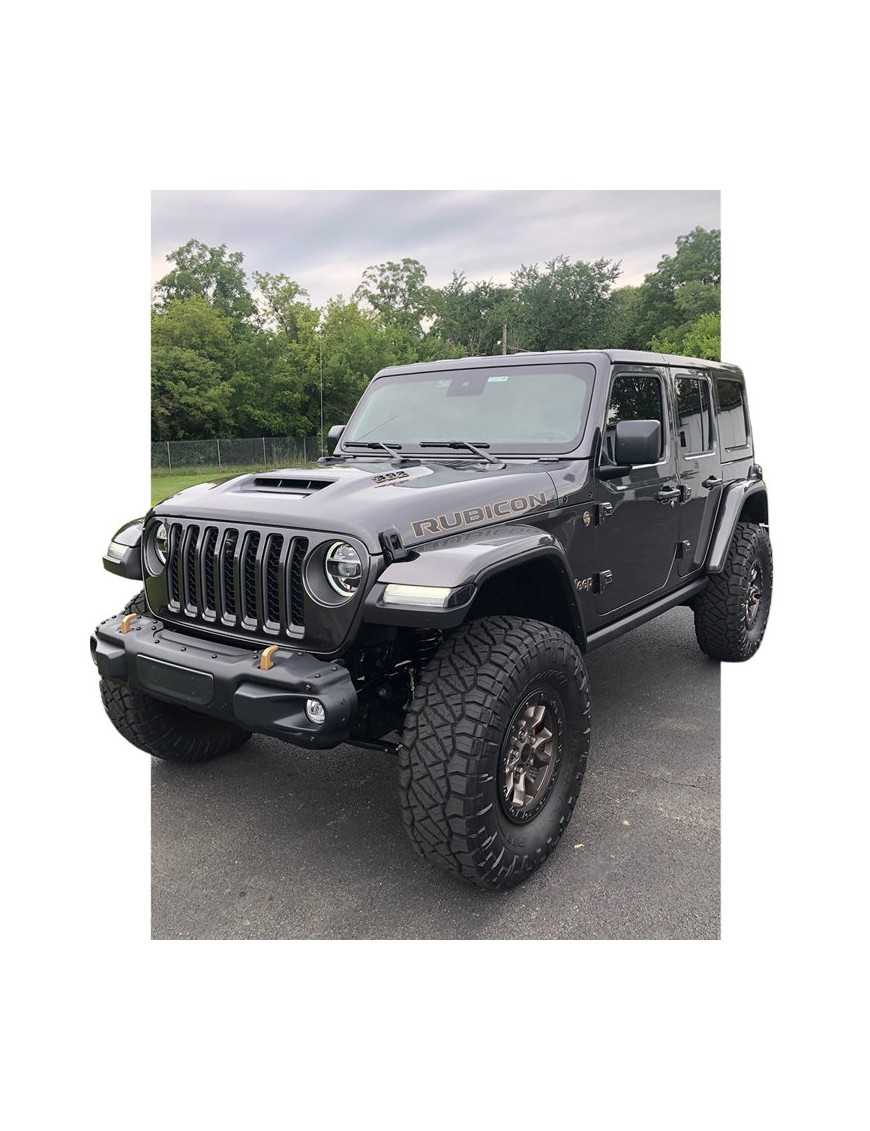

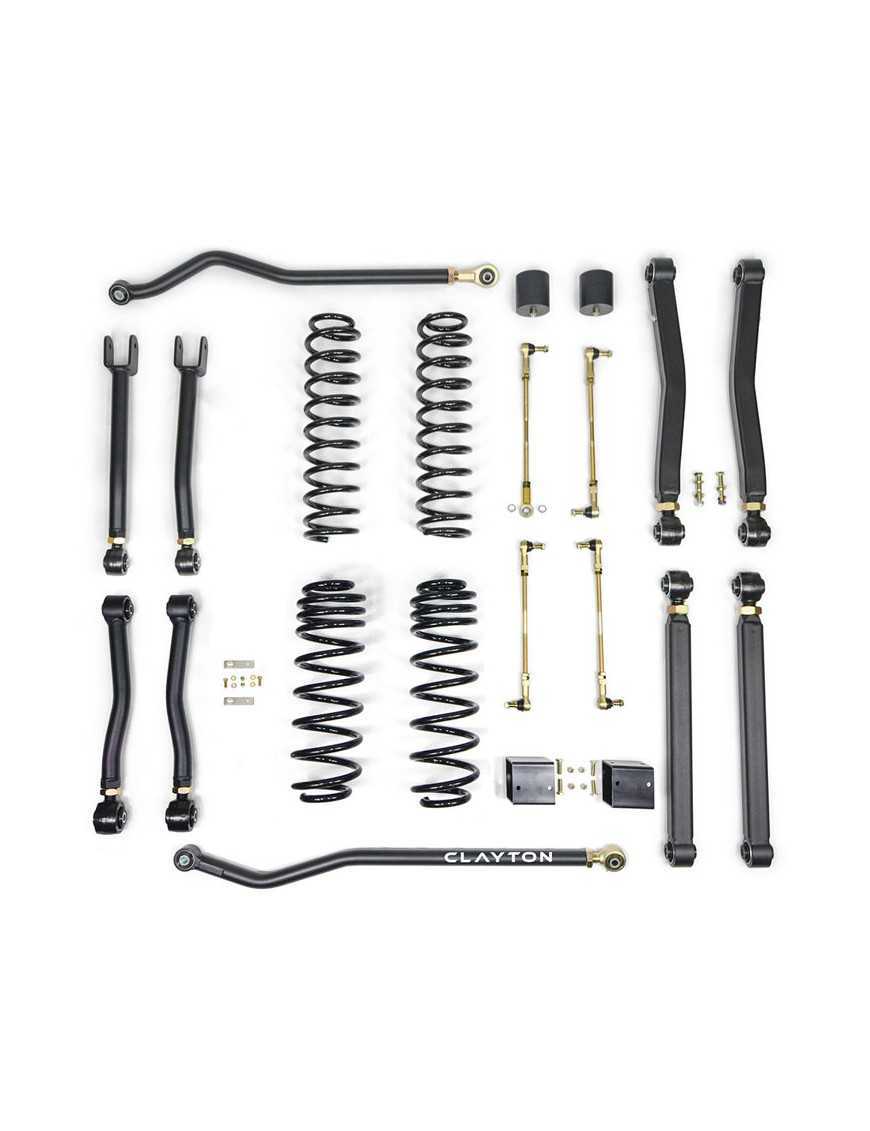

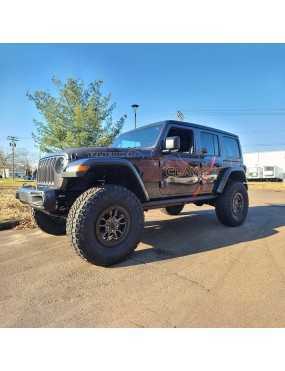

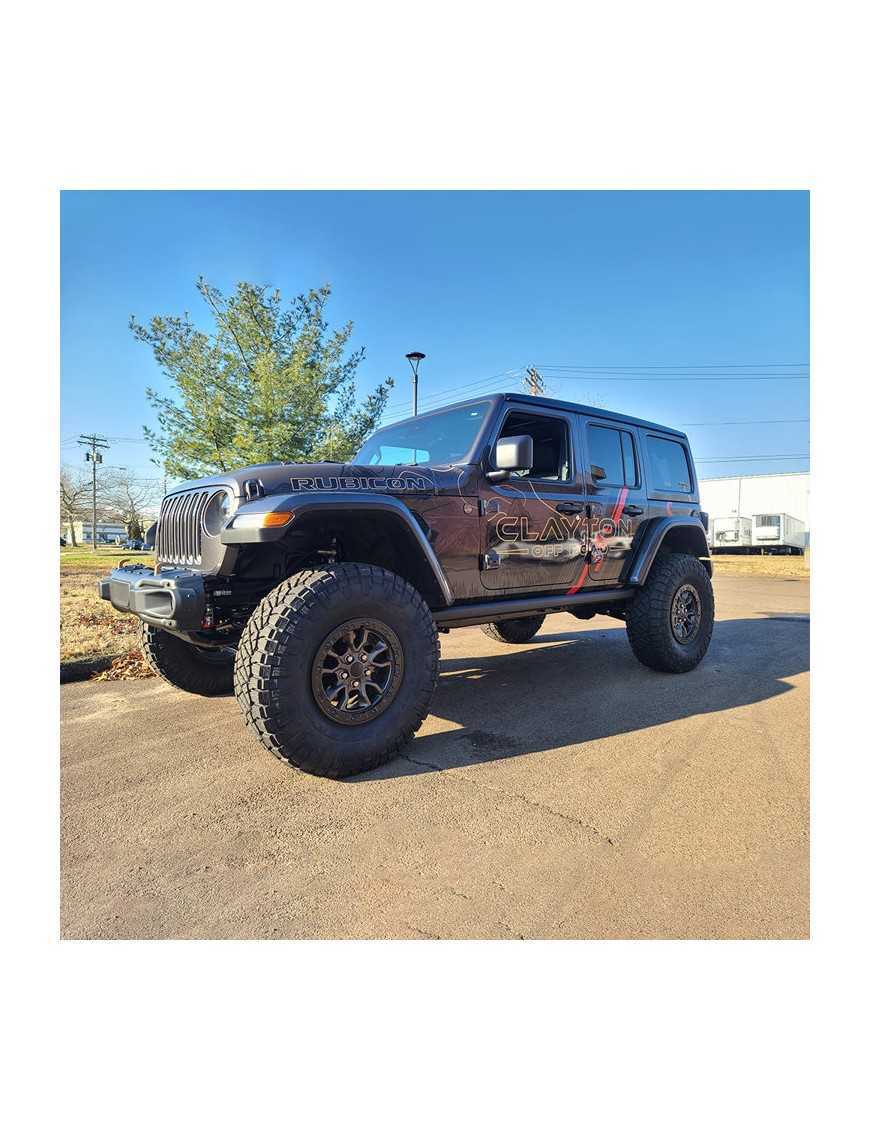

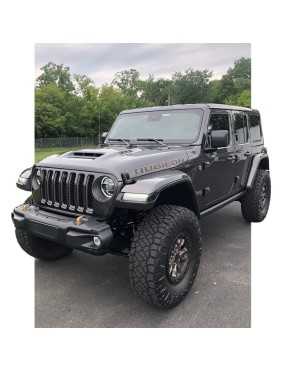

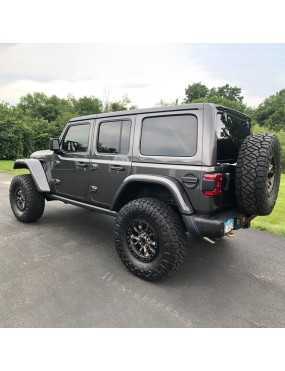

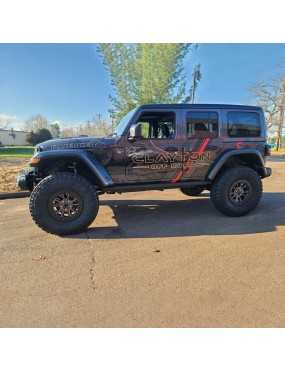

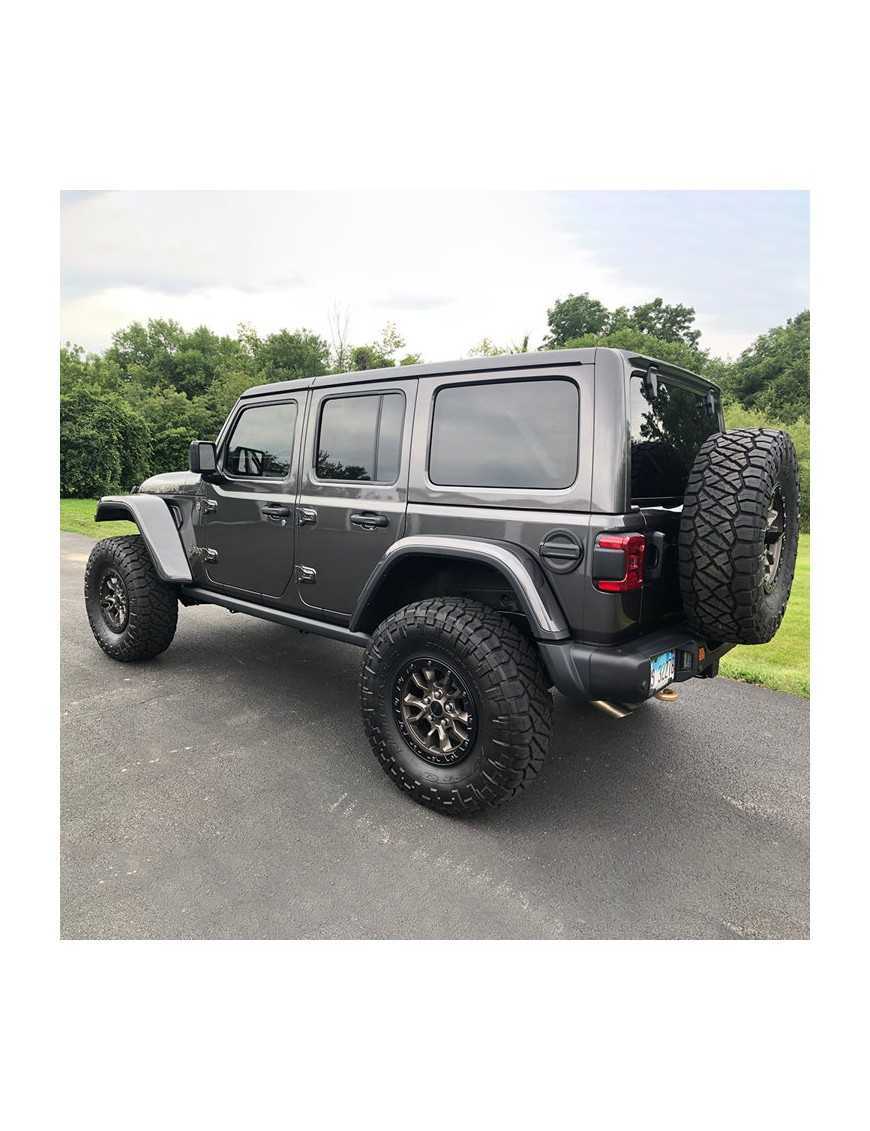

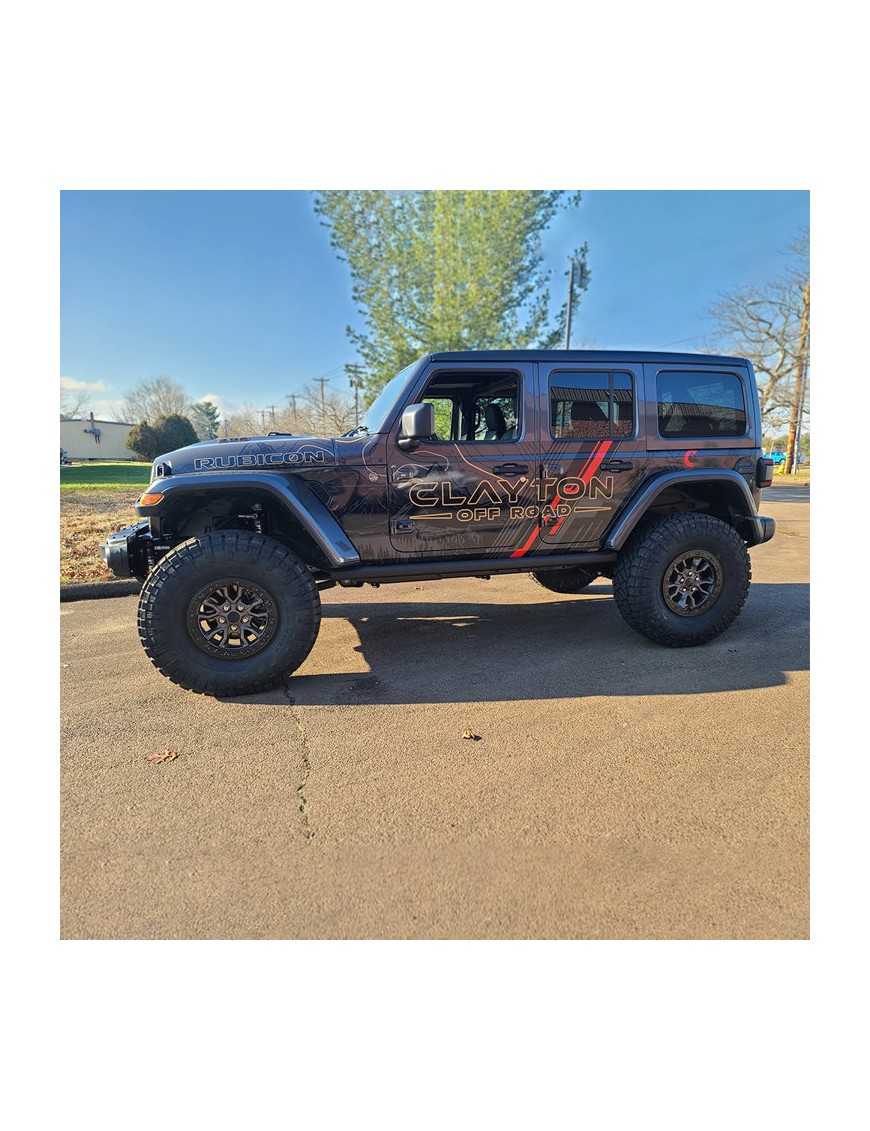

Clayton Off Road Overland 392 Lift 3.5" Suspension Kit

• Made in the USA
• Extremely durable materials
• Provides smooth and excellent handling on asphalt
• Increases ground clearance, gives an aggressive look
• Easy installation

Overland+ Control Arm Specification:

• Overland+ Series
• Giiro bushings ensure quiet operation
• Control arms are bent to provide space for the wheel

Spring Specification:

• Excellent ride comfort on paved roads
• Increased spring travel range
• Remain in mounting sockets even at maximum articulation
• Perfectly withstand additional loads (steel bumpers, winches)
• Ideal for overcoming the toughest off-road obstacles
• Durable suspension lift - does not alter parameters and lift during use

Front Lower Control Arm Dimensions:

• Factory length (center to center): 24.000"
• Minimum length (center to center): 23.9375"
• Maximum length (center to center): 24.880"

Front Upper Control Arm Dimensions:

• Factory length (center to center): 20.1875"
• Minimum length (center to center): 19.750"
• Maximum length (center to center): 21.125"

Rear Lower Control Arm Dimensions:

• Factory length (center to center): 19.764"
• Minimum length (center to center): 19.686"
• Maximum length (center to center): 20.566"

Rear Upper Control Arm Dimensions:

• Factory length (center to center): 17.425"
• Minimum length (center to center): 17.290"
•
