Base kit TeraFlex Lift 4.5"

• Lift height: 4.5"
• Allows for mounting larger tires
• Improves off-road driving properties
• Increases ground clearance

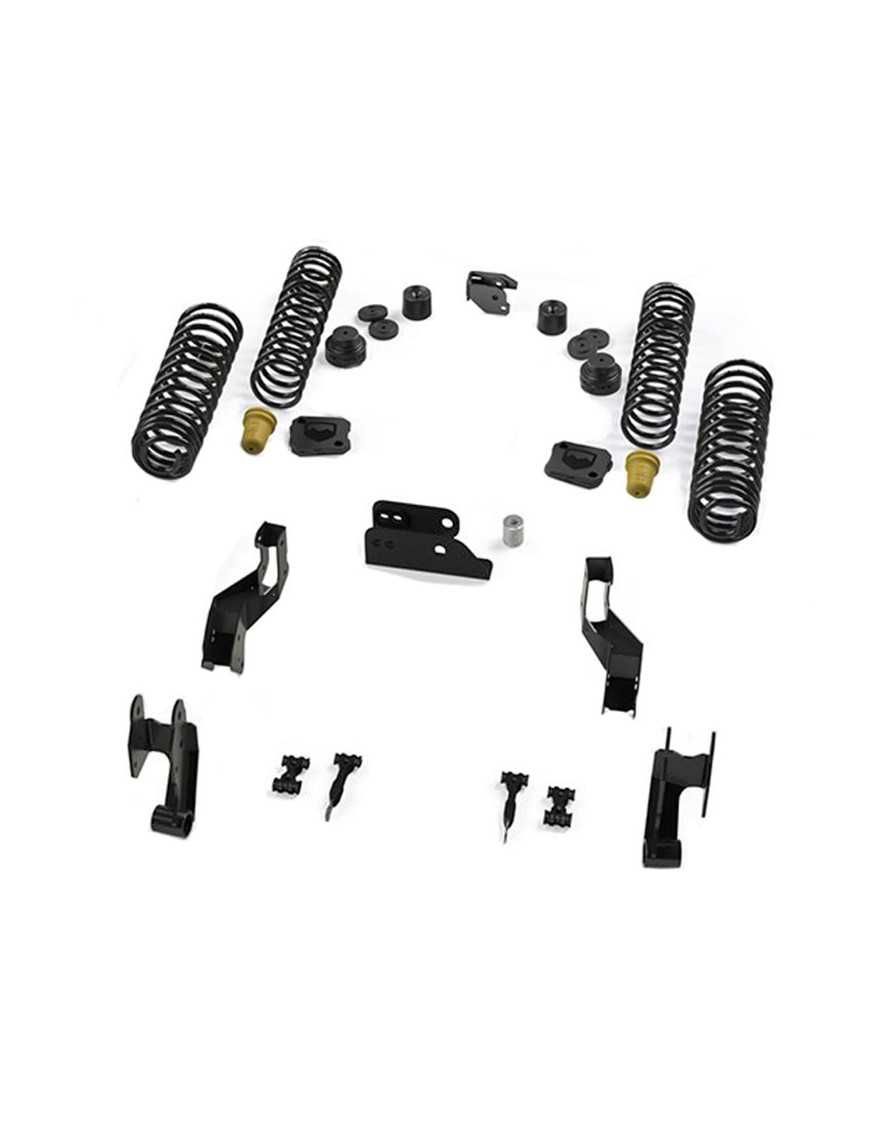

Included in the kit:

• (2) Front coil springs
• Front Panhard bar relocation bracket
• Front control arm relocation bracket
• (2) Rear coil springs
• Rear Panhard bar relocation bracket
• Progressive rear bump stops
• Front and rear bump stop pads
• Brake line relocation brackets
• Mounting hardware kit

Notes:

• Requires the use of adjustable control arms (sold separately)
• Requires the use of extended front bump stops (sold separately)
• Requires the use of extended sway bar links (sold separately)
• Requires aftermarket wheels with 4.75" backspacing or less or the use of TX1057000 spacers (sold separately)
• Models with plastic bumpers require removal of the wind deflector to fit 35" or larger tires
• Requires wheel alignment
• Requires longer shocks, we recommend using TeraFlex or Fox shocks
• For vehicles equipped with a diesel engine, the front lift height will be 1" less, we recommend using TX1155100 spring spacers (sold separately)
