Suspension Kit TeraFlex Base Lift 4.5"

• Height of Lift: 4.5"
• Excellent performance on and off-road
• Reliability
• Improves handling, reduces noise and vibrations
• Progressive Falcon bump stops provide stability during fast suspension movements
• Allows for large articulation
• Easy installation

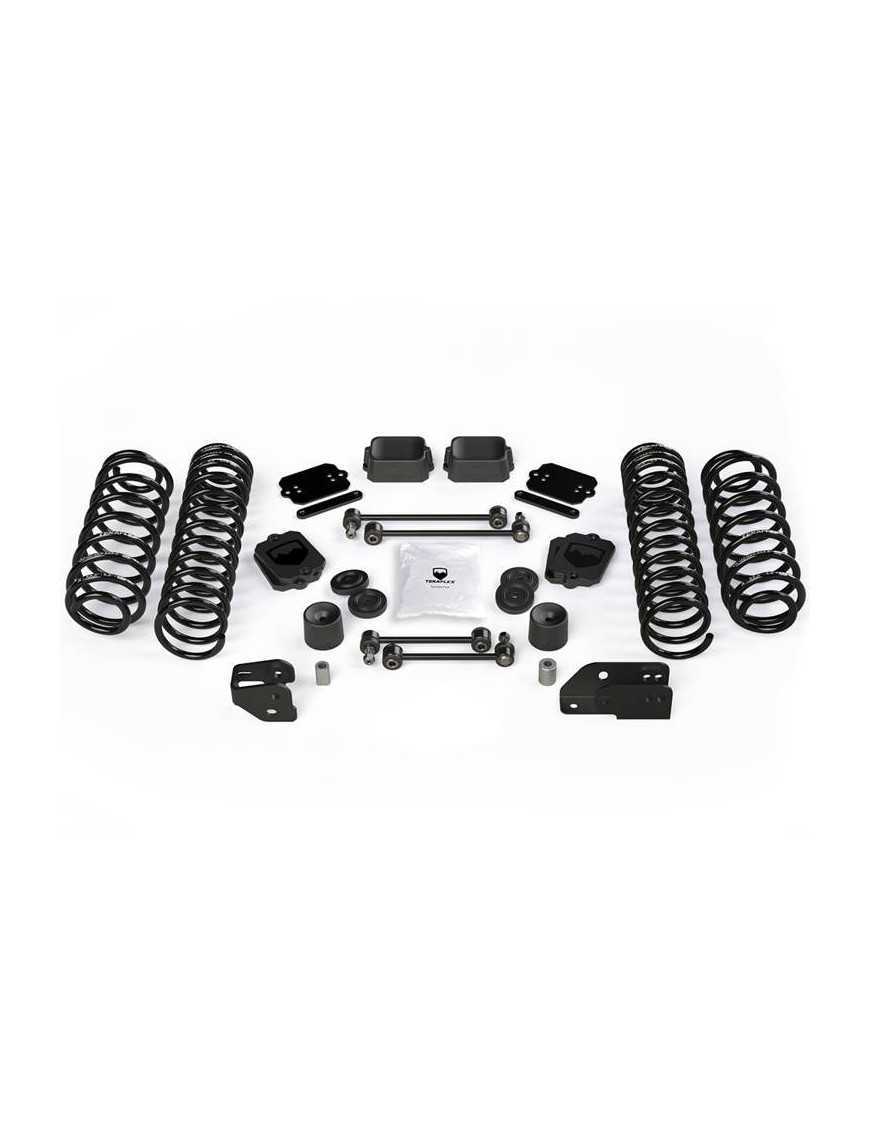

Included in the set:

• Panhard bar relocation bracket (TX1953500) front
• (2) Longer front sway bar links
• Panhard bar relocation bracket (TX1953600) rear
• (2) Longer rear sway bar links
• 4.5" front and rear coil springs
• 2" bump stop spacers set (TX1959500) front and rear
• 0.5" bump stop spacers set (TX1959300) front and rear
• Mounting kit

Maximum wheel size:

• 35" : Sport | Sahara with 3" front bump stops and 2.5" rear bump stops
• 37" : Sport | Sahara with 3.5" front bump stops and 4" rear bump stops
• 37" : Rubicon with 2.5" front bump stops and 3" rear bump stops

Notes:

• Requires wheels with 4.75'' backspacing or less, or wheel spacers for factory wheels
• Models with plastic bumpers require removal of the wind deflector to fit 35" tires
• For Sport | Sahara version with 35'' tires, extended bump stop spacers are required: 0.5'' front and 0.5'' rear
• For Sport | Sahara version with 37'' tires, a set of 0.5'' bump stop spacers for front and rear is required TX1959300 (sold separately)
• For Rubicon version with
