Suspension Kit TeraFlex Alpine CT3 Short Arm Lift 3.5"

• Increases ground clearance
• Allows for mounting larger wheels
• Improves handling, reduces noise and vibrations
• Enhances steering system responsiveness
• Provides full range of motion

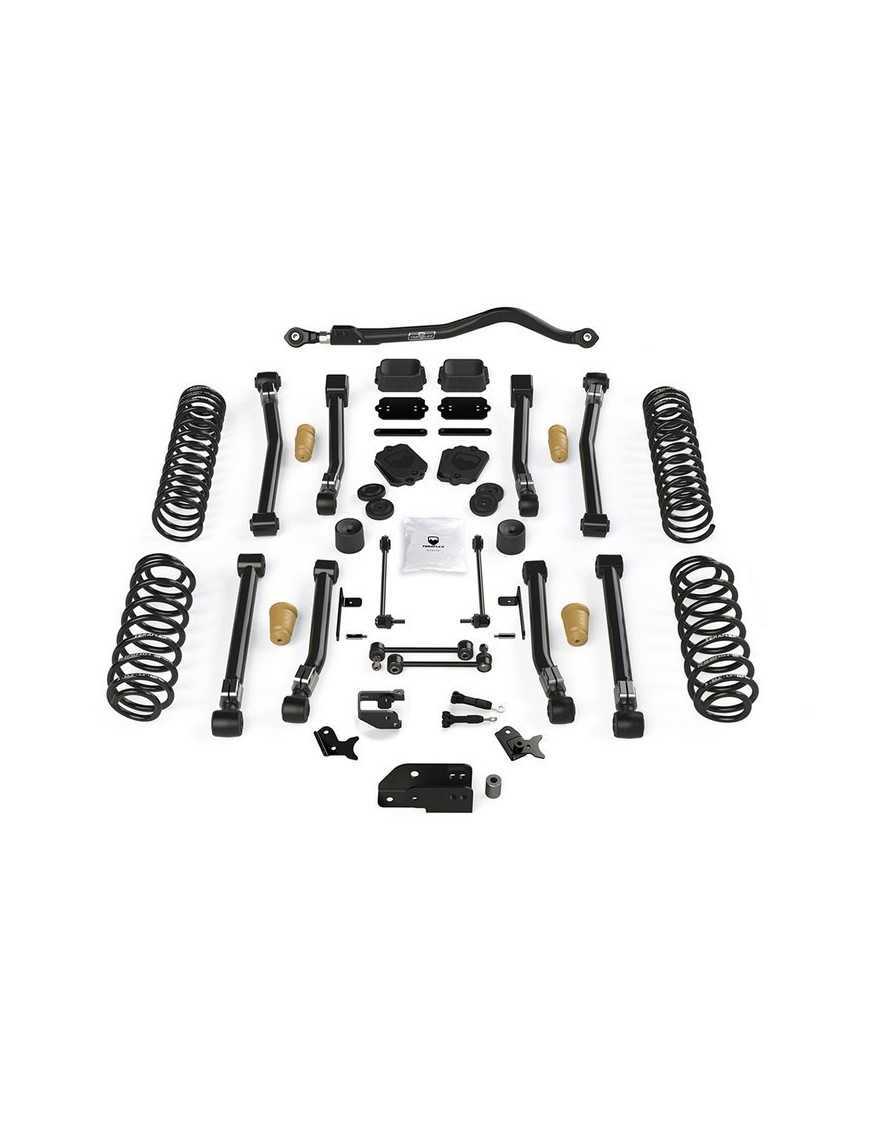

Included in the set:

• (2) 3.5" front lift springs
• Front forged Panhard rod
• Front Panhard rod relocation bracket
• Front progressive bump stops
• Front disconnect sway bar links
• Front brake line anchor kit
• Rear sway bar links
• Rear bump stop extensions
• Rear progressive bump stops
• Rear Panhard rod relocation bracket
• (2) 3.5" rear lift springs
• 0.5" front and rear bump stop spacers
• Alpine control arms
• Mounting kit

Notes:

• Requires aftermarket wheels with 4.75" backspacing or less or use of TX1057000 spacers (sold separately)
• Models with plastic bumpers require removal of wind deflector to fit 35" or larger tires
• Sport/Sahara models require 3" front bump stop and 2.5" rear bump stop to fit 35" tires
• Rubicon models require 2" front bump stop and 2" rear bump stop to fit 35" tires
• Rubicon models require 2.5" front bump stop and 3" rear bump stop to fit 37" tires
• Requires wheel alignment adjustment
