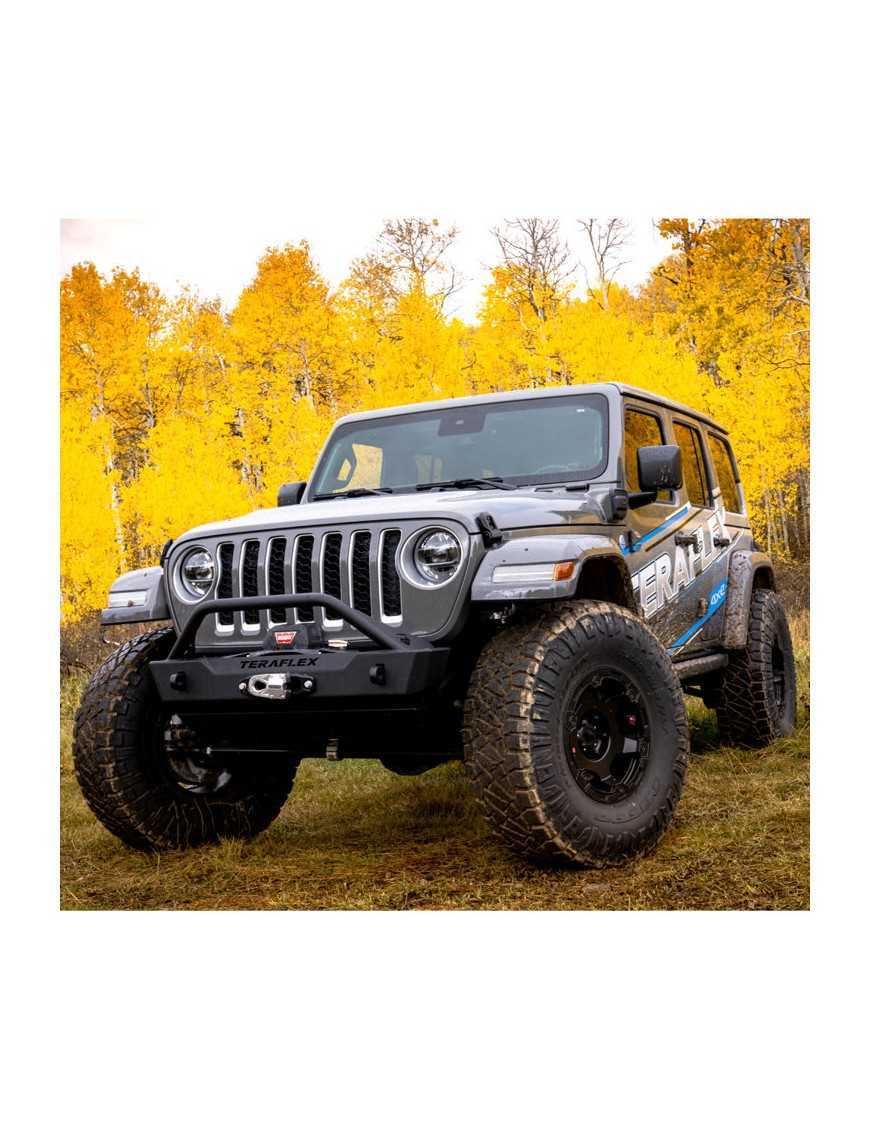

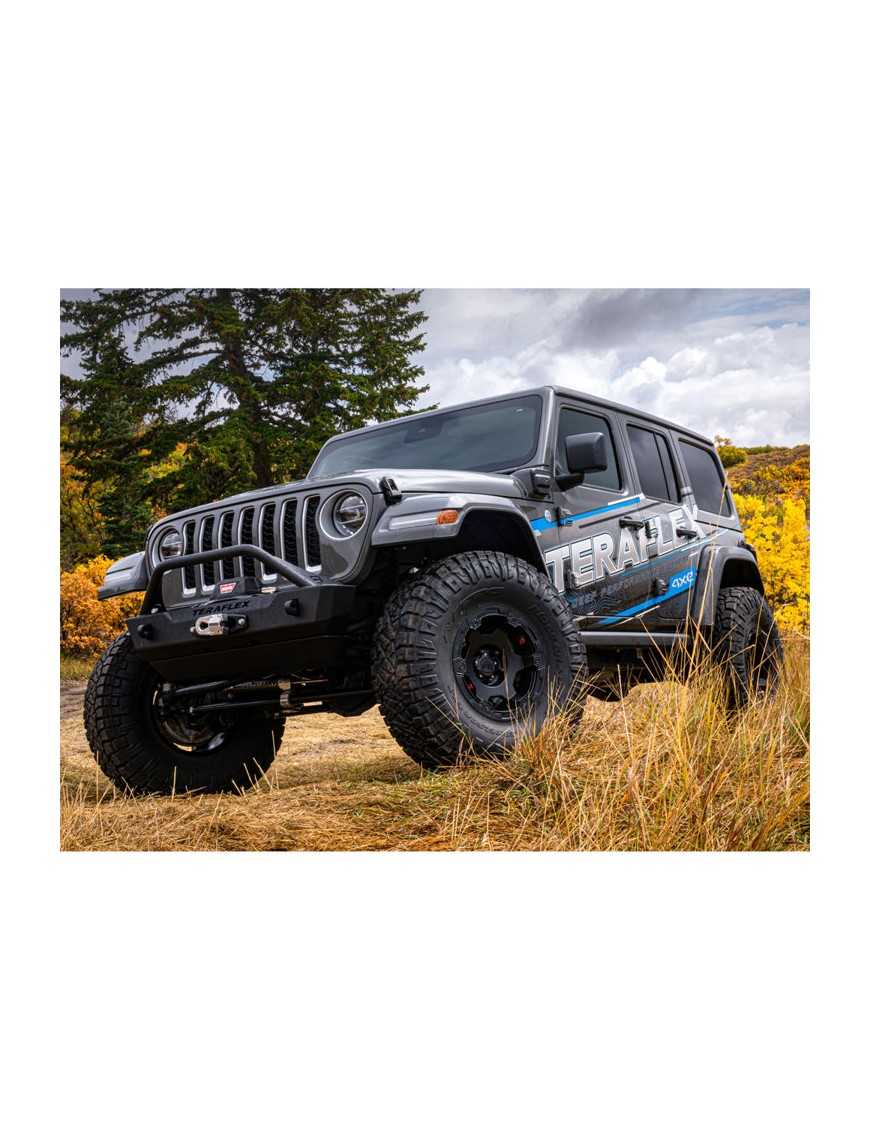

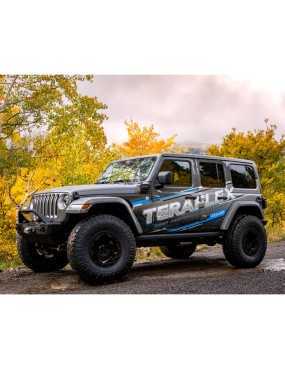

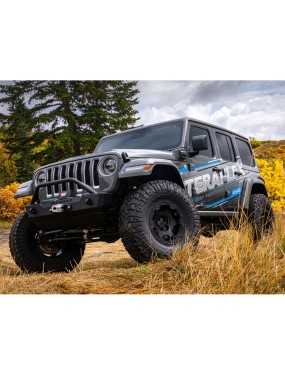

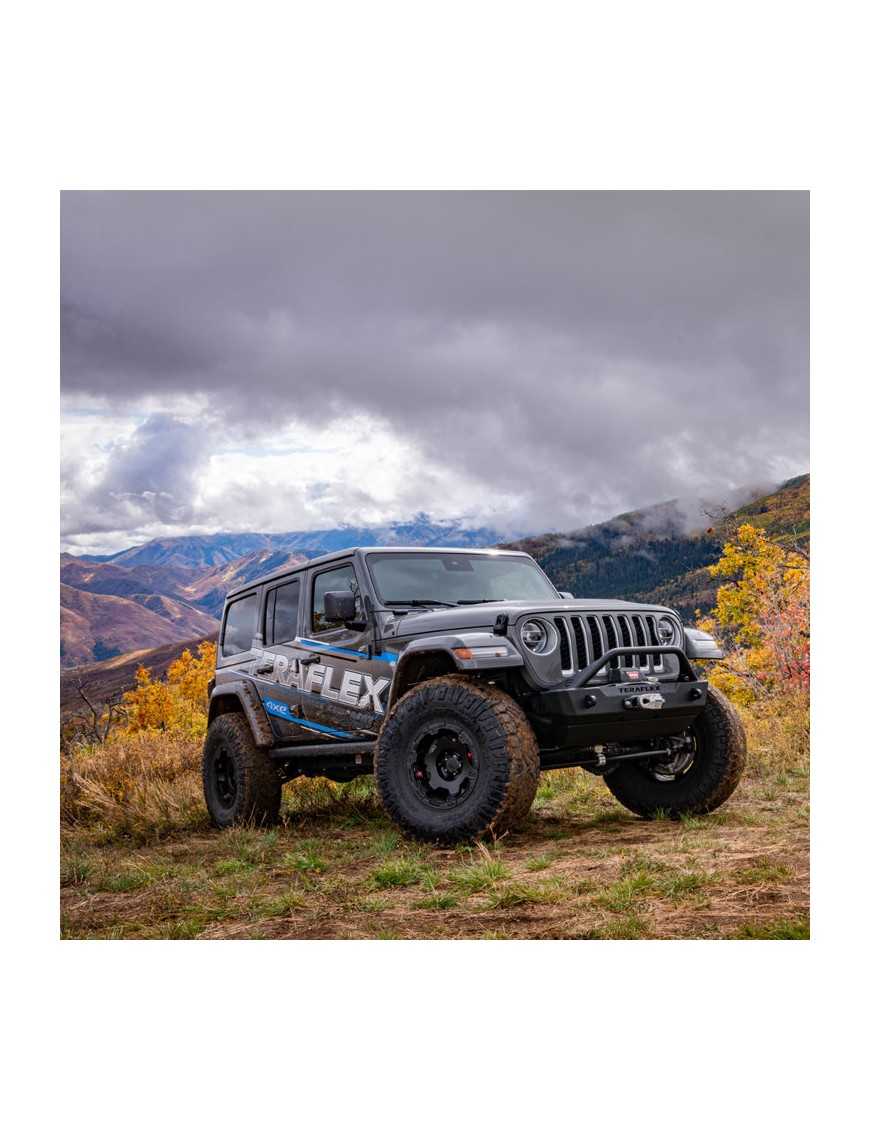

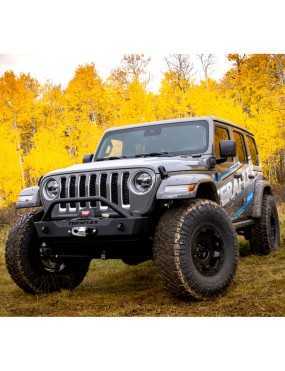

Suspension Kit TeraFlex Alpine RT3 Short Arm Lift 3.5"

• Lift height: 3.5"
• Excellent performance both on the trail and on the road
• Increased ground clearance
• Control arms equipped with IR bushings

Maximum tire size:

• 35" : Sport | Sahara | with 3" front bump stops and 2.5" rear bump stops
• 35" : Rubicon with 2" front bump stops and 2" rear bump stops
• 37" : Rubicon with 2.5" front bump stops and 3" rear bump stops

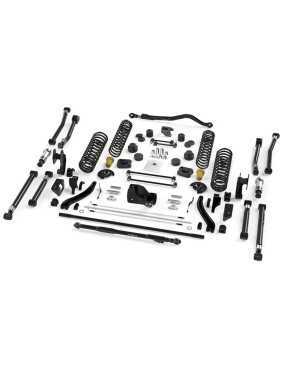

Included in the kit:

• (2) Front coil springs
• Front adjustable Alpine Panhard rod
• (2) Front disconnect sway bar links
• (2) Front upper adjustable control arms Alpine IR
• (2) Front lower adjustable control arms Alpine IR
• (2) Rear upper adjustable control arms Alpine IR
• (2) Rear lower adjustable control arms Alpine IR
• Rear reinforced adjustable Panhard rod
• (2) Extended rear sway bar links
• (2) Rear coil springs
• Rear Panhard rod relocation
• Front and rear suspension bump stops
• Mounting kit

Notes:

• Requires aftermarket wheels with 4.75" backspacing or less or the use of TX1057000 spacers (sold separately)
• Models with plastic bumpers require removal of the wind deflector to accommodate 35" or larger tires
• For Sport/Sahara models, 3" front bump stops and 2.5" rear bump stops are required to accommodate 35" tires
• For Rubicon models, 2" front bump stops and 2" rear bump stops are required to accommodate 35" tires
• For Rubicon models, 2.5" front bump stops and 3" rear bump stops are required to accommodate 37" tires
• Requires wheel alignment
• Requires longer shocks. We recommend
