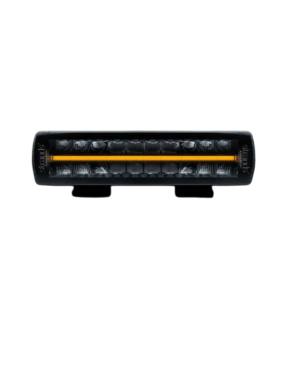

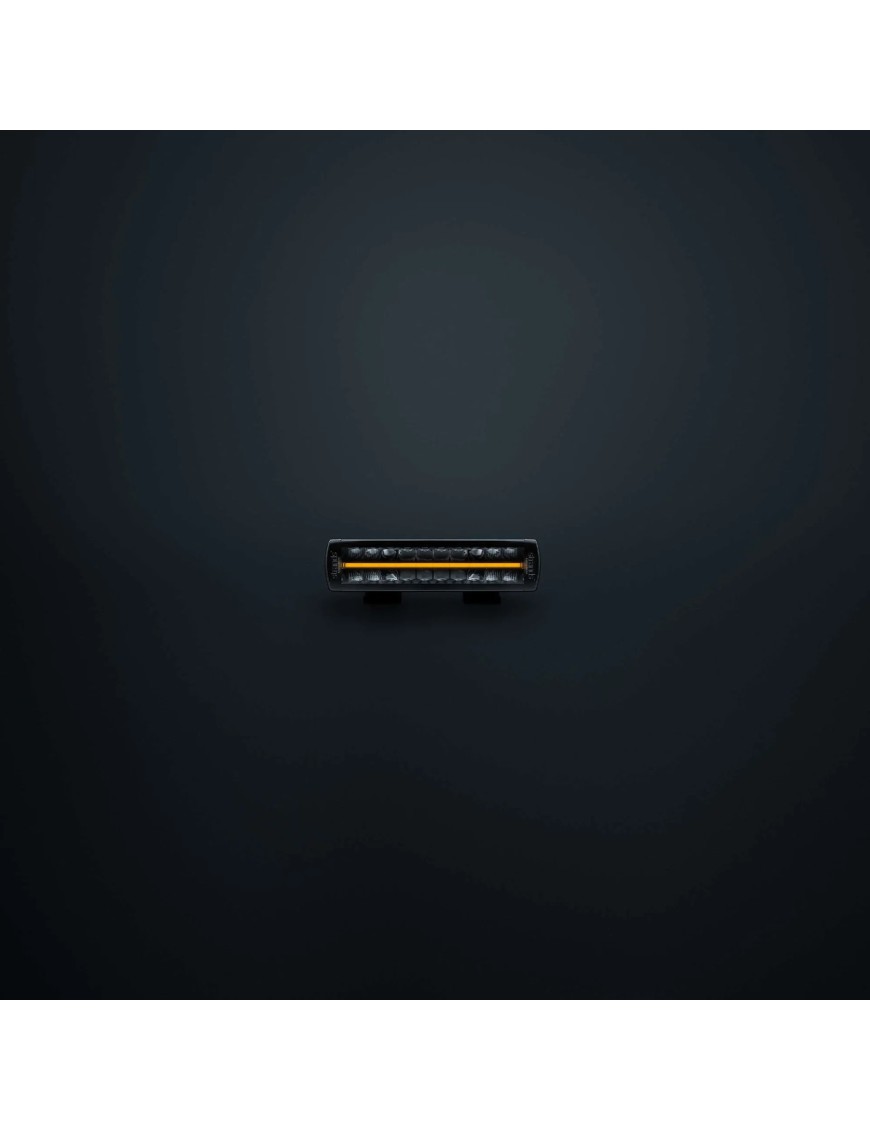

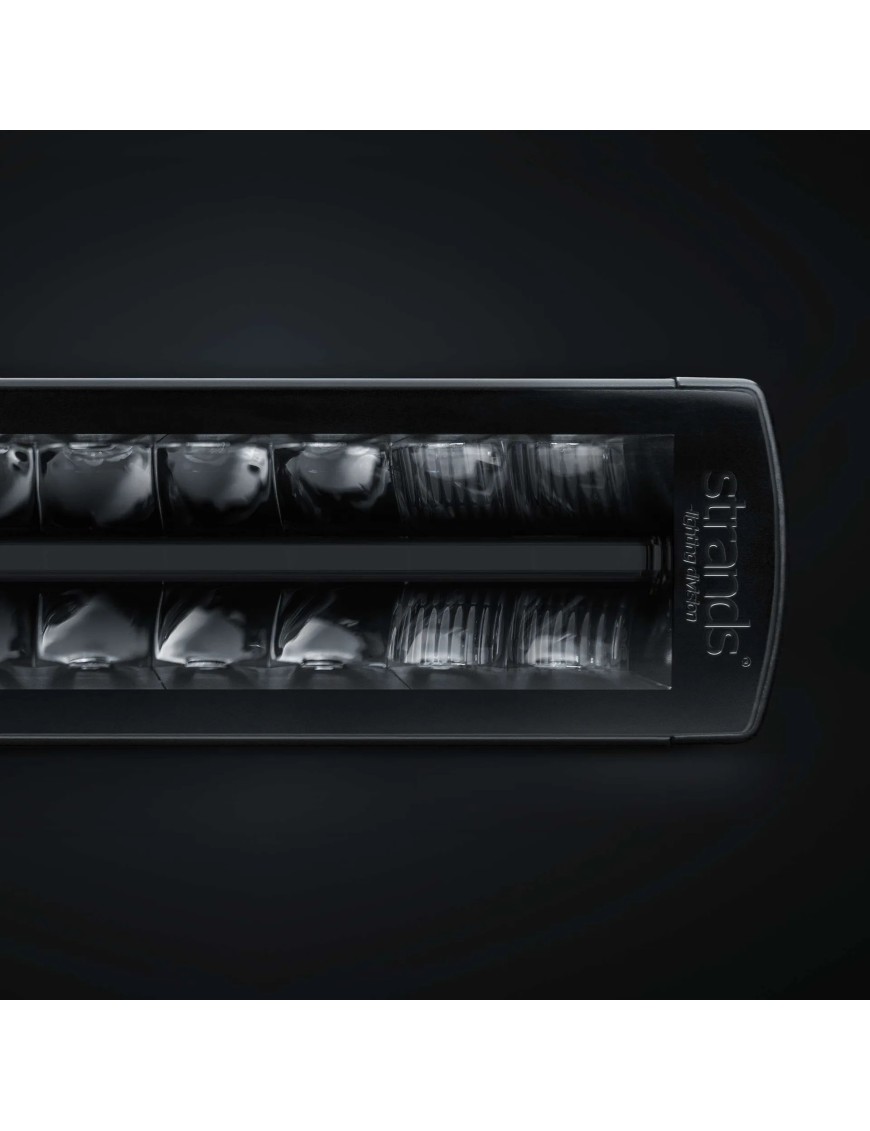

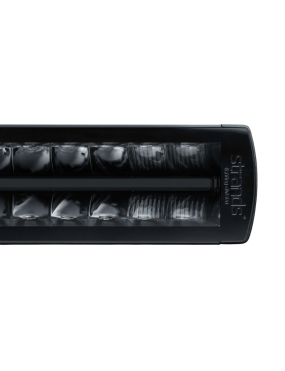

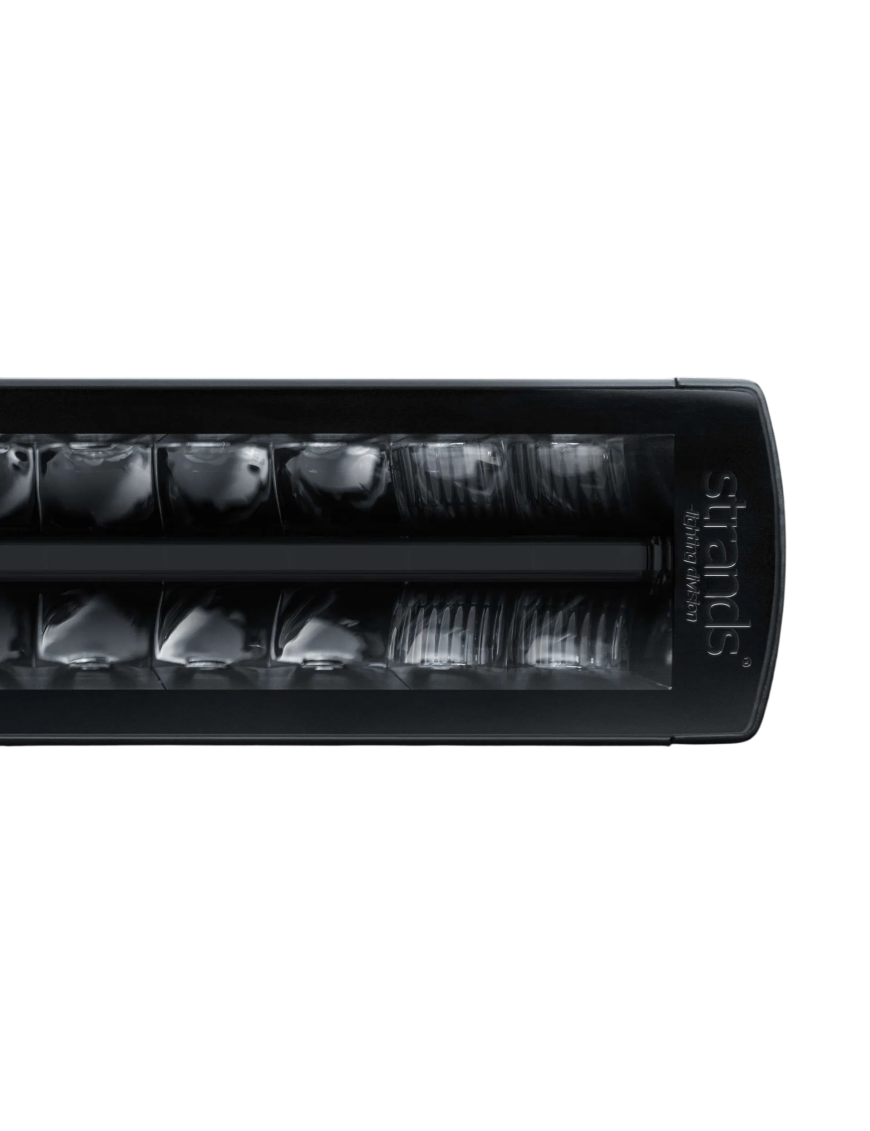

The Siberia XPA DR LED BAR 12" (SKU: 809426A) is a straight, double-row LED light bar designed for drivers who need powerful, controlled illumination in a compact form. Its Extended Beam 15.4° pattern delivers practical road coverage with strong reach, making it a great add-on for 4x4 builds, work vehicles, and expedition setups.
Two operating modes help you match the output to the situation: E-mode for compliant on-road use and Xperience mode when you want maximum performance off the beaten track. A white/amber position light adds a distinctive look and helps with visibility when parked or moving in a group. Connection is handled via a DT-4 plug and a 550 mm cable.
Key features

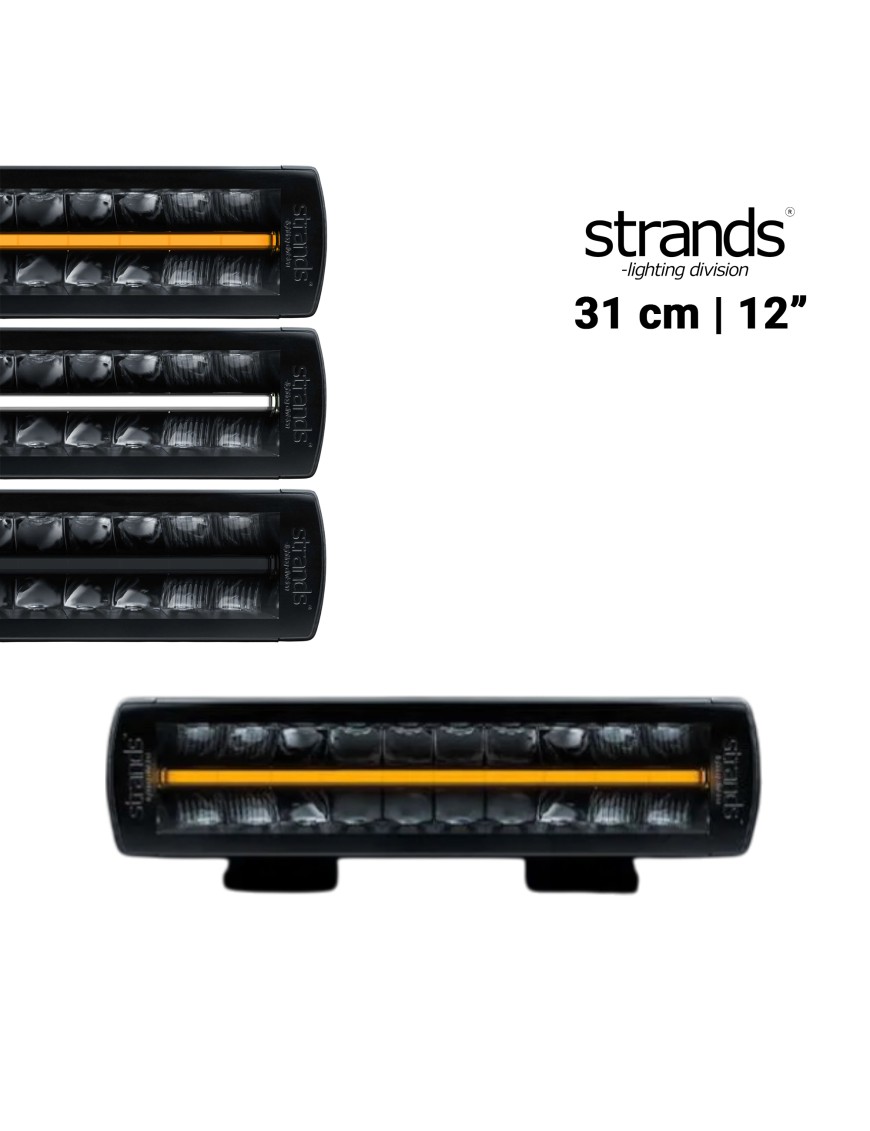

- 12" Double Row straight LED bar – compact and versatile mounting options.
- Extended Beam 15.4° for balanced width and reach.
- Two modes: E-mode and Xperience mode.
- Actual lumen: 1925 lm (E-mode) / 6120 lm (Xperience).

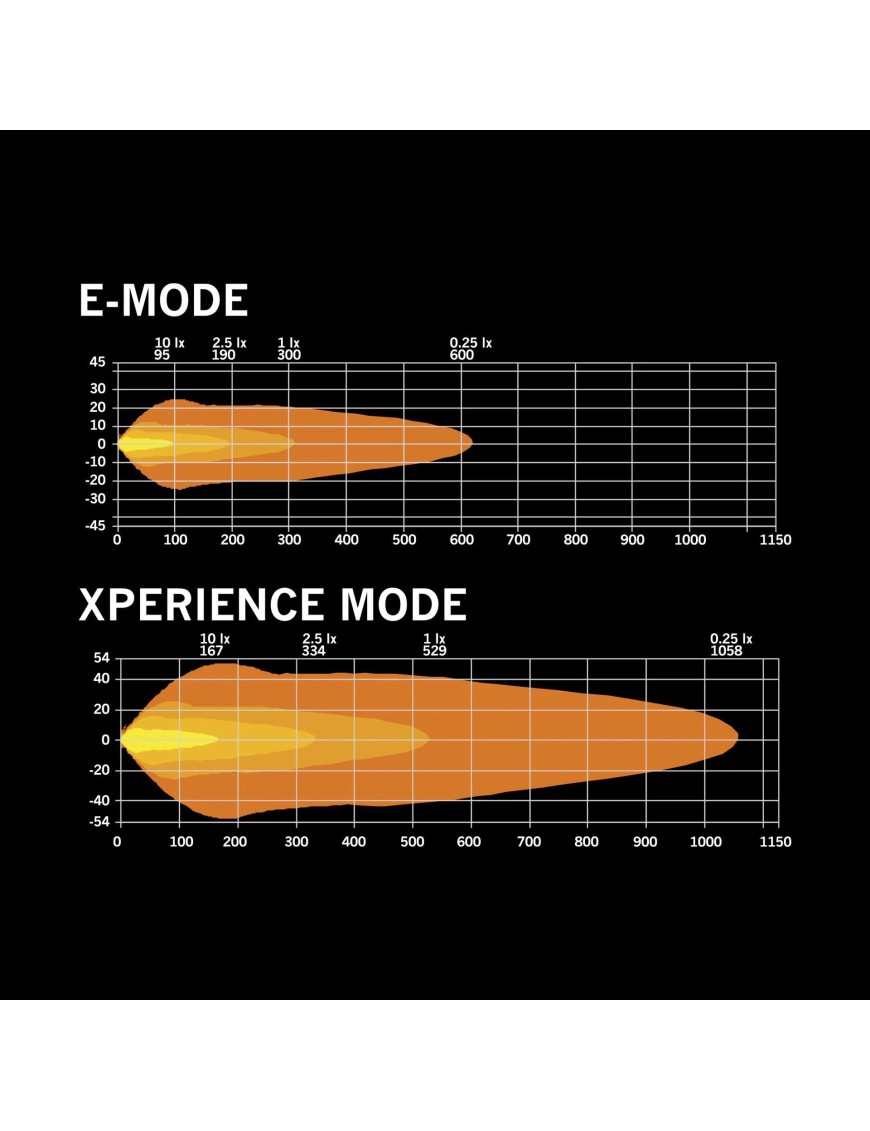

- 1 lux distance: 300 m (E-mode) / 529 m (Xperience).

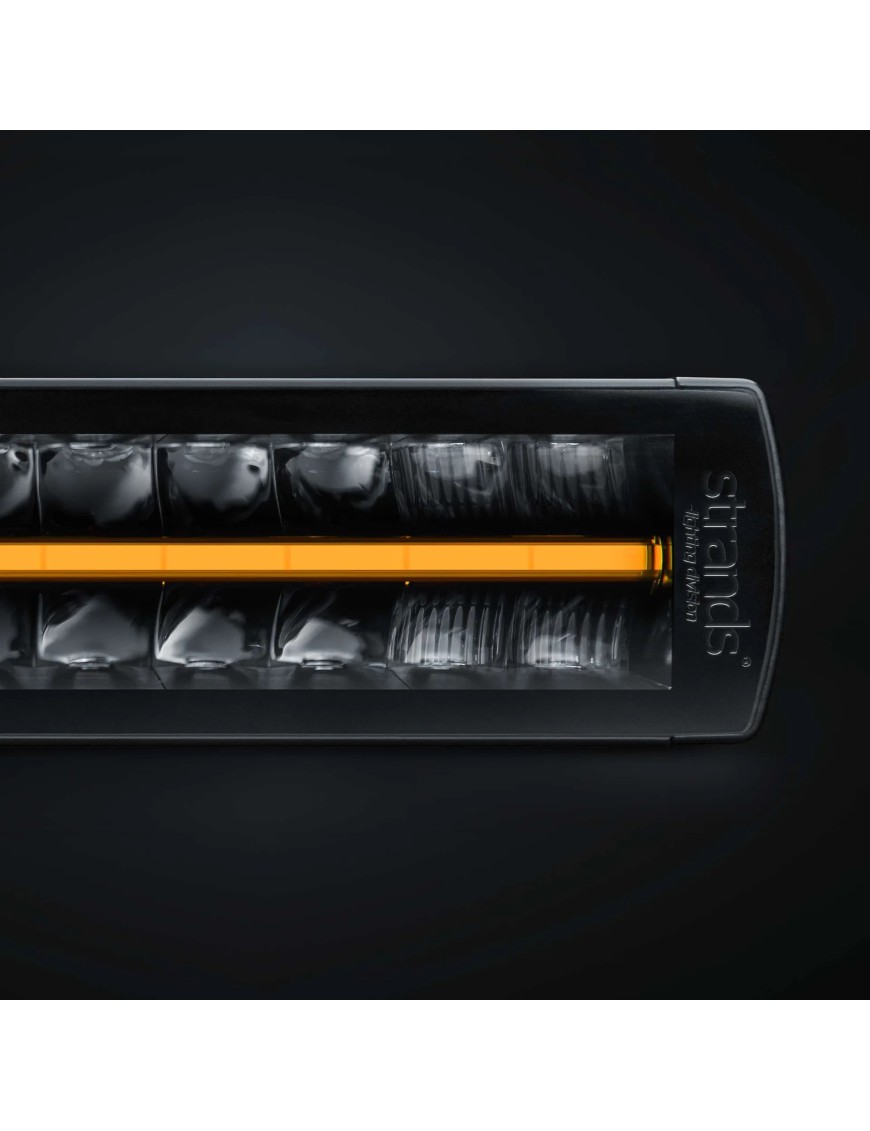

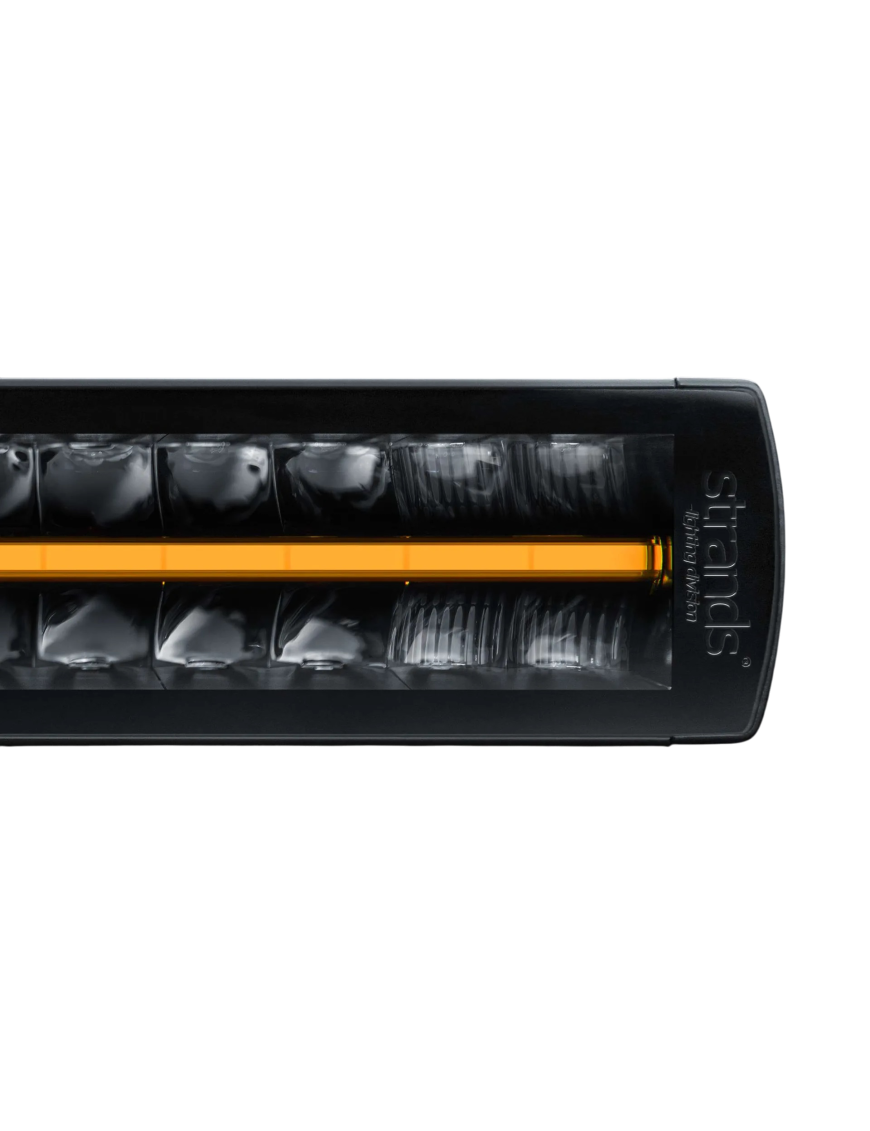

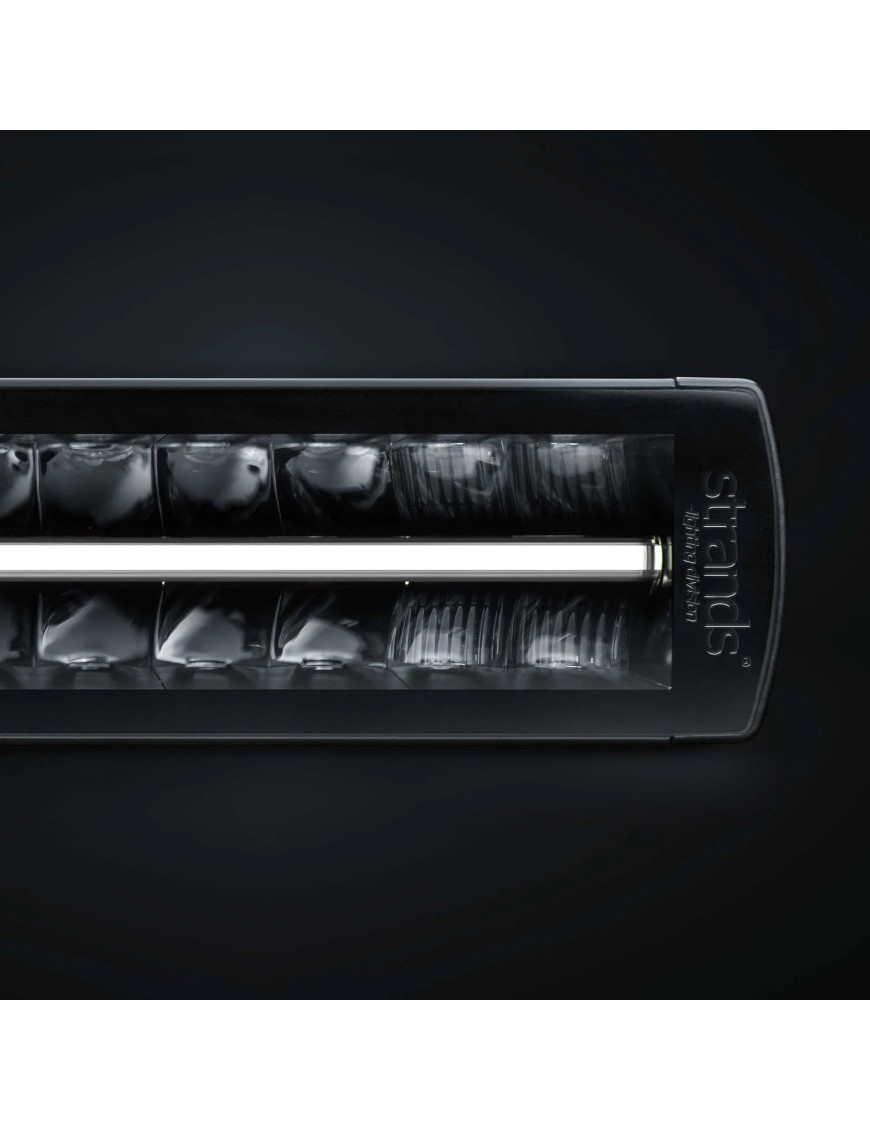

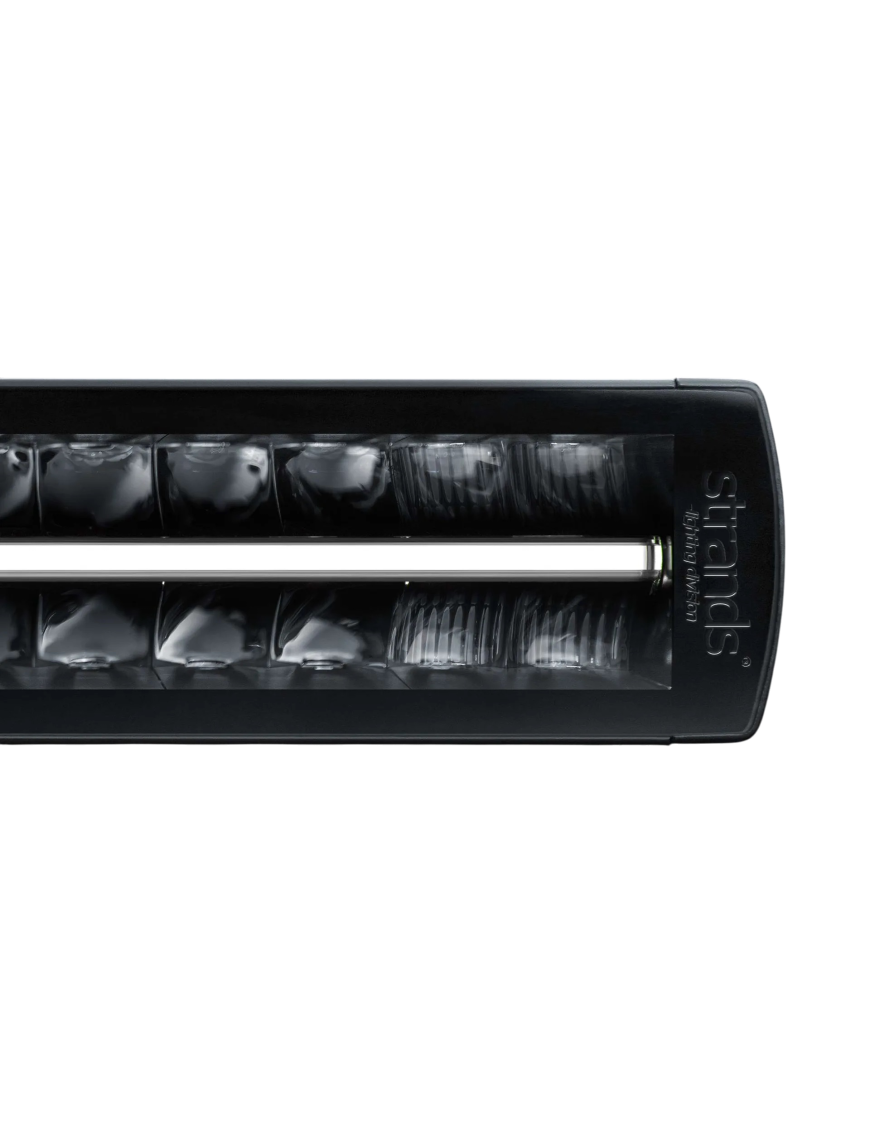

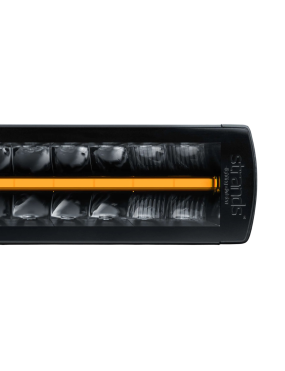

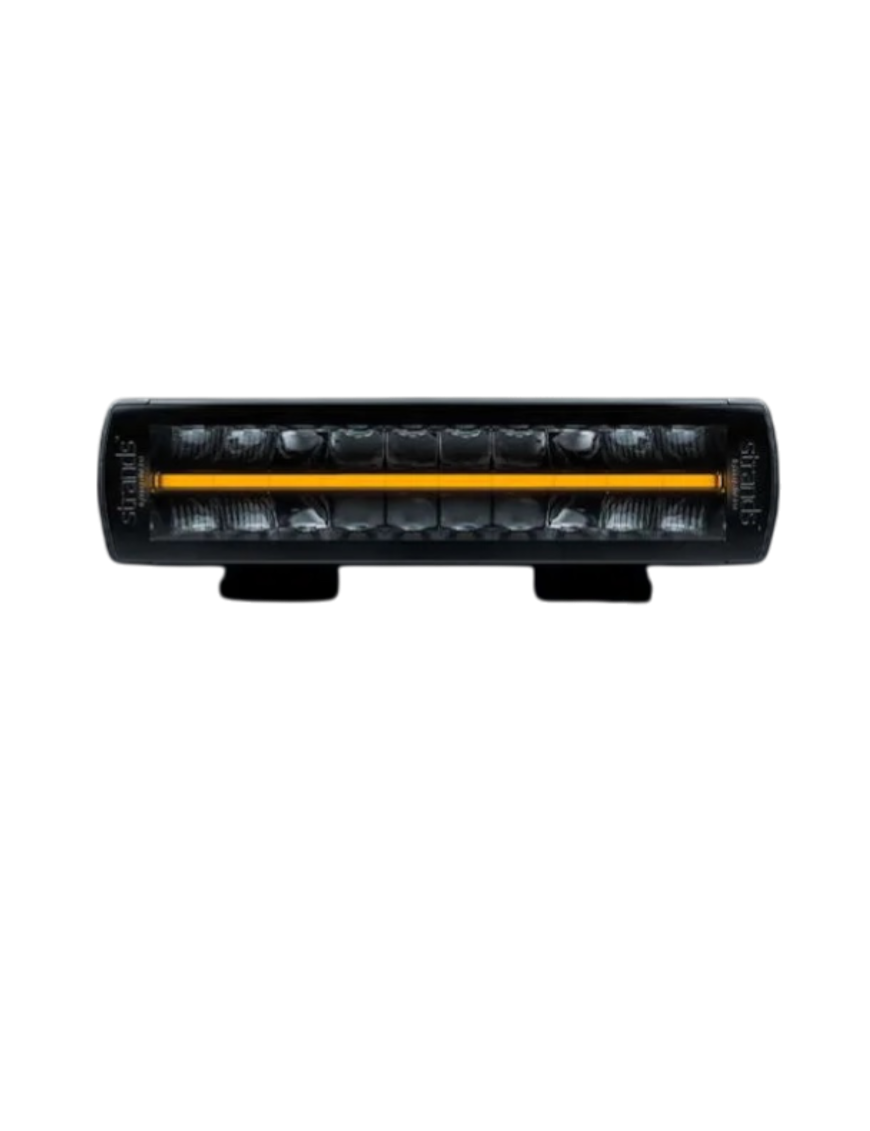

- White/amber position light for styling and visibility.
- IP68/IP69K protection with aluminium housing and polycarbonate lens.
- ECE approvals: R148 (R7), R149 (R112); EMC: ECE R10.
Technical data
- SKU: 809426A
- Voltage: 10–32V DC
- Power consumption: 25W (E-mode) / 84W (Xperience)
- Position light power: 11.6W (white) / 11.5W (amber)
- Actual lumen: 1925 lm (E-mode) / 6120 lm (Xperience)
- 1 lux distance: 300 m (E-mode) / 529 m (Xperience)
- Color temperature: 5700K
- Beam pattern: Extended Beam 15.4°
- IP rating: IP68 / IP69K
- Lens: Clear
- Position light: White / Amber
- Hello function: No
- Connector: DT-4
- Cable length: 550 mm

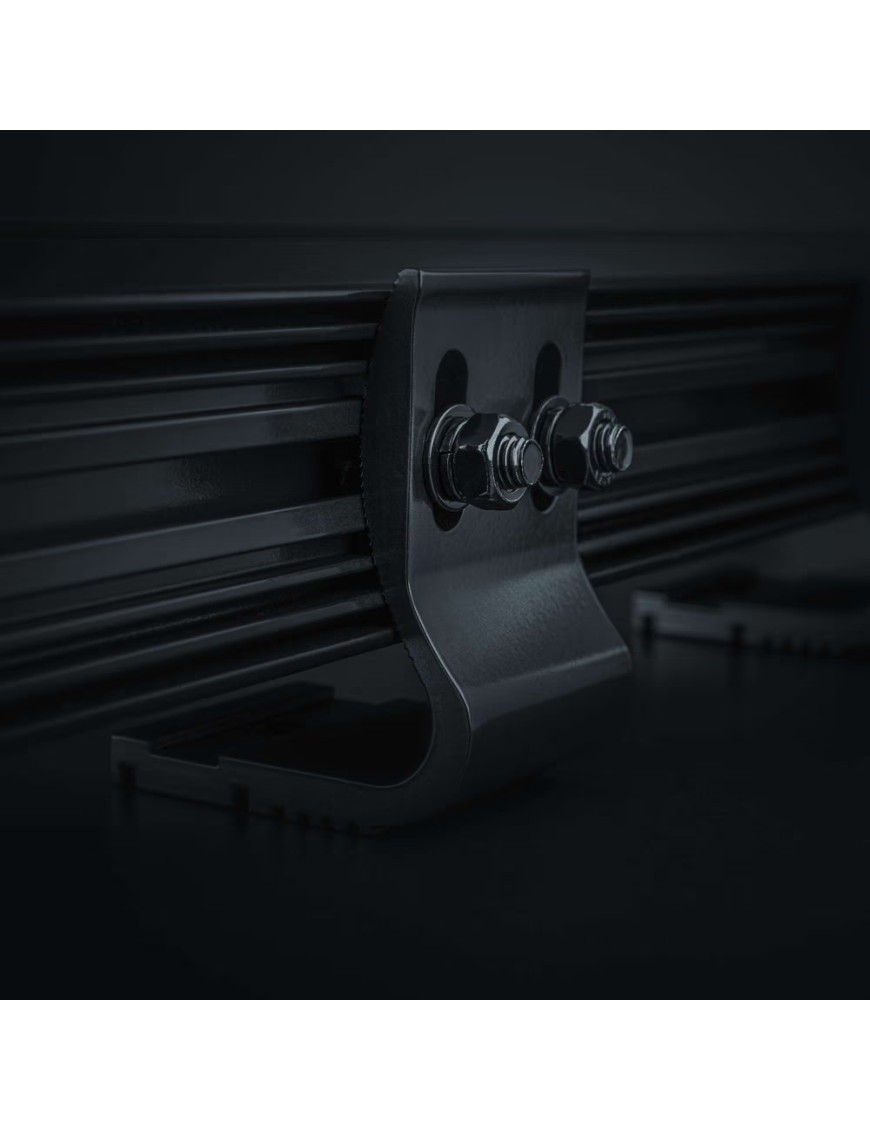

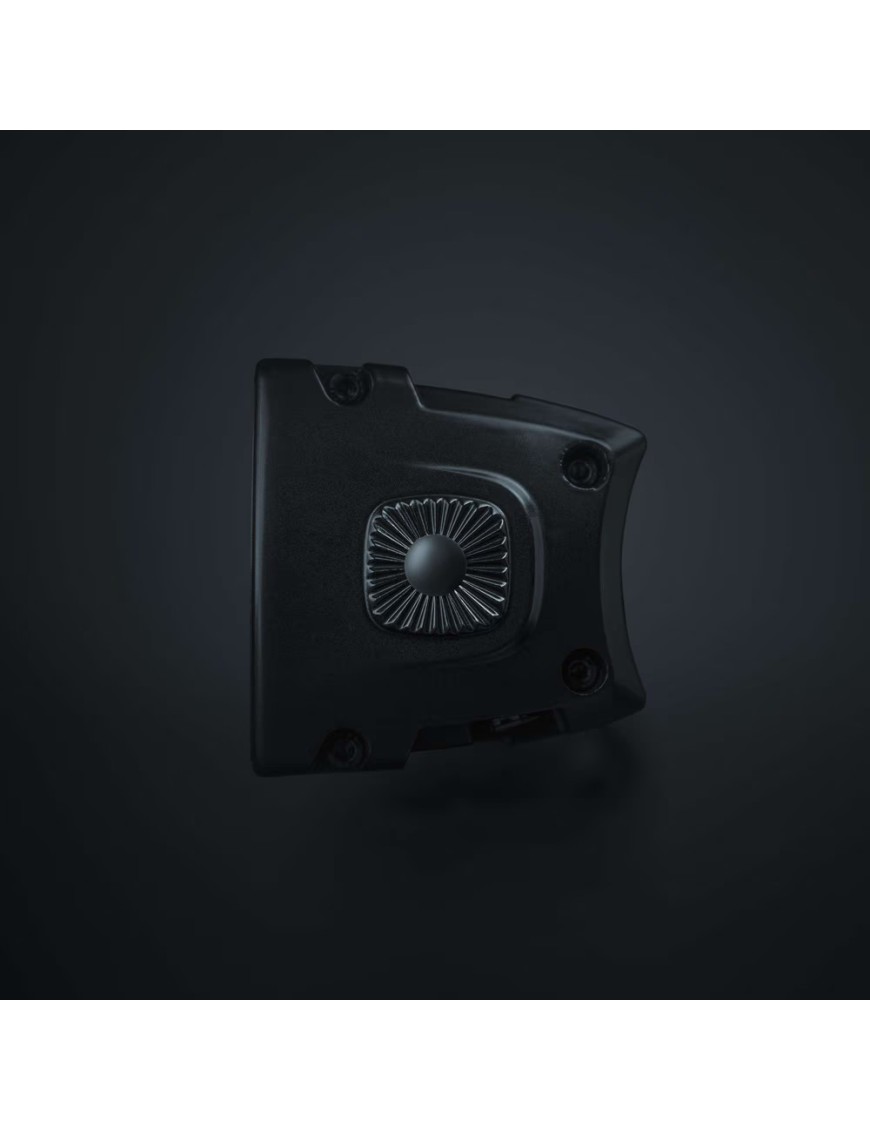

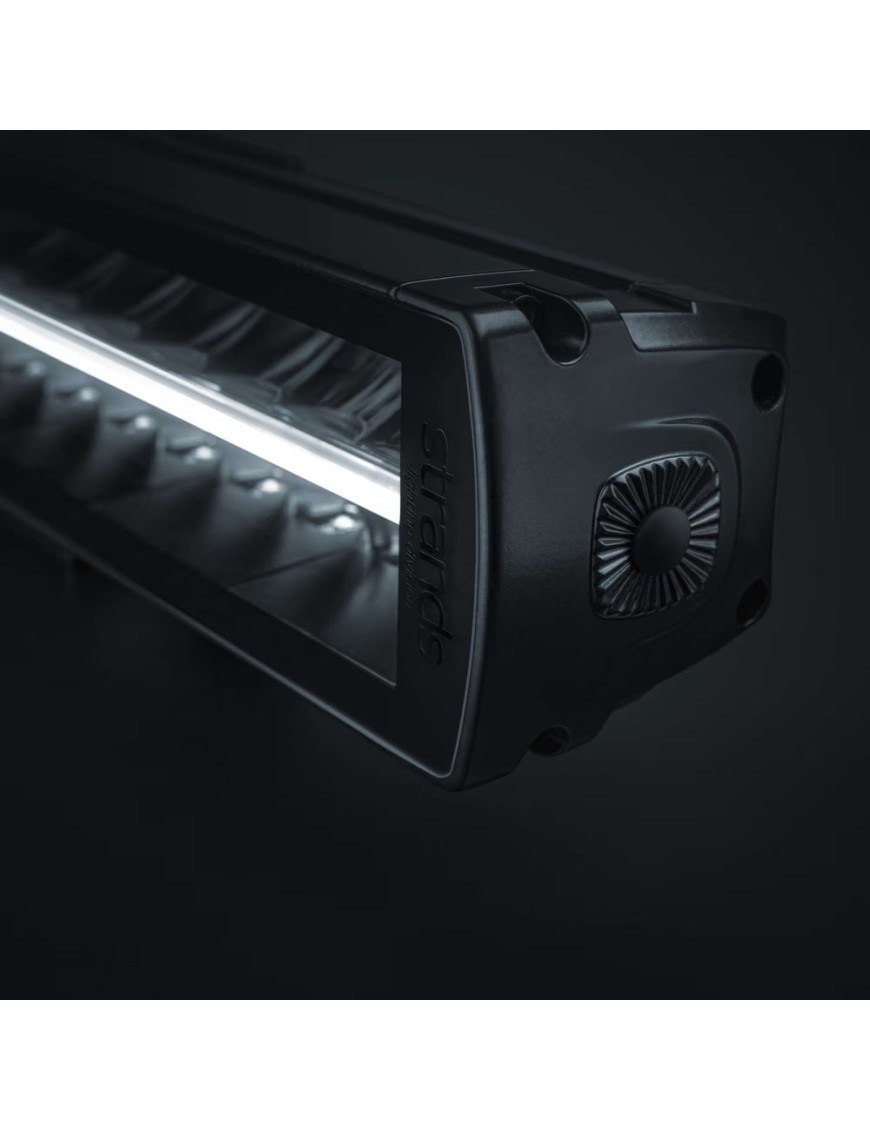

- Materials: aluminium housing, polycarbonate lens, aluminium bracket

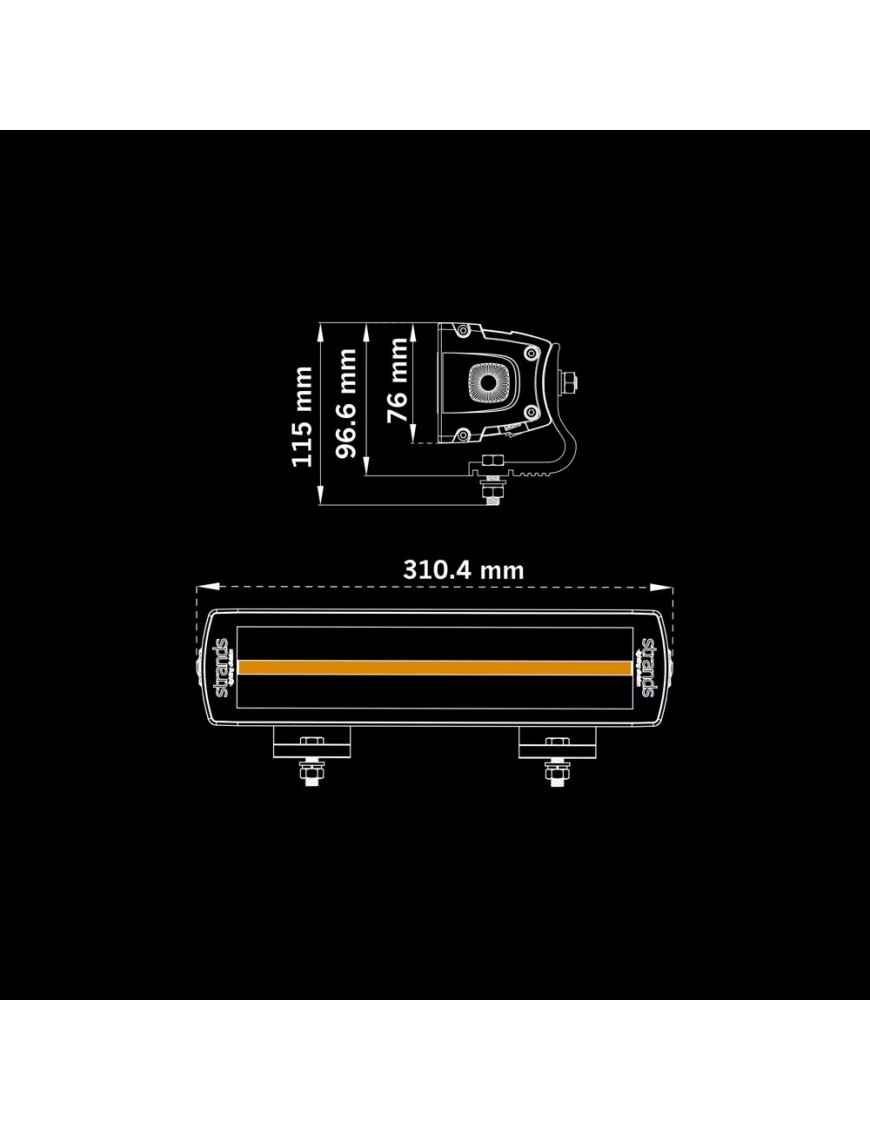

- Dimensions: 310.4 mm (L) / 71.6 mm (D) / 76 mm (H)
- Height incl. bracket: 96.6 mm
- Weight: 2.15 kg
- Operating temperature: -30°C to +65°C
- Approvals: ECE R148 (R7), ECE R149 (R112)
- EMC: ECE R10
- Ref.: 20
Off-road and 4x4 use
The 12" format is ideal when you want noticeable performance without taking up much space on the vehicle. The Extended Beam pattern improves trail visibility on gravel roads and forest tracks, while the two-mode setup lets you stay sensible on-road and go full output off-road. The IP68/IP69K sealing supports demanding conditions like dust, water splashes, and frequent cleaning.
Why buy from Szekla4x4.pl
At Szekla4x4.pl you get lighting selected for real 4x4 and overlanding use. We help match the bar to your build and mounting plan, so the installation makes sense and the result pays off where it matters most: on the route, at night, and far from asphalt.
