Strands Siberia XPA SR 22” (809412A) is a single-row LED light bar designed for confident night driving and a clean, modern front-end look. It delivers an extended driving beam and lets you choose the position light color—white or amber—so you can match the style of your build and other auxiliary lighting.
A standout feature of this version is the Hello function for the position lights. Trigger it with a quick double flash of the high beam within 2 seconds to launch a dynamic position-light animation (position-light wire connection required).
Key features
- 22” single-row LED bar for driving light applications.
- Two operating modes: Xperience mode (default) and E-mode.

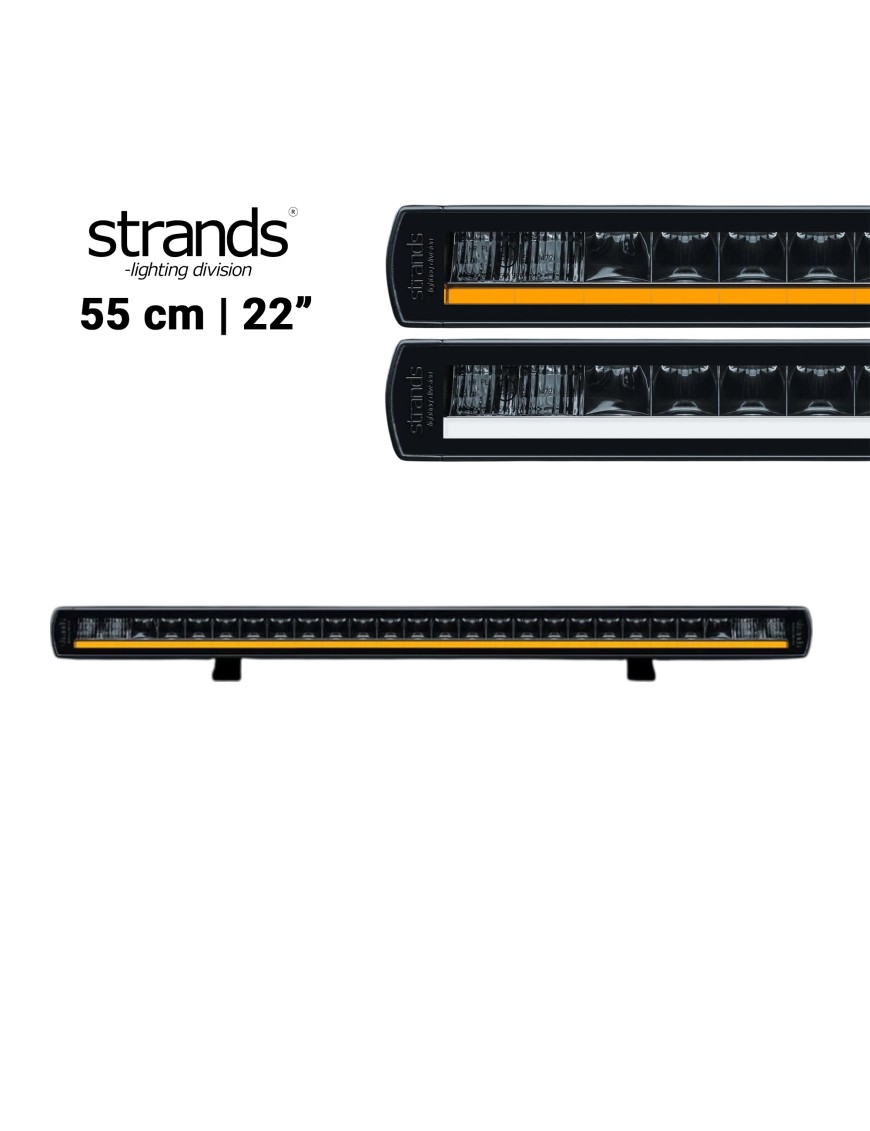

- Selectable position light color: white or amber.
- Hello animation for position lights, activated by a double high-beam flash (within 2 seconds).
- IP68/IP69K ingress protection with aluminium housing and polycarbonate lens.
- DT-4PIN connector and 550 mm cable for practical installation.
Technical data
- SKU: 809412A
- Series / type: Siberia XPA Single Row LED Bar
- Size: 22"
- Voltage: 10–32V DC
- Power consumption: 102W (Xperience); 25W (E-mode)
- Position light power consumption: 9.2W white; 9.2W amber
- Lumen output (actual): 7150 lm (Xperience); 1875 lm (E-mode)

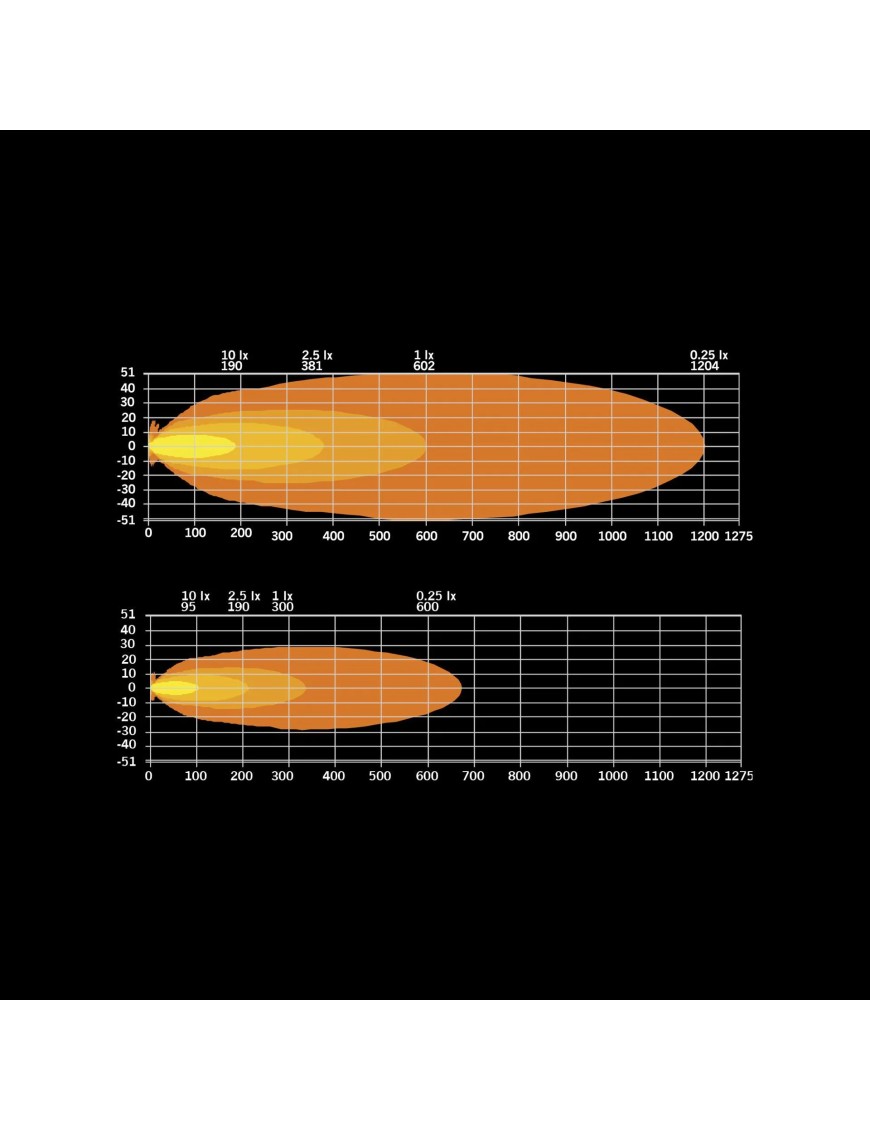

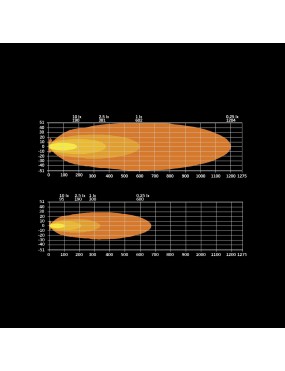

- 1 lux distance: 602 m (Xperience); 300 m (E-mode)
- Color temperature: 5700K
- Beam pattern: Extended beam
- Ingress protection: IP68 / IP69K
- Lens color: Clear
- Connector: DT-4PIN
- Cable length: 550 mm
- Housing material: Aluminium
- Lens material: Polycarbonate

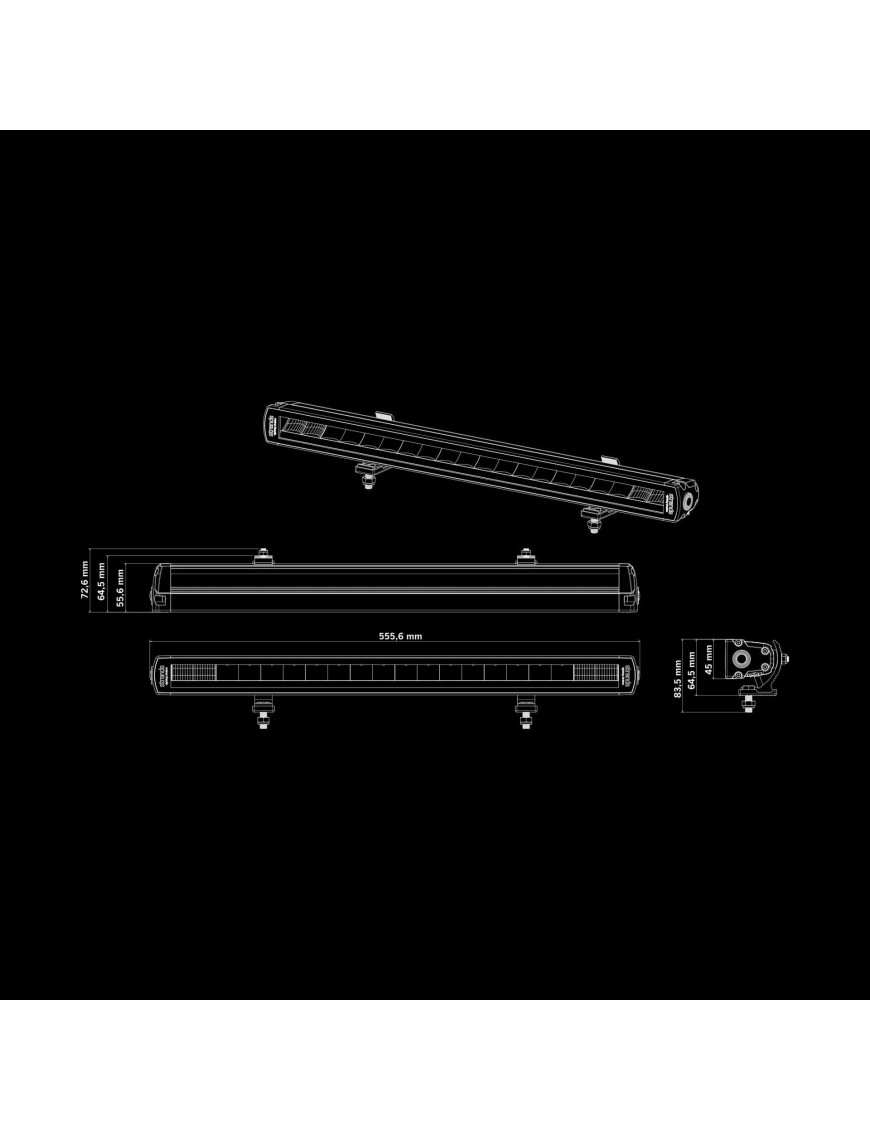

- Dimensions: 555.6 mm (L) × 55.5 mm (D) × 45 mm (H); 64.5 mm height incl. bracket
- Operating temperature: -35°C to +60°C
- Approvals: ECE R148; ECE R149
- EMC: ECE R10
- REF: 20
- Install note: side brackets not included (optional accessory)
Off-road and 4x4 use
For overlanding and off-road builds, you need a predictable beam and durability in harsh conditions. The extended beam pattern supports fast night transits, while the selectable white/amber position light helps create a consistent lighting signature on your vehicle. The E-mode can be useful when you want a reduced output setting for specific conditions.
