XBB OBD2 KIT – Lighting Control Kit for Tesla Model S / Model X

XBB OBD2 KIT – Lighting Control Kit for Tesla Model S / Model X

XBB OBD2 KIT for Tesla Model S and Model X is an advanced system that allows you to connect additional LED lighting quickly and safely without modifying the vehicle’s factory electrical installation. The kit communicates with the vehicle through the OBD2 port and uses wireless Bluetooth communication between modules. This makes the installation of auxiliary driving lights, LED light bars, or work lights simple and eliminates the need to cut wires or use traditional relays.

It is an ideal solution for modern vehicles like Tesla, where installing additional lighting using traditional methods can be difficult due to advanced electronic systems.

How the XBB OBD2 System Works

The kit consists of two components:

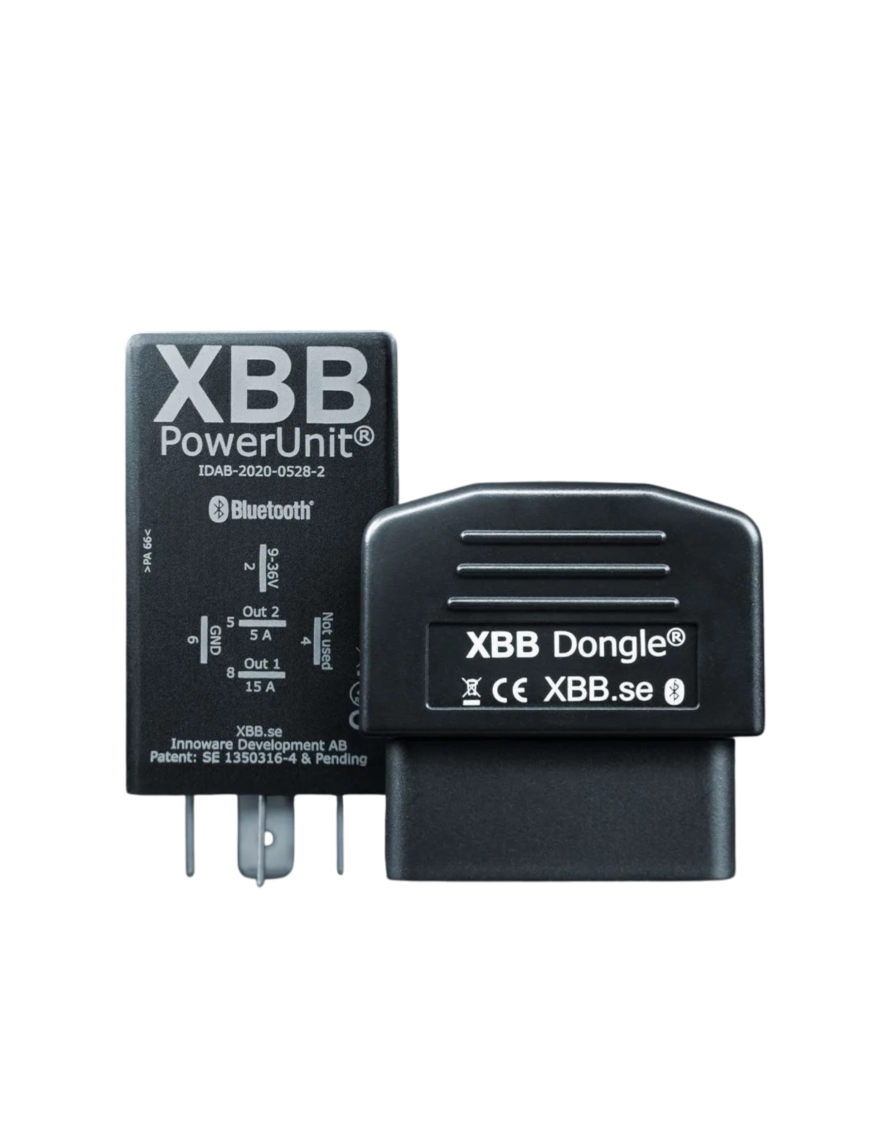

XBB Dongle – a module plugged directly into the vehicle’s OBD2 port that reads signals from the CAN bus, such as the high beam activation signal.

XBB PowerUnit – a control module installed in the engine bay or near the auxiliary lights, responsible for powering and controlling the connected lighting.

Both modules communicate wirelessly via Bluetooth, making installation quick and minimizing the amount of wiring required inside the vehicle. The system is configured using a mobile app available for smartphones.

Key Features

• Plug & play installation via the OBD2 port
• No modification of the factory electrical system
• Wireless Bluetooth communication
• Easy configuration through a mobile application
• Compatible with modern CAN bus systems
• Perfect for installing auxiliary LED lights and light bars

The system helps prevent electronic errors that may occur when additional lighting is connected using traditional wiring methods.

Configuration Options

The XBB PowerUnit features two independent outputs that can be configured in the mobile app:

• Output 1 – for auxiliary driving lights or LED light bars
• Output 2 – for position lights or additional lighting

Multiple PowerUnit modules can be connected to a single Dongle, allowing control of several lighting systems in the vehicle.

Technical Specifications

XBB Dongle

• Connection: OBD2 port
• Communication: Bluetooth
• Configuration: Mobile application (Android / iOS)

XBB PowerUnit

• Operating voltage: 9–36 V
• Output 1: up to 15 A
• Output 2: up to 5 A
• Two programmable control channels

Application

Designed for vehicles:

• Tesla Model S
• Tesla Model X

Suitable for installing:

• auxiliary LED driving lights
• LED light bars
• additional road lighting
• work lights

Package Contents

• XBB Dongle (OBD2 module)
• XBB PowerUnit control module
• installation manual
