MPPT 20A (BLUETOOTH) SOLAR REGULATOR

• Solarlife in the Apple Store for IOS system
• Solar life in the Google Play Store for Android system

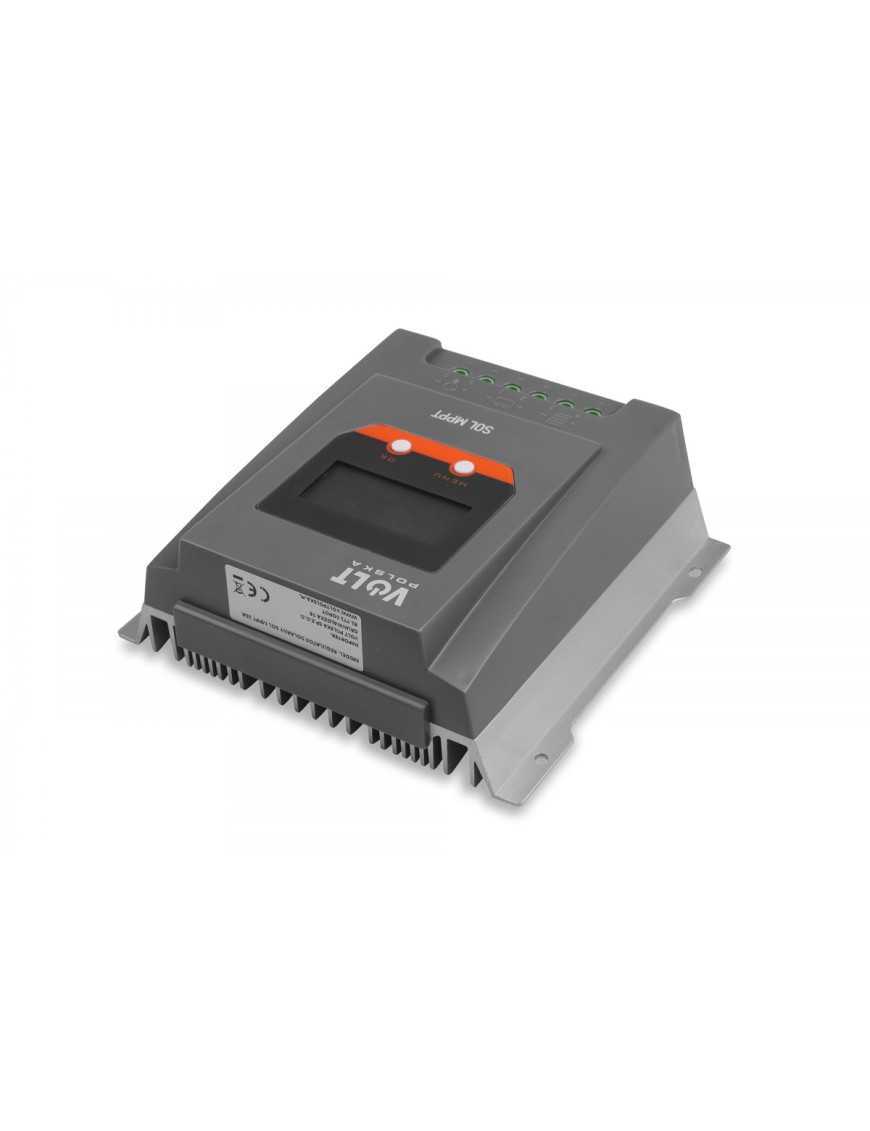

The SOL MPPT 20A BLUETOOTH solar regulator is designed for charging batteries from a connected set of solar panels. This modern and multifunctional device implements charging based on the latest and most efficient MPPT charging technology.

Thanks to the optimization of the charging process, the regulator effectively extends the lifespan of batteries compared to standard PWM regulators.

The SOL MPPT 20A model is equipped with BLUETOOTH wireless communication function, allowing remote control and monitoring of the regulator's operating parameters.

Key features:

• Modern Maximum Power Point Tracking (MPPT) technology
• Conversion / tracking efficiency > 99.9%
• Clear LCD display showing key operating parameters
• Automatic recognition of connected 12/24V battery voltage
• For use with GEL, AGM, lithium, and liquid electrolyte batteries
• Temperature sensor with automatic temperature compensation (if the temperature exceeds the set value, the charging current will decrease to lower the temperature)
• Four-stage charging: MPPT, BOOST, Equalization, Float
• Multiple load control modes: always-on, dusk to dawn, night, and manual
• Regulator control via dedicated smartphone app through Bluetooth (wireless control of operating parameters)
• Fully automatic protections (short circuit, temperature, overload)

Technical data

• Max charging current: 20A
• Battery voltage: 12V/24V
• Maximum panel voltage: 100V
• Own power consumption: 7mA
• For batteries: AGM, GEL
• MPPT charging voltage: <14.5/29.0V (at 25°C)
