OSRAM BATTERYcharge SOLAR 200W – solar power for a 12V leisure battery

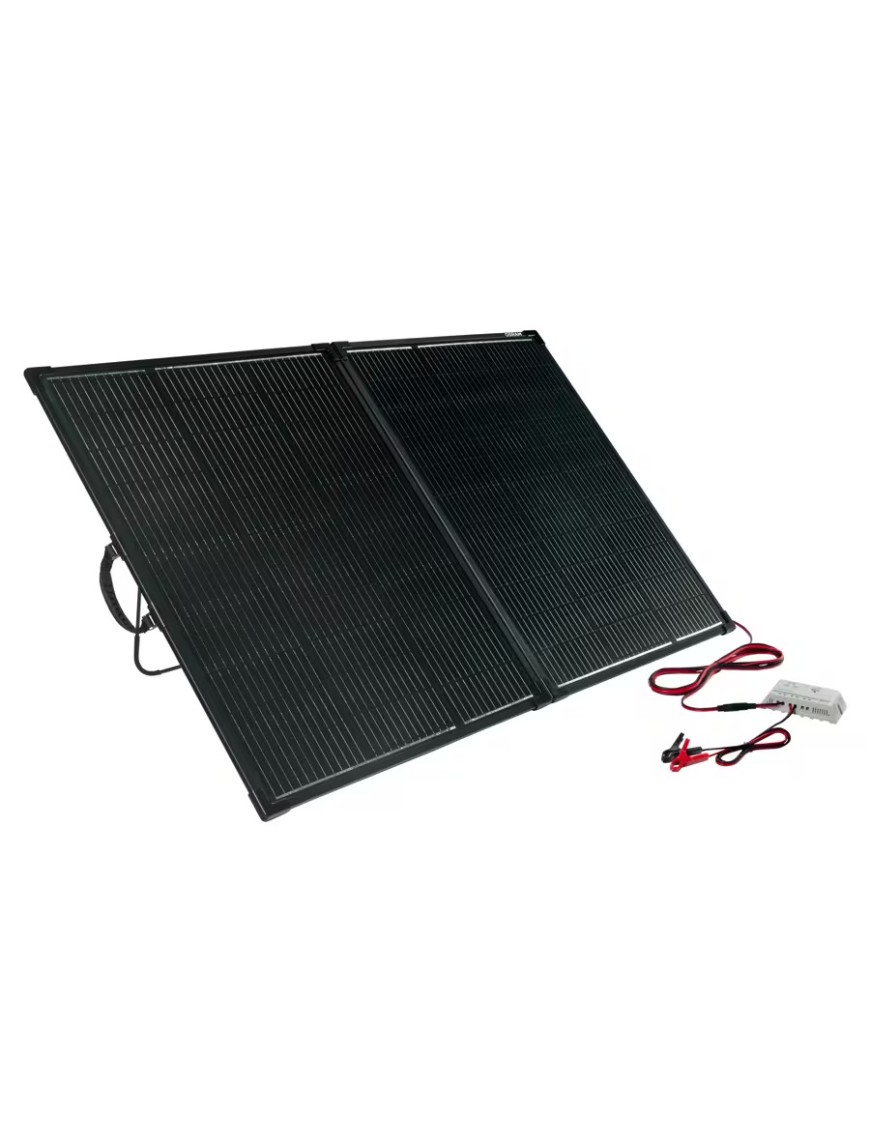

OSRAM BATTERYcharge SOLAR 200W OHPS200 is a portable foldable solar panel designed for charging and maintaining 12V leisure batteries in campervans, caravans, RVs and outdoor applications. Its monocrystalline panels provide up to 200W of solar power, making the system suitable for off-grid use where mains electricity is not available.
Key benefits
- Up to 200W solar output for supporting a 12V leisure-battery system away from mains power.
- 12V/20A charge controller with overcharge protection.
- USB output for charging small devices; OSRAM does not specify the USB electrical output in the available product data.
- Monocrystalline solar panels mounted in a foldable aluminium-frame construction.
- IP65 rating for outdoor-oriented use.
Power generation in overcast conditions
OSRAM states that the panel can generate power in overcast conditions and does not require direct sunlight to operate. The manufacturer does not specify a guaranteed output for a particular level of cloud cover, so the 200W figure should be treated as the panel's maximum rated power rather than a constant output in all weather conditions.

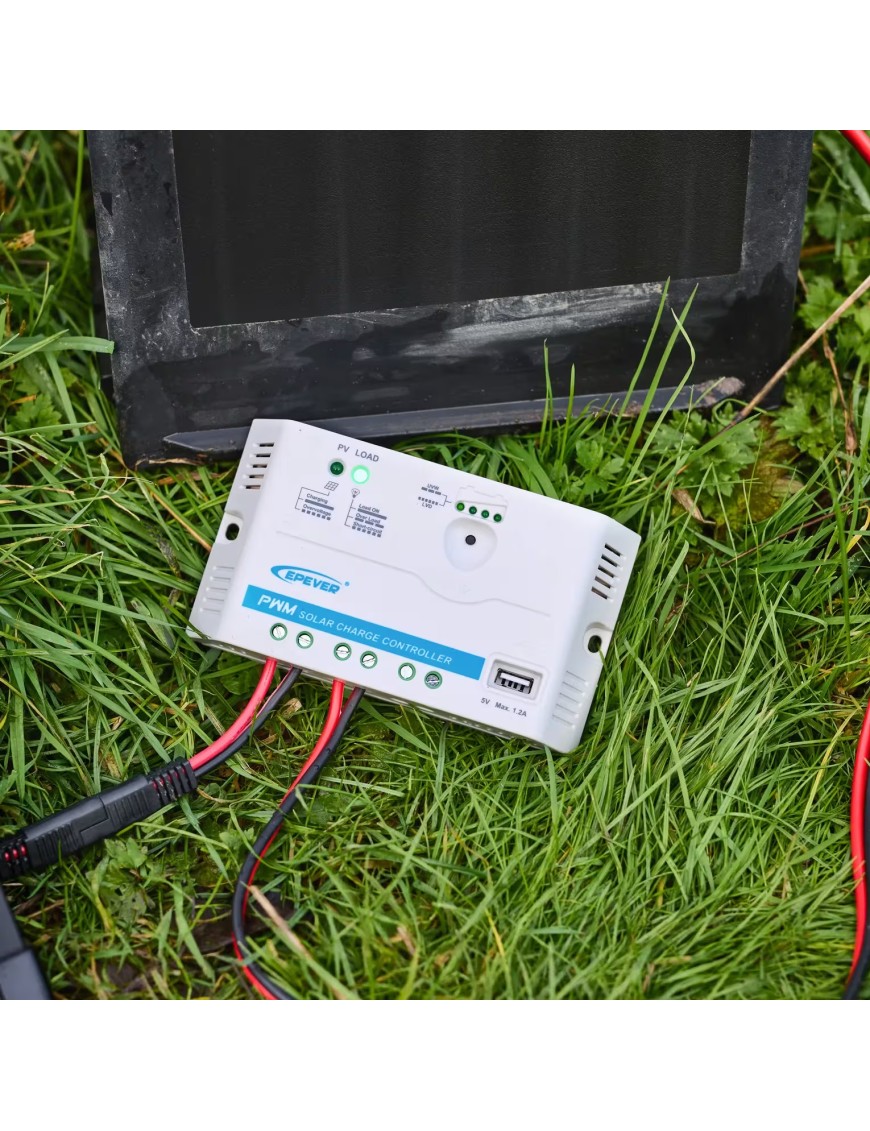

Charge controller and USB output

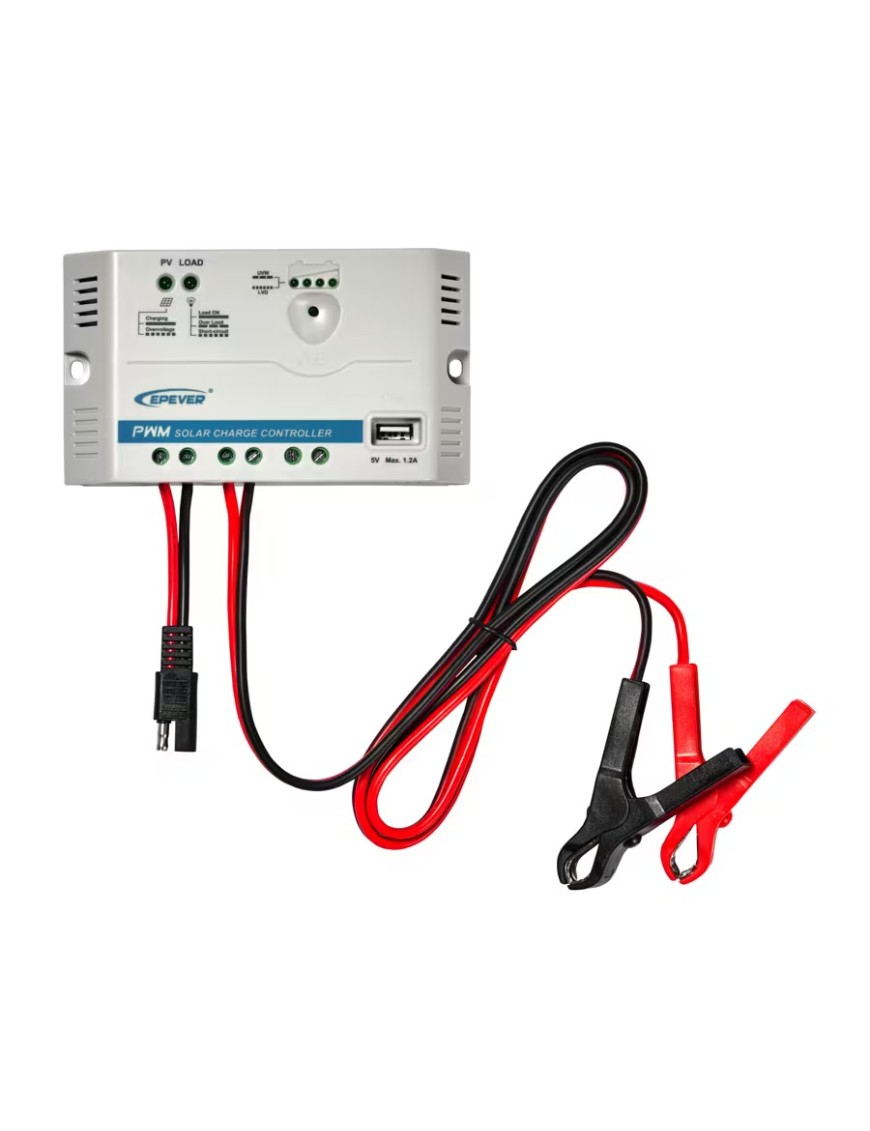

The BATTERYcharge SOLAR 200W includes a 12V/20A charge controller with overcharge protection. A USB output is also provided for small devices. OSRAM specifies the system for 12V leisure batteries; compatibility with a 24V battery system is not confirmed in the available product documentation.
Foldable design for off-grid use

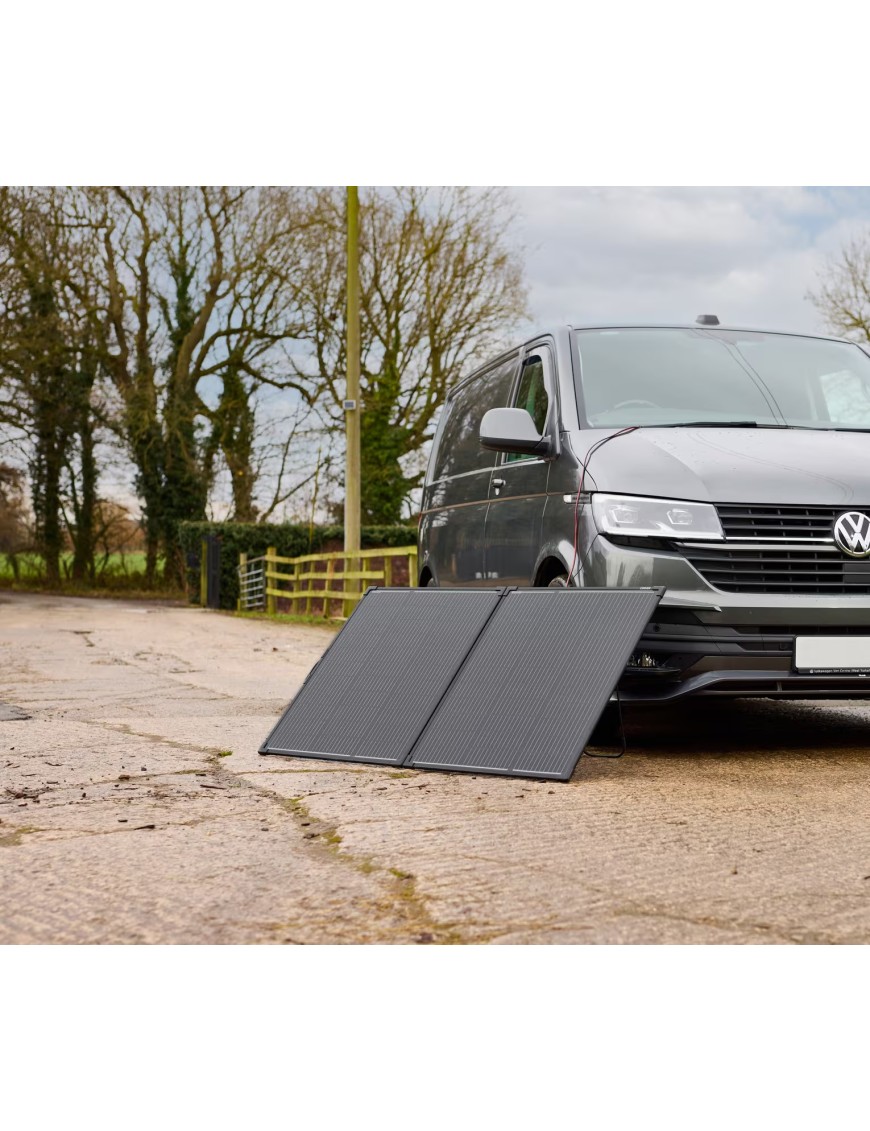

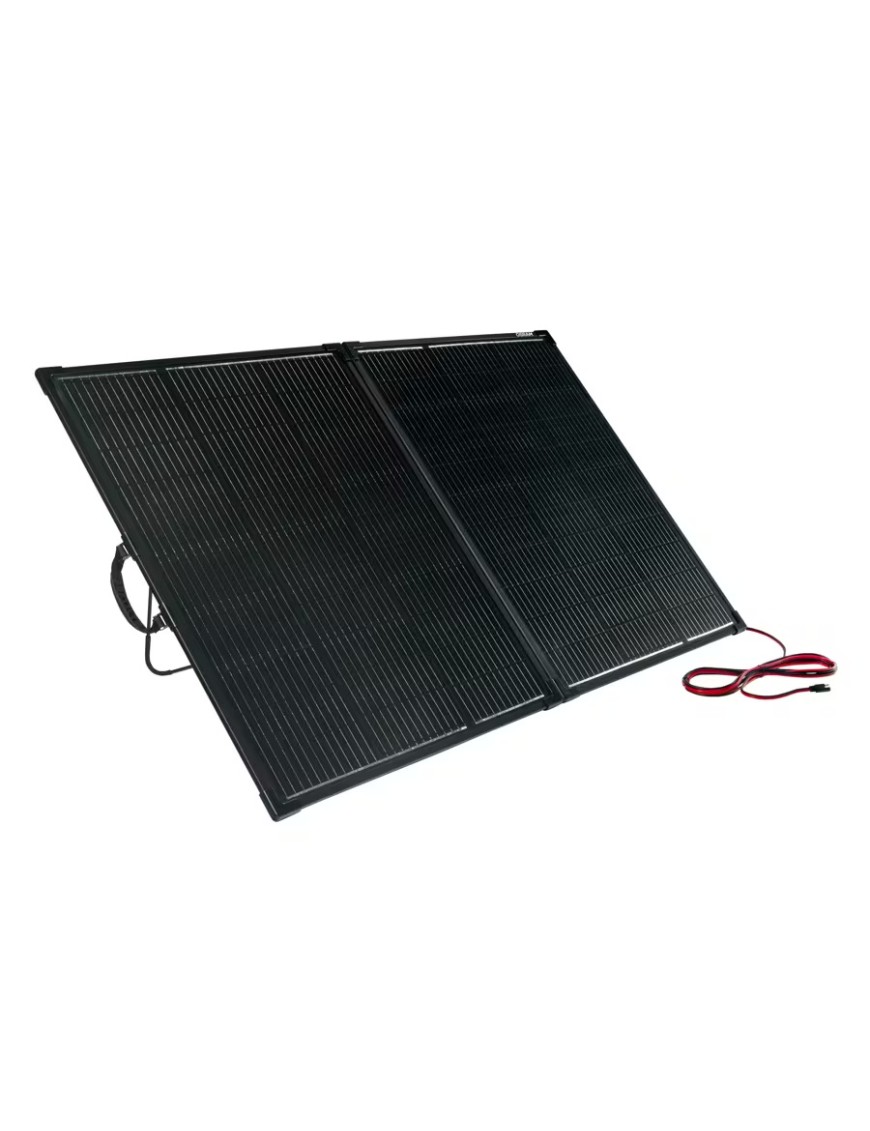

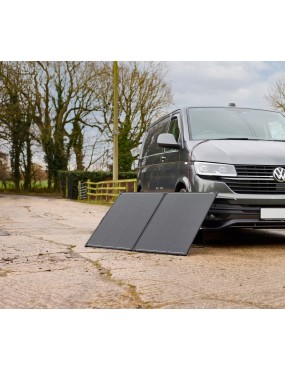

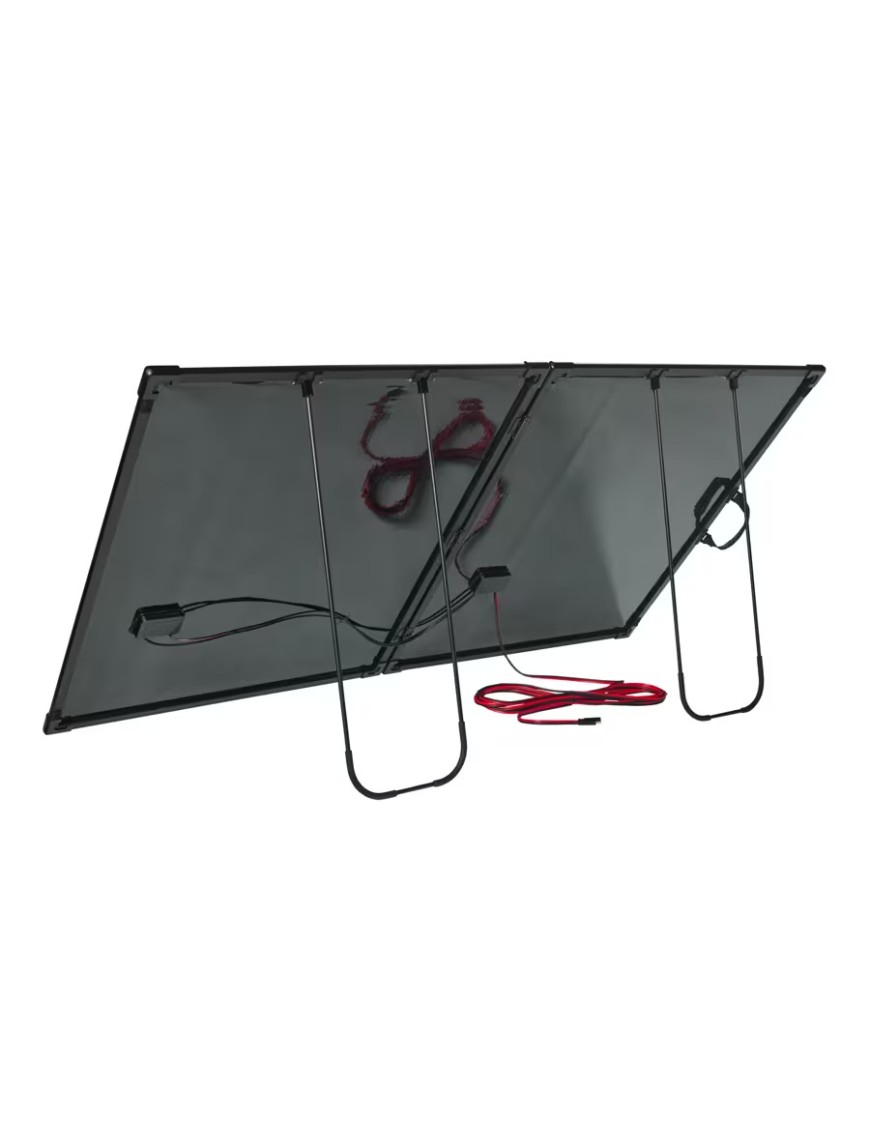

The monocrystalline panels are installed in an aluminium frame with an aluminium stand. The foldable format is designed for portable use, while OSRAM specifically lists caravans, campervans, RVs and outdoor applications among the intended uses.
Construction and protection
OSRAM specifies an IP65 protection rating. No higher IP rating, IK rating or operating-temperature range is stated in the available technical data, so these parameters should not be inferred from other products in the range.
Technical data
| Parameter | Value |
|---|
| Brand | OSRAM |
| Model | BATTERYcharge SOLAR 200W |
| Manufacturer reference | OHPS200 |
| Maximum power | 200W |
| Battery voltage | 12V |
| Charge controller | 12V / 20A |
| Maintenance charge according to OSRAM data | up to 9.9A |
| Panel technology | Monocrystalline |
| USB output | Yes |
| Overcharge protection | Yes |
| Protection rating | IP65 |
| Dimensions according to OSRAM | 801 × 40 × 700 mm, L × W × H |
| Battery connection | Battery connection clips |
| EAN / GTIN | 4062172416535 |

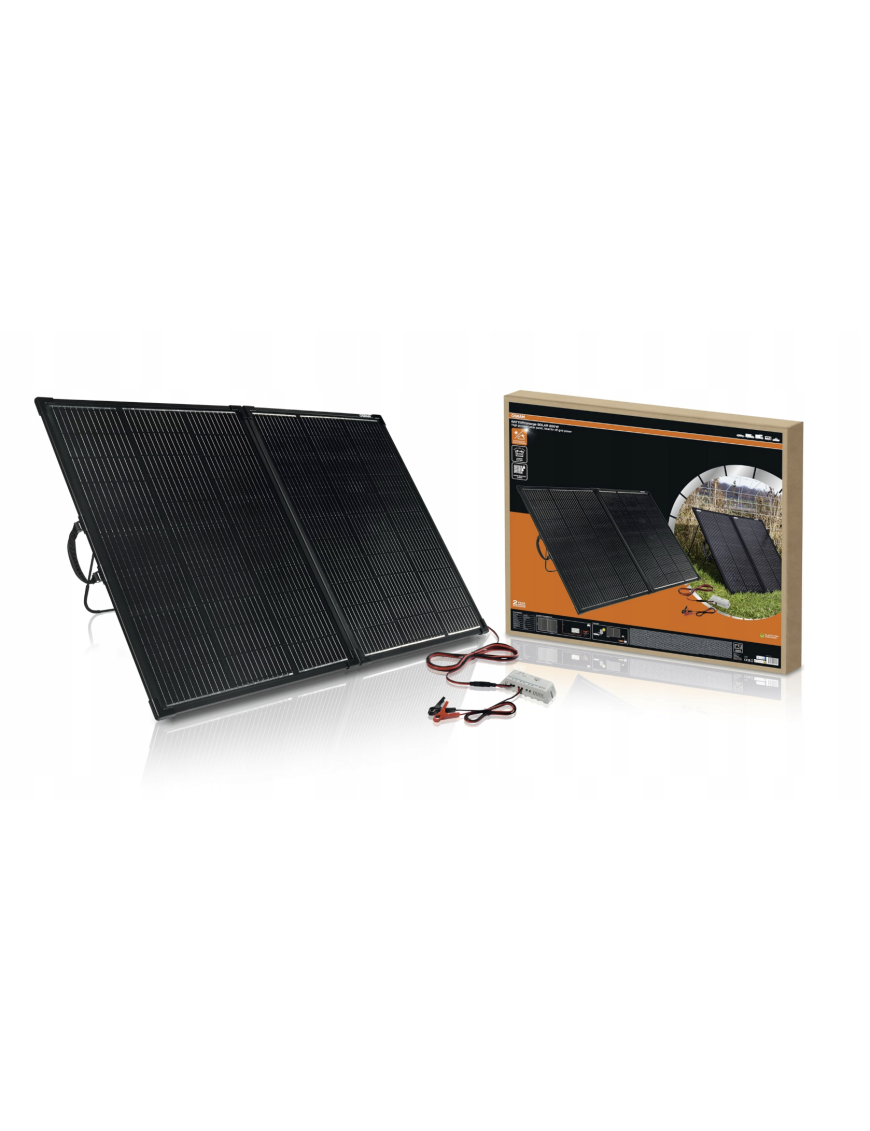

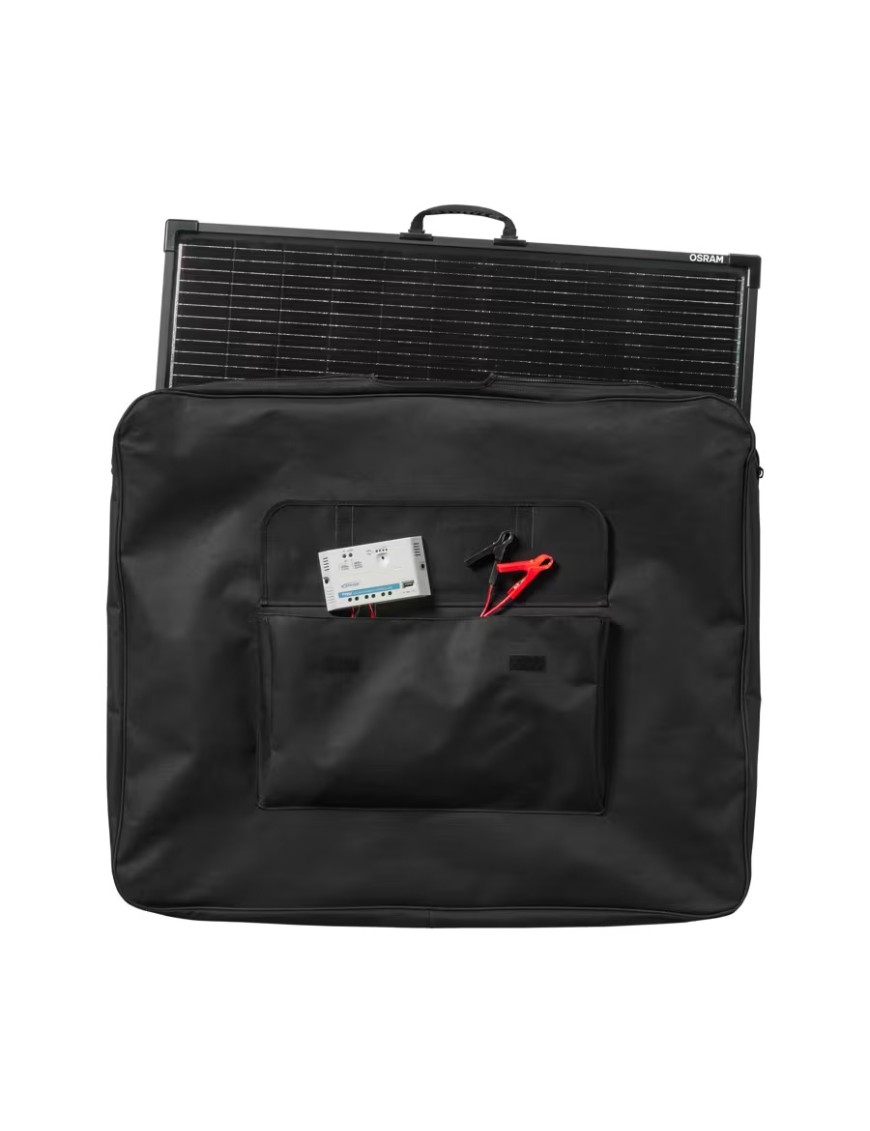

Package contents
- BATTERYcharge SOLAR 200W foldable solar panel,
- 12V/20A charge controller with USB output,
- battery lead,
- battery connection clips.
Connection and use
OSRAM positions the OHPS200 as a plug-and-play solution for charging and maintaining 12V leisure batteries. Before connecting the system, make sure that the battery and electrical installation meet the product requirements.
Frequently asked questions
Will it generate power in overcast conditions?
Yes. OSRAM states that the panel can operate without direct sunlight. No specific output under defined cloud conditions is provided.
Can it be used with a 24V battery system?
The manufacturer specifies 12V leisure batteries. Compatibility with a 24V battery system is not confirmed.
Is the charge controller included?
Yes. OSRAM specifies a 12V/20A charge controller with overcharge protection and a USB output.
Which battery chemistries are supported?
The confirmed application is a 12V leisure battery. The available technical table does not clearly confirm individual battery chemistries, so compatibility should be checked before purchase.
