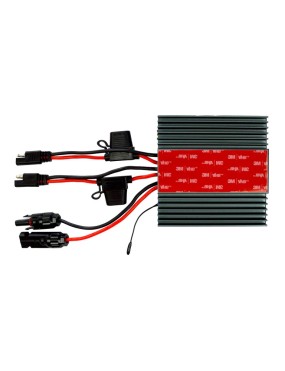

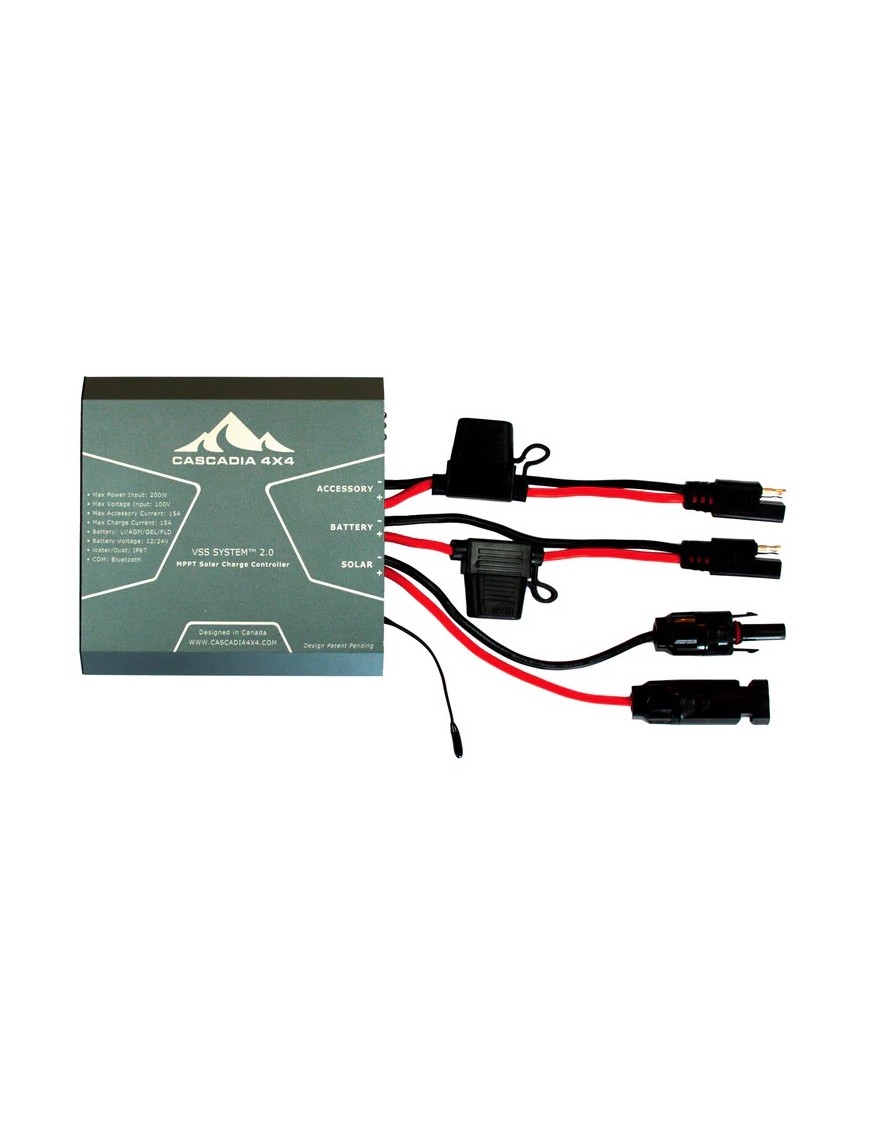

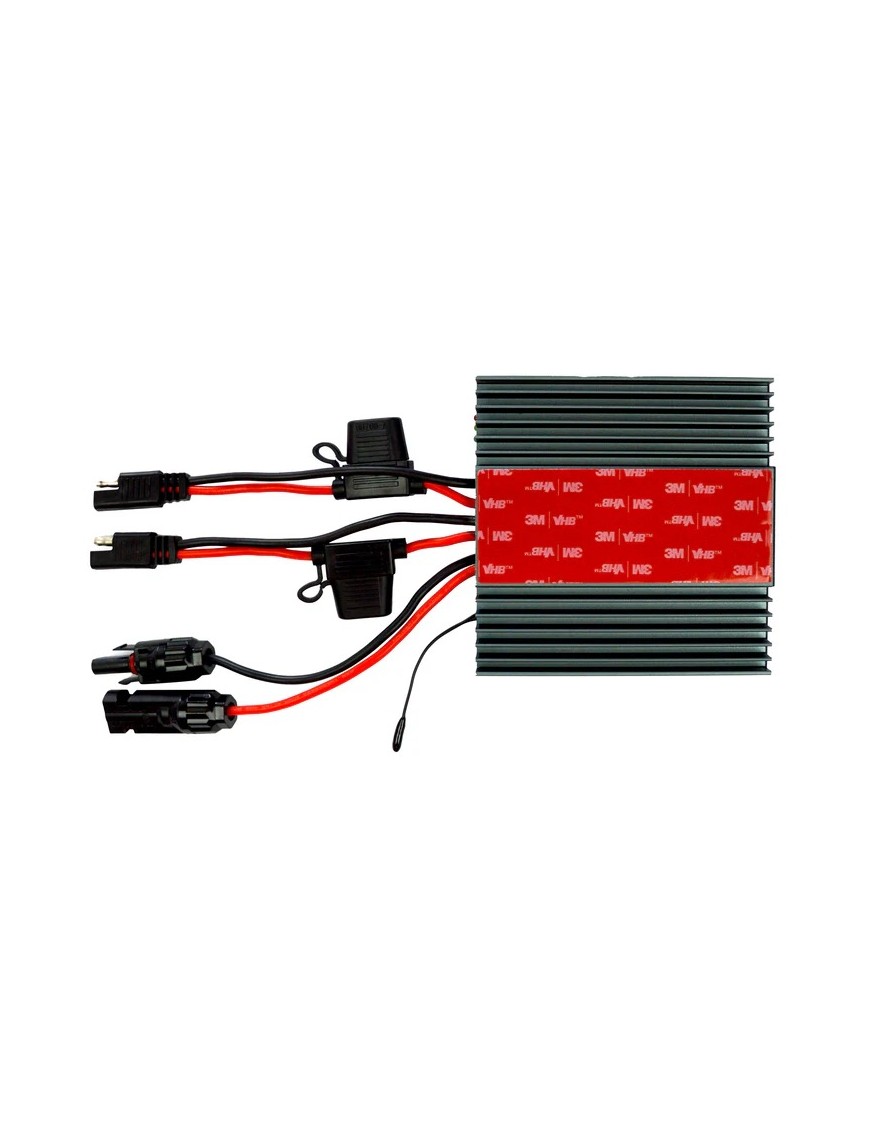

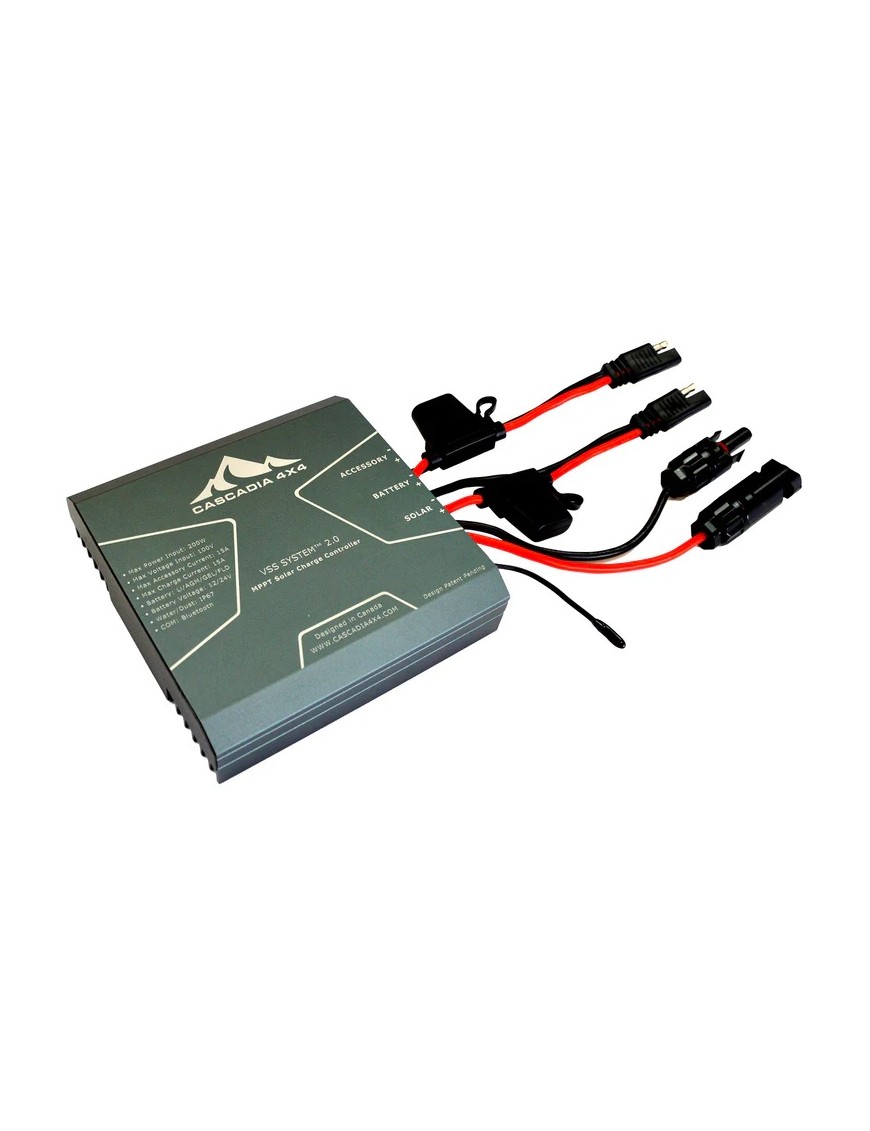

The Cascadia 4x4 CHF149CC 15A MPPT Bluetooth Charge Controller is the intelligent heart of the VSS System™ 2.0 solar charging system. Designed specifically for off-road vehicles, overland builds, campers, and expedition trucks, it maximizes solar charging efficiency while protecting your battery.
Featuring advanced MPPT technology, Bluetooth monitoring, an IP67 waterproof aluminum housing, and support for Lithium, AGM, Gel, and Flooded batteries, the CHF149CC delivers reliable charging performance in the harshest environments. Compatible with all Cascadia 4x4 VSS System™ 2.0 solar panels and backed by a 5-year warranty.
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
The Cascadia 4x4 CHF149CC 15A MPPT Bluetooth Charge Controller is a premium solar charge controller engineered specifically for the Cascadia 4x4 VSS System™ 2.0. Designed for overland vehicles, off-road builds, expedition rigs, campers, and work trucks, it maximizes solar charging efficiency while protecting your vehicle's battery in even the harshest environments.
Unlike conventional PWM charge controllers, the CHF149CC utilizes Maximum Power Point Tracking (MPPT)technology to continuously optimize power harvested from your solar panel. This allows the system to generate significantly more usable charging power during changing weather conditions, partial shading, cold temperatures, and varying sun angles—conditions commonly encountered during real-world off-road travel.
With integrated Bluetooth connectivity, users can monitor and configure the charging system directly from their smartphone using the CascadiaTether™ mobile application.
Built with a fully sealed IP67-rated aluminum enclosure, the CHF149CC is designed for permanent installation in demanding outdoor environments where dust, mud, rain, vibration, and extreme temperatures are part of everyday use.
A reliable solar charging system is one of the most valuable upgrades for any expedition vehicle. Whether you're camping for several days, traveling through remote areas, or simply keeping your auxiliary battery fully charged between trips, the CHF149CC ensures your solar panel delivers maximum available energy.
The controller continuously regulates charging voltage and current to protect your battery while maximizing charging performance. This makes it ideal for powering:
When combined with the optional CHF300 12V Accessory Kit, the system can directly supply power to additional 12V equipment while maintaining optimal battery charging.
MPPT (Maximum Power Point Tracking) controllers are considerably more efficient than traditional PWM regulators because they constantly calculate the optimal operating point of the solar panel.
In real off-road environments, solar panels rarely operate under perfect conditions. Trees, roof racks, changing vehicle orientation, cloud cover, and varying temperatures all affect solar output.
The CHF149CC continuously adjusts operating parameters to capture the highest possible amount of energy available from the panel, resulting in faster and more efficient battery charging throughout the day.
Unlike many generic solar controllers designed primarily for indoor RV or stationary installations, the Cascadia 4x4 CHF149CC was developed specifically for automotive and off-road applications.
Its rugged construction includes:
This makes it perfectly suited for vehicles regularly exposed to mud, water crossings, snow, desert heat, and rough terrain.
Integrated Bluetooth allows users to monitor the charging system without opening panels or accessing wiring.
Using the CascadiaTether™ mobile application you can:
This provides complete control over your solar system directly from your smartphone.
| Specification | Value |
|---|---|
| Product Number | CHF149CC |
| Device Type | MPPT Solar Charge Controller |
| Charging Technology | MPPT |
| Maximum Charging Current | 15A |
| Maximum Solar Input Power | 200W |
| Maximum PV Input Voltage | 100V |
| Maximum Accessory Output | 15A |
| Communication | Bluetooth |
| Mobile App | CascadiaTether™ |
| Battery Compatibility | Lithium (LiFePO4), AGM, Gel, Flooded |
| Protection Rating | IP67 |
| Wiring | Plug & Play 12 AWG |
| Housing | Extruded Aluminum |
| Compatible Systems | Cascadia 4x4 VSS System™ 2.0 |
| Warranty | 5 Years |
| Country of Manufacture | Canada (using globally sourced components) |
Many inexpensive solar controllers available on the market are designed as universal products intended for stationary solar installations. While they may function adequately in basic applications, they often lack the durability, weather resistance, and system integration required for demanding overland and off-road vehicles.
Cascadia 4x4 takes a completely different approach.
Rather than selling individual components, Cascadia engineers complete solar charging systems specifically for modern 4WD vehicles. Every component—including the solar panel, wiring, charge controller, accessories, and mobile application—is designed to work together as one integrated solution.
This results in:
Instead of piecing together components from multiple manufacturers, owners receive a purpose-built solar charging system engineered specifically for off-road use.
The Cascadia 4x4 CHF149CC is the perfect solution for:
It is especially recommended for anyone using a Cascadia 4x4 VSS System™ 2.0 solar panel.
Whether you're exploring remote trails, camping for multiple days, or simply keeping your battery maintained while your vehicle is parked, the Cascadia 4x4 CHF149CC provides dependable, intelligent solar charging in every environment.
Combining advanced MPPT technology, rugged IP67 construction, Bluetooth monitoring, premium Canadian engineering, and seamless compatibility with the Cascadia 4x4 ecosystem, the CHF149CC delivers a professional-grade solar charging solution trusted by overlanders and off-road enthusiasts around the world.
