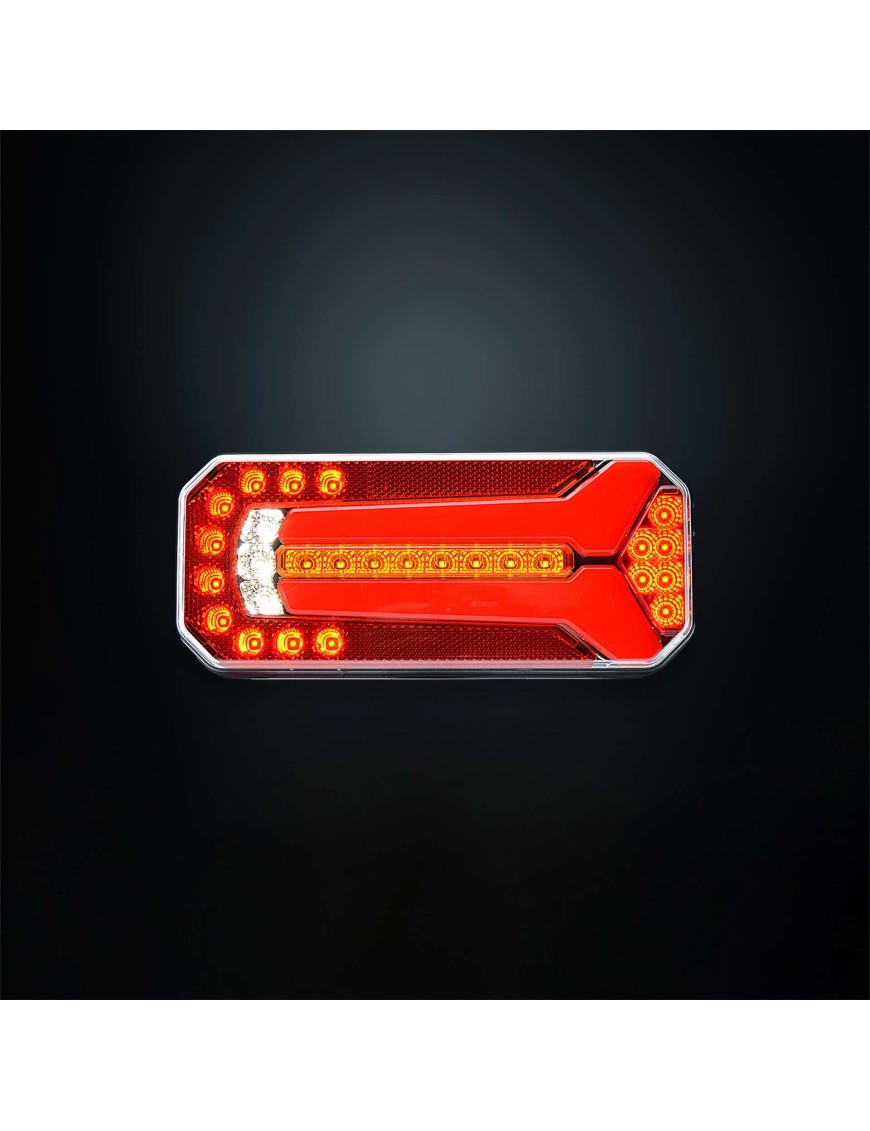

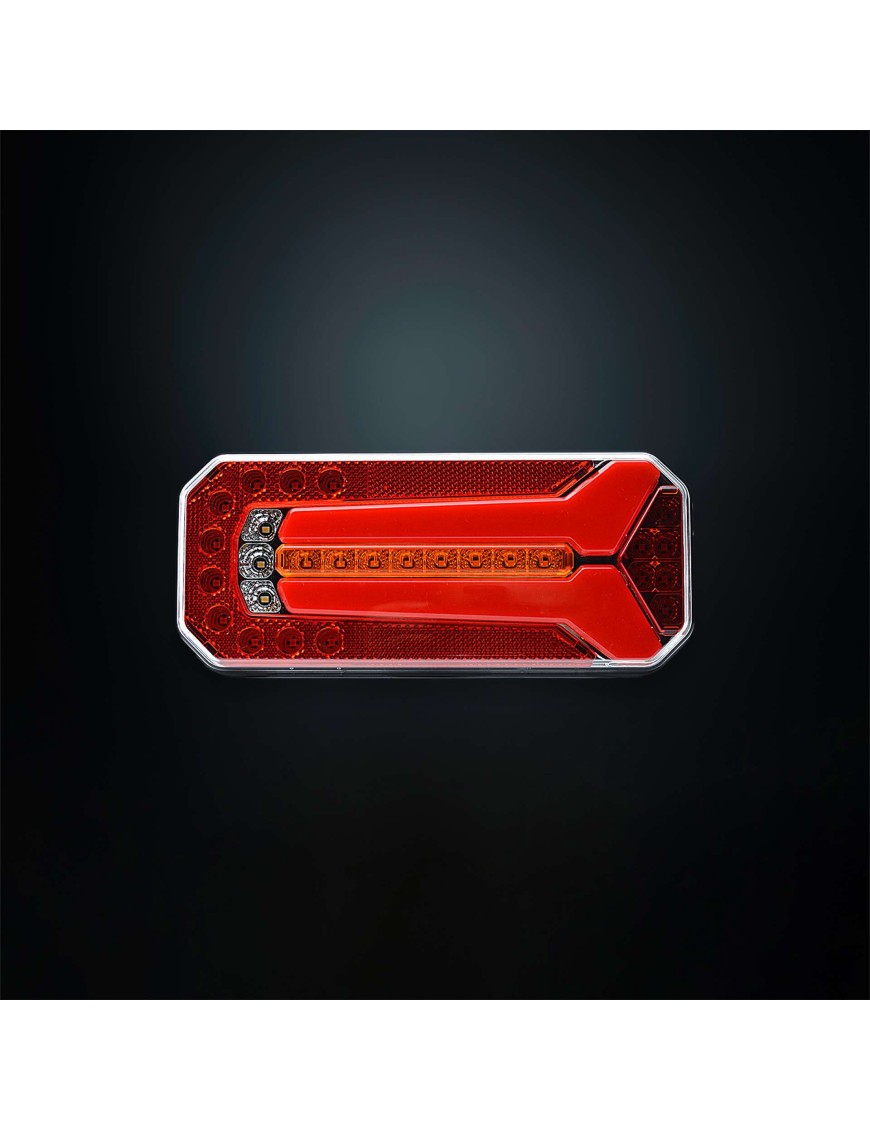

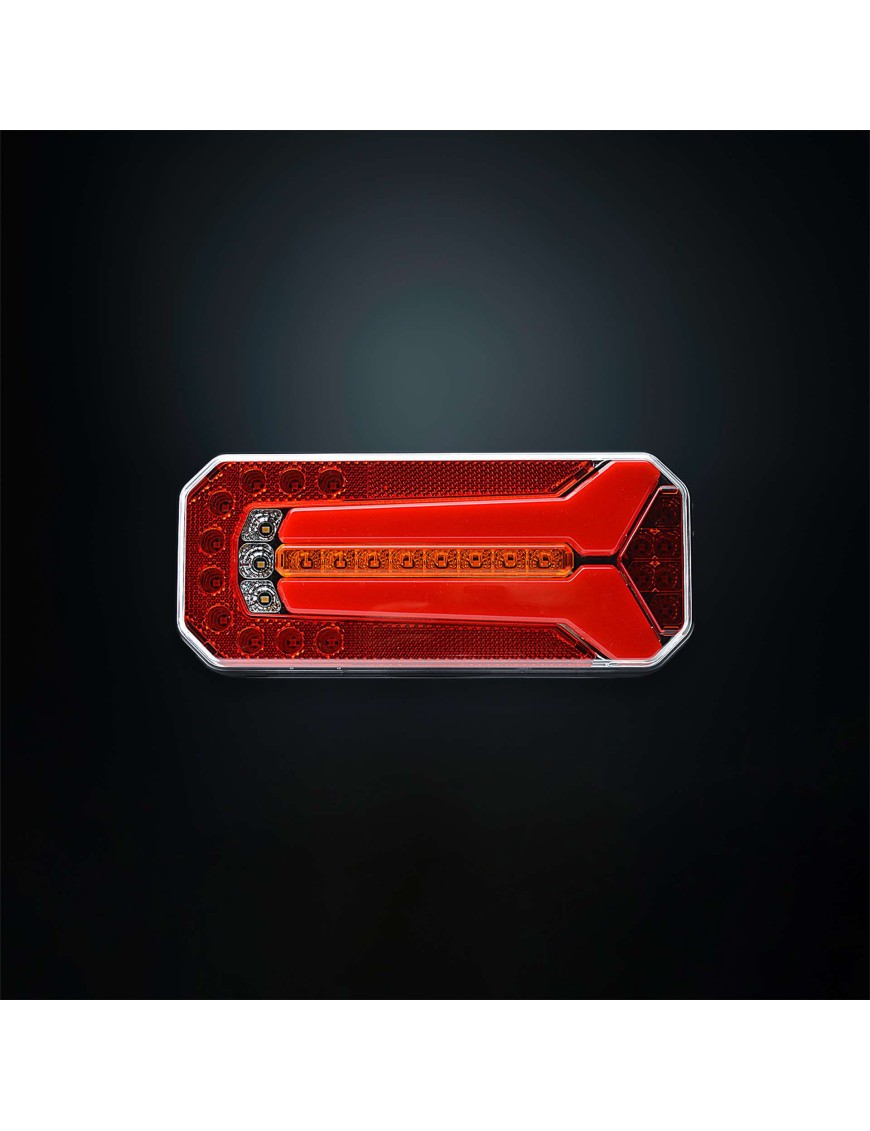

This universal rectangular LED tail light combines five essential rear-light functions in one compact unit: tail light, brake light, indicator, reverse light, and rear fog light. With approval for both horizontal and vertical mounting, it’s easy to fit into a variety of rear setups — from bumpers and frames to flatbeds and custom builds.
Its integrated multi-function layout helps simplify wiring and reduce the number of separate lamps needed, making it a practical choice for off-road vehicles, expedition builds, trailers, and utility applications.
Key features
- 5 functions in one unit: tail, brake, indicator, reverse, fog
- Approved for horizontal or vertical mounting
- IP66/68 sealing for harsh environments
- ABS housing/chassis with polycarbonate lens
- 2 m cable for convenient routing in builds and trailers
- Mounting on 2x M6 bolts (150 mm spacing)
- E-approved
Technical data
- SKU / Part No.: 800780
- Functions: tail, brake, indicator, reverse, fog
- Power consumption: 11.5 W

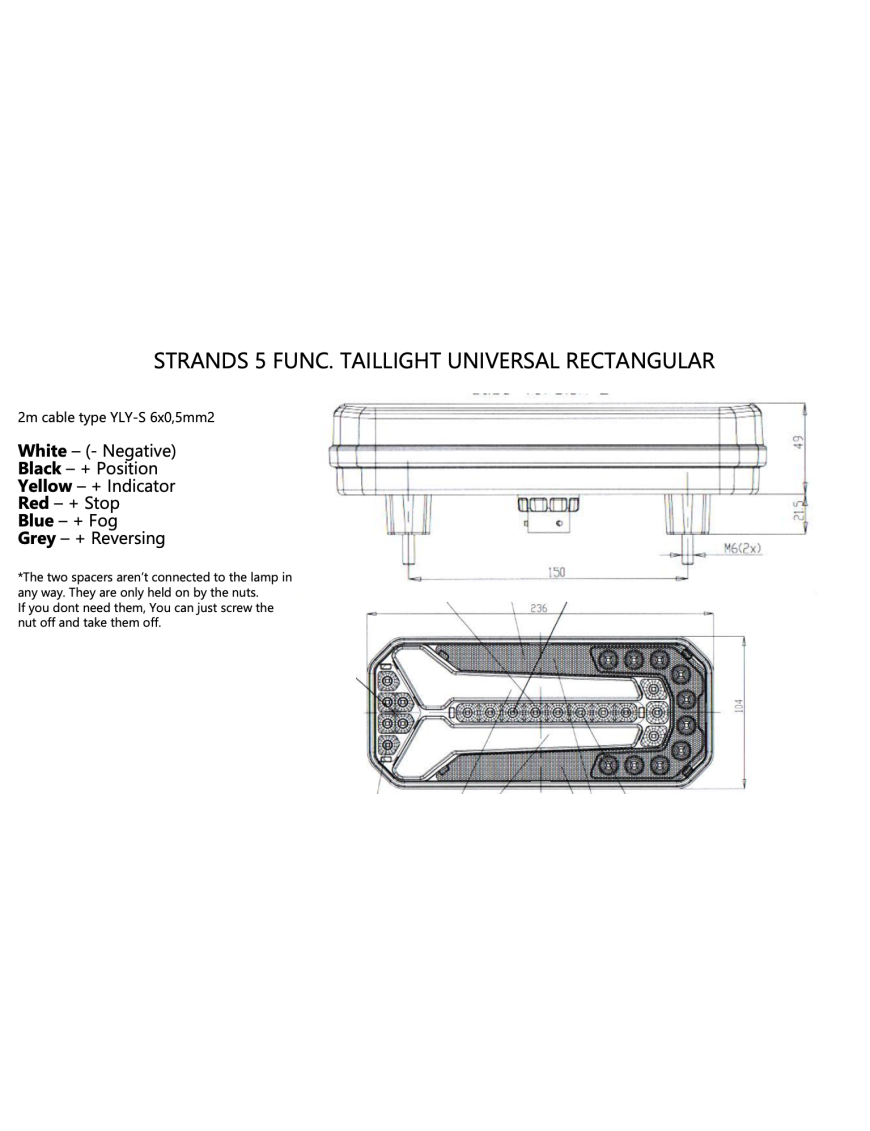

- Dimensions: 236 x 104 x 61.5 mm (L x H x D)
- Connection: cable
- Cable length: 2000 mm
- Cable type: YLY-S 6x0.5 mm²
- Ingress protection: IP66/68
- Housing/chassis material: ABS
- Lens material: polycarbonate
- Operating temperature: -40°C to +40°C

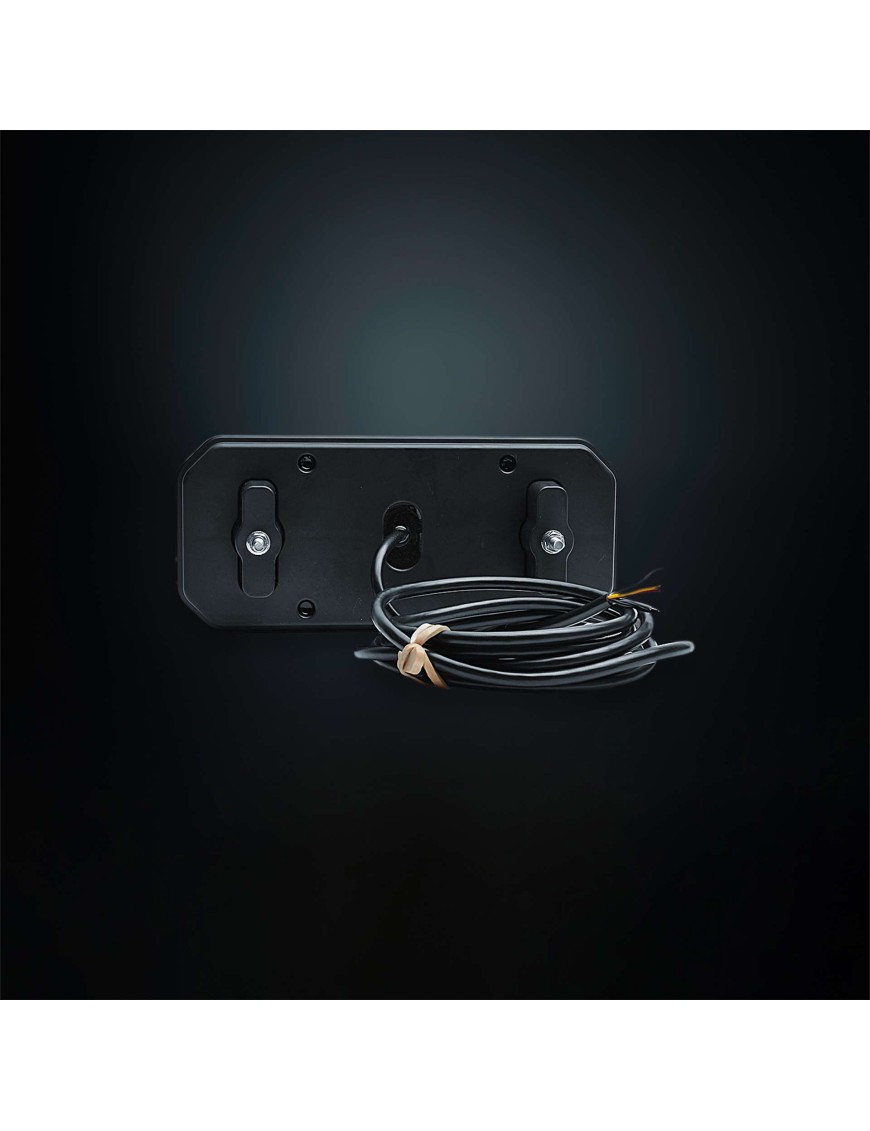

- Mounting: 2x M6, 150 mm spacing
- Wiring: white (-), black (+ tail), yellow (+ indicator), red (+ brake), blue (+ fog), grey (+ reverse)
- Included: two spacers (not permanently attached)
Off-road and 4x4 use
Rear lighting on off-road vehicles is exposed to water, mud, dust, and frequent washing. With IP66/68 protection and flexible mounting orientation, this light is well suited for 4x4 and overland builds, as well as trailers and utility platforms where reliability and clear rear signaling matter.
Why buy from Szekla4x4.pl
Szekla4x4.pl focuses on equipment that makes sense in real off-road use. You get a proven lighting option for demanding builds and support in selecting compatible mounting and installation accessories for your project.
