Rhino-Rack JC05192 Sportz 3-Bar Roof Rack Kit

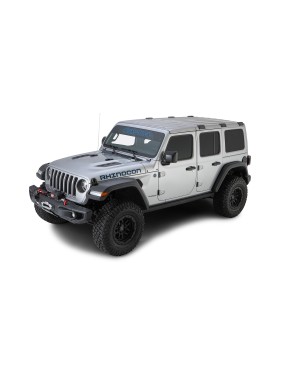

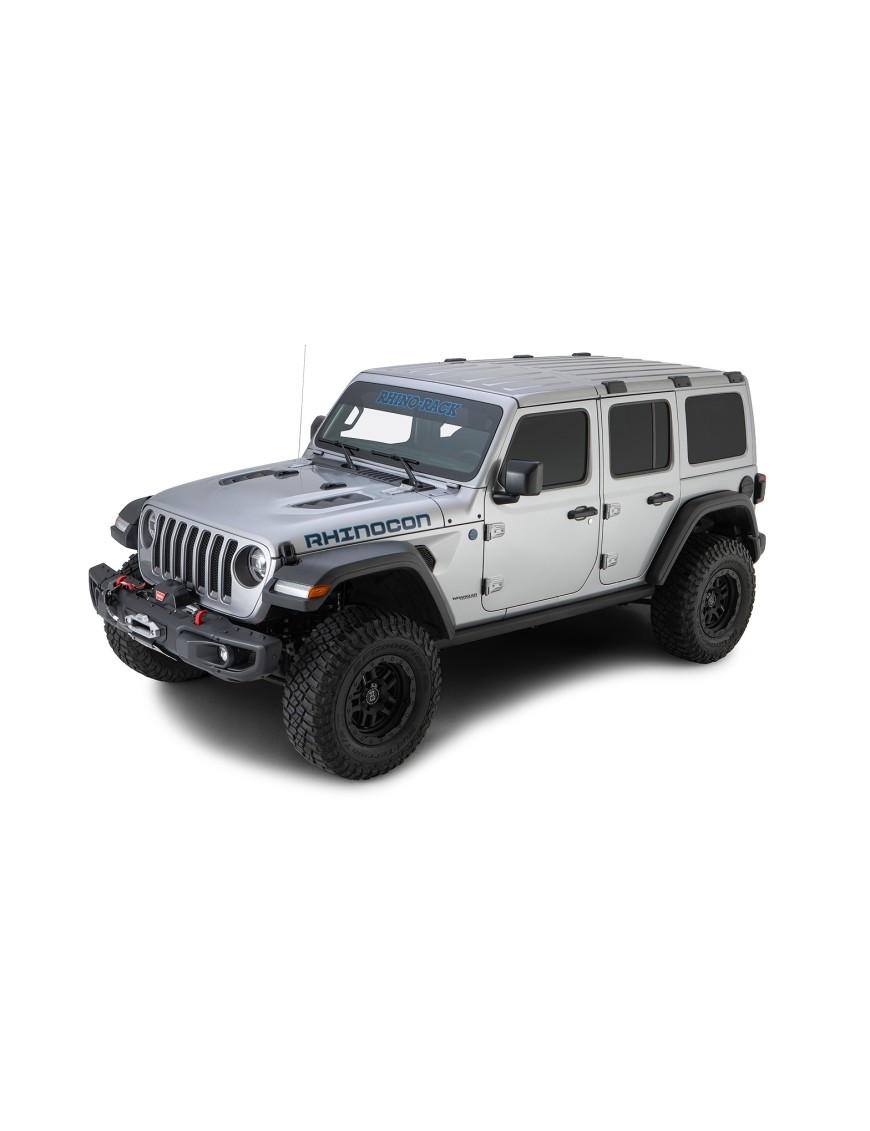

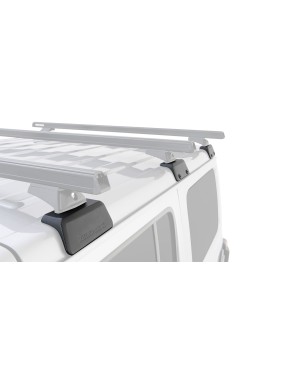

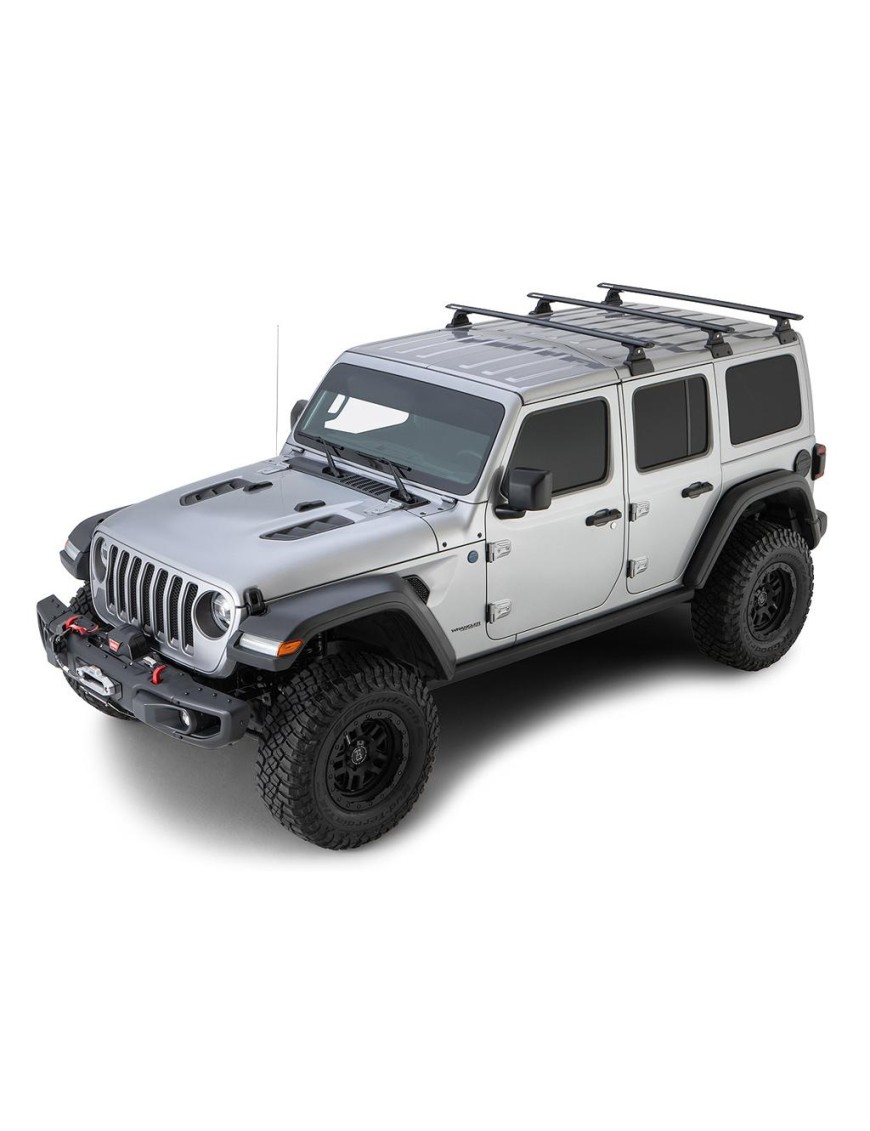

Rhino-Rack JC05192 is a complete roof rack solution for the Jeep Wrangler JL 4-door hard top. The kit combines three black 1500 mm Sportz crossbars, RCL6 locking legs and the RJLB1 Backbone reinforcement system to create a secure setup for travel, cargo and off-road use.

This system is built for users who want removable crossbars, strong hard-top support and broad accessory compatibility. The overhang-style Sportz bars help maximise usable roof width, while the low-profile RCL leg design keeps the setup compact and practical for everyday driving.

Key features

• Complete 3-bar Rhino-Rack roof rack kit
• Designed for Jeep Wrangler JL 4-door hard top

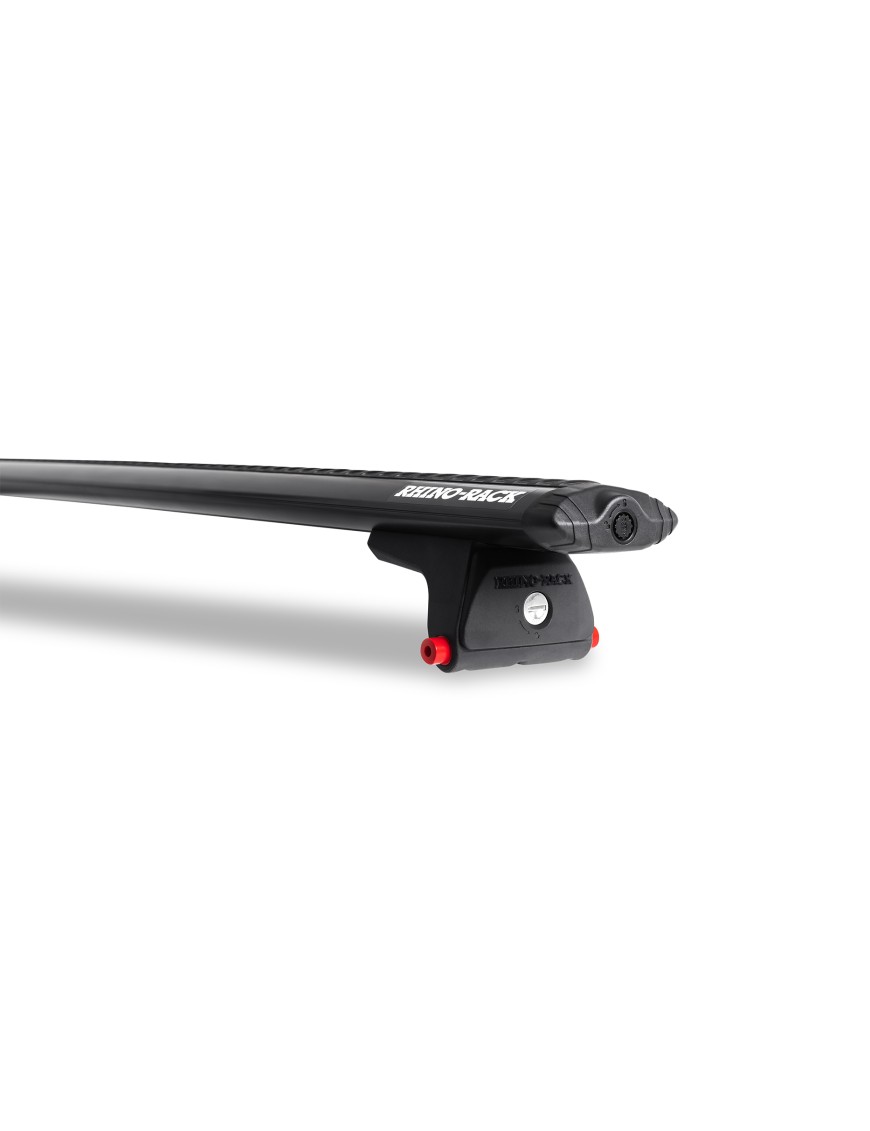

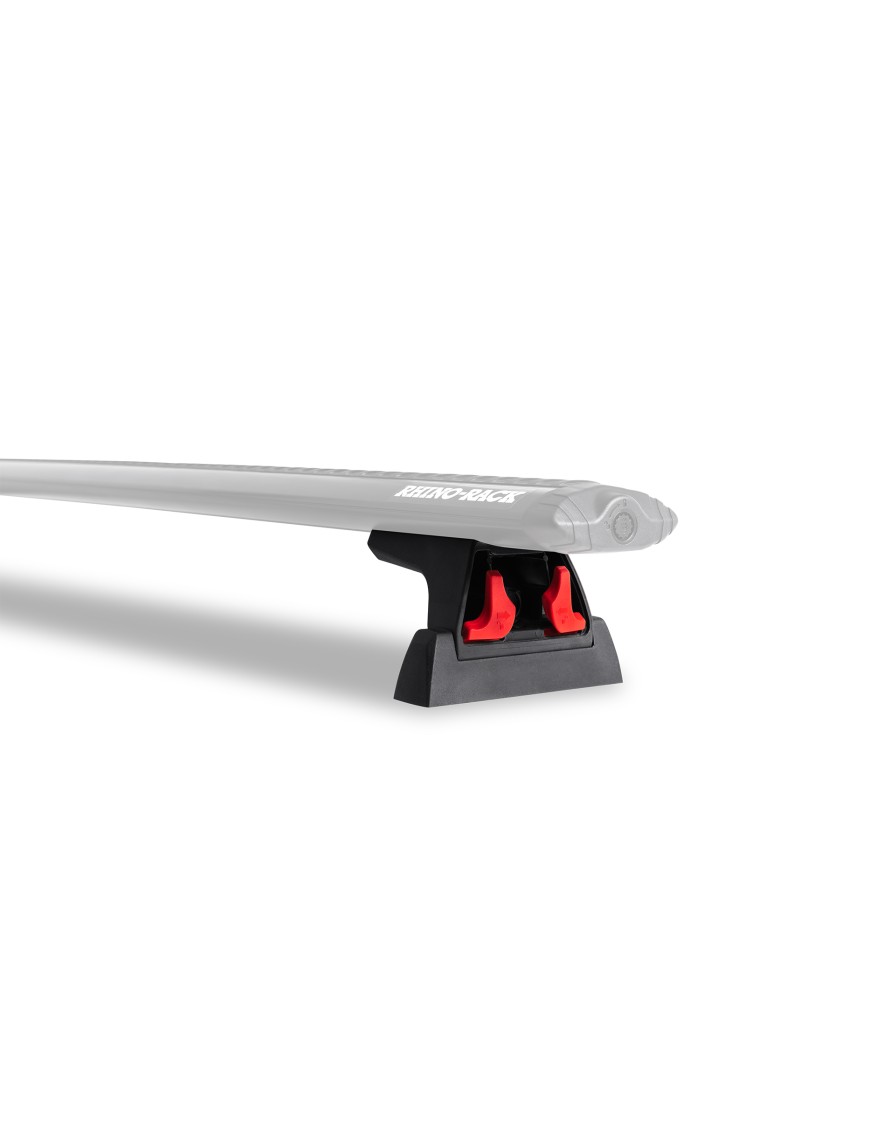

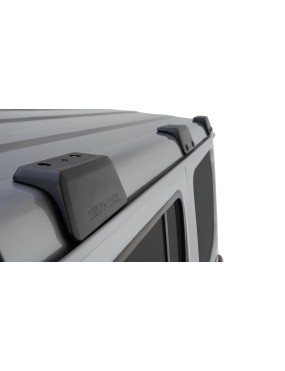

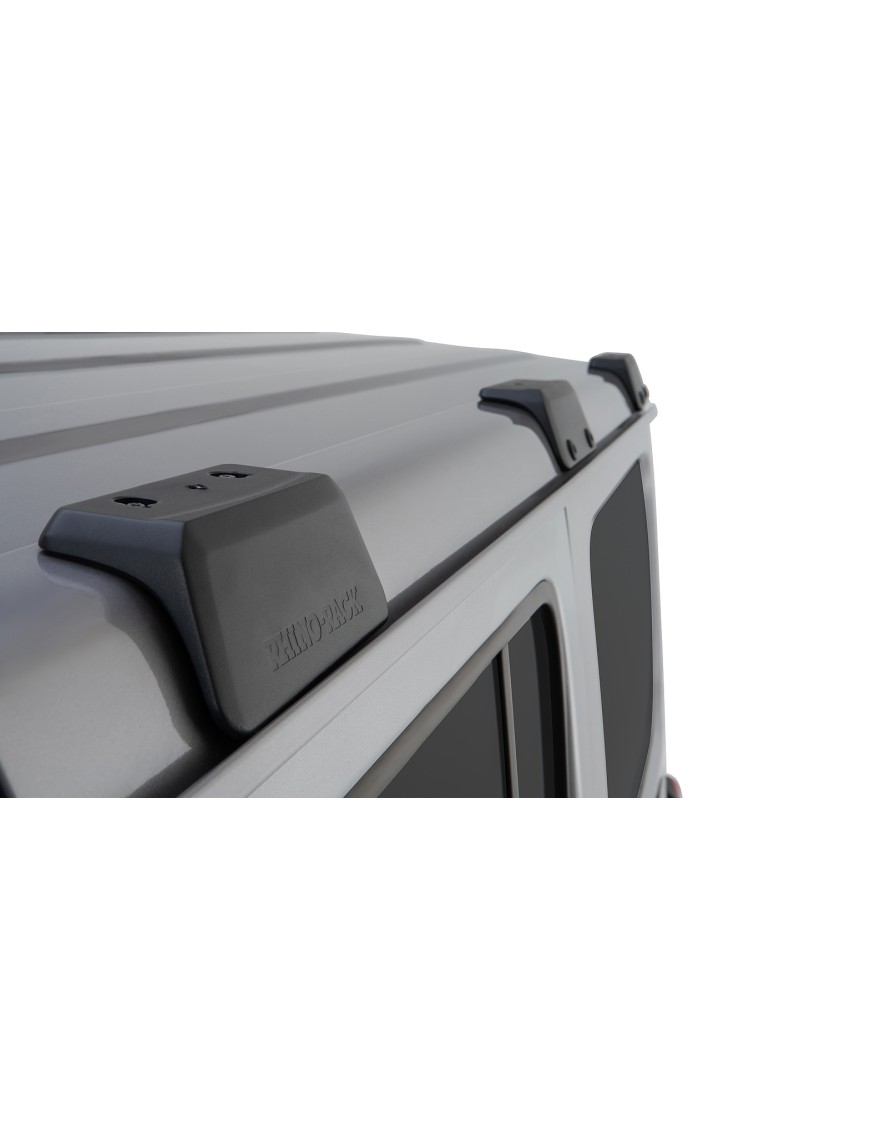

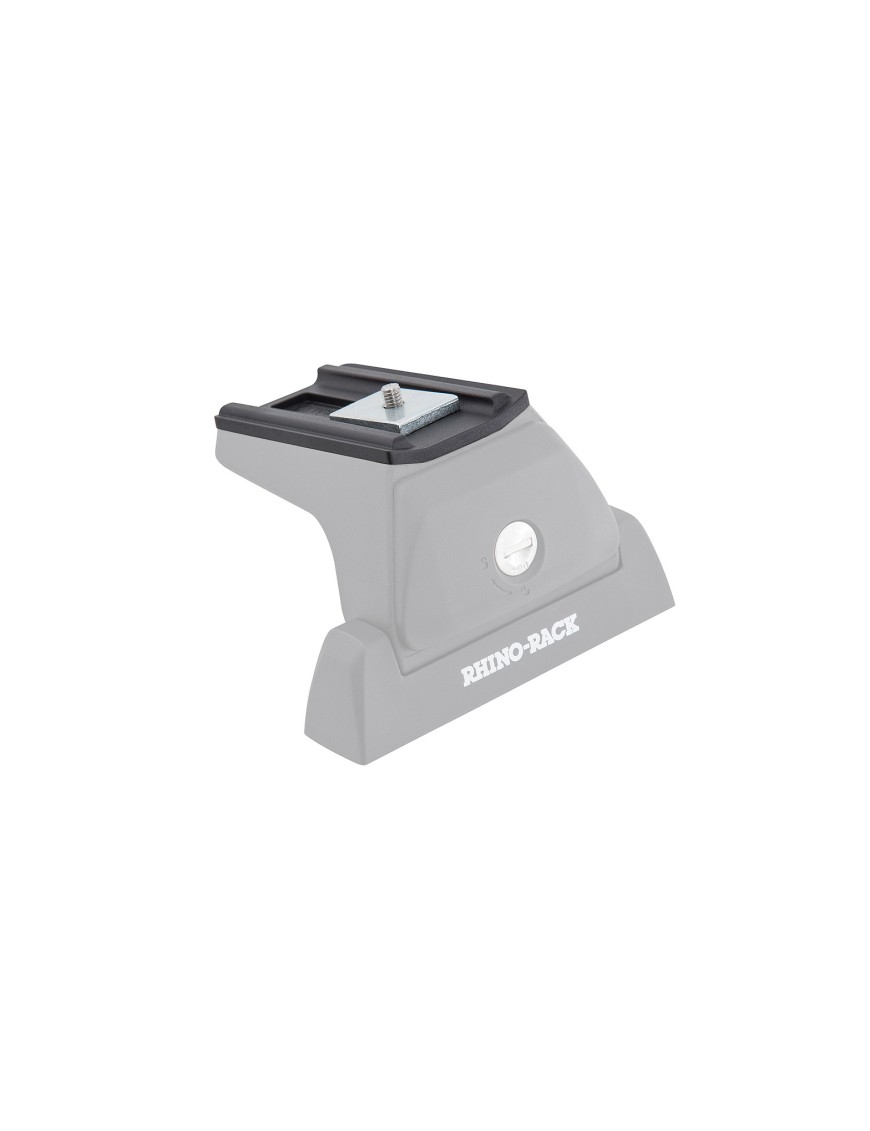

• Low-profile RCL locking leg design
• Removable and relatively quick to remove when not needed
• Locking covers with integrated Allen key storage
• Overhang bar layout to maximise bar width
• Accessory-friendly Sportz crossbar profile
• Suitable for demanding off-road use

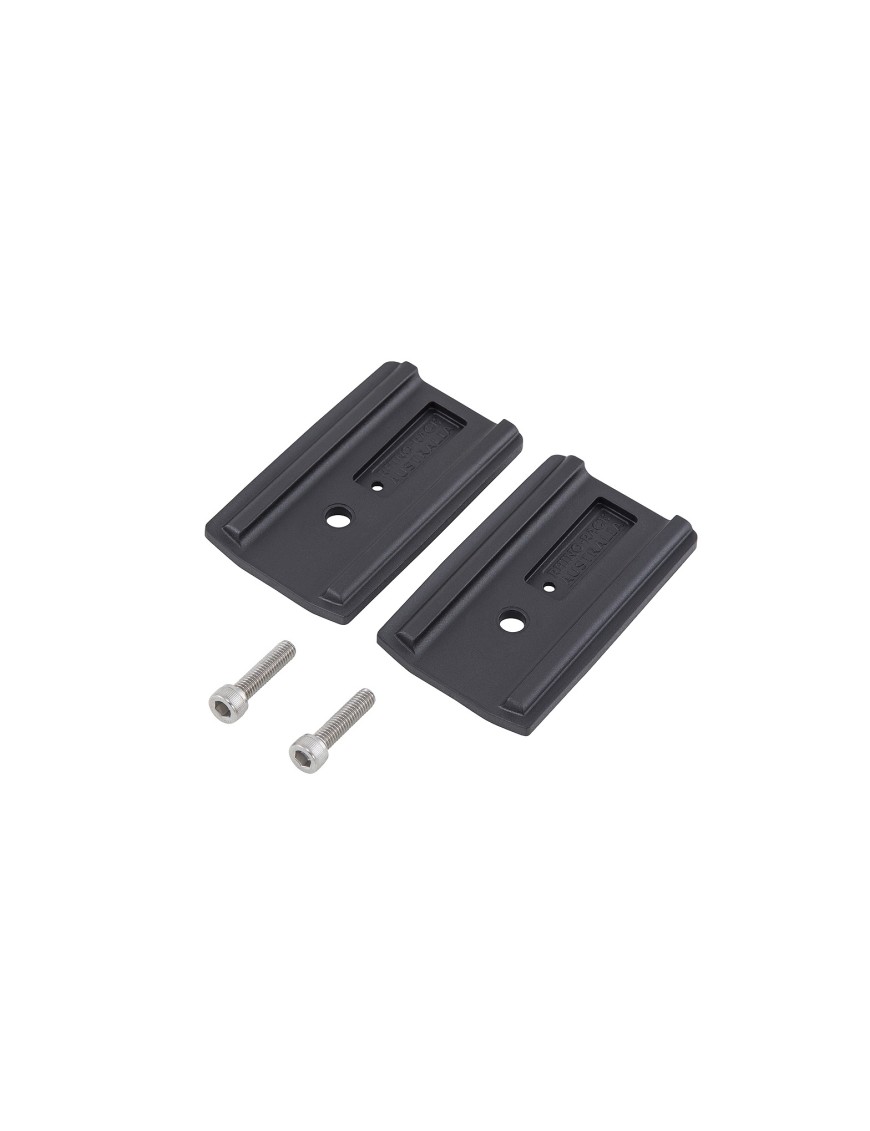

• Height can be increased with QMVA spacers
• Tested to Australian Standard AS1235-2000

Compatibility

• Jeep Wrangler JL 4-door 4WD hard top, 04/2019-on
• Not compatible with the Sky One-Touch roof

Installation notes

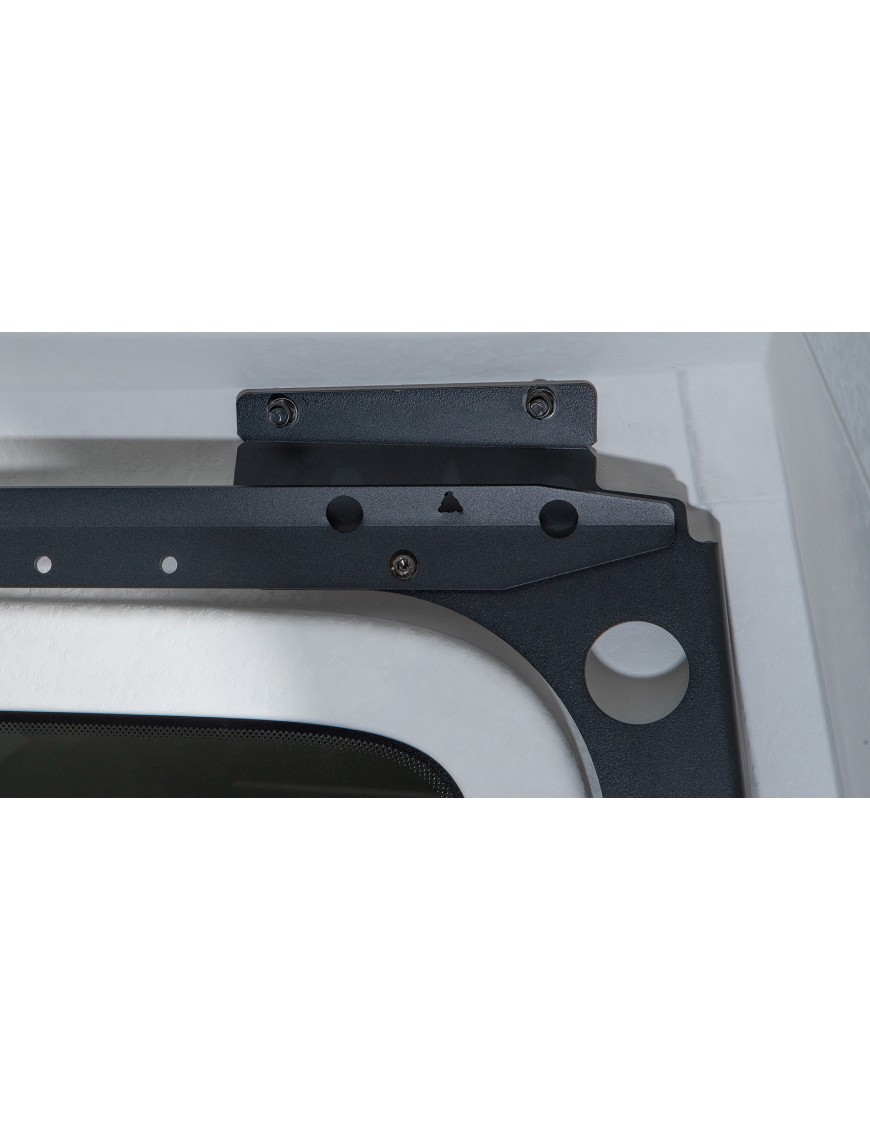

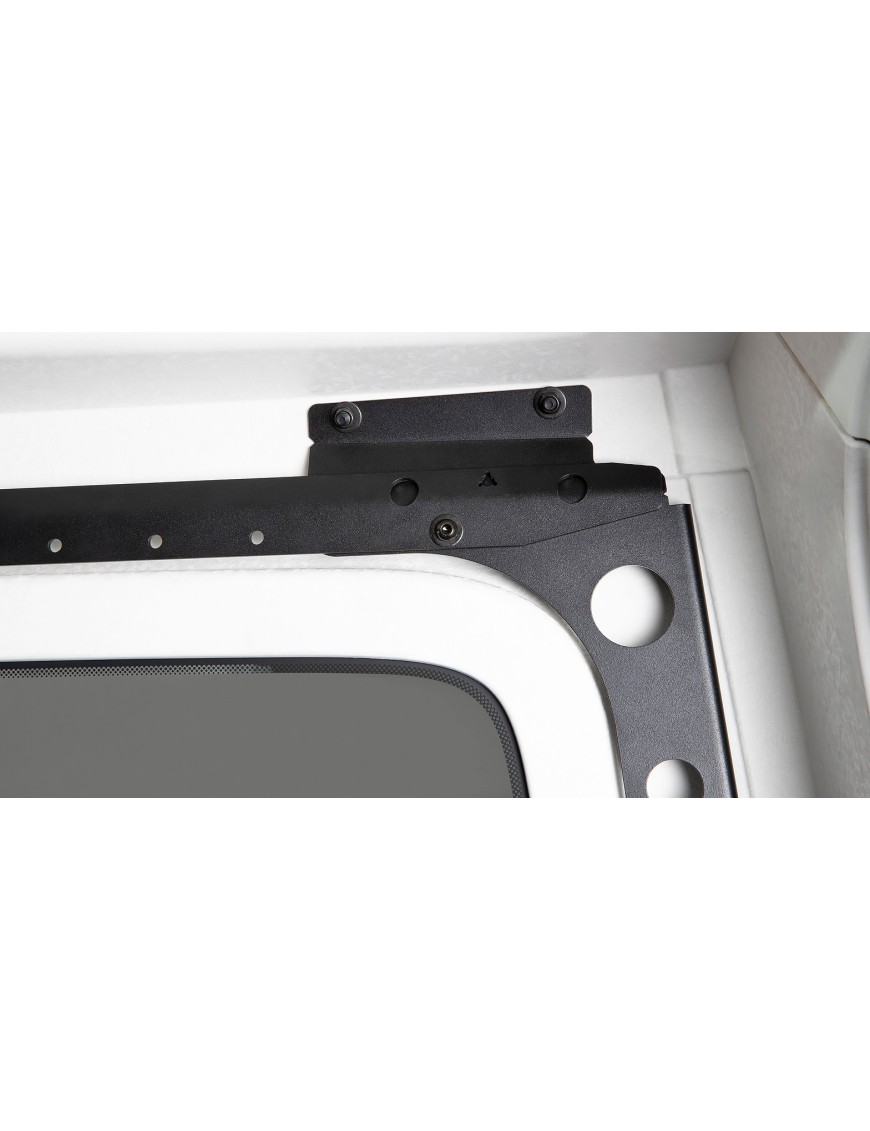

• Backbone reinforcement installation requires drilling holes in the hard top
• Approximate installation time: 2.5 hours
• RCL leg height: 37 mm

Load ratings

• Dynamic load capacity: up to 120 kg
• Static load capacity: up to 360 kg
• Always follow the lower vehicle roof load limit where applicable

What is included

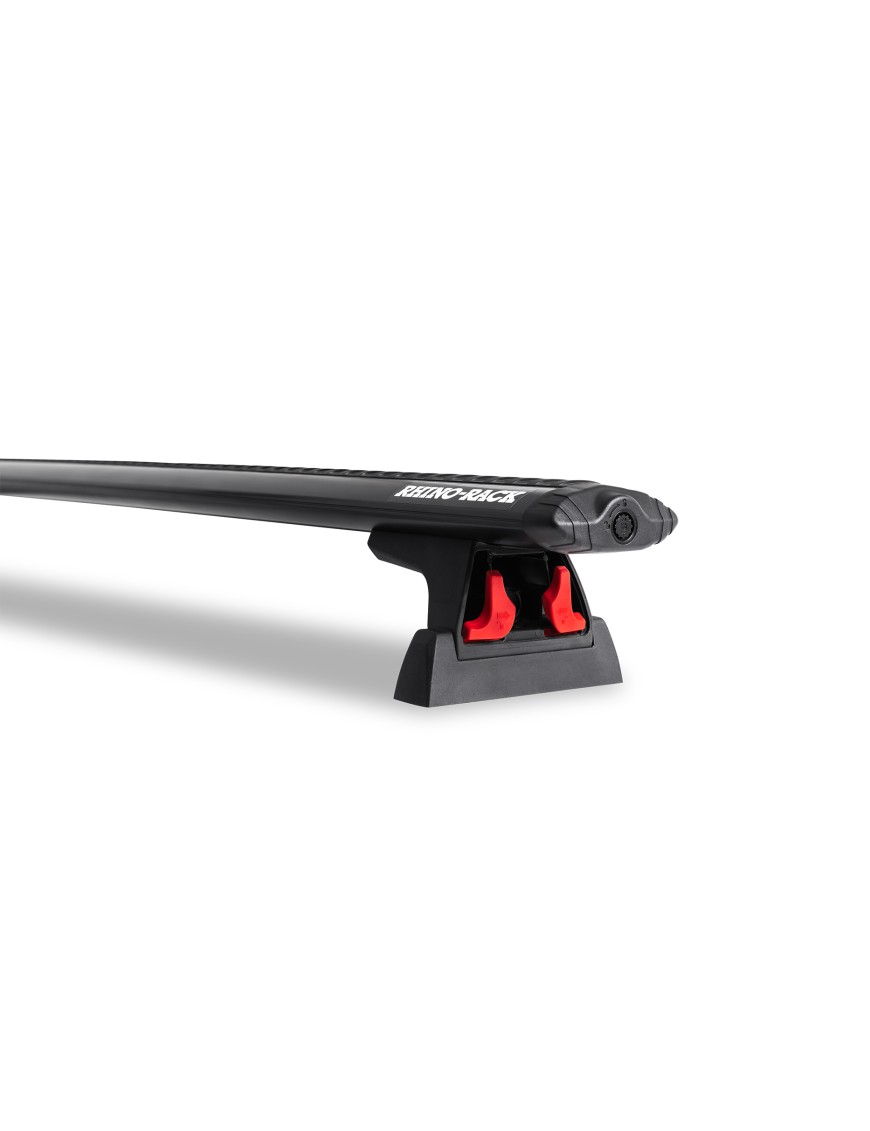

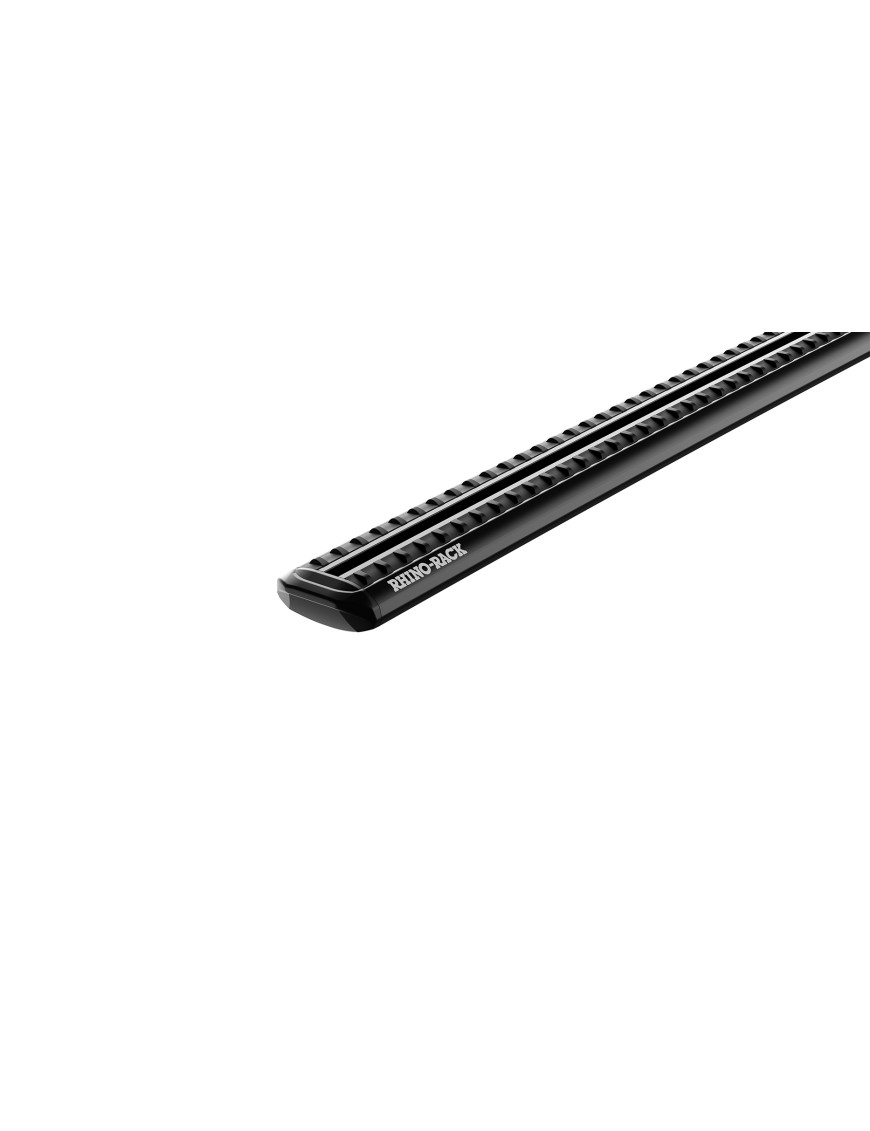

• 3 x Sportz Bar Black 1500 mm – SZ150B

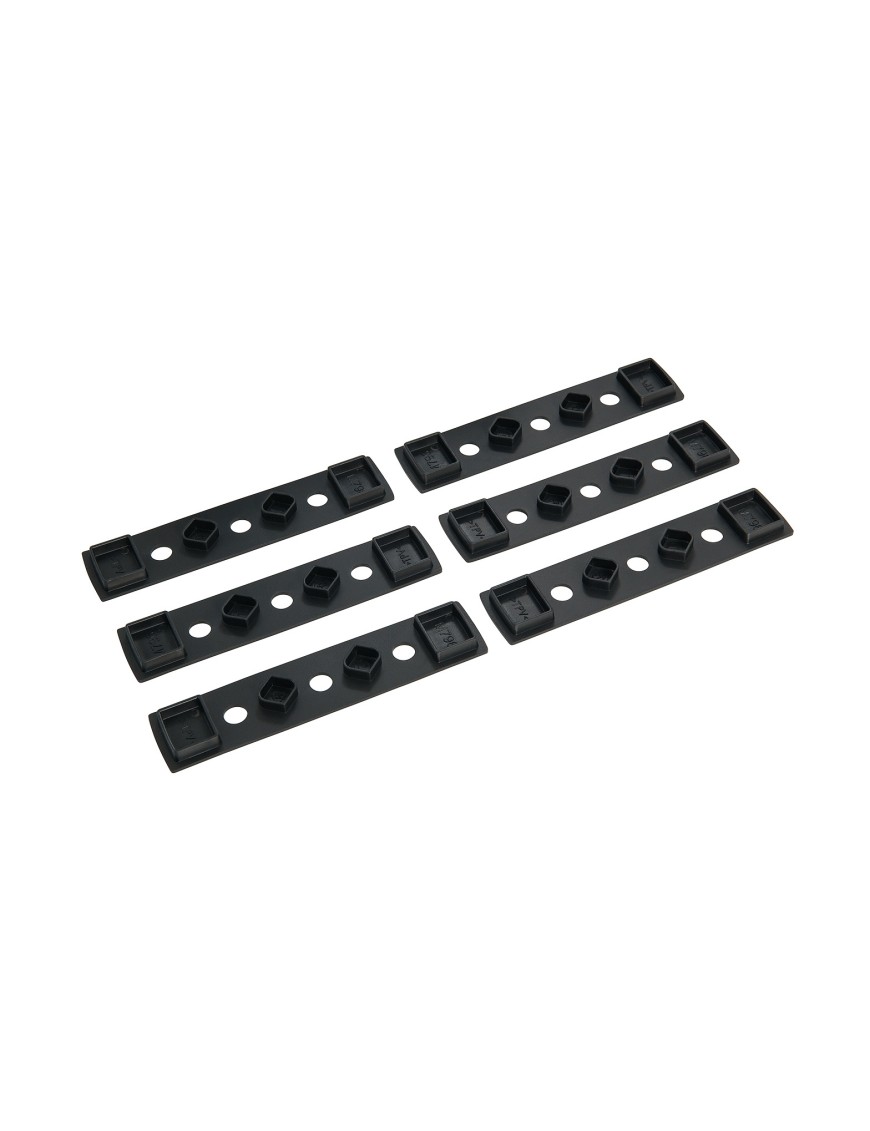

• 1 x RCL locking leg kit – RCL6

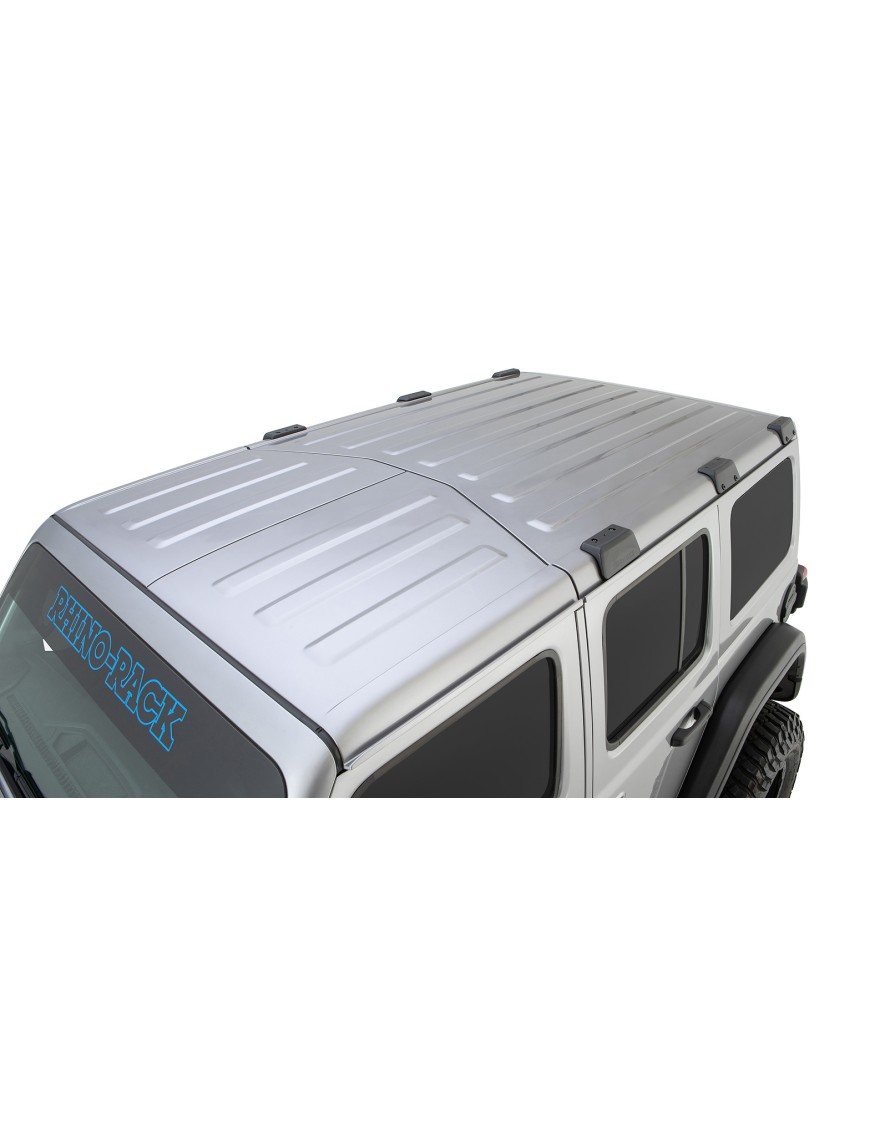

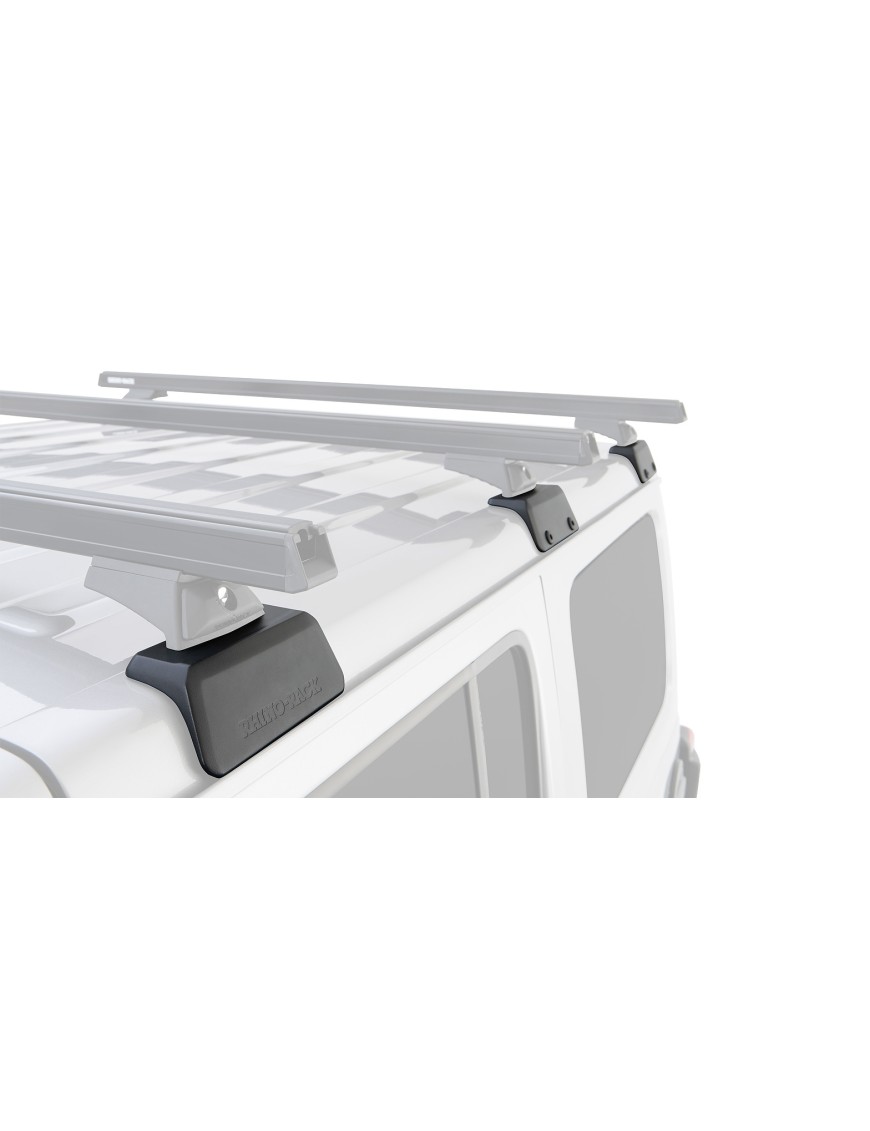

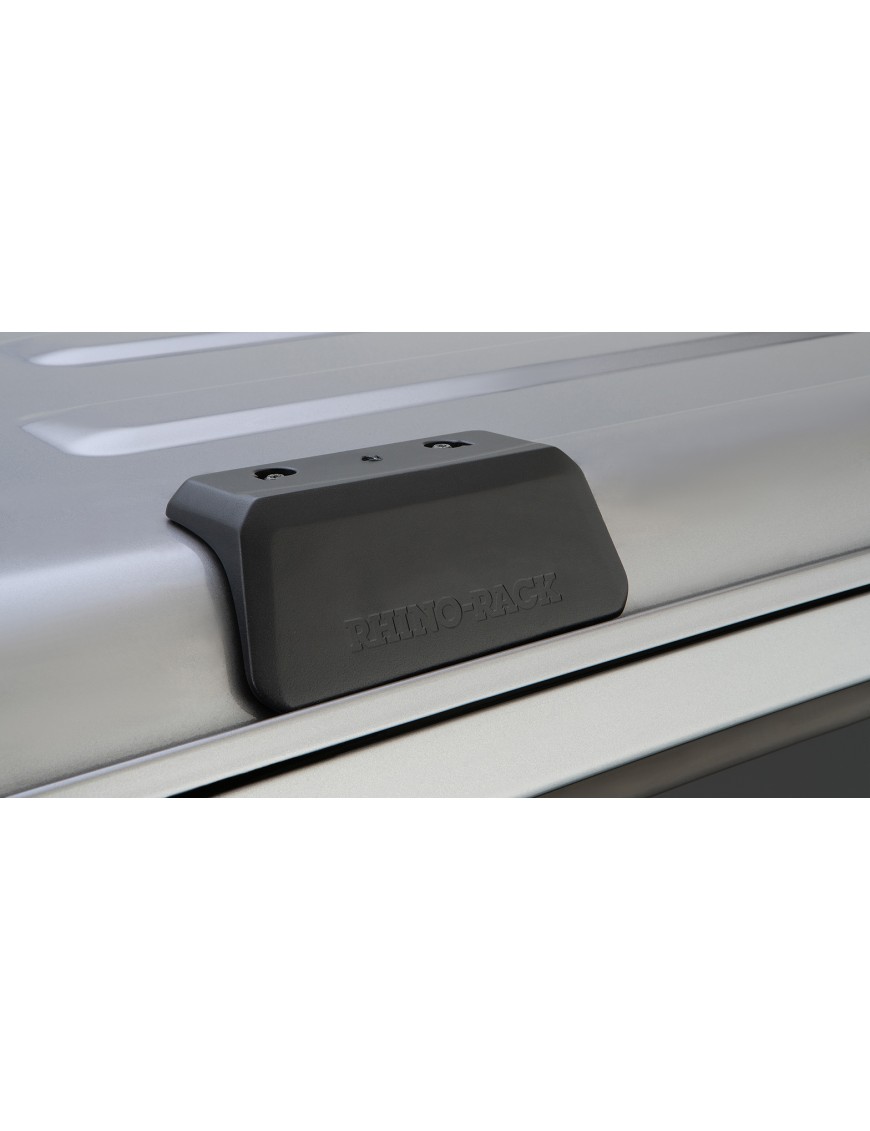

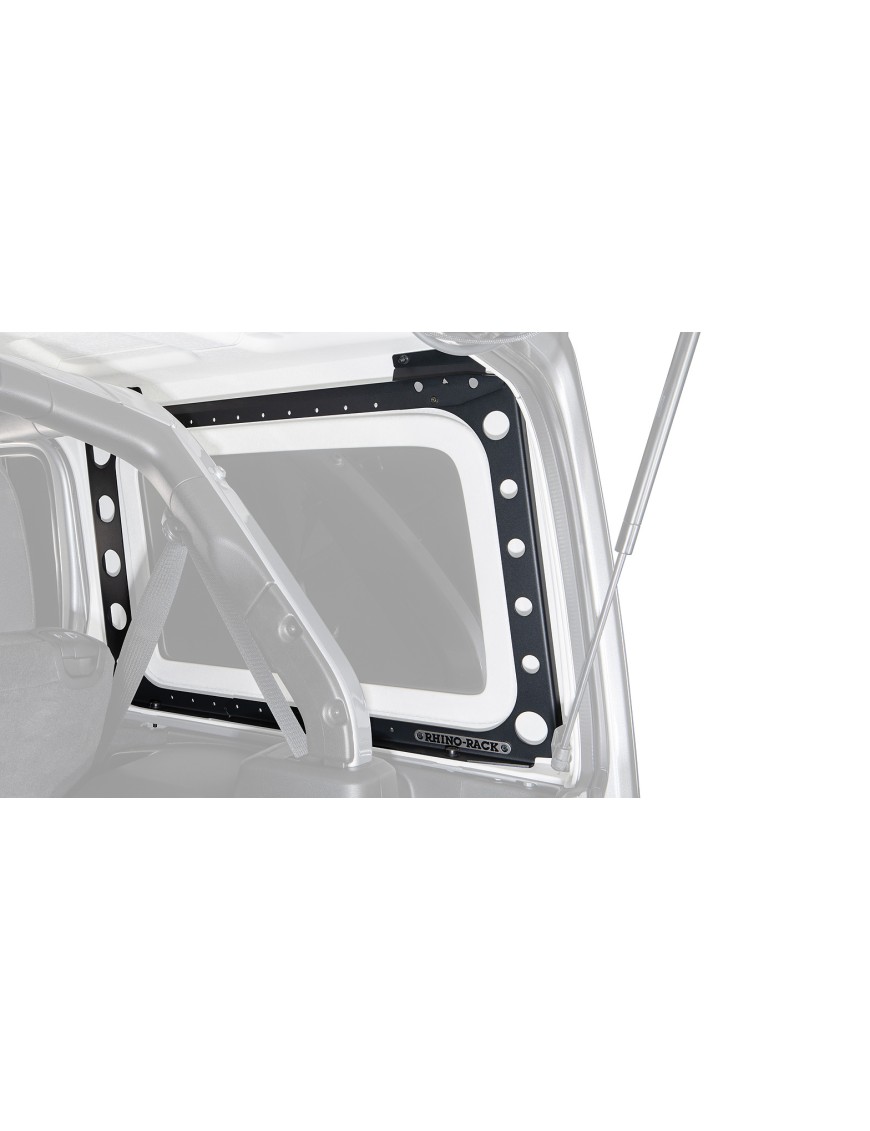

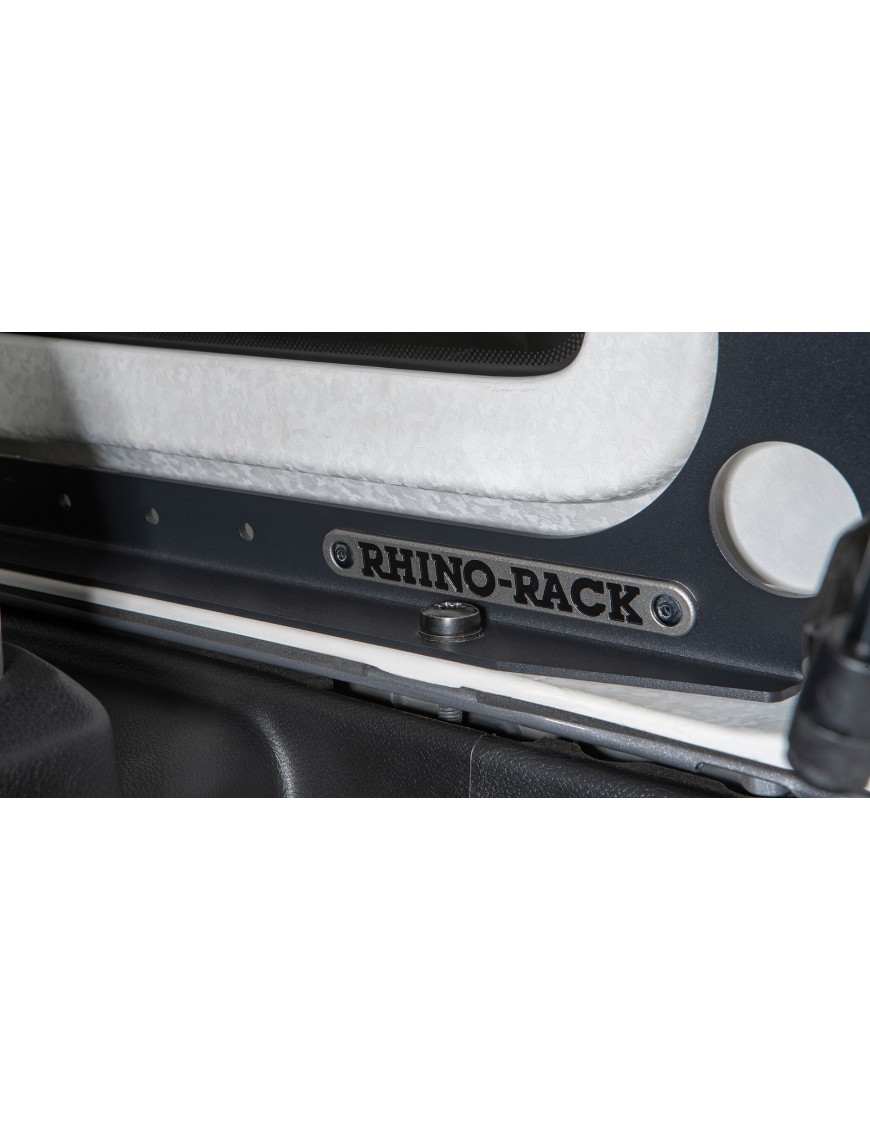

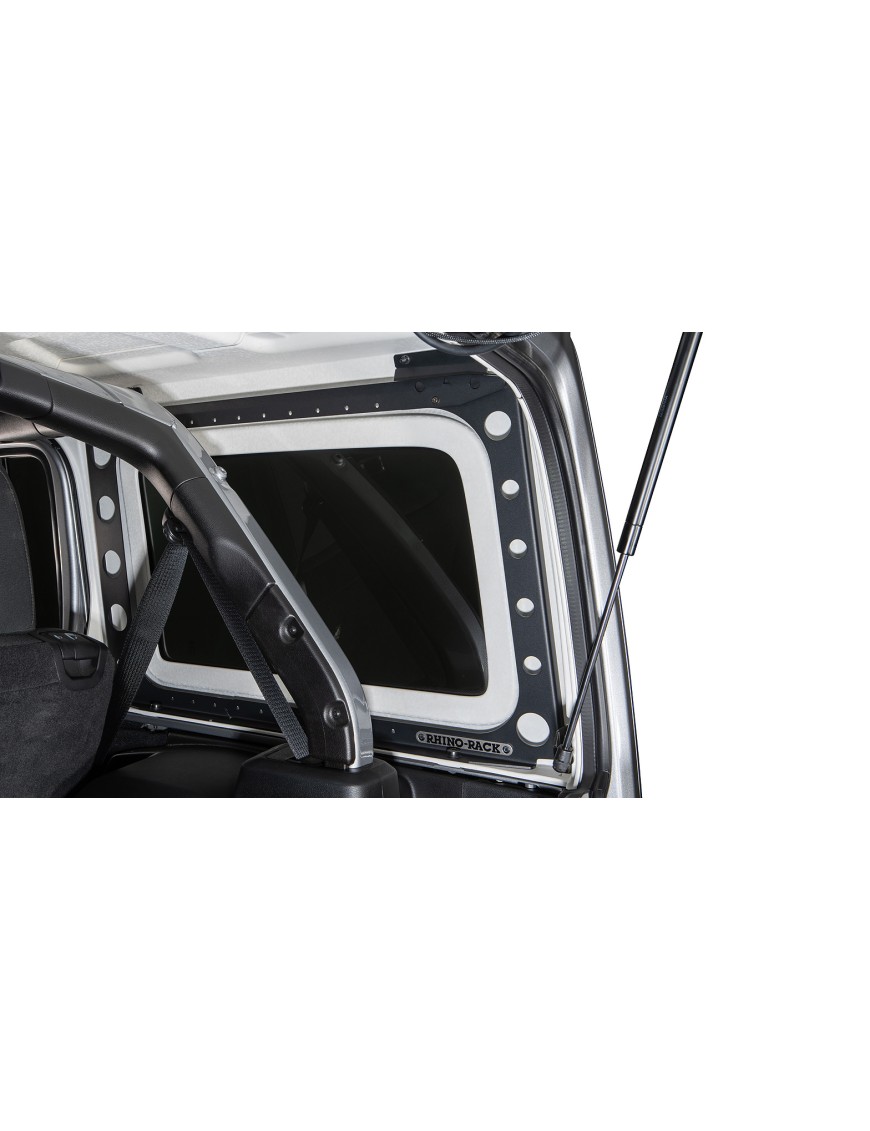

• 1 x Backbone reinforcement system for hard top – RJLB1

Technical data

Additional note: the reseller listing marks this version as discontinued and replaced by JC06509 with RX300 legs.
