Front Shock Absorber OME BP-51 - JEEP WRANGLER JL

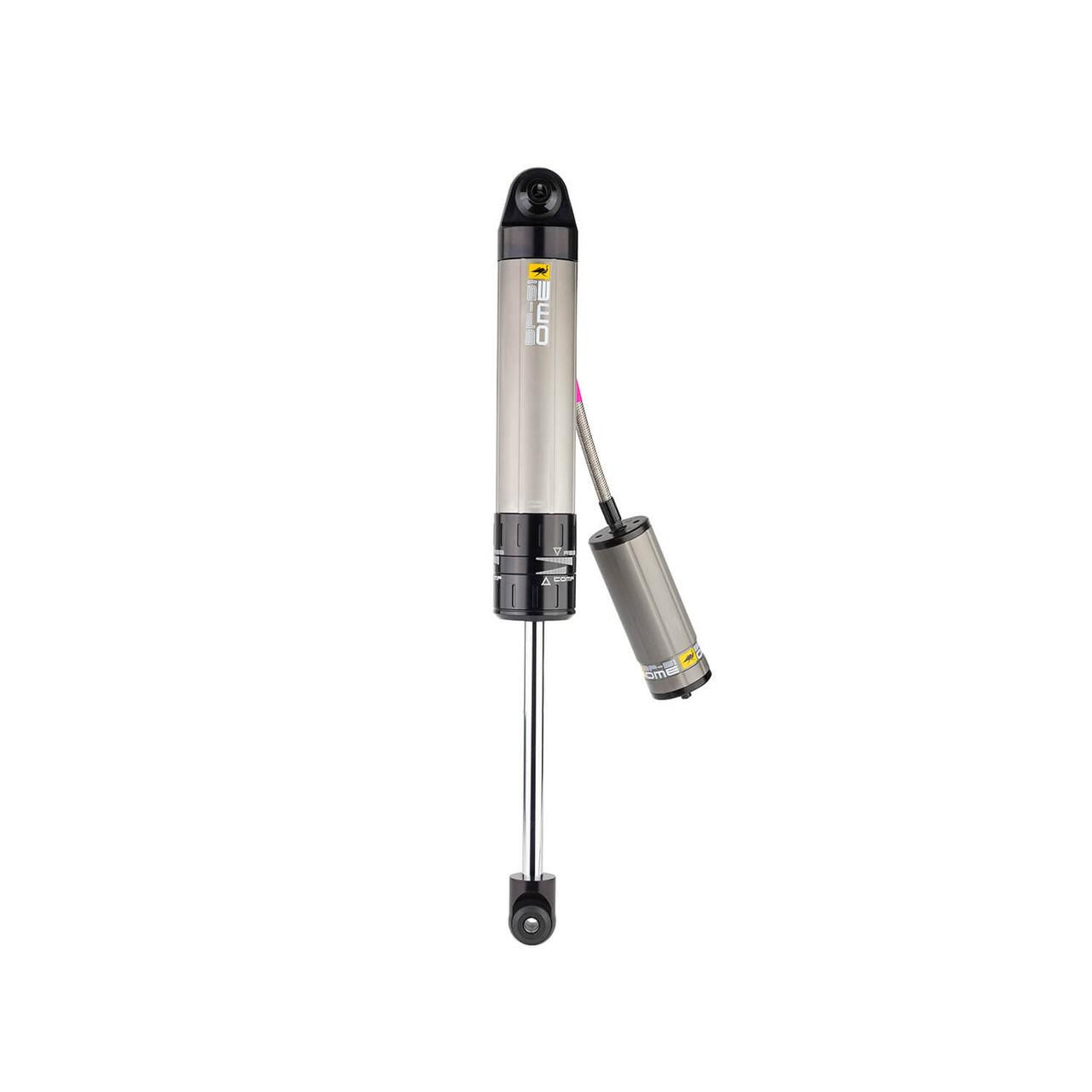

Old Man Emu Front BP-51 Bypass Shock Absorber BP5160033 – vehicle-specific fitment

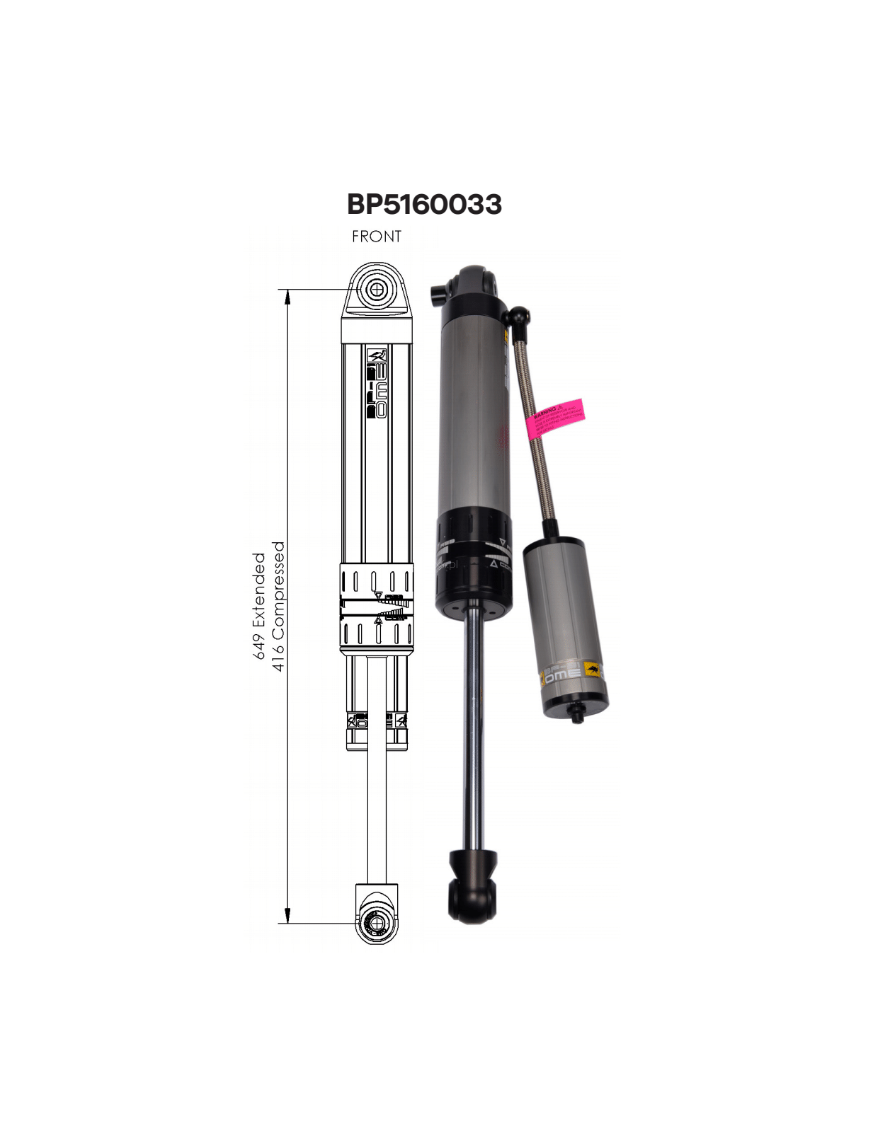

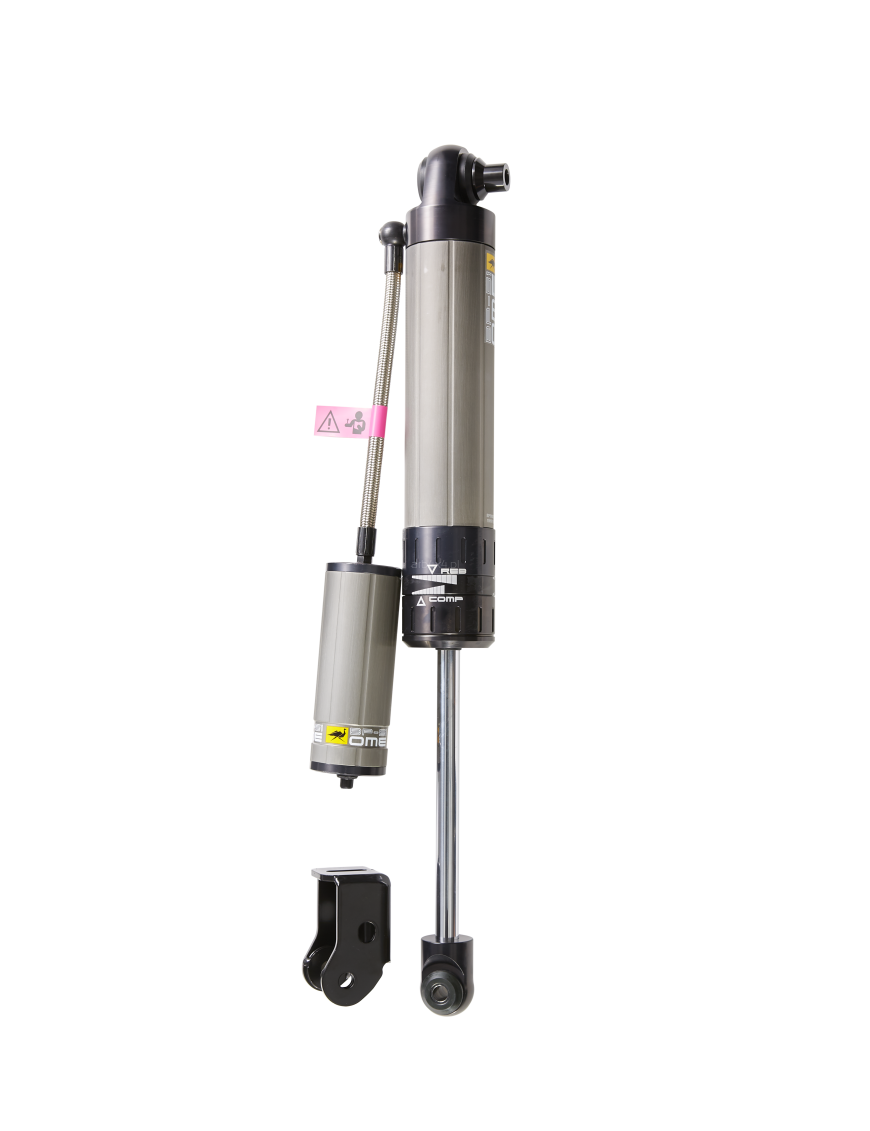

Product view – BP-51 front shock with remote reservoir

Key benefits

• Internal bypass / shim-controlled / position-sensitive damping for a balanced ride on-road and improved control off-road.
• Comfort at ride height with damping that increases as you get closer to the end zone.
• Increased control at end zones for better chassis stability and handling in rough terrain.
• Maximum bore size and bypass diameter, plus greater oil volume for consistent performance.
• Highly tunable ability to generate force through wide-range rebound and compression adjustment.
• On-car adjustable—quick tuning for load changes and different driving conditions.
• Body, reservoir, and components made from 6061-T6 aluminum with Type III hard anodizing (40 micron) for heat dissipation, corrosion resistance, and resistance to stone damage.
• Designed to bolt onto the vehicle without modifications (fitment depends on model—use “Select a Ride”).

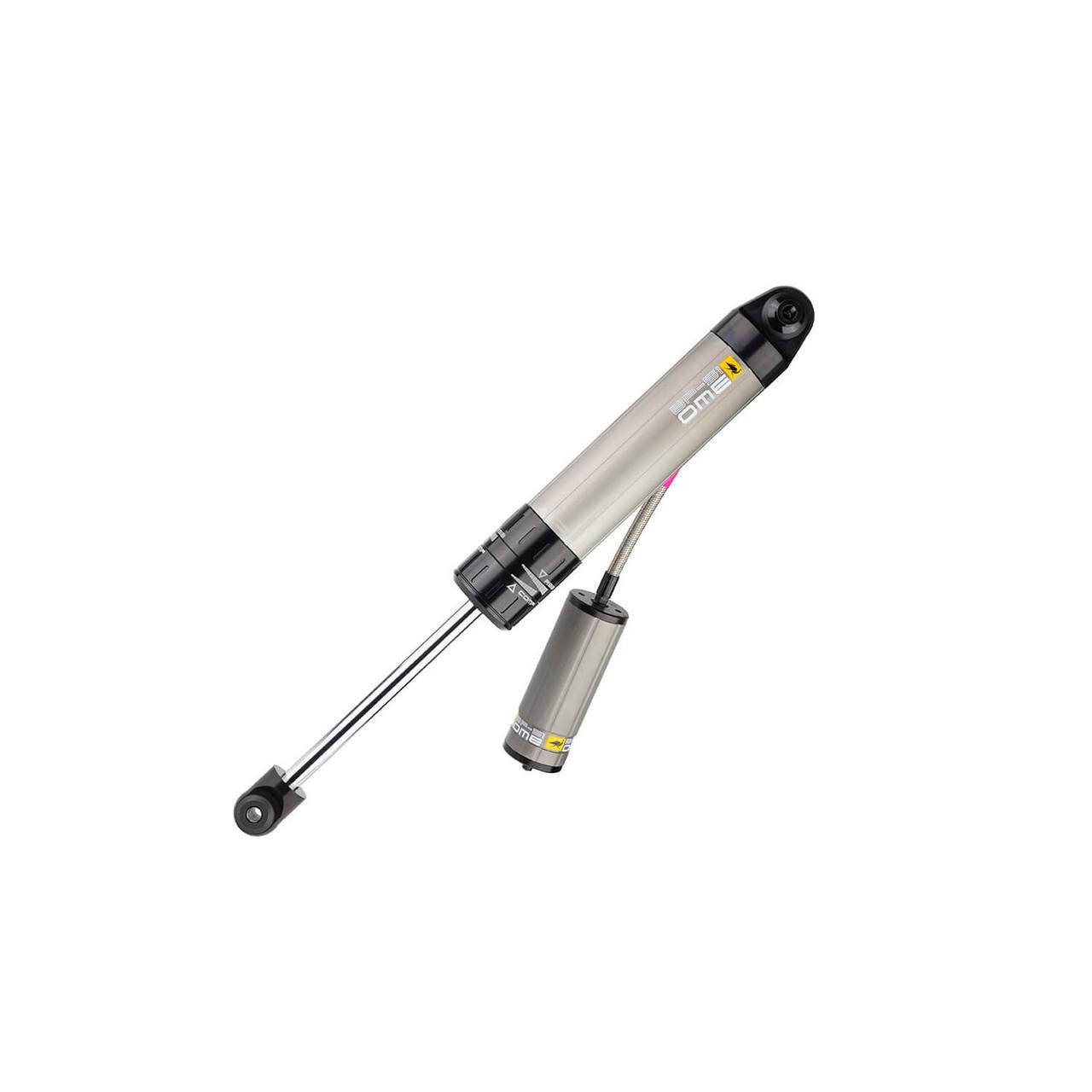

Angle view – hose and reservoir routing

Adjusters close-up – rebound and compression

What’s in the box

• 1× Front BP-51 bypass shock absorber (BP5160033).
• Remote reservoir assembly (as shown) connected to the shock.

Technical facts / specifications

• Design: Bypass.
• Bore size: 51 mm.
• Open length: 649 mm.
• Closed length: 416 mm.
• Color: Grey.
• Material: Aluminum.
• Construction: 51 mm bore, 6061 grade aluminum body; polyethylene shaft guard; rubber bushings.
• On-car adjustable: rebound and compression.
• Warranty: 3 YR.<
