MetalCloak RockSport Black 2.5 – adjustable front reservoir shocks for the INEOS Grenadier
The MetalCloak RockSport Black 2.5 is a pair of front long-travel remote-reservoir shocks developed specifically for the INEOS Grenadier. Each shock combines a 2.5-inch aluminum body, an oversized 7/8-inch shaft and 8-position external compression adjustment.
Key benefits
- 8 compression settings provide quick external adjustment without removing the shock.
- 2.5-inch aluminum shock body with a 3/16-inch wall provides substantial internal fluid capacity.
- Remote reservoir connects through a stainless-steel braided hydraulic hose with a rubber outer covering.

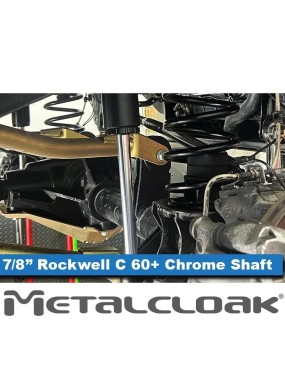

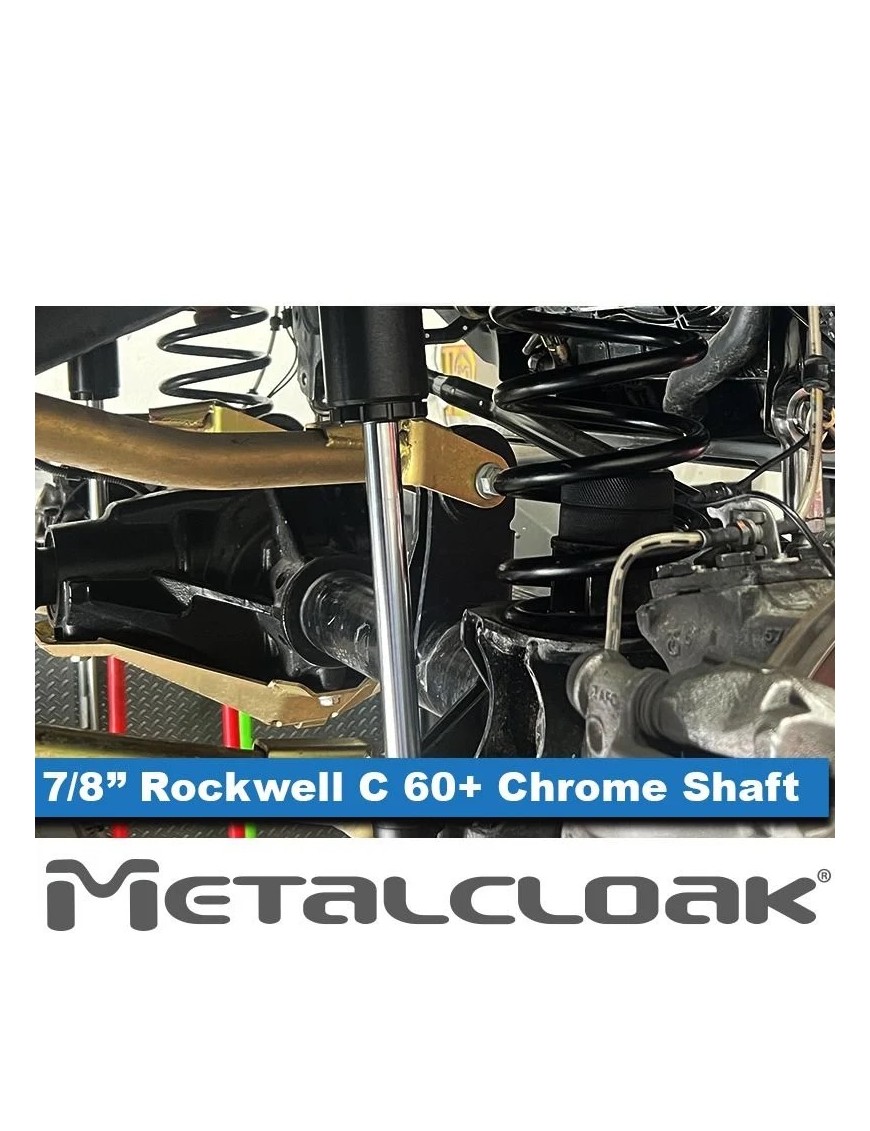

- 7/8-inch shaft is induction hardened to Rockwell C 60+ and hard chrome plated.
- Parabolic Valving uses MetalCloak's profiled valve-shim design to control fluid flow.

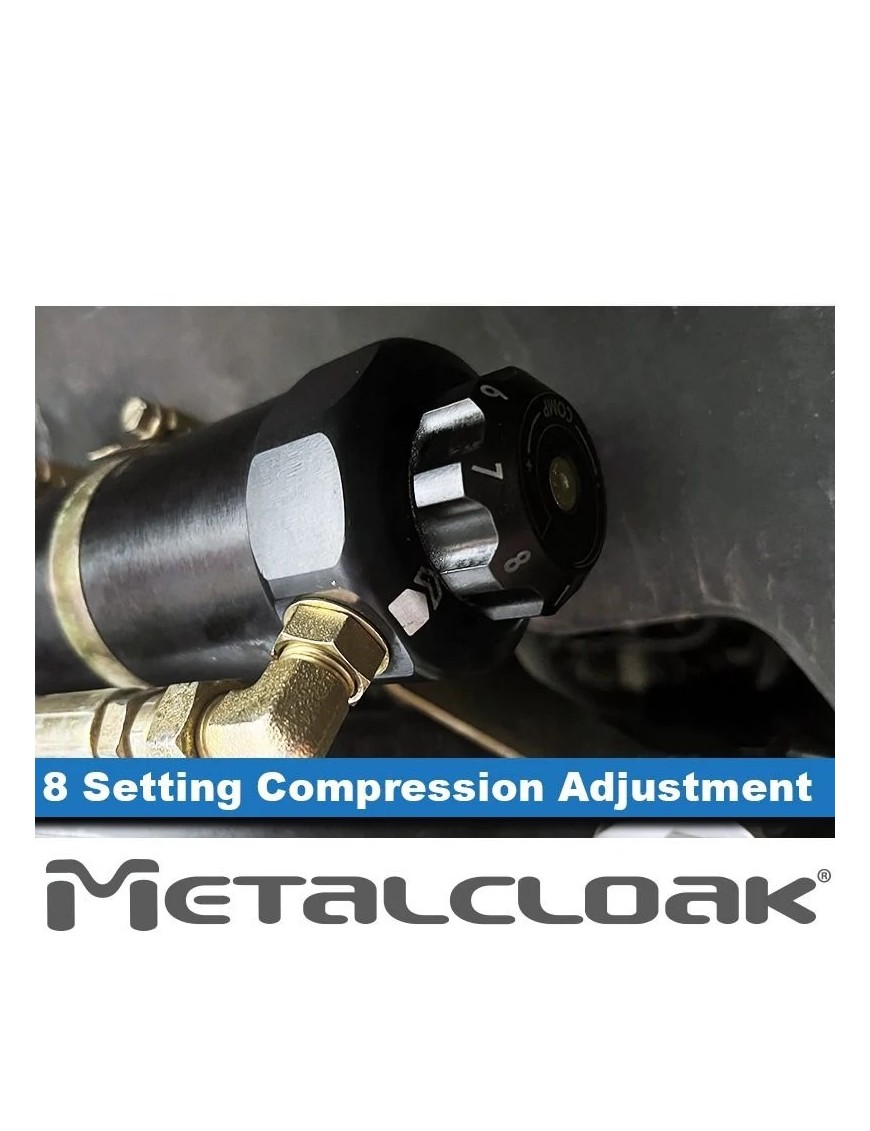

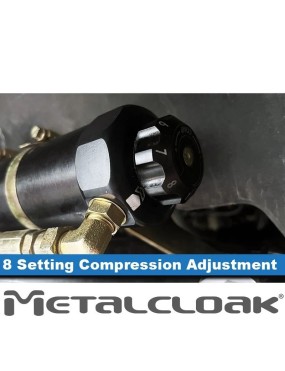

8-position compression adjustment
A large numbered billet adjuster offers eight compression settings. MetalCloak states that each click adds 15% compression force, allowing the shock response to be tailored for different vehicle setups and driving conditions.
The external adjustment is specified for compression. An independently adjustable external rebound control is not listed for this model.

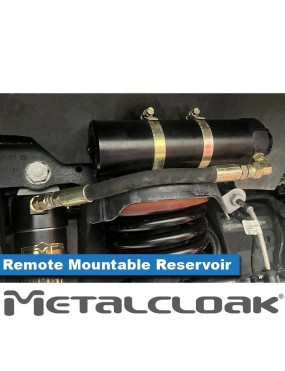

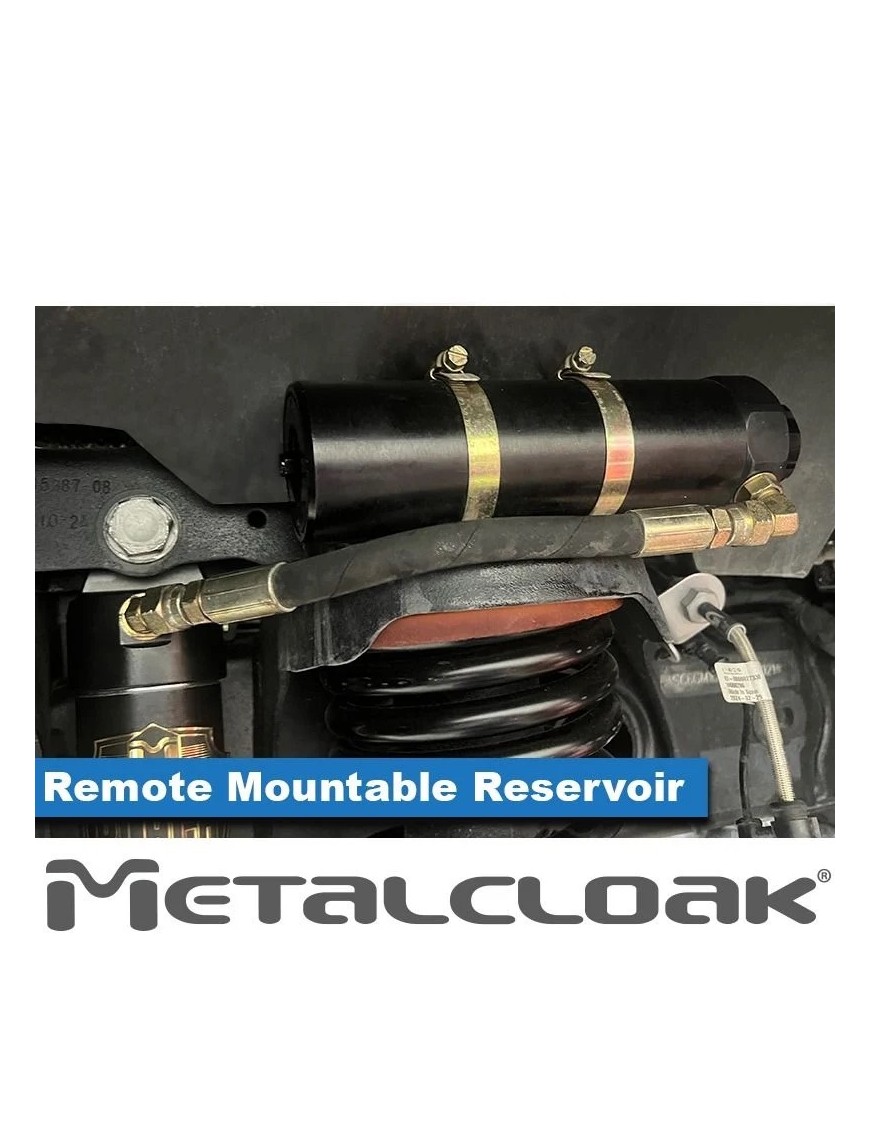

Remote-reservoir construction

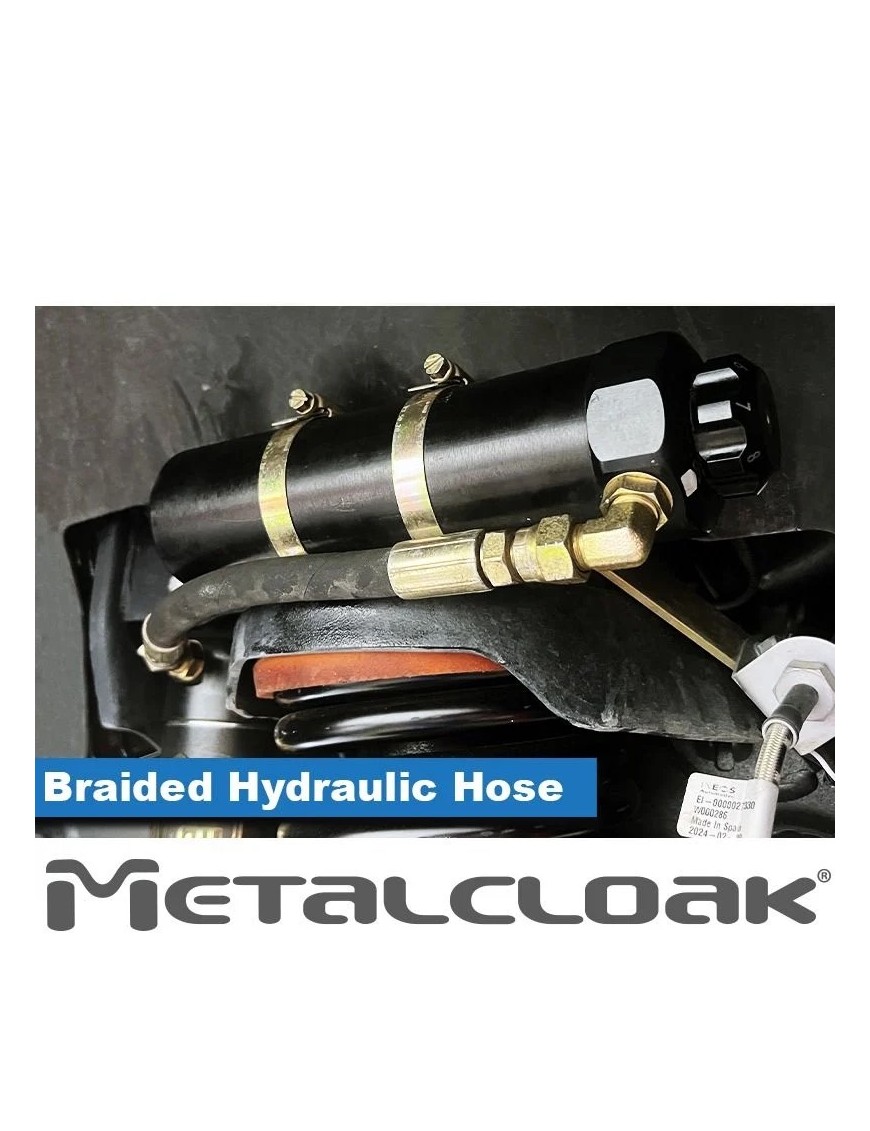

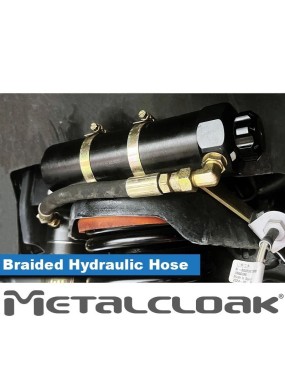

The 2.5-inch aluminum body uses a 3/16-inch wall. Its remote reservoir is connected through a stainless-steel braided, synthetic-lined hydraulic hose with a stated working-pressure rating of 3,000 psi.
The piston has nine fluid ports – six for compression and three for rebound – and uses a Mil-Spec Type III Clear HARD Anodize finish. A triple-seal pack helps isolate the shock oil from contamination, while the removable Bump Cap provides access to the seal assembly for servicing.

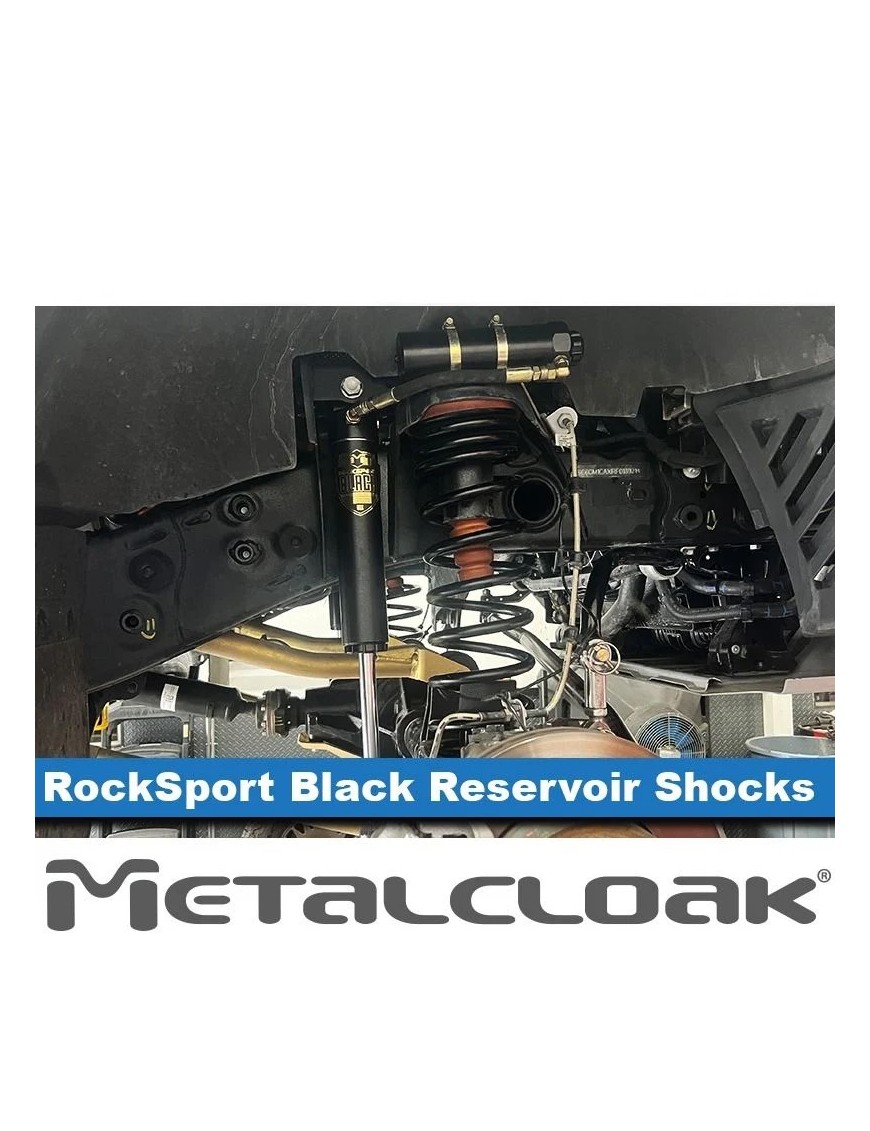

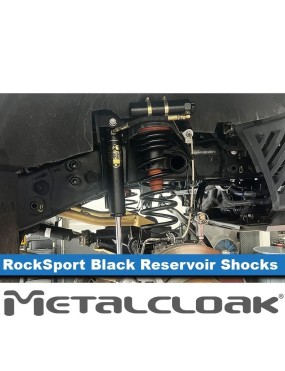

INEOS Grenadier fitment
MetalCloak lists compatibility with the 2022–Current INEOS Grenadier and describes the application as a direct fit using model-specific mounting hardware. Because these are large-body 2.5-inch shocks, full suspension travel and clearance should still be checked. Depending on the vehicle setup, bump-stop configuration, wheel backspacing and brake-component clearance may need to be considered.
Technical specifications
| Specification | Value |
|---|
| Brand | MetalCloak |
| Series | RockSport BLACK 2.5 |
| Product Code | 1700 |
| Application | Front, INEOS Grenadier |
| Quantity | Pair / 2 shocks |
| Adjustment | 8 compression settings |
| Shock body | 2.5-inch aluminum, 3/16-inch wall |
| Shaft | 7/8-inch, Rockwell C 60+, hard chrome |
| Extended length | 24.5 in |
| Collapsed length | 15.1 in |
| Reservoir mount | 1/8-inch hot-rolled steel |
| Shock mount | 3/16-inch hot-rolled steel |
| Finish | HARD Black Anodize / Gold Zinc |

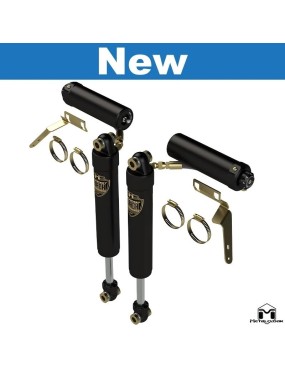

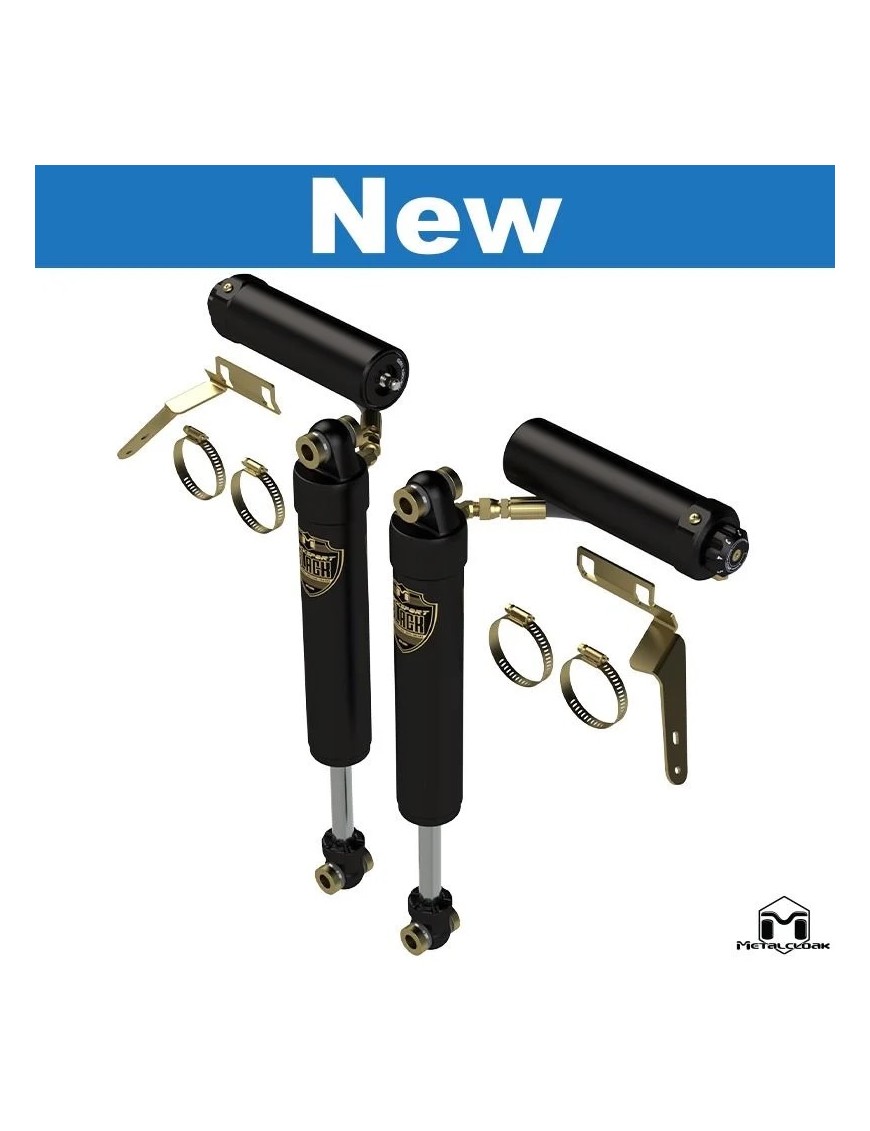

What's included?
- two front RockSport reservoir shocks,
- hose clamps,
- reservoir mounts,
- required installation hardware listed by MetalCloak.
Installation
MetalCloak lists the installation as requiring no body modification and estimates 1–2 hours. The complete suspension configuration and available clearances should nevertheless be verified before installation, particularly at full compression and full droop.
Manufacturer warranty
MetalCloak's current warranty policy covers defects in materials and workmanship for one year for the original purchaser. Shocks are also treated as wear components, so normal damping deterioration, wear and damage caused by impact or abuse are excluded from defect coverage.
Frequently asked questions
Does Product Code 1700 include two shocks?
Yes. It is the front pair.
Is rebound externally adjustable?
MetalCloak specifies 8-position external compression adjustment. A separate external rebound adjuster is not listed.
What is the shock travel?
MetalCloak lists 11.3 inches of travel, but this conflicts mathematically with the stated 24.5-inch extended and 15.1-inch collapsed lengths. The travel specification should therefore be confirmed before it is used for suspension-clearance calculations.
