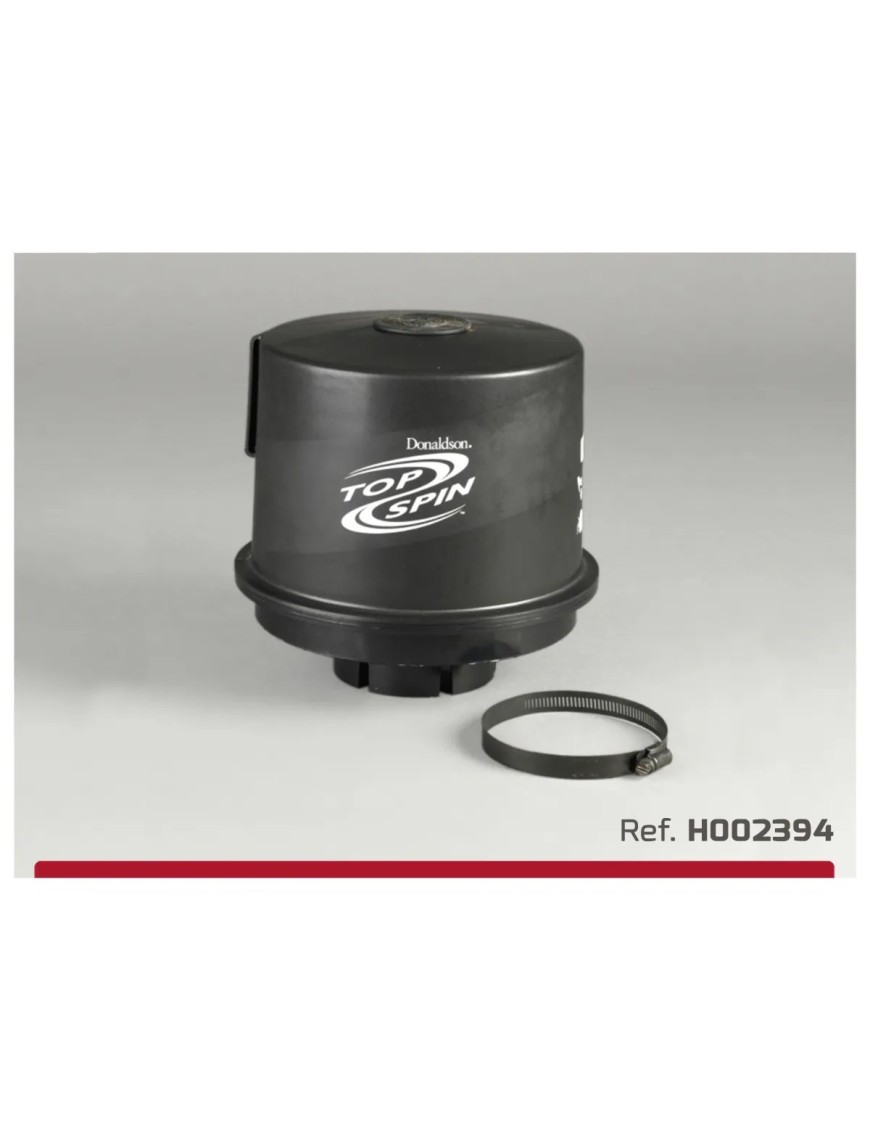

Donaldson TopSpin Cyclone 102 mm

Donaldson TopSpin Cyclone 102 mm – 4x4 Snorkel Pre-Cleaner

Donaldson TopSpin Cyclone 102 mm is a professional cyclone pre-cleaner developed for demanding off-road environments. It improves air intake protection by separating dust, sand, and debris before they reach the main air filter.

This solution is ideal for 4x4, expedition, and utility vehicles operating on gravel roads, desert tracks, forestry routes, or construction sites. The internal cyclone turbine efficiently removes contaminants from incoming air, helping maintain better airflow and reducing filter contamination in harsh conditions.

Key Features

• Diameter: 102 mm / 4"
• Airflow capacity: 13 m³/min
• Part number: H002394
• Efficiency: 99% contaminant separation according to ISO 5011 / SAE J726
• Design: internal cyclone turbine for improved dust separation
• Dust bowl: self-cleaning construction
• Pre-cleaner: removable for easy maintenance
• Construction: reinforced plastic and steel components
• Warranty: 5 years

What’s Included

• Donaldson TopSpin Cyclone 102 mm head
• 102–89 mm adapter
• Stainless steel clamp

Application

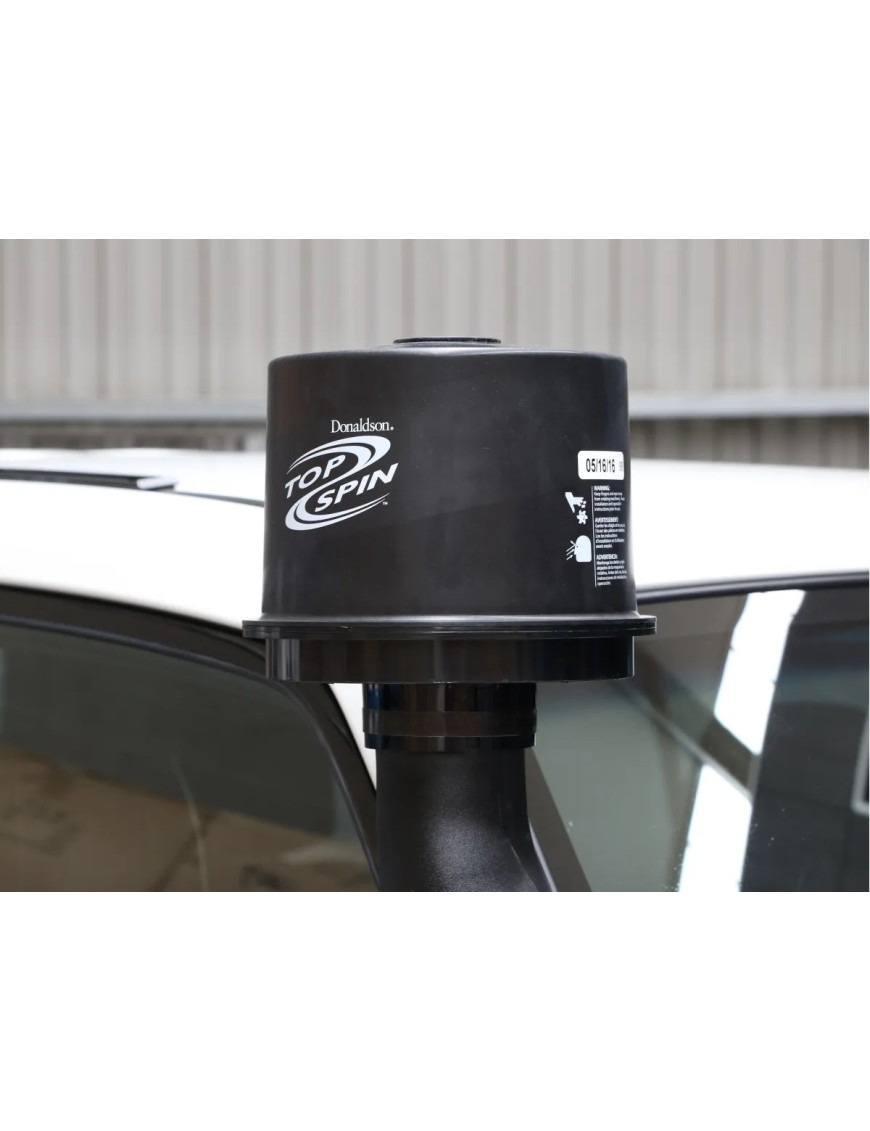

Designed for snorkels and air intake systems requiring a 102 mm cyclone head. Vehicle compatibility depends on snorkel configuration, intake diameter, and installation setup.

Who Is It For?

The Donaldson TopSpin Cyclone 102 mm is a practical upgrade for drivers who need additional air filtration protection in dusty and sandy terrain. It is well suited for overland travel, heavy-duty off-road driving, and utility applications where engine intake systems are exposed to harsh environments.
